INSTALLATION &

OPERATING MANUAL

Wireless Network Video Recorder

NVR-2028

Before trying to connect or operate this product, please read this manual completely

SAFETY PRECAUTIONS

All the following safety and operated instructions which will prevent harm or damage to the operator

and other persons should be read before the unit is operated.

WARNING

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

Do not block ventilation openings.

Do not place anything on top of the unit that might spill or fall into it.

Do not attempt to service this unit yourself as opening or removing covers may expose you

to dangerous voltage or other hazards. Please refer all servicing to qualified service

personnel.

Do not use liquid cleaners or aerosols for cleaning.

This installation should be by a qualified service person and should conform to all local

codes.

To prevent fire or electric shock, do not overload wall outlets or extension cord.

This unit must be grounded to reduce the risk of electric shock hazard.

CAUTION

Danger of explosion if the Lithium battery (RTC Battery) is incorrectly replaced.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or

equivalent type recommended by the manufacturer. Dispose of used batteries

according to the manufacturer’s instructions.

Risk of explosion if replaced by an incorrect type. Dispose of used batteries according to the

instructions.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own expense.

Table Of Contents

1. PRODUCT FEATURES .................................................................................................. 4

1.1 Product Introduction ..................................................................................................................4

1.2 Product Features ........................................................................................................................4

2. DESCRIPTION OF THE FRONT/REAR VIEW............................................................... 6

2.1 Front View..................................................................................................................................6

2.2 Rear View ...................................................................................................................................9

2.3 ALARM In/Out .........................................................................................................................10

3. INSTALLATION ............................................................................................................ 11

3.1 Basic Connection .....................................................................................................................11

3.2 Hard-Disk Drive Installation ...................................................................................................13

3.3 System Information ..................................................................................................................14

3.4 Updating System Software .......................................................................................................15

4. BASIC OPERATIONS .................................................................................................. 16

4.1 Configuring Recording Settings............................................................................................... 16

4.2 Recording Operations ..............................................................................................................17

4.3 Playback Operations................................................................................................................24

4.4 Search Operations....................................................................................................................26

4.5 Backup Operations................................................................................................................... 29

4.6 Key Lock Operation ................................................................................................................. 32

5. MENU SETUP .............................................................................................................. 33

5.1 LAN CAMERA SETTING......................................................................................................... 34

5.2 REC SETTING .........................................................................................................................40

5.3 CLOCK / TIMER / SEQ SETTING ..........................................................................................41

5.4 ALARM SETTING ....................................................................................................................42

5.5 COMMUNICATION ................................................................................................................43

5.6 DISK SETTING........................................................................................................................ 49

5.7 SYSTEM SETTING................................................................................................................... 50

6. IDE HARD DISK INSTALLATION ................................................................................ 53

6.1 Built-in hard disk......................................................................................................................53

6.2 Mobile Rack .............................................................................................................................54

7. O.S.D MESSAGE ......................................................................................................... 57

8. INDEX TABLE .............................................................................................................. 58

9. WIRELESS NETWORK CONFIGURATION................................................................. 59

9.1 Configure Your NVR-2028 Network Settings ...........................................................................59

9.2 TCP/IP Communication Software ............................................................................................61

9.3 TCP/IP installation ..................................................................................................................62

9.4 TCP/IP Configuration setting ..................................................................................................62

9.5 Connection Testing...................................................................................................................63

10. NETWORK VIEWER AND IMAGE VIEWER.............................................................. 65

10.1 The Network Viewer ...............................................................................................................65

10.2 The Image Viewer................................................................................................................... 75

11. MICROSOFT INTERNET EXPLORER ....................................................................... 76

11.1 Connecting the NVR ...............................................................................................................76

11.2 Change LANCAM SETUP Setting.......................................................................................... 79

11.3 Change Record / Alarm Setting..............................................................................................80

11.4 Change Schedule Setting ........................................................................................................81

11.5 Change Wireless Setting......................................................................................................... 82

12. SPECIFICATIONS ...................................................................................................... 83

APPENDIX 1. –SCANIP................................................................................................... 84

APPENDIX 2. –RS-232 PROTOCOL ............................................................................... 87

1. Setup...........................................................................................................................................87

2. Communication Protocol ...........................................................................................................87

3. Command Types ......................................................................................................................... 88

1. PRODUCT FEATURES

1.1 Product Introduction

The WIRELESS NVR-2028 is a storage media of digital video image, which uses hard disk drives

instead of NAS devices to store video. This wireless storage media provides the user with the power

of remote control of the Internet. It’s an extremely stable and reliable device because it is a

stand-alone system. Its local operations are very similar to the DVR’s interface; hence if the user is

familiar with the DVR s/he will find this media to be most convenient. You don’t need to design any

analog lines yourself, just use the current existing wireless network function since the device is a

digital one. Again, where the NVR-2028 is an active device, which automatically, instantly and

directly detects all events without having to detour via the LAN Camera.

Additionally, with the NVR-2028 you don’t have to rely on a PC to save any images, because this

device has done so already, being the best possible storage media for the LAN Camera.

The device additionally hosts a wireless access point (AP), so you can transmit data without a

connecting cable. If, for example, you don’t want to use a connecting cable in an old building that is

within your surveillance system, you can use the wireless NVR-2028 instead. The same applies

equally to other sites you’re covering.

The wireless NVR-2028 also has the NAT function to enable direct access to the Internet. Inside the

device is a Router, so you don’t need to buy one as well.

1.2 Product Features

＊ Wireless access, complies with IEEE 802.11g/b.

＊ Digital recorder for LAN the Camera.

＊ Maximum link-up of 8 LAN Cameras.

＊ Zoom in/out available for every LAN Camera.

＊ Compression method: MJPEG.

＊ Maximum 2 hard-disk drive capability. (One removable)

＊ Hard-disk drive hot-swapping capability.

＊ Pre-alarm image recording.

＊ Capable of backup with various known FTP server.

＊ Time-lapse and real-time recording.

＊ Refresh rate up to 30 IPS (25 IPS for PAL).

＊ Alarm I/O.

＊ Image quality selectable at 5 different levels for recording.

＊ Event/Timer/Alarm recording mode.

＊ Quick search by time, alarm, event, and recording list.

＊ Fast and slow playback of recorded video at various speeds.

＊ Single-picture playback.

＊ On-screen setup menu, title and system timer.

＊ Password protection.

＊ Motion detection: user can select the range and 5 levels of sensitivity of detection.

＊ Automatic search of all available LAN camera within the Ethernet.

＊ Disk-full warning and operation status LEDs.

＊ RS-232 communication port.

＊ Remote control via RS-232 and Ethernet ports

＊ Power interruption recovery.

＊ High stability and reliability.

＊ Operation-status record log.

＊ Distribution of live and recorded images throughout the TCP/IP network environment.

＊ Powerful PC software.

＊ Web browser: IE.

＊ Audio function included.

＊ Built-in SD card slot for copying image to SD card.

＊ Supports the DHCP protocol.

＊ Optional 10DB corner antenna.

2. DESCRIPTION OF THE FRONT/REAR VIEW

2.1 Front View

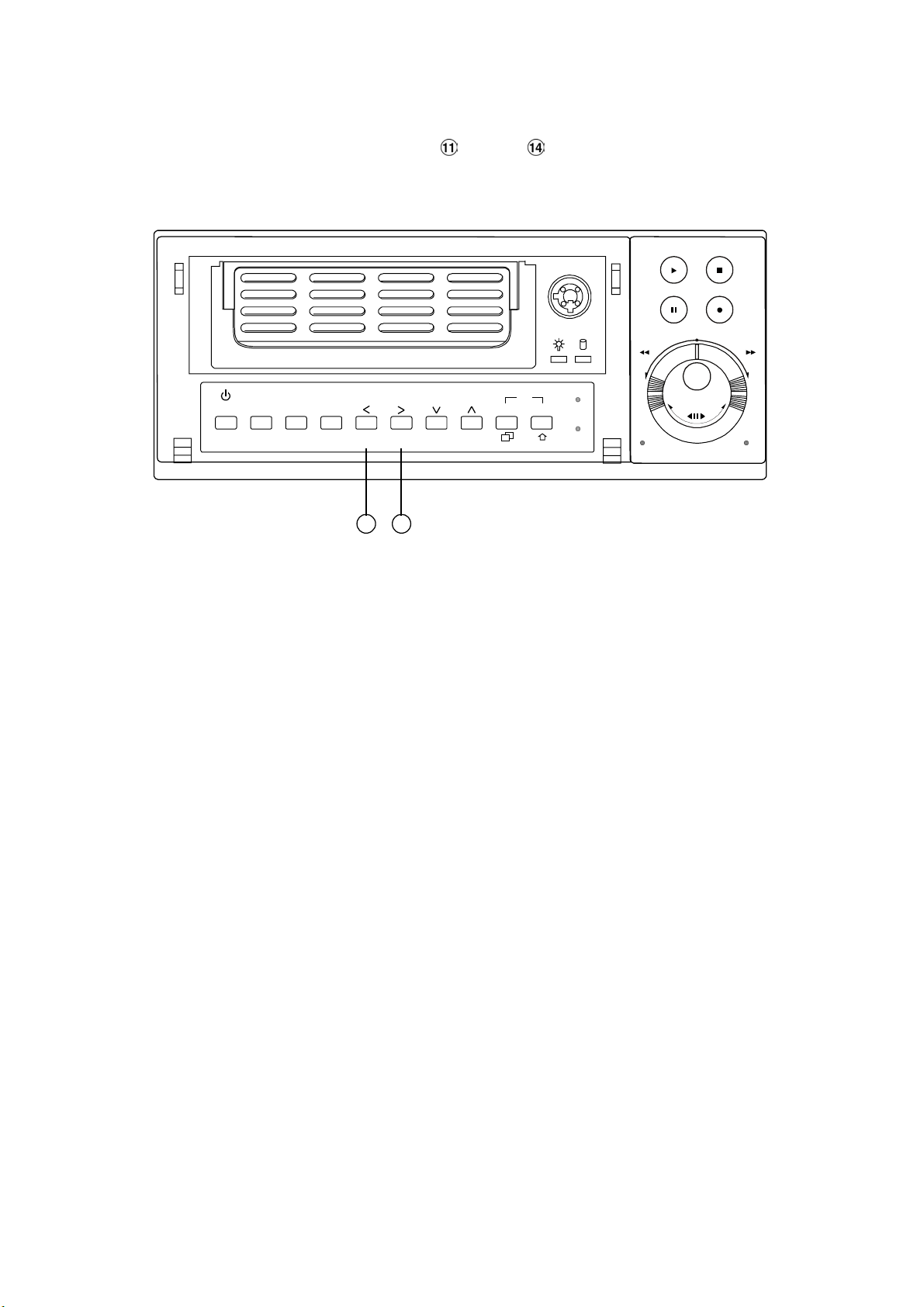

1 3 4 5 6

Power Display

Save

Setup

CH1

CH2

CH5

CH6

CH4

CH3

CH8

CH7

Enter

Seq.

7 8 9 10 11 14 13 12 15 16 17 18 19 20 21 22

Shift

223 24

A-recSearch

T-rec

PLAY

PAUSE

STOP

REC

FWDREV

POWERDISK

Hard-disk drive compartment:

The compartment allows you to install a hard disk drive mostly for backup purposes. Make sure the

drive is well secured with the mounting screws in the mobile rack before you put the rack into the

compartment. And remember to turn on the power of the compartment by locking it.

Hard disk compartment lock:

The key lock secures a hard disk in place. Unlock the compartment before you remove the hard

disk from the slot without turning off the device.

PAU SE button:

In a playback display, press this to freeze the display. During the freeze, press to display one

frame/field of a picture at a time in the forward direction. (Illuminate green in PAUSE mode.)

PLAY button:

Press to play back a recorded video from the hard disk. (Illuminate green in PLAY mode.)

STOP button:

Press to stop playing back a recorded video or recording video into a hard disk. (Illuminate green

in STOP mode.)

REC button:

Push to start recording video into a hard disk while in the live display mode. (Illuminate red in REC

mode.)

POWER button:

Press this button for at least 3 seconds to power off. Press again to activate the device.

DISPLAY button:

Press to show the system operation status on the screen.

In the LANCAM SETTING mode, use these buttons to display the desired LAN Camera image on the

screen.

Setup/Save button:

Press this to enter the setup menu. Press again to exit the setup mode.

In SD card backup mode, press to save the desired still image to SD card.

Search button:

Press to enter the search mode to access recorded video.

In the LANCAM SETTING mode, use these buttons to search for the desired LAN Camera in the

LAN.

Left / Right (CH1-CH5 / CH2-CH6 ) buttons:

In setup menu/ search mode, press these two buttons to highlight desired items in the menu setup

mode.

In the live mode, press

display. In order to display channel 5 or 6, please press Shift button while pushing

buttons respectively to see the selected channel.

In the play mode, press

small-screen display, next as a full-screen display. Similarly, in order to display channel 5 or 6 in

the play mode, press Shift button while pushing

selected channel, first as a zoom-in, small-screen display, and next in a full-screen view.

Up / Down ( CH4-CH8 / CH3-CH7 )buttons:

In setup menu/ search mode, press these two buttons to select the desired contents for

programming in the setup menu mode.

In the live mode, press

display. In order to display channel 8 or 7, please press Shift button while pushing

buttons respectively to see the selected channel.

In the play mode, press

small-screen display, next as a full-screen display. Similarly, in order to display channel 8 or 7 in

the play mode, press Shift button while pushing

selected channel, first as a zoom-in, small-screen display, and next in a full-screen view.

or buttons to select channel 1 or 2 respectively to get a full-screen

or buttons to see channel 1 or 2 respectively, first as a zoom -in,

or buttons respectively to see the

or buttons to select channel 4 or 3 respectively to get a full-screen

or buttons to see channel 4 or 3 respectively, first as a zoom -in,

or buttons respectively to see the

Enter Button:

Press to enter a selected item and save the setting in the menu setup mode.

In the live or play mode, this button enables the user to access the multiple-channel screen display.

Pressing this button repeatedly will enable a sequential display in the following order: first, a

quad-mode display of channels 1-4, and then, 5-8, and a multiple-channel display of channels 1-8,

in succession.

Shift button:

Press Shift button while pushing either the Left / Right buttons, or the Up / Down buttons, to see

any corresponding channel between channels 5-8.

Press Shift and Enter buttons simultaneously for a sequential display in the exact same order

given above. (please refer to the “NOTE” given below)

T-rec Indicator:

This indicator of the timer recording mode lights up to signal the scheduled record setting is on.

A-rec Indicator:

This indicator of the alarm recording mode lights up to indicate the alarm record setting is on.

DISK Indicator:

The indicator shows the operation status of the unit’s hard-disk drives. The green light indicates the

hard-disk drive is storing or retrieving data. The red light signals the hard-disk drive is filling up. The

orange light indicates the hard-disk is retrieving at disk-full status.

Shuttle Ring:

The shuttle can be moved forward and backward for playback in either direction. Turn this left to

play a recorded video in the reverse direction at faster or slower speeds than the recorded speed.

Turn this right to play a recorded video in the forward direction at faster or slower speeds than the

recorded speed.

Jog Dial:

This dial can act in both a forward and a backward direction, as well as step by step. Turn this left

to play a recorded video in the reverse direction. Turn this right to play a recorded video in the

forward direction.

POWER Indicator:

Indicates the power status of the unit. The green light indicates the hard disk drive is

activating. The

orange light signals the hard disk drive is power stand by.

Mobile Rack Power LED:

Indicates the power status of the Mobile Rack. The green light indicates the Mobile Rack is

activating.

Mobile Rack HDD LED:

Indicates the HDD status of the Mobile Rack. The orange light indicates the HDD is storing or

retrieving data.

NOTE: Press “ Enter ” and “ Shift ” simultaneously in order to view all the channels, one by

one, in sequential single-channel succession, followed by an 8-channel display, a

quad-mode display of channels 1-4, and channels 5-8, and then a multiple-channel

viewing, after which you have this exact same sequential order of display indefinitely.

2.2 Rear View

25263534 27

SD Card

ANT

RS-232

ALARM

I/O

DC12V

WAN LAN

MONITOR AUDIO

29 30 31 32 33

ANTENNA: This is one standard wireless access, complies with IEEE 802.11g/b.

SD CARD Slot: This is used for system software updating and archiving/accessing critical images.

RS-232 Port: The RS-232 communication port functions as a connector to an external control device.

Please refer to APPENDIX 2 for more details.

MONITOR Connector: The connector provides the unit’s composite video live signal if connected to a

display device.

AUDIO OUT: This provides the unit’s audio signal to a speaker.

ALARM I/O: This is a 9-PIN D-SUB connector including GROUND, ALARM OUT, DISK FULL, and

RECORD IN for connecting with external devices. Please refer to the next section for details.

Wire Catch: The wire catch secures the power cord and keeps it in place (so that it does not droop or

hang loosely).

Ground Screw’s: The ground screw is for chassis terminal.

Plug Inlet: The inlet connects to an external power supply. Connect 12 V DC UL Listed Class 2 Power

Supply.

WAN PORT: The WAN port is linked with DSL/Cable modem’s cable to the Internet.

LAN PORT: The LAN port connects you to the local network.

2.3 ALARM In/Out

DISK FULL

NO CONNECTION

ALARM OUT

RECORD IN GROUND

12345

6789

NO CONNECTION

THIS FIGURE IS LOOKED FROM THE REAR VIEW

1. GND: Ground Contact.

2. ALARM OUT (OUTPUT): This is an alarm output trigger. Connect this to external devices such as

buzzers or lights. (

3. DISK FULL (OUTPUT): This is a disk full output trigger. Connect this to external devices such as

buzzers or lights. (

4. NO CONNECTION

5. RECORD IN (INPUT): This pin connects to a record trigger device for starting a record.

0V(Active)

(

6. NO CONNECTION

7. NO CONNECTION

8. NO CONNECTION

9. NO CONNECTION

)

0V(Active)

)

3. INSTALLATION

3.1 Basic Connection

Please follow the instructions below to connect your WIRELESS NVR-2028 to a LANCAM or a

computer and to choose a mode for connections.

3.1.1 Use a RS-232 cable to install a wireless setting in a LANCAM

Use a RS-232 cable to connect a wireless LANCAM.

NVR

WAN LAN

AUDIOMONITOR

ANT

SD Card

RS-232

ALARM

I/O

DC12V

I/O

ANT

RS-232 cable

DC 5V

VIDEO

wireless Lancam

1. Set up all components to both the NVR and LANCAM.

(Screw up the antenna to both the NVR and LANCAM. Screw up the Lens every LANCAM.)

2. Connect the Monitor to the NVR with a BNC cable.

3. Power on the NVR: plug the NVR power cord into the outlet.

4. Power on every LANCAM: plug every LANCAM power cord into the outlet. Make sure the NVR

must power on first before this procedure.

5. Register LANCAM to the NVR:

i. Connect the NVR and one of the LANCAMs by the RS-232 cable.

ii. Press the Setup button to enter the "MAIN MENU" page.

iii. Select the item titled “COMMUNICATION” and presses the Enter button to access the

"COMM. SETTING" page.

iv. Select the item termed "WIRELESS" and push Enter twice to access the "WIRELESS

SETTING" page.

v. Choose the item labeled "OPERATION" and press Enter twice to go to the

"OPERATIONAL SETTING" page.

vi. Select the item titled "ESSID" and push "Enter" twice to get into the "ESSID SETTING"

page.

vii. Give "ESSID" your local wireless network name, and use the "<", ">", "^" and "v" buttons

to change the existing letters to your network name.

viii. Press Enter, select "OK" and go to the "WIRELESS PAGE".

ix. Push Enter to access the "WIRELESS SETTING" page and go to the item termed

"LANCAM SETUP".

x. Press Enter, choose "RS-232" and push Enter again, upon which the terms "Waiting"

and "SETUP OK" will flash on at the bottom of the screen.

xi. Push the Setup button to save the setup data.

xii. When the words "WAITING" flash on and off at the bottom of the screen, if the screen

goes blank, you can press the "Power" button to close the device and press it again to

resume its operation.

6. Go to the IP/ACCOUNT option on the LANCAM SETUP page in the NVR setup menu. Choose

any channel between 1 to 8 channels to set up the LANCAM IP address. Push the Search

button to find all LANCAM IP addresses and push the Enter button to choose one of them to

set the channel. Repeat step 6 to set each LANCAM IP address.

NOTE: You need to use an RS-232 cable enclosed in our package and not any other cable,

or an error may happen.

NOTE: Once the LANCAM power cord is plugged into the outlet, it will scan the AP or NVR

device automatically and obtain an IP address from a DHCP server. This action will

continue until a DHCP server is found. If the LANCAM cannot find it after two minutes,

its IP address will change to static IP mode as 192. 168. 1. 168. The user can push the

DHCP DIP switch on the side of the LANCAM down and up once to reset the static IP

to dynamic IP (DHCP client).

NOTE: If the DHCP server of the NVR-2028 is activated, the default NVR IP address is set as

192. 168. 1. 205.

3.1.2 The Wireless Network Structure of the NVR and Its LANCAMs

The illustration below shows the wireless network of a WIRELESS NVR-2028 device connected with its

LANCAM client units, whose maximum number is eight.

IRIS

1. AES

IRIS

1. AES

2. DC IRIS

3. DHCP

4. STATIC IP

ALC

POWER LAN

wireless Lancam

2. DC IRIS

3. DHCP

4. STATIC IP

ALC

POWER LAN

wireless Lancam

(UP TO 8 WIRELESS LANCAMS CONNECTION)

Audio in

Video in

WAN LAN

AUDIOMONITOR

ANT

SD Card

RS-232

I/O

ALARM

Monitor NVR

SD card

wireless Lancam

DC12V

3.2 Hard-Disk Drive Installation

The WIRELESS NVR-2028 is equipped with two compartments of hard disk drive. The unit usually

comes with one hard-disk drive installed in the compartment HD1, which is default-configured as a

master. If you need a second hard-disk drive to be installed in the compartment HD2 (Mobile), please

contact your distributors or installers for specific instructions on how to install it. Please don’t serve

yourself before consulting your installers. If there is only one hard-disk drive in the mobile compartment,

please set the HD2 USAGE option to REC (Please refer to section 5.6) before proceed recording

function. The jumper-settings arrangement of installed hard-disk drives for the system (Table 3.2 A.) is

shown in the tables below.

Table 3.2 A. The jumper settings of hard disk drives in the system

Location Jumper

IDE 1 Compartment HD 1 Master (Default)

IDE 2 Compartment HD 2 Master

Manufacturer Model Capacity Rotation

Western Digital

Seagate

Maxtor

SAMSUNG

Table 3.2 B. Compatible hard-disk drives

WD800AB 80GB 5400 RPM

WD1200AB 120GB 5400 RPM

WD800BB 80GB 7200 RPM

WD1200BB 120GB 7200 RPM

WD1800BB 180GB 7200 RPM

WD2000BB 200GB 7200 RPM

WD2500JB 250GB 7200 RPM

ST380020A/P 80GB 5400 RPM

ST340810A/P 40GB 5400 RPM

ST320014A 20GB 5400 RPM

ST340015A 40GB 5400 RPM

ST380012ACE 80GB 5400 RPM

ST3120025ACE 120GB 5400 RPM

4A160J0-1A 160GB 5400 RPM

4R080L0-1 80GB 5400 RPM

6Y120L0-1 120GB 7200 RPM

6Y200P0-1A 200GB 7200 RPM

6Y250P0-1A 250GB 7200 RPM

SV0802N 80GB 5400 RPM

SV1203N 120GB 5400 RPM

NOTE: Hard-disk drives not shown on this list have not been tested by the engineering team

and are not recommended for use with this product. For the latest updated list on the

recommended hard disk drives, please contact your dealers or distributors.

3.3 System Information

You can display system settings information as shown on Table 3.3 A below at any time by pressing the Display button

recording mode, the Manual Recording information is displayed. Each sequential press of the Display button

displays a different message detailed in the following example. By default, the unit displays

time, date, and an indicating bar of capacity status on a monitor as shown next.

Default display

. In the playback mode, the recorded video information is displayed. In the live or

CAM1 CAM2

CAM3 CAM4 CAM5 CAM6

CAM7 CAM8

04-09-2003 12:48:19

Press the Display button display. Press the Display button

once; the NVR will display the following sample message plus the default

again; the unit will not display any OSD message. Press the

button one more time to back to the default display.

Table 3.3 A. Description of Table 3.3 A

CH LANCAM IP X

1 192.168.001.250 LIVE

2 192.168.001.020 LIVE

3 192.168.001.030

- - -

4 192.168.001.040 OFF

5 192.168.001.050 OFF

6 192.168.001.060 OFF

7 192.168.001.070 OFF

8 192.168.001.080 OFF

IP : 192.168.001.205 DHCP:OFF NTSC

HD SIZE POS

1 20 G 39.5% R 11 HR (HD1)

2 39 G 0.0% P

04-09-2003 12:48:19

(CH): Channel

(LANCAM IP): LAN Camera IP address

(LIVE): The LAN Camera activated

(OFF): The LAN Camera inactivated

(19): The channel current display speed rate, 19 images/sec

):Disconnection; ( ):Alarm; ( ):login error;

(

):motion; ( ):Audio; ( ):Timer

(

(227K): The LAN Camera bandwidth (LANCAM IP : 192 . 168 . 001 . 205): Setting of the Ethernet

communication,192.168.001.205

(DHCP:OFF): Only use manual setup IP address (NTSC): NTSC system

( ): Indicate which HDD is activated

(HD): Hard disk Compartment

(SIZE 20G): The capacity of the installed hard disk

(POS): Percentage of system; R: Recording; P: Playback

11 HR (HD1): Per minute change showing the total recording

time.

X): Cannot operate at now

(

3.4 Updating System Software

If the system software of the NVR needs to be upgraded, please take the following steps to safely

update it.

Important: Before carrying out the following procedures, please ensure the SD card is working

and the file of system software is intact

1. Create a directory named NVRVIDEO in the SD Card; if the directory is already existed, move to

Step2.

2. Copy the file of MULTI.BIN to the NVRVIDEO-directory.

3. If wireless NVR-2028 is running, please turn off wireless NVR first.

4. Insert the SD card into the built-in SD slot of the unit.

5. Hold down the

Up and Down buttons simultaneously, and then turn on the unit.

6. Keep holding down the buttons until the NVR sounds a tone and display the message “ XXXXXX

BYTES READ” Now the NVR is updating the system software, which will take approximately 60

seconds to process.

7. Restart the unit when the device sounds a tone twice and displays the messages “PROGRAMMING

END” and “ PLEASE RESTART”. The process is complete.

(If you have already followed the procedure 1~5. the unit, however, not being able to power on.

Please first check if the SD card you are using is functioning and the file is intact. And then start

procedures 1 ~ 5 all over again.)

8. Verify the version of the system software. (Please refer to section 5.7 VERSION option)

PLAY

STOP

PAUSE

REC

FWDREV

Power Display

Save

Setup

CH1

CH2

CH5

CH6

CH4

CH3

CH8

CH7

Enter

Seq.

Shift

A-recSearch

T-rec

POWERDISK

13 12

Warning: Don’t Interrupt the process while the unit is updating itself and proceed with a

SD card containing with no system software of the unit, which would cause

the unit hang on.

4. BASIC OPERATIONS

This section shows you how to operate and manage the NVR when it gets in the way.

4.1 Configuring Recording Settings

Recording Time settings (Image Resolution and Image Quality Setting)

Recording time will vary depending on the image size, quality, and the capacity of the hard-disk drives.

Generally, the NVR comes with a built-in hard-disk drive for continuous recording under most recording

conditions. The table below shows the possible recording times based on a 20GB hard-disk drive at

certain refresh rates and the corresponding image quality. With one or more hard-disk drive(s) in

operation, please calculate the recording time using the table below in accordance with your requirement.

For example, if the unit is set to record images with HIGHEST quality at a 352 X 240 resolution, and

normally a 20GB hard-disk drive will be filled in 13 hours (See the gray area in the table). If the total

capacity of 80GB hard-disk drives is in use under the same refresh rate, image resolution and image

quality, it will be filled in 52 hours (4 times the rate of a 20GB hard-disk drive).

( 352 X 240 )

Audio OFF Possible Recording Time HDD=20GB ( hour )

HIGHEST 13 19 37


Quality

efresh Rate ( Image/Sec ) 30 20 10

EC Time Mode 2 hr 4 hr 6 hr

HIGH 18 25 52

MEDIUM 24 32 66

LOW 29 44 81

LOWEST

43 66 137

( 720 X 480 )

Audio OFF Possible Recording Time HDD=20GB ( hour )

HIGHEST 11 18


Quality

efresh Rate ( Image/Sec ) 30 20 10

EC Time Mode 2 hr 4 hr 6 hr

HIGH 13 24

MEDIUM 17 31

LOW 23 48

LOWEST

39 76

NOTE: Recording times on the tables above are estimated. For actual available recording

time of a recording configuration, please refer to the system information of the NVR.

(Please refer to section 3.3 system information for more details.)

4.2 Recording Operations

This section details the way to record video into hard-disk drives. Before commencing with the recording

function, please configure the recording setting properly according to your needs.

4.2.1 Manual Recording

When the NVR is in live display mode, take the following steps to start recording:

(1) In live display, press the REC button

corresponding programmed recording settings. The monitor should display a flashing REC

message and the REC button

(2) Press the STOP button

(3) To access just recorded video, please refer to section 4.4 for more details.

4.2.2 Timer Recording

Timer recording provides two periods of time each day in a weekly table which programs the NVR

to turn on and off at specified times. This way the NVR will start and stop recording according to

the programmed schedule. Please take the following steps to program the scheduled recording.

(1) Press the Setup button

(2) Select the CLOCK / TIMER / SEQ and press the Enter button

to record video into a hard disk drive with the

will light up indicating the NVR is in the recording status.

to stop recording any time.

to enter the MAIN MENU.

to enter the CLOCK /

TIMER / SEQ page.

(3) Select the TIMER－SET.

(4) Press the Enter button

(5) ● You can set up by using the “<” button

day/hour/minute and use the “

day/hour/minute you wish.

● You can also set up by using the Shuttle Ring and the Jog Dial.

button

and is the equal of the “v” button .

● The time is displayed in a 24-hour clock format.

(6) To activate the programmed recording schedule, set the TIMER ENABLE to ON. As the

scheduled recording is on, the red indicator of the Timer Record

deactivate it, set to OFF.

(7) After scheduling is completed, press the Enter button

select CANCEL to leave the page without saving the settings.

(8) Press the STOP button

continue the scheduled recording, press the REC button

, is the equal of the “>” button , is the equal of the “^” button

to enter the REC SCHEDULE table.

and the “>” button to locate the specific

^” button and the “v” button to set the

is the equal of the “<”

will be on as well. To

and set OK to save the setting or

during the scheduled recording to stop it at any time. If you wish to

to proceed.

NOTE: You can proceed to start the scheduled recording from the current time if it is in the

scheduled interlude as soon as setting is completed, and come out from menu to start

recording.

NOTE: If you activate the recording function before the scheduled recording, the unit will

operate recording as shown in the diagram below and keep those Images in different

files.

START END START END

03:00 06:00 08:00 12:00 14:00

Start Manual

Recording

Timer Manual Timer Manual

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO CLOCK/TIMER/SEQ PAGE

MAIN MENU

CLOCK SETTING : SET TIMER : SET SEQUENCER : SET

SET REC SCHEDULE

CLOCK / TIMER / SEQ

MAIN PAGE

MAIN MENU

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO CLOCK/TIMER/SEQ PAGE

CLOCK / TIMER / SEQ

CLOCK SETTING : SET TIMER : SET SEQUENCER : SET

MAIN PAGE

SET REC SCHEDULE

REC SCHEDULE

TIMER ENABLE: OFF

START END START END

S : 00:00-00:00 00:00-00:00 M: 00:00-00:00 00:00-00:00 T : 00:00-00:00 00:00-00:00 W: 00:00-00:00 00:00-00:00 T : 00:00-00:00 00:00-00:00 F : 00:00-00:00 00:00-00:00 S : 00:00-00:00 00:00-00:00

OK CANCEL

TO MOVE

TO CHANGE

REC SCHEDULE

TIMER ENABLE: ON

START END START END

S : 00:00-00:00 00:00-00:00 M: 00:00-00:00 00:00-00:00 T : 00:00-00:00 00:00-00:00 W: 00:00-00:00 00:00-00:00 T : 00:00-00:00 00:00-00:00 F : 00:00-00:00 00:00-00:00 S : 00:00-00:00 00:00-00:00

OK CANCEL

TO MOVE

TO CHANGE

4.2.3 Alarm Recording

Take the following steps to activate the programmed alarm recording. For ALM OPERATION,

ALM DURATION, MAX REC RATE, and PRE-ALARM settings, please refer to section 5.4 for

more details.

(1) Press the Setup button

(2) Select ALARM and press the Enter button

(3) Set the desired ALM DURATION and MAX REC RATE for use.

(4) To activate the alarm recording, set ALM OPERATION to ON. To deactivate it, set ALM

OPERATION to OFF.

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO ALARM PAGE

(5) To active the motion alarm recording, Select MOTION SETTING and press the Enter button

to enter the MOTION SETTING PAG E , s e t MOTION ENABLE TO ON, and set a suitable

SENSITIVITY and REGION according to the video sources. (Please refer to the next section

4.2.4)

MAIN MENU

to enter the MAIN MENU.

to enter the ALARM SETTING.

ALM OPERATION : ON ALM DURATION : 30 SEC MAX REC RATE : UNLIMIT PRE- ALARM : OFF

ALARM REC ENABLE

ALARM SETTING

MAIN PAGE

4.2.4 Motion Detection

Take the steps detailed below to activate a programmed motion detection. For MOTION

SETTING, as well as its two distinct functions of MOTION ENABLE and SENSITIVITY / REGION,

please refer to section 5.4 for further details.

(1) Press the Setup button

(2) Select the item termed "LAN CAMERA" and press the Enter button

LANCAM SETTING page.

(3) Select the item termed "MOTION" and push the Enter button

SETTING page.

(4) To activate the motion detection function, set "MOTION ENABLE" to "ON". To deactivate the

function, set "MOTION ENABLE" to " OFF" The items termed "OFF" and "ON" switch all the

channels in the MOTION ENABLE SETTING page off and on respectively as well. If you wish

to select individual channels for viewing, select the item termed " SET" and activates your

desired channels by pressing them "ON" while turning the rest "OFF". Confirm your choices

by pressing "OK". If not, push "CANCEL".

(5) In the MOTION SETTING page, select the entry termed "SENSITIVITY / REGION" and press

the “>” button

and the “v” button

set the channel in the SENSITIVITY / REGION SETTING page. Repeat the process for all

other channels you choose.

(6) To set "SENSITIVITY" and "REGION" for activation on the SENSITIVITY / REGION page,

to show all the channels in their order, each in turn. Use the “^” button

to enter the MAIN MENU.

to enter the

to enter the MOTION

to select a desired channel for setting. Press the Enter button and

choose your degree of sensitivity and then push the Enter button

"OK" and "CANCEL" appear at the bottom of the page. Now press the “<” button

“>” button

to confirm either "OK" or "CANCEL" respectively.

. At once the legends

and the



LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

LANCAM SETTING

MAIN MENU

LANCAM SETTING

IP/ACCOUNT : SET IMAGE : SET AUDIO ENABLE : OFF MOTION : SET

MAIN PAGE

MOTION SETTING

MOTION ENABLE : ON SENSITIVITY/REGION : CH1

LANCAM PAGE

SET MOTION ENABLE

MOTION ENABLE : ON SENSITIVITY/REGION : CH1

LANCAM PAGE

SET MOTION SENSITIVITY/REGION

MOTION SETTING

MOTION ENABLE : OFF

LANCAM PAGE

SET MOTION ENABLE

MOTION SETTING

SET

MOTION SETTING

MOTION ENABLE SENSITIVITY/REGION : CH1

LANCAM PAGE

SET MOTION OF CH5

CH2 CH3 CH4 CH5 CH6 CH7 CH8

MOTION ENABLE SETTING

CH1 CH2 CH3 CH4 ON ON ON ON

CH5 CH6 CH7 CH8

ON ON ON ON

SENSITIVITY / REGION SETTING

SENSITIVITY HIGHEST

REGION ( 30, 25 ) – ( 90, 70 )

OK CANCEL

4.2.5 Externally triggered Recording

By connecting the RECORD IN of ALARM I/O on the rear panel of the NVR, you can

activate/deactivate the recording function of a NVR. Please refer to section 2.3 for more details.

NOTE: The status of recording operations when an alarm takes place are shown in the

diagrams below.

Manual or Externally

Triggered Recording

Alarm Takes Place

Actual Recording

Speed

Normal Alarm Normal

Timer Recording

Alarm Takes Place

Actual Recording

Timer Recording

Alarm Takes Place

Actual Recording

Timer Recording

Alarm Takes Place

Actual Recording

Speed

Normal Alarm Normal

Normal Alarm

Alar

Normal

4.3 Playback Operations

This section shows you how to operate the fast, slow, and single-picture playback functions, and details

how the unit is to playback a file in a different operation status. Please refer to the following paragraphs

specifying the relevant details. When playing a file, the monitor should display a flashing PLAY

message and the PLAY button

Operation Status

A. From REC mode to Playback mode

(In live mode, directly press the PLAY button

REC→〔 STOP〕→ 〔 PLAY〕……………………………… Play the latest recorded file

〔Play to the end of the file〕…Show the ending message (use search functions or

rewind to replay the file if required)

will light up indicating that the NVR is in the playback status.

〔STOP〕→〔PLAY〕…………Play the file from the stop position

B. Search to play back a particular recorded video

Search→〔PLAY〕………………………………………… Play a selected file

〔Play to the end of the file〕…………Show the ending message (Search again or rewind to

replay the file if required)

〔STOP〕→〔PLAY〕…………………Play the file from the stop position

to play a latest recorded video)

4.3.1 Fast Forward/Reverse

There are 7 speeds available for playback: 1x, 2x, 4x, 8x, 16x, 32x and 100x

While playing back recorded video at recorded speed:

Forward: Turn the Shuttle dial

speed faster than the recorded speed. Each subsequent turn of the shuttle to the right

increases the forward rate, as 2x, 4x, 8x, 16x, 32x and 100x.

Reverse: Turn the Shuttle dial

speed faster than the recorded speed. Each subsequent turn of the shuttle to the left

increases the reverse rate, as -1x, -2x, -4x, -8x, -16x, -32x and -100x.

Normal: Release the Shuttle dial

to the right to view the recorded video in the forward direction at a

to the left to view the recorded video in the reverse direction at a

to return to the normal speed of playback.

4.3.2 Slow Forward/Reverse

There are 5 speeds available for a slow playback: 1/2, 1/4, 1/8, 1/16, 1/32.

While playing back recorded video at the recorded speed:

(1) Press the PAUSE button

(2) Forward: Turn the Shuttle dial

direction at a speed slower than the recorded speed. Each subsequent turn of the

shuttle to the right increases the forward rate, as 1/2, 1/4, 1/8, 1/16, and 1/32.

(3) Reverse: Turn the Shuttle dial

direction at a speed slower than the recorded speed. Each subsequent turn of the

shuttle to the left increases the reverse rate, as -1/2, -1/4, -1/8, -1/16, and -1/32.

(4) Normal: Release the Shuttle dial

normal speed of playback.

4.3.3 Play Back Picture-by-picture

for the slow playback mode.

to the right to view the recorded video in the forward

to the left to view the recorded video in the reverse

and then press the PLAY button to return to the

While playing back recorded video at the recorded speed:

(1) Press the PAUSE button

(2) There are two ways, by PAUSE button or by JOG, available to play in the picture-by-picture

mode, but the PAU SE button

, can act in both a forward and a backward direction, as well as picture-by-picture.

By PAU S E button

for the picture-by-picture mode.

can only function in a forward direction; the other, JOG dial

Press the PAU SE button

direction. (When playing back video recorded by multi channel, each sequential press of

the PAUSE button

By JOG dial

Turn the JOG dial

direction. Turn the JOG dial

time in the backward direction.

(3) Press the PLAY button

clockwise to display one frame/field of a picture at a time in the forward

to display one frame/field of a picture at a time in the forward

will display each camera in sequence.)

counterclockwise to display one frame/field of a picture at a

to return to the normal speed of playback.

4.3.4 Play Back Recorded Video from a HDD of the mobile rack

To play back a recorded video from a HD2, take the following steps::

(1) Press the Search button

(2) Press the

to flip over a page.

(3) Use the search function to access desired recorded video. For specific operation details

“^” and “v” buttons, to select a video; press the “<” and “>” buttons,

to enter the search mode.

please refer to the next section 4.4 (Search Operations).

4.4 Search Operations

This section shows you how to access recorded video.

4.4.1 Full List Search

Take the following steps to proceed with the full-list search function.

(1) Press the Search button to enter the search mode.

(2) Select the FULL LIST and press the Enter button

video.

(3) Highlight the specific recorded video of your requirement and press the Enter button

display the selected video.

(Key Operation: Press the

and

“>” buttons, to flip over a page.)

FULL LIST ALARM LIST TIME SEARCH THUMBNAIL SD CARD

“^” and “v” buttons, to select a video; press the “<”

to access the complete list of recorded

HD 1

1 21-12-02 12:20:23 10.1M

A 2 21-12-02 13:30:16 2.34M

3 21-12-03 14:20:25 2.05M 4 21-12-03 17:20:46 5.32M 5 22-12-03 16:11:55 24. 2M T 6 24-12-03 13:30:22 36. 6M 7 24-12-03 18:33:54 6.41M 8 24-12-03 19:21:12 92. 3M

NOTE: T: Timer recording; R: External trigger recording; A: Alarm recording.

NOTE: The maximum number of lists, for a respective HDD, is 3000.

NOTE: Press the Display button

persistently to hide list.

4.4.2 Alarm list Search

Take the following steps to proceed with the alarm-list search function.

(1) Press the Search button to enter the search mode.

(2) Select the ALARM LIST and press the Enter button

alarm-event recorded video.

(3) Highlight the specific recorded video of your requirement and press the Enter button

display the selected video.

(Key Operation: Press the

and

“>” buttons, to flip over a page.)

NOTE: Press the Display button

“^” and “v” buttons, to select a video; press the “<”

persistently to hide list.

to access the complete list of

4.4.3 TIME Search

FULL LIST ALARM LIST TIME SEARCH THUMBNAIL SD CARD

HD 1

A 1 22-18-02 13:22:16 16. 3M A 2 22-12-03 13:55:45 15. 6M A 3 22-12-03 14:22:38 17. 8M

A 4 22-12-03 15:22:44 10. 0M A 5 22-12-03 17:34:12 6. 00M A 6 22-12-03 18:17:17 4. 00M A 7 22-12-03 19:12:24 10. 0M A 8 22-12-03 22:55:50 12. 0M

Take the following steps to proceed with the time-list search function.

(1) Press the Search button to enter the search mode.

(2) Select the TIME SEARCH and press the Enter button

(3) Set the time period you wish to search for the recorded video.

(4) Press the Enter button

(5) If no video is found, please return to the time-setting page and repeat steps (3) and (4) again

for another search.

FULL LIST ALARM LIST TIME SEARCH THUMBNAIL SD CARD

to start searching and displaying the concerned image.

to access the time-setting page.

DD MM YEAR HH MM 24 / 12 / 2003 00 00

TIME SEARCH

4.4.4 THUMBNAIL Search

Take the following steps to proceed with the thumbnail search function.

(1) Press the Search button to enter the search mode.

(2) Select the THUMBNAIL and press the Enter button

(3) Set the date you wish to search for the recorded video.

(4) Press the Enter button

● You can set up by using the “<” button

“v” button

● You can also set up by using the Shuttle Ring and the Jog Dial to move eye focus.

the equal of the “<” button

“

^” button and is the equal of the “v” button .

to access the thumbnail page.

to start searching and displaying the concerned image.

, the “>” button , the “^” button and the

to move eye focus.

, is the equal of the “>” button , is the equal of the

(5) There are 5 levels of recording range modes to choose from: 1 Hour, 10 Minutes, 1 Minute, 10

Seconds and 1 Second. Select the specific field of your requirement and press the Enter

button

(6) Once reaching the critical point at any level, the user can start playback by just clicking the

PLAY button

to enter the next level. If you want to return the previous level, please press the Setup

FULL LIST ALARM LIST TIME SEARCH THUMBNAIL SD CARD

THUMBNAIL

DD MM YEAR

22 / 12 / 2003

CHANNEL： 1

4.4.5 SD CARD Search

Take the following steps to proceed with the SD card search function.

(1) Insert a SD Card into the SD card slot of the rear unit.

(2) Press the Search button

(3) Select the SD CARD and press the Enter button

(4) Highlight the specific JPG file of your requirement and press the Enter button

image.

(5) If you need another, please return to the SD card JPG file list page and repeat steps (3) and (4)

again for another search.

FULL LIST ALARM LIST TIME SEARCH THUMBNAIL SD CARD

to enter the search mode.

to access the complete list of JPG files.

to display the

SD CARD JPG FILE

F0000.JPG F0001.JPG F0002.JPG F0003.JPG F0004.JPG F0005.JPG

NOTE: If you would like to delete JPG file in the SD card, please return to SD CARD JPG FILE list

page and highlight the specific JPG file of your requirement and press the Setup button

and then select the “Yes” to delete the image.

4.5 Backup Operations

4.5.1 Mobile Rack HD Backup Operations

There are three ways available to duplicate the recorded video from HD 1 (Fixed HD) to HD 2

(Mobile Rack HD). Please take the following steps to proceed.

(1) Set HD 2 to BACKUP first. Take the following steps.

 Press the Setup button

 Highlight DISK and press the Enter button

 Then set HD 2 USAGE to BACKUP.

MAIN MENU

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO DISK PAGE

to enter the setup mode and select the DISK.

to enter the DISK SETTING page.

DISK SETTING

REFORMAT HD 2 USAGE---------- REC BACKUP BACKUP

MAIN PAGE

EXT DISK SET TO BACKUP

(2) FULL: Duplicate all the recorded video from HD1 to HD2.

 Stay on the DISK SETTING page.

 Use the “

press the Enter button

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO DISK PAGE

ALARM: Duplicate all the alarm-event recorded video from HD 1 to HD2.

^” and “v” buttons, and , to highlight BACKUP, select FULL, then

to proceed.

MAIN MENU

DISK SETTING

REFORMAT HD2 USAGE BACKUP----------------FULL ALARM SELECT

MAIN PAGE

BACKUP ALL

 Stay on the DISK SETTING page.

 Use the “

press the Enter button

^” and “v” buttons, and , to highlight BACKUP; select ALARM, then

to proceed.

MAIN MENU

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO DISK PAGE

SELECT: Duplicate a particular recorded video from HD1 to HD2.

 Stay on the DISK SETTING page.

 Use the “

press the Enter button

 Press the “

Search button

 After completing the selection, press the Enter button

^” and “v” buttons, and , to highlight BACKUP, select SELECT and then

to list all the recorded video.

^” and “v” buttons, and , to select the desired clip and press the

to mark it.

REFORMAT HD2 USAGE BACKUP----------------FULL ALARM SELECT

BACKUP ALARM

DISK SETTING

MAIN PAGE

to proceed.

MAIN MENU

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO DISK PAGE

HD1 A 1 2001-02-01 12:20

2 2001-02-01 03:30 + A 3 2001-03-02 04:20 + 4 2001-04-01 13:30

DISK SETTING

REFORMAT HD2 USAGE BACKUP----------------FULL ALARM SELECT

MAIN PAGE

BACKUP PART

TOTAL: 41 M

READY TO GO

OK CANCEL

NOTE: If the capacity of HD 2 is not sufficient to store all selected video, a warning message

“HD2 SPACE NOT ENOUGH” will be displayed on the screen. Please, insert a larger

capacity of hard-disk drive and start the process all over again.

The SD card slot of the rear unit has three functions as shown below:

4.5.2 Secure Digital Card (SD Card) Backup Operations

1. Archive Single image Clips into SD Card

Please take the following steps to archive a critical image in a SD card.

(1) Insert a SD Card into the SD card slot of the rear unit.

(2) Start playing back the recorded video.

(3) Press the PAUSE button

(4) Press the Setup button

The quantity of pictures that can be stored depends on the SD card capacity. It depends

on SD card capacity how many pictures can be stored. You can have the saved images

printed out in any computer. The image is stored in the JPEG compressed format. If

more than one clip is stored in a SD card, file names will be assigned in sequence as

shown below.

SAVE TO F0000.JPG

SAVE TO F0001.JPG … SAVE TO F000N.JPG

2. Backup the System setting info into SD Card.

The NVR offers a quick setup method by using a SD card. If a user wants to set many NVR

devices with the same settings, the NVR could save the whole setting in the SD card, then

transfer it to another NVR.

Save the whole setting into the SD card:

 Insert a SD card into the SD card slot.

 Press the Setup button

 Highlight SYSTEM and press the Enter button

 Set SD SETUP to SAVE. Then the system setting info will auto save into SD card.

Transfer the system setting info of NVR to another:

 Insert the SD card which has stored the system setting info into the NVR.

 Press the Setup button

 Highlight SYSTEM and press the Enter button

to enter the setup mode and select the SYSTEM.

 Then set SD SETUP to LOAD.

MAIN MENU

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO SYSTEM SETTING

to freeze the desired pictures.

to save the image in the SD Card.

to enter the SYSTEM SETTING page.

SYSTEM

OPERATION LOG : ENTER MENU BACKGND : 2 BUZZER : ON PASSWORD : SET SETUP PWD : OFF DEFAULT : LOAD SD SETUP : SAVE VERSION : ENTER

MAIN PAGE

VIEW OPERATION LOG

Updating System Software (Please refer to section 3.4 for more details.)

4.6 Key Lock Operation

The Key lock operation protects the unit against unauthorized use by disabling the entire front panel

controls. Simultaneously press these two

“<” and “>” buttons (as shown below) for at least

3 seconds to lock the unit; to release the Key Lock, simultaneously press these two buttons again.

PLAY

STOP

REC

FWDREV

POWERDISK

Power Display

Save

Setup

PAUSE

Seq.

Enter

CH1

CH2

CH5

CH6

CH4

CH3 CH7

CH8

Shift

A-recSearch

T-rec

11 14

5. MENU SETUP

There are 6 categories for operation setting in the setup menu system as shown below. The following

sections will instruct you step by step to configure the operation setting and state each menu’s purpose and

options. Press the Setup button

menu allows you to set up the key features of the unit. The functions of various buttons within the menu-setup

mode are described in the paragraphs below.

to access the setup menu. Once inside the menu system, the on-screen

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

MAIN MENU

KEY FUNCTIONS

Setup button

Press to enter the setup menu. Press again to exit the setup mode.

“

^” “v” buttons and :

Press to select the desired item or entry for setting.

“<” “>” buttons

Press to highlight the desired option or to select the context for setting.

Enter button

Press to enter the selected item and to save the setting.

Shuttle Ring :

Turn to highlight the desired option or to select the context for setting.

Jog Dial :

Turn to select the desired item or entry for setting.

and :

5.1 LAN CAMERA SETTING

This page allows you can select your desired LAN Camera, whose images you can save in the NVR

hard disk. The login name and password must be entered correctly.

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

LANCAM SETTING

CHANNEL : 1

CONNECTION : ON IP : 192.168.001.133 LOGIN NAME [ admin ] PASSWORD [ 9999 ] TITLE [ CAM1 ]

OK CANCEL

Search FOR SCANNING Display FOR TESTING

MAIN MENU

LANCAM SETTING

IP / ACCOUNT : SET IMAGE : SET AUDIO ENABLE : OFF MOTION : OFF

MAIN PAGE

SET IP AND ACCOUNT

IP / ACCOUNT:

Set the desired channel, entering its number (1 to 8) in the given space. Turn the

“CONNECTION” to “ON”, Provide the corresponding “IP” address in the “IP” entry, because each

LAN Camera has its own individual IP. Each IP is a camera, whose “LOGIN NAME” and

“PASSWORD” must be entered correctly.

NOTE: Press the “Search” button

disposal. The screen will display a partial list of cameras, from the desired camera’s IP

can be selected. Push the Enter button

that camera.

NOTE: Press the “Display” button

picture appears on a screen at bottom right.

to activate “SCANNING” of all the LAN Cameras at

to automatically display the chosen IP of

to trigger the “TESTING” function. Immediately a

MAIN MENU

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

LANCAM SETTING

IP / ACCOUNT : SET IMAGE : SET AUDIO ENABLE : OFF MOTION : OFF

IMAGE SETTING

RESOLUTION : 352 X 240 QUALITY : HIGHEST

LANCAM PAGE

SET IMAGE RESOLUTION

LANCAM SETTING

MAIN PAGE

IMAGE SETTING

RESOLUTION : 352 X 240

720 X 480 SET

LANCAM PAGE

SET IMAGE RESOLUTION INDIVIDUALLY

RESOLUTION SETTING

CH1 CH2 CH3 CH4

352 X 240 352 X 240 352 X 240 352 X 240

CH5 CH6 CH7 CH8

352 X 240 352 X 240 352 X 240 352 X 240

OK CANCEL

IMAGE SETTING

QUALITY : HIGHEST

HIGH MEDIUM LOW LOWEST SET

LANCAM PAGE

SET QUALITY TO HIGHEST FOR EACH CH

QUALITY SETTING

CH1 CH2 CH3 CH4

HIGHEST HIGHEST HIGHEST HIGHEST

CH5 CH6 CH7 CH8

HIGHEST HIGHEST HIGHEST HIGHEST

OK CANCEL

IMAGE:

(1) Press the Setup button

(2) Select the item termed "LAN CAMERA" and press the Enter button

LANCAM SETTING page.

(3) Select the item termed "IMAGE" and push the Enter button

SETTING page.

(4) To regulate the image resolution function, set the "RESOLUTION" either to "352 x 240", or to

"720 x 480". In either case, all channels will convert to your desired mode. If, however, you

wish to set individual channels in different modes, please select "SET" for this function. After

set individual channels in different modes and then push the Enter button

legends "OK" and "CANCEL" appear at the bottom of the page. Now press the “<” button

and the “>” button

your choice(s). If not, press "CANCEL".

(5) To regulate image quality, you can use the “

of the five levels of quality provided here, ranging from the "HIGHEST" to the "LOWEST". If

you select any of these levels, all your channels will convert to that level. If, however, you

wish to set individual channels in different levels of quality, please got to “SET” for this

function. After set individual channels in different modes and then push the Enter button

to enter the MAIN MENU.

to enter the

to enter the IMAGE

. At once the

to confirm either "OK" or "CANCEL" respectively. Press "OK" to ratify

^” button and the “v” button to select any

At once the legends "OK" and "CANCEL" appear at the bottom of the page. Now press the

“<” button

"OK" to ratify your choice(s). If not, press "CANCEL".

and the “>” button to confirm either "OK" or "CANCEL" respectively. Press

MAIN MENU

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

LANCAM SETTING

IP / ACCOUNT : SET IMAGE : SET AUDIO ENABLE : OFF MOTION : OFF

MAIN PAGE

SET AUDIO ENABLE

LANCAM SETTING

AUDIO ENABLE : OFF

MAIN PAGE

SET AUDIO ON/OFF INDIVIDUALLY

ON SET

AUDIO ENABLE SETTING

CH1 CH2 CH3 CH4 OFF OFF OFF OFF

CH5 CH6 CH7 CH8 OFF OFF OFF OFF

OK CANCEL

AUDIO ENABLE:

(1) Press the Setup button

to enter the MAIN MENU.

(2) Select the item termed "LAN CAMERA" and press the Enter button

LANCAM SETTING page.

(3) Select the item termed "AUDIO ENABLE" and push the Enter button

to enter the

to select the

AUDIO ENABLE.

(4) To activate the motion detection function, set " AUDIO ENABLE" to "ON". To deactivate the

function, set " AUDIO ENABLE" to " OFF" The items termed "OFF" and "ON" switch all the

channels in the AUDIO ENABLE SETTING page off and on respectively as well. If you wish

to select individual channels for sounds, select the item termed " SET" and activates your

desired channels by pressing them "ON" while turning the rest "OFF". After set individual

channels in different modes and then push the Enter button

and "CANCEL" appear at the bottom of the page. Now press the “<” button

button

to confirm either "OK" or "CANCEL" respectively. Press "OK" to ratify your

. At once the legends "OK"

and the “>”

choice(s). If not, press "CANCEL".



LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

LANCAM SETTING

MAIN MENU

LANCAM SETTING

IP/ACCOUNT : SET IMAGE : SET AUDIO ENABLE : OFF MOTION : SET

MAIN PAGE

MOTION SETTING

MOTION ENABLE : ON SENSITIVITY/REGION : CH1

LANCAM PAGE

SET MOTION ENABLE

MOTION ENABLE : ON SENSITIVITY/REGION : CH1

LANCAM PAGE

SET MOTION SENSITIVITY/REGION

MOTION SETTING

MOTION ENABLE : OFF

LANCAM PAGE

SET MOTION ENABLE

MOTION SETTING

SET

MOTION ENABLE SENSITIVITY/REGION : CH1

LANCAM PAGE

SET MOTION OF CH5

MOTION SETTING

CH2 CH3 CH4 CH5 CH6 CH7 CH8

MOTION ENABLE SETTING

CH1 CH2 CH3 CH4 ON ON ON ON

CH5 CH6 CH7 CH8

ON ON ON ON

SENSITIVITY / REGION SETTING

SENSITIVITY HIGHEST

REGION ( 30, 25 ) – ( 90, 70 )

OK CANCEL

MOTION:

Take the steps detailed below to activate a programmed motion detection. For MOTION SETTING,

as well as its two distinct functions of MOTION ENABLE and SENSITIVITY / REGION.

(1) Press the Setup button

(2) Select the item termed "LAN CAMERA" and press the Enter button

(3) Select the item termed "MOTION" and push the Enter button

(4) To activate the motion detection function, set "MOTION ENABLE" to "ON". To deactivate the

(5) In the MOTION SETTING page, select the entry termed "SENSITIVITY / REGION" and press

to enter the MAIN MENU.

to enter the

LANCAM SETTING page.

to enter the MOTION

SETTING page.

function, set "MOTION ENABLE" to " OFF" The items termed "OFF" and "ON" switch all the

channels in the MOTION ENABLE SETTING page off and on respectively as well. If you wish

to select individual channels for viewing, select the item termed " SET" and activates your

desired channels by pressing them "ON" while turning the rest "OFF". Confirm your choices

by pressing "OK". If not, push "CANCEL".

the “>” button

to show all the channels in their order, each in turn. Use the “^” button

and the “v” button

set the channel in the SENSITIVITY / REGION SETTING page. Repeat the process for all

other channels you choose.

(6) To set "SENSITIVITY" and "REGION" for activation on the SENSITIVITY / REGION page,

choose your degree of sensitivity and then push the Enter button

"OK" and "CANCEL" appear at the bottom of the page. Now press the “<” button

“>” button

to confirm either "OK" or "CANCEL" respectively.

to select a desired channel for setting. Press the Enter button and

. At once the legends

and the

5.2 REC SETTING

This page allows you to set the recording rate and recording quality, and enables you to continue recording

when the disk is full.

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO REC PAGE

MAX REC RATE:

MAIN MENU

MAX REC RATE : UNLIMIT BANDWIDTH : UNLIMIT DISK FULL : REWRITE

MAIN PAGE

SET MAX REC RATE

This option is used for limiting the number of pictures recorded every second into a storage disk.

The recording rate controls the maximum of the frequency at which the number of video pictures

can be recorded.

There are 4 different recording rates you can select from: UNLIMIT, 30F/S, 20F/S, and 10F/S.

REC / PLAY SETTING

NOTE: The maximum of pictures is averagely shared among all channels.

BANDWIDTH:

This option determines the bandwidth to be recorded. There are seven levels of bandwidth you

can select from: 50K, 100K, 200K, 300K, 400K, 500K,and UNLIMIT. Selecting the UNLIMIT for

use provides bandwidth unlimited for each channel recorded images, and normally records more

images than a 50K, 100K, 200K, 300K, 400K and 500K. To regulate bandwidth, you can use the

“^” button

ranging from the "UNLIMIT" to the "50K". If you select any of these levels, all your channels will

convert to that level. If, however, you wish to set individual channels in different levels of

bandwidth, please got to “SET” for this function. After set individual channels in different modes

and then push the Enter button

bottom of the page. Now press the “<” button

"CANCEL" respectively. Press "OK" to ratify your choice(s). If not, press "CANCEL".

DISK FULL:

This option determines the way to utilize storage media in case of a full disk.

and the “v” button to select any of the seven levels of bandwidth provided here,

. At once the legends "OK" and "CANCEL" appear at the

and the “>” button to confirm either "OK" or

REWRITE: When the hard-disk is full, the device continues recording by displacing the old data.

STOP: When the hard-disk is full, the device will stop recording.

5.3 CLOCK / TIMER / SEQ SETTING

The NVR-2028 provides a weekly table, consisting of two periods of time each day for scheduled recording. This option allows you to set the time each day that the NVR will start and stop recording.

MAIN MENU

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

CLOCK SETTING : SET TIMER : SET SEQUENCER : SET

GOTO CLOCK / TIMER / SEQ PAGE

CLOCK SETTING:

This entry allows users to set the system time.

NOTE: Clock data is retained for about 3 months after the 15-hour power supply is used up

(Operate On mode).

TIMER:

This entry allows users to program the time each day that the NVR will start and stop recording. There are two time periods each day available for scheduling. The time is displayed in a 24-hour clock format. If there is a time overlapping showing between two continual time period settings, the device will automatically combine the two time-period settings into one combined time-period setting.

TIMER ENABLE: This option enables/disables the programmed scheduled recording. ON: Enables the scheduled recording. OFF: Disables the scheduled recording.

SET CURRENT CLOCK

CLOCK / TIMER / SEQ

MAIN PAGE

TIMER ENABLE: ON

START END START END S 06:00-16:00 12:00-18:00

REC SCHEDULE

●

TIMER ENABLE: ON

START END START END S 06:00-18:00 00:00-00:00

REC SCHEDULE

●

SEQUENCER:

To regulate dwell time of the sequencer, you can use the “ select dwell time provided here, ranging from the "00" to the "30".you can set individual channels in different dwell time. After set individual channels, quad and multi screen in different modes and then push the Enter button of the page. Now press the “<” button "CANCEL" respectively. Press "OK" to ratify your choice(s). If not, press "CANCEL".

. At once the legends "OK" and "CANCEL" appear at the bottom

and the “>” button to confirm either "OK" or

^” button and the “v” button to

5.4 ALARM SETTING

This menu allows users to program the configuration of alarm recording only when an alarm input is activated. The device will record as long as the alarm input is activated.

MAIN MENU

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO ALARM PAGE

ALM OPERATION : OFF ALM DURATION : 30 SEC MAX REC RATE : UNLIMIT PRE- ALARM : ON

MAIN PAGE

ALARM REC ENABLE

ALARM SETTING

ALM OPERATION:

This option determines whether to activate/deactivate the alarm recording when it detects an alarm input.

ON: The device activates the alarm recording when it detects an alarm signal from LANCAM. OFF: The device ignores the alarm signal when it detects an alarm signal from LANCAM.

ALM DURATION:

This option allows users to set alarms for a certain duration. You can select one of the six following options: 0 SEC, 30SEC, 1 MIN, 5 MIN, 10 MIN, and NON-STOP.

Duration Setting

larm recordin

Duration

Non-Stop

Alarm

activated

Alarm

activated

Alarm

deactivated

larm recordin

Alarm

deactivated

Duration

Reset

MAX REC RATE:

This option is the number of pictures recorded every second into a storage disk when an alarm input is activated. There are 2 different record speeds you can select UNLIMIT or REMAIN. If you select

REMAIN for use, the device will record images at the same speed as set on the REC page.

PRE- ALARM:

This option determines that images prior to an alarm occurs will be recorded in the hard-disk drive. When an alarm is triggered the device will record the image prior to the alarm for up to 256 images.

ON: Enables this function. OFF: Disables this function.

NOTE: If the device is already under recording mode before alarm occur, the pre-alarm

recording would not take effect.

5.5 COMMUNICATION

This option allows you to configure the status of the RS-232 communication port when connected to an

external device, and the wireless communications settings. (Please refer to the APPENDIX 2 and Network

Function for more details)

MAIN MENU

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO COMM PAGE

COMM SETTING

WIIRELESS : SET WAN SETTING : SET NET IP : SET NET DHCP : SERVER LEASED IP TABLE : ENTER IP POOL RANGE : SET COMM ID : 01 RS232 : ON

MAIN PAGE

WIRELESS SETTING

WIRELESS:

This entry allows users to set the wireless setting.

OPERATION:

This option is used to configure the wireless operational settings.

WIRELESS SETTING

OPERATION : SET PRIVACY : SET LANCAM SETUP : RS232

COMM PAGE

WLAN OPTIONAL SETTING

ESSID:

This option enables you to change the wireless network name. Unique identifier for the Extended

OPERATIONAL SETTING

ESSID : SET CHANNEL : 06

WIRELESS PAGE

SET NETWORK NAME

Service Set (ESS) which is shared by client stations in an infrastructure association, such as the

WLAN-test. It is case-sensitive and cannot exceed 32 characters.

NOTE: If you use more than two NVR units, take care not to use the same ESSID name for

both, since the client device can only connect with one server each time and will automatically connect with the nearest unit.

CHANNEL:

Specify the bandwidth that the wireless radio operates in. The NVR and wireless LANCAMs are

associated with operations in one of the frequency channels.

NOTE: The standard norms of channel numbers and frequency ranges differ from country

to country. When setting a channel, you must avoid interference from other wireless devices. Then you can install other channels as well.

PRIVACY:

This option is used to configure the privacy settings.

WIRELESS SETTING

OPERATION : SET PRIVACY : SET LANCAM SETUP : RS232

COMM PAGE

WLAN PRIVACY OPTION

PRIVACY SETTING

ENCRYPTION : DISABLE DEFAULT KEY : KEY 1 WEP KEY 1 : SET WEP KEY 2 : SET WEP KEY 3 : SET WEP KEY 4 : SET

WIRELESS PAGE

SET WEP ENCRYPTION MECHANISM

ENCRYPTION:

The encryption setting sets the web encryption mechauism.

DISABLE: This deactivates the encryption function.

WEP64: This enables the short secret code to activate encryption.

WEP128: This enables the long secret code to activate encryption.

DEFAULT KEY:

This option selects one of the WEP keys provided. There are 4 levels of WEP key to choose from:

KEY 1, KEY 2, KEY 3 and KEY 4.

WEP KEY 1 … WEP KEY 4:

If ENCRYPTION is set to “DISABLE”, the user cannot change the WEP KEY 1 … WEP KEY 4. If

ENCRYPTION is set to “WEP64”, the web key can be set to a 10-hex (0-9, A-F) number. If

ENCRYPTION is set to “WEP128”, the web key can be set to a 26-hex number.

LANCAM SETUP:

This option is used to selects either RS232 or WLAN. If you wish to transfer information to the wireless

LANCAM via the NVR, you must select the LANCAM SETUP option to configure the wireless or wired

(RS-232) function installation.

WIRELESS SETTING

OPERATION : SET PRIVACY : SET LANCAM SETUP : RS232

COMM PAGE

SET LANCAM WIRELESS SETTING

RS232 : This option provides the wired function. "RS232" option can set wireless settings to a

wireless LANCAM. If there are more than one LANCAM to be set, you must set it one

by one. (Please refer to chapter 3. INSTALLATION section.)

NOTE: Please set the RS-232 option to ON in the COMMUNICATION page of the setup

menu before you select this option.

WLAN : This is the wireless option. "WLAN" option can only be used to transmit modified

wireless settings to a group of LANCAMs which currently is connected with NVR. Make

sure all of LANCAM can be connected successfully, i.e. NVR can receive images from

LANCAMs, before using this function. In the beginning of the process, the connectivity

testing is performed to ensure that the settings can transmit to all of LANCAMs. If any

of LANCAMs fails in the testing, the process is aborted.

MAIN MENU

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

WIIRELESS : SET WAN SETTING : SET NET IP : SET NET DHCP : SERVER LEASED IP TABLE : ENTER IP POOL RANGE : SET COMM ID : 01 RS232 : ON

GOTO COMM PAGE

WAN SETTING:

This helps you make the settings that enable you to enter the Internet.

SET NETWORK

COMM SETTING

MAIN PAGE

COMM SETTING

WIIRELESS : SET WAN SETTING : SET NET IP : SET NET DHCP : SERVER LEASED IP TABLE : ENTER IP POOL RANGE : SET COMM ID : 01 RS232 : ON

MAIN PAGE

SET NETWORK

STATUS:

Show WAN leased IP table.

CONNECT TYPE:

This enables you to choose your connection style.

AUTO: Dynamic IP from DHCP server, no dialing necessary. MANUAL: Static IP, no dialing needed. Enter the Wide Area Network (WAN) IP Address, Subnet

Mask, ISP Gateway Address, and DNS values. You can obtain all the above data from your ISP.

PPPOE: Needs dialing. If your ISP uses Point-to-Point Protocol over Ethernet (PPPoE), then

choose it; PPPoE allows your ISP to authenticate your connection by requiring you to submit a user name and password.

NAME:

Move the focus to "ENTER" and go to the "NAME SETTING" page. This enables you to set the "HOST" and "DOMAIN" names.

NOTE: Provide a host name (also called system name or account name) and the ISP domain name

(e.g. www.isp.com) if your ISP requires this information.

IP SETTING:

Enter and go to the "WAN IP SETTING" page. Set the "WAN IP", "WAN MASK", "ISP GATEW AY", "DNS 1”, “DNS 2”, and “DNS 3" addresses.

NOTE: If CONNECT TYPE is set to MANUAL, this function will work.

VIRTUAL SERVERS:

Enter the "VIRTUAL SERVER SETTING" page. Set the "PUBLIC PORT", "PRIVATE IP", "PRIVATE PORT", and "PROTOCOL" entries. To allow traffic from the Internet to enter your local network to connect internal devices, such as NVR or LANCAM, you will need to open up ports or the router will block the request. For example, consider an assumed LAN network with two devices, NVR and LANCAM, that have LAN IP addresses 192.168.1.205 and 192.168.1.168, respectively. The http ports of the two devices are of the default settings (80). NVR's WAN port connects to the Internet with a WAN IP 100.0.0.2. Two public ports, say 2000 and 2001, are assigned to NVR and LANCAM for identifying internal devices from the Internet.

The settings should be set like the followings.

Public Private Private Protocol Port IP Port

2000 205 80 TCP

2001 168 80 TCP

The URLs are used to connect to NVR and LANCAM listed below:

NVR → http://100.0.0.2:2000 LANCAM → http://100.0.0.2:2001

WAN SETTING

STATUS : ENTER CONNECT TYPE : AUTO NAME : SET IP SETTING : SET VIRTUAL SERVERS : SET

COMM PAGE

SET WAN CONNECTION TYPE

MAIN MENU

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO COMM PAGE

NET IP:

This option is used to configure the Ethernet communication settings. This is required for the purpose of

making a network connection. Please consult with a qualified MIS professional to configure it.

IP: XXX

MASK: 255

GATEWAY: XXX

NET DHCP:

This option selects OFF or SERVER for the DHCP communication function.

OFF: Disables it.

SERVER: Enables it.

NOTE:

LEASED IP TABLE:

Show DHCP leased IP table.

IP POOL RANGE:

The range of available IP to be leased by DHCP server is from XXX.YYY.ZZZ.1 to

XXX.YYY.ZZZ.254 except for NVR’s IP XXX.YYY.ZZZ.SSS.

.YYY.ZZZ.SSS

.255.255.000

.YYY.ZZZ.TTT………………..(NAT local IP)

COMM SETTING

WIIRELESS : SET WAN SETTING : SET NET IP : SET NET DHCP : SERVER LEASED IP TABLE : ENTER IP POOL RANGE : SET COMM ID : 01 RS232 : ON

MAIN PAGE

SET NETWORK

You can set your DHCP IP address by changing only the last part of the four - part IP address given below.

The last part can be any number selected from a range between 1 and 254.

WIRELESS WAN SETTING

NET IP NET DHCP LEASED IP TABLE IP POOL RANGE SET COMM ID RS232

MAIN PAGE

SET IP POOL RANGE

COMM SETTING

IP POOL RANGE SETTING

192.168. 1. 1 ― 192.168. 1.254

SET IP POOL RANGE

COMM ID:

Communication ID for RS232 communication. After the NVR

<Dest ID> within the code is the same as the COMM ID, in which case the particular command can be

accept.

RS-232:

The RS-232 communication port can be either in an importing or exporting mode according to your

applications.

ON: Enables the RS-232 communication port. When you wish the unit to be controlled by an external

device, please select this entry for use.

OFF: Disables the RS-232 communication port.

receives a RS232 command, it checks if the

5.6 DISK SETTING

MAIN MENU

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO DISK PAGE

REFORMAT:

This option allows you to clear out all the data in the hard-disk drive. You will be required to enter the pre-set

password before proceeding with clearing out the data. Enter the standard password “9999” if you don’t set

your individual password. To set your individual password, please refer to section 5.7 PASSWORD option.

HD 1: Clears out all the data stored in HD 1 and HD 2.

REFORMAT : HD 1 HD 2 USAGE : REC HD BACKUP : FULL

MAIN PAGE

DISK REFORMAT/CLEAR

DISK SETTING

BACKUP HD: Clears out all the data stored in HD 2, which is set to backup purpose only. (This

function has to be proceeded with when the HD 2 USAGE option is set to BACKUP.)

HD2 USAGE:

This option determines the way to utilize the hard-disk drive in the mobile compartment.

BACKUP: Used for data backup only, which will not be part of regular recording hard-disk drive.

REC: Used for the regular recording hard-disk drive.

NOTE: When you wish to play back a recorded video from a HD2, this option must be set to REC.

For more details, please refer to section 4.3.4.

HD BACKUP:

This function allows you to duplicate data from HD 1 to HD 2. Please set HD 2 as BACKUP first. (For

operation details, please refer to section 4.5.1)

FULL: Duplicates all the recorded video from HD1 to HD2.

ALARM: Duplicates all the alarm-event recorded video from HD 1 to HD2

SELECT: Duplicates a particular recorded video from HD1 to HD2.

5.7 SYSTEM SETTING

This page is used for accessing the history of the operation status, setting the password, resuming factory

default, and determining the menu display background.

MAIN MENU

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO SYSTEM SETTING

OPERATION LOG:

This log shows the history of the operation status in chronological order. What the following entries

represent is detailed below.

ON: Powers up the device.

OFF: Powers off the device.

REC: Starts recording.

STOP: Ceases recording.

PLAY: Shows recorded video.

P-LOSS: Power interruption occurs.

A-IN: Detects an alarm input.

LOCK:

Disables the entire front panel controls.

OPERATION LOG : ENTER MENU BACKGND : ON BUZZER : ON PASSWORD : SET SETUP PWD : OFF DEFAULT : LOAD SD SETUP : SAVE VERSION : ENTER

MAIN PAGE

VIEW OPERATION LOG

OPERATION LOG

1 05/15/03 18:19:32 ON 2 05/15/03 18:19:32 OFF 3 05/15/03 18:19:32 REC 4 05/15/03 18:19:32 STOP 5 05/15/03 18:19:32 PLAY 6 05/15/03 18:19:32 M-IN 1 7 05/15/03 18:19:32 C-BRK 1 8 05/15/03 18:19:32 P-LOSS

SYSTEM

UNLOCK:

UPDATE:

M-IN 1: Detects a motion input in channel 1.

M-OUT 1: Detects a motion stop in channel 1.

C-BRK 1: Connecter interruption occurs in channel 1.

Note: The log keeps an operation history on a revolving basis because of a limit is 4000. When the

log is full, the newly registered record of an operation will replace the existing records from

the oldest one.

Releases the key lock.

Updates system software.

MENU BACKGND:

There are 3 levels of background color transparency, you can choose from : level 1 is totally

transparent, level 3 is opaque, and level 2 is between level 1 and 3. The background color is used in

setup menu and search function.

BUZZER:

This option determines the embedded buzzer sounding a tone to signal the following situations. A

tone lasts about two seconds long.

ON: Enables buzzer.

OFF: Disables buzzer.

Situation

Alarm occurs

Video loss occurs

Disk is full

Load factory default

Buzzer set to ON

Enable/disable key lock function

Power on /off mobile rack HDD

Backup operation complete

Timer activate/deactivate

Recording switching between HDD

PASSWORD:

This option allows you to set a password to prevent any unauthorized re-formatting of the hard disk

drives or use by a network viewer. The standard password is “9999”.

OLD PASSWORD: Enter the pre-set password (or the standard password if this is the initial

setting) to access the password setting system.

NEW PASSWORD: Enter a 4-digit-number password of your choosing which will replace the

pre-set password (or the standard password “9999”).

SETUP PWD:

When this option is on, user must pass the password check before entering the setup menu.

ON: Enables it.

OFF: Disables it.

DEFAULT:

This option allows you to reload the factory default setting. Please do note that the password can not

be changed in the factory default setting.

SD SETUP:

The NVR offers a quick setup method by using a SD card. If the user wants to set up many a

number of the same devices with the same settings, he can save the whole settings to a SD card,

then transfer to another NVR.

SAVE: Saves the whole setting to the SD card.

LOAD: Loads the whole setting to the SD card.

VERSION:

This item is in the setup menu reveal network MAC, BIOS version, and software version, and last

updated date.

MAC : 00 : 0c : 0c : 00 : 00 : 07 BIOS : 1.03 S/W : 0.35 DATE : Dec 24 2003

6. IDE Hard Disk Installation

Usually, the unit comes with one hard-disk drive installed in compartment HD 1, which is default-configured as a

master. The jumper settings configuration of the installed hard-disk drives for the unit and compatible drives

which can be used with this unit are listed in the table below. To install two hard disk drives in compartment HD 1

and HD 2, please take the following steps.

The jumper settings of hard-disk drives for the system

IDE 1 Compartment HD 1 Master

IDE 2 Compartment HD 2 Master

6.1 Built-in hard disk

Location Jumper

1. Unscrew all the mounting screws on the

mobile rack of the unit and detach it.

2. Carefully lift the mobile rack to a vertical

position.

3. Unscrew the secured screws to detach

the hard disk rack.

4. Setting the jumper of your hard disk

5. driver. The way to set the jumper of the

drive varies between manufacturers;

please refer to the instructions on the

driver to set the jumpers in the master

position.

5. Place the hard disk in the rack.

6. Secure the driver in the rack using two

mounting screws in both the

side-mounting holes. Please don’t

tighten the screws too much, otherwise

that may damage the driver.

10.

Place the mobile rack back onto the device and screw it in.

7. Screw the rack into the device, screwing

in all the four screws.

ttach the interface connector and the

power connector to the drive. Please

note the red lining of the IDE cable and

the red wire of power cable must line up

side by side.

6.2 Mobile Rack

1. Make sure that the key unlocked.

2. Pull the active-handle outward to remove the carrier body away from

the mobile rack

3. Slide the top cover backward and remove.

4. Setting the jumper of your hard disk driver. The way to set the jumper

of the drive varies between manufacturers; please refer to the

instructions on the driver to set the jumpers in the master position.

5. Attach the interface connector and the power connector to the drive.

Please note the red lining of the IDE cable and the red wire of power

cable must line up side by side.

6. Place the HDD inside mobile rack, Use four of the provided screws.

7. Place the top cover back to the carrier body by sliding forward to

secure.

8. Slide the carrier body back in the mobile rack.

9. Push the carrier body further into the mobile rack until fully inserted.

10. Push the active-handle inward.

11. Lock the Key.

7. O.S.D Message

No. O.S.D Message Meanings

1 NO DISK No hard-disk detected after power activated

2 BATTERY LOW Suggest change the battery and reset the system time

3 LOADING System Boot up

4 KEY LOCKED Key lock function is on

5 KEY UNLOCKED Key lock function is off

6 n1 OF n2 ITEMS PROGRESS n3 % BACKUP n1/n2 NOW

7 BACKUP COMPLETE Backup complete

8 HD2 SPACE NOT ENOUGH HD2 has not enough space for backup

9 NO ENTRY FOR BACKUP No backup is possible.

10 BACKUP INCOMPLETE

11 NOT FOUND The system cannot find a video in the Search function.

12 END Playback of recorded video has reached the end point

Backup incomplete, since the user has pressed the STOP button to stop it

13 DISK FULL

14 EMPTY

15 SET TO NTSC, PLS RESTART

16 SOFTWARE UPDATE Software update

17 PLEASE RESTART

18 NO DISK

19 DATA NOT CONTINUOUS

20 DISK ATTACHED HD2 has been attached.

21 DISK REMOVED HD2 has been removed.

22 FAN STOPPED The chassis fan has stopped for over 30 seconds.

23 HDn ERROR AT xxxxx

24 NOT PRESENT

25 SAVE TO DISK Start saving to the JPEG file.

Hard-disks are full; this happens only when the DISK FULL item in the setup menu is set to STOP.

The user presses the PLAY button or uses the SEARCH function, but no video can be played. System has to be set to NTSC, please reboot (PAL is similar)

The system should be rebooted after the software has been updated The user has pressed the Save key without putting in a SD card, or there is a disk error.

The system finds data in installed HDs cannot be used contiguously. Suggest you remove HD2 from the system.

There is a hard-disk error during recording, where n is the hard-disk number and xxxxx is the hexadecimal location. When the user tries to clear a disk that was not attached in the setup menu.

26 SAVE TO Fnnn. JPG Save to Fnnn. JPG (where nnn= 0..999)

27 SAVE OK Save to the JEPG is ok.

28 SD CARD WRITE PROTECT An SD card is write-protected; or there is an error.

29 NO CHANNEL ENABLE No channel available.

30 WIRELESS MODULE ERROR The wireless module has an error.

8. Index Table

The following description details how the NVR-2028 manages an index table issue.

The NVR will generate a time index table indicating recorded data is kept in a particular HDD. This

allows to individually selecting recorded data to be displayed via the alarm list search and full list

search. The maximum number of lists, for a given HDD, is 3000. When the list of any given HDD is

used up-and the disk is not full, The unit will still use the rest of the space for recording. In such a

case, an index for the recent recorded data will be generated and the index of the next oldest data

will be erased so that the list does remain 3000 in total. And the next oldest data will be kept in the

index of the corresponding oldest data. For any newly-recorded data, this approach will be applied

until the disk becomes full.

3000 LISTS

In the rewrite recording mode, when the archived hard disk drive is full, the NVR will start overwriting

the oldest data recorded. As the previous recorded data was partially overwritten by the recent

recording, the indicating time index of that data will be changed corresponding to the starting time of

the remaining session. The index of the session will be deleted from the table when it is fully

overwritten.

Previously

recorded data

overwritten

HD1

1 12-02-02 12:20:55

2 12-02-02 13:30:33

3 01-30-03 16:00:34

: :

3000 02-03-03 16:00:56

HD1

1 12-02-02 12:20:55

2 01-30-03 16:00:34

2999 02-03-03 16:00:56

3000 02-08-03 17:30:58

3000 LISTS

The point stops recording

Previously recorded data remaining

9. Wireless Network Configuration

9.1 Configure Your NVR-2028 Network Settings

Upon wireless network hardware connection, you need to activate the wireless network function

and configure the proper network settings of the NVR.

9.1.1 Enable DHCP Function

Use the “^” and “v” buttons , and , to highlight NET DHCP; select ON. Then press the

Enter button to proceed.

MAIN MENU

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO COMM PAGE

NOTE: This function can only work if the LAN which the unit is connected to has a

DHCP server. If the DHCP server is working, the NVR will obtain an IP address

automatically from the DHCP server. In that case please skip the section 9.1.2

(Set IP address) and follow section 9.3 (TCP/IP Communication Software).

COMM SETTING

WIIRELESS : SET WAN SETTING : SET NET IP : SET NET DHCP : SERVER LEASED IP TABLE : ENTER COMM ID : 01 RS232 : ON

MAIN PAGE

SET ETHERNET DHCP

9.1.2 Set IP Address

You don’t need to set a NET IP for the unit if the LAN which the unit is connected to has a

DHCP server. Otherwise, please follow the instructions given below:

LAN CAMERA RECORD / BANDWIDTH CLOCK / TIMER / SEQ ALARM COMMUNICATION DISK SYSTEM

GOTO COMM PAGE

MAIN MENU

COMM SETTING

WIIRELESS : SET NET IP : SET NET DHCP : OFF LEASED IP TABLE : ENTER COMM ID : 01 RS232 : ON

MAIN PAGE

SET NETWORK

Use the “^” and “v” buttons , and , to highlight the NET IP. Press the Enter button to

enter the NET IP page

 Set the IP, MASK and GATEWAY. Then press the Enter button to proceed. The following

is a sample setting.

IP: 192.168.1.205

MASK: 255.255.255.0

GATEWAY: 192.168.1.254

NOTE: When only one unit of the NVR is connected to a computer or LAN, you can freely

assign an IP address for the NVR. For example, there is a range of NVR IP

addresses from 192.168.1.1 to 192.168.1.255. You can pick one for use from the

range of the IP. It’s not necessary to set MASK and GATEWAY; leave the settings

as default.

When a NVR is connected to a WAN, you must acquire a unique, permanent IP

address and correctly configure the MASK and GATEWAY settings according to

your network architecture. If you have any questions regarding those settings,

please contact a qualified MIS professional or your ISP.

NOTE: When connecting to a network, each connected NVR must be assigned a unique

IP, which must be in the same class type as your network address. IP addresses

are written as four sets of numbers separated by periods; for example,

192.168.1.205 therefore, if the connected network is identified as Class C, for

example, the first three sets of numbers of the NVR IP address must be the same

as the network address. If the connected network is identified as Class B, the

first two sets of numbers of the NVR IP address must be the same as the network

address. If you have any questions regarding these settings, please contact a

qualified MIS professional or your ISP.

9.2 TCP/IP Communication Software

Follow the instructions below to install the TCP/IP communication program into your computer.

 Click the Start Menu from your computer, and point to the Settings/Control panel.

Click the NETWORK icon twice to enter the NETWORK setting windows.



 Click on the Configuration tag; check if the TCP/IC is included among the network

components list. If the TCP/IP is included, please process step 5. If it is not included, please follow step 4 to install the TCP/IP.

9.3 TCP/IP installation

During the installation, you will be requested to insert the windows 98 CD ROM. After

installation, the PC will be restarted.

9.4 TCP/IP Configuration setting

 Click Start  Settings  Control Panel  Network.

 Select TCP/IP

 Before processing the NVR installation in a WAN, please make sure the Internet

connection works properly. If not, please contact your ISP provider.

, and then click Properties.



If you are using a DHCP server, please select Obtain an IP address automatically

assigned IP address for the connected NVRs must be in the same class type as the server. If

. Any

there is no DHCP server, please select specify an IP address

your PC. This IP address must be different from the NVR IP but in the same class type.

NOTE: The IP address of a NVR in a network must be unique to itself as opposed to

those of the other chosen PCs, but in the same class type

and type in the IP address of

9.5 Connection Testing

With the previous settings, follow the instructions below to ensure whether you have established

the connection successfully.

 Click Start  Programs  MS-DOS Prompt

 Type in ping 192.168.1.205 then Enter. (See the sample screen below)

** This IP is the NVR IP address that is assigned for the connected NVR in step 2.

 If you receive a response as in the sample screen below, the connection hasn’t been

successfully established. Please re-check all the hardware and software installation by

repeating steps 1 to 5. If you still can’t establish the connection after rechecking, please

contact your dealer.

 If you receive a response as in the sample screen below, you have successfully made the

connection.

10. Network Viewer and Image Viewer

Wir

This section provides instructions for installing and using the Network Viewer and Image Viewer, which are

included with the NVR. The programs can be operated by a selected PC equipped with the following

requirements.

1. Intel Pentium 233MHz (at least).

2. 32 MB RAM

3. Windows 95, 98, NT, ME and 2000.

4. 4 MB Video card capable of 24-bit true color display.

5. 5 MB free hard-disk space for software installation.

6. 10-base T network for LAN operation.

7. IEEE 802.11B Wireless LAN Card.

10.1 The Network Viewer

10.1.1 Introduction to Network Viewer

The Network Viewer allows you to potentially access a unit of the NVR from a remote desktop or a laptop in

a TCP/IP networking environment. It can perform the following functions.

 View live images from the NVR

 Store, search, and review recorded video from the NVR HDD.

 Change the regular record, event record, and timer properties.

Before you are ready to view images from a desktop, you need to have your WIRELESS NVR networked by

obtaining a 10 base Ethernet data cable (Standard RJ-45) to connect the NVR to your PC or insert a

wireless card into the laptop’s wireless card slot. Change the laptop’s setting to enable the wireless function.

Now use the wireless function to connect directly with the wireless NVR. (Please refer to the following

pictures.) Enter the main menu to set the IP address.

A. WIRE

B. WIRELESS

Network Card

RJ-45To PC

eless NV

Notebook

ireless N

RJ-45 PIN configuration for Ethernet

PIN NO. PIN Assignment

1. TX +

2. TX -

3. RX +

4. Not Connected

5. Not Connected

6. RX -

7. Not Connected

8. Not Connected

Physical specification for Ethernet

Wire Type Cat. 5 Connector Type RJ-45 Max. Cable Length 30 m Hub Wiring Configuration Straight Through PC Wiring Configuration Cross Over

NOTE: If you use the wireless function, you need to know the correct ESSID and WEP KEY of the

NVR concerned. Now select the ESSID and enter the WEP KEY of the laptop.

RJ-45 socke

1 2 3 4 5 6 7 8

10.1.2 Install the Network Viewer in your PC

Install the Network Viewer from the supported CD-R.

1. Exit all applications currently running in the selected PC.

2. Insert the supported CD in the CD-ROM drive. The program will execute the installation automatically.

Follow the on-screen instructions to proceed with the rest of the installation procedure as they appear.

3. After the installation is complete, pop up the START menu from your computer, and point to Programs

/ Wireless NVR Network Viewer to open up the program selection page as shown below. Click the

Wireless NVR Network Viewer tag to start the Wireless NVR Network Viewer program.

Install the Network Viewer for the ZIP file.

1. Save the ZIP file to your PC and extract the file to a designated directory.

2. Open the extracted folder.

3. Click on the

appear to proceed with the rest of the installation procedure.

4. After the installation is complete, pop up the START menu from your computer, and point to Programs

/ Wireless NVR Network Viewer to start the Wireless NVR Network Viewer program.

NOTE: Please make sure the TCP/IP communication software has been properly set and configured

in your computer. To check your TCP/IP settings, refer to the following document.

icon to execute the installation and then follow the on-screen instructions as they

10.1.3 View the NVR video from a remote PC

Once the Network Viewer is executed a Login inset

will appear. You must enter the default User Name:

admin, and password: 9999 into the respective

entries and click OK to log into the application.

Follow the instructions below to use the Network

Viewer to browse a NVR video from a remote

location. Upon entering the Network Viewer, the

connection box will appear as follows.

1. Click the Find tag to connect all the NVR devices in the LAN.

2. Choose a channel number from the Channel drop-down list.

3. Type in the user name for the chosen NVR.

4. Type in the password of the device and click the Modify tag to add the device to the Device List.

5. Please repeat steps 2 to 4

6. Select the NVR to enter this device.

7. Click the Login tag to begin viewing images.

again for another selection.

NOTE: Upon connection, the connection status box will indicate the name and IP address of

the selected device. If there’s a failure to connect, a “Fail” message appears on the

screen right after the device IP address; otherwise an “OK” appears. To add more

connections or units to the NVR, please repeat the above instructions.

Functions Description

 Device List

 NVR Number Assigns a display location when you have multiple devices connected.

 Device Type Displays the device type.

 Device Title This entry allows you to assign a label to the chosen device.

 IP Address Type in the IP address which you preset for the device

 User Name This space allows you to assign a name to the chosen device.

 Password Type in the preset password for making a connection.

 Add Click to add the settings of a chosen device.

 Modify Click to change the settings of a chosen device.

 Delete Click to remove the connection of a chosen device.

 Find Click to find the connection of all the NVR devices in the LAN.

 Login Click to access the display page of the Network Viewer.

 EXIT Click to leave the Device Setup window.

Viewing images

View the connected device

Once the connection has been established, click the Login tag to enter the single-device mode

Displays the entire list of connected devices if and as necessary. This list

includes a lot of information about all the connected devices.

window (see the sample screen below). This window displays the connected device in the sequence

which has been arranged when you established the connection.

Function Buttons Description

Playback function bar.  Play- Click to a recorded video from the

PLAY LIST.

 Pause- Click to freeze the image.  Stop- Click to stop playing back the

recorded video or cease recording.

 REC- Click to activate the recording

function of the device.

 Step- Click to view images

picture-by-picture.

The Split-Screen display function bar. This

allows you to display the connected device in the

multi-format screens of 1, 2x2 and 8.

Press to enter the PC SYSTEM SETUP window,

which allows you to program the System Setup

and Alarm Setup.

Press to enter the NVR Setup window; open the device setting page to change the record and time properties via the network.

Click to minimize the Network Viewer into a PC

system tray.

Click to lock the system.

Click to save a viewing image in the local computer.

Press to leave the Network Viewer program.

The single sequence.

Click to page up.

Click to page down.

Recorded video list box. This box allows you to access all recorded video which are stored in the HDD of the connected devices. To review a recorded video, just click an entry from the list and click the PgUp/PgDn: To scroll up and down the list.

NVR Status Box. This box indicates the selected device status.

PLAY: The device is in the playback mode. LIVE: The device is in the live display mode. WAIT: The device is processing the command. PAU SE: Pauses the image.

button.

This allows you to search a recorded video kept in the HDD of the device. Enter the MONTH/DAY/YEAR HOUR: MINUTE you wish to search and click GO to proceed.

Every NVR has to own an IP address and a title to be identified on the network. This space displays the title and the IP address of the NVR.

Image display area. Displays the images of each camera and the title information in the top blue bar. Double click the image to view a full screen of the camera.

10.1.4 Change the PC SYSTEM SETTING

Follow the instructions below to reconfigure the System Setup and the Alarm Setup:

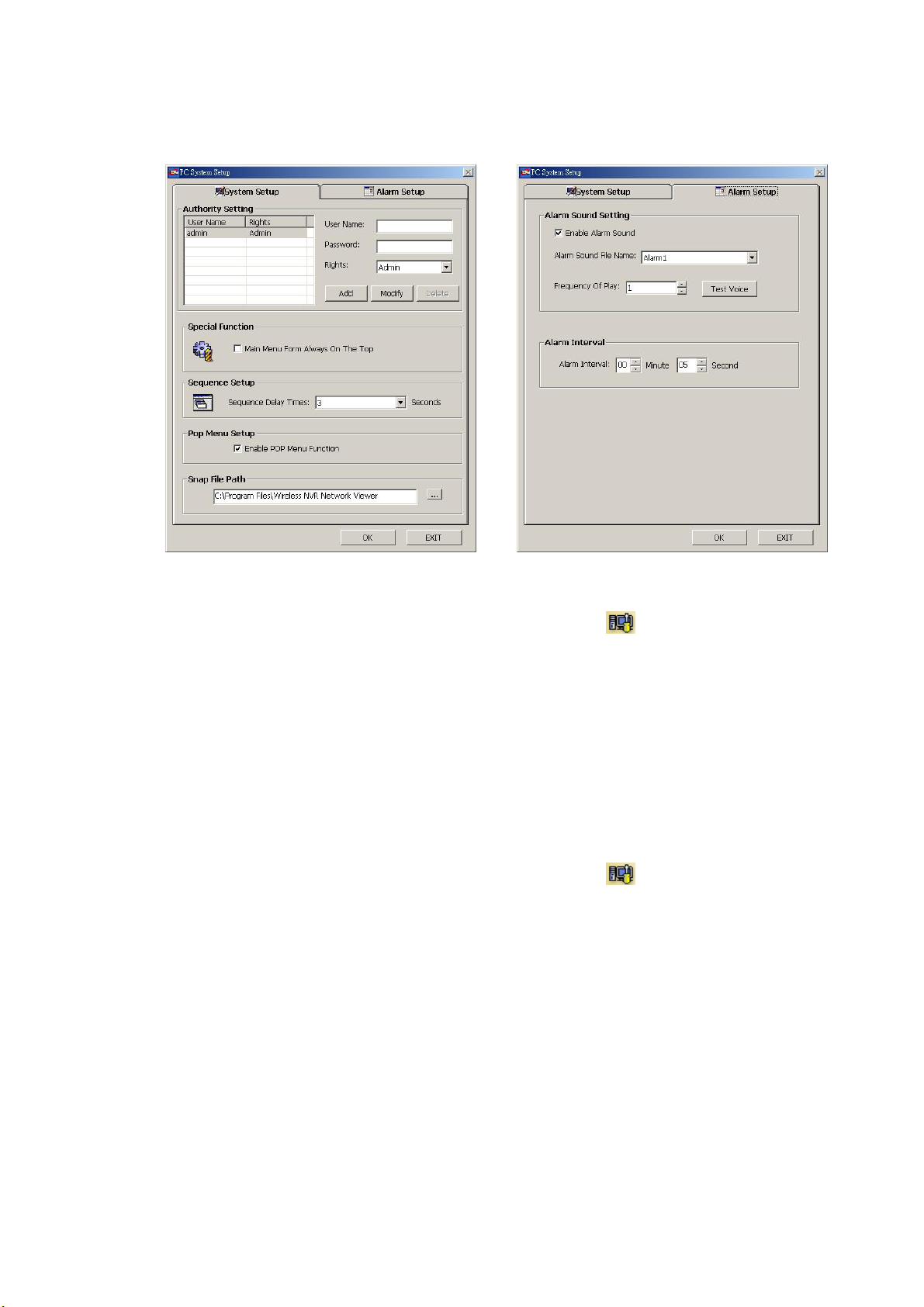

A. B.

Set the System Setup

1. When in the Wireless NVR Network Viewer Console, click the

button to enter the PC

System Setup page.

2. Click the System Setup button to enter the System Setup page (see the sample screen in A

above).

3. Set the Authority Setting, Special Function, Sequence Setup, Pop Menu Setup and Snap File

Path functions of this page.

4. Click the OK tag to proceed.

Set the Alarm Setup

1. When in the Wireless NVR Network Viewer Console, click the

button to enter the PC

System Setup page.

2. Click the Alarm Setup button to enter the Alarm Setup page (see the sample screen in B above).

3. Charge the Alarm Sound Setting if and as necessary.

4. Charge the Alarm Interval if and as necessary.

5. Click the OK tag to proceed.

10.1.5 Change the Record & Timer Properties Via the Network

Follow the instructions below to reconfigure the record and schedule recording settings via the network.

A. B.

B-1.

Set the regular record settings

1. When in the single –device mode, click

above)

2. Select a desired recording rate and Quality from the corresponding drop-down list

3. On the left side of the page are itemized Lancams 1(

sample screen in C above), each of which is connected to the corresponding camera. So, if you

click any of them, the information of the corresponding camera will appear in the entries of all the

items on the screen.

4. Adjust the LANCAM setup, including all the items on the screen given below:

Title

Connect LanCam

Motion (see the sample screen in D above)

The information in the entries for the above items can be sent to the NVR.

5. Click the OK tag to proceed.

Set the Alarm record settings

1. When in the single –device mode, click

above).

to enter the NVR SETUP page. (See the sample screen in A

) to 8( ) (see the

to enter the NVR SETUP page (see the sample screen in A

2. Set the ALARM SETTING to ON to enable the drop-down list in the ALARM SETTING area.

3. Select a desired recording rate, recording duration and pre-alarm from the corresponding

drop-down list.

4. Click the OK tag to proceed.

Set the Record Schedule

1. When in the single –device mode, click

B above)

2. Click the check mark in the

area.

3. Choose a day of the week from the Time-Period list to set the schedule for recording for each day.

4. Click the Modify button to enter the Time Setting page (see the sample screen in B-1 above)

5. Go to both the Start Time & End Time boxes, select a specific Hour: Minute and click the Add button to

add to the Schedule Record List.

6. When all required settings are completed, click OK to proceed.

Enable Record Schedule to ON to enable the Record Schedule setting

to enter the NVR SETUP page (see the sample screen in

10.1.6 Archive Images to the Computer

Playback images can be stored in a local PC in the JPEG format. Follow the instructions below to

save the viewed images to your PC.

1. Click an entry from the Recorded video list box and click the

recorded video.

2. Click the Pause button to freeze the image.

3. Click

4. Select a folder in the computer for copying images in.

5. Enter the number of images you wish to save in the Number of Saving box.

6. Click the SAVE tag; the program will automatically copy the displayed images into the

designated folder. The images are saved in the NVRxxx.jpg file name, which is displayed in

the box on the right-hand side. To view a saved image, please follow the instructions in the

next section to proceed.

to enter the following sample screen whenever in the playback mode.

button to review a

10.2 The Image Viewer

The Wireless NVR is equipped with a digital watermark. It's a check software which protects

archived images and informs you whether the images have been modified or not. Follow the

instructions below to open an archived image from an SD card or a HDD.

Pop up the START menu from your computer, and point to Programs / Wireless NVR Network

Viewer to open up the program selection page. Click the Image Viewer tag to start the Image

View program. (See a sample screen below.)

This is image integrity-protection software. It not only allows you to view an archived image from

the SD card or HDD of a computer, but also protects an archived image from reproduction or

interpolation. If an image isn't in the original format form of our Wireless NVR, the Image Viewer

will not display the image and instead will send a warning message " Not Correct Image " right

away. Close this message to enable you to see the image now.

1. Click the RELOAD tag to load the images from a path.

2. Click the PRINT tag to get a displayed image printed out from a printer.

11. Microsoft Internet Explorer

If you wish to connect your computer with a WIRELESS NVR, your PC needs to have a wireless card.

This section provides instructions for using the Microsoft Internet Explorer, which are included with

the NVR.

11.1 Connecting the NVR

Start up the Microsoft Internet Explorer, and then follow the steps given below to connect the NVR:

1. Click the URL block at the top of the screen.

2. Type in the URL address of the NVR into the URL block and press the “Enter” button to

enter the login page. The default User Name and password is admin and 9999

respectively.

3. Enter the user name (Login Name).

4. Fill in the password (Password).

5. Click the “OK” button and enter the home page of the NVR: both the user name and

password must be provided correctly.

Description of functional keys:

Password: Fill in the password in the blank space.

Browsing images from the NVR:

The images from the NVR will be displayed on the home page while going online with the NVR.

There are some buttons provided on the bottom of the home page for further setting:

Function Buttons

Description

Click to stop playing back the recorded video or to cease recording.

Click to a recorded video from the PLAY LIST.

Click to freeze the image.

Click to activate the recording function of the device.

Click to leave the home page of the NVR.

Press to enter the SETUP window, and open the device setting page in order to add more devices for viewing. This allows you to program the Record Setting and Record Schedule.

Press to enter the IMAGE window and open the

device home page for viewing.

Recorded video list box. This box allows you to access all recorded video, which are stored in the HDD of the connected devices. To review a recorded video, simply select an entry from the list and click the PgUp/PgDn: Enables you to scroll up and down the list.

NVR Time & Status Box. This box indicates the selected device status.

PLAY: The device is in the playback mode. LIVE: The device enters the live display mode.

This allows you to search a recorded video stored in the HDD of the device. Enter the YEAR/MONTH/DAY HOUR: MINUTE you wish to search and click the GO button to proceed.

button.

 Click the

channel mode. Channel 1 is the default. Click the

(left) button or the (right) button to

view images in the next channels in either the

forward or the reverse directions.

 Click the

mode. Use either the

(right) button to view the next four channels

in either the forward or the reverse directions.

 Click the

channel mode.

Image display area. Displays images from the 8ch cameras.

button to see images in the single

button to see images in the quad

(left) button or the

button to view images in the 8

11.2 Change LANCAM SETUP Setting

Please follow the steps given below to change the LANCAM setting through the network as and

when necessary.

(1) Click the

(2) At the top of the page are itemized CAMs 1 to 8, each of which is connected to the

corresponding camera. So, if you click any of them, the corresponding camera’s information

button on the home page to enter the setup mode.

will appear in the blank spaces of all the items on the screen.

(3) Adjust the LANCAM setup, including all the items on the screen given below:

Enabled LanCam

UserName

Password

IP Address

Quality

Resolution

Audio

Motion

The information in all the above items’ attached spaces can be sent to the NVR.

(4) Click the

(5) Click the

(6) Click the

the images to effect the desired changes instantly. (If the setting has not been changed by

button to submit the new LANCAM setting.

button to delete all information given against all the items on the screen.

button to return to the home page while the new image setting acts on

the above steps, any (re)entry onto the home page will find images in their earlier or original

setting. )

11.3 Change Record / Alarm Setting

Please follow the steps given below to change the RECORD / ALARM setting through the network

as and when necessary.

1. Click the

2. Click the

setting page.

button on the home page to enter the setup mode.

connection on the setting page to enter the RECORD / ALARM

3. Adjust the Record / Alarm setting, including the “NORMAL REC SETTING RATE”, “ALARM

REC SETTING ENABLE”, and “ALARM REC SETTING RATE” as and when necessary.

4. Click the

5. Click the

images to effect the desired changes instantly. (If the setting has not been changed by the

above steps, any (re)entry onto the home page will find images in their earlier or original

setting. )

button to submit the new Record / Alarm setting.

button to return to the home page while the new image setting acts on the

11.4 Change Schedule Setting

Please follow the steps below to change the Timer Record setting through the network as and when

necessary.

1. Click the

2. Click the

page.

button on the home page to enter the setup mode.

connection on the setting page to enter the Timer Record setting

3. Set the SCHEDULE RECORD to ON to enable the SCHEDULE RECORD function.

4. There are two time-periods available for scheduling each day. The Timer Record setting page

allows users to program the time each day that the NVR will start and stop recording. The time

is displayed in a 24-hour clock format. If there is a time overlap showing between two continual

time-period settings, the device will automatically combine the two time-period settings into one

combined time-period setting.

5. Click the

6. Click the

the images to effect the desired changes instantly. (If the setting has not been changed by the

above steps, any (re)entry onto the home page will find images in their earlier or original

setting. )

button to submit the new Timer Record setting.

button to return to the home page while the new image setting acts on

11.5 Change Wireless Setting

Please follow the steps below to change the Timer Record setting through the network as and when

necessary.

1. Click the

2. Click the

page.

button on the home page to enter the setup mode.

connection on the setting page to enter the WIRELESS SETTING

3. Set the ESSID to change the wireless network name.

4. Adjust the wireless setting, including the “CHANNEL”, “ENCRYPTION”, and “DEFAULT KEY”

as and when necessary.

5. If ENCRYPTION is set to “DISABLE”, the user cannot change the WEP KEY 1 … WEP KEY 4.

If ENCRYPTION is set to “WEP64”, the web key can be set to a 10-hex number. If

ENCRYPTION is set to “WEP128”, the web key can be set to a 26-hex number.

6. Click the

7. Click the

the images to effect the desired changes instantly. (If the setting has not been changed by the

above steps, any (re)entry onto the home page will find images in their earlier or original

setting. )

button to submit the new wireless setting.

button to return to the home page while the new image setting acts on

12. SPECIFICATIONS

Model Number WIRELESS NVR-2028

Lancam Connection Lancam x 8

Image System NTSC PAL

Image Resolution

Video Input interface RJ-45 (bit stream from Lancam) Video Out Mon1 (BNC) Audio Input interface RJ-45 (bit stream from Lancam) Audio Out RCA x 1 Compression MJPEG Storage Media > 320 GB / 1 Fixed HDD, 1 Removable HDD Memory Card SD Card Archive Hot Swappable Removable HD Watermark Digital Signature

Max Recording Rate

Image Size 4 ~ 64 KB Recording Mode Schedule / Manual / Alarm / Circular Alarm Recording Motion / Event(image) / Pre-Alarm / Post Alarm Max Pre-Alarm Recording 256 Pictures Playback Speeds Frame Stepping, 1/32x,1/16x,1/8x,1/4x,1/2x,1x,2x,4x,8x,16x,32x,100x Set-up Menu Multi-layer / Network setting Log list 2048 records Alarm In/Out 1 Alarm Output Built-in Buzzer Yes Motion Detection Yes Communication Port RS-232 Network Interface Wireless(IEEE 802.11g/b, CSMA/CA) Wireless Bit Rate 11, 5.5, 2, 1 Mbps Wireless Security WEP Encryption 64-bit and 128-bit Network Protocol TCP/IP, DHCP, HTTP, UDP, ARP, ICMP Software Upgrade Upgrade via Memory Card(SD Card) Password Protection Menu Setup / Format HDD

Network Capabilities

Power Supply (AC adapter) Input: 100V-240V, 50 Hz/60 Hz; Output: DC12V max 5A

Dimensions 220 mm x 94 mm x 340 mm EIA 19" 2U Half Size Mountable

Weight About 3.9 kg (without HDD) Operation Temperature 5∘C ~ 40∘C (41∘F ~ 104∘F)

Regulation FCC, CE

Provided Accessories

720 x 480 pixels 352 x 240 pixels

20 ips (720x480) 40

ips (352x240)

Archive image as JPEG formats,

Remote system setup and control

View live or recorded images

AC Adapter x 1

Instruction manual x 1

Power cord x 1

CD-R x 1

Screw ( #6-32UNC ) x 4, Screw ( M3 ) x 8(not in use)

Mobile Rack Key x 2

720 x 576 pixels 352 x 288 pixels

ips (720x576)

ips (352x288)

*Design and specifications subject to change without notice.

APPENDIX 1. –SCANIP

Follow the instructions below to use the SCANIP software to search the NVR-2028 devices from a

local location.

1. Click the

Device List will display the connection of the all-type device.

2. Select the desired device from the Device List.

3. Click the desired device to show the window while the NVR-2028 information acts to

display the desired changes instantly.

button to discover the connection of the all-type device in the LAN. The

4. Do you want to execute auto search free IP?

If and when you want to auto search the free IP, select “Yes” or “No”. If clicked “Yes” the

software will provide the “Free IP Address” boxes on the right side of the window. If you click

“No”, these address boxes will not show.

5. Manual insertion of “Free IP Address”.

If you have clicked “No”, please manually type in insertions as required in the “Free IP

Address”, “Gateway Address”, and “NET Mask”. Follow each insertion you make by typing in

the “Login Name” and “Password”, and click “UPDATE” to send your alterations to the NVR.

6. Auto search “Free IP Address”.

If you clicked “Yes” the “Free IP Address” box will appear on the right.

8. Select and double click any of the addresses in the “Free IP Address” box on the right to

enter it into an IP Address on the left.

9. To change any IP address, type in the new address in the “Free IP Address” box on the right

as well as the device “Login Name” and “Password” in their respective blanks at bottom left,

then click “UPDATE”, and the new address will automatically be sent to the device.

9. Click “Exit” at bottom right to shut the device.

APPENDIX 2. –RS-232 Protocol

1. Setup

1.1 Use a Null Modem cable (the standard RS-232 9 Pin Cable with Pin 2 and Pin 3

exchanged, see pin configuration chart below for details) to connect the COM 1 on the rear panel of the NVR-2028 to a PC.

NVR

1.2 Set the RS-232 option to ON in the COMMUNICATION page of the setup menu.

1.3 Set the PC communication parameters: 9600 bps, No Parity, 8 Data Bits, 1 Stop Bit.

2. Communication Protocol

2.1 General Command Format

<Lead Code = 0x41>, < Dest ID >, < Src ID >, <Main category >, <Second category >,

{<Number of parameters>,<Parameter 1>, <Parameter 2> ..,} <End Code= 0x4f>

Lead Code = 0x41

Dest ID = 0x01

Src ID = 0x20

Main Category = 0x01 Keys and Signals

= 0x02 Command

Second Category = 0x01 Handshake

= 0x02 Request Time/Set Time

= 0x06 Request System State

= 0x0b Time Search

End Code= 0x4f

The different command types and their corresponding parameters are as follows:

2.2 Keys and signals

PC Send: <0x41>, <0x01>, <0x20>, <0x01>, <Key Value(Low byte)>,

< The value of a specific front panel key >

KEY_PLAY 1 KEY_STOP 3 KEY_PAUSE 4 KEY_POWER 5 KEY_REC 6 KEY_SETUP 7 KEY_ENTER 8 KEY_SEARCH 10 KEY_DISPLAY 11 KEY_UP 13 KEY_DOWN 14 KEY_LEFT 15 KEY_RIGHT 16 KEY_SHIFT 36

JOG_L 128

JOG_R 129

KEY_SHIFT_LEFT 140

KEY_SHIFT_RIGHT 141

KEY_SHIFT_DOWN 142

KEY_SHIFT_UP 143

KEY_SHIFT_ENTER 144

KEY_SHIFT_DISPLAY 145

KEY_SHIFT_SEARCH 146

KEY_SHIFT_SETUP 147

KEY_SHIFT_POWER 148

KEY_SHIFT_PLAY 149

KEY_SHIFT_PAUSE 150

KEY_SHIFT_REC 151

KEY_SHIFT_STOP 152

KEY_SHUT_L8 160

KEY_SHUT_L7 161

KEY_SHUT_L6 162

KEY_SHUT_L5 163

KEY_SHUT_L4 164

KEY_SHUT_L3 165

KEY_SHUT_L2 166

KEY_SHUT_L1 167

KEY_SHUT_CT 168

KEY_SHUT_R1 169

KEY_SHUT_R2 160

KEY_SHUT_R3 161

KEY_SHUT_R4 162

KEY_SHUT_R5 163

KEY_SHUT_R6 164

KEY_SHUT_R7 165

SIGNAL_POWER 256

SIGNAL_REC_IN 257

SIGNAL_REC_OUT 258

3. Command Types

3.0 Command (Main Category=0x02)

3.1 Handshake (Second Category=0x01)

PC Request: <0x41>, <0x01>, <0x20>, <0x02>, <0x01>, <0x00>, <0x4f>

NVR Response: <0x41>, <0x20>, <0x01>, <0x02>, <0x08>, <0x00>, <0x4f>

3.2 Request Time (Second Category=0x02)

PC Request: <0x41>, <0x01>, <0x20>, <0x02>, <0x02>, <0x00>, <0x4f>

NVR Response: <0x41>, <0x20>, <0x01>, <0x02>, <0x02>, <0x07>, <7 Time Value >, <0x4f>

The following case is an illustration of < 7 Time Value>

2001/06/20 17:05:00 = <0xD1>, <0x07>, <0x06>, <0x14>, <0x11>, <0x05>, <0x00>

3.3 Set Time (Second Category=0x02)

PC Request: <0x41>, <0x01>, <0x20>, <0x02>, <0x02>, <0x07>, < 7 Time Value >, <0x4f>

The following case is an illustration of < 7 Time Value>

2001/06/20 17:05:00 = <0xD1>, <0x07>, <0x06>, <0x14>, <0x11>, <0x05>, <0x00>

NVR Act: Changing the time and date.

3.4 Request State (Second Category=0x06)

PC Request: <0x41>, <0x01>, <0x20>, <0x02>, <0x06>, <0x00>, <0x4f>

NVR Response: <0x41>, <0x20>, <0x01>, <0x02>, <0x06>, <0x01>,

Description of <System State>:

STATE_INIT 0

STATE_LIVE 1

STATE_REC 2

STATE_PLAY 3

S_STATE_PAUSE 4

STATE_NET_PLAY 5

STATE_NET_PAUSE 6

STATE_RESTART 7

STATE_SETUP 8,9

STATE_MENU 10,11,12,13,14,15

STATE_DHCP_WAIT 16

STATE_SEARCH 17

STATE_BACKUP 18,19

3.5 Time Search (Second Category=0x0b)

PC send: <0x41>, <0x01>, <0x20>, <0x02>, <0x0b>, <0x06>, <6 Bytes Date/Time>,

<0x4f> where < 6 bytes Date/Time >, = year(2 bytes, =LowByte + HighByte*256),

month ( 1 byte), day (1 byte), hour(1 byte),min(1 byte)

Example: to search 06/12/2002 17:00 the Date/Time =

<0xd2>, <0x07><0x06>, <0x0b>, <0x11>, <0x00> where 2003= 210(=0xd3) + 7(=0x07) *256

NOTE: The NVR accepts RS-232 time search commands only under the live or playback

Mode.

RMN040200260 _V1.3

Maxtor NVR-2028 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
