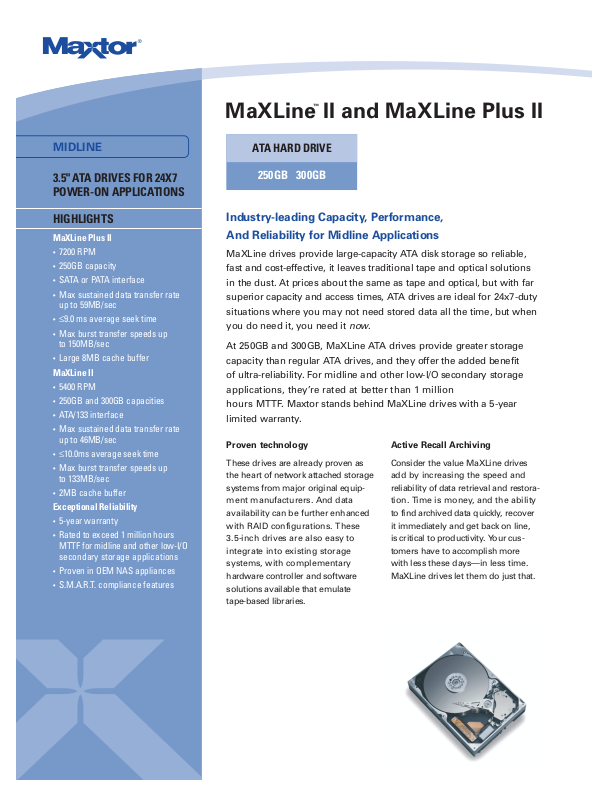

Maxtor MAXLINE II, MAXLINE PLUS II DATASHEET

MaXLine™II and MaXLine Plus II

ATA HARD DRIVE

250GB 300GB

MIDLINE

3.5" ATA DRIVES FOR 24X7
POWER-ON APPLICATIONS

HIGHLIGHTS

MaXLine Plus II

• 7200 RPM

• 250GB capacity

• SATA or PATA interface

• Max sustained data transfer rate

up to 59MB/sec

• ≤9.0 ms average seek time

• Max burst transfer speeds up

to 150MB/sec

• Large 8MB cache buffer

MaXLine II

• 5400 RPM

• 250GB and 300GB capacities

• ATA/133 interface

• Max sustained data transfer rate

up to 46MB/sec

• ≤10.0ms average seek time

• Max burst transfer speeds up

to 133MB/sec

• 2MB cache buffer

Exceptional Reliability

• 5-year warranty

• Rated to exceed 1 million hours

MTTF for midline and other low-I/O
secondary storage applications

• Proven in OEM NAS appliances

• S.M.A.R.T. compliance features

Industry-leading Capacity, Performance,

And Reliability for Midline Applications

MaXLine drives provide large-capacity ATA disk storage so reliable,

fast and cost-effective, it leaves traditional tape and optical solutions

in the dust. At prices about the same as tape and optical, but with far

superior capacity and access times, ATA drives are ideal for 24x7-duty

situations where you may not need stored data all the time, but when

you do need it, you need it now.

At 250GB and 300GB, MaXLine ATA drives provide greater storage

capacity than regular ATA drives, and they offer the added benefit

of ultra-reliability. For midline and other low-I/O secondary storage

applications, they’re rated at better than 1 million

hours MTTF. Maxtor stands behind MaXLine drives with a 5-year

limited warranty.

Proven technology

These drives are already proven as
the heart of network attached storage
systems from major original equip­ment manufacturers. And data
availability can be further enhanced
with RAID configurations. These

3.5-inch drives are also easy to
integrate into existing storage
systems, with complementary
hardware controller and software
solutions available that emulate
tape-based libraries.

Active Recall Archiving

Consider the value MaXLine drives
add by increasing the speed and
reliability of data retrieval and restora­tion. Time is money, and the ability
to find archived data quickly, recover
it immediately and get back on line,
is critical to productivity. Your cus­tomers have to accomplish more
with less these days—in less time.
MaXLine drives let them do just that.

Specifications subject to change without notice. GB means 1 billion bytes. Total accessible capacity varies depending on operating environment. Seek times
and acoustics are average values.

©2004 Maxtor Corporation. Maxtor, the Maxtor stylized logo, DiamondMax and What drives you are registered trademarks of Maxtor Corporation. MaXLine is a
trademark of Maxtor Corporation. All other trademarks are the property of their respective owner. Printed in the USA. Maxtor Corporation, 500 McCarthy Boulevard,
Milpitas, CA, 95035. DS-ML-7/04-CL

For support or information, call us at 1-800-2Maxtor or visit us at www.maxtor.com

All Maxtor products are backed by our leading service and support staff.

Service includes:

• Advance replacement in 2 business days

• 24-hour on-line troubleshooting tools and e-mail

• Maxtor’s commitment to total customer satisfaction

• Product support representatives available Monday-Friday

To speak with a Maxtor product support representative in the U.S. and Canada,
call 1-800-2MAXTOR, Mon.-Fri. from 5 a.m. to 5 p.m (PST).

In Europe, call [phone] Mon.-Thur. from 8:30 a.m. to 5 p.m (GMT)
and Fri. 8:30 a.m. to 4 p.m. (GMT).

In Australia, call [phone]. In Japan, call 00531653616, And in Singapore, call
65-6852-0220 or 1-800-481-6788.

MaXLine

Performance Specifications MaXLine II Plus II

Rotational Speed 5400 RPM 7200 RPM

Buffer (Cache) Size 2MB 8MB

Maximum Burst Transfer Rate 133MB/sec 150MB/sec

Maximum Sustained Transfer 46MB/sec 59MB/sec
Rate per Single Drive

Average Seek (ms) ≤10.0 ≤9.0

Drive Configuration

Discs/Heads (Max) 4/8 3/6

Bytes per Sector/Block 512 512

Logical CHS 16,383/16/63 16,383/16/63

Reliability Specifications

Start/Stop Cycles (min) >50,000 >50,000

Component Design Life (min) 5 years 5 years

Data Errors (non-recoverable) <1 per 10E <1 per 10E

15 bits read 15 bits read

Annualized Return Rate (ARR) <1.0% <1.0%

Warranty Period 5 Years 5 Years

MaXLine

Power Requirements MaXLine II Plus II

Mode 5V 12V 5V 12V

Seek (mA) 593 594 921 666

Idle (mA) 590 269 675 454

Standby (mA) 149 36 90 37

Environmental Limits

Acoustics

Idle (sound power: bel) 2.5 2.7

Performance Seek 3.6 3.8
(sound power: bel)

Temperature

Operating (°C) 5 to 55 5 to 55

Non-operating (°C) -40 to 71 -40 to 71

Shock

Operating Mechanical 60 60
Shock 2msec (G)

Non-operating Mechanical 300 300
Shock 2msec (G)

Physical Dimensions

Height (max mm) 26.1 26.1

Width (typical mm) 101.6 101.6

Length (max mm) 147.0 147.0

Weight (Max LB/g) 1.34/610 1.38/630

MaXLine II Capacity Model number

Parallel ATA—ATA/133 2MB Buffer 250GB 5A250J0

300GB 5A300J0

MaXLine Plus II

Capacity Model number

PATA 133 8MB Buffer 250GB 7Y250P0

SATA 150 8MB Buffer 250GB 7Y250M0

Note: J=BB motor, L=FDB motor
