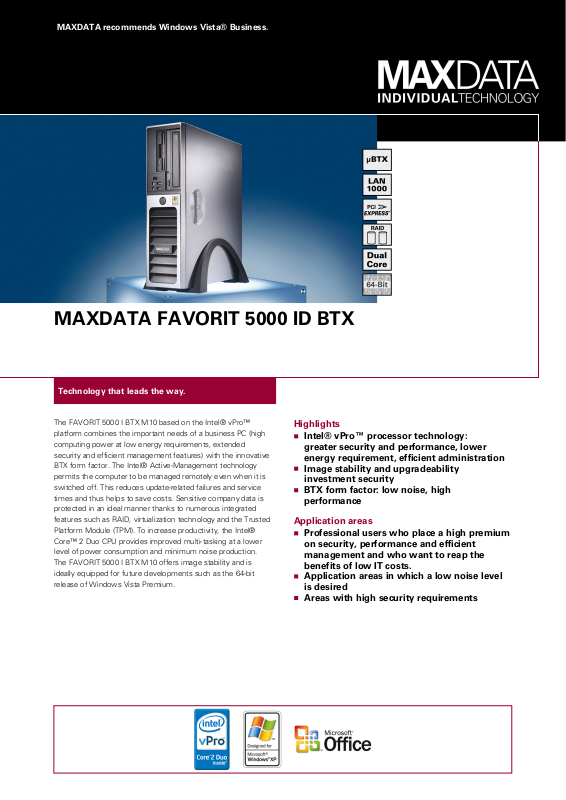

Maxdata FAVORIT 5000 ID BTX DATASHEET

MAXDATA recommends Windows Vista® Business.

MAXDATA FAVORIT 5000 ID BTX

Technology that leads the way.

The FAVORIT 5000 I BTX M10 based on the Intel® vPro™
platform combines the important needs of a business PC (high
computing power at low energy requirements, extended
security and efficient management features) with the innovative
BTX form factor. The Intel® Active-Management technology
permits the computer to be managed remotely even when it is
switched off. This reduces update-related failures and service
times and thus helps to save costs. Sensitive company data is
protected in an ideal manner thanks to numerous integrated
features such as RAID, virtualization technology and the Trusted
Platform Module (TPM). To increase productivity, the Intel®
Core™ 2 Duo CPU provides improved multi-tasking at a lower
level of power consumption and minimum noise production.
The FAVORIT 5000 I BTX M10 offers image stability and is
ideally equipped for future developments such as the 64-bit
release of Windows Vista Premium.

Highlights

Intel® vPro™ processor technology:
greater security and performance, lower
energy requirement, efficient administration
Image stability and upgradeability
investment security
BTX form factor: low noise, high
performance

Application areas

Professional users who place a high premium
on security, performance and efficient
management and who want to reap the
benefits of low IT costs.
Application areas in which a low noise level
is desired
Areas with high security requirements

MAXDATA recommends Windows Vista® Business.

MAXDATA FAVORIT 5000 ID BTX
Basic configuration Art. No. 640650

Software

Operating System Genuine Microsoft® Windows® XP

Software Microsoft® Office Professional 2007

Processor(s)

Processor Intel® Core™2 Duo Processor E6320

System

Chipset Intel® Q965 Express
Form Factor micro-BTX
Slot/Socket (CPU) Socket 775
Integrated Intel® graphic (GMA 3000) with up to

Hardware Monitoring yes
Fan control yes
Remarks ( System ) Integrated: Trusted Platform Module

Memory

Memory 1024 MB
Memory type Dual-channel DDR2 (667 MHz)
max. Memory 4096 MB
Number OF DIMM Soockets 4 Piece(s)

Slots

PCI Express x1 connectors 1 Piece(s)
PCI Express x4 - Piece(s)
PCI Express x16 connectors 1 Piece(s)
PCI (33 MHz / 32 bit) LowProfile 2 Piece(s)

Interfaces

LAN Connector yes
Number of Standard-USB Slots (USB 2.0) 8 Piece(s)
USB 2.0 (front) 2 Piece(s)
USB 2.0 (back) 4 Piece(s)
USB 2.0 (intern) 2 Piece(s)
Fire Wire (IEEE 1394) yes
Number Of Serial Ports 1 Piece(s)
Number of Parallel Ports 1 Piece(s)
PS/2 Keyboard Connector yes
PS/2 Mouse Connector yes
DVI yes
VGA yes
S-Video Out no
HDMI no
Line Out Connector yes
SPDIF-out no
Line In Connector yes
Microphone Connector yes
Kensington Key yes
Trusted Platform Module (TPM) yes

Hard Drive

Hard Drive 320 GB
Interface (Mass Storage) S-ATA II
Rotation Speed HDD 7200 rpm
Max. Gross Capacity (HDD) 80 - 250 GB

Onboard S-ATA Controller

S-ATA Standard S-ATA II

Professional

(Office Ready Preload - 60 day trial),
AntiVirus Software, Power DVD player,
Nero 7 Essentials (in combination with
DVD+/-RW)

(1.86 GHz, 1066 MHz FSB, 4 MB L2
Cache)

256 MB, LAN 10/100/1000 MBit/s
Onboard, S-ATA Controller Onboard,
Sound Onboard

(TPM) / Intel® Active-Management
Technology (iAMT) / Intel®
Virtualisation technology (VT)

RAID Level (S-ATA) 0,1,5,10

Onboard IDE / S-ATA

Number of IDE Ports 1 Piece(s)
Number of S-ATA ports 6 Piece(s)

Drives

Drives DVD-ROM
Floppy no
Multi CardReader no

Graphics

Graphics System integr. Intel® graphics (GMA 3000)
Assignment Graphic Memory 256 MB / shared

Audio System

Audio / Sound Intel® High Definition Audio
Audio Chip Setting SigmaTel STAC9227

Network

Possible Data Rate(s) 10/100/1000 Mbit/s
Bluetooth no

Features

Other features MAXDATA Slim Line keyboard &

Case Features

Case Features Micro desktop (BTX)
3,5" External Drive Bay(s) 1 Piece(s)
5,25" External Drive Bay(s) 1 Piece(s)
3,5" Internal Drive Bay(s) 1 Piece(s)
Power consumption on power supply
(max.)
Rated Voltage 200 - 240 V
Front audio connections yes
Number of Front Fire Wire (IEEE1394)
Connectors

Input devices

Keyboard MAXDATA Slim Line Keyboard
Remarks (keyboard) (except Benelux)
Mouse MAXDATA Laser Mouse

Certifications / Certificates / Standards

EN60950 Product Safety yes
EN55022/B Interference Emission yes
EN55024 Electomagnetic Immunity yes
CE-Marking according to EU-guidelines yes
Blue Angel yes
TUEV GS yes

Measures (gross)

Width (gross) 402 mm
Height (gross) 106 mm
Depth (gross) 375 mm

MAXDATA laser mouse, 300 Watt
power supply, iAMT, DVI, FireWire,
TPM, Intel virtualisation technology (VT)

300 W

1 Piece(s)
