M-Audio UC-17 User Guide

Evolution X-Session Advanced User Guide

Appendix H - X-Session Preset Chart

Factory Preset

01 MIDI CC's 16-31 * 02 MIDI CC's 32-47 * 03 MIDI CC's 48-63 * 04 MIDI CC's 102-117 * 05 GM Preset 06 Reason native Preset 07 Pro-53 Preset 08 Rebirth Preset 09 Sampletank Preset 10 Sound Blaster Synth Preset

Presets 1 to 4 are designed for software that does not have default MIDI CC's to control it's parameters, and instead uses a MIDI 'learn' mode.

*The Cross Fader will send out CC10 for all presets 1-4. F18 is set to 'OFF', so that only cc10 is sent out when the cross fader is moved. The buttons are assigned MIDI CC's such that their values will not clash with any of the CC's assigned to the controllers in all four of these presets.

Evolution UC-33 Advanced User Guide

Evolution X-Session Advanced User Guide

About The Advanced Guide

In the X-Session Advanced Guide we have made the assumption that you have been through the X-Session Getting Started Guide which should have been supplied in printed form with your X-Session. If you do not have this guide, please contact your local distributor or download it from our website www.evolution.co.uk

The Getting Started Guide should insure that you are now familiar with the basic operation of the X-Session so that we now can focus on more in-depth features.

First however, we need to explain some terminology we use throughout the guide.

Terminology

Edit Mode

Edit Mode describes the short period after a function button has been pressed during which the parameters of that function can be altered. The numeric keypad can be used to alter a parameter during this time. No data is sent out of the X-Session when it is in Edit mode except for program and bank changes. LCD symbols shown in Edit mode will flash to show you that a particular parameter can be edited. If a number is part entered, and a new controller turned, that number will become the relevant parameter number for the new controller and the 3 second editing period will re-trigger.

Default mode

Default Mode describes the state of the X-Session, when no function buttons have been pressed within the last 3 seconds. In Default mode, the LCD will show the controller symbol, and the 2 digit display will show the last selected controller. The 3 digits display the currently assigned MIDI CC number.

Appendix F - Roland GS and Yamaha XG NRPN Sup-

NRPN NRPN Data Data MSB LSB MSB LSB CC99 CC98 CC06 CC38 01 08 00-7F n/a (-64 - 0 - +63) Vibrato Rate (relative change) 01 09 00-7F n/a (-64 - 0 - +63) Vibrato Depth (relative change) 01 0A 00-7F n/a (-64 - 0 - +63) Vibrato Delay (relative change) 01 20 00-7F n/a (-64 - 0 - +63) Filter Cutoff Freq. (relative change) 01 21 00-7F n/a (-64 - 0 - +63) Filter Resonance (relative change) 01 63 00-7F n/a (-64 - 0 - +63) EG (TVF&TVA) Attack Time (relative change) 01 64 00-7F n/a (-64 - 0 - +63) EG (TVF&TVA) Decay Time (relative change) 01 66 00-7F n/a (-64 - 0 - +63) EG (TVF&TVA) Release Time (relative change) *14 00-7F 00-7F n/a (-64 - 0 - +63) Drum Filter Cutoff Freq. (relative change) *15 00-7F 00-7F n/a (-64 - 0 - +63) Drum Filter Resonance (relative change) *16 00-7F 00-7F n/a (-64 - 0 - +63) Drum EG Attack Rate (relative change) *17 00-7F 00-7F n/a (-64 - 0 - +63) Drum EG Decay Rate (relative change) 18 00-7F 00-7F n/a (-64 - 0 - +63) Drum Instrument Pitch Coarse (relative change) *19 00-7F 00-7F n/a (-64 - 0 - +63) Drum Instrument Pitch Fine (relative change) 1A 00-7F 00-7F n/a (0 to Max) Drum Instrument Level (absolute change) 1C 00-7F 00-7F n/a (Random, L>C>R) Drum Instrument Panpot (absolute change) 1D 00-7F 00-7F n/a (0 to Max) Drum Instrument Reverb Send Level (absolute change) 1E 00-7F 00-7F n/a (0 to Max) Drum Instrument Chorus Send Level (absolute change) %1F 00-7F 00-7F n/a (0 to Max) Drum Instrument Variation Send Level (absolute change)

* = added by Yamaha XG; % changed from Delay to Variation by Yamaha XG

port to Roland JV/XP

Appendix G - General MIDI Reverb and Chorus

Types

Reverb Types

0: Small Room 1: Medium Room 2: Large Room 3: Medium Hall 4: Large Hall 8: Plate

Chorus Types

0: Chorus 1 1: Chorus 2 2: Chorus 3 3: Chorus 4 4: FB Chorus 5: Flanger

Evolution X-Session Advanced User Guide

Appendix E -

Standard MIDI Controller numbers (MIDI CC’s)

Evolution UC-33 Advanced User Guide

00 Bank Select 01 Modulation 02 Breath Control 03 Controller 3 04 Foot Control 05 Porta Time 06 Data Entry 07 Channel Volume 08 Balance 09 Controller 9 10 Pan 11 Expression 12 Effects Controller 1 13 Effects Controller 2 14 Controller 14 15 Controller 15 16 Gen Purpose 1 17 Gen Purpose 2 18 Gen Purpose 3 19 Gen Purpose 4 20 Controller 20 21 Controller 21 22 Controller 22 23 Controller 23 24 Controller 24 25 Controller 25 26 Controller 26 27 Controller 27 28 Controller 28 29 Controller 29 30 Controller 30 31 Controller 31 32 Bank Select LSB 33 Modulation LSB 34 Breath Control LSB 35 Controller 35 36 Foot Control LSB 37 Porta Time LSB 38 Data Entry LSB 39 Channel Volume LSB 40 Balance LSB 41 Controller 41 42 Pan LSB 43 Expression LSB 44 Controller 44 45 Controller 45

46 Controller 46 47 Controller 47 48 Gen Purpose 1 LSB 49 Gen Purpose 2 LSB 50 Gen Purpose 3 LSB 51 Gen Purpose 4 LSB 52 Controller 52 53 Controller 53 54 Controller 54 55 Controller 55 56 Controller 56 57 Controller 57 58 Controller 58 59 Controller 59 60 Controller 60 61 Controller 61 62 Controller 62 63 Controller 63 64 Sustain Pedal 65 Portamento 66 Sostenuto 67 Soft Pedal 68 Legato Pedal 69 Hold 2 70 Sound Variation 71 Resonance 72 Release Time 73 Attack Time 74 Cut-off Frequency 75 Controller 75 76 Controller 76 77 Controller 77 78 Controller 78 79 Controller 79 80 Gen Purpose 5 81 Gen Purpose 6 82 Gen Purpose 7 83 Gen Purpose 8 84 Portamento Control 85 Controller 85 86 Controller 86 87 Controller 87 88 Controller 88 89 Controller 89 90 Controller 90 91 Reverb Depth

92 Tremelo Depth 93 Chorus Depth 94 Celeste (De-tune) 95 Phaser Depth 96 Data Increment 97 Data Decrement 98 Non-Reg Param LSB 99 Non-Reg Param MSB 100 Reg Param LSB 101 Reg Param MSB 102 Controller 102 103 Controller 103 104 Controller 104 105 Controller 105 106 Controller 106 107 Controller 107 108 Controller 108 109 Controller 109 110 Controller 110 111 Controller 111 112 Controller 112 113 Controller 113 114 Controller 114 115 Controller 115 116 Controller 116 117 Controller 117 118 Controller 118 119 Controller 119

Channel Mode Messages

120 All Sound off 121 Reset all Controllers 122 Local Control 123 All Notes Off 124 Omni Off 125 Omni On 126 Mono On (Poly Off) 127 Poly On (Mono Off)

Extra RPN Messages

128 Pitch Bend sensitivity 129 Fine Tune 130 Coarse Tune 131 Channel Pressure

“On The Fly”

Operations

Evolution X-Session Advanced User Guide

Sending Program Changes On The Fly

You can at any one time send out a program change message to you sound card, sound module, instrument or whatever other device will receive this standard MIDI message. The program change will be sent on the global MIDI channel.

1. Press the PROGRAM button.

2. Type in the program number you wish to send, using the numerical keypad or the +/- keys.

You can also program the assignable buttons to send out fixed program messages to individual MIDI channels. For further information regarding this method, please go to pages 5 to 9.

Global MIDI channel: For more information, please go to page 10.

Example: The LCD display the PROG symbol in the right hand corner Indicating that the PROGRAM button has been pressed. The program value sent is 00 and its sent on the global MIDI channel 01.

Sending Bank Changes On The Fly

If your receiving device has more than 128 presets, you may be able to access the additional banks by sending out bank change LSB and MSB messages.

1. Press the DATA LSB or DATA MSB button.

2. Type in the bank number you wish to send, using the numerical keypad or the +/- keys.

Please check the documentation for your receiving device to ensure that it will respond to these messages. For more information about LSB and MSB, please see the chapter

“Program and Bank Changes Explained” on page 17 in this manual.

MIDI Note Numbers

Octave

(n)

Note Numbers

-1 0 1 2 3 4 5 6 7 8 9

Evolution X-Session Advanced User Guide

Cn C#n Dn D#n En Fn F#n Gn G#n An A#n Bn

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107

108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127

Sending Snap Shot

Press the +/- buttons together to send a SNAP SHOT of the current X-Session controller assignments and their values.

When you send a snapshot, the LCD will display the SNAPSHOT symbol. The data for an individual controller will be sent on which ever channel that controller has been assigned to.

Snap Shot is one way of synchronizing the receiving device with the X-Session and can be used as a creative tool, with interesting and surpri sing result s.

The data sent when SNAP SHOT is pressed, can be viewed in your sequencers list editor. Set your sequencer to record and press SNAP SHOT. Then open the list editor and ensure its set to display controller data.

Evolution X-Session Advanced User Guide

Appendix D - Useful MIDI data

General MIDI Instruments

Piano Bass Reed Synth Effects

0 Acoustic Grand Piano 1 Bright Acoustic Piano 2 Electric grand Piano 3 Honky Tonk Piano 4 Electric Piano 1 5 Electric Piano 2 6 Harpsichord 7 Clavinet

Chromatic Percussion Strings/Orchestra Pipe Ethnic

8 Celesta 9 Glockenspiel 10 Music Box 11 Vibraphone 12 Marimba 13 Xylophone 14 Tubular bells 15 Dulcimer

Organ Ensemble Synth Lead Percussive

16 Drawbar Organ 17 Percussive Organ 18 Rock Organ 19 Church Organ 20 Reed Organ 21 Accordion 22 Harmonica 23 Tango Accordion

Guitar Brass Synth Pad Sound Effects

24 Nylon Acoustic 25 Steel Acoustic 26 Jazz Electric 27 Clean Electric 28 Muted Electric 29 Overdrive 30 Distorted 31 Harmonics

32 Acoustic Bass 33 Electric Fingered Bass 34 Electric Picked Bass 35 Fretless Bass 36 Slap Bass 1 37 Slap Bass 2 38 Syn Bass 1 39 Syn Bass 2

40 Violin 41 Viola 42 Cello 43 Contrabass 44 Tremolo Strings 45 Pizzicato Strings 46 Orchestral Harp 47 Timpani

48 String Ensemble 1 49 String Ensemble 2 (Slow) 50 Syn Strings 1 51 Syn Strings 2 52 Choir Aahs 53 Voice Oohs 54 Syn Choir 55 Orchestral Hit

56 Trumpet 57 Trombone 58 Tuba 59 Muted Trumpet 60 French Horn 61 Brass Section 61 Syn Brass 1 62 Syn Brass 2

64 Soprano Sax 65 Alto Sax 66 Tenor Sax 67 Baritone Sax 68 Oboe 69 English Horn 70 Bassoon 71 Clarinet

72 Piccolo 73 Flute 74 Recorder 75 Pan Flute 76 Bottle Blow 77 Shakuhachi 78 Whistle 79 Ocarina

80 Syn Square Wave 81 Syn Sawtooth Wave 82 Syn Calliope 83 Syn Chiff 84 Syn Charang 85 Syn Voice 86 Syn Fifths Sawtooth Wave 87 Syn Brass & Lead

88 New Age Syn Pad 89 Warm Syn Pad 90 Polysynth Syn Pad 91 Choir Syn Pad 92 Bowed Syn Pad 93 Metal Syn Pad 94 Halo Syn Pad 95 Sweep Syn Pad

96 SFX Rain 97 SFX Soundtrack 98 SFX Crystal 99 SFX Atmosphere 100 SFX Brightness 101 SFX Goblins 102 SFX Echoes 103 SFX Sci-Fi

104 Sitar 105 Banjo 106 Shamisen 107 Koto 108 Kalimba 109 Bag Pipe 110 Fiddle 111 Shanai

112 Tinkle Bell 113 Agogo 114 Steel Drums 115 Woodblock 116 Taiko Drum 117 Melodic Tom 118 Syn Drum 119 Reverse Cymbal

120 Guitar Fret Noise 121 Breath Noise 122 Seashore 123 Bird Tweet 124 Telephone Ring 125 Helicopter 126 Applause 127 Gun Shot

Muting All Controllers

To Mute all controllers and the cross fader, press the CTRL MUTE buttons.

This allows you to alter the position of the controller without affecting the settings of your software. CTRL MUTE does not affect buttons, and as soon as an assignable button or a function key is pressed, the controllers are turned back on. Alternatively, you can press the CTRL MUTE buttons again to turn the controllers back on.

When you first press the CTR MUTE buttons, you will see the LCD display ’OFF’. Changing the position of a controller with controller mute engaged, the LCD will always display OFF to indicate no data is being sent out by the X-Session. To cancel the controller mute function, simply press a function key (or keys) or one of the assignable buttons.

This is a very useful feature if you are switching between presets on the X-Session with

the controllers out of position. You will be able to move the controller to a position relative to the software’s controller value, rather than causing the software’s controller value to

jump. You can also use this feature for creative mixing and interesting DJ type control. If for

instance you use the X-Session as a conventional volume mixer, try engaging the

controller mute function, change the volume up or down of various channels and press the SNAP SHOT buttons. This form of mixing is very dynamic and can not be done using a conventional mixer.

About the Cross Fader

The cross Fader can be assigned to two MIDI CC values, by editing F17 and F18. When it is moved, both F17 and F18 will be sent out. F17 will increment from left to right, while F18 will increment from right to left. So, F17 and F18 work against each other.

As an example, this has been put to practice in the Rebirth preset:

F17 controls the volume of the top drum module, while F18 controls the volume of the bottom drum module. This means you can flick between the two modules by flicking the fader far left or right, since when F17 is 0, F18 is 127, and when F18 is 0 F17 is 127.

To select F18 for programming, you need to use the CONTROL SELECT Buttons. F17 can be selected for editing by moving the cross fader.

Evolution X-Session Advanced User Guide

Appendix C - Hexadecimal Conversion Chart

Hexadecimal to Decimal Conversion Chart

Hexadeci-

mal value

0 0 2B 43 56 86 1 1 2C 44 57 87 2 2 2D 45 58 88 3 3 2E 46 59 89 4 4 2F 47 5A 90 5 5 30 48 5B 91 6 6 31 49 5C 92 7 7 32 50 5D 93 8 8 33 51 5E 94

9 9 34 52 5F 95 0A 10 35 53 60 96 0B 11 36 54 61 97 0C 12 37 55 62 98 0D 13 38 56 63 99 0E 14 39 57 64 100 0F 15 3A 58 65 101 10 16 3B 59 66 102 11 17 3C 60 67 103 12 18 3D 61 68 104 13 19 3E 62 69 105 14 20 3F 63 6A 106 15 21 40 64 6B 107 16 22 41 65 6C 108 17 23 42 66 6D 109 18 24 43 67 6E 110 19 25 44 68 6F 111 1A 26 45 69 70 112 1B 27 46 70 71 113 1C 28 47 71 72 114 1D 29 48 72 73 115 1E 30 49 73 74 116 1F 31 4A 74 75 117 20 32 4B 75 76 118 21 33 4C 76 77 119 22 34 4D 77 78 120 23 35 4E 78 79 121 24 36 4F 79 7A 122 25 37 50 80 7B 123 26 38 51 81 7C 124 27 39 52 82 7D 125 28 40 53 83 7E 126 29 41 54 84 7F 127 2A 42 55 85

Decimal

Value

Hexadeci-

mal value

Decimal

Value

Hexadeci-

mal value

Decimal

Value

Evolution X-Session Advanced User Guide

B2-The Buttons:

Evolution UC-33 Advanced User Guide

MIDI CC Description Program

(Press Twice)

0-119 Standard MIDI CC’s - Toggle Value 2 Toggle Value 1

120-127 Channel Mode

Messages

128 Pitch Bend Range - Sensitivity value 129 Channel Fine Tune - Tuning amount 130 Channel Coarse Tune - Tuning amount 131 Channel Pressure - Pressure amount 132 RPN Coarse Value RPN LSB RPN MSB 133 RPN Fine Value RPN LSB RPN MSB 134 NRPN Coarse Value NRPN LSB NRPN MSB 135 NRPN Fine Value NRPN LSB NRPN MSB 136 Master Volume GM* - Volume LSB Volume MSB 137 Master Pan GM* - Pan LSB Pan MSB 138 Master Coarse Tune

GM*

139 Master Fine Tune

GM*

140 Chorus Mod rate

GM2*

141 Chorus Mod Depth

GM2*

142 Feedback GM2* - Feedback level 143 Send to Reverb GM2* - Reverb send

144 Pitch Bend - Pitch shift LSB Pitch shift MSB 145 Program/Bank Preset Program Bank LSB Bank MSB 146 MIDI CC (on/off) MIDI CC Button press

147 Note (on/off) Note Velocity off Velocity on 148 Note (on/off toggle) Note Velocity off Velocity on

149 150 151 152 255

MMC Command** - Command select. Reverb type GM2 * - Type Reverb time GM2 * - Time Chorus type GM2* - Type Controller Off***

- Toggle Value 2 Toggle Value 1

- Tuning LSB Tuning MSB

- Mod rate -

- Mod depth -

- - -

Data Lsb

(Press Twice)

level

value

Data Msb

(Press Twice)

Button release value

Programming

Editing

The X-Session

* Sysex messages - for details please see pages 8 & 18. ** MMC Sysex messages, for details please see page 11. *** This value cannot be typed in using the numerical keypad. Type in 144 and then press the '+' button to set this value, or 0 and press the '-' button.

Evolution X-Session Advanced User Guide

Introduction To X-Session Programming Options

Each of the X-Session’s 28 controllers can send MIDI CC, RPN/NRPN, GM 1&2 SysEx

and even be assigned to individual MIDI channels. MIDI CC (continuous controller) numbers are part of the standard MIDI specifications and

are typically used to control the real-time changing of parameters in musical equipment. For a complete list of standard MIDI controller numbers from 0 to 131, please see Appendix E on page 29.

Any of the 28 real-time controllers on the X-Session can be assigned to a MIDI CC number however the 10 assignable buttons have slightly different options from the cross fader or 16 rotary controllers.

The following 2 charts show all the transmit messages you can program for each of the 18 fader/controllers and 10 assignable MIDI buttons respectively. We show you this already at this stage, so you can follow the principle of programming the X-Session controllers in the following instructions and examples.

Please pay extra attention to the differences between how you program the cross fader or controllers and how you program the buttons.

Cross Fader & Rotary Dials

ASSIGN Description Data Lsb

0-119 Standard MIDI CC’s - -

120-127 Channel Mode Messages - -

128 Pitch Bend Sensitivity - 129 Channel Fine Tune - 130 Channel Coarse Tune - 131 Channel Pressure - 132 RPN coarse RPN LSB RPN MSB 133 RPN fine RPN LSB RPN MSB 134 NRPN coarse NRPN LSB NRPN MSB 135 NRPN fine NRPN LSB NRPN MSB 136 Master Volume GM* - 137 Master Pan* - 138 Master Coarse Tune* - 139 Master Fine Tune* - 140 Chorus Mod rate** - 141 Chorus Mod Depth** - 142 Feedback** - 143 Send to Reverb** - 144 Pitch Bend - 255 Controller Off**** - -

* General MIDI SysEx messages - for details please see pages 8 & 18. ** General MIDI 2 SysEx messages *** MMC Sysex messages, for details please see page 11. **** This value cannot be typed in using the numerical keypad. Use '+' or '-'.

(Press Twice)

Data Msb

Appendix B - Assignable MIDI CC’s

on the X-Session

B1 - The Cross Fader and rotary Controllers:

MIDI CC Description Data Lsb (Press

Twice)

0-119 Standard MIDI CC’s - -

120-127 Channel Mode Messages - -

128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 255

Pitch Bend Sensitivity - Channel Fine Tune - Channel Coarse Tune - Channel Pressure - RPN coarse RPN LSB RPN MSB RPN fine RPN LSB RPN MSB NRPN coarse NRPN LSB NRPN MSB NRPN fine NRPN LSB NRPN MSB Master Volum e GM* - Master Pan GM* - Master Coarse Tune GM* - Master Fine Tune GM* - Chorus Mod rate GM2* - Chorus Mod Depth GM2* - Feedback GM2* - Send to Reverb GM2* - Pitch Bend - -

Controller Off***

- -

Data Msb (Press

Twice)

Evolution X-Session Advanced User Guide

Appendix A - MIDI IMPLEMENTATION CHART

Function Transmitted Received Remarks

Basic :Default Channel:Changed

:Default Mode :Messages :Altered

Note Number:True Voice

Velocity: Note ON : Note OFF

After : Keys

Touch :Ch’s Pitch Bend 0 X

Control 0-119 Change

120-127 0 X

Program Change:True Number

System Exclusive GM, GM2, MMC Song Position

Common:Song Select

System :Clock Exclusive:Commands

Aux :Local ON/OFF Messages :All Notes OFF :Active Sense :Reset

Notes: 0 = YES X=NO

1-16 1-16

--------X

*********

0-127

*********

0 0

0 X

0-127

*********

X X

X 0

0 0 0 0

X X

Memory

Dump

Assignable MIDI Buttons

ASSIGN Description Program

0-119 Standard MIDI CC’s - Toggle Value 2 Toggle Value 1

120-127 Channel Mode Mess ages - Toggle Value 2 Toggle Value 1

128 Pitch Bend Sensitivity - Sensitivity value 129 Channel Fine Tune - Tuning amount 130 Channel Coarse Tune - Tuning amount 131 Channel P ressure - Pressure amount 132 RP N Coarse V al ue RP N LSB RPN MSB 133 RP N F i ne Value RPN LSB RPN MSB 134 NRP N Coars e Value NRPN LSB NRPN MSB 135 NRP N F i ne Value NRPN LSB NRPN MSB 136 Master Volume* - Volume LSB Volume MSB 137 Master Pan* - Pan LSB Pan MSB 138 Master Coarse Tune* - Tuning LSB Tuning MSB 139 Mast er Fi ne Tune* - Tuning LSB Tuning MSB 140 Chorus Mod rat e** - Mod rate 141 Chorus Mod Dept h** - Mod depth 142 Feedbac k ** - Feedback level 143 S end to Reverb** - Reverb send level 144 Pitch Bend - Pitch shift LSB Pitch shift MSB 145 Program/Bank Preset Program Bank LSB Bank MSB 146 MIDI CC (on/off) MIDI CC Button release value Button press value 147 Note (on/off) Note Velocity off Velocity on 148 Note (on/off toggle) Note Velocity off Velocity on 149 150 151 152 255

MMC Command*** - Command select. Reverb type ** - Type Reverb time ** - Time Chorus type ** - Type Controller Off****

Selecting A Controller For Editing

(Press Twice)

- - -

Before you can assign a MIDI CC to one of the X-Session’s controllers, you will need to select it for editing. There are 2 methods for doing this:

1. Press CONTROL SELECT. The LCD will display the CONTROLLER symbol.

The symbol will be flashing to indicate the controller settings can be altered. The 3-digit display will show the number of the currently selected controller, proceeded

by a 'C', or an 'F' if the cross fader is selected.

2. Type in the number of the controller using the numeric keypad, or the +/buttons.

Move the cross fader/rotary controller.

Simply moving a fader/rotary controller will make it the currently selected controller, ready for editing.

To select the second cross fader controller value (F18) please use method 1. It is also not possible to select any of the 10 numerical buttons by pressing them, since during edit mode, they are used to enter numerical values. To program these buttons, please use the first method.

Bank LSB (Press

Twice)

Data Msb (Press

Twice)

Evolution X-Session Advanced User Guide

Assigning MIDI CC’s

Once the controller you want to edit has been selected, you can change the assigned MIDI CC number in the following way:

1. Press ASSIGN. The LCD will flash the CC symbol. The 3 digit display will indicate the currently assigned MIDI CC number.

2. Type in a new MIDI CC value using the numeric keypad or ’+’ and ’-’ buttons. The MIDI controller number you select will be assigned to the currently selected

controller, shown by the number on the small, 2-digit display.

Example: After pressing ASSIGN, the display shows the cc symbol and in this case displays that currently the MIDI CC 07 is assigned to controller number 13.

Evolution X-Session Advanced User Guide

Appendix A –G

Assigning An Individual MIDI Channel

1. Select the controller you want to edit as described earlier.

2. Press CHANNEL. The LCD will display the CHAN symbol and the 3-digit display will show the

current channel assignment of the selected controller, preceded by a ’c’. The small 2-digit display will show the currently selected controller for assignment.

3. Type the MIDI channel number (01-16) you want the controller to send to, using the numeric keypad or the +/- keys.

If the controller is assigned to channel 00, it will transmit on the global channel.

Changing The Global MIDI Channel

The X-Session’s global MIDI channel affects only the controllers that have the individual MIDI channel assigned to value 00, as described in the previous section.

Here is how you change the global MIDI channel:

1. Press GLOBAL CHANNEL (ASSIGN and CHANNEL together).

The LCD will display the KEYBOARD and CHAN symbol. The 3-digit display will show the currently selected global channel, preceeded by a 'c'.

2. Type in the MIDI channel number (01-16) using the numeric keypad or the +/- keys.

Example: MIDI channel 01 is assigned as global MIDI channel.

Using a combination of global MIDI channel and individually assigned MIDI channels can be a great way of navigating through your system. With multitimbral instruments such as Reason, it can be easier to just change the global MIDI channel on the X-Session in order to jump to the next device, rather than operating the software.

Factory Preset List

Evolution X-Session Advanced User Guide

Viewing The Contents Of A Memor y

Right-click on a memory to view the contents. Please note that it is not possible to edit the contents of a memory. The Sys Ex librarian will simply allow you to rearrange the order of memories, or copy memories between one memory dump and another.

Saving A Setup

Once you have named all your presets, and organised them in the desired order, click ’save’ to save the content.

Alternatively you can click on the File menu and select save to save the file with the previously assigned file name, or save as to assign the memory dump a new file name. The shortcut key to save Bank 1 is CTRL+S.

Make sure you give the file a name which allows you to quickly identify your collection of setups.

Loading A Setup

To load a memory setup file back in to the librarian, click on the ’Load’ button and select the required file. The loaded preset setups will appear in the Bank Window. You can then either send it directly to the Evolution device by clicking send, or edit it.

Alternatively, select Open from the File menu. The shortcut key for loading is CTRL+O

Evolution X-Session Advanced User Guide

Setting Toggle Values For The Buttons

The 10 assignable buttons can each be assigned to toggle between two values. You may for instance want to send out value 15 when you first press the button followed by value 74 when you press the button for a second time. This is how you do it:

1. Press the Function button labelled DATA MSB 2 times.

2. Type in 15 using the numerical keypad or the +/- keys.

3. Press the Function button labelled DATA LSB 2 times.

4. Type in 74 using the numerical keypad or the +/- keys.

If you want the button to send the same value every time you press it, simply type in the same value both times.

RPN/NRPN, GM 1+2 SysEx & Other Messages

As already described, the standard MIDI controller numbers range from 0 to 131. We have extended the list of MIDI CC’s that can be assigned to the controllers of the X-Session to include RPN/NRPN, MMC and General MIDI 1&2 SysEx messages.

These advanced messages are as easy to program as a regular MIDI CC instruction by

entering values 132 to 152 when programming MIDI CC’s. The charts on page 8 and 9 (or Appendix B) show you what number correspond to each message

To program the values required for these advanced messages, the X-Session requires you to press the PROGRAM, DATA LSB and DATA MSB buttons twice respectively. Pressing only once will send the program and bank change instructions “on the fly” as described earlier.

Lets look at a couple of examples to see how this works. Please refer to the chart in Appendix B so you get to grips with the principle:

Future Development Of The Librarian

We strongly recommend you register your ownership of the Evolution Librarian if you would like to be kept informed about future development. As you can see from the version number, the software is at an early version 1.1 stage and we will continue to work on

enhancements for the software. To register your copy, please visit www.evolution.co.uk/register

Assigning MMC Control To A Button

1. Select the button you want to control the MMC message.

2. Press “ASSIGN” on the X-Session.

3. Type in “149” using the numerical keypad. This is the number that corresponds to the MMC instruction, as per the chart on

page 8 and 9.

4. Press “Channel” once.

5. Type in “127”, using the numerical keypad. This ensures that the message is set to all device ID numbers. For more

information about this, please read “About SysEx Messages & Device ID” on page 13.

4. Press the “DATA LSB” button twice.

5. Enter a number from the chart on the next page to select the MMC message you want:

Evolution X-Session Advanced User Guide

Number MMC Command

01 STOP 02 PLAY 03 DEFERRED PLAY 04 FAST FORWARD 05 REWIND 06 RECORD STROBE 07 RECORD EXIT 08 RECORD PAUSE 09 PAUSE 10 EJECT 11 CHASE 12 COMMAND ERROR RESET 13 MMC RESET

Assigning RPN/NRPN To A Controller

Note: For a detailed description of RPN/NRPN data see section RPN/NRPN’s

Explained on page 17.

1. Press Control select, and move the desired controller.

2. Press control assign twice and while the display is flashing, enter controller 132 for RPN coarse, 133 for RPN fine, 134 for NRPN coarse or 135 for NRPN fine.

3. Press DATA MSB twice to assign the number for the RPN/NRPN MSB.

4. Press DATA LSB twice to assign the number for RPN/NRPN LSB.

5. Press CHANNEL ASSIGN to assign the MIDI channel the message should be sent on.

You will find most data sheets for synths that make use of NRPN's will give the MSB and LSB values that you should enter into DATA MSB and DATA LSB banks Appendix F). However, some manuals may only give the hex values. The X-Session requires you to enter the decimal value. You can easily convert hexadecimal values to decimal using the windows calculator. Simply select Scientific mode, select hex and enter the hexadecimal value you need to convert. Press the Dec button to convert it to a decimal value. Enter the decimal value into the X-Session.

Alternatively, use the look up table in Appendix C. The following shows how to set a button to transmit a note on when pressed, and a

note off when released.

(also see

Setting Up The Librarian Software

Before you start using the Librarian, check that the X-Session has been selected as input and output device.

1. Select MIDI Setup from the Options menu.

2. Ensure the USB driver for you

r Evolution X-Session - is selected in the

“Inputs” Column.

If you are using native drivers this may be named “USB Audio Device”.

1. In the “Outputs” column, select the USB driver for you

r Evolution X-Session

If you are using native drivers this may be named “USB Audio Device”.

You should now be ready to use the Librarian software with you Evolution

X-Session.

Librarian Overview

As you can see from the screenshot of the Librarian on page 20, you can save, load, receive or send the complete content to and from either Bank column s.

To transmit the complete content of your

Evolution X-Session to the librarian,

simply press the “Receive” button on the Librarian software.

This process can only be completed successfully if the USB drivers for your

X-Session

have been selected correctly, as described in the “Setting Up The Librarian Software” section.

Once you have Received data from the

X-Session, the memories are displayed in the

column.

Organising Presets Received From A Device

You can name the memories as you like. To re-name a memory, double-click on the memory. You can then move memories around by dragging them to a new position, or using the copy buttons between the two windows.

These buttons are defined below:

Will copy the selected memory in Bank 2 to Bank 1. Will copy the selected memory in Bank 1 to Bank 2. Will copy all memories in Bank 2 to Bank 1. Will copy all the memories in Bank 1 to Bank 2. Will undo the last copy you made. Only the last copy is remembered.

It’s a good idea to decide which column is your master column, to avoid confusion and maybe loosing hours of work.

Evolution X-Session Advanced User Guide

About The Evolution Librarian Software

The Evolution Librarian Software is a Windows PC librarian program developed for Evolution products. The program not only works with the MK-425C/449C/461C keyboards but is also compatible with the Evolution X-Session and the Evolution UC-33e

USB controllers. And even better, you can swap patches between Evolution products that are

supported by the Librarian so you never have to create the same patch twice. The librarian itself, allows you to send and receive the 10 patches to and from the

X-Session, load and save memory banks, view how individual patches have been programmed and drag and drop patches in order to create new combinations in the 10 memory locations.

Installing The Evolution Librarian Software

1. Insert the X-Session Installer CD-ROM in to your CD-ROM drive.

2. Click on “Librarian Installer”

3. Follow the on-screen instructions to complete the installation process

Once the installation has been completed, launch the program. The following is a screenshot of what you should be seeing on your monitor.

Assigning A Note T o A Button

1. Press SELECT and press the “0” button. The display will show that you

have selected controller 19.

2. Press ASSIGN and enter '147' this is the MIDI CC number that corresponds to Note on/off mode, as shown in

Appendix B.

3. Press DATA MSB twice and enter a value of '100'. This means

when you press the button, a Note on message will be sent out with a velocity of 100.

4. Press DATA LSB twice, and enter a value of '000'. This

means when you release the button, a Note off message will be sent out.

5. Press the PROGRAM button twice and enter '064'. This will

mean you are sending out MIDI note 64 or E4, each time you press the button. The MIDI note numbers are given in

Appendix D.

This button mode has many uses. You can use this mode to trigger samples, control lighting equipment, play keyboard notes and much more.

Note: When you press the button in note mode, the LCD display will briefly show the note velocity.

About Sys Ex Messages & Device ID

When transmitting Sys Ex messages, the individual control channel number does not define a transmit channel, but a device ID. This is made clear since when you press

the CHANNEL button, the CC symbol will not be shown and there is no ’c’ in the 3 digit display.

Device ID’s range between 00 – 127. In most cases, you should set the device ID as

127. 127 means the SysEx message will be received by all devices. Please note that the device ID for a Sys Ex message assigned to a controller can not

be changed using the Device ID buttons. These buttons are used for varying the device ID of the X-Session it self, not just a separate controller.

Evolution X-Session Advanced User Guide

Non-Volatile Memory

The X-Session uses non-volatile memory so that you can continue where you left off even after powering down and restarting. The current X-Session controller and channel assignments are stored whether you have stored your setup to a memory locations or not. Also stored is MIDI Out from USB on/off, Program, DATA LSB and DATA MSB data,

global channel setting and last used memory preset.

Memory Dump

Pressing the MEMORY DUMP buttons will send out a number of Sys Ex data packets that represent the 10 memories you have set up in your X-Session. This is a useful way of storing or backing up the contents of your memory presets externally.

You can record the complete memory dump in to a standard sequencer. To recall the memory dump back to the X-Session, play the MIDI track containing the recorded memory dump to the X-Session, making sure that the X-Session drivers are selected as output for that particular track.

The current controller assignments are not affected by a memory dump, or a memory send to the X-Session. Once a memory dump has been sent to the X-Session, you will needto recall a preset to access the new memory settings.

Assigning A Device ID To The X-Session

Evolution UC-33 Advanced User Guide

The Evolution

Librarian Software

Pressing the “DEV. ID” buttons will allow you to assign a Device ID to the X-Session.

The default Device ID is 127, which means when a memory dump is performed, that dump can be received by any X-Session, regardless of the Device ID setting.

If a device ID is assigned to any number other than 127, the memory dump performed will be specific to X-Session's with the same device ID. If the device ID of a X-Session differs from the one recorded with the memory dump, the data will be ignored.

The device ID is a handy way of differentiating between multiple X-Session's. Otherwise, we recommend you keep the device ID setting as 127.

When you press the Device ID buttons, you will see the small 2-digit display on LCD display 'id'. The 3-digit display represents the assigned Device ID. You can enter a new device ID using the numeric keypad, or the '+' and '-' buttons.

For more information on Sys Ex messages and device ID, please go to page 18.

Resetting To The Factory Default Setting

The X-Session comes with 10 useful presets stored in it's memory (for complete list,

see Appendix H). You can reset the X-Session back to the factory defaults on power-up by holding down the +/- buttons.

Note: Restoring the Factory presets will erase all X-Session setups stored to memory.

Evolution X-Session Advanced User Guide

A list of NRPN’s will always be given in the User Manual of a device that receives NRPN messages. It is always necessary that the NRPN MSB and LSB are sent together. Both will be specified in the device’s manual. You may find the manufacturer’s have only specified the numbers in Hexadecimal format. In this case, use Appendix C to translate the value to Decimal.

The X-Session makes the process of transmitting NRPN’s easy. All you need is to enter the appropriate NRPN LSB by pressing the LSB/DATA button twice, enter the NRPN MSB by pressing the MSB/DATA button twice, and as you move the X-Session controller, an appropriate NRPN message will be sent out. Assign NRPN coarse to make big sweeps, or NRPN fine to make slight adjustments.

Evolution UC-33 Advanced User Guide

MIDI In/Out

Sys Ex Explained

System Exclusive (Sys Ex) messages were defined in the MIDI specification to allow individual devices to have individual control via MIDI. The format of Sys Ex messages allows for virtually any function to be performed via MIDI – so long as the receiving device

is able to translate the message, and act accordingly. This allows devices to send audio sample memory data, memory dumps, controller settings, and much more. It also allows the controllers of one device to be controlled by another.

It is not possible to program your own specified Sys Ex message into the X-Session. However, there are some useful Sys Ex messages pre-programmed, that can be accessed by assigning the appropriate MIDI cc to a controller (see Appendix B)

It should be noted that a Sys Ex message is not transmitted on any specified channel. All Sys Ex messages contain a device ID, that is used to single out devices to respond to the Sys Ex message. All other devices are ignored. If you are using a Sys Ex message on the X-Session the global channel is ignored. When you press CHANNEL, instead of entering a channel for the controller, you will be enter a device ID instead. This isindicated by the fact that the CC symbol will not be showing.

Device ID’s run from 00 to 127. 127 is the default device number setting on the X-Session. This setting transmits the Sys Ex message to all devices.

Although it is not possible to program the controllers of the X-Session with your own Sys Ex messages, there are software applications that can receive a MIDI input signal and transmit a different, user specified message. You can program your Sys Ex messages into the translator software, then translate the incoming data from the X-Session to your Sys Ex, depending on the controller you are using.

MIDI Messages

Explained

Evolution X-Session Advanced User Guide

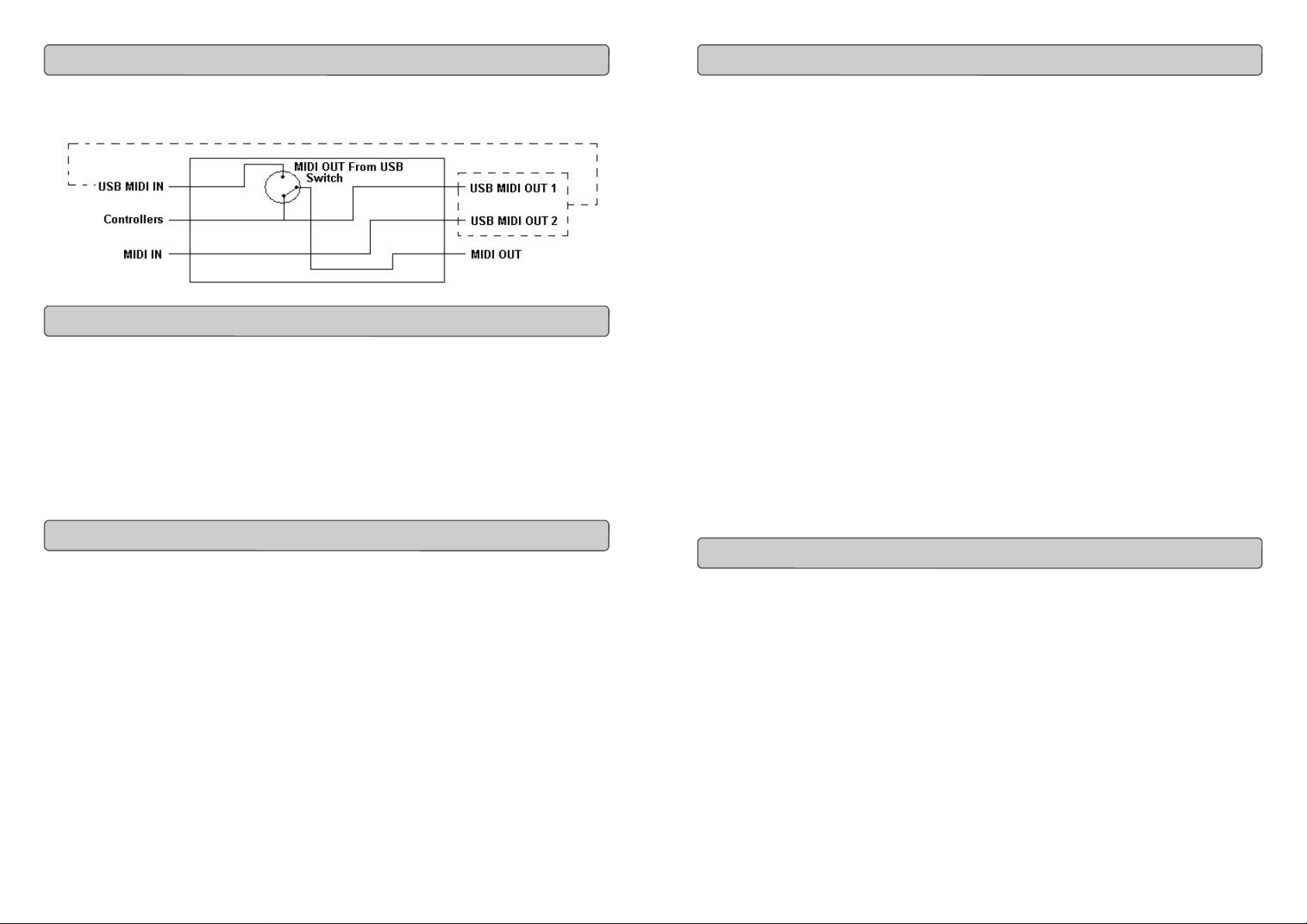

MIDI In & MIDI Out Signal Flow Diagram

The MIDI IN & MIDI OUT ports have different uses depending on how you intend to connect and power the X-Session. The diagram below shows the different routing options.

About The MIDI In Port

The MIDI in plug can be used to interface another MIDI device to your PC, via the USB port. Data received from this device will be transmitted via the X-Session to the PC. This

is achieved using a second USB MIDI out. So, when you select the MIDI devices section of your sequencer you will see two X-Session USB MIDI Ins. The first of these is used to receive the X-Session controller data, the second is used to receive data from the other device connected to the X-Session’s MIDI IN plug. So, the X-Session is acting as a MIDI-to- USB interface for the other MIDI device.

About The MIDI Out Port

The X-Session can of course also interface with other MIDI devices. By default (I.e. when

you switch the unit on), all controller data is sent out via the MIDI output as well as the USB out.

If you want the MIDI output to act like a traditional USB-to-MIDI interface, just press the two buttons (SELECT and ASSIGN) that activate the MIDI OUT from USB mode.

If you are using a host application which can pick up multiple input drivers, you will be able to use the X-Session’s MIDI input and the X-Session surface to record MIDI data and

send the whole lot out of the X-Session’s MIDI output.

Important note: The X-Session is not a MIDI THRU device and as such, MIDI data received

at the X-Session's MIDI IN plug can never be sent directly to the X-Session's MIDI OUT plug. However, if the X-Session is connected via USB to a computer, data received at the MIDI IN can be transmitted to the MIDI OUT plug, since the data is sent to the computer, and

received back from the computer. MIDI OUT FROM USB mode must be engaged for this

to occur.

Program & Bank Changes Explained

The original GM MIDI specification catered for only 128 voices, numbered from 0-127. It is possible to access a different voice by sending a program change.

In order to expand on the GM set of voices, Bank changes were devised. Each bank contains 128 patches, that can be accessed using a program change. There are 16,384 banks available, accessible by sending a 14-bit Bank change message. The first 7 bits of this message are sent in a single byte known as the Bank LSB. The last 7 bits are specified by another byte known as the Bank MSB. The BANK LSB is the most commonly used This allows for 128 bank changes, and often there is no need to send a Bank MSB.

You will find almost all MIDI devices respond to the program change, but some that do not conform to the GM set of voices use the program change message for other purposes. Many VST instruments have adopted this approach, allowing you to use a program change to change the instrument patch. The FM7 by Native Instruments is a good example of this.

Bank changes are more rarely used, although they do exist. Bank changes are useful in manufacturer's extensions to the MIDI specification, such as Roland's GS specification and Yamaha's XG specification. Both of these require you to specify a Bank change, in order to access the extra voices and effects that these specifications provide.

Sending Program, Bank LSB and Bank MSB data is made simple using the X-Session. Simply press the PROGRAM, DATA LSB or DATA MSB button and enter the program or bank change you wish to send.

RPN/NRPN’s Explained

Non-registered parameter numbers (NRPN's) are device specific messages that enable the control of synths via MIDI. The MIDI specification defines parameter numbers to allow scope for manufacturers to specify their own controllers. The more common of these have been registered by the MIDI Manufacturer's Association and are part of the MIDI specification (hence the term Registered Parameter Numbers – RPN's). (See Appendix F.)

MIDI controllers 98 and 99 represent the NRPN LSB and MSB respectively, while 100 and 101 represent the RPN LSB and MSB. This can be seen from the MIDI controllers list in Appendix D. To transmit an NRPN/RPN, these two controller messages are sent along with their user-specified values. A further controller message and value needs to be sent to specify the (coarse or fine) value adjustment. This is specified by controller number 6 (Data entry) for coarse adjustments or number 38 for fine adjustments.

M-Audio UC-17 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
