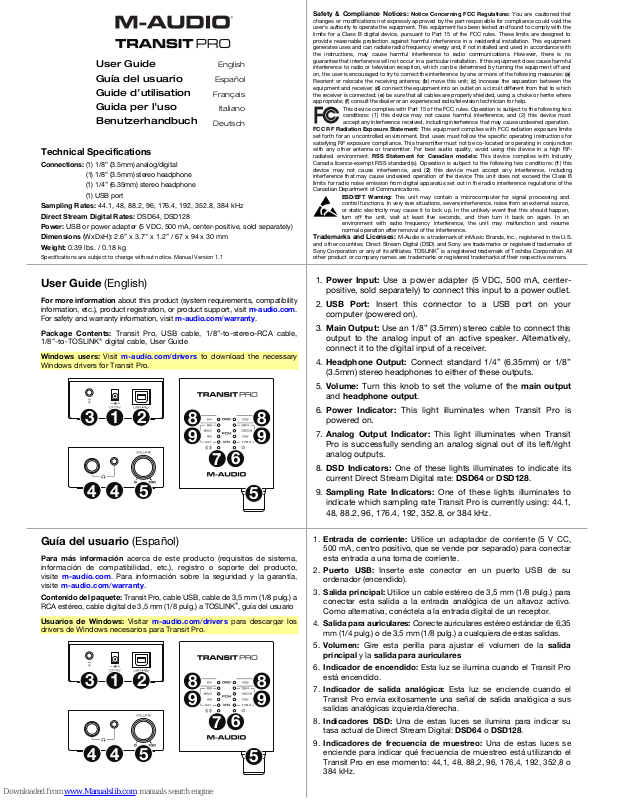

M-Audio TRANSIT PRO User Manual

Safety & Compliance Notices: Notice Concerning FCC Regulations: You are cautioned that

changes or modifications not expressly approved by the part respon sible for compliance could void the
user’s authority to operate the equipment. This equipment has been tested and found to comply with the
limits for a Class B digital device , pursuant to Part 15 of the FCC rules . These limits are designed t o
provide reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particu lar installation. If this equipment does cause h armful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures: (a)
Reorient or relocate the receiving antenna; (b) move this unit; (c) increase the separation between the
equipment and receiver; (d) connect the equipment into an outlet on a circuit different from that to which
the receiver is connected; (e) be sure that all cables are properly shielded, using a choke or ferrite where
appropriate;

(f)

consult the dealer or an experienced radio/television technician for help.

User Guide (English)

For more information about this product (system requirements, compatibility

information, etc.), product registration, or product support, visit m-audio.com.
For safety and warranty information, visit m-audio.com/warranty.

Package Contents: Transit Pro, USB cable, 1/8”-to-stereo-RCA cable,
1/8”-to-TOSLINK

®

digital cable, User Guide

Windows users: Visit m-audio.com/drivers to download the necessary
Windows drivers for Transit Pro.

1. Power Input: Use a power adapter (5 VDC, 500 mA, center­positive, sold separately) to connect this input to a power outlet.

2. USB Port: Insert this connector to a USB port on your
computer (powered on).

3. Main Output: Use an 1/8” (3.5mm) stereo cable to connect this
output to the analog input of an active speaker. Alternatively,
connect it to the digital input of a receiver.

4. Headphone Output: Connect standard 1/4” (6.35mm) or 1/8”
(3.5mm) stereo headphones to either of these outputs.

5. Volume: Turn this knob to set the volume of the main output
and headphone output.

6. Power Indicator: This light illuminates when Transit Pro is
powered on.

7. Analog Output Indicator: This light illuminates when Transit
Pro is successfully sending an analog signal out of its left/right
analog outputs.

8. DSD Indicators: One of these lights illuminates to indicate its
current Direct Stream Digital rate: DSD64 or DSD128.

9. Sampling Rate Indicators: One of these lights illuminates to
indicate which sampling rate Transit Pro is currently using: 44.1,
48, 88.2, 96, 176.4, 192, 352.8, or 384 kHz.

Guía del usuario (Español)

Para más información acerca de este producto (requisitos de sistema,

información de compatibilidad, etc.), registro o soporte del producto,
visite m-audio.com. Para información sobre la seguridad y la garantía,
visite m-audio.com/warranty.

Contenido del paquete: Transit Pro, cable USB, cable de 3,5 mm (1/8 pulg.) a
RCA estéreo, cable digital de 3,5 mm (1/8 pulg.) a TOSLINK

®

, guía del usuario

Usuarios de Windows: Visitar m-audio.com/drivers para descargar los
drivers de Windows necesarios para Transit Pro.

1. Entrada de corriente: Utilice un adaptador de corriente (5 V CC,
500 mA, centro positivo, que se vende por separado) para conectar
esta entrada a una toma de corriente.

2. Puerto USB: Inserte este conector en un puerto USB de su
ordenador (encendido).

3. Salida principal: Utilice un cable estéreo de 3,5 mm (1/8 pulg.) para
conectar esta salida a la entrada analógica de un altavoz activo.
Como alternativa, conéctela a la entrada digital de un receptor.

4. Salida para auriculares: Conecte auriculares estéreo estándar de 6,35
mm (1/4 pulg.) o de 3,5 mm (1/8 pulg.) a cualquiera de estas salidas.

5. Volumen: Gire esta perilla para ajustar el volumen de la salida
principal y la salida para auriculares

6. Indicador de encendido: Esta luz se ilumina cuando el Transit Pro
está encendido.

7. Indicador de salida analógica: Esta luz se enciende cuando el
Transit Pro envía exitosamente una señal de salida analógica a sus
salidas analógicas izquierda/derecha.

8. Indicadores DSD: Una de estas luces se ilumina para indicar su
tasa actual de Direct Stream Digital: DSD64 o DSD128.

9. Indicadores de frecuencia de muestreo: Una de estas luces se
enciende para indicar qué frecuencia de muestreo está utilizando el
Transit Pro en ese momento: 44,1, 48, 88,2, 96, 176,4, 192, 352,8 o
384 kHz.

Technical Specifications

Connections: (1) 1/8” (3.5mm) analog/digital

(1) 1/8” (3.5mm) stereo headphone
(1) 1/4” (6.35mm) stereo headphone
(1) USB port

Sampling Rates: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
Direct Stream Digital Rates: DSD64, DSD128
Power: USB or power adapter (5 VDC, 500 mA, center-positive, sold separately)

Dimensions (WxDxH): 2.6” x 3.7” x 1.2” / 67 x 94 x 30 mm
Weight: 0.39 lbs. / 0.18 kg

Specifications are subject to change without notice. Manual Version 1.1

This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.
FCC RF Radiation Exposure Statement: This equipment comp lies with FCC radiation exposure limits
set forth for an uncontrolled environment. End users must follow the specific operating instructions for
satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter. For best audio quality, avoid using this device in a high RF­radiated environment. RSS Statement for Canadian models: This device complies with Industry
Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device This unit does not exceed the Class B
limits for radio noise emission from digit al apparatus set out in the radio int erference regulations of the
Canadian Department of Communication s.

ESD/EFT Warning: This unit may contain a microcomputer for signal processing and
control functions. In very rare situations, severe interference, noise from an external source,
or static electricity may cause it to lock up. In the unlikely event that this should happen,
turn off the unit, wait at least five seconds, and then turn it back on again. In an
environment with radio frequency interference, the unit may malfunction and resume
normal operation after removal of the interference.

Trademarks and Licenses: M-Audio is a trademark of inMusic Brands, Inc., registered in the U.S.

and other countries. Direct Stream Digital (DSD) and Sony are trademarks or registered trademarks of
Sony Corporation or any of its affiliates. TOSLINK® is a registered trademark of Toshiba Corporation. All
other product or company names are trademarks or registered trademarks of their respective owners.

User Guide

Guía del usuario

Guide d’utilisation

Guida per l’uso

Benutzerhandbuch

English

Español

Français

Italiano

Deutsch

123

44 5

5

6

7

8
99

8

123

44 5

5

6

7

8
99

8

Guide d’utilisation (Français)

Pour plus d’informations sur la configuration système requise, la

compatibilité, etc., l’enregistrement du produit ou de l’assistance technique
concernant ce produit, veuillez visiter m-audio.com. Pour consulter les
consignes de sécurité et informations concernant la garantie, veuillez visiter
le site m-audio.com/warranty.

Contenu de l’emballage : Transit Pro, câble USB, câble adaptateur 3,5 mm
vers RCA stéréo, câble adaptateur 3,5 mm vers TOSLINK

®

, guide d’utilisation

Utilisateurs Windows : Veuillez visiter le site m-audio.com/drivers pour
télécharger les pilotes Windows nécessaires pour utiliser le Transit Pro.

1. Entrée d’alimentation : Branchez un câble d’alimentation secteur
(5 V CC, 500 A, centre positif, vendu séparément) à cette entrée,
puis branchez l’autre l’extrémité à une prise secteur.

2. Port USB : Reliez ce connecteur au port USB de votre ordinateur
alors qu’il est sous tension.

3. Sortie principale : Utilisez un câble 3,5 mm stéréo pour relier cette
sortie à l’entrée analogique d’une enceinte active. Vous pourriez
également le brancher à l’entrée numérique d’un récepteur.

4. Sorties casque : Ces sorties permettent de brancher un casque
stéréo 6,35 mm ou 3,5 mm.

5. Volume : Ce bouton permet de régler le volume de la sortie
principale et de la sortie casque.

6. Indicateur d’alimentation : Ce témoin s’allume lorsque le Transit
Pro est sous tension.

7. Indicateur de sortie analogique : Ce témoin s’allume lorsque le
Transit Pro transmet un signal analogique sur ses sorties analogiques
gauche/droite.

8. Indicateurs DSD : Un de ces indicateurs s’allume pour indiquer le
taux Direct Stream Digital : DSD64 ou DSD128.

9. Indicateurs de fréquence d’échantillonnage : Un de ces indicateurs
s’allume pour indiquer la fréquence d’échantillonnage actuellement
utilisée par le Transit Pro : 44,1, 48, 88,2, 96, 176,4, 192, 352,8 o

Guida per l’uso (Italiano)

Per maggiori informazioni in merito a questo prodotto (requisiti di sistema,

informazioni sulla compatibilità, ecc.), per la registrazione del prodotto e per
assistenza recarsi alla pagina m-audio.com. Per informazioni sulla sicurezza e
in merito alla garanzia, recarsi alla pagina m-audio.com/warranty.

Contenuti della confezione: Transit Pro, cavo USB, cavo RCA da 3,5 mm
(1/8”) a stereo, cavo digitale da 3,5 mm (1/8”) a TOSLINK

®

, guida per l’uso

Utenti Windows: recarsi alla pagina m-audio.com/drivers per scaricare i
necessari driver Windows per Transit Pro.

1. Ingresso di alimentazione: servirsi di un adattatore di alimentazione
(5 VCC, 500 mA, polo centrale positivo, venduto separatamente) per
collegare questo ingresso a una presa elettrica.

2. Porta USB: Inserire questo connettore in una porta USB del
computer (acceso).

3. Uscita Main: servirsi di un cavo stereo da 3,5 mm (1/8”) per collegare
questa uscita all’ingresso analogico di un altoparlante attivo.
Alternativamente, collegarla all’ingresso digitale di un ricevitore.

4. Uscita cuffie: collegare cuffie stereo standard da 6,35 mm (1/4”) o
da 3,5 mm (1/8”) a una di queste uscite.

5. Volume: girare questa manopola per regolare il volume dell’uscita
principale (main) e dell’uscita cuffie.

6. Indicatore di alimentazione: si illumina quando il Transit Pro viene
acceso.

7. Indicatore di uscita analogica: questa spia si illumina quando il
Transit Pro invia un segnale analogico di uscita dalle sue uscite
analogiche sinistra/destra.

8. Indicatori DSD: uno di questi si illumina per indicare la sua
frequenza corrente di streaming digitale diretto. DSD64 o DSD128.

9. Indicatori di frequenza di campionamento: una di queste spie si
illumina per indicare quale frequenza di campionamento sta attualmente
utilizzando il Transit Pro: 44,1, 48, 88,2, 96, 176,4, 192, 352,8 o 384 kHz.

Benutzerhandbuch (Deutsch)

Für aktuelle Informationen zu diesem Produkt (Systemanforderungen,

Informationen zur Kompatibilität etc.), zur Produktregistrierung und den Support
besuchen Sie bitte m-audio.com. Die Sicherheits- und Garantieinformationen
finden Sie unter m-audio.com/warranty.

Lieferumfang: Transit Pro, USB-Kabel, 3,5mm-auf-Stereo-Cinch-Kabel,
3,5mm-auf-TOSLINK

®

Digitalkabel, Benutzerhandbuch

Windows-Benutzer: Besuchen Sie m-audio.com/drivers, um die notwendigen
Windows-Treiber für Transit Pro herunterzuladen.

1. Stromversorgung: Verwenden Sie ein Netzteil (5 VDC, 500 mA,
mittlerer Pin mit positiver Polarität), um diesen Eingang mit Ihrer
Stromquelle zu verbinden.

2. USB-Anschluss: Verbinden Sie diesen Stecker mit einem USB-Port
Ihres (eingeschalteten) Computers.

3. Hauptausgang: Verwenden Sie ein 3,5 mm Stereokabel, um diesen
Ausgang mit dem Analogeingang eines Aktivlautsprechers zu
verbinden. Alternativ schließen Sie es an den digitalen Eingang eines
Empfängers an.

4. Kopfhörerausgang: Verbinden Sie einen handelsüblichen 6,35 mm
oder 3,5 mm Stereokopfhörer mit einem oder beiden Analogausgängen.

5. Lautstärke: Drehen Sie diesen Regler, um die Lautstärke des
Hauptausgangs und des Kopfhörerausgangs anzupassen.

6. Netzanzeige: Dieses Licht leuchtet auf, wenn Transit Pro
eingeschaltet ist.

7. Analoge Ausgangsanzeige: Dieses Licht leuchtet auf, wenn Transit Pro
ein analoges Signal erfolgreich an die linken/rechten Analogausgänge
sendet.

8. DSD-Anzeige: Eines dieser Lichter beginnt zu leuchten, um die
aktuelle Direct Stream Digital-Rate anzuzeigen: DSD64 oder DSD128.

9. Abtastraten-Anzeigen: Eines dieser Lichter beginnt zu leuchten, um
anzuzeigen, welche Abtastrate Transit Pro derzeit verwendet: 44.1,
48, 88.2, 96, 176.4, 192, 352.8 oder 384 kHz.

123

44 5

5

6

7

8
99

8

123

44 5

5

6

7

8
99

8

123

44 5

5

6

7

8
99

8
