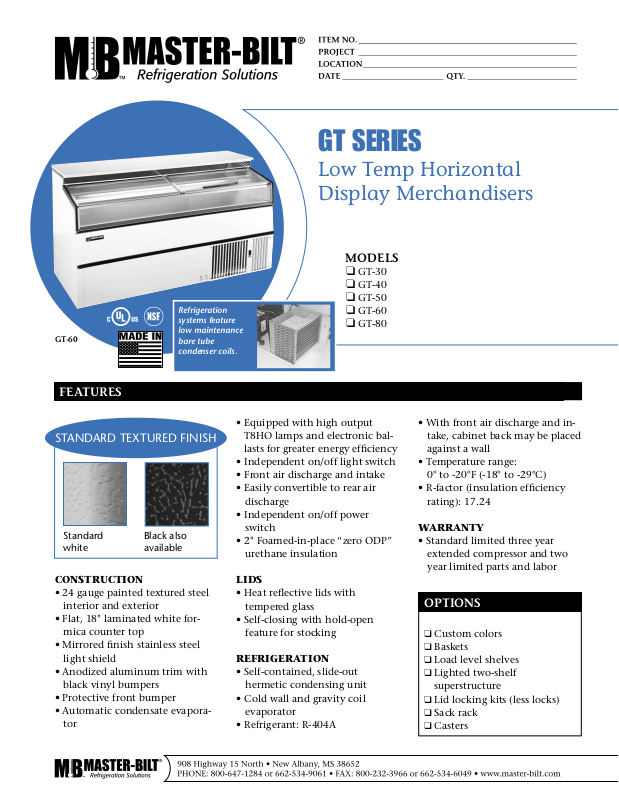

Master-Bilt GT-40 User Manual

GT-60

FEATURES

Refrigeration systems feature low maintenance bare tube condenser coils.

GT SERIES

Low Temp Horizontal Display Merchandisers

MODELS

❑

GT-30

❑ GT-40 ❑ GT-50 ❑ GT-60 ❑ GT-80

STANDARD TEXTURED FINISH

Standard white

CONSTRUCTION

• 24 gauge painted textured steel interior and exterior

• Flat, 18" laminated white formica counter top

• Mirrored nish stainless steel light shield

• Anodized aluminum trim with black vinyl bumpers

• Protective front bumper

• Automatic condensate evaporator

Black also available

• Equipped with high output T8HO lamps and electronic ballasts for greater energy efciency

• Independent on/off light switch

• Front air discharge and intake

• Easily convertible to rear air

discharge

• Independent on/off power

switch

• 2" Foamed-in-place “zero ODP”

urethane insulation

LIDS

• Heat reective lids with

tempered glass

• Self-closing with hold-open

feature for stocking

REFRIGERATION

• Self-contained, slide-out

hermetic condensing unit

• Cold wall and gravity coil

evaporator

• Refrigerant: R-404A

• With front air discharge and intake, cabinet back may be placed against a wall

• Temperature range: 0° to -20°F (-18° to -29°C)

• R-factor (insulation efciency rating): 17.24

WARRANTY

• Standard limited three year extended compressor and two year limited parts and labor

OPTIONS

❑ Custom colors ❑ Baskets ❑ Load level shelves ❑ Lighted two-shelf

superstructure

❑ Lid locking kits (less locks) ❑ Sack rack ❑ Casters

GT SERIES

LISTINGS

HOOKUP

BID SPECIFICATIONS

LOW TEMP HORIZONTAL DISPLAY MERCHANDISERS

TECHNICAL SPECIFICATIONS

DIMENSIONS

(in.)

MODEL

GT-30 3615/16323/16393/8938 864 1000 115 9.9 1/2 1 6 7.2 43.0 435/198 GT-40 48 GT-50 603/8323/16393/81533 864 1000 115 10.1 3/4 2 10 13.5 60.0 530/241 GT-60 72

GT-80 95

*Baskets are optional and measure 9.125" x 12" x 7.125" deep.

/8323/16393/81235 864 1000 115 9.9 1/2 2 8 10.0 50.0 470/214

/16323/16393/81837 864 1000 115 10.3 3/4 2 12 17.4 71.0 585/266

/16323/16393/82437 864 1000 115 12.0 3/4 3 16 25.5 92.0 705/320

DIMENSIONS

(mm)

VOLTS AMPS

UNIT

H.P.

NO. OF

LIDS

BASKET

CAPACITY*

CAP.

CU. FT.

SHIP

CU. FT.

SHIP

WT.

LB/KGL D H L D H

PLAN VIEW SIDE VIEW ELEVATION VIEW

Via plug in, 9 foot long, exible 3 wire 14/3 cord with molded plug.

Item no. GT-_______________

Provide_______________( )

Low Temp Horizontal Display

Merchandiser(s), Master-Bilt model no.

GT-__________.

Merchandiser to feature textured n-

ish on interior and exterior. Other stan-

dard features to include: Tempered, heat

reective glass lids with self-closing and

hold-open features, mirrored nish stain-

NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity. All specications subject to change without notice.

908 Highway 15 North • New Albany, MS 38652 PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com

less steel light shield, protective front

bumper and front air discharge compressor

compartment. Merchandiser will also be

equipped with high output T8HO lamps

and electronic ballasts for greater energy

efciency.

The refrigeration system will contain a

self-contained, slide out hermetic compres-

sor, automatic condensate evaporator and

have cold wall and gravity coil evaporator.

Additionally, merchandiser is to feature a

low maintenance bare tube condenser coil.

The temperature range will be 0° to -20°F

(-18° to -29°C).

Merchandiser to have standard limited

three year extended compressor warranty

and two year limited parts and labor war-

ranty. Merchandiser to be UL, C-UL and

NSF listed.

NEMA 5-15P
