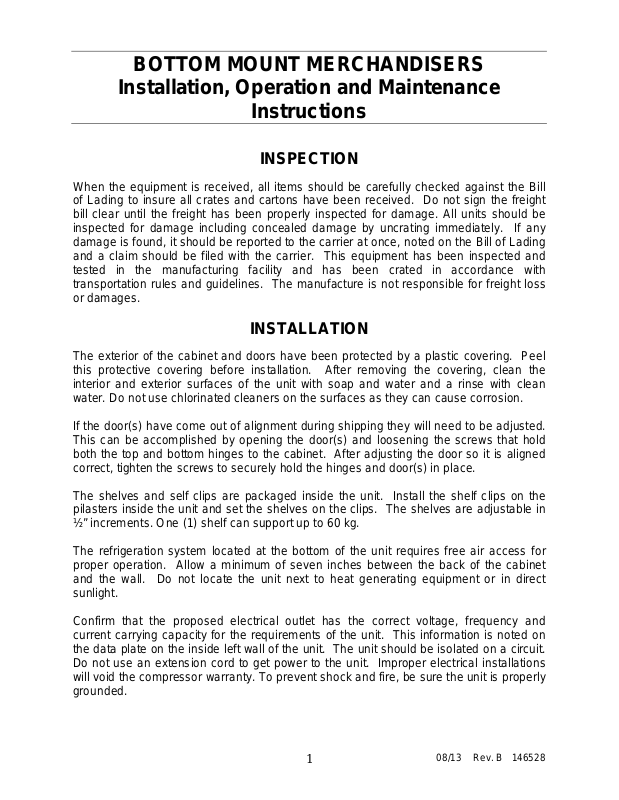

BOTTOM MOUNT MERCHANDISERS
Installation, Operation and Maintenance
Instructions
INSPECTION
When the equipment is received, all items should be carefully checked against the Bill
of Lading to insure all crates and cartons have been received. Do not sign the fre ight
bill clear until the freight has been properly inspected for damage. All units should be
inspected for damage including concealed damage by uncrating immediately. If any
damage is found, it should be reported to the carrier at once, noted on the Bill of Lading
and a claim should be filed with the carrier. This equipment has been inspected and
tested in the manufacturing facility and has been crated in accordance with
transportation rules and guidelines. The manufacture is not responsible for freight loss
or damages.
INSTALLATION
The exterior of the cabinet and doors have been protected by a plastic covering. Peel
this protective covering before installation. After removing the covering, clean the
interior and exterior surfaces of the unit with soap and water and a rinse with clean
water. Do not use chlorinated cleaners on the surfaces as they can cause corrosion.
If the door(s) have come out of alignment during shipping they will need to be adjusted.
This can be accomplished by opening the door(s) and loosening the screws that hold
both the top and bottom hinges to the cabinet. After adjusting the door so it is aligned
correct, tighten the screws to securely hold the hinges and door(s) in place.
The shelves and self clips are packaged inside the unit. Install the shelf clips on the
pilasters inside the unit and set the shelves on the clips. The shelves are adjustable in
½” increments. One (1) shelf can support up to 60 kg.
The refrigeration system located at the bottom of the unit requires free air access for
proper operation. Allow a minimum of seven inches between the back of the cabinet
and the wall. Do not locate the unit next to heat generating equipment or in direct
sunlight.
Confirm that the proposed electrical outlet has the correct voltage, frequency and
current carrying capacity for the requirements of the unit. This information is noted on
the data plate on the inside left wall of the unit. The unit should be isolated on a circuit.
Do not use an extension cord to get power to the unit. Improper electrical installations
will void the compressor warranty. To prevent shock and fire, be sure the unit is properly
grounded.
08/13 Rev. B 146528
Page 2
2
The refrigerators are supplied with adjustable legs for leveling purposes. To provide
adequate drainage and proper door operation, it is necessary that the refrigerator is
leveled. This should be done after the refrigerator be set in its final operation position.
The temperature controller is located at the right front corner of the ceiling. The default
temperature is set at “4”. Adjust the temperature to fit your needs.
MAINTENANCE
Cleaning
Beginning with the initial installation, the interior surfaces of the cabinet should be
periodically cleaned with a solution of warm water and baking soda. This solution will
remove any odors from spillage that has occurred. The exterior of the cabinet should
also be cleaned frequently with a commercial stainless steel cleaner, glass cleaner or
mild soap solution. Do not use chlorinated cleaners on the stainless steel surfaces.
The door gaskets should be cleaned in place with a mild soap solution to extend their
life.
The shelving can be and cleaned in a sink with a mild soap solution and a soft bristled
brush.
Clean the drainage tray once a week. The drain tray is located at the bottom of the unit
next to the condenser.
Condenser Coil
Prior to cleaning the condenser coil disconnect the unit from power. Periodic cleaning of
the condenser coil will aid the heat transfer of the refrigeration system and increase its
efficiency. Cleaning is recommended a minimum of every 6 months. To accomplish
this, remove the lower front grill from the cabinet. The condenser coil is located behind
the grill. Use a soft bristled brush to remove any dirt particles that are on the fins of the
condenser coil. Use a vacuum cleaner or compressed air to remove the loosened
particles. Replace the front grill and reconnect the unit to power. Failure to clean the
condenser coil can lead to performance loss and compressor failure.
When loading the cabinet with contents, do not block the air flow path at the back and
the fan on the ceiling. Blocking the air flow may decrease performance. Maintain at least
4 inches of clearance between t he contents and air duct for best perfor mance.
This equipment is intended for the storage and display of non-potentially hazardous
bottled or canned products only.
Replacement of light
When repla cing lights used same spe cificati on of light installed in the unit. Using wrong
wattage may not work.
08/13 Rev. B 146528
Page 3
3
TROUBLESHOOTING
Problem Remedy
· Check the power cord and make sure it is plugged in.
Compressor will
not start
Poor
performance
· Check the temperature controller. If is is in the “OFF” position,
turn it clockwise to set a desired temperature.
· Move the unit from direct sunlight.
· Move the unit away from heating devices.
· Install the unit in a well ventilated place,
with at least 7 inches of clearance on all sides.
· Clean the condenser if heavy dust is collected.
· Clear contents from bloc king the air duct.
· Check the temperature controller for incorrect setting.
· Check the refrigerant level, it may need to be charged.
· Check the door and be sure it is completely closed.
No interior light
Unit noisy
Condensation on
cabinet exterior
and/or floor
· Turn off the light switch and turn it on again.
· Insert the bulb correctly into the socket.
· Replace the bulb.
· Install the unit on a level surface.
· Maintain 7 inches of clearance from the wall.
· Check for loose part or mounting.
· Keep the tubing free from any contact to avoid rattle.
· Reduce humidity where the unit is installed.
· Repair or replace the gasket on the door or head section.
08/13 Rev. B 146528
Page 4
4
PRODUCT REACH-IN MERCHANDISERS
23 CuFt
(676 liter)
46.2 CuFt
(1310 liter)
70.6 CuFt
(1999 liter)
MODEL GR26H GR48S GR70H
Capacity (CuFt)
Exterior
Dimensions
(including casters)
Doors 1 Swing 2 Sliding 3 Swing
Shelves 4 8 12
Compressor 1/3 HP 1/2 HP 3/5 HP
SPECIFICATIONS
(W) 28.4” 53.2” 78.0”
(D) 31.8” 29.9” 31.3”
(H) 78.9” 78.7” 78.7”
Power Voltage 115V / 60Hz
Plug In-Installation NEMA 5-15P
Amps 3.9 10.0 11.9
Range of Temperature +32°F ~ +40°F
Refrigerant R-134a
Net Weight (lbs) 230 440 716
- Above specifications are subjected to change without prior notice for quality
improvement.
