Marvel MPRO48SS Operation Manual
Installation
Operation
and
Maintenance
Instructions
Built In
Side by Side
Refrigerator/Freezer
M36SS
M42SS
M48SS
MPRO36SS
MPRO42SS
MPRO48SS
CONTENTS
Unpacking the refrigerator/freezer .....................................3
Tools required ..................................................................3
Warranty registration ...........................................................4
Dimensions for M(XX)SS with Solid Doors ..........................5
Dimensions for M(XX)SS with Solid Overlay Doors .............6
Dimensions for MPRO(XX)SS with Solid Doors ...................7
Preinstallation considerations .............................................8
Rough in opening ...........................................................8
Select location ................................................................8
Electrical requirements .................................................9
Plumbing requirements .................................................9

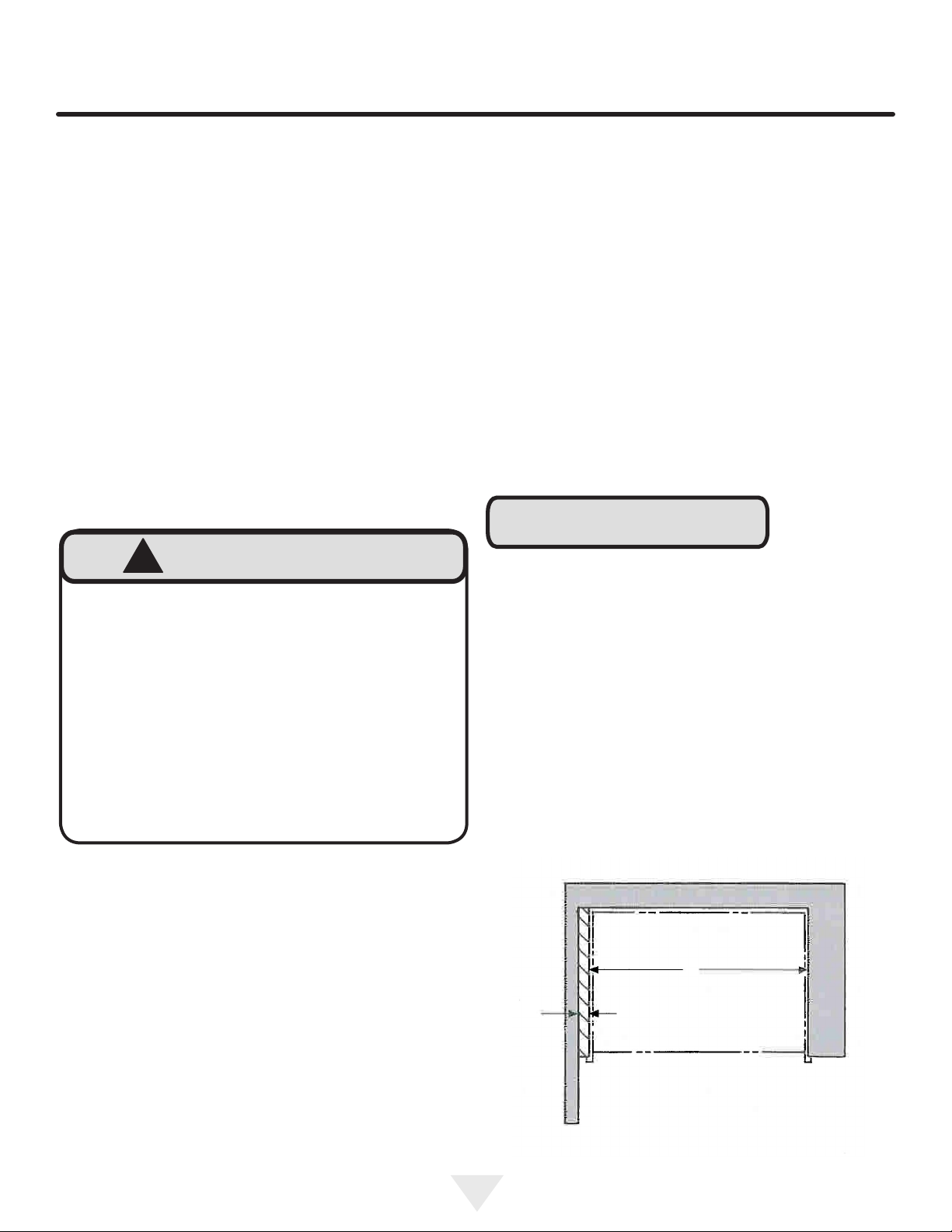

Corner installation .........................................................9
Installing the cabinet .........................................................10

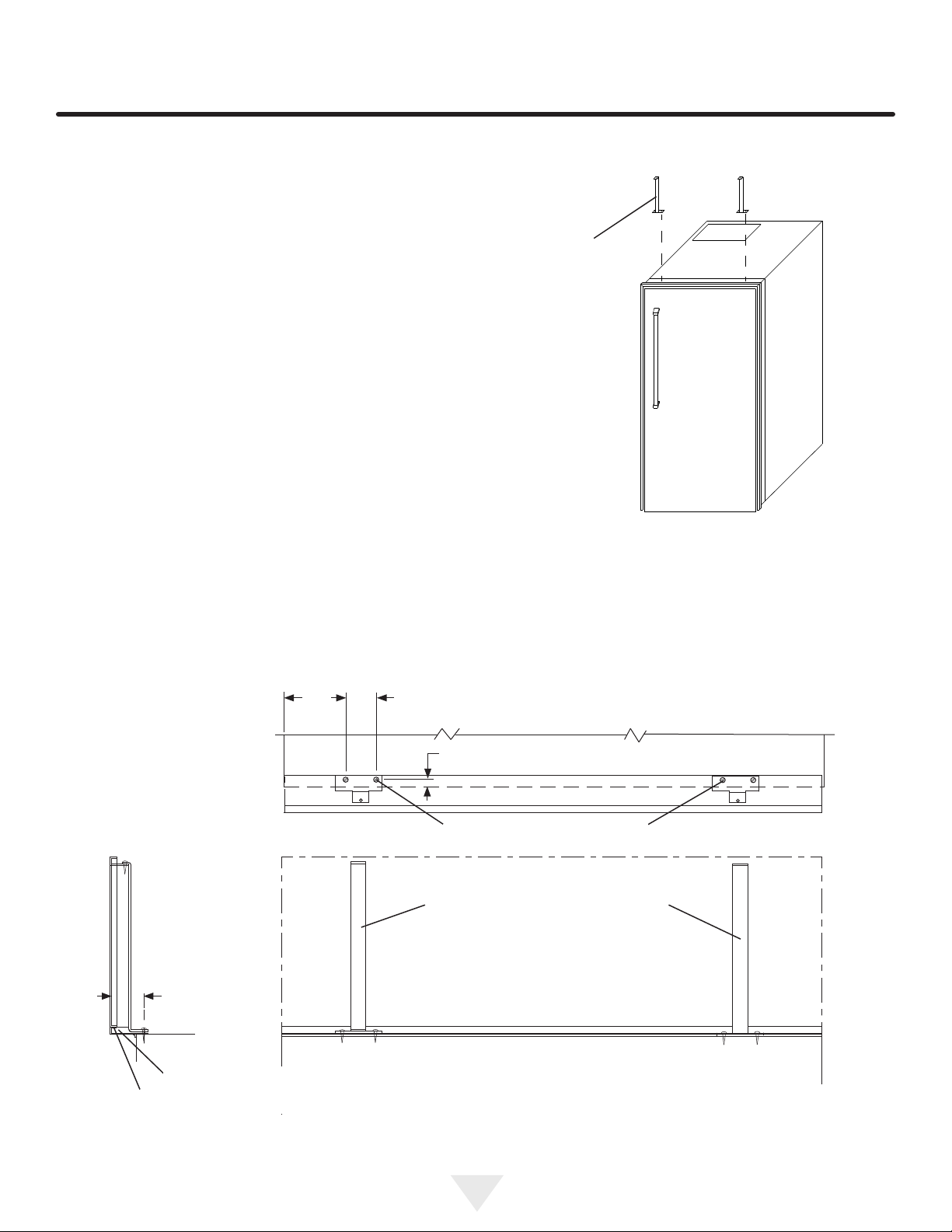

Anti tip bracket considerations .......................................10

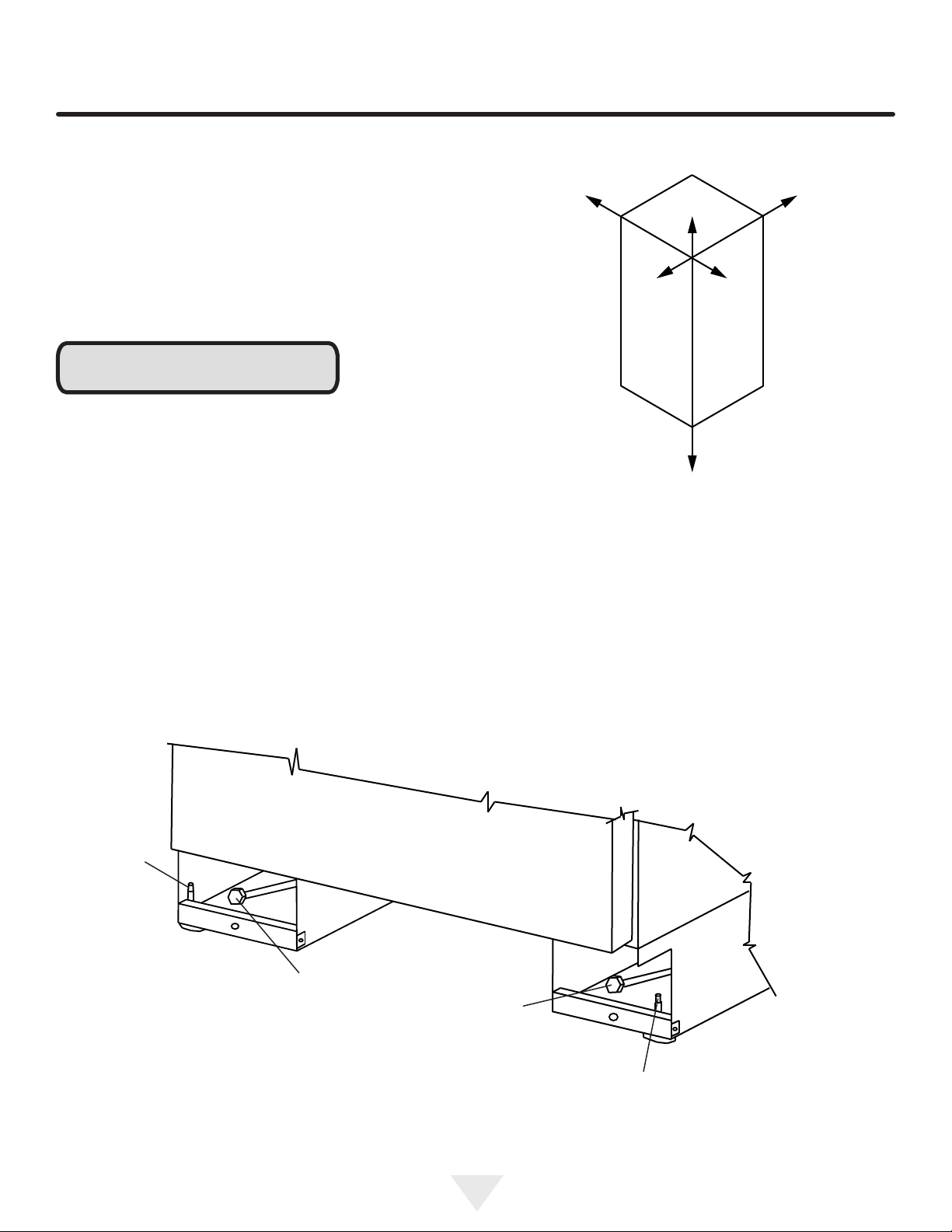

Leveling the unit ................................................................11
Installing the power module ..............................................12
Placing power module on top of cabinet .........................12
Power module electrical connections .............................12

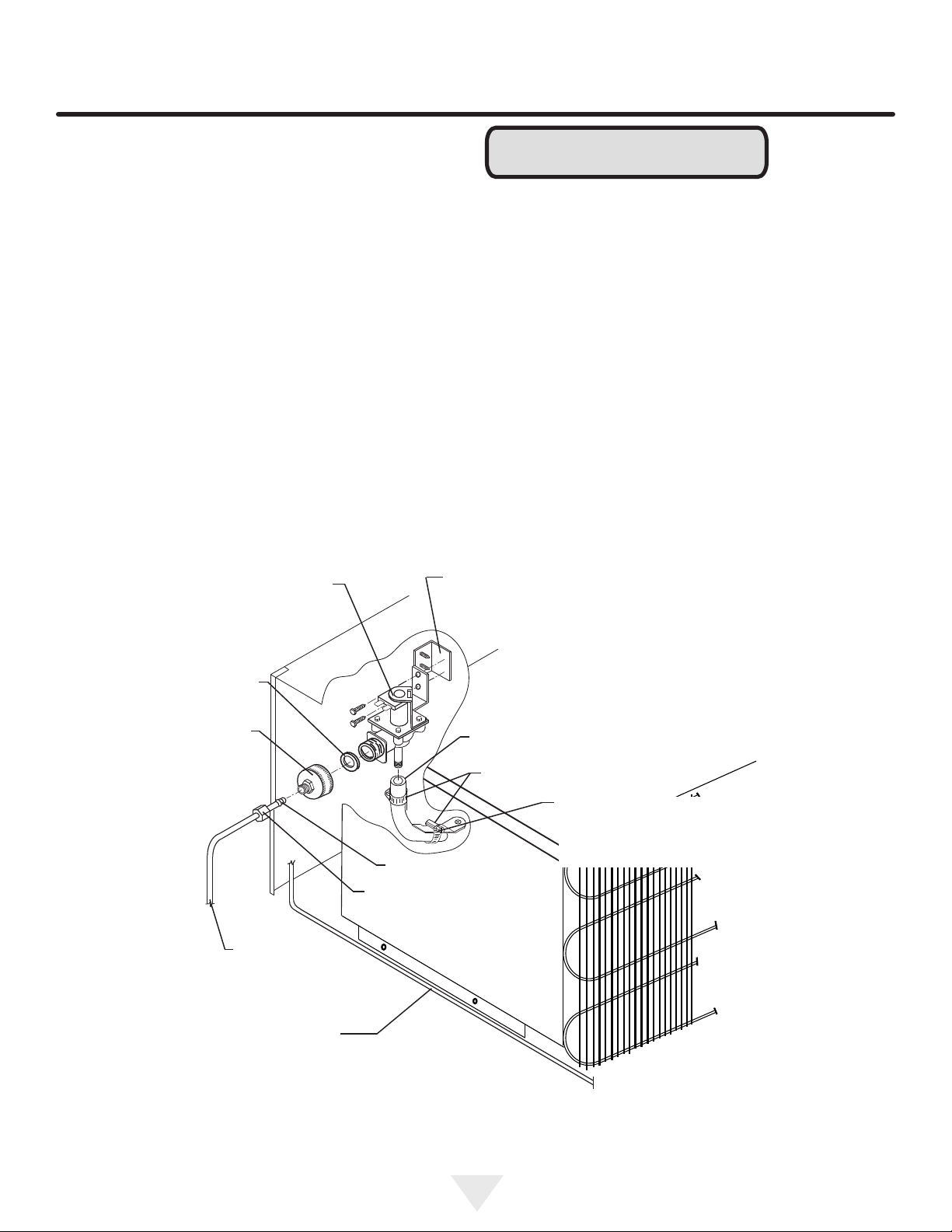

Installing the ice maker water valve ..................................13

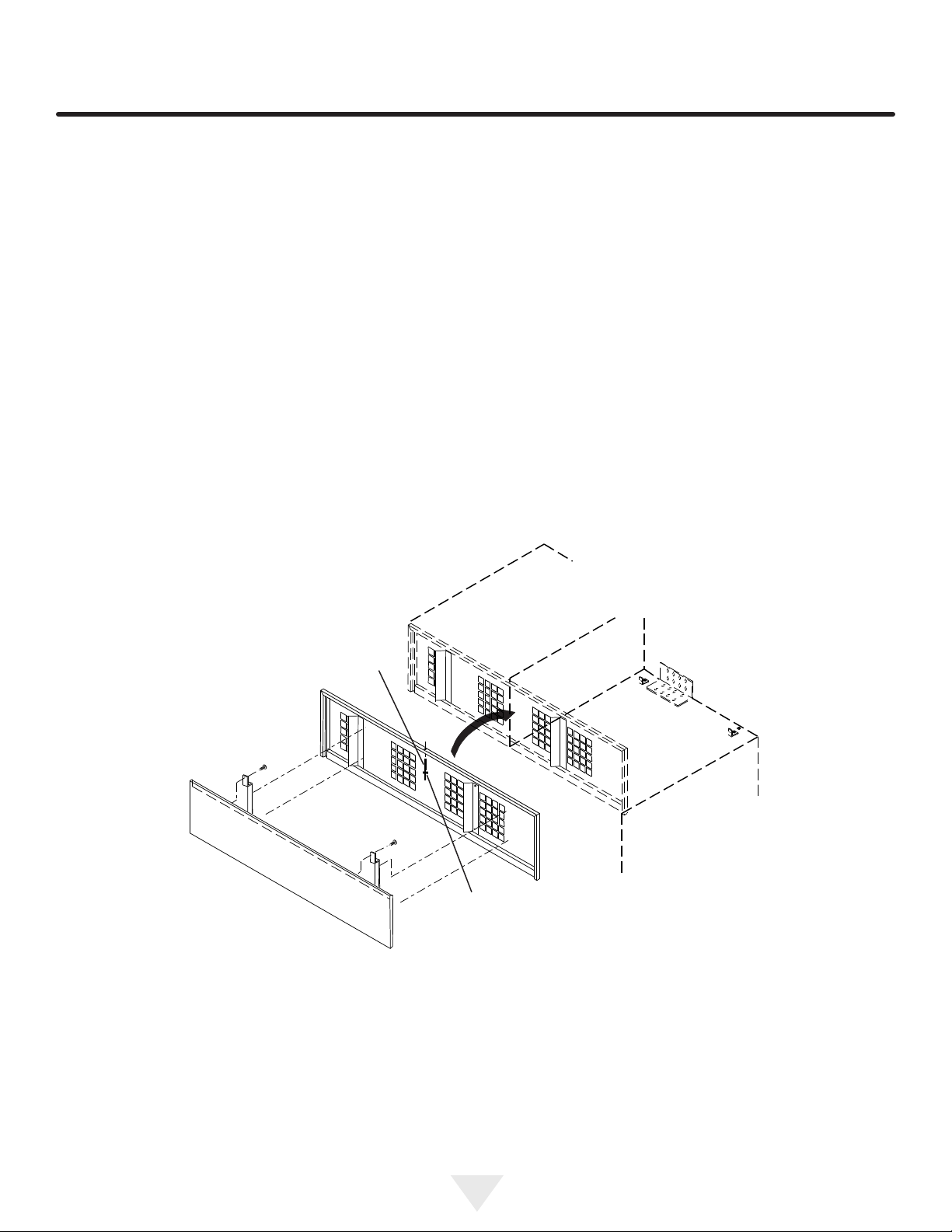

Installing the grille .............................................................14

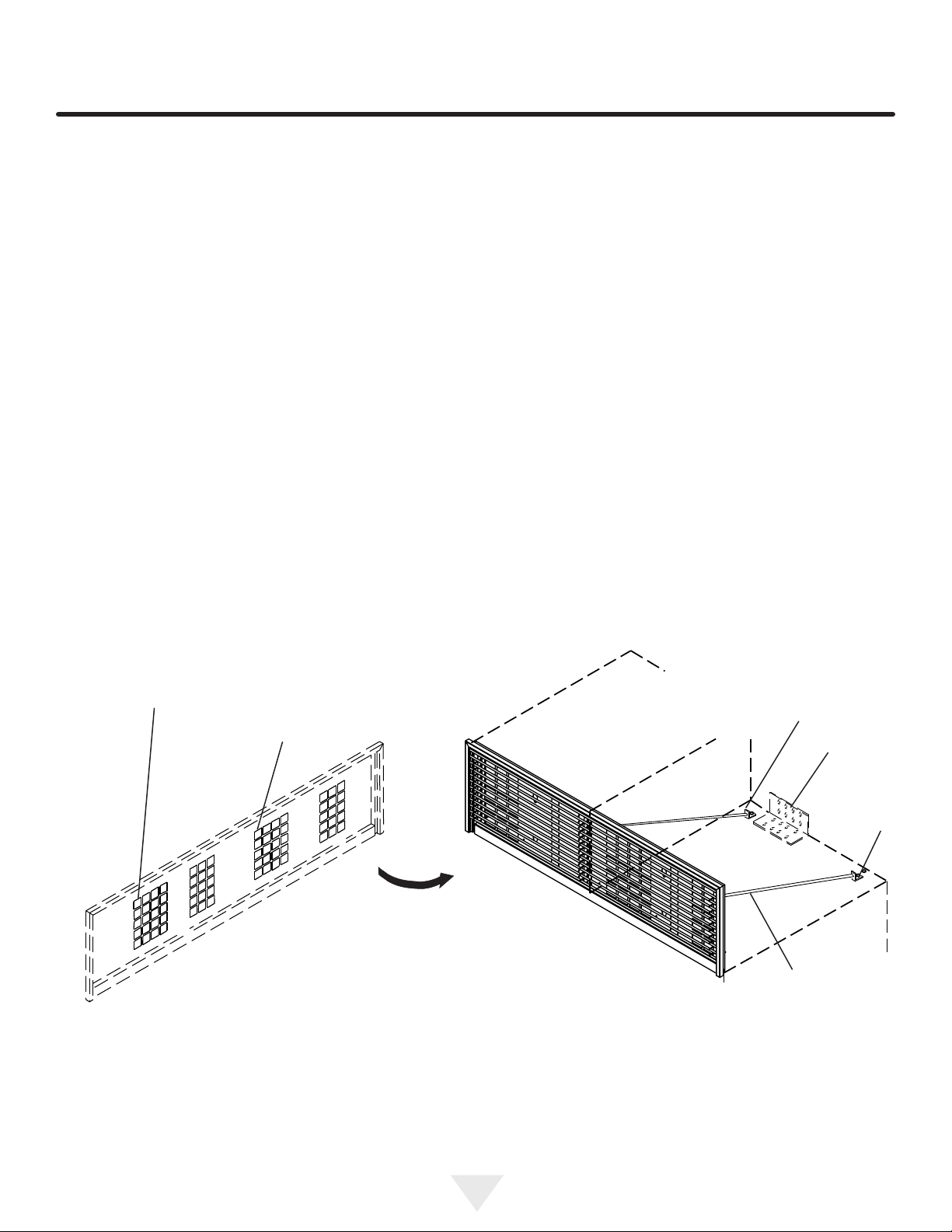

Custom Grille and Door Overlay Panels ............................17
Mounting Grille Overlay Panel ......................................17
Overlay Door Panel Instructions ....................................18
Hinge and gasket adjustments ..........................................20
Installing side panels .........................................................21
Installing the kickplate .......................................................21
Installation checks ............................................................22
Common installation errors ..............................................22
Use and care guide ...........................................................22
Using your refrigerator ....................................................22
Using your freezer ..........................................................23
Temperatures ..................................................................24
Defrosting .......................................................................24
Cleaning .........................................................................24
Condenser cleaning procedure ......................................24
Energy saving tips .............................................................25
Product sounds .................................................................25
Troubleshooting guide ......................................................26
Obtaining service ..............................................................26
Warranty ...........................................................................27
Important Safety Instructions
Warnings and safety instructions appearing in this guide
are not meant to cover all possible conditions and situa-
tions that may occur. Common sense, caution, and care
must be exercised when installing, maintaining, or operat-
ing this appliance.
Recognize Safety Symbols,
Words, and Labels.
!
WARNING
WARNING-Hazards or unsafe practices with
high probability of personal injury or property / product damage.
!
CAUTION
CAUTION-Hazards or unsafe practices which could
result in personal injury or property or product damage.
NOTE
NOTE-Important information to help assure a problem
free installation and operation.
is committed to building a quality product
in an environmentally friendly manner. Our processes are
tightly controlled and closely monitored. We have achieved
certications in ISO 9001 for quality assurance, ISO 14001
for environmental management, and OHSAS 18001 for oc-
cupational health and safety from Lloyd’s Register Quality
Assurance.
2
UNPACKING YOUR REFRIGERATOR/FREEZER
!
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move product.
Failure to do so can result in back or other injury.
Remove Interior Packaging
Your refrigerator/freezer has been packed for shipment
with all parts that could be damaged by movement securely
fastened. Remove internal packing materials and any tape
holding internal components in place. The owners manual
is shipped inside the product in a plastic bag along with the
warranty registration card, and other accessory items.
Important
Keep your carton and packaging until your refrigerator/
freezer has been thoroughly inspected and found to be in
good condition. If there is damage, the packaging will be
needed as proof of damage in transit. Afterwards please
dispose of all items responsibly in particular the plastic
bags which can be a suffocation hazard.
!
CAUTION
Help Prevent Tragedies
Child entrapment and suffocation are not problems of the
past. Junked or abandoned refrigerators are still dangerous
- even if they sit out for "just a few days".
If you are getting rid of your old freezer, please follow the
instructions below to help prevent accidents.
Before you throw away your old refrigerator:
• Take off the doors or remove the drawers.
• Leave the shelves in place so children may not easily
climb inside.
Tools to have available for installation:
• Phillips screwdriver
• Flat blade screwdriver
• Hex head nut drivers size 1⁄4" and 5⁄16"
• Level
• Drill and drill bit (#6 - .204)
• Open end wrenchs size 1⁄4", 7⁄16" and 1⁄2"
• Slip joint pliers
• Adjustable wrench
• Tape measure
• Hex socket and ratchet size 7⁄16"
• Hex key (Allen wrench) 3⁄32"
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for its
safe delivery was assumed by the retailer upon acceptance
of the shipment. Claims for loss or damage sustained in
transit must be made to the retailer.
DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE RE-
TAILER.
!
CAUTION
If the power module was shipped or has been laying on
its side for any period of time allow the power module to
sit upright for a period of at least 24 hours before plugging
in. This will assure oil returns to the compressor. Plugging
the power module in immediately may cause damage to
internal parts.
3
WARRANTY REGISTRATION

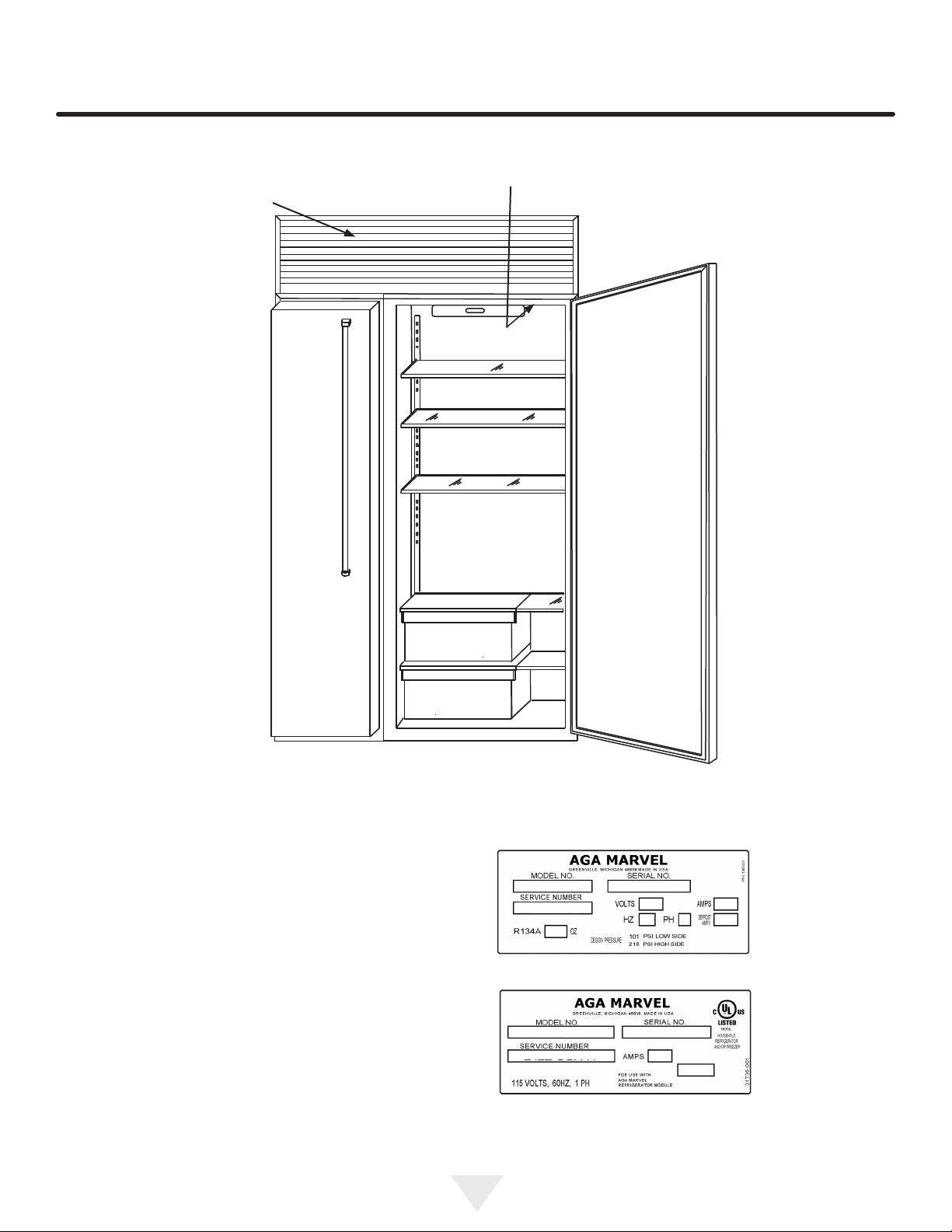

Power module serial
plate is behind the
grille on the front of
the power module-
Figure 1
Serial plate
locations
(M42SS shown)
Cabinet serial plate is on the
inside top liner toward the right
side-
Warranty Registration
It is important you send in your warranty registration card
immediately after taking delivery of your refrigerator/
freezer.
The following information will be required when registering
your unit.
Service Number
Serial Number
Date of Purchase
Dealer’s name and address
The service number and serial number can be found on the
serial plates which are located on the power module and
the cabinet. See gure 1 above for locations.
Figure 2
Power module
serial plate
Figure 3
Cabinet
serial plate
4

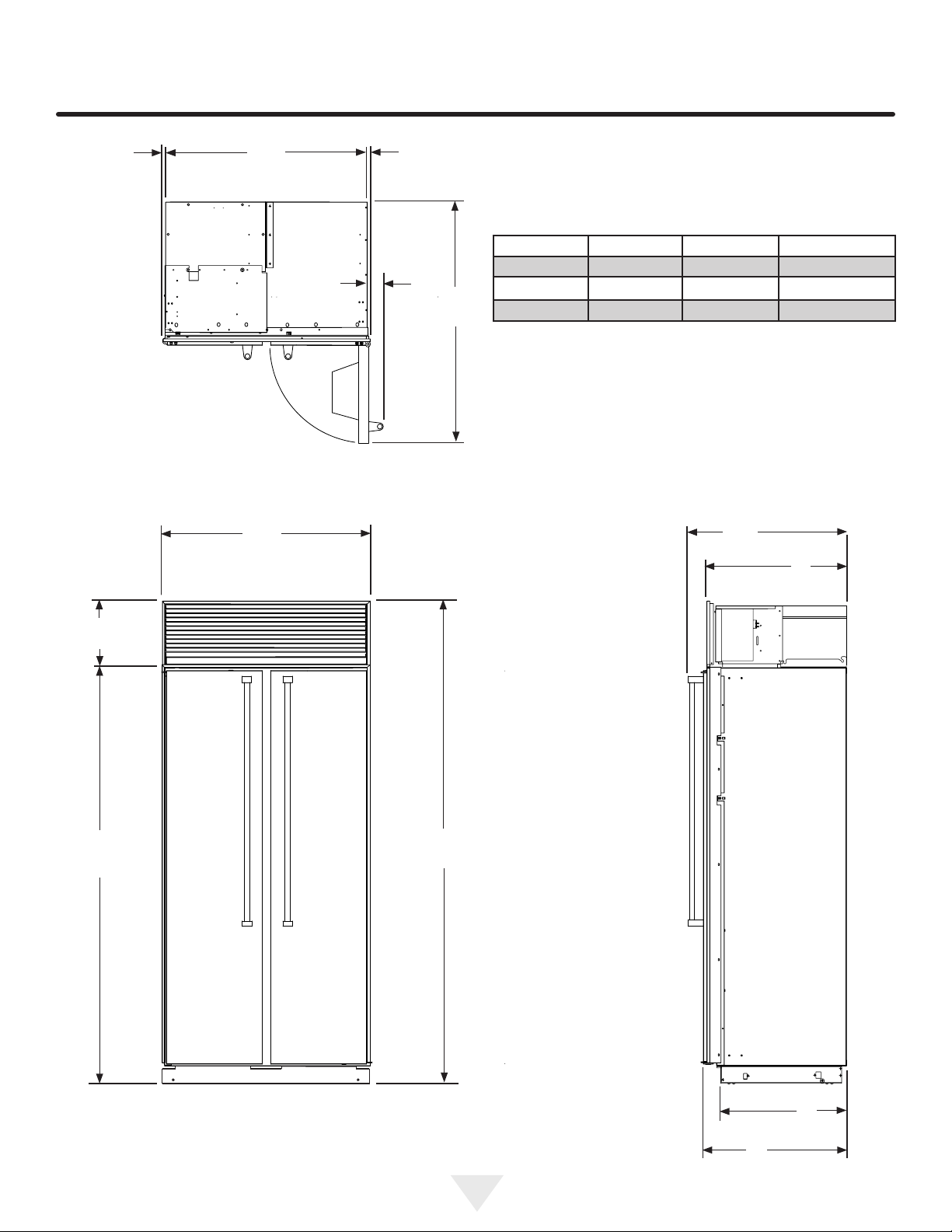

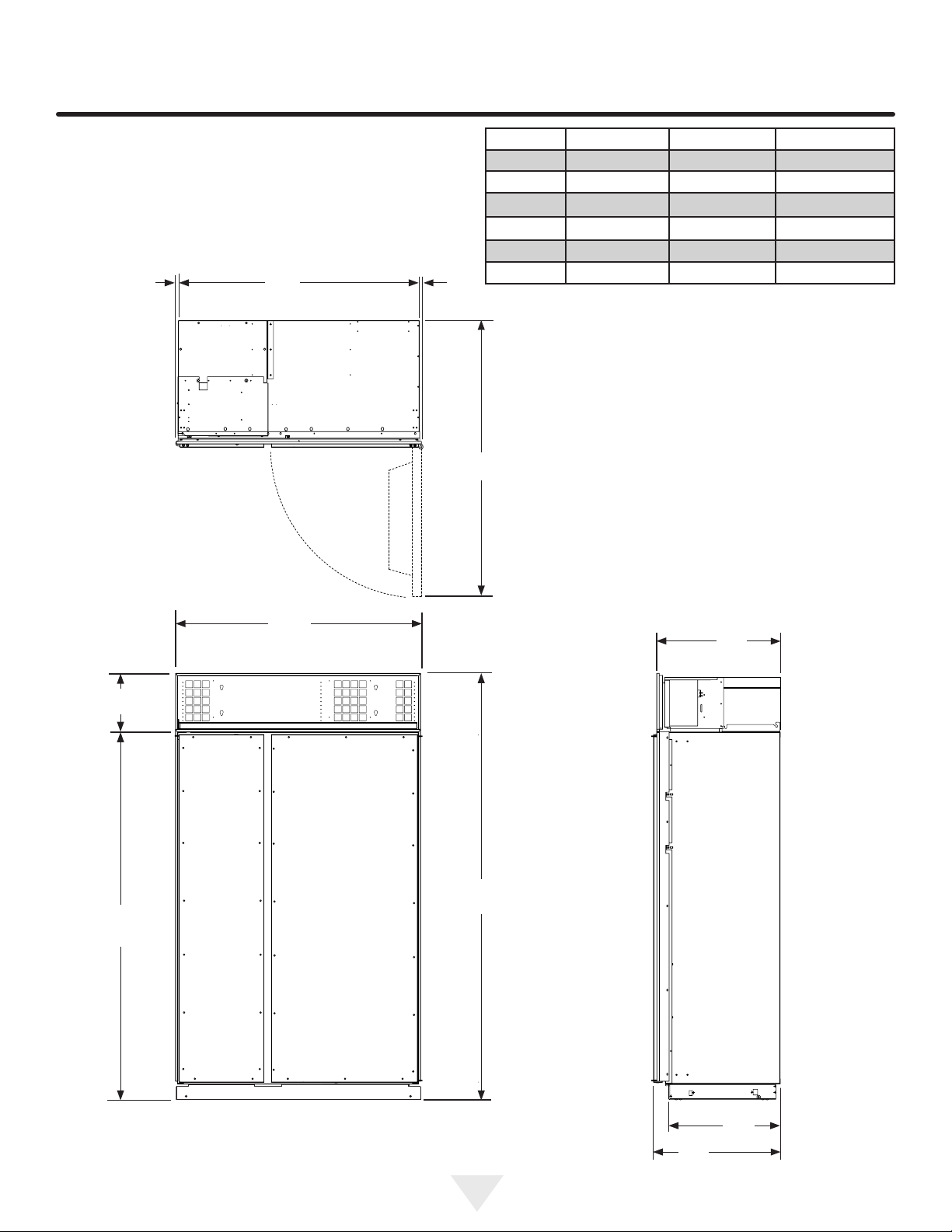

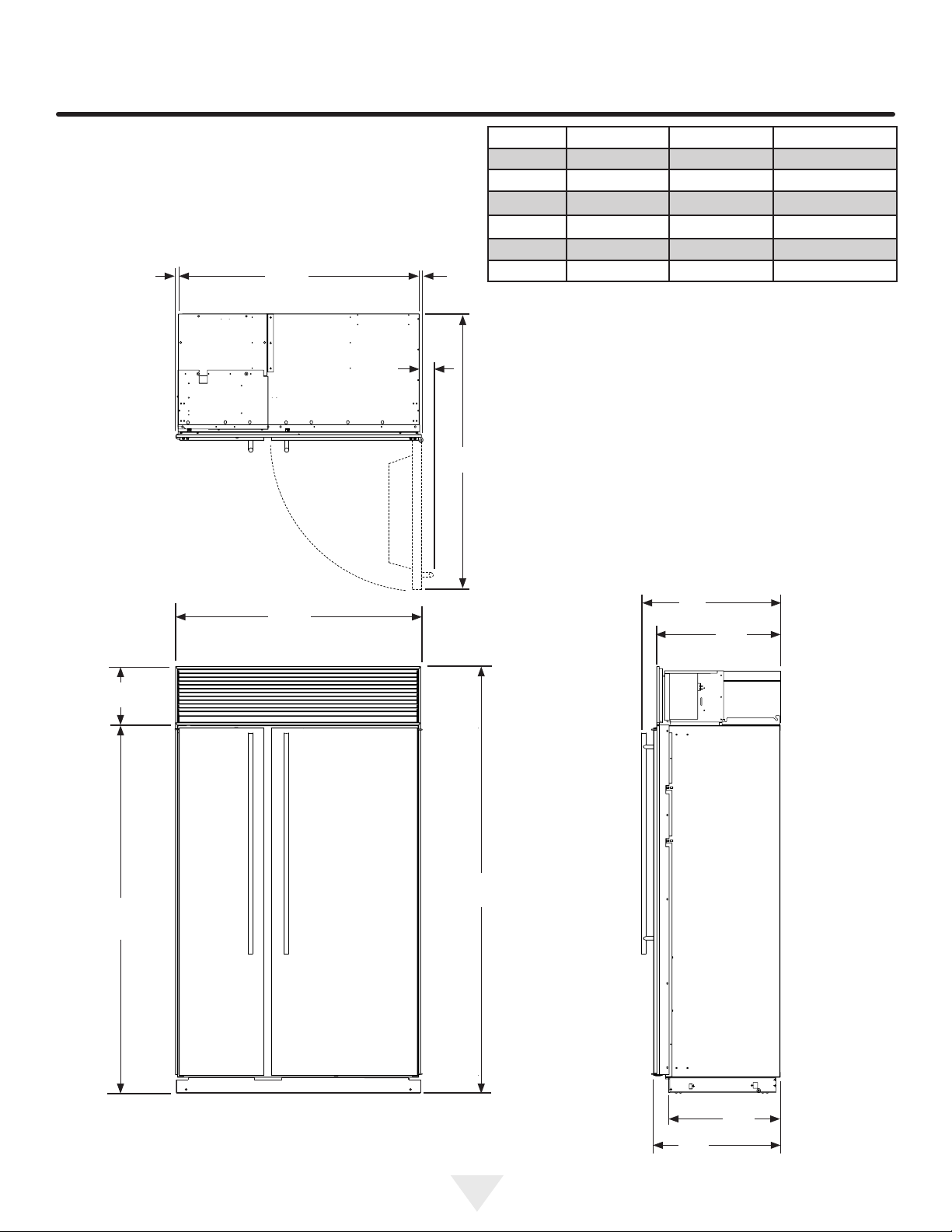

PRODUCT DIMENSIONS FOR M(XX)SS WITH SOLID DOORS
Electrical Requirements:
A grounded 115 volt, 60 cycle, single phase, 15 amp
dedicated circuit is required. Follow all local building codes
when installing electrical and unit.
1
⁄2"
(12.7mm)
"B"
1
⁄2"
(12.7mm)
29⁄16"
(6.5cm)
MODEL "A" "B" "C"
M36SS-WS 36" (91.4cm) 35" (88.9cm) 431⁄8" (109.5cm)
M36SS-SS 36" (91.4cm) 35" (88.9cm) 431⁄8" (109.5cm)
M42SS-WS 42" (106.7cm) 41" (104.1cm) 4711⁄16" (121.1cm)
M42SS-SS 42" (106.7cm) 41" (104.1cm) 4711⁄16" (121.1cm)
M48SS-WS 48" (121.9cm) 47" (119.4cm) 5311⁄16" (136.4cm)
M48SS-SS 48" (121.9cm) 47" (119.4cm) 5311⁄16" (136.4cm)
"C"
11"
(27.9cm)
73" to 735⁄8"
(185.4cm to 187cm)
"A"
273⁄16"
(69.1cm)
241⁄2"
(62.2cm)
84" to 845⁄8"
(213.4cm to 214.9cm)
251⁄8"
(63.8cm)
197⁄8"
(50.5cm)
To kickplate
To face of door
5
PRODUCT DIMENSIONS FOR M(XX)SS WITH SOLID OVERLAY DOORS
Electrical Requirements:
A grounded 115 volt, 60 cycle, single phase, 15 amp
dedicated circuit is required. Follow all local building codes
when installing electrical and unit.
(12.7mm)
11"
(27.9cm)
1
⁄2"
"B"
"A"
1
⁄2"
(12.7mm)
MODEL "A" "B" "C"
M36SS-WP 36" (91.4cm) 35" (88.9cm) 431⁄8" (109.5cm)
M36SS-SP 36" (91.4cm) 35" (88.9cm) 431⁄8" (109.5cm)
M42SS-WP 42" (106.7cm) 41" (104.1cm) 4711⁄16" (121.1cm)
M42SS-SP 42" (106.7cm) 41" (104.1cm) 4711⁄16" (121.1cm)
M48SS-WP 48" (121.9cm) 47" (119.4cm) 5311⁄16" (136.4cm)
M48SS-SP 48" (121.9cm) 47" (119.4cm) 5311⁄16" (136.4cm)
"C"
241⁄2"
(62.2cm)
73" to 735⁄8"
(185.4cm to 187cm)
84" to 845⁄8"
(213.4cm to 214.9cm)
6
251⁄8"
(63.8cm)
197⁄8"
(50.5cm)
To kickplate
To face of door
PRODUCT DIMENSIONS FOR MPRO(XX)SS WITH SOLID DOORS
1
⁄2"
(12.7mm)
"B"
"A"
1
⁄2"
(12.7mm)
3"
(7.6cm)
Electrical Requirements:
A grounded 115 volt, 60 cycle, single phase, 15 amp
dedicated circuit is required. Follow all local building codes
when installing electrical and unit.
MODEL "A" "B" "C"
MPRO36SS-SS 36" (91.4cm) 35" (88.9cm) 431⁄8" (109.5cm)
"C"
MPRO42SS-SS 42" (106.7cm) 41" (104.1cm) 4711⁄16" (121.1cm)
MPRO48SS-SS 48" (121.9cm) 47" (119.4cm) 5311⁄16" (136.4cm)
275⁄8"
(70.2cm)
241⁄2"
(62.2cm)
11"
(27.9cm)
73" to 735⁄8"
(185.4cm to 187cm)
84" to 845⁄8"
(213.4cm to 214.9cm)
To kickplate
To face of door
251⁄8"
(63.8cm)
197⁄8"
(50.5cm)
7

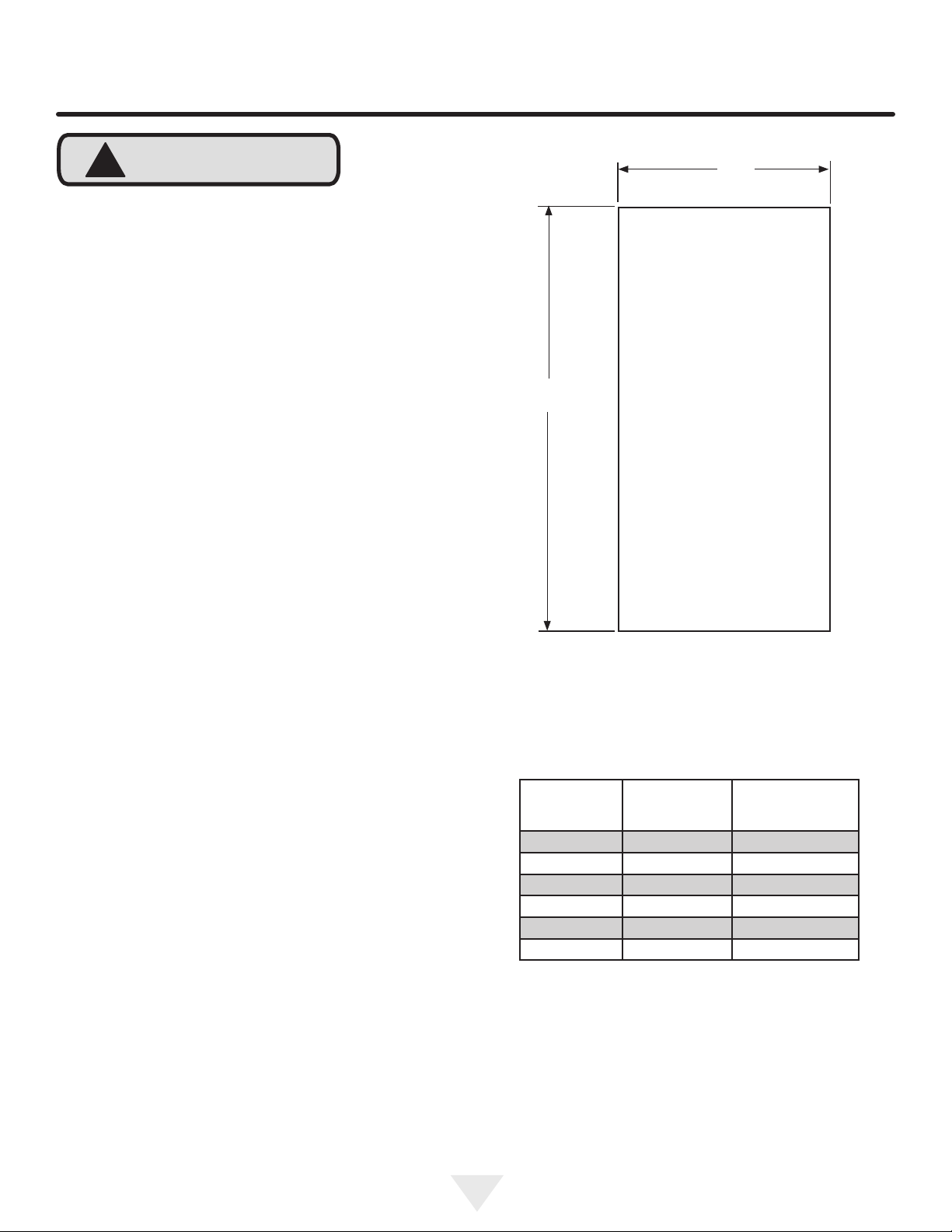

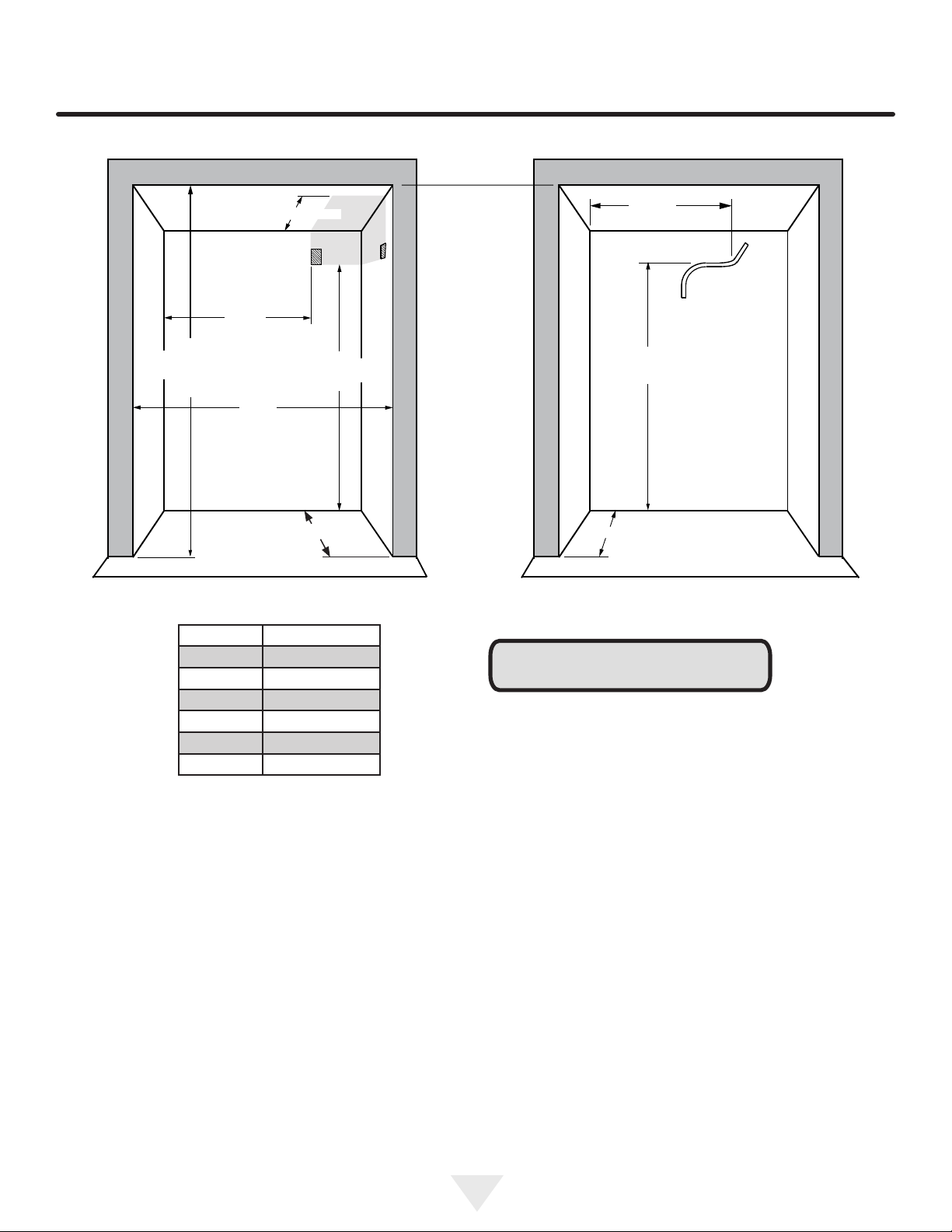

PRE INSTALLATION CONSIDERATIONS
20"
22" (55.9cm)
(50.8cm)
minimum
841⁄4" to 847⁄8"
(214cm) to (215.6cm)
Model Cut-Out Width
M36SS 351⁄2" (90.2cm)
M42SS 411⁄2" (105.4cm)
M48SS 471⁄2" (120.7cm)
MPRO36SS 351⁄2" (90.2cm)
MPRO42SS 411⁄2" (105.4cm)
MPRO48SS 471⁄2" (120.7cm)
20"
(50.8cm)
minimum
"Cut out
width"
Figure 4
781⁄2" (199.4cm)
Minimum, typical
24" (61cm)
Recommended
location of
water line
78" (198.1cm)
approximately
24" (61cm)
Figure 5
NOTE
Floor under product MUST be at or above the same level
of the surrounding nished oor, for ease of installation and
removal of unit
Table A
Select Location
Locate the refrigerator/freezer in the coolest part of the
room, out of direct sunlight and away from heating ducts or
registers.
Do not place the refrigerator/freezer next to heat-producing
appliances such as a range, oven or dishwasher. If this
is not possible, a section of cabinetry or an added layer
of insulation between the two (2) appliances will help the
refrigerator/freezer operate more efciently.
Do NOT install the refrigerator/freezer where the temperature will drop below 60 degrees F (15 degrees C) or rise
above 110 degrees F (43 degrees C). The compressor will
NOT be able to maintain proper temperatures.
8
PRE INSTALLATION CONSIDERATIONS
Electrical Requirements:
Provide a 115 volt, 60 cycle, single phase 15 amp, AC receptacle. It is recommended that a separately fused circuit
(a time delay fuse or circuit breaker is recommended),
serving only this appliance, be provided. Electrical opening
should be placed 781⁄2" (199.4cm) minimum from the oor.
(See Figure 4).
This product is factory equipped with a power supply
cord that has a three-pronged, grounded plug. It must be
plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable
local codes and ordinances. If the circuit does not have a
grounding type receptacle, it is the responsibility and obligation of the customer to provide the proper power supply.
The unit must be installed according to your local building
codes and ordinances.
!
WARNING
Plumbing Requirements:
Ice maker water supply line, 1⁄4" (6.4mm) outside diameter
copper tubing to come up the rear of cut out opening ap-
proximately 78" (198.1cm) off the oor depending on height
adjustment. Tubing should then pass around the right side
of the power module and around the front to the water
solenoid valve.
When installing the water line for the ice maker, be sure
to install a SHUT-OFF VALVE at a convenient location
between the freezer and the supply line. Required water
pressure range is 20 to 120 psi (138 to 827 kPa).
Also recommended is an in-line WATER FILTER between
the freezer and the supply line to prevent sediment from
blocking water ow through the water solenoid valve.
An ideal location for these items is on top of the cabinet,
behind the grill, and to the right of the power module.
NOTE
Self-piercing water valves and plastic tubing are NOT ap-
proved for water supply to ice maker.
Electrical Shock Hazard
• Do not use an extension cord with this appliance.
They can be hazardous and cause decient
operation.
• This unit should not, under any circumstances, be
installed to an un-grounded electrical supply.
• Do not remove the grounding prong from the
power cord.
• Do not use an adapter.
• Do not splash or spray water from a hose on
the appliance. Doing so may cause an electrical
shock, which may result in severe injury or death.
Corner Installation
For the door to be opened to a full 90°, a 3" (7.6cm) ller
will have to be added to the hinge side of the door. This is
to allow for door handle clearance when opened to the wall.
See Figure 6.
Enclosure must permit refrigerator/freezer to be removed
for service.
Cabinet Width
3" Min.
Filler
Cabinet Outline
Figure 6
9

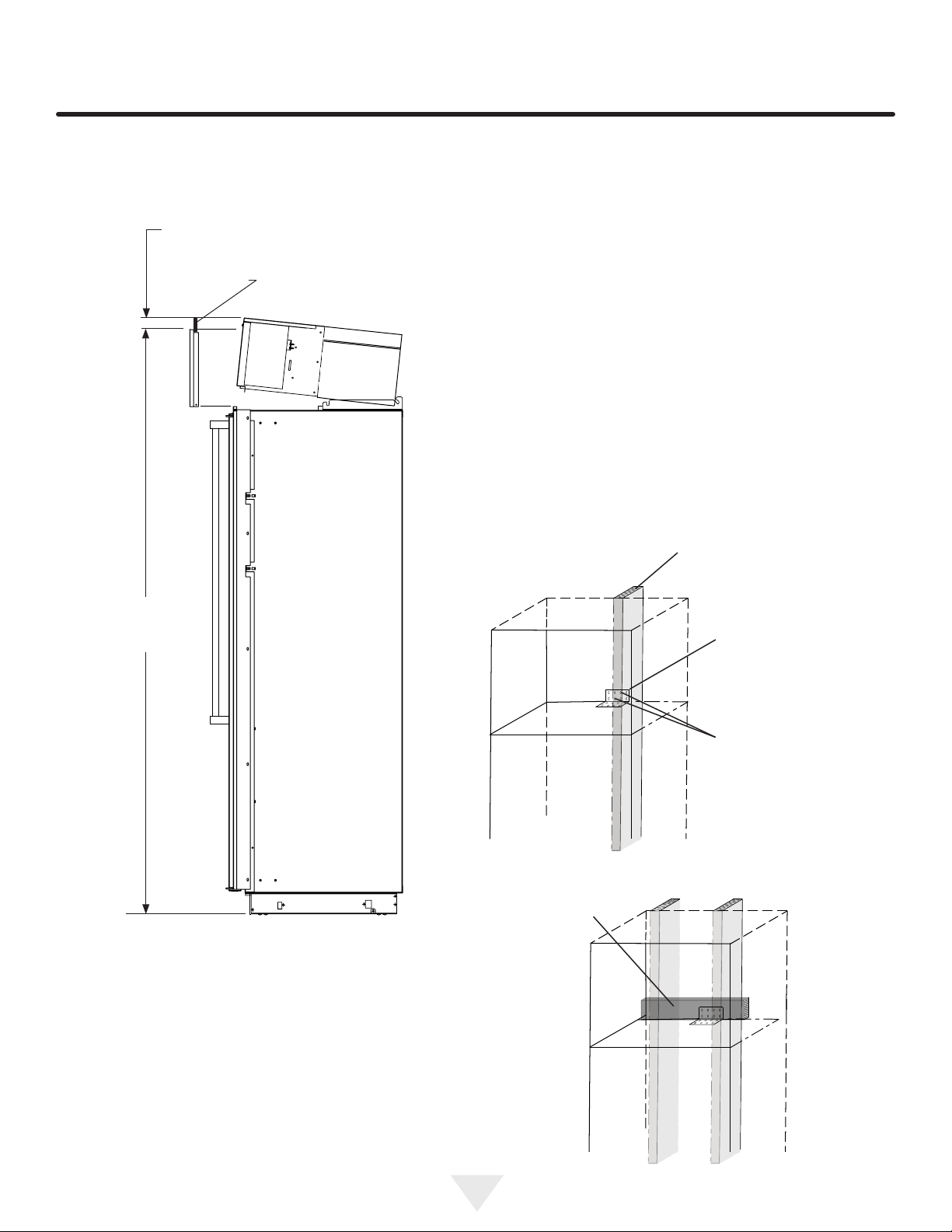

INSTALLING THE CABINET
When planning your rough in opening a 3" (7.6cm) removable ller panel is recommended above the grille. To
remove the power module from the cabinet the front has to
be tilted up as shown in Figure 7 when removed for service.
-3" (7.6cm) removable ller
recommended
845⁄8"
(214.9cm)
Maximum
Anti - tip Bracket considerations
Before placing the cabinet in opening, the depth of the
cut-out opening should be at least 24" (61cm). If the cut-out
opening depth is more than 24" (61cm), then a piece of
wood must be secured crosswise on the wall into the studs
at the height of the anti-tip brackets. (See Figure 9). Slide
the cabinet into position and level the cabinet with adjust-
able rear roller and front leveling legs. (See Leveling the
unit on page 11).
Locate a wall stud behind the unit that is suitable for secur-
ing the 5” (12.7cm) anti-tip bracket to the wall. The position
of the bracket should be to the right of the power module
and not behind the power module. Do not disturb the power
module gasket on the left side of the unit. Place the anti
tip bracket on top of the cabinet ush with the back of the
cabinet. Mark and drill at least three holes (1⁄8” (3.2mm) into
the top of the cabinet and secure the bracket to the top of
the cabinet with at least (3) of the #8 x 5⁄8” screws provided.
Secure the bracket to the wall stud with at least (2) #8 x
11⁄2” screws provided. See Figure 8.
-Wall stud
-Anti - tip
bracket
on top of
cabinet
Figure 7
Crosswise
lumber-
-At least 2
screws into
wall stud.
Figure 8
-Leave
access for
water line if
required.
10
Figure 9
LEVELING THE UNIT
Leveling the unit:
Unit MUST be installed level in all planes, on a oor that is
strong enough to support a fully loaded refrigerator/freezer.
See Figure 10.
This unit is equipped with front and rear rollers. Rollers
will aid during installation. Rear rollers are adjustable from
the front of the unit. Total adjustment is + 5⁄16 (7.9mm), - 5⁄16
(7.9mm). Turn adjusting bolt with a 7⁄16" wrench clockwise to
raise cabinet and counterclockwise to lower cabinet.
See Figure 11.
NOTE
Front leveling legs must be adjusted to the oor for leveling
and to prevent the unit from rolling during use. See
Figure 11.
Figure 10
Front
leveling
leg-
-Rear Roller Adjustment Bolt
(Use 7⁄16 open end wrench or
socket and ratchet)-
Figure 11
11
-Both front leveling legs must be
adjusted to oor after leveling

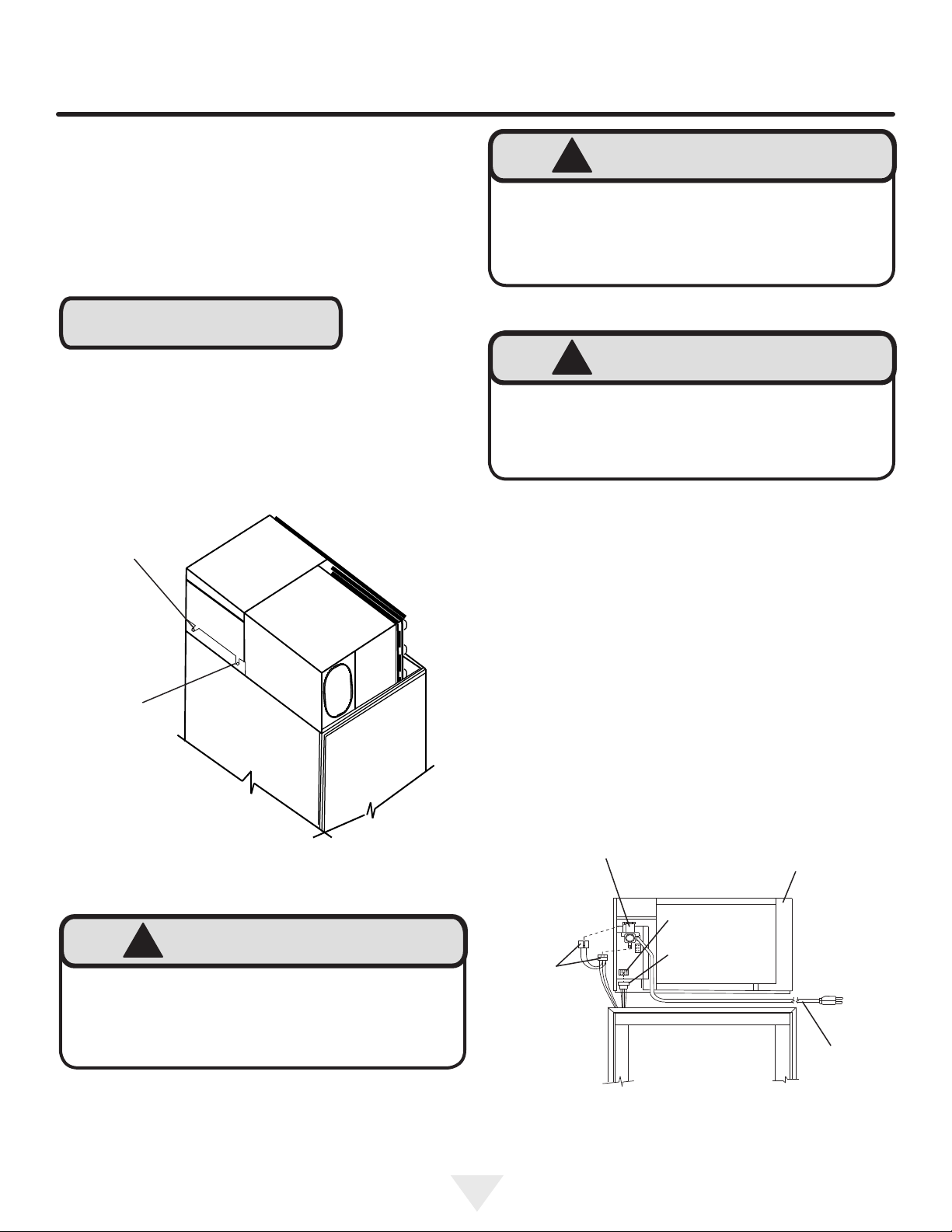

INSTALLING THE POWER MODULE
Placing power module on top of cabinet:
Place module on top of the cabinet with rear shoulder
screws resting on the locator brackets behind the front
slots. Slide module toward the rear of the cabinet until the
rear shoulder screws engage the slots in the rear of the
brackets. Rest the front shoulder screws into the front slots
of the brackets.
NOTE
Check to make sure wiring and ice maker tubing is clear
and not interfering with module seal. Do NOT start product
during construction, as dust can block module condenser
coils. If dust accumulates on coils, vacuum immediately,
using a soft brush attachment.
!
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move product.
Failure to do so can result in back or other injury.
!
WARNING
EXPLOSION HAZARD
Do not operate the refrigerator/freezer in the
presence of explosive chemicals or fumes.
Rear
shoulder
screw-
Front
shoulder
screw-
Figure 12
!
WARNING
TIPPING HAZARD
When installed the power module is not fas-
tened to the cabinet. It must be removed
when the cabinet is tipped or transported.
Power module electrical connections:
Make electrical connections from the top of the lower
cabinet to the junction box at left side of module. With ice
maker, be sure to plug the ice maker line into the module,
and the solenoid valve as well. See module diagram
Figure 13.
Run the power cord in front of power module on top of cabinet around the right side of power module to the electrical
outlet. See Figure 13.
Water
valve-
Ice
maker
leads-
Power module on
top of cabinet-
-Junction box
-Cabinet leads
-Power
cord
12
Figure 13
INSTALLING THE ICE MAKER WATER VALVE
Ice Maker (Solenoid) Connection
The water valve and the water line ttings are packed
inside the cabinet in a plastic bag.
Remove the two screws from the bracket which is on the
left side of the of the power module cover. Use these two
screws to install the water valve on the bracket as shown in
Figure 14.
Slip solenoid valve compression nut and compression
sleeve on copper tubing as shown in diagram. Tighten nut
onto water valve with adjustable wrench.
Remove the red plug from the end of the ice maker ll hose
coming from the cabinet and clamp the hose onto the water
solenoid valve as shown. Tighten clamp securely. Turn on
the water supply and check all ttings for leaks.
NOTE
An inline water lter can be used with this ice maker and is
recommended. A shutoff valve should also be installed in
the water line. Do not use a self-piercing type valve.
Solenoid
water valve
Gasket
Hose
Fitting
Copper Tubing
(provided by
customer) tubing
to run in front of
power module on
top of cabinet
Bracket on left side
of module cover
Sleeve
Compression
nut
Fill hose to
ice maker
Tube clamp (2)
This clamp for tube positioning only.
Check to make sure tube is not collapsed or restricted after connecting
opposite end to valve.
Figure 14
13
INSTALLING THE GRILLE
There are three methods that can be used to install the
grille. Pick the method that suits your installation.
Style 1: Brackets are installed on top of the cabi-
net, toward the back, and springs are used
to secure the grille.
Style 2: (Optional) Brackets are installed on top of
the cabinet, toward the front, and the grille
is secured to the brackets with screws.
Style 3: The top of the grille is fastened to the ad joining cabinetry with a screw. This style is
used primarily for the custom overlay panel
style grilles to match surrounding cabinets.
-Hook the spring(s) into
the square holes toward
the top of the grill-
Style 1 mounting method:
1. Remove screw A in mounting bracket. Mount L-bracket
with screw A. See Figure 15.
2. Hook one end of spring (81050-000) through hole in
L-bracket. Holding the facia in position - stretch the
spring and secure the hook end to the facia through a
square top hole in the facia.
-"L" bracket
Power module
-Anti-tip
bracket
Back side of
grille shown
Screw "A"-
-Spring
Figure 15
Style 1
14
INSTALLING THE GRILLE
Style 2 mounting method:
Instructions for Installing Grille Brackets
This is an optional accessory, order
part number S34060-000.
1. Use the two (91180-000) screws to secure each
bracket to the cabinet top. See Figure's 16 and 17.
2. Loosen the screws at the top of the mounting bracket.
Leave 1⁄8" (3.2mm) (2-3 screw threads) sticking through
the bracket.
3. Install the grille by aligning the screws in the top of the
bracket with the slots in the grille top trim.
4. Grille is installed when bottom of the grille ts behind
the cabinet trim across the front.
5. Pull grille forward about an inch at the top and retighten
the screws in the top of the bracket.
Brackets
optional-
Figure 16 Style 2
Cabinet
top trim-
313⁄16"
(96.8mm)
21⁄16" (52.3mm)
-Bottom of grille shown behind
top trim. See note #4.
2" (50.8mm)
7
⁄16" (11.2mm) reference
-Drill 4 holes 7⁄64" (2.8mm) diameter-
-Grille mounting Brackets (optional)-
Figure 17
Style 2
15
INSTALLING THE GRILLE

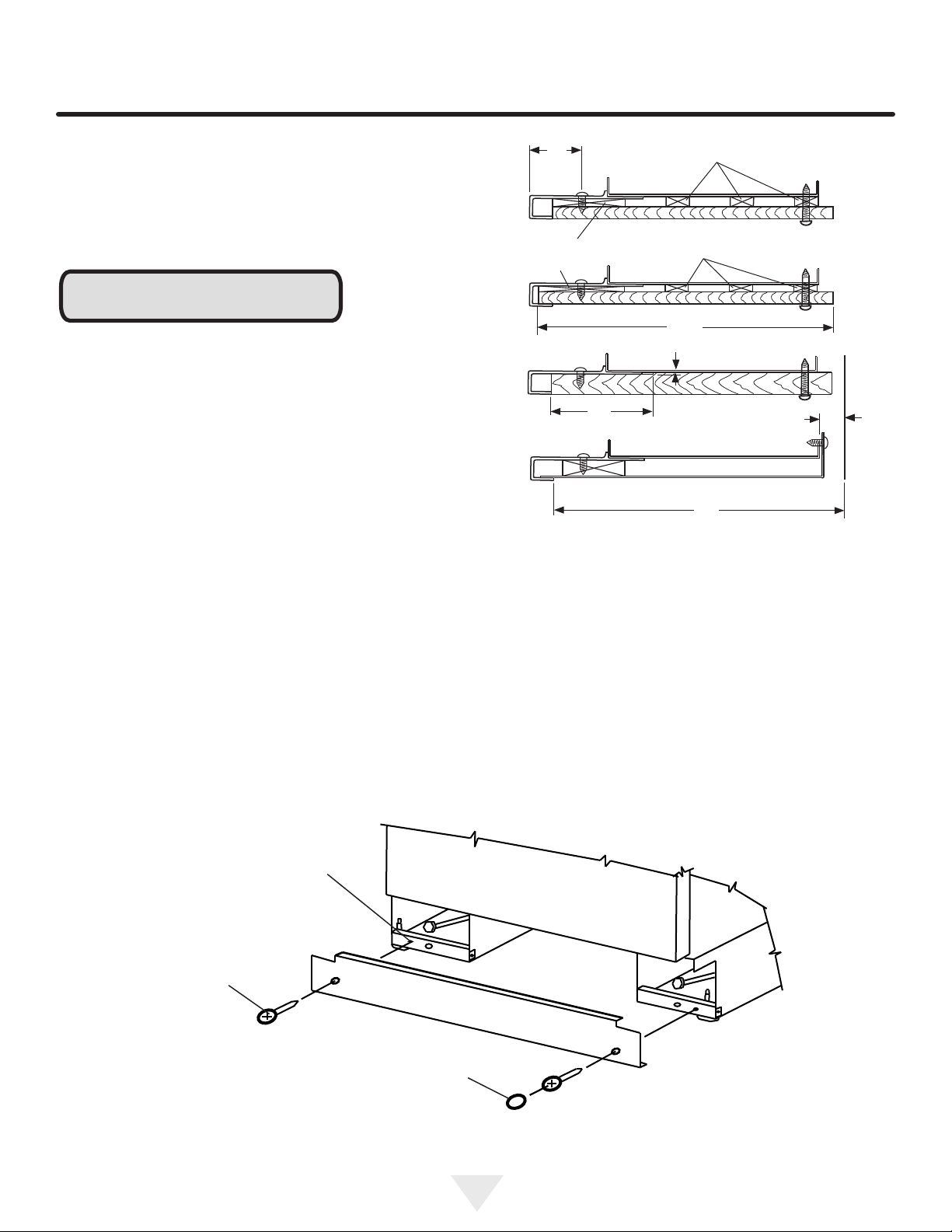

Style 3 mounting method:
Fasten top of grille to enclosure with screw provided.
Cover screw head with snap-on cap. See Figure 18.
Cut custom facia panel and mount facia bracket per the
instructions on next page. Install facia to grille back by
inserting shoulder rivets on back of facia bracket into large
ends of teardrop holes. When all 4 rivets are engaged in
the teardrop holes slide the facia downward until shoulder
rivets bottom out in small ends of teardrop holes.
screw-
For cutting grille facia panel
and mounting facia brackets
see page 17.
-Snap
on cap
Figure 18
16
CUSTOM GRILLE FACIA AND DOOR PANELS

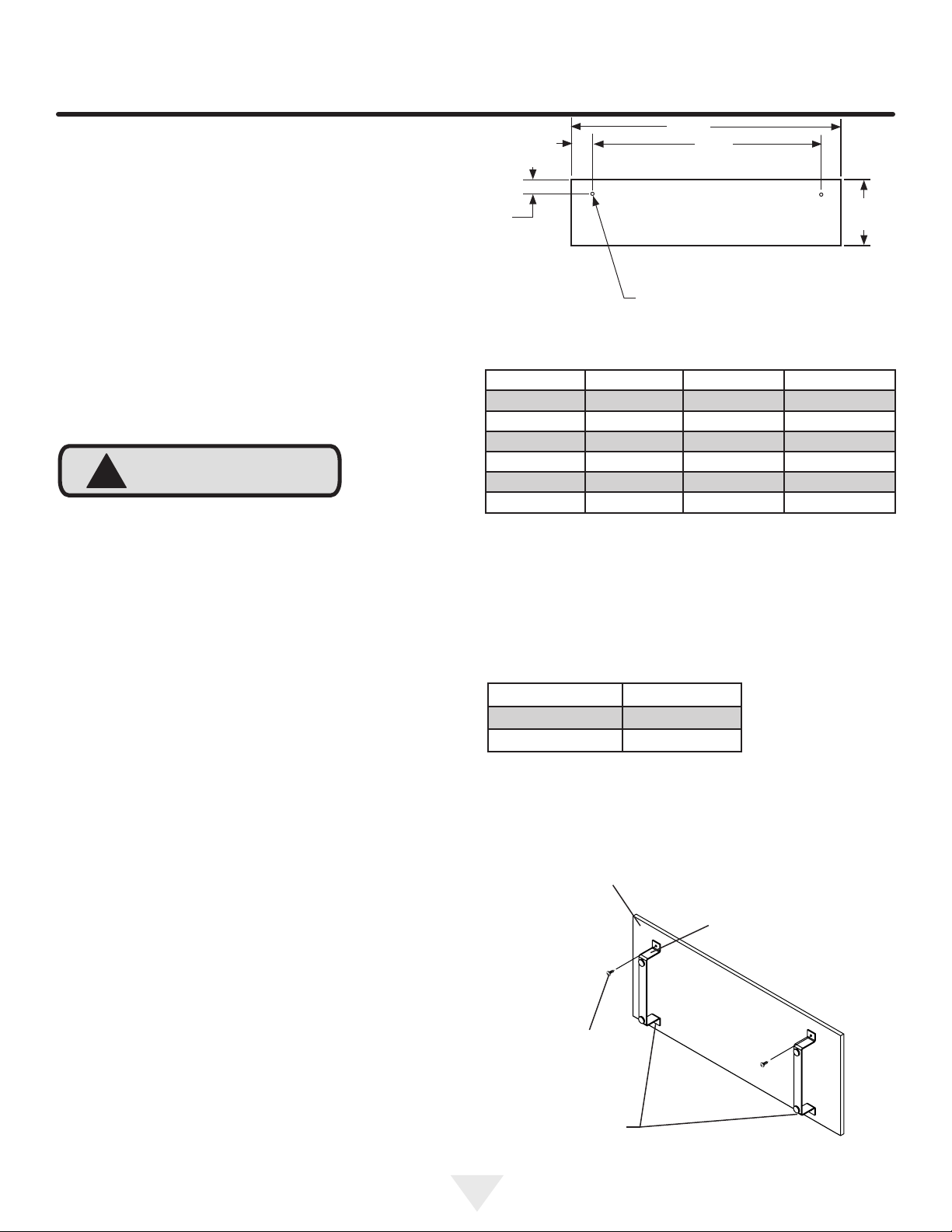

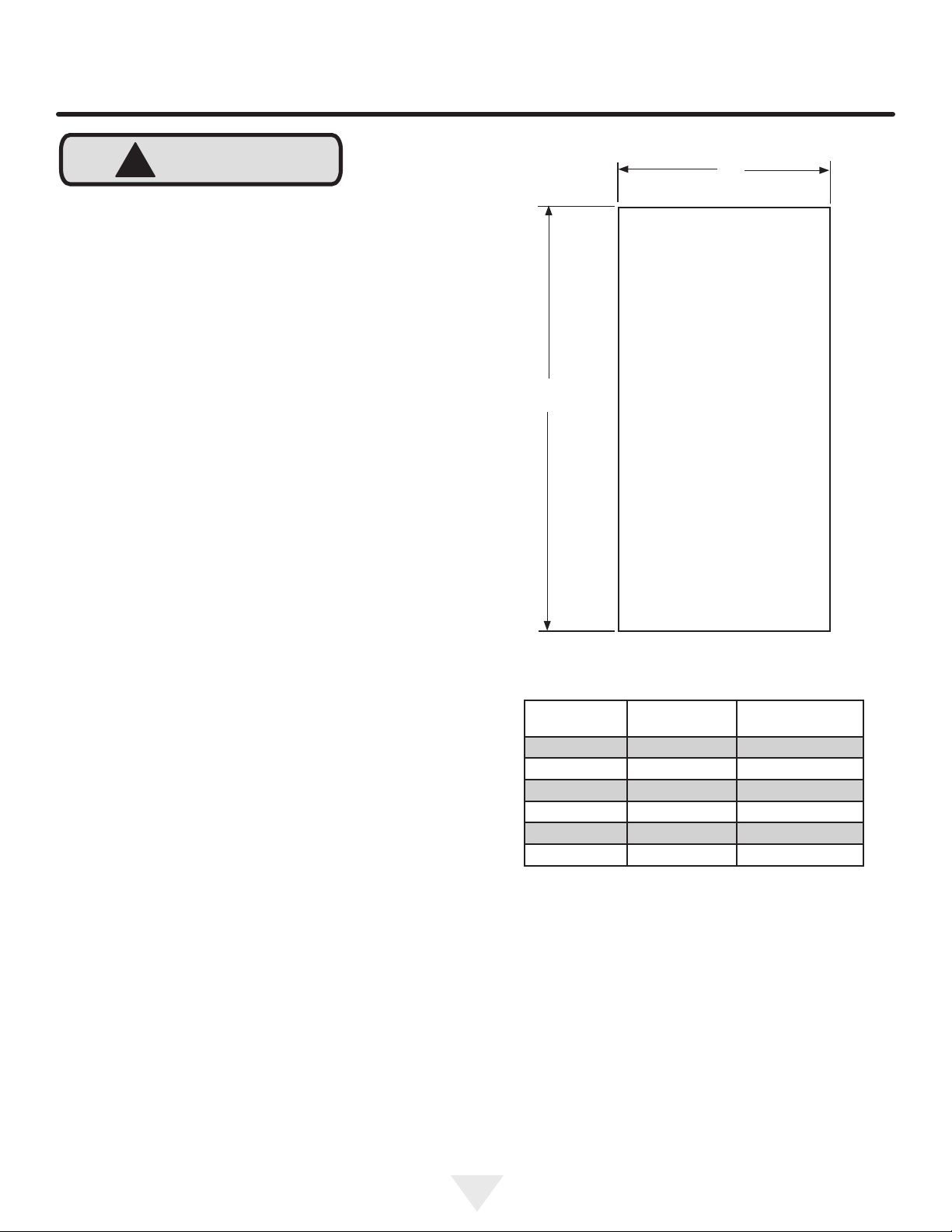

Mounting grille facia panel:
Cut the facia panel to the size shown in Figure 19 and
Table B. Drill the two facia bracket screw pilot holes in the
back side of the facia panel as noted in Figure 19. See
Table C, for sizes. Fasten the two facia brackets to the back
side of the facia panel with 2 of the screws provided. See
Figure 20.
Align the facia brackets so they are parallel to the short
edges of the facia panel and drill the remaining 2 bracket
holes using the holes in the facia brackets as guides.
Secure the bottom of the brackets with the 2 remaining
screws.
The facia panel may now be mounted to the grille back.
!
CAUTION
When cutting the facia panel for the grille do not make
it larger than the size noted in Figure 19. Air ow to the condenser in the power module would be compromised. Grille
facia panels must not exceed 20 pounds (9.1kg), panels
weighing more could cause product damage. Do NOT use
glass, mirrors, granite or similar heavy materials for panels.
"A"
"B"
11⁄8"
(2.9cm)
"C"
Figure 19
Drill 2 holes, see Table C.
MODEL "A" "B" "C"
M36SS-WP 33" (83.8cm) 73⁄8" (18.7cm) 181⁄4" (46.4cm)
M36SS-SP 33" (83.8cm) 73⁄8" (18.7cm) 181⁄4" (46.4cm)
M42SS-WP 39" (99.1cm) 73⁄8" (18.7cm) 241⁄4" (61.6cm)
M42SS-SP 39" (99.1cm) 73⁄8" (18.7cm) 241⁄4" (61.6cm)
M48SS-WP 45" (114.3cm) 73⁄8" (18.7cm) 301⁄4" (76.8cm)
M48SS-SP 45" (114.3cm) 73⁄8" (18.7cm) 301⁄4" (76.8cm)
Table B
83⁄4"
(22.2cm)
MATERIAL HOLE SIZE
Hardwood 1/8" (3.2mm)
Softwood 7/64" (2.8mm)
Table C
Facia panel-
Screw 2
required-
Drill bottom 2 holes
for mounting brackets and secure with
remaining 2 screws.-
-Facia bracket
Figure 20
17
Loading...
