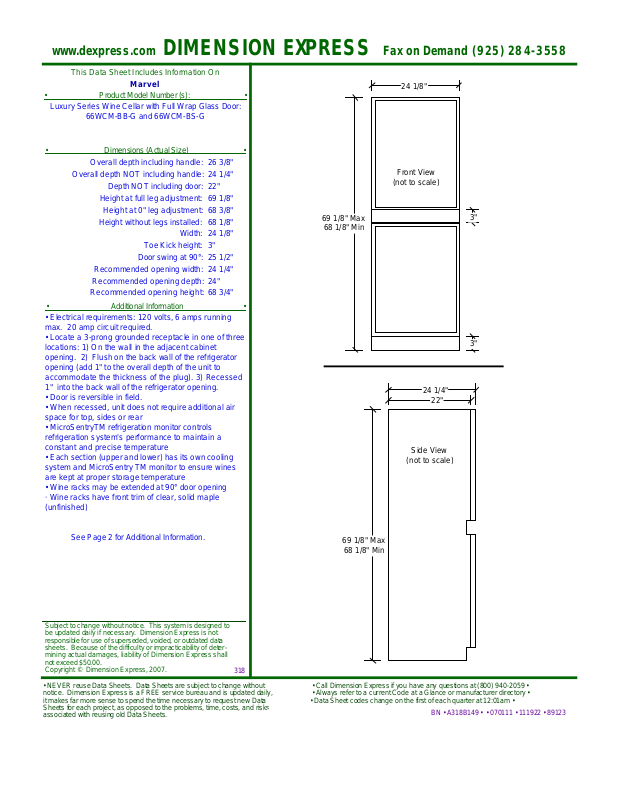

Marvel 66WCMBBGR, 66WCMBBGL, 66WCMBSGL Specification Sheet

www.dexpress.com DIMENSION EXPRESS Fax on Demand (925) 284-3558

This Data Sheet Includes Information On

Marvel

• Product Model Number (s): •

Luxury Series Wine Cellar with Full Wrap Glass Door:

66WCM-BB-G and 66WCM-BS-G

• Dimensions (Actual Size) •

Overall depth including handle:

Overall depth NOT including handle:

Depth NOT including door:

Height at full leg adjustment:

Height at 0" leg adjustment:

Height without legs installed:

Toe Kick height:

Door swing at 90°:

Recommended opening width:

Recommended opening depth:

Recommended opening height:

Width:

26 3/8" 24 1/4" 22" 69 1/8" 68 3/8" 68 1/8" 24 1/8" 3" 25 1/2" 24 1/4" 24" 68 3/4"

• Additional Information •

• Electrical requirements: 120 volts, 6 amps running

max. 20 amp circuit required.

• Locate a 3-prong grounded receptacle in one of three

locations: 1) On the wall in the adjacent cabinet opening. 2) Flush on the back wall of the refrigerator opening (add 1" to the overall depth of the unit to accommodate the thickness of the plug). 3) Recessed 1" into the back wall of the refrigerator opening.

• Door is reversible in field.

• When recessed, unit does not require additional air

space for top, sides or rear

• MicroSentryTM refrigeration monitor controls

refrigeration system's performance to maintain a constant and precise temperature

• Each section (upper and lower) has its own cooling

system and MicroSentry TM monitor to ensure wines are kept at proper storage temperature

• Wine racks may be extended at 90° door opening

· Wine racks have front trim of clear, solid maple

(unfinished)

69 1/8" Max

68 1/8" Min

24 1/8"

Front View

(not to scale)

24 1/4"

22"

Side View

(not to scale)

See Page 2 for Additional Information.

69 1/8" Max

68 1/8" Min

Subject to change without notice. This system is designed to be updated daily if necessary. Dimension Express is not responsible for use of superseded, voided, or outdated data sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall not exceed $50.00. Copyright © Dimension Express, 2007.

• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 • notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory • it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am • Sheets for each project, as opposed to the problems, time, costs, and risks associated with reusing old Data Sheets.

318

BN • A318B149 • • 070111 • 111922 • 89123

www.dexpress.com

DIMENSION EXPRESS

Fax on Demand (925) 284-3558

Additional Information:

• Lighted and inclined display shelf displays up to four wine bottles in

each section.

• Capacity: 90 bottles, including magnums

• Shipping weight: 270 pounds.

• U.L. Listed.

• Does not accept custom panels.

• 66WCM-BB-G : Black cabinet, black frame glass doors, black center

grille, black toe kick, gloss ebony interior.

• 66WCM-BS-G : Black cabinet, stainless finish frame glass door,

stainless center grille, black toe kick, gloss ebony interior. Accessories:

• Humidrawer Cigar Storage Compartment: P/N 42242728.

Page 2
