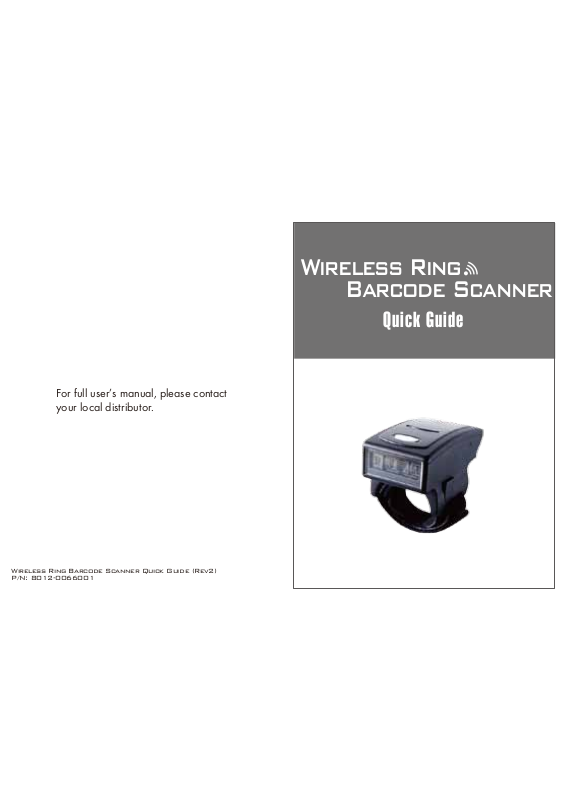

Marson Technology Co MT500L Users Manual

Wireless Ring Barcode Scanner Quick Guide (Rev2)
P/N: 8012-0066001

Wireless Ring
Barcode Scanner

Quick Guide

For full user’s manual, please contact
your local distributor.

FCC WARNING STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following
measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. End users must follow the specific operating instructions for

satisfying RF exposure compliance. To maintain compliance with FCC exposure

compliance requirement, please follow operation instruction as documented in this

manual. Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with
any other antenna or transmitter.

LASER DEVICES

Complies with 21CFR1040.10 and 1040.11 except for deviations pursuant to Laser

Notice No. 50, dated June 24, 2007.

EN60825-1: 2007
IEC60825-1 (Ed. 2.0)

- 1 -

1. Take any metals into contact with the terminals in connectors.

2. Use the scanner where any inflammable gases.

If following condition occur, immediately power off the host computer,
disconnect the interface cable, and contact your nearest dealer.

1. Smoke, abnormal odors or noises come from the scanner.

2. Drop the scanner so as to affect the operation or damage its housing.

Do Not

Do not do behavior below.

1. Put the scanner in places excessively high temperatures such as expose

under direct sunlight.

2. Use the scanner in extremely humid area or drastic temperature

changes.

3. Place the scanner in oily smoke or steam environment such as cooking
range.

4. Be covered or wrapped up the scanner in bad-ventilated area such as
under cloth or blanket.

5. Insert or drop foreign materials or water into scanning window or vents.

6. Using the scanner while hand is wet or damp.

7. Use the scanner with anti-slip gloves containing plasticizer and
chemicals or organic solvents such as benzene, thinner, insecticide etc
to clean the housing. Otherwise, it could not result fire and electrical
shock but housing may be broken and injured.

8. Scratch or modify the scanner and bend, twist, pull or heat its interface
cable.

9. Put heavy objects on interface cable.

Do not stare the light source from the scanning window or do not point the

scanning window at other people’s eyes or eyesight may be damaged

by direct exposure under the light.

Do not put the scanner on an unstable or inclined plane.
The scanner may drop, creating injuries.

Once the interface cable is damaged such as exposed or broken copper

wires, stop using immediately and contact your dealer. Otherwise, it could
result fire or electrical shock.

WARNING AND CAUTION

- 2 -

- 3 -

INTRODUCTION

SPECIFICATIONS

Sensor Linear Image Sensor

Resolution 4mil/ 0.1mm

Indicator LED, Buzzer

PCS 30

Housing Plastic(PC+ABS)

Profile BT HID, USB HID, USB VCP, Memory

Battery Life 6000 scans (1 scan/ 5 sec)

Charge Time 2.5 hours (fully charged)
Radio Bluetooth 4.1 (Class2)

Coverage 10M/33ft. (line of sight)

Symbologies All major 1D barcodes incl. GS1 Databar

- 4 -

BEEPER INDICATION

LED INDICATION

Off
Flashing Blue
One Green Flash
Flashing Red
Solid Red

Standby or Power off
Disconnected or Discoverable
Good Read
Low power
Charging

Single beep Good read
Single short beep The scanner reads a Code39 of
ASCII in configuration procedure
Two beeps i. Wireless connection
ii. The scanner successfully reads

a configuration barcode

Four beeps

(Hi-Lo-Hi-Lo) Out of range/Poor connection

Five beeps Low power

Three beeps Wireless disconnection
Three short beeps i. The scanner reads a barcode

while disconnected.

ii. The scanner reads an unexpected
barcode during configuration
procedure. (scan [ABORT] to abort
and start over)

iii. Memory Full

LED Indicator

Micro USB port

(with Protective Cover)

Touch-Activated
Trigger Button

Function Button

Exit Window

Restart Button

(insert pin into the hole)

Velcro Strap

- 5 - - 6 -

OUT OF THE BOX

Spare Velcro Strap

USB Charger Cable

Wireless Ring
Barcode Scanner

Quick Guide

1

2

Wirel ess R ing
Barcode Scanner

Quic

k

G

uide

Laser Brightness
Configuration Card

CHARGING THE BATTERY

1. Flip open the micro USB port on the scanner.

2. Insert the micro USB connector into the port on the
scanner and USB A connector into a USB port on
the host PC.

3. Keep charging until the red LED indicator turns off.

Scanner

Micro USB

USB A

Host

T

o

e

n

s

u

r

e

e

y

e

s

a

fe

t

y

,

b

y

d

e

f

au

l

t

L

a

s

e

r

l

in

e

i

s

s

et t

o

b

e

di

m

w

hi

c

h

i

s

c

l

ass

i

fi

e

d

a

s

Cl

a

s

s

1

L

a

s

e

r

b

y

I

n

t

e

r

n

a



on

a

l

S

t

a

nd

a

r

d

I

E

C

6

0

825

-

1

.

A

l

t

h

ou

g

h

w

e

d

o

n

’

t

r

ec

o

mm

e

nd

,

y

o

u

c

a

n

s

e

t

t

h

e

L

a

s

e

r

l

in

e

t

o

b

e

b

r

i

g

h

t

by

s

c

a

n

n

i

n

g

b

e

lo

w

c

on

fi

g

u

r

a



o

n

b

a

r

c

o

d

e

:

B

r

i

g

ht

Y

o

u

c

a

n

s

e

t

i

t

b

a

c

k

t

o

b

e

d

i

m

b

y

sc

a

nni

n

g

b

e

l

o

w

c

o

n

fi

g

u

ra



o

n

b

a

rco

d

e

:

Dim

STEP 1 - GETTING STARTED

- 7 - - 8 -

1. Pull open the long end and insert your index finger

through the loop.

2. Adjust and attach the long end for a comfortable fit.

3. Clench your fist and use your thumb to tap the
touch-activated trigger button. A gentle touch
on the button will work; there is no need to press
with force.

4. Aim at the barcode you wish to scan.

1. If either your hand or the Velcro strap is soaking wet, the Laser

beam may automatically light up without touch trigger. The scanner
can still work well in this condition but it will waste battery power,

so it is recommended to dry both your hand and the Velcro strap.

2. The following gloves have been tested to be working with the

touch-activated button: latex examination glove, antistatic glove,
white cotton glove (with or without latex coating), safety glove,

and rubber glove. However, it is still recommended to operate with
bare hand or thin glove to ensure the responsiveness of button.

3. Dont need to tighten Velcro strap too much. ust make the strap fit

your finger so that the scanner will not easily move while being
touched for trigger. We also suggest to release the strap from your
finger for 1 minute after 2 hours of continuous use if your finger
feels uncomfortable.

- 9 - - 10 -

Scan one of below configuration barcodes to determine your
interface:

STEP 3 - INTERFACE SELECTION

[ Recommended ]

. C006$

*.C006$*

USB VCP

. C008$

*.C008$*

USB HID

BT HID

. E043$

*.E043$*

Memory Mode

. C035$

*.c035$*

1. BT HID - Emulates a Bluetooth HID keyboard that transmits

barcode data to the host. (see page 11 - 12)

2.

USB HID - Emulates a USB keyboard that transmits barcode

data to the host.

3.

USB VCP - Emulates a USB virtual com device that transmits

barcode data to the host.

4.

Memory - Emulates a USB mass storage device that saves

barcodes collected off-line. (see page 24 - 28)

. F064$

*.F064$*

. F065$

*.F065$*

. F066$

*.F066$*

Scan one of below configuration barcodes to determine which
touch-sensing button to enable according to your habit:

STEP 2 - BUTTON PREFERENCE

Right Button Only

Left Button Only

Both Buttons

[ For Left-handed User ]

[ For Right-handed User ]

ATTENTION
