Marson Technology Co MT300 User Manual
For full user’s manual, please contact
your local distributor.

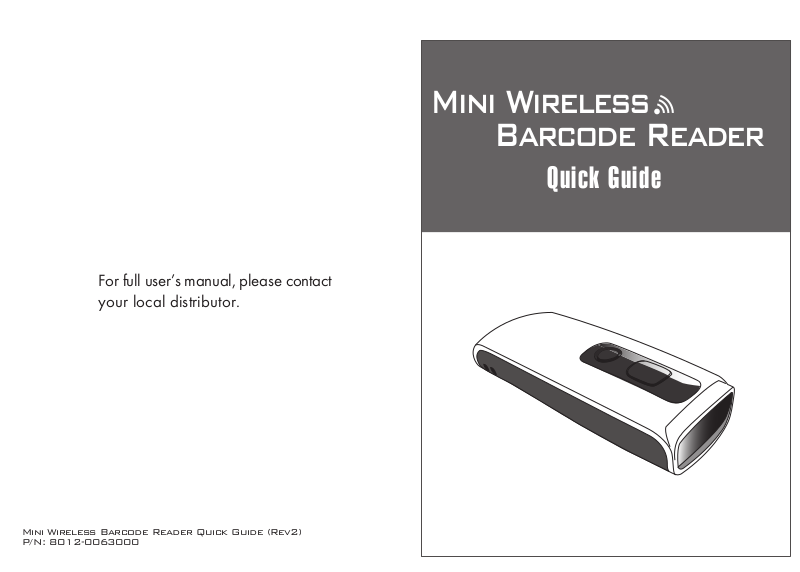

Mini Wireless Barcode Reader Quick Guide (Rev2)
P/N: 8012-0063000
Mini Wireless
Barcode Reader
Quick Guide
Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. T his
equipment generates, uses and can radiate radio frequency energy
and, if not installed a nd used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
party responsible for compliance could void the authority to operate
equipment.
This device complies with Part 15 of the FCC Rules.
This equipment has been tested and found to comply with
Any changes or modifications not expressly approved by the
-1- -2-
OUT OF THE BOX
NUMERIC BARCODES
1
*1*
2
*2*
3
*3*
*4*
*5*
USB Charger Cable
Mini Wireless
Barcode Reader
4
5
- 3 -
Mini Wireless
1
Barcode Reader
Quick Gui de
2
Quick GuideQuick Connection Card
Neck Strap
INTRODUCTION
Micro USB port
(w/ Protective Cover)
(1) iOS Hotkey Button
(2) Delete Button
Trigger Button
LED Indicator
Exit Window
SPECIFICATIONS
Sensor Linear CMOS sensor
Memory 2MB (20,000 barcodes)
Indicator LED, Buzzer, Vibrator
Resolution 3mil/ 0.075mm
PCS 30%
Housing Plastic(PC)
Profile SPP, HID
Battery Life
Charge Time 3 hours (fully charged)
Radio Bluetooth 2.1 + EDR (Class 2)
Coverage 10M/33ft. (line of sight)
Symbologies All major 1D barcodes incl. GS1 Databar
10000 scans
- 4 -
GETTING STARTED
To scan a barcode, make sure the aiming beam crosses
every bar and space of the barcode.
CHARGING THE BATTERY
Host
USB A
1. Flip open the micro USB port on the scanner.
2. Insert the micro USB connector into the port on the
scanner and USB A connector into a USB port on
the host PC or smartphone/tablet adapter.
- 5 - - 6 -
Scanner
Micro USB
BEEPER INDICATION
Single long beep Power up
Single beep Good read
Single short beep The scanner reads a Code39 of
ASCII in configuration procedure
Two beeps i. Wireless connection
ii. The scanner successfully reads
a configuration barcode
Three beeps Wireless disconnection
Three short beeps i. The scanner reads a barcodes
while disconnected.
ii. The scanner reads an unexpected
barcode during configuration
procedure. (scan [ABORT] to abort
and start over)
Four beeps (Hi-Lo-Hi-Lo) Out of range/Poor connection
Five beeps Low power
Several short beeps The scanner switches from one
communication mode to another
LED INDICATION
Off
Flashing Blue
Green for 2 sec
Flashing Red
Solid Red
Standby or Power off
Disconnected or Discoverable
Good Read
Low power
Charging
INTERFACE
. E043$
*.E043$*
. E042$
BT HID
BT SPP
*.E042$*
. C035$
Memory Mode
*.c035$*
. C008$
USB HID
*.c008$*
. C006$
USB VCP
*.C006$*
- 7 - - 8 -
INTERFACE
There are 5 interfaces for data transmission/collection:
1. BT HID - Emulates a Bluetooth HID keyboard
each barcode data to the host after decode.
(See page 9)
2. BT SPP - Emulates a Bluetooth SPP device that transmits
each barcode data to the host after decode.
(See page 9)
3. Memory Mode - Emulates a USB mass storage device
that saves each barcode data during
off-line data collection (See page 26)
4. USB HID - Emulates a USB keyboard that transmits each
barcode data to the host after decode.
5. USB VCP - Emulates a USB virtual com device that
transmit each barcode data to the host after
decode.
Funcon Support Matrix
Mode Interface
Wireless
Tethered
*Note: For Ez Utility(PC-based software utility), please contact your local
distributor.
BT HID
BT SPP
Memory
USB HID
USB VCP
On-line
On-line
Operaon
Operaon
Operaon
Off-line
that transmits
Ez Ulity
GETTING CONNECTED PINCODE SETUP
There are two modes of wireless communication:
. E043$
*.E043$*
1. Press the trigger for 1 second to activate the scanner.
2. Scan [DISC ONNECT ]
3. Scan [BT m ode - HID]; the scanner will emit several beeps.

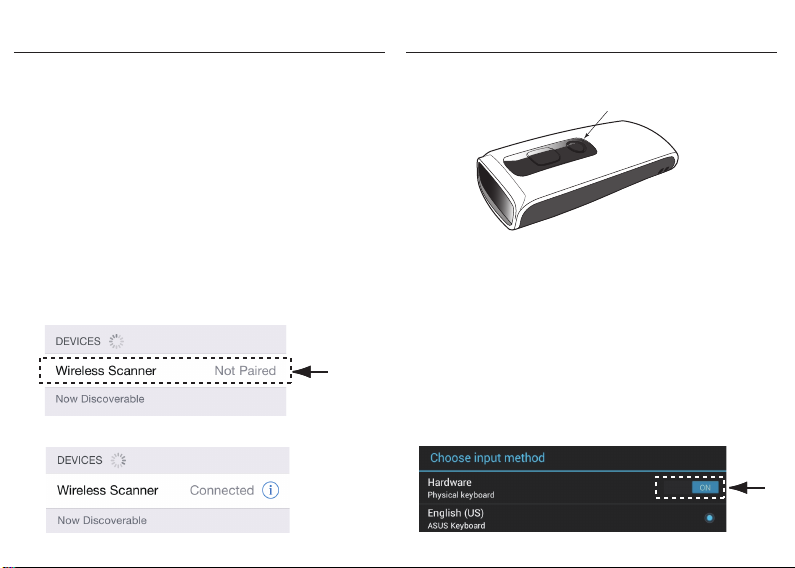

4. Select “Wireless Scanner” from discovered device list.
5. The Bluetooth application may prompt you to scan
a pincode(see PINC ODE SE TUP section) it generated.
6. The scanner will beep twice to verify the connection.
. E042$
*.E042$*
1. Press the trigger for 1 second to activate the scanner.
2. Scan [DISC ONNECT ]
3. Scan [BT m ode - SPP]; the scanner will emit several beeps.
4. Select “Wireless Scanner” from discovered device list.
The default pincode is “1234”.
5. Open serial communication software with com port
(see Device Manager) properly set up.
6. The scanner will beep twice to verify the connection.
. E031$
[ Recommanded ]
BT mode - HID
BT mode - SPP
STEP 1
Pincode Start
STEP 2
Scan numeric barcodes (see NUMERIC BARCODES section
on the next pages)
by the Bluetooth application.
STEP 3
Enter
STEP 4
Pincode Stop
. E032$
*.E032$*
based on the pincode generated
$TX
*$TX*
. E033$
*.E033$*
*.E031$*
- 9 - - 10 -

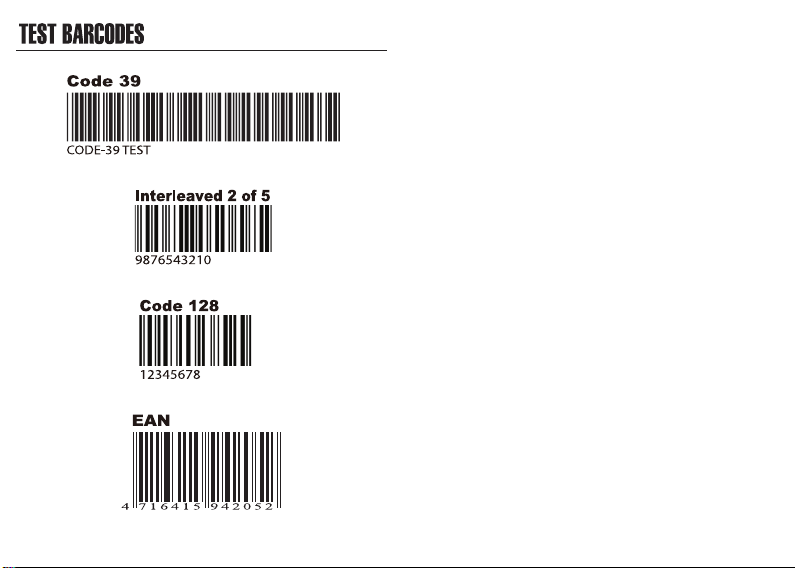

Disconnect
