GV-2 Guv’nor Plus
Guv’nor Plus Suggested Settings
FAT BLUES (Amp: Clean)
CRUNCH (Amp: Clean)
GRUNGE / HARDCORE (Amp: Clean)
Owners Manual
SCREAMING SOLO (Amp: Clean)
5
2379
6
4 8
1
11
10
From The Chairman
I would like to personally thank you for
selecting one of our effects pedals.
For over 40 years the Marshall name has been synonymous with
the greatest guitar tones in music. We have worked hand in hand
with guitarists from all levels throughout the world to maintain
and improve that special ingredient, ‘The Marshall Sound.’
Our range of effects pedals gives the opportunity to augment the
classic Marshall tone to add Marshall character to a guitar setup.
All our pedals are made with the same utmost attention to
quality, in both materials and manufacture as our world
renowned amplifiers, cabinets and combos, in order to provide
you with optimum reliability and tone.
I would like to wish you every success with all of your musical
endeavours and also your new Marshall effects pedal, which I am
sure you will find a pleasure to play for many years to come.
Yours Sincerely,
WARNING!
Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
WARNING
Do not expose the apparatus to rain or moisture. Do not expose
the apparatus to dripping or splashing. No objects filled with
liquids should be placed on or near the apparatus. Do not use
this apparatus near water.
Clean only with dry cloth.
Changes or modifications not expressly approved by Marshall
Amplification plc could void the user’s authority to operate the
equipment.
IMPORTANT Precautions
Heed all warnings.
Follow all instructions.
Keep these instructions.
European Product Only
1
ENGLISH
Introduction
Launched in the 1980’s, the original Guv’nor became a classic
footpedal known for high quality distortion tones. Much loved by
pros, semi-pros and amateurs alike, the Guv’nor earned itself a
special place in the hearts of distortion smitten guitarists the
world over.
The new Guv’nor Plus is an updated version of the original
Guv’nor. Within the sturdy metal housing lies the tone, feel and
sound of the original Guv’nor, but with extra features specially
designed to add extra power and flexibility to cope with the
exacting requirements of today’s musicians. The tonal versatility
of the Guv’nor Plus is such that it is like adding another Marshall
amp to your existing set-up.
The expanded Gain structure allows you to steer your guitar tone
through many different styles. From natural sounding vintage
valve amp break-up, ideal for singing blues, to chunky JCM 800
classic rock tones, right through to modern day super-saturation,
for liquid sustain and grinding chords. In addition you will also
find a Deep control which adds a resonant bass boost, giving
you similar feel and response to the resonant thump of a
Marshall 4 x 12 cabinet.
The Guv’nor Plus features a passive bypass for the main signal
path to ensure complete tonal integrity and has a quality of tone
matched only by its versatility.
This booklet provides a complete run down of the Guv’nor Plus’s
features for your information. We have also included a number of
suggested settings to help guide you. It should be remembered
that these are only a starting point and you should really
experiment.
When you take the time to explore the many different overdrive
and distortion characters of the Guv’nor Plus, you won’t be
disappointed.
2
Setting Up
Always use good quality shielded leads.
Always use 9V regulated DC supply with centre negative.
Although it may seem obvious the first action in achieving a
good effected sound (be it duration / compression etc.) is to
find the perfect bypassed sound. This will then allow the correct
level to be set with the effect unit to allow a cut or boost in
volume and a realistic tone.
On clean channels it is advisable to set the gain (or volume) to a
setting of no less than one quarter maximum so as not to get
unrealistic results due to any volume dependent tonal shaping
on the amplifier preamp.
Features
1. Out Jack
This is the output of the Guv’nor Plus and is for connection to
the amplifier or to another effects pedal.
2. Gain
This increases the amount of distortion, taking you from vintage
breakup, ideal for big crunchy chords and sweet singing blues,
to full on grind with super saturation. The Guv’nor Plus features
the classic Marshall 3 way tone network to guarantee true
Marshall tone at all times and to allow you to add unique
Marshall character to any rig.
3. Bass
Adjusts the bass frequencies in your tone. Increasing the
3
ENGLISH
amount of bass will generally make your tone warmer and thicker
at the bottom end.
4. Deep
This adds an active resonant bass boost to your tone in a way that
can’t be replicated with traditional tone controls and has a similar
effect to the acclaimed JCM2000 “Deep” switch. Increasing the
amount of Deep will add masses of tight bottom end to your tone
giving it real low end resonance and incredible fullness.
5. DC Input
For input of a 9V DC negative regulated power supply should you
not wish to use batteries.
6. LED
Indicates when the Guv’nor Plus is in operation.
7. Treble
Adjusts the high end frequencies in your tone, an increase making
it brighter, sharper and more cutting.
8. Mid
Adjusts the middle frequencies in your tone. Adding more middle
will fill out your sound and make it fatter. By reducing the amount
of middle in your tone you will make it thinner and sharper.
Cranking the gain (item 2) up and setting the Mid control to
minimum will deliver “scooped” sounds, ideal for brutal crunch
tones.
9. Volume
Adjusts the volume of the Guv’nor Plus. This allows you to cut or
boost your volume when you switch the pedal on and is ideal for
switching from rhythmn to higher volume solo levels. The Volume
levels of the Guv’nor Plus are greater than previously available on
the original Guv’nor to allow you to push the front end of your
amp harder for even more overdrive.
10. In Jack
This is the input jack, for connection directly from your guitar or to
another effects pedal if you are linking pedals together.
11. Foot Switch
For switching the Guv’nor Plus on and off.
Trouble Shooting
CHECK
BATTERY
CHECK
WHAT IF
NO
OUTPUT
NOISE IN
BYPASS
INDICATOR
LED NOT
ON
SOUND TOO
TREBLY OR
FIZZY
SOUND TOO
MUSHY OR
BASSY
UNUSUAL
FEEDBACK
UNUSUAL
HUM
BASS
FEEDBACK
33
3
3
INPUT
LEAD
3
3
3333
LEADS
CHECK PEDAL
CONTROLS
DC INLET
CHECK AMP
CONTROLS
CHECK GUITAR
333
33
3
3
3
333
REDUCE
TREBLE
54
REDUCE
TREBLE
MOVE A
FROM AMP
W
AY
3
PICKUPS
MAY BE
VIBRATING
ENGLISH

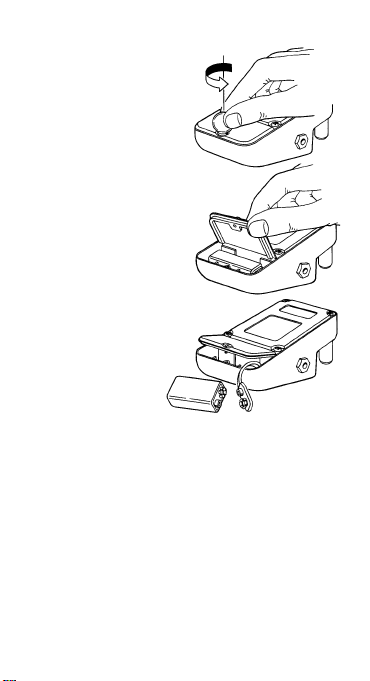

Battery Replacement
1. To replace the battery, open
the easily accessed coin screw
battery cover plate by
loosening screw as shown,
then disconnect the battery
connector lead.
2. Use PP3 or equivalent battery
(for improved battery life use
alkaline type)
3. Always ensure that the battery
is removed when the pedal is
not in use for long periods.
4. Dispose of old battery in a
safe place.
Technical Specification
Power: 9V DC Centre Negative Regulated
Current Draw: 9mA
Controls: Pedal Switch, Gain, Bass, Treble, Volume, Deep & Mid.
Switches: On/Off Switch
Indicators: On/Off LED
Jacks: Input/Output ‘Jacksockets’
Input Impedance: 1MΩ
Output Load Impedance: max 1kΩ
Dimensions: 120mm x 65mm x 55mm
Weight: 510 grammes
