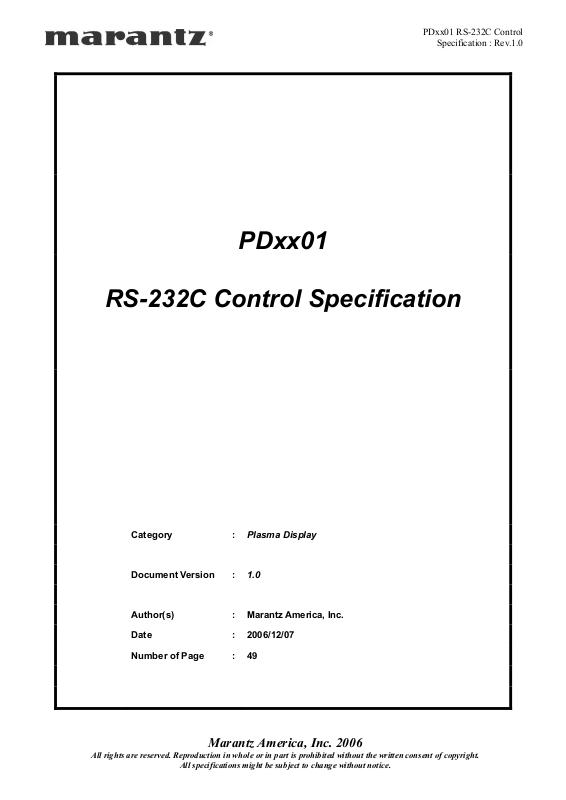

PDxx01 RS-232C Control

Specification : Rev.1.0

PDxx01

RS-232C Control Specification

Category

:

Plasma Display

Document Version

:

1.0

Author(s)

:

Marantz America, Inc.

Date

:

2006/12/07

Number of Page

:

49

Marantz America, Inc. 2006

All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of copyright. All specifications might be subject to change without notice.



PDxx01

RS-232C Control Specification

Page: 2 / 49









Document Version [1.0]









Table of Contents





1.

Application...........................................................................................................................................

4



2.

Connections.........................................................................................................................................

4





2-1.

Connector on the plasma monitor side: EXTERNAL CONTROL connector. ................................................

4



2-2.

Connector on the external equipment side: Serial port (RS-232C) connector..............................................

4



2-3.

Wiring.............................................................................................................................................................

4



2-4.

Communication Parameters..........................................................................................................................

4

3.

Communication Format......................................................................................................................

5





3-1.

Command1 ....................................................................................................................................................

5



3-2.

Unit ID1,2 (UA1,UA2) ....................................................................................................................................

5



3-3.

Command 2 ...................................................................................................................................................

5



3-4.

Check Sum (CKS), Error Processing, and ACK............................................................................................

5

4.

Command Reference List...................................................................................................................

6



5.

Command.............................................................................................................................................

8





5-1.

Power ON ......................................................................................................................................................

8



5-2.

Power OFF ....................................................................................................................................................

8



5-3.

Input Switch Change .....................................................................................................................................

8



5-4.

VOLUME Gain Data ......................................................................................................................................

9



5-5.

AUDIO Mute ON............................................................................................................................................

9



5-6.

AUDIO Mute OFF ..........................................................................................................................................

9



5-7.

CONTRAST Gain Data................................................................................................................................

10



5-8.

BRIGHT Gain Data......................................................................................................................................

10



5-9.

SHARPNESS Gain Data ..............................................................................................................................

11



5-10.

COLOR Gain Data........................................................................................................................................

11



5-11.

TINT Gain Data............................................................................................................................................

12



5-12.

PICTURE MODE Select..............................................................................................................................

12



5-13.

COLOR TEMP SELECT..............................................................................................................................

13



5-14.

RED Gain Data............................................................................................................................................

13



5-15.

GREEN Gain Data.......................................................................................................................................

14



5-16.

BLUE Gain Data ..........................................................................................................................................

14



5-17.

NR MODE Set .............................................................................................................................................

15



5-18.

BASS Gain Data..........................................................................................................................................

15



5-19.

TREBLE Gain Data .....................................................................................................................................

16



5-20.

BALANCE Gain Data...................................................................................................................................

16



5-21.

SCREEN MODE Select...............................................................................................................................

17



5-22.

V. POSITION Gain Data ..............................................................................................................................

17



5-23.

H. POSITION Gain Data..............................................................................................................................

18



5-24.

V. HEIGHT Gain Data..................................................................................................................................

18



5-25.

H. WIDTH Gain Data ...................................................................................................................................

18



5-26.

AUTO PICTURE Select...............................................................................................................................

19



5-27.

PHASE (FINE PICTURE) Gain Data...........................................................................................................

19



5-28.

CLOCK (PICTURE ADJUST) Gain Data.....................................................................................................

20



5-29.

OSM ADJ. POSITION Data .........................................................................................................................

20



5-30.

POWER MGT Select ...................................................................................................................................

20



5-31.

GRAY LEVEL Set ........................................................................................................................................

21



5-32.

CINEMA MODE Set.....................................................................................................................................

21



5-33.

LONG LIFE Set (PDP SAVER Set) .............................................................................................................

21



5-34.

SCREEN WIPER Set ..................................................................................................................................

22



5-35.

ALL RESET .................................................................................................................................................

22



5-36.

Audio Select Set ..........................................................................................................................................

23



5-37.

RGB Select..................................................................................................................................................

24

Company Restricted

PDxx01

RS-232C Control Specification

Page: 3 / 49







Document Version [1.0]











5-38.

HD Select.....................................................................................................................................................

26

5-39.

LANGUAGE Select......................................................................................................................................

26

5-40.

COLOR SYSTEM Select.............................................................................................................................

27

5-41.

FREQUENCY Request (SIGNAL INFORMATION) .....................................................................................

27

5-42.

Input MODE Request ..................................................................................................................................

29

5-43.

VIDEO ADJ. Request ..................................................................................................................................

29

5-44.

Audio Select Request ..................................................................................................................................

31

5-45.

Failure Mode Request .................................................................................................................................

32

5-46.

MODEL NAME Request ..............................................................................................................................

33

5-47. LOW TONE (50inch only)............................................................................................................................

34

5-48.

COLOR TUNE .............................................................................................................................................

34

5-49.

GAMMA GAIN Data.....................................................................................................................................

35

5-50.

Running Sense ............................................................................................................................................

35

5-51.

OSM ORBITER ...........................................................................................................................................

36

5-52.

Input Skip.....................................................................................................................................................

36

5-53.

SERIAL No. Request...................................................................................................................................

36

5-54.

S1/S2 SELECT............................................................................................................................................

37

5-55.

SOFT FOCUS..............................................................................................................................................

37

5-56.

BLACK LEVEL SELECT..............................................................................................................................

37

5-57. MULTI (SPRIT) SCREEN Select.................................................................................................................

38

5-58. SUB PICTURE DETECT SELECT..............................................................................................................

39

5-59.

ZOOM NAVIGATION SELECT ....................................................................................................................

40

5-60.

PICTURE FREEZE SELECT.......................................................................................................................

40

5-61. PICTURE FREEZE (Pause) Command ......................................................................................................

41

5-62.

OSM CONTRAST SELECT.........................................................................................................................

41

5-63. CC (Closed caption) SELECT .....................................................................................................................

41

5-64. CC (Closed caption) CONTRAST SELECT ................................................................................................

42

5-65.

PICTURE MEMORY Select.........................................................................................................................

42

5-66.

PICTURE MEMORY Set .............................................................................................................................

43

5-67. PICTURE MEMORY NOTE WRITE Set......................................................................................................

43

5-68. SET UP LEVEL SELECT.............................................................................................................................

44

5-69.

BACK GROUND SELECT...........................................................................................................................

44

5-70.

PDP SAVER AUTO Select...........................................................................................................................

45

5-71.

Audio HDMI Request...................................................................................................................................

45

5-72. POWER ON MODE (INPUT).......................................................................................................................

45

5-73. POWER ON MODE (VOLUME) ..................................................................................................................

46

5-74. 74. SUB PICTURE RATE set ......................................................................................................................

46

5-75. MULTI (SPRIT) SCREEN POWER ON MODE SET ...................................................................................

47

5-76.

REMOTE CODE SETTING .........................................................................................................................

48

5-77. VOLUME Gain Data REQUEST..................................................................................................................

48

5-78.

UNDER SCAN SETTING ............................................................................................................................

48

6. Revision history ................................................................................................................................

49



Company Restricted

PDxx01

RS-232C Control Specification

Page: 4 / 49

Document Version [1.0]

1. Application

These specifications are applicable to plasma monitors and communications control from external equipment.

"Please also support the command of VP series and refer to the manual of the conventional model about specification."

2. Connections

Connections should be made as described below.

External equipment

plasma monitor

e.g., Personal computer

2-1. Connector on the plasma monitor side: EXTERNAL CONTROL connector.

Type of connector: D-Sub 9-pin male

No.

Pin Name





1

No Connection

2

RXD (Receive data)

3

TXD (Transmit data)

4

DTR (DTE side ready)

5

GND

6

DSR (DCE side ready)

7

RTS (Ready to send)

8

CTS (Clear to send)

9

No Connection

2-2. Connector on the external equipment side: Serial port (RS-232C) connector.

See the specifications of the equipment that is to be connected for the type of connector and pin assignment.

2-3. Wiring

Use a crossed (reverse) cable.

Wire the cable so that each pair of data lines crosses between the two devices. These data line pairs are RXD (Receive data) and TXD (Transmit data), DTR (DTE side ready) and DSR (DCE side ready), and RTS (Ready to send) and CTS (Clear to send).

2-4. Communication Parameters

(1)

Communication system

Asynchronous

(2)

Interface

RS-232C

(3)

Baud rate

9600 bps

(4)

Data length

8 bits

(5)

Parity

Odd

(6)

Stop bit

1 bit

(7)

Communication code

Hex

Company Restricted

PDxx01

RS-232C Control Specification

Page: 5 / 49

Document Version [1.0]

3. Communication Format

8bit 8bit 8bit 8bit 8bit 8bit 8bit 8bit

Command 1

Unit ID 1

Unit ID 2

Command 2

Data length

Data

Check sum

3-1. Command1

Command 1, along with command 2, is a number used to distinguish each command.

Bit1, Bit0: 11Bor 10B :Usually, a form

In the case of ACK, when the lower order 4 bits is FH (as in 3FH and 7FH), this indicates that the commands and data of the supported equipment have been received. When the lower order 4 bits is BH (as in 3BH and 7BH), this indicates that unsupported commands and data have been received.

3-2. Unit ID1,2 (UA1,UA2)

Unit ID 1 and unit ID 2 are numbers used to identify the equipment that is to be connected.

60H is used for the plasma monitor and 80H is used for external control equipment such as a personal computer.

3-3. Command 2

Command 2, along with command 1, is a number used to distinguish each command.

3-4. Check Sum (CKS), Error Processing, and ACK

1)The check sum described below and RS-232C odd parity are used together for a check of the received data. The check sum is the lower order 8 bits of one frame of sent or received data comprising the sum total of Command 1, Unit ID 1 and 2, Command 2, Data Length, and Data.

Check Sum Example

DFH

80H

60H

47H

01H

01H

08H

Command1

Unit ID1

Unit ID2

Command2

Data Length

Data

Check Sum















Total 208H

2)Error Processing

When the communication interval is vacant for more than 4 ms, thereafter a received Command 1 will be recognized. If, at this time, meaningful data cannot be recognized, that data will not be recognized (as valid data).

An ACK will not be returned unless the receive data error, the check sum error, and the receive data are all taken in.

Company Restricted

PDxx01 RS-232C Control Specification Page: 6 / 49

Document Version [1.0]

4. Command Reference List





CMD1

CMD2

LEN

01

Power ON

9FH

4EH

00H

02

Power OFF

9FH

4FH

00H

03

Input Switch Change

DFH

47H

01H

04

VOLUME Gain Data

DFH

7FH

03H

05

AUDIO Mute ON

9FH

3EH

00H

06

AUDIO Mute OFF

9FH

3FH

00H

07

CONTRAST Gain Data

DFH

7FH

03H

08

BRIGHT Gain Data

DFH

7FH

03H

09

SHARPNESS Gain Data

DFH

7FH

03H

10

Color Gain Data

DFH

7FH

03H

11

TINT Gain Data

DFH

7FH

03H

12

PICTURE MODE Select

DFH

0AH

01H

13

COLOR TEMP SELECT

DFH

00H

01H

14

RED Gain Data

DFH

7FH

04H

15

GREEN Gain Data

DFH

7FH

04H

16

BLUE Gain Data

DFH

7FH

04H

17

NR MODE Set

DFH

C0H

01H

18

BASS Gain Data

DFH

7FH

03H

19

TREBLE Gain Data

DFH

7FH

03H

20

BALANCE Gain Data

DFH

7FH

03H

21

SCREEN MODE Select

DFH

51H

01H

22

V.POSITION Gain Data

DFH

7FH

03H

23

H.POSITION Gain Data

DFH

7FH

03H

24

V-HEIGHT Gain Data

DFH

7FH

03H

25

H-WIDTH Gain Data

DFH

7FH

03H

26

AUTO PICTURE Select

DFH

7FH

03H

27

PHASE Gain Data (FINE PICTURE Set)

DFH

7FH

03H

28

CLOCK Gain Data (PICTURE ADJUST Set)

DFH

7FH

03H

29

OSM ADJ. position Data

DFH

1AH

02H

30

POWER MGT Select

DFH

1AH

02H

31

GRAY LEVEL Set

DFH

C6H

01H

32

CINEMA MODE Set

DFH

C1H

01H

33

LONG LIFE Set (PDP SAVER Set)

DFH

6BH

03H

34

SCREEN WIPER Set

DFH

C8H

04H

35

ALL RESET

1FH

54H

00H

36

Audio Select Set

DFH

70H

02H

37

RGB Select

DFH

8BH

01H

38

HD Select

DFH

8AH

01H

39

LANGUAGE Select

DFH

5BH

01H

40

COLOR SYSTEM Select

DFH

5CH

01H

41

FREQUENCY Request

1FH

26H

00H

42

Input MODE Request

1FH

41H

00H

43

VIDEO ADJ Request

1FH

45H

00H

44

Audio Select Request

1FH

6FH

00H

45

Failure Mode Request

1FH

3FH

00H

46

MODEL NAME Request

1FH

17H

00H

47

LOW TONE

DFH

0CH

01H

48

COLOR TUNE

DFH

0DH

08H

49

GAMMA Gain Data

DFH

13H

04H

50

Running Sense

1FH

88H

00H

51

OSM OBITER

DFH

5FH

01H

52

Input Skip

5FH

61H

01H

53

SERIAL No. Request

1FH

15H

00H

54

S1/S2 SELECT

DFH

89H

01H

55

SOFT FOCUS

DFH

65H

01H

56

BLACK LEVEL (DIGITAL SIGNAL LEVEL)

DFH

8FH

01H

57

MULTI(SPRIT) SCREEN Select

DFH

07H

01H

58

SUB.P DETECT

DFH

7AH

01H

59

ZOOM NAV

DFH

7BH

01H

Company Restricted

PDxx01

RS-232C Control Specification



Page: 7 / 49











Document Version [1.0]































60

PICTURE FREEZE

DFH

7CH

01H





61

PAUSE COMMAND

DFH

7DH

01H





62

OSM CONTRAST

DFH

37H

01H





63

CLOSED CAPTION

DFH

3CH

01H





64

CAPTION CONTRAST

DFH

3DH

01H





65

PICTURE MEMORY Select

DFH

38H

01H





66

PICTURE MEMORY Set

DFH

25H

02H





67

PICTURE MEMORY NOTE WRITE

DFH

2DH

0CH





68

SET UP LEVEL

DFH

35H

01H





69

BACK GROUND

DFH

36H

01H





70

PDP SAVER AUTO select

DFH

2CH

01H





71

Audio HDMI Request

1FH

3AH

00H





72

POWER ON MODE (INPUT)

DFH

63H

04H





73

POWER ON MODE (VOLUME)

DFH

0FH

01H





74

SUB PICTURE RATE set

DFH

DAH

02H





75

MULTI (SPRIT) SCREEN POWER ON MODE SET

DFH

33H

04H





76

REMOTE ID CODE SETTING

DFH

2BH

01H





77

VOLUME Gain Request

1FH

0EH

00H





78

UNDER SCAN SETTING

DFH

22H

01H



Company Restricted

PDxx01

RS-232C Control Specification

Page: 8 / 49

Document Version [1.0]

5. Command

5-1. Power ON

Function

The external control equipment switches on the power of the plasma monitor.

Transmission Data

9FH 80H 60H 4EH 00H CKS

ACK

The plasma monitor returns the following ACK when the power is switched on.

3FH 60H 80H 4EH 00H CKS

NOTE: Do not set the Power ON or Power OFF command continuously.

5-2. Power OFF

Function

The external control equipment switches off the power of the plasma monitor.

Transmission Data

9FH 80H 60H 4FH 00H CKS

ACK

The plasma monitor returns the following ACK when the power is switched off.

3FH 60H 80H 4FH 00H CKS

NOTE: Do not set the Power ON or Power OFF command continuously.

5-3. Input Switch Change

Function

The external control equipment switches the input of the plasma monitor.

Transmission Data

DFH 80H 60H 47H 01H DATA00 CKS

DATA00 : Input Select

01H

: Video1



02H

: Video2





05H : DVD/HD1



06H

: DVD/HD2



07H

: PC/RGB

0EH : DVD/HD3(HDMI)

1AH : DVD/HD4(HDMI)

ACK

The plasma monitor returns the following ACK when the input is switched.

3FH 60H 80H 47H 00H CKS

Company Restricted

PDxx01

RS-232C Control Specification

Page: 9 / 49

Document Version [1.0]

5-4. VOLUME Gain Data

Function

The external control equipment changes the VOLUME gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS



DATA00: USER SOUND Gain Flag

05H



DATA01: VOLUME Gain Flag

01H



DATA02: VOLUME Gain

00H: Step0





:







0AH: Step10 (Default)





:







2AH: Step42

ACK







7FH 60H 80H 7FH 02H DATA00 DATA01 CKS





DATA00: USER SOUND Gain Flag

05H



DATA01: VOLUME Gain Flag

01H

5-5. AUDIO Mute ON

Function

The external control equipment switches on AUDIO Mute of the plasma monitor.

Transmission Data

9FH 80H 60H 3EH 00H CKS

ACK

3FH 60H 80H 3EH 00H CKS

5-6. AUDIO Mute OFF

Function

The external control equipment switches off AUDIO Mute of the plasma monitor.

Transmission Data

9FH 80H 60H 3FH 00H CKS

ACK

3FH 60H 80H 3FH 00H CKS

Company Restricted

PDxx01

RS-232C Control Specification

Page: 10 / 49

Document Version [1.0]

5-7. CONTRAST Gain Data

Function

The external control equipment changes the CONTRAST gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS

DATA00: USER PICTURE Gain Flag

01H

DATA01: CONTRAST Gain Flag

07H

DATA02: CONTRAST Gain

CCH: -52



:



FFH: -01



00H: 0



01H: +01



:



14H: +20

ACK

7FH 60H 80H 7FH 02H DATA00 DATA01 CKS

DATA00: USER PICTURE Gain Flag

01H

DATA01: CONTRAST Gain Flag

07H

5-8. BRIGHT Gain Data

Function

The external control equipment changes the BRIGHT gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS

DATA00: USER PICTURE Gain Flag

01H

DATA01: BRIGHT Gain Flag

08H

DATA02: BRIGHT Gain

E0H: -32



:



FFH: -01



00H: 0



01H: +01



:



20H: +32

ACK

7FH 60H 80H 7FH 02H DATA00 DATA01 CKS

DATA00: USER PICTURE Gain Flag

01H

DATA01: BRIGHT Gain Flag

08H

Company Restricted

PDxx01

RS-232C Control Specification

Page: 11 / 49

Document Version [1.0]

5-9. SHARPNESS Gain Data

Function

The external control equipment changes the SHARPNESS gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS



DATA00: USER PICTURE Gain Flag

01H



DATA01: SHARPNESS Gain Flag

06H



DATA02: SHARPNESS Gain

F0H: -16





:







FFH: -01





00H: 0





01H: +01





:







10H: +16



Only when a RGB signal is connected







DATA02 : SHARPNESS Gain

01H: 1





02H: 2





03H: 3





04H: 4

ACK







7FH 60H 80H 7FH 02H DATA00 DATA01 CKS





DATA00: USER PICTURE Gain Flag

01H



DATA01: SHARPNESS Gain Flag

06H

5-10. COLOR Gain Data

Function

The external control equipment changes the COLOR gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS



DATA00: USER PICTURE Gain Flag

01H



DATA01: COLOR Gain Flag

04H



DATA02: COLOR Gain

E0H: -32





:







FFH: -01





00H: 0





01H: +01





:







20H: +32

ACK













7FH 60H 80H 7FH 02H DATA00 DATA01 CKS



DATA00: USER PICTURE Gain Flag

01H



DATA01: COLOR Gain Flag

04H

Company Restricted

PDxx01

RS-232C Control Specification

Page: 12 / 49

Document Version [1.0]

5-11. TINT Gain Data

Function

The external control equipment changes the TINT gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS

DATA00: USER PICTURE Gain Flag

01H

DATA01: TINT Gain Flag

05H

DATA02: TINT Gain

E0H: -32



:

* TINT Gain is from -22 (EAH) to

FFH: -01

+22 (16H) only during video.

00H: 0



01H: +01



:



20H: +32

ACK

7FH 60H 80H 7FH 02H DATA00 DATA01 CKS

DATA00: USER PICTURE Gain Flag

01H

DATA01: TINT Gain Flag

05H

5-12. PICTURE MODE Select

Function

The external control equipment sets the picture mode of the plasma monitor.

Transmission Data

DFH 80H 60H 0AH 01H DATA00 CKS

DATA00: 01H: NORMAL

02H: THEATER1 (It cannot choose in the still picture input of a personal computer.) 03H: THEATER2 (It cannot choose in the still picture input of a personal computer.) 04H: Default

05H: Bright

ACK

7FH 60H 80H 0AH 01H DATA00 CKS

DATA00: 01H: NORMAL 02H: THEATER1 03H: THEATER2 04H: Default 05H: Bright

Company Restricted

PDxx01

RS-232C Control Specification

Page: 13 / 49

Document Version [1.0]

5-13. COLOR TEMP SELECT

Function

The external control equipment changes the COLOR TEMP of the plasma monitor.

Transmission Data

DFH 80H 60H 00H 01H DATA00 CKS

DATA00: 00H: low 01H: middle 02H: high

03H: middle low

ACK

7FH 60H 80H 00H 01H DATA00 CKS

DATA00: 00H: low 01H: middle 02H: high

03H: middle low

5-14. RED Gain Data

Function

The external control equipment changes the RED Gain Data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS

DATA00: USER PICTURE Gain Flag

01H



DATA01: RED Gain Flag

01H



DATA02: RED Gain 1(Bias)

D8H : -40



:





FFH : -01



00H

: 0



01H

: +01



:





1EH : +30

DATA03: RED Gain 2(Drive)

D8H : -40



:





FFH : -01



00H

: 0



01H

: +01



:





1EH : +30

ACK





7FH 60H 80H 7FH 02H DATA00 DATA01 CKS

DATA00: USER PICTURE Gain Flag

01H

DATA01: RED Gain Flag

01H

Company Restricted

PDxx01

RS-232C Control Specification

Page: 14 / 49

Document Version [1.0]

5-15. GREEN Gain Data

Function

The external control equipment changes the GREEN Gain Data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS

DATA00: USER PICTURE Gain Flag

01H

DATA01: GREEN Gain Flag

02H

DATA02: GREEN Gain1 (Bias)

D8H: -40



:



FFH: -01



00H: 0



01H: +01



:



1EH: +30

DATA03: GREEN Gain2(Drive)

D8H : -40



:



FFH: -01



00H: 0



01H: +01



:



1EH: +30

ACK



7FH 60H 80H 7FH 02H DATA00 DATA01 CKS

DATA00: USER PICTURE Gain Flag

01H

DATA01: GREEN Gain Flag

02H

5-16. BLUE Gain Data

Function

The external control equipment changes the BLUE Gain Data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS



DATA00: USER PICTURE Gain Flag

01H



DATA01: BLUE Gain Flag

03H



DATA02: BLUE Gain1 (Bias)

D8H :-40





:





FFH: -01





00H: 0





01H: +01





:





1EH: +30



DATA03: BLUE Gain2 (Drive)

D8H:-40





:





FFH: -01





00H: 0





01H: +01





:





1EH: +30

ACK









7FH 60H 80H 7FH 02H DATA00 DATA01 CKS



DATA00: USER PICTURE Gain Flag

01H



DATA01: BLUE Gain Flag

03H

Company Restricted

PDxx01

RS-232C Control Specification

Page: 15 / 49

Document Version [1.0]

5-17. NR MODE Set

Function

The external control equipment sets the NR (Noise Reduction) mode of the plasma monitor.

Transmission Data

DFH 80H 60H C0H 01H DATA00 CKS

DATA00: 01H: NR OFF 02H: NR-1 03H: NR-2 04H: NR-3

ACK

7FH 60H 80H C0H 01H DATA00 CKS

DATA00: 01H: NR OFF 02H: NR-1 03H: NR-2 04H: NR-3

5-18. BASS Gain Data

Function

The external control equipment changes the BASS gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS



DATA00: USER PICTURE Gain Flag

05H



DATA01: BASS Gain Flag

03H



DATA02: BASS Gain

F3H: -13





:







FFH : -01





00H: 0





01H: +01





:







0DH : +13

ACK













7FH 60H 80H 7FH 02H DATA00 DATA01 CKS



DATA00: USER PICTURE Gain Flag

05H



DATA01: BASS Gain Flag

03H

Company Restricted

PDxx01

RS-232C Control Specification

Page: 16 / 49

Document Version [1.0]

5-19. TREBLE Gain Data

Function

The external control equipment changes the TREBLE gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA0 CKS

DATA00: USER PICTURE Gain Flag

05H

DATA01: TREBLE Gain Flag

04H

DATA02: TREBLE Gain

F3H: -13



:



FFH: -01



00H: 0



01H: +01



:



0DH: +13

ACK

7FH 60H 80H 7FH 02H DATA00 DATA01 CKS

DATA00: USER PICTURE Gain Flag

05H

DATA01: TREBLE Gain Flag

04H

5-20. BALANCE Gain Data

Function

The external control equipment changes the BALANCE gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS



DATA00: USER PICTURE Gain Flag

05H



DATA01: BALANCE Gain Flag

02H



DATA02: BALANCE Gain

EAH: -22





:





FFH: -01





00H: 0





01H: +01





:





16H: +22

ACK









7FH 60H 80H 7FH 02H DATA00 DATA01 CKS



DATA00: USER PICTURE Gain Flag

05H



DATA01: BALANCE Gain Flag

02H

Company Restricted

PDxx01

RS-232C Control Specification

Page: 17 / 49

Document Version [1.0]

5-21. SCREEN MODE Select

Function

The external control equipment switches the screen mode of the plasma monitor.

Transmission Data

DFH 80H 60H 51H 01H DATA00 CKS

DATA00 02H: STADIUM 03H: ZOOM 04H: NORMAL

05H: ANAMORHIC (FULL) 06H: REAL

08H: UNDERSCAN 09H: 14:9

0AH: 2.35:1

ACK

7FH 60H 80H 51H 01H DATA00 CKS

DATA00 02H: STADIUM 03H: ZOOM 04H: NORMAL

05H: ANAMORHIC(FULL) 06H: REAL

08H: UNDERSCAN 09H: 14:9

0AH: 2.35:1

*If it selects DATA00 “08: UNDERSCAN”, it need to set No.78 UNDERSCAN setting ON.

5-22. V. POSITION Gain Data

Function

The external control equipment changes the V. POSITION gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS



DATA00: USER PICTURE Gain Flag

03H



DATA01: V.POSITION Gain Flag

01H



DATA02: V.POSITION Gain

C0H: -64





:





FFH: -01





00H: 0





01H: +01





:





40H: +64

ACK









7FH 60H 80H 7FH 02H DATA00 DATA01 CKS



DATA00: USER PICTURE Gain Flag

03H



DATA01: V.POSITION Gain Flag

01H

Company Restricted

PDxx01

RS-232C Control Specification

Page: 18 / 49

Document Version [1.0]

5-23. H. POSITION Gain Data

Function

The external control equipment changes the H. POSITION gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS

DATA00: USER PICTURE Gain Flag

03H

DATA01: H.POSITION Gain Flag

02H

DATA02: H.POSITION Gain

80H: -128



:



FFH: -01



00H: 0



01H: +01



:



7FH: +127

ACK

7FH 60H 80H 7FH 02H DATA00 DATA01 CKS

DATA00: USER PICTURE Gain Flag

03H

DATA01: H.POSITION Gain Flag

02H

5-24. V. HEIGHT Gain Data

Function

The external control equipment changes the V-HEIGHT gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS

DATA00: USER PICTURE Gain Flag

03H

DATA01: V-HEIGHT Gain Flag

07H

DATA02: V-HEIGHT Gain

00H: 0



:



40H: +64

ACK

7FH 60H 80H 7FH 02H DATA00 DATA01 CKS

DATA00: USER PICTURE Gain Flag

03H

DATA01: V-HEIGHT Gain Flag

07H

5-25. H. WIDTH Gain Data

Function

The external control equipment changes the H-WIDTH gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS



DATA00: USER PICTURE Gain Flag

03H



DATA01: H-WIDTH Gain Flag

08H



DATA02: H-WIDTH Gain

00H: 0





:





40H: +64

ACK





7FH 60H 80H 7FH 02H DATA00 DATA01 CKS



DATA00: USER PICTURE Gain Flag

03H



DATA01: H-WIDTH Gain Flag

08H

Company Restricted

PDxx01

RS-232C Control Specification

Page: 19 / 49

Document Version [1.0]

5-26. AUTO PICTURE Select

Function

The external control equipment switches on or off the AUTO PICTURE of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS



DATA00: USER PICTURE Gain Flag

03H



DATA01: AUTO PICTURE Select Flag

09H



DATA02

00H: ON







01H: OFF



ACK











7FH 60H 80H 7FH 03H DATA00 DATA01 DATA02 CKS



DATA00: USER PICTURE Gain Flag

03H



DATA01: AUTO PICTURE Select Flag

09H



DATA02

00H: ON







01H: OFF



5-27. PHASE (FINE PICTURE) Gain Data

Function

The external control equipment changes the PHASE gain data (Phase) of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS



DATA00: USER PICTURE Gain Flag

03H



DATA01: PHASE Gain Flag

03H



DATA02: PHASE Gain

00H: 0





:





40H: +64 :

ACK





7FH 60H 80H 7FH 02H DATA00 DATA01 CKS



DATA00: USER PICTURE Gain Flag

03H



DATA01: PHASE Gain Flag

03H

Company Restricted

PDxx01

RS-232C Control Specification

Page: 20 / 49

Document Version [1.0]

5-28. CLOCK (PICTURE ADJUST) Gain Data

Function

The external control equipment changes the CLOCK gain data (ratio of frequency division) of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS

DATA00: USER PICTURE Gain Flag

03H

DATA01: CLOCK Gain Flag

04H

DATA02: CLOCK Gain

C0H: -64



:



FFH: -01



00H: 0



01H: +01



:



40H: +64

ACK

7FH 60H 80H 7FH 02H DATA00 DATA01 CKS

DATA00: USER PICTURE Gain Flag

03H

DATA01: CLOCK Gain Flag

04H

5-29. OSM ADJ. POSITION Data

Function

The external control equipment sets the position of the OSM menu of the plasma monitor.

Transmission Data

DFH 80H 60H 1AH 02H DATA00 DATA01 CKS

DATA00: OSM ADJ. Gain Flag

02H

DATA01

01H: 1(TOP LEFT)



02H: 2(TOP CENTER)



03H: 3(TOP RIGHT)



04H: 4(BOTTOM LEFT)



05H: 5(BOTTOM CENTER)



06H: 6(BOTTOM RIGHT)

ACK

7FH 60H 80H 1AH 01H DATA00 CKS

DATA00: OSM ADJ. Gain Flag

02H

5-30. POWER MGT Select

Function

The external control equipment switches on or off the POWER MANAGEMENT of the plasma monitor.

Transmission Data

DFH 80H 60H 1AH 02H DATA00 DATA01 CKS



DATA00: POWER MGT Select

03H



DATA01

01H: ON





02H: OFF

ACK









7FH 60H 80H 1AH 02H DATA00 DATA01 CKS



DATA00: POWER MGT Select

03H



DATA01

01H: ON





02H: OFF

Company Restricted

PDxx01

RS-232C Control Specification

Page: 21 / 49

Document Version [1.0]

5-31. GRAY LEVEL Set

Function

The external control equipment sets the GRAY LEVEL of the plasma monitor.

Transmission Data

DFH 80H 60H C6H 01H DATA00 CKS

DATA00: GRAY LEVEL

00H: 0



:



0FH: 15

ACK

7FH 60H 80H C6H 01H DATA00 CKS

DATA00: GRAY LEVEL

00H: 0



:



0FH: 15

5-32. CINEMA MODE Set

Function

The external control equipment switches on or off the CINEMA MODE of the plasma monitor.

Transmission Data

DFH 80H 60H C1H 01H DATA00 CKS



DATA00: CINEMA MODE Set

01H: ON





02H: OFF

ACK













7FH 60H 80H C1H 01H DATA00 CKS



DATA00: CINEMA MODE Set

01H: ON





02H: OFF

5-33. LONG LIFE Set (PDP SAVER Set)

Function

The external control equipment sets the PLE, ORBITER, and INVERSE (inverse of image brightness) or WHITE of the plasma monitor.

Transmission Data

DFH 80H 60H 6BH 03H DATA00 DATA01 DATA02 CKS

DATA00: PLE

01H: 100% (AUTO)



02H: 75% (LOCK1)



03H: 50% (LOCK2)



04H: 25% (LOCK3)

DATA01: INVERSE/WHITE

01H: INVERSE



02H: OFF



03H: WHITE

DATA02: ORBITER (PICTURE SHIFT)

01H: AUTO1



02H: OFF



03H: AUTO2

ACK



The plasma monitor returns the following ACK when setting the PLE, ORBITER, and INVERSE (inverse of image brightness) or WHITE:

3FH 60H 80H 6BH 00H CKS

Company Restricted

PDxx01

RS-232C Control Specification

Page: 22 / 49

Document Version [1.0]

5-34. SCREEN WIPER Set

Function

The external control equipment sets the SCREEN WIPER of the plasma monitor.

Transmission Data







DFH 80H 60H C8H 04H

DATA00 to DATA03 CKS



DATA00: SCREEN WIPER

00H: No operation





01H: ON





02H: OFF



DATA01:

00H: fixed



DATA02:

FFH: fixed



DATA03:

01H: fixed

ACK







3FH 60H 80H C8H 00H

CKS



5-35. ALL RESET

Function

The external control equipment resets the user adjustment of the plasma monitor.

Transmission Data

1FH 80H 60H 54H 00H CKS

ACK

3FH 60H 80H 54H 00H CKS

Company Restricted

PDxx01

RS-232C Control Specification

Page: 23 / 49

Document Version [1.0]

5-36. Audio Select Set

Function

The external control equipment sets combinations of audio and video inputs for the plasma monitor.

Transmission Data

DFH 80H 60H 70H 02H DATA00 DATA01 CKS

DATA00: AUDIO INPUT

01H: AUDIO1



02H: AUDIO2



03H: AUDIO3



04H: DVD/HD3 INPUT1



05H: DVD/HD4 INPUT1

DATA01: VISUAL INPUT

01H: VIDEO1



02H: VIDEO2



05H: DVD/HD1



06H: DVD/HD2



07H: PC/RGB



0EH: DVD/HD 3



1AH: DVD/HD 4



20H: DVD/HD INPUT HDMI



21H: DVD/HD INPUT AUDIO INPUT1-3

ACK

The plasma monitor returns the following ACK when the input is switched. 3FH 60H 80H 70H 00H CKS

*The plasma monitor returns “Not Available” when selecting the video input same as the one set at one of the AUDIO 1 to 3.

Example:

The plasma monitor returns “Not Available” when selecting the VIDEO1 for AUDIO2 or VIDEO2 after VIDEO1 has been set to AUDIO1.

*When selected 04H or 05H of Data00,it can be selected 20H or 21H of Data01.

Company Restricted

PDxx01

RS-232C Control Specification

Page: 24 / 49

Document Version [1.0]

5-37. RGB Select

Function

The external control equipment sets the RGB SELECT of the plasma monitor.

Transmission Data

DFH 80H 60H 8BH 01H DATA00 CKS

DATA00

01H: AUTO



11H: type1



12H: type2



13H: type3



14H: type4



15H: type5



16H: type6



17H: type7



18H: type8



19H: type9



1AH: type10

ACK

7FH 60H 80H 8BH 01H DATA00 CKS

DATA00

01H: AUTO



11H: type1



12H: type2



13H: type3



14H: type4



15H: type5



16H: type6



17H: type7



18H: type8



19H: type9



1AH: type10

Correspond to Analog RGB.

The type is following as below.

HD_MODE1 :10KHz HD_MODE2 :14.0~20.9KHz HD_MODE3 :21.0~26.4KHz HD_MODE4 :26.5~32.7KHz HD_MODE5 :32.8~36.6KHz HD_MODE6 :36.7~38.5KHz HD_MODE7 :38.6~45.9KHz HD_MODE8 :46.0~49.0KHz HD_MODE9 :49.1~55.0KHz HD_MODE10:55.1~76.9KHz HD_MODE11:77.0~83.5KHz HD_MODE12:83.6~115.0KHz HD_MODE13: other

VD_MODE1:15.00~24.50Hz

VD_MODE2:24.60~27.50Hz

VD_MODE3:27.60~40.00Hz

VD_MODE4:40.01~48.50Hz

VD_MODE5:48.60~55.00Hz

VD_MODE6:55.01~61.76Hz

VD_MODE7:61.77~73.50Hz

VD_MODE8:73.51~79.50Hz

VD_MODE9:79.51~92.50Hz

VD_MODE10:92.51~110.00Hz

VD_MODE11:110.01~131.00Hz

VD_MODE12: other

Company Restricted



PDxx01







RS-232C Control Specification







Page: 25 / 49



























Document Version [1.0]









































































Type1

Type2

Type3

Type4

Type5

Type6

Type7



Type8

Type9

Type10



H mode:3



848x480

640x480

























V mode:5



@50

@50

























H mode:4



768×576

1920×1080

























V mode:5



@50

@50

























H mode:4



640×480

852×480

848×480

640×480

640×480



















V mode:6



@60_1

@60

@60

@60_2

@60_3



















H mode:4



720×400

720×350

























V mode:7



@70

@70































1920×1035































@60































(1035I)

























H mode:5



800×600

1920×1080



























@60

























V mode:6



@56



























(1080A)





























































1920×1080































@60































(1080B)

























H mode:7



1280×768@5

1280x768

1280×720























V mode:6



6.2

@60

@60























H mode:8



1024×768

1360×765

1376×768

1280×768

1280×768

1024*768



















@60_2

















V mode:6



@60_1

@60

@60

@60_1

@60_2



















Only DVI(PC)



















































1152x864



























H mode:9



@60_1

1280*800

1280*854

1152x864





















V mode:6



1024×768

@60

@60

@60_2

























@60



























H mode 10



1080P

1250P

1920×1080























V mode 5



@50

@50

@50



















































H mode 10



1280×1024

1400×1050

1920*1200

1920*1200RB

1600×1200

1400x1050

1680*1050



1080P

1920×1080

1366×768







@60





V mode 6



@60

@60_1

@60

@60

@60

@60_2

@60

@60

60



















































H mode 10



1024×768

1024x768

1280x768

1280x768































“1920*1200RB@60” is Reduce blanking signal.





Vmode 7



@70

@72

@70

@72



































































H mode 10



1024×768

1152×864

























V mode 8



@75



















































Company Restricted

PDxx01

RS-232C Control Specification

Page: 26 / 49

Document Version [1.0]

5-38. HD Select

Function

The external control equipment sets the HD SELECT of the plasma monitor.

Transmission Data

DFH 80H 60H 8AH 01H DATA00 CKS

DATA00

01H: 1035I





02H:

540P (1080A)



03H:

1080I

(1080B)

ACK

7FH 60H 80H 8AH 01H DATA00 CKS

DATA00

01H: 1035I





02H:

540P (1080A)



03H:

1080I

(1080B)

5-39. LANGUAGE Select

Function

The external control equipment sets the LANGUAGE SELECT of the plasma monitor.

Transmission Data

DFH 80H 60H 5BH 01H DATA00 CKS

DATA00: 01H: ENGLISH 02H: GERMAN 03H: FRENCH 04H: SPANISH 05H: ITALIAN 06H: SWEDISH 0BH: RUSSIAN

0DH: PORTUGUESE

ACK

7FH 60H 80H 5BH 01H DATA00 CKS

DATA00: 01H: ENGLISH 02H: GERMAN 03H: FRENCH 04H: SPANISH 05H: ITALIAN 06H: SWEDISH 0BH: RUSSIAN

0DH: PORTUGUESE

Company Restricted

PDxx01

RS-232C Control Specification

Page: 27 / 49

Document Version [1.0]

5-40. COLOR SYSTEM Select

Function

The external control equipment sets the COLOR SYSTEM of the plasma monitor.

Transmission Data

DFH 80H 60H 5CH 01H DATA00 CKS

DATA00: 01H: 3.58NTSC 02H: 4.43NTSC 03H: PAL

04H: SECAM

0AH: AUTO

0BH: PAL60

0DH: PAL-M

0EH: PAL-N

ACK

7FH 60H 80H 5CH 01H DATA00 CKS

DATA00: 01H: 3.58NTSC 02H: 4.43NTSC 03H: PAL

04H: SECAM

0AH: AUTO

0BH: PAL60

0DH: PAL-M

0EH: PAL-N

5-41. FREQUENCY Request (SIGNAL INFORMATION)

Function

The external control equipment inquires the Horizontal frequency, Vertical frequency, Horizontal sync polarity, Vertical sync polarity, Mode, and Resolution of the plasma monitor.

Transmission Data

1FH 80H 60H 26H 00H CKS

ACK





7FH 60H 80H 26H 0BH

DATA00 to DATA0A CKS

Horizontal frequency





DATA00: Integer part

00H: 0 (No signal: 00H)





:





FFH: 255



DATA01: One decimal place

00H: 0 (No signal: 00H)





:





09H: 9

Vertical frequency





DATA02: Integer part

00H: 0 (No signal: 00H)





:





FFH: 255



DATA03: One decimal place

00H: 0 (No signal: 00H)





:





09H: 9

Company Restricted



PDxx01





RS-232C Control Specification

Page: 28 / 49













Document Version [1.0]













Horizontal sync polarity











DATA04

00H:

-











01H: Positive











02H: Negative







Vertical sync polarity











DATA05

00H:

-











01H: Positive











02H: Negative







MODE













DATA06

00H

: No signal

-







01H to 80H : RGB signal

Identification number of PC mode







81H

: Video signal

3.58NTSC







82H

:



4.43NTSC







83H

:



PAL







84H

:



PAL-M







85H

:



PAL-N







86H

:



PAL60







87H

:



SECAM







88H

:



B/W60







89H

:



B/W50







A0H

: HD/DVD/DTV signal

480I







A1H

:



480P







A2H

:

576I









A3H

:

576P









A4H

:

720P









A5H

:

1035I









A6H

:

1080I





RESOLUTION













DATA07: Dots (Low-order byte)

00H: 0 (No signal: 00H)











:













FFH

255





DATA08: Dots (High-order byte)

00H: 257 (No signal: 00H)











:













FFH







DATA09: Lines (Low-order byte)

00H: 0 (No signal: 00H)











:













FFH: 255





DATA10: Lines (High-order byte)

00H: 257 (No signal: 00H)











:













FFH





Company Restricted

PDxx01

RS-232C Control Specification

Page: 29 / 49

Document Version [1.0]

5-42. Input MODE Request

Function

The display returns the current input information by the external control equipment’s request.

Transmission Data

1FH 80H 60H 41H 00H CKS

ACK

7FH 60H 80H 41H 01H DATA00 CKS

DATA00: Input Select

01H: Video1



02H: Video2



05H: DVD/HD1



06H: DVD/HD2



07H: PC/RGB



0EH: DVD/HD3 (HDMI)



1AH: DVD/HD4 (HDMI)

5-43. VIDEO ADJ. Request

Function

The display returns the video adjustments information by the external control equipment’s request.

Transmission Data

1FH 80H 60H 45H 00H CKS

ACK

7FH 60H 80H 45H 0CH

DATA00 to DATA0B CKS

DATA00: RED Gain (Bias)

D8H: -40



:



FFH: -01



00H: 0



01H: +01



:



1EH: +30

DATA01: GREEN Gain (Bias)

D8H: -40



:



FFH: -01



00H: 0



01H: +01



:



1EH: +30

DATA02: BLUE Gain (Bias)

D8H: -40



:



FFH: -01



00H: 0

01H: +01

:

1EH: +30

Company Restricted

PDxx01

RS-232C Control Specification

Page: 30 / 49





Document Version [1.0]







DATA03: COLOR Gain

E0H: -32





:





FFH: -01





00H: 0





01H: +01





:





20H: +32



DATA04: TINT Gain

E0H: -32





:





FFH: -01





00H: 0





01H: +01





:





20H: +32



DATA05: SHARPNESS Gain

F0H: -16





:





FFH: -01





00H: 0





01H: +01





:





10H: +16



DATA06: CONTRAST Gain

CCH: -52





:





FFH: -01





00H: 0





01H: +01





:





14H: +20



DATA07: BRIGHT Gain

E0H: -32





:





FFH: -01





00H: 0





01H: +01





:





20H: +32



DATA08: RED Gain (Drive)

D8H: -40





:



FFH: -01 00H: 0 01H: +01

:

1EH: +30

Company Restricted

PDxx01

RS-232C Control Specification

Page: 31 / 49





Document Version [1.0]







DATA09: GREEN Gain (Drive)

D8H: -40





:





FFH: -01





00H: 0





01H: +01





:





1EH: +30



DATA0A: BLUE Gain (Drive)

D8H: -40





:





FFH: -01





00H: 0





01H: +01





:





1EH: +30



DATA0B: COLOR TEMP SELECT

00H: low





01H: middle





02H: high





03H: middle low



5-44. Audio Select Request

Function

The external control equipment inquires the current combinations of audio and video inputs for the plasma monitor.

Transmission Data

1FH 80H 60H 6FH 00H CKS

ACK

The plasma monitor returns the following ACK:

7FH 60H 80H 6FH 03H DATA00 DATA01 DATA02 CKS

DATA00: AUDIO1

01H-0CH: VISUAL INPUT DATA DATA01: AUDIO2

01H-0CH: VISUAL INPUT DATA DATA02: AUDIO3

01H-0CH: VISUAL INPUT DATA

<VISUAL INPUT DATA> 01H: VIDEO1

02H: VIDEO2

05H: DVD/HD1

06H: DVD/HD2

07H: PC/RGB

0EH: DVD/HD3

1AH: DVD/HD4

Company Restricted

PDxx01

RS-232C Control Specification

Page: 32 / 49

Document Version [1.0]

5-45. Failure Mode Request

Function

The external control equipment inquires the detection of failures of the plasma monitor.

Transmission Data

1FH 80H 60H 3FH 00H CKS

ACK

The plasma monitor returns the following ACK:

7FH 60H 80H 3FH 02H DATA00 DATA01 CKS

DATA00: FAILURE MODE 1

Bit 0: PDP MODULE

0:Abnormal

1:Normal

Bit 1: 1: fixed (backup)

Bit 2: TEMPERATURE

0:Abnormal

1:Normal Bit 3: FAN

0:Abnormal

1:Normal

Bit 4: TEMPERATURE SENSOR

0:Abnormal

1:Normal

Bit 5: 1: fixed (backup) Bit 6: 1: fixed (backup)

Bit 7: 1: fixed (backup)

DATA01: FAILURE MODE 2

Bit 0-7: 1: fixed (backup)

Note: When 42 inch, “FAN” of DATA00-Bit3 is fixed “1”.

Company Restricted

PDxx01

RS-232C Control Specification

Page: 33 / 49

Document Version [1.0]

5-46. MODEL NAME Request

Function

The external control equipment inquires the product code of the plasma monitor.

Transmission Data

1FH 80H 60H 17H 00H CKS

ACK

The plasma monitor returns the following ACK:

7FH 60H 80H 17H 0CH DATA00 to DATA11 CKS

DATA00: 1st character of the product code DATA01: 2nd character of the product code

:

DATA11: 12th character of the product code

Received data

00H-09H

: 0-9

























80H

: - (Hyphen)





















81H

: +

























82H

:

























83H

: /

























84H

: (

























85H

: )

























86H

: .

























87H

: ‘

























96H

: Blank

















































10H-29H

: A-Z

A



B

C

D

E

F

G

H

I

J



Corresponding



























character



























Received data (H)

10



11

12

13

14

15

16

17

18

19



Corresponding



K



L

M

N

O

P

Q

R

S

T



character



























Received data (H)

1A



1B

1C

1D

1E

1F

20

21

22

23



Corresponding



U



V

W

X

Y

Z











character



























Received data (H)

24



25

26

27

28

29









If there are fewer than 12 characters in the product code, product code would be padded right with blanks.

Example: If the product code of your plasma monitor is “PX-50XR5A”, the returned codes would be as follows. DATA00:1FH, DATA01:27H, DATA02:80H, DATA03:05H, DATA04:00H, DATA05:27H, DATA06:21H, DATA07:05H, DATA08:10H, DATA09:96H, DATA10:96H, DATA11:96H

Company Restricted

PDxx01

RS-232C Control Specification

Page: 34 / 49

Document Version [1.0]

5-47. LOW TONE (50inch only)

Function

The external control equipment sets the Low toned of the plasma monitor.

Transmission Data

DFH 80H 60H 0CH 01H DATA00 CKS



DATA00:

01H: Mode1





02H: Mode2

ACK









7FH 60H 80H 0CH 01H DATA00 CKS



DATA00:

01H: Mode1





02H: Mode2

5-48. COLOR TUNE

Function

External control equipment can adjust RGB each color which a plasma monitor wants to emphasize.

Transmission Data





DFH 80H 60H 0DH

07H DATA00 to DATA06 CKS



DATA00: RED

00H: -32





:





20H: 0





:





40H: +32



DATA01: GREEN

00H: -32





:





20H: 0





:





40H: +32



DATA02: BLUE

00H: -32





:





20H: 0





:





40H: +32



DATA03: YELLOW

00H: -32





:





20H: 0





:





40H: +32



DATA04: MAZENTA

00H: -32





:





20H: 0





:





40H: +32



DATA05: CYAN

00H: -32





:





20H: 0





:





40H: +32

Company Restricted

PDxx01

RS-232C Control Specification

Page: 35 / 49





Document Version [1.0]







DATA06: RESET

00H: OFF





01H: ON



ACK

7FH 60H 80H 0DH 00H CKS

5-49. GAMMA GAIN Data

Function

External control apparatus changes Gamma of a plasma monitor.

Transmission Data

DFH 80H 60H 13H 02H DATA00 DATA01 CKS

DATA00: GAMMA FLAG

01H: Gamma change

DATA01: GAMMA

00H: 1(GAMMA2.1)



01H: 2(GAMMA2.2)



02H: 3(GAMMA2.3)



03H: 4(GAMMA2.4)

ACK

7FH 60H 80H 13H 01H DATA00 CKS

DATA00: GAMMA FLAG 01H: Gamma change

5-50. Running Sense

Function

External control apparatus grasps the power supply state of a plasma monitor. A plasma monitor is made to recognize connection of PC CONTROL.

Transmission Data

1FH 80H 60H 88H 00H CKS

ACK

7FH 60H 80H 88H 01H DATA CKS

DATA: Bit0: Connect Condition

0:No connection

1:Connected Bit1 0: Fixed

1:-

Bit2: Power Status

0:POWER ON

1:POWER OFF (STANBY) Bit3 0: Fixed

Bit4 0: Fixed Bit5 0: Fixed Bit6 0: Fixed Bit7 0: Fixed

Company Restricted

PDxx01

RS-232C Control Specification

Page: 36 / 49

Document Version [1.0]

5-51. OSM ORBITER

Function

In order to decrease printing of a screen by OSM display, whenever it displays OSM, shift operation of the OSM is carried out.

Transmission Data

DFH 80H 60H 5FH 01H DATA00 CKS



DATA00

01H: ORBITER ON





02H: ORBITER OFF

ACK









7FH 60H 80H 5FH 01H DATA00 CKS



DATA00

01H: ORBITER ON





02H: ORBITER OFF

5-52. Input Skip

Function

In a monitor's key "an input change", when there is no signal, it flies and shifts to the following channel.

Transmission Data

DFH 80H 60H 61H 01H DATA00 CKS

DATA00

01H: ON



02H: OFF

ACK

7FH 60H 80H 61H 01H DATA00 CKS

DATA00

01H: ON



02H: OFF

5-53. SERIAL No. Request

Function

External control apparatus read the serial number of the set recorded by EEPROM of a plasma display.

Transmission Data

1FH 80H 60H 15H 00H CKS

ACK

7FH 60H 80H 15H 0CH DATA00 to DATA11 CKS

Even DATA00-DATA11 is set up as follows.

Setting value

00H-09H

:

0 - 9



96H

:

Blank



10H-29H

:

A-Z of Alphabet

Company Restricted

PDxx01

RS-232C Control Specification

Page: 37 / 49

Document Version [1.0]

5-54. S1/S2 SELECT

Function

External control apparatus sets up the S1/S2 detection of a plasma monitor.

Transmission Data

DFH 80H 60H 89H 01H DATA00 CKS



DATA00

01H: AUTO





02H: OFF

ACK









7FH 60H 80H 89H 01H DATA00 CKS



DATA00

01H: AUTO





02H: OFF

5-55. SOFT FOCUS

Function

External control apparatus sets up the Soft Focus of a plasma monitor.

Transmission Data

DFH 80H 60H 65H 01H DATA00 CKS

DATA00 01H: OFF 02H: LEVEL1 03H: LEVEL2 04H: LEVEL3 05H: LEVEL4

ACK

7FH 60H 80H 65H 01H DATA00 CKS

DATA00 01H: OFF 02H: LEVEL1 03H: LEVEL2 04H: LEVEL3 05H: LEVEL4

5-56. BLACK LEVEL SELECT

Function

External control apparatus sets up the black level (digital signal level) of a plasma monitor.

Transmission Data

DFH 80H 60H 8FH 01H DATA00 CKS

DATA00 01H: LOW 02H: HIGH

ACK

7FH 60H 80H 8FH 01H DATA00 CKS

DATA00 01H: LOW 02H: HIGH

Company Restricted

PDxx01

RS-232C Control Specification

Page: 38 / 49

Document Version [1.0]

5-57. MULTI (SPRIT) SCREEN Select

Function

External control apparatus selects a screen mode from alternatives mentioned below, such as single mode, side by side, picture in picture, etc., of Plasma Monitor.

Transmission Data

DFH 80H 60H 07H 01H DATA00 CKS

DATA00: 00H:

Single Screen

01H:

Side by Side 1 (Same Size Screen)

02H: Side by Side 2R (Left Screen smaller)

03H:

Picture in Picture 1 (sub screen Bottom Left) with size1

04H:

Picturein Picture 2(sub screen Bottom Right) with size1

05H: Side by Side 2L (Left Screen Bigger)

06H:

Picturein Picture 1(sub screen Bottom Left) with size2

07H:

Picturein Picture 2(sub screen Bottom Right) with size2

08H:

Picturein Picture 1(sub screen Bottom Left) with size3

09H: Picturein Picture 2(sub screen Bottom Righ) with size3

0AH:

Picturein Picture 1(sub screen Bottom Left) with size4

0BH:

Picturein Picture 2(sub screen Bottom Right) withsize4

41H:

Picturein Picture 3(sub screen Top Right) with size1

42H:

Picturein Picture 3(sub screen Top Right) with size2

43H:

Picturein Picture 3(sub screen Top Right) with size3

44H:

Picturein Picture 3(sub screen Top Right) with size4

45H:

Picturein Picture 4(sub screen Top Left) with size1

46H:

Picturein Picture 4(sub screen Top Left) with size2

47H:

Picturein Picture 4(sub screen Top Left) with size3

48H:

Picturein Picture 4(sub screen Top Left) with size4

49H:

Side by Side 3 (Same Size Screen vertical expand)

4AH:

Side by Side 4R (Left Screen smaller vertical expand)

4BH:

Side by Side 4L (Left Screen Bigger vertical expand)

10H:

SWAP

A0H:

PIP OFF

A1H:

PIP ON

In case of Side by Side mode;

20H:

Active Left

21H:

Active Right

In case of Picture in picture mode;

30H:

Active Main

31H:

Active Sub

Company Restricted

PDxx01

RS-232C Control Specification

Page: 39 / 49

Document Version [1.0]

ACK

7FH 60H 80H 07H 01H DATA00 CKS

DATA00: 00H:

Single Screen

01H:

Side by Side 1 (Same Size Screen)

02H: Side by Side 2R (Left Screen smaller)

03H:

Picture in Picture 1 (sub screen Bottom Left) with size1

04H:

Picturein Picture 2(sub screen Bottom Right) with size1

05H: Side by Side 2L (Left Screen Bigger)

06H:

Picturein Picture 1(sub screen Bottom Left) with size2

07H:

Picturein Picture 2(sub screen Bottom Right) with size2

08H:

Picturein Picture 1(sub screen Bottom Left) with size3

09H: Picturein Picture 2(sub screen Bottom Righ) with size3

0AH:

Picturein Picture 1(sub screen Bottom Left) with size4

0BH:

Picturein Picture 2(sub screen Bottom Right) withsize4

41H:

Picturein Picture 3(sub screen Top Right) with size1

42H:

Picturein Picture 3(sub screen Top Right) with size2

43H:

Picturein Picture 3(sub screen Top Right) with size3

44H:

Picturein Picture 3(sub screen Top Right) with size4

45H:

Picturein Picture 4(sub screen Top Left) with size1

46H:

Picturein Picture 4(sub screen Top Left) with size2

47H:

Picturein Picture 4(sub screen Top Left) with size3

48H:

Picturein Picture 4(sub screen Top Left) with size4

49H:

Side by Side 3 (Same Size Screen vertical expand)

4AH:

Side by Side 4R (Left Screen smaller vertical expand)

4BH:

Side by Side 4L (Left Screen Bigger vertical expand)

10H:

SWAP

A0H:

PIP OFF

A1H:

PIP ON

In case of Side by Side mode;

20H:

Active Left

21H:

Active Right

In case of Picture in picture mode;

30H:

Active Main

31H:

Active Sub

5-58. SUB PICTURE DETECT SELECT

Function

External control apparatus selects whether to display the sub picture or not, under picture in picture mode, of plasma monitor.

Transmission Data

DFH 80H 60H 7AH 01H DATA00 CKS

DATA00 01H: OFF 02H: AUTO

ACK

7FH 60H 80H 7AH 01H DATA00 CKS

DATA00 01H: OFF 02H: AUTO

Company Restricted

PDxx01

RS-232C Control Specification

Page: 40 / 49

Document Version [1.0]

5-59. ZOOM NAVIGATION SELECT

Function

External control apparatus selects digital zoom display of a plasma monitor, from the alternatives mentioned below;

Transmission Data

DFH 80H 60H 7BH 01H DATA00 CKS

DATA00

01H: OFF (single screen)



02H: Side By Side (Left Screen smaller)



03H: Picture in Picture1 (Sub Screen Bottom Left)



04H: Picture in Picture2 (Sub Screen Bottom Right)



05H: Picture in Picture3 (Sub Screen Top Right)



06H: Picture in Picture4 (Sub Screen Top Left)

ACK

7FH 60H 80H 7BH 01H DATA00 CKS

DATA00 01H: OFF (single screen)

02H: Side By Side2R (Left Screen smaller)

03H: Picture in Picture1 (Sub Screen Bottom Left) 04H: Picture in Picture2 (Sub Screen Bottom Right) 05H: Picture in Picture3 (Sub Screen Top Right) 06H: Picture in Picture4 (Sub Screen Top Left)

5-60. PICTURE FREEZE SELECT

Function

External control apparatus selects the picture freeze function of a plasma monitor.

Transmission Data

DFH 80H 60H 7CH 01H DATA00 CKS



DATA00

01H: OFF (single screen)





02H: Side By Side1 (Same Size Screen)





03H: Picture in Picture1 (Sub Screen Bottom Left)





04H: Picture in Picture2 (Sub Screen Bottom Right)





05H: Picture in Picture3 (Sub Screen Top Right)





06H: Picture in Picture4 (Sub Screen Top Left)





07H: Side by Side 2 (Same Size Screen vertical expand)

ACK













7FH 60H 80H 7CH 01H DATA00 CKS



DATA00

01H: OFF (single screen)





02H: Side By Side1 (Same Size Screen)





03H: Picture in Picture1 (Sub Screen Bottom Left)

04H: Picture in Picture2 (Sub Screen Bottom Right) 05H: Picture in Picture3 (Sub Screen Top Right) 06H: Picture in Picture4 (Sub Screen Top Left)

07H: Side by Side2 (Same Size Screen vertical expand)

Company Restricted

PDxx01

RS-232C Control Specification

Page: 41 / 49

Document Version [1.0]

5-61. PICTURE FREEZE (Pause) Command

Function

External control apparatus sets picture freeze or remove picture freeze of a plasma monitor.

Transmission Data

DFH 80H 60H 7DH 01H DATA00 CKS

DATA00 01H: FREEZE 02H: FREEZE OFF

ACK

7FH 60H 80H 7DH 01H DATA00 CKS

DATA00 01H: FREEZE 02H: FREEZE OFF

5-62. OSM CONTRAST SELECT

Function

External control apparatus selects the OSM contrast function of a plasma monitor.

Transmission Data

DFH 80H 60H 37H 01H DATA00 CKS

DATA00 01H: NORMAL 02H: LOW

ACK

7FH 60H 80H 37H 01H DATA00 CKS

DATA00 01H: NORMAL 02H: LOW

5-63. CC (Closed caption) SELECT

Function

External control apparatus selects the Closed Caption function of a plasma monitor.

Transmission Data

DFH 80H 60H 3CH 01H DATA00 CKS

DATA00 00H: OFF

01H: CC1 (closed caption1) 02H: CC2 (closed caption2) 03H: CC3 (closed caption3) 04H: CC4 (closed caption4) 05H: TEXT1

06H: TEXT2

07H: TEXT3

08H: TEXT4

Company Restricted

PDxx01

RS-232C Control Specification

Page: 42 / 49

Document Version [1.0]

ACK

7FH 60H 80H 3CH 01H DATA00 CKS

DATA00 00H: OFF

01H: CC1 (closed caption1) 02H: CC2 (closed caption2) 03H: CC3 (closed caption3) 04H: CC4 (closed caption4) 05H: TEXT1

06H: TEXT2

07H: TEXT3

08H: TEXT4

5-64. CC (Closed caption) CONTRAST SELECT

Function

External control apparatus selects the Closed Caption Contrast function of a plasma monitor.

Transmission Data

DFH 80H 60H 3DH 01H DATA00 CKS

DATA00 01H: NORMAL 02H: LOW

ACK

7FH 60H 80H 3DH 01H DATA00 CKS

DATA00 01H: NORMAL 02H: LOW

5-65. PICTURE MEMORY Select

Function

The external control equipment selects the Picture Memory function of a plasma monitor.

Transmission Data

DFH 80H 60H 38H 01H DATA00 CKS

DATA00: MEMORY select 00H: OFF

01H: MEMORY1

02H: MEMORY2

03H: MEMORY3

04H: MEMORY4

05H: MEMORY5

06H: MEMORY6

ACK

The plasma monitor returns the following ACK when the input is switched. 7FH 60H 80H 38H 01H CKS

DATA00:

00H: OFF



01H: MEMORY1



02H: MEMORY2



03H: MEMORY3



04H: MEMORY4



05H: MEMORY5



06H: MEMORY6

Company Restricted

PDxx01

RS-232C Control Specification

Page: 43 / 49

Document Version [1.0]

5-66. PICTURE MEMORY Set

Function

The external control equipment ser and reset the Picture Memory function of a plasma monitor.

Transmission Data

DFH 80H 60H 25H 02H DATA00 DATA01 CKS

DATA00:

01H: SET



02H: RESET

DATA01: MEMORY select

00H: OFF



01H: MEMORY1



02H: MEMORY2



03H: MEMORY3



04H: MEMORY4



05H: MEMORY5



06H: MEMORY6

ACK

The plasma monitor returns the following ACK when the input is switched. 7FH 60H 80H 25H 01H CKS

DATA00:

01H: SET



02H: RESET

NOTE: When “PICTURE MEMORY” selects “OFF”, this command is no support.

5-67. PICTURE MEMORY NOTE WRITE Set

Function

External control apparatus writes to NOTE of PICTURE MEMORY of a plasma display.

Transmission Data









DFH 80H 60H 2DH 0FH

DATA00 to DATA14 CKS



Even DATA00-DATA14 is set up as follows.



Setting value

00H-09H :

0 - 9





80H

: - (Hyphen)





81H

: +





82H

:







83H

: /





84H

: (





85H

: )





86H

: .





87H

: ‘





96H

: Blank





10H-29H:

A-Z of Alphabet

Company Restricted

PDxx01

RS-232C Control Specification









Page: 44 / 49



























Document Version [1.0]



























































Corresponding



A

B

C

D

E

F

G

H

I

J



character



























Received data (H)



10

11

12

13

14

15

16

17

18

19





Corresponding



K

L

M

N

O

P

Q

R

S

T





character



























Received data (H)



1A

1B

1C

1D

1E

1F

20

21

22

23





Corresponding



U

V

W

X

Y

Z













character



























Received data (H)



24

25

26

27

28

29











ACK

3FH 60H 80H 2DH 00H CKS

NOTE)

Please select the memory you like to write by “68.PICTURE MEMORY Select” before setting “PICTURE



MEMORY NOTE WRITE”

5-68. SET UP LEVEL SELECT

Function

External control apparatus selects the Set up level function of a plasma monitor.

Transmission Data

DFH 80H 60H 35H 01H DATA00 CKS

DATA00 01H: 0% 02H: 3.75% 03H: 7.5%

ACK

7FH 60H 80H 35H 01H DATA00 CKS

DATA00 01H: 0% 02H: 3.75% 03H: 7.5%

5-69. BACK GROUND SELECT

Function

External control apparatus selects the Back ground function of a plasma monitor.

Transmission Data

DFH 80H 60H 36H 01H DATA00 CKS

DATA00 01H: Black

02H: Gray

ACK

7FH 60H 80H 36H 01H DATA00 CKS

DATA00 01H: Black

02H: Gray

Company Restricted

PDxx01

RS-232C Control Specification

Page: 45 / 49

Document Version [1.0]

5-70. PDP SAVER AUTO Select

Function

External control apparatus selects automatic or manual of the PDP saver function of a plasma monitor.

Transmission Data

DFH 80H 60H 2CH 01H DATA00 CKS

DATA00 01H: MANUAL 02H: AUTO

ACK

7FH 60H 80H 2CH 01H DATA00 CKS

DATA00 01H: MANUAL 02H: AUTO

5-71. Audio HDMI Request

Function

The external control equipment inquires the current combinations of HDMI audio inputs for the plasma monitor.

Transmission Data

1FH 80H 60H 3AH 00H CKS

ACK

The plasma monitor returns the following ACK:

7FH 60H 80H 6FH 02H DATA00 DATA01 CKS

DATA00: DVD/HD3 INPUT

01H: HDMI



02H: AUDIO INPUT1-3

DATA01: DVD/HD4 INPUT

01H: HDMI



02H: AUDIO INPUT1-3

5-72. POWER ON MODE (INPUT)

Function

Power-on modes (input) are set up.

Transmission Data

DFH 80H 60H 63H 04H DATA00 to DATA03 CKS

DATA00: Power ON mode(INPUT)

00H: LAST



01H: Video1



02H: Video2



05H: DVD/HD1



06H: DVD/HD2



07H: PC/RGB



0EH: DVD/HD3 (HDMI)



1AH: DVD/HD4 (HDMI)

DATA01: FIX

00H

DATA02: FIX

01H

DATA03: FIX

00H

ACK

7FH 60H 80H 63H 00H CKS

Company Restricted

PDxx01

RS-232C Control Specification

Page: 46 / 49

Document Version [1.0]

5-73. POWER ON MODE (VOLUME)

Function

Power-on modes (Volume) are set up.

Transmission Data

DFH 80H 60H 0FH 01H DATA00 CKS

DATA00: Power ON mode (VOLUME)

A0H: LAST 00H: volume0

:

2A H: volume42

ACK

7FH 60H 80H 0FH 00H CKS

5-74. 74. SUB PICTURE RATE set

Function

Sub screen rate of PIP are set up.

Transmission Data

DFH 80H 60H DAH 02H DATA00 DATA01 CKS



DATA00: Sub screen rate Gain flag

01H



DATA01: Sub screen rate Gain

00H: 20%





01H: 30%





02H: 40%





03H: 50%





04H: 60%





05H: 70%





06H: 80%





07H: 90%





08H: 100%



DATA02: FADE

00H: NORMAL





01H: FADE

ACK













7FH 60H 80H DAH 01H DATA00 CKS



DATA00: Sub screen rate Gain flag

01H

Company Restricted

PDxx01

RS-232C Control Specification

Page: 47 / 49

Document Version [1.0]

5-75. MULTI (SPRIT) SCREEN POWER ON MODE SET

Function

Power-on modes (Input) for sprit screen are set up.

Transmission Data

DFH 80H 60H 33H 04H DATA00 to DATA03 CKS

DATA00

POWER ON MODE 01H: LAST





02H: MULTI

DATA01

MULTI MODE

01H: Side By Side1 (Same Size Screen)





02H: Side By Side2 (Left Screen Smaller)





03H: Side By Side2 (Left ScreenBigger)





04H: Picture in Picture1 (Sub screen bottom left)





05H: Picture in Picture2 (Sub screen bottom right)





06H: Picture in Picture3 (Sub screen top right)





07H: Picture in Picture4 (Sub screen top left)

DATA02

INPUT1 (Left or main)





01H: Video1





02H: Video2





05H: DVD/HD1





06H: DVD/HD2





07H: PC/RGB





0EH: DVD/HD3





1AH: DVD/HD4

DATA03

INPUT2 (Right or Sub)





01H: Video1





01H: Video1





02H: Video2

05H: DVD/HD1

06H: DVD/HD2

07H: PC/RGB

0EH: DVD/HD3

1AH: DVD/HD4

ACK

7FH 0H 80H 33H 00H CKS

Company Restricted

PDxx01

RS-232C Control Specification

Page: 48 / 49

Document Version [1.0]

5-76. REMOTE CODE SETTING

Function

Remotecontroler codes are set.

Transmission Data

DFH 80H 60H 2BH 01H DATA00 CKS

DATA00

00H: ALL



01H: CODE1



02H: CODE2



03H: CODE3



04H: CODE4

ACK

7FH 60H 80H 2BH 01H DATA00 CKS

DATA00

00H: ALL



01H: CODE1



02H: CODE2



03H: CODE3



04H: CODE4

5-77. VOLUME Gain Data REQUEST

Function

The external control equipment inquires the volume gain for Plasma diaplay.

Transmission Data

1FH 80H 60H 0EH 00H CKS

ACK

DFH 60H 80H 0EH 01H DATA00 CKS

DATA00: VOLUME Gain

: 00H~2AH



(00H: 0 0FH:15 10H:16 1FH 31 2AH:42)



: FFH: MUTE

5-78. UNDER SCAN SETTING

Function

Under scan are set up.

Transmission Data

DFH 80H 60H 22H 01H DATA00 CKS

DATA00:

00H

OFF



01H

ON

ACK

7FH 60H 80H 22H 01H DATA00 CKS

DATA00:

00H

OFF



01H

ON

Company Restricted

PDxx01

RS-232C Control Specification

Page: 49 / 49





Document Version [1.0]







6.

Revision history













Rev.



Date

Owner

Change description



1.0

12/06/06

Marantz America, Inc.

Issued Revision1.0































Company Restricted
