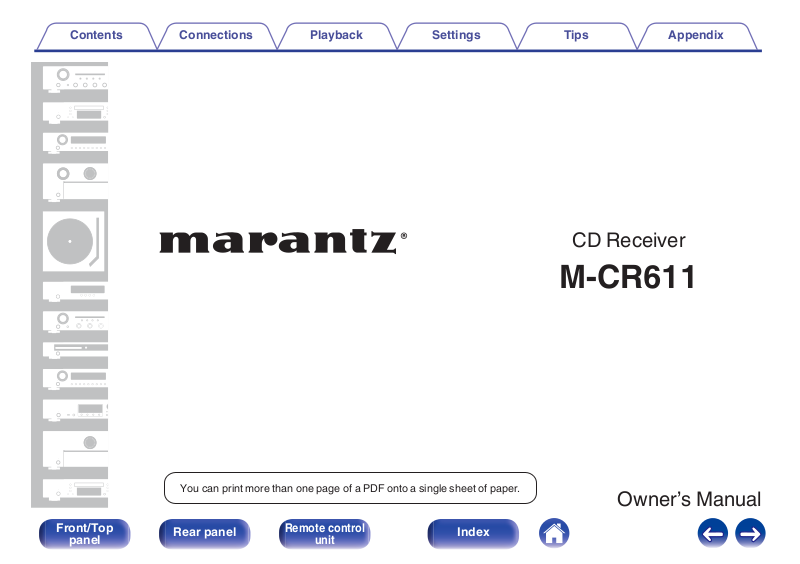

Marantz M-CR611 User Manual

Contents Connections Playback Settings Tips Appendix

.

CD Receiver

M-CR611

Front/Top

panel

You can print more than one page of a PDF onto a single sheet of paper.

Rear panel

Remote control

unit

1

Index

Owner’s Manual

Contents Connections Playback Settings Tips Appendix

Contents

Accessories

Inserting the batteries
Operating range of the remote control unit

Features

Multiple music formats are supported, all in a compact form factor
Easy operation

Part names and functions

Front/Top panel
Rear panel
Remote control unit

6

Connections

7

Speaker connection

7

Connecting the speaker cables

8

Connecting the subwoofer

8

Speaker A connection (Standard)

8

About the speaker B connections

9

About the Bi-Amp connection

9

Connecting a digital device

12

Connecting an analog device

14

Connecting an amplifier
Connecting an iPod or USB memory device to the USB port
Connecting a DAB/FM antenna
Connecting to a home network (LAN)

Wired LAN
Wireless LAN

Connecting the power cord

18

18
19
19
20
21

22
23
24
25
27
28

28
29

31

Front/Top

panel

Rear panel

Remote control

unit

2

Index

Contents Connections Playback Settings Tips Appendix

Playback

Basic operation

Turning the power on
Selecting the input source
Adjusting the volume
Turning off the sound temporarily

Playing CDs

Playing CDs
Playing tracks in a specific order (Program playback)

Playing DATA CDs

Playing files

Listening to Internet Radio

Listening to Internet Radio
Playing the last played Internet Radio station
Using vTuner to add Internet Radio stations to favorites

Playing back files stored on a PC and NAS

Applying media sharing settings
Playing back files stored on a PC and NAS

Listening to DAB/FM broadcasts

33

33
33
34
34

35

35
36

37

38

39

40
41
42

43

44
45

Listening to DAB/FM broadcasts
Changing the FM tuning mode (Tune Mode)
Automatically presetting FM stations (Auto Preset)
RDS Search
PTY Search
TP Search
Radio Text
Listening to DAB

Favorite function

Registering stations or files to the favorites list
Calling stations or files from the favorites list
To switch between registered stations and files during playback
Deleting stations or files from the favorite list

Playing an iPod

Listening to music on an iPod
Setting operation mode (“On-Display” mode)
Charging the iPod/iPhone

Playing a USB memory device

Playing files stored on USB memory devices

47

47
48
48
49
49
50
51
51

53

54
54
54
54

55

56
57
58

59

60

Front/Top

panel

Rear panel

Remote control

unit

3

Index

Contents Connections Playback Settings Tips Appendix

Listening to music on a Bluetooth device

Playing music from Bluetooth device
Pairing with other Bluetooth devices
Reconnecting to this unit from a Bluetooth device
Connecting a Bluetooth device with the NFC function via NFC

Listening to DIGITAL IN
Listening to ANALOG IN
AirPlay function

Playing songs from your iPhone, iPod touch or iPad
Playing iTunes music with this unit
Selecting multiple speakers (devices)

Spotify Connect function

Playing Spotify music with this unit

Remote play function

Settings required for each device

Web control function

Controlling the unit from a web control

Convenience functions

Adjusting the tone
Sleep timer function
Checking the current time
Switching the display’s brightness
Listening to music in two locations using a multi-drive connection

61

Settings

62

Menu map

64
65
66

67
67
68

69
69
70

71

71

72

73

75

75

81

82
83
83
84
85

Menu operation

Inputting characters

Using the number buttons
Using the cursor buttons

General

Alarm
Clock
Clock Mode
Volume Limit
CD Auto Play
Speaker Configuration
Illumination
Audio Out
Language
Auto-Standby
Usage Data
Firmware
Reset

87

91

92

92
93

94

94
95
95
96
96
96
97
98
98
98
99
99

101

Front/Top

panel

Rear panel

Remote control

unit

4

Index

Contents Connections Playback Settings Tips Appendix

Network

Network Information
Network Control
Friendly Name
Wi-Fi
Bluetooth
Settings

DAB

Making the DAB settings

102

102
102
103
103
103
104

110

110

Tips

Tips
Troubleshooting

Appendix

Playing back DATA CDs
Playing back USB memory devices
Playing back Internet Radio
Playing back Bluetooth devices

Bluetooth communications

Playing back files stored on PC or NAS
About Discs
Last function memory
Explanation of terms
Trademark information
Specifications
Index
License

112
114

127
128
130
130

130

131
133
135
136
141
142
148
150

Front/Top

panel

Rear panel

Remote control

unit

5

Index

Quick Setup Guide CD-ROM

(Owner’s Manual)

Safety Instructions

Notes on radio Power cord

FM/DAB indoor antenna

Remote control unit

(RC013CR)

R03/AAA batteries

Contents Connections Playback Settings Tips Appendix

Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.

Accessories

Check that the following parts are supplied with the product.

.

Front/Top

panel

Rear panel

Remote control

unit

6

Index

R03/AAA batteries

30°

Approx. 7 m

30°

Contents

Connections Playback Settings Tips Appendix

Inserting the batteries

Remove the rear lid in the direction of the arrow and remove it.

A

Insert two batteries correctly into the battery compartment as indicated.

B

Put the rear cover back on.

C

.

.

NOTE

To prevent damage or leakage of battery fluid:

0

Do not use a new battery together with an old one.

0

Do not use two different types of batteries.

0

If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

0

compartment and insert new batteries.

Operating range of the remote control
unit

Point the remote control unit at the remote sensor when operating it.

.

Front/Top

panel

Rear panel

Remote control

unit

7

Index

Contents

Features

Connections Playback Settings Tips Appendix

Multiple music formats are supported,
all in a compact form factor

Supports Internet Radio and music streaming

0

Supports AirPlay® (v p. 68)

You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC.

This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.

DLNA (Digital Living Network Alliance) ver. 1.5 support for audio

0

networks
Supports Spotify Connect

0

Support for High Quality Audio playback

0

WAV/FLAC/ALAC (Apple Lossless Audio Codec)/AIFF/DSD (2.8 MHz)

Support for Gapless playback

0

Playback with no gap between music files (for WAV/FLAC/ALAC/
AIFF/DSD (2.8 MHz) only).

Wi-Fi network capability with built-in diversity antenna, and is

0

certified under WMM (Wi-Fi Multi Media) for efficient wireless
connectivity

Equipped with high sound quality, high power digital amplifier

0

and connects using the bi-amp method
Can be connected to 2 sets of speakers

0

The volume of each speaker can be adjusted.

Easy operation

Easy wireless connection is possible by pressing the Wi-Fi

0

CONNECT button (WPS and Wi-Fi Sharing)

See the separate “Quick Setup Guide”.

Wireless connection with Bluetooth devices can be carried out

0

easily

You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.

If the Bluetooth device has NFC function, you can connect easily

0

to touch to N mark
iPod auto detect charges your device even after the unit switches

0

to standby mode
“Marantz Hi-Fi Remote” is application software that allows you to

0

perform basic operations with an iPad, iPhone, Android
smartphone or Android tablet such as turning the unit ON/OFF,
controlling the volume, and switching the source

Download the appropriate “Marantz Hi-Fi Remote” for your iOS or Android

z

devices. This unit needs to be connected to your LAN and the iPad, iPhone,
Android smartphone, Android tablet or other device needs to be connected to
the same network by Wi-Fi (wireless LAN).

OLED (Organic Light Emitting Diode) display that can display 3

0

lines
Auto Standby mode for energy savings

0

Front/Top

panel

Rear panel

Remote control

unit

8

Index

GTop panelH

GFront panelH

q

t

y

Q

0

uoiewr

Q

6

Q

4

Q

3

Q

5

Q

2

Q

7

Q

1

Q

1

Contents

Connections Playback Settings Tips Appendix

Part names and functions

Front/Top panel

Front/Top

panel

.

Rear panel

Remote control

unit

9

Index

GTop panelH

GFront panelH

q

t

y uoiewr

.

Contents

Connections Playback Settings Tips Appendix

A

N mark (Q)

Touch this mark with a Bluetooth device that includes the NFC function
when pairing (registering) with it. (v

Input source select button (INPUT)

B

Selects the input source. (v

Cursor buttons (uio p)

C

These select items.

ENTER button

D

This determines the selection.

Display

E

Various information is displayed here.

Disc tray

F

Tray used to insert a compact disc. (v

Disc tray open/close button (5)

G

Used to open/close the disc tray.

Play/pause button (1/3)

H

Reverse-skip / Forward-skip buttons (8, 9)

I

p. 66)

p. 33)

p. 133)

Front/Top

panel

Rear panel

Remote control

unit

10

Index

.

GFront panelH

Q6Q4Q3 Q5

Q

2

Q

7

Q

1

Q

1

Q0

J

USB port (T, Front)

Used to connect iPod or USB memory devices. (v

Front panel illumination

K

Lights when the power is on. The illumination color can be changed/
turned off using “Illumination” in the menu. (v

Standby indicator

L

The standby indicator changes as shown below according to the status
of the unit.

0

0

0

0

0

0

Contents

Power on : Off
Normal standby : Off
iPod charge standby : Red (v
Display off : Green (v p. 84)
Alarm standby : Orange (v p. 94)
When “Network Control” is set to “On” : Red (v

Connections Playback Settings Tips Appendix

p. 97)

p. 58)

p. 25)

p. 102)

Power operation button (X)

M

Turns power to this unit on and off (standby). (v p. 33)

When “Clock Mode” is turned on, this button switches between normal mode

0

and Clock mode. (v

Remote control sensor

N

This receives signals from the remote control unit. (v p. 7)

Headphones jack (PHONES)

O

Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer

be output from the speaker terminals, SW OUT connector and AUDIO
OUT connectors.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using

0

headphones.

VOLUME up/down buttons (VOLUME df)

P

Adjusts the volume. (v

Stop button (2)

Q

p. 95)

p. 34)

Front/Top

panel

Rear panel

Remote control

unit

11

Index

uy oi

Q0

tewq r

Contents

Rear panel

.

Connections Playback Settings Tips Appendix

Front/Top

panel

Rear panel

Remote control

unit

12

Index

uy oi

Q0

tewq r

Contents

.

AC inlet (AC IN)

A

Used to connect the supplied power cord. (v

Speaker terminals (SPEAKERS)

B

Used to connect speakers. (“Speaker connection” (v p. 18), “About
the Bi-Amp connection” (v p. 21))

DAB/FM antenna terminal (ANTENNA)

C

Used to connect DAB/FM antennas. (v

Wi-Fi CONNECT buttons (iOS/WPS)

D

Used to connect to the wireless LAN.
(See the separate “Quick Setup Guide”.)

Connections Playback Settings Tips Appendix

p. 31)

p. 27)

E

USB port (T, Rear)

Used to connect iPod or USB memory devices. (v p. 25)

DIGITAL IN connectors

F

Used to connect devices equipped with digital audio connectors.
(v p. 22)

SW OUT connector

G

Used to connect a subwoofer with a built-in amplifier. (v p. 19)

AUDIO OUT connectors

H

Used to connect devices equipped with analog audio inputs connectors
or an external pre-main amplifier. (v

ANALOG IN connectors

I

Used to connect devices equipped with analog audio connectors.

p. 23)

(v

NETWORK connector

J

Used to connect this unit to the network. (v

p. 24)

p. 28)

Front/Top

panel

Rear panel

Remote control

unit

13

Index

q

e

w

r

t
y

Contents

Connections Playback Settings Tips Appendix

Remote control unit

Remote control signal transmitter

A

This transmits signals from the remote control unit. (v

CLOCK button

B

The current time appear on the unit. (v p. 83)

SLEEP button

C

This sets the sleep timer. (v

Input source select buttons

D

These select the input source. (v

System buttons

E

These perform playback related operations.

Channel buttons (CH +, –)

These operate the Favorite function. (v

Tuning buttons (TUNE +, –)

These operate the tuner. (v p. 47)

DBB/TONE button

F

Adjusting the tone. (v

p. 83)

p. 33)

p. 53)

p. 82)

p. 7)

Front/Top

panel

Rear panel

Remote control

unit

14

Index

u

i

Q1

Q0

o

Q2

Q3
Q4

Contents

Connections Playback Settings Tips Appendix

FAVORITES ADD / CALL buttons

G

To add radio stations or files to the favorite list, press ADD button.

0

p. 54)

(v
To call up a radio station or file registered in the favorite list, press

0

CALL button. (v

Information button (INFO)

H

This switches display items such as the artist name and album name in
the playback screen.

ENTER button

I

This determines the selection.

Cursor buttons (uio p)

J

These select items.

SEARCH button

K

This displays the search menu.

Number buttons (0 – 9, +10)

L

These enter letters or numbers into the unit.

M

RANDOM button (P)

Switches the random playback.

N

REPEAT button (L)

Switches to the repeat playback.

p. 54)

Front/Top

panel

Rear panel

Remote control

unit

15

Index

Q7

Q9

W0

Q8

W1
W2

W3

Q6

Q5

Contents

Connections Playback Settings Tips Appendix

DIMMER button

O

p. 84)

p. 86)

Adjust the display brightness of this unit. (v

POWER button (X)

P

This turns the power on/standby. (v p. 33)

VOLUME buttons (df)

Q

These adjust the volume level. (v

VOLUME A/B button

R

This specifies which set of speakers (Speaker A/Speaker B) to adjust the
volume for when 2 sets of speakers are connected. (v

p. 34)

This is only enabled when “Both Speakers A and B = On” is set for the audio

0

output speakers. (v

S

MUTE button (O)

This mutes the output audio. (v p. 34)

SETUP button

T

The setting menu is displayed on the display. (v p. 91)

CLEAR button

U

This cancels the settings.

SPEAKER A/B button

V

This sets up the speaker output. (v

PROGRAM / MODE button

W

Used to connect speakers. (“Changing the FM tuning mode (Tune

0

Mode)” (v
mode)” (v p. 57))

This sets program playback. (v p. 36)

0

p. 86)

p. 86)

p. 48), “Setting operation mode (“On-Display”

Front/Top

panel

Rear panel

Remote control

unit

16

Index

R

L

R

L

Contents Connections Playback Settings Tips Appendix

Connections

o

Contents

Speaker connection 18

Connecting a digital device 22

Connecting an analog device 23

Connecting an amplifier 24

Connecting an iPod or USB memory device to the USB port 25

Connecting a DAB/FM antenna 27

Connecting to a home network (LAN) 28

Connecting the power cord 31

NOTE

Do not plug in the power cord until all connections have been completed.

0

Do not bundle power cords with connection cables. Doing so can result in noise.

0

o

Cables used for connections

Provide necessary cables according to the devices you want to connect.

Speaker cable

.

Subwoofer cable

Optical cable

.

.

Audio cable

.

LAN cable

.

Front/Top

panel

Rear panel

Remote control

unit

17

Index

Contents

Connections Playback Settings Tips Appendix

Speaker connection

Here we connect the speakers in the room to this unit.
This section explains how to connect them using typical examples.

NOTE

Disconnect this unit’s power plug from the power outlet before connecting the

0

speakers. Also, turn off the subwoofer.
Connect so that the speaker cable core wires do not protrude from the speaker

0

terminal. The protection circuit may be activated if the core wires touch the rear
panel or if the + and - sides touch each other. (“Protection circuit” (v p. 140))

Never touch the speaker terminals while the power cord is connected. Doing so

0

could result in electric shock.
Use speakers with an impedance of 4 – 16 Ω/ohms.

0

Connecting the speaker cables

Connect the speaker cable to the + speaker terminal (red) and the ­speaker terminal (black).

Peel off about 10 mm of sheathing from the tip of the

1

speaker cable, then twist the core wire tightly.

.

Turn the speaker terminal counterclockwise to loosen

2

it.

.

Insert the speaker cable’s core wire to the hilt into the

3

speaker terminal.

.

Turn the speaker terminal clockwise to tighten it.

4

.

Front/Top

panel

Rear panel

Remote control

unit

18

Index

SW

R (A)

L (A)

Contents

Connections Playback Settings Tips Appendix

Connecting the subwoofer

Use a subwoofer cable to connect the subwoofer.

.

The subwoofer volume is linked to the Speaker A volume.

0

This unit does not output to the subwoofer when “Speaker B = On” is set for the

0

audio output speakers.

Speaker A connection (Standard)

.

Front/Top

panel

Rear panel

Remote control

unit

19

Index

R (B)

L (B)

Contents

Connections Playback Settings Tips Appendix

About the speaker B connections

.

When using this connection, also set “Bi-Amp” in the menu to “Disable”.

0

(v p. 96)
By connecting speakers to the speaker B terminals as well as the speaker A

0

terminals, the multi-drive connection in which audio can be output from separate
speakers or both speakers can be used. (v p. 85)

Front/Top

panel

Rear panel

Remote control

unit

20

Index

wqwq

(R) (L)

LR

Contents Connections Playback Settings Tips Appendix

About the Bi-Amp connection

Some audiophile loudspeakers can be connected to an amplifier with two separate amp-to-speaker connections per each speaker. One amplifier
channel’s output is hooked up to the speaker’s bass driver (woofer), while the other amplifier drives the upper range transducers (tweeter, or in some
cases midrange and tweeter). This connection method has one amplifier channel driving one half of the bi-amp speaker, and avoids electrical interference
between the speaker’s bass and treble drivers and the driving amplifier channels. You can assign 4 amp channels to connect to one pair of bi-amp
capable speakers. Bi-amp capable speakers always have two sets of speaker input connector pairs, one for the bass range and one for the treble range. If
you’re unsure about whether or not your speakers are bi-amp capable, consult the owner’s manual that came with the speakers.

When using this connection, also set “Bi-Amp” in the menu to “Enable”.

0

(v p. 96)

NOTE

When making bi-amp connections, be sure to remove the short-circuiting plate or

0

wire between the speaker’s woofer and tweeter terminals.

.

Front/Top

panel

Rear panel

Remote control

unit

21

Index

AUDIO

OPTICAL

OUT

Digital

device

Contents Connections Playback Settings Tips Appendix

Connecting a digital device

You can connect this unit to devices with digital audio output (TV, digital
gear, etc.).

NOTE

Linear PCM signals with a sampling frequency of 32 kHz, 44.1 kHz, 48 kHz, 88.2

0

kHz, 96 kHz, 176.4 kHz, or 192 kHz can be input into this device.
Do not input signals other than linear PCM signals, such as Dolby digital, DTS,

0

AAC etc. into this device. Doing so may cause noise, which may cause damage to
the speakers.

.

Front/Top

panel

Rear panel

Remote control

unit

22

Index

AUDIO

LR

OUT

L

R

L

R

AUDIO

Analog

device

Contents Connections Playback Settings Tips Appendix

Connecting an analog device

You can connect this unit to various devices with analog audio output.

Front/Top

panel

Rear panel

Remote control

unit

23

Index

AUDIO

LR

IN

L

R

L

R

AUDIO

Analog

device

Contents Connections Playback Settings Tips Appendix

Connecting an amplifier

You can connect this unit to various devices with analog audio input.

.

Volume adjustment for the analog audio output can be switched between “Variable” and “Fixed”. (v p. 98)

0

When the volume adjustment for analog audio output is set to “Variable”, the volume is linked to the Speaker A volume. This unit does not output to the analog audio output

0

when “Speaker B = On” is set for the audio output speakers. (v p. 86)

Front/Top

panel

Rear panel

Remote control

unit

24

Index

USB memory

device

or

iPod

Contents Connections Playback Settings Tips Appendix

Connecting an iPod or USB memory device to the USB port

To connect an iPod/iPhone to this unit, use the USB adapter cable that was supplied with the iPod/iPhone.

0

For operating instructions, see “Playing an iPod” (v p. 55) or “Playing files stored on USB memory devices” (v p. 60).

0

.

Marantz does not guarantee that all USB memory devices will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter,

0

use that device’s supplied AC adapter.

NOTE

USB memory devices will not work via a USB hub.

0

It is not possible to use this unit by connecting the unit’s USB port to a PC via a USB cable.

0

Do not use an extension cable when connecting a USB memory device. This may cause radio interference with other devices.

0

Front/Top

panel

Rear panel

Remote control

unit

25

Index

Supported iPod/iPhone models

• iPod classic

• iPod nano

• iPod touch

• iPhone

o

Contents

Connections Playback Settings Tips Appendix

.

Front/Top

panel

Rear panel

Remote control

unit

26

Index

Direction of broadcasting station

DAB/FM outdoor antenna

75 Ω/ohms coaxial cable

DAB/FM indoor

antenna

(supplied)

Contents Connections Playback Settings Tips Appendix

Connecting a DAB/FM antenna

After connecting the antenna and receiving a broadcast signal, fix the
antenna with tape in a position where the noise level becomes minimal.
“Listening to DAB/FM broadcasts” (v p. 47)

.

NOTE

For best results with the supplied indoor antenna, orient the antenna along a wall

0

such that it is stretched out horizontally and parallel to the floor (but above the
floor), and then fasten the two end tabs to the wall. This type of antenna is
directional and best results will be obtained when it is correctly oriented toward the
transmitting location.

For example, if the transmission tower is to the north, then the two ends of the

0

antenna (with the tabs) should be stretched toward west and east.
Do not connect two DAB/FM antennas simultaneously.

0

If you are unable to receive a good broadcast signal, we recommend installing an

0

outdoor antenna. For details, inquire at the retail store where you purchased the
unit.

Front/Top

panel

Rear panel

Remote control

unit

27

Index

Internet

Modem

PC

Router

To WAN side

To LAN port

To LAN port

LAN port/

Ethernet

connector

LAN port/

Ethernet

connector

NAS

(Network Attached

Storage)

Contents

Connections Playback Settings Tips Appendix

Connecting to a home network (LAN)

You can connect this unit to your home network (LAN) to perform various
types of playbacks and operations as follows.

Playback of network audio such as Internet Radio and from your music

0

server(s)
Playback of music content from online streaming services

0

Using the Apple AirPlay function

0

Operation on this unit via the network

0

Firmware Update

0

For connections to the Internet, contact an ISP (Internet Service
Provider) or a computer shop.

Wired LAN

.

Front/Top

panel

Rear panel

Remote control

unit

28

Index

Internet

Modem

To WAN side

Router with access point

Contents

Wireless LAN

Connections Playback Settings Tips Appendix

With this unit, it is possible to use the DHCP and Auto IP functions to make the

0

network settings automatically.
When using this unit with the broadband router’s DHCP function enabled, this unit

0

automatically performs the IP address setting and other settings. When using this
unit connected to a network with no DHCP function, make the settings for the IP
address, etc., at “Network”. (v

When using this unit, we recommend you use a router equipped with the following

0

functions:

Built-in DHCP server

0

This function automatically assigns IP addresses on the LAN.
Built-in 100BASE-TX switch

0

When connecting multiple devices, we recommend a switching hub with a
speed of 100 Mbps or greater.

Use only a shielded STP or ScTP LAN cable which is easily available at

0

electronics stores. (CAT-5 or greater recommended)
The normal shielded-type LAN cable is recommended. If a flat-type cable or

0

unshielded-type cable is used, other devices could be affected by noise.
When using a WPS (Wi-Fi Protected Setup) compatible router, you can connect

0

easily to Wi-Fi by pressing the Wi-Fi CONNECT button (WPS) on this unit. (See
the separate “Quick Setup Guide”.)

p. 102)

.

Front/Top

panel

Rear panel

Remote control

unit

29

Index

Contents Connections Playback Settings Tips Appendix

NOTE

The types of routers that can be used depend on the ISP. Contact your ISP or a

0

computer shop for details.
This unit is not compatible with PPPoE. A PPPoE-compatible router is required if

0

you have a contract for a type of line set by PPPoE.
Do not connect a NETWORK connector directly to the LAN port/ Ethernet

0

connector on your computer.

Front/Top

panel

Rear panel

Remote control

unit

30

Index
