Model DV6600 User Guide

Super Audio CD/DVD Player

CLASS 1

LASER PRODUCT

PRECAUTIONS

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.





CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HERE MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM (WARNING LOCATION: INSIDE ON LASER COVERSHIELD)

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.

Operating Environment

Operating environment temperature and humidity:

+5oC to +35oC (+41oF to +95oF); less than 85%RH (cooling vents not blocked) Do not install in the following locations

Location exposed to direct sunlight or strong artificial light

Location exposed to high humidity, or poorly ventilated location

NOTE:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

CAUTION:

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment.

To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.

This product is for general household purposes. Any failure due to use for other than household purposes (such as long - term use for business purposes in a restaurant or use in a car or ship) and whichrequires repair will be changed for even during the warranty period.

Do not remove the cover from the equipment.

Do not insert anything into the equipment through the ventilation holes.

Do not handle the mains lead with wet hands.

Make a space of about 0.1 meter around the unit.

IMPORTANT NOTICE [For U.S. model]

The serial number for this equipment is located on the rear panel. Please write this serial number on your enclosed warranty card and keep it in a secure area. This is for your security.

– 2 –

EN

AC POLARIZED PLUG

PRECAUTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ BEFORE OPERATING EQUIPMENT

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read Instructions – All the safety and operating instructions should be read before the product is operated.

2.Retain Instructions – The safety and operating instructions should be retained for future reference.

3.Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.

4.Follow Instructions – All operating and use instructions should be followed.

5.Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6.Attachments – Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7.Water and Moisture – Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9.CART – A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation – Slots and openings in the cabinet are

provided for ventilation and to ensure reliable operation of the product and to protect it from overheating,

and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

11. Power Sources – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization – This product may be equipped with a

polarized alternating-current line plug (a plug having one blade

wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13.Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14.Protective Attachment Plug – The product is equipped with an attachment plug having overload protection. This is a safety feature. See Instruction Manual for replacement or resetting of protective device. If replacement of the plug is required, be sure the service technician has used a replacement plug specified by the manufacturer that has the same overload protection as the original plug.

15.Outdoor Antenna Grounding – If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure 1.

16.Lightning – For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

17.Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

18. Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

19.Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.

Never spill liquid of any kind on the product.

20. Servicing – Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

21. Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power-supply cord or plug is damaged.

b.If liquid has been spilled, or objects have fallen into the product.

c.If the product has been exposed to rain or water.

d.If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e.If the product has been dropped or damaged in any way, and

f.When the product exhibits a distinct change in performance – this indicates a need for service.

22.Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

23.Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

24. Wall or Ceiling Mounting – The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

25. Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

FIGURE 1

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE, ANSI/NFPA 70



ANTENNA



LEAD IN

GROUND

WIRE



CLAMP





ANTENNA



DISCHARGE UNIT



(NEC SECTION 810-20)

ELECTRIC



SERVICE

GROUNDING CONDUCTORS

EQUIPMENT

(NEC SECTION 810-21)

GROUND CLAMPS





POWER SERVICE GROUNDING



ELECTRODE SYSTEM



(NEC ART 250, PART H)

NEC - NATIONAL ELECTRICAL CODE

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Classe B est conforme à la norme



NMB-003 du Canada.

English

– 3 –

EN

A NOTE ABOUT RECYCLING:

This product’s packaging materials are recyclable and can be reused.

Please dispose of any materials in accordance with your local recycling regulations. When discarding the unit, comply with your local rules or regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Make your contribution to the environment!!!

Used up batteries do not belong in the dust bin.

You can dispose of them at a collection point for used up batteries or special waste. Contact your council for details.

TABLE OF CONTENTS

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

LASER SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . 3

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

About Copyright. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Notice for the Progressive Scan Outputs . . . . . . . . . . . . 5 Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Symbols Used in this Manual. . . . . . . . . . . . . . . . . . . . . 5

ABOUT THE DISCS . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

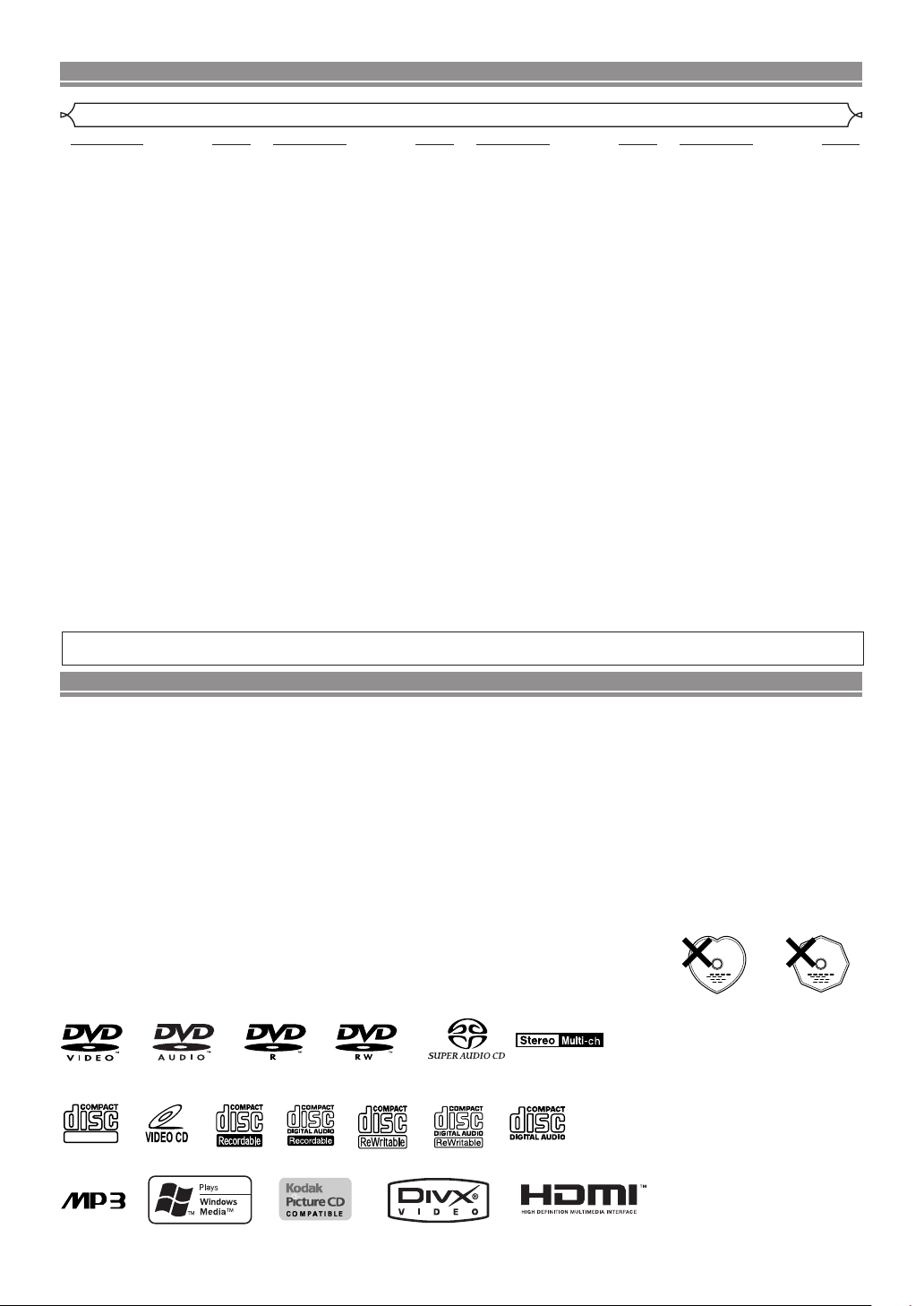

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

FUNCTIONAL OVERVIEW . . . . . . . . . . . . . . . . . . . . . . 8

FRONT PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . 8 Tour of the Remote Control . . . . . . . . . . . . . . . . . . . . . . 9 Panel Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Displays during Operation . . . . . . . . . . . . . . . . . . . . . . 11 Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . 11 Loading the Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . 11

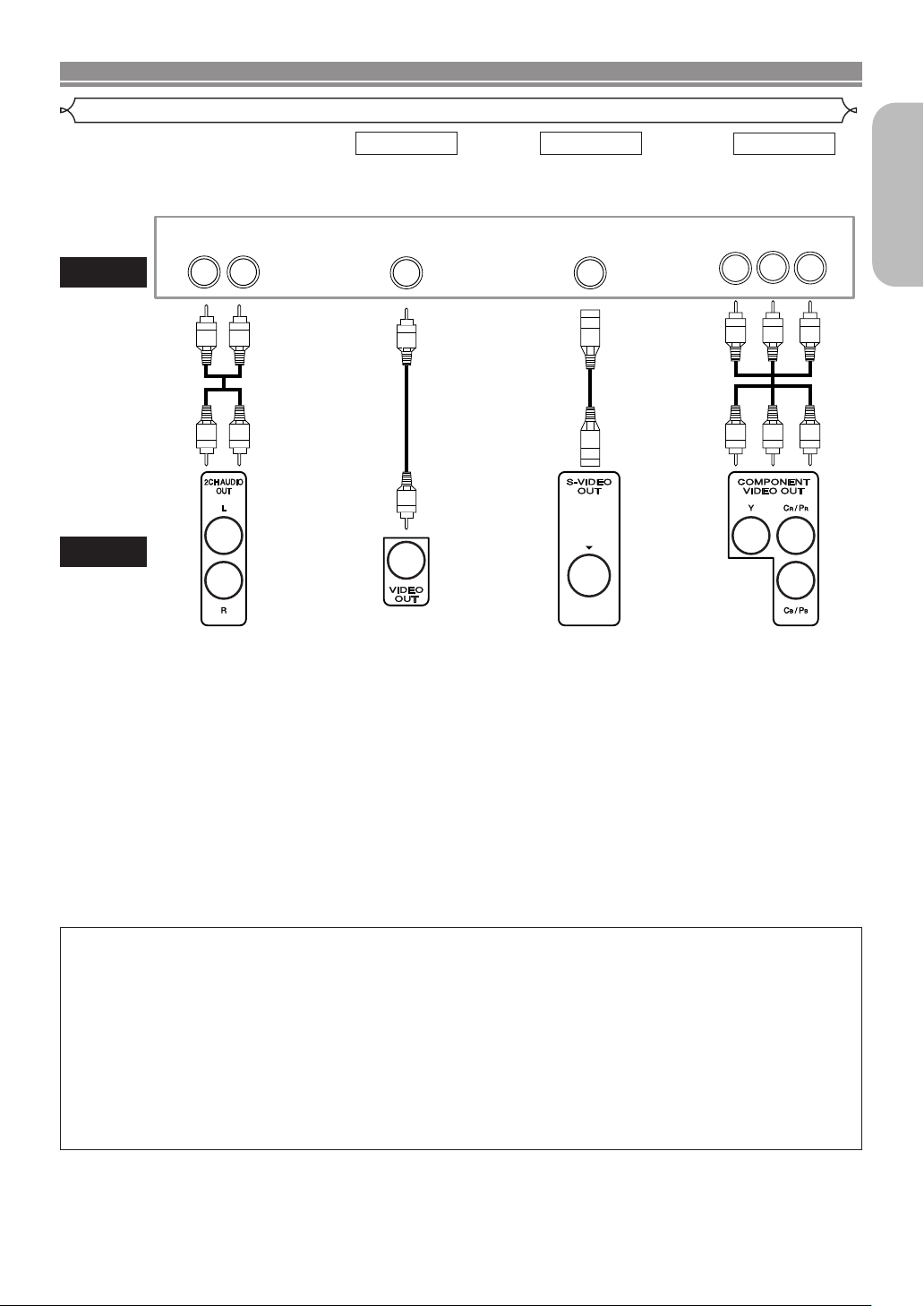

CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

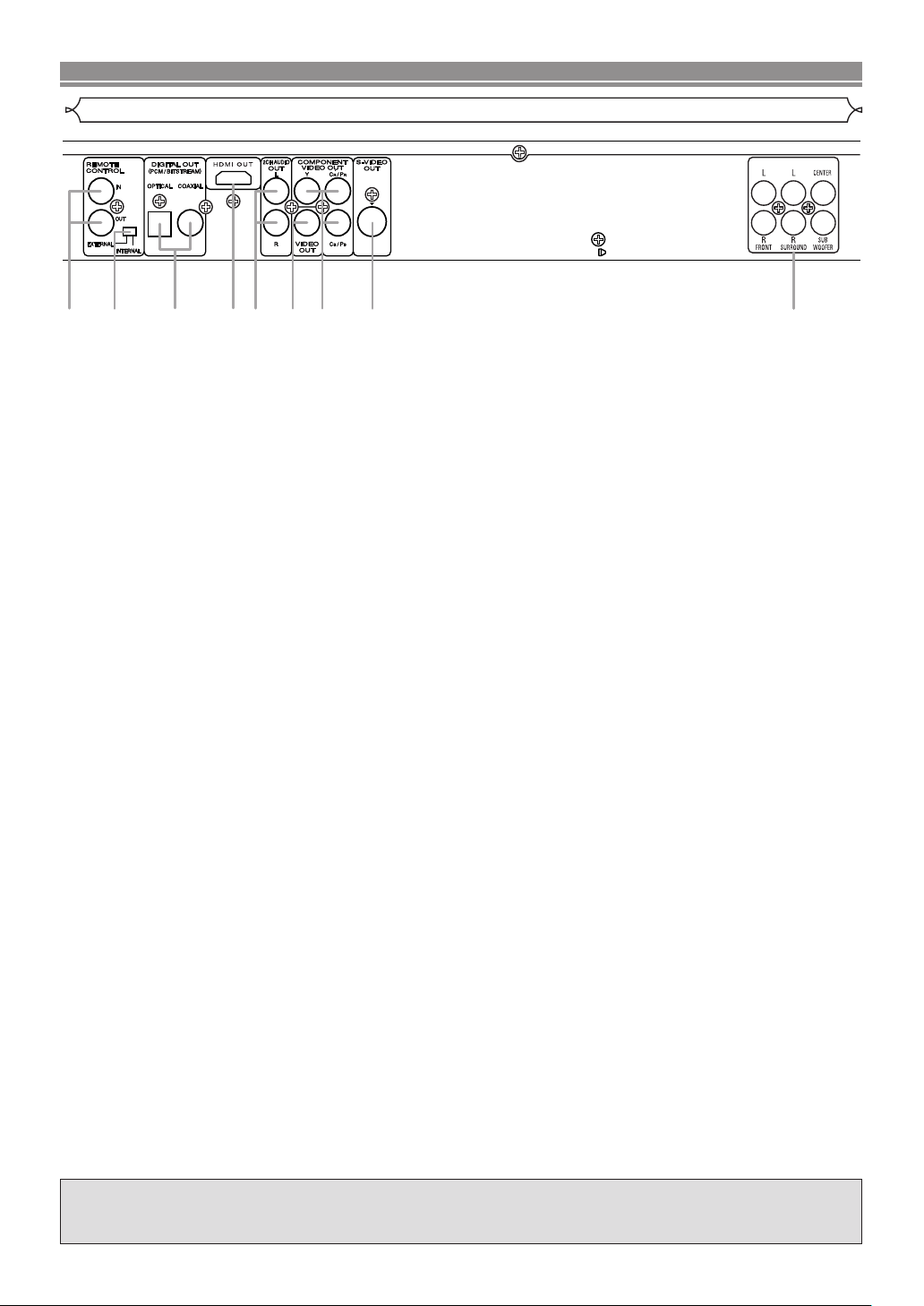

Description - Rear Panel . . . . . . . . . . . . . . . . . . . . . . . 12 Connection to an Audio System . . . . . . . . . . . . . . . . . . 13 Connection to 5.1-channel Surround Sound System. . . 14 Connection to a TV (for Video) . . . . . . . . . . . . . . . . . . . 15 Connection to a TV with an HDMI Terminal . . . . . . . . . 16

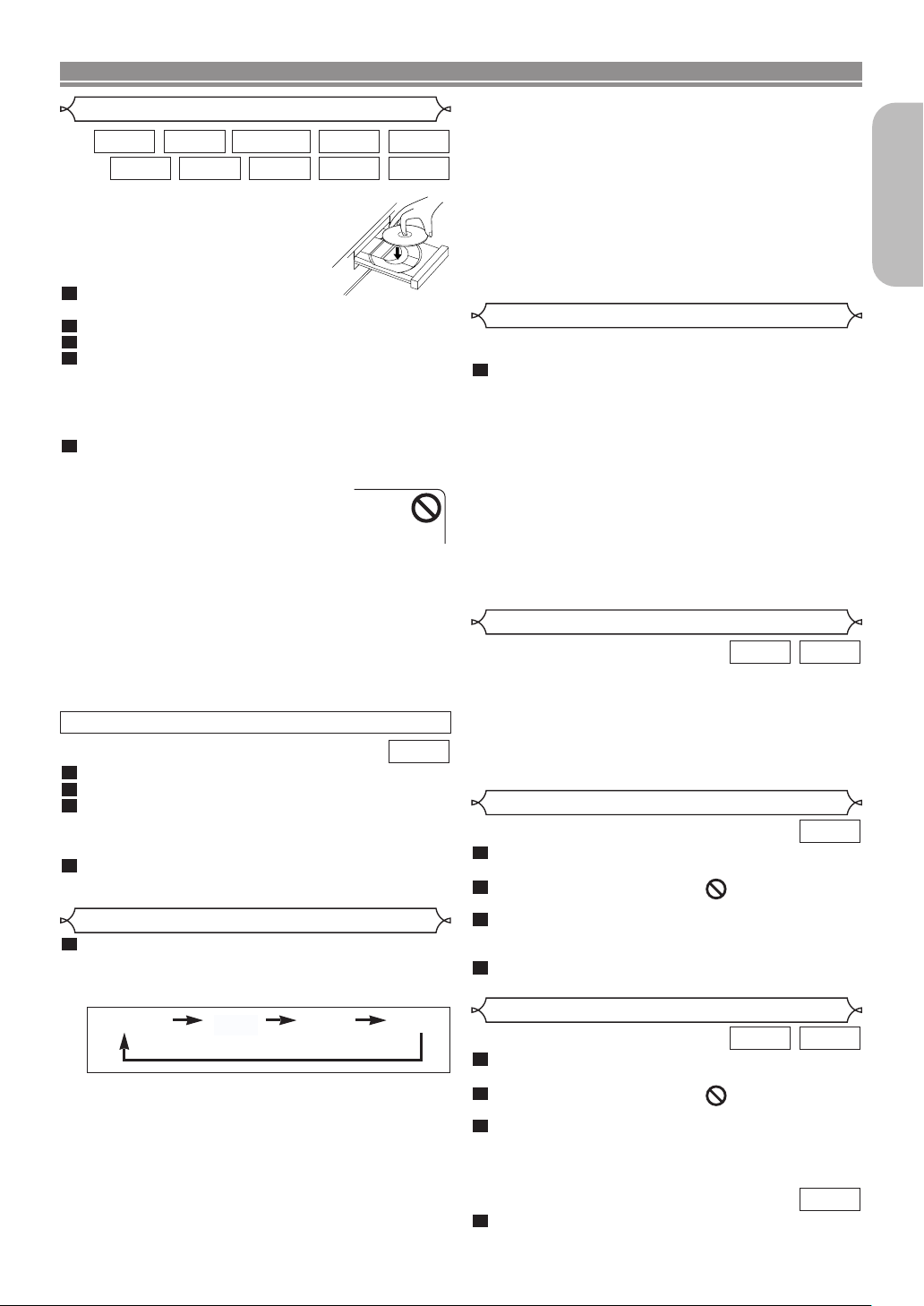

PLAYING A DISC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Basic Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 CANCELLING AND CALLING BACK

THE PBC FUNCTION . . . . . . . . . . . . . . . . . . . . . . . 17 HDMI Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 AUDIO EX Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 General Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Disc Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Title Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

CALLING UP A MENU SCREEN DURING

PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 DVD Audio Playback . . . . . . . . . . . . . . . . . . . . . . . . . . 18 PLAYBACK OF ALL GROUPS . . . . . . . . . . . . . . . . . 18 PLAYBACK FROM A DESIRED GROUP . . . . . . . . . 18 PAGE SELECTION . . . . . . . . . . . . . . . . . . . . . . . . . 18 PLAYBACK OF THE BONUS GROUP . . . . . . . . . . . 18 Still / Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Step by Step Playback. . . . . . . . . . . . . . . . . . . . . . . . . 18 Resume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Playing the Disc Recorded in VR Mode

(Video Recording Format) . . . . . . . . . . . . . . . . . . . . . . 18

Fast Forward / Reverse Search . . . . . . . . . . . . . . . . . . 19 Slow Forward / Slow Reverse . . . . . . . . . . . . . . . . . . . 19 Zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Title / Chapter Search . . . . . . . . . . . . . . . . . . . . . . . . . 19 BY USING THE SEARCH MODE BUTTON . . . . . . . 19 BY USING THE SKIP BUTTONS H G . . . . . . . . 19 Track Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 BY USING THE SEARCH MODE BUTTON . . . . . . . 20 BY USING THE SKIP BUTTONS H G . . . . . . . . 20 Time Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 REPEAT TITLE / CHAPTER. . . . . . . . . . . . . . . . . . . 20 REPEAT TRACK / GROUP / ALL . . . . . . . . . . . . . . . 20 A-B REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Program Playback (DVD-A / Super Audio CD / CD) . . . 21 Random Playback (DVD-A / Super Audio CD / CD) . . . 21 MP3 / JPEG / WMA Playback . . . . . . . . . . . . . . . . . . . 21 DivX® Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Slide Show Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 On-Screen Information. . . . . . . . . . . . . . . . . . . . . . . . . 24 Program Playback (MP3 / JPEG / WMA) . . . . . . . . . . . 25 Random Playback (MP3 / JPEG / WMA) . . . . . . . . . . . 25 Audio Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Subtitle Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Sound Mode / Stereo Sound Mode . . . . . . . . . . . . . . . 26 Camera Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Marker Setup Screen. . . . . . . . . . . . . . . . . . . . . . . . . . 27 Virtual Surround . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Black Level Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

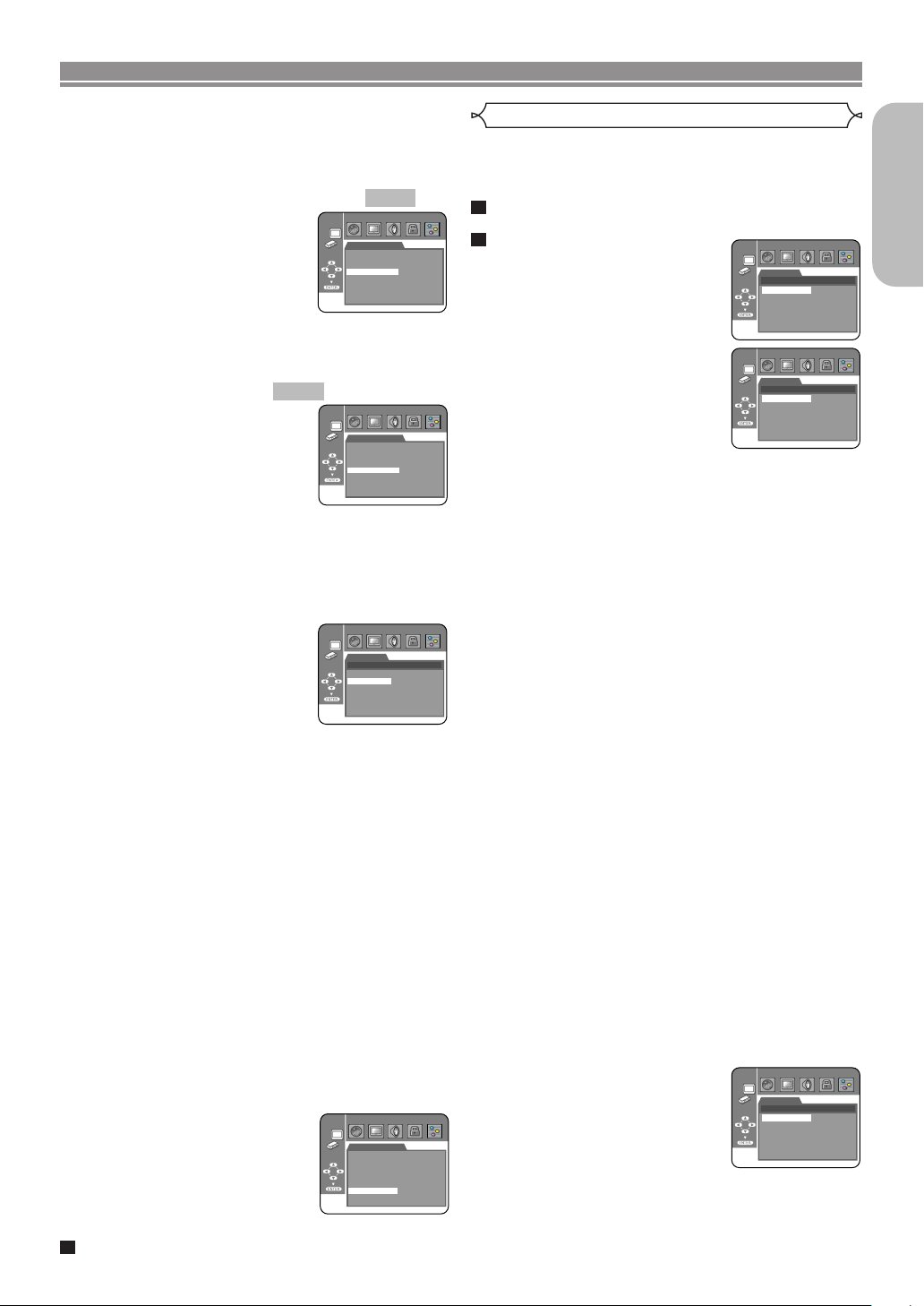

DVD SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Language Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Display Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Audio Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Speaker Setting for ANALOG AUDIO . . . . . . . . . . . . . . 29 Parental Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

PARENTAL LEVEL. . . . . . . . . . . . . . . . . . . . . . . . . . 30 IF YOU FORGET THE PASSWORD . . . . . . . . . . . . . 30

CONTROL LEVELS . . . . . . . . . . . . . . . . . . . . . . . . . 30 Others Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Reset to the Default Settings (except for PARENTAL) . 31 Language Code List . . . . . . . . . . . . . . . . . . . . . . . . . . 32

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

TROUBLESHOOTING GUIDE. . . . . . . . . . . . . . . . . . . 33

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

– 4 –

EN

INTRODUCTION

The serial number of this product may be found on the back of the DVD player. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase

Dealer Purchase from

Dealer Address

Dealer Phone No.

Model No.

Serial No.

About Copyright

English

Apparatus Claims of U. S. Patent Nos, 4,631,603, 4,577,216, 4,819,098, and 4,907,093 licensed for limited viewing uses only.

Notice for the Progressive Scan Outputs

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 525 progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p DVD player, please contact our customer service center.

Supplied Accessories

Please check to make sure the following items are included with the main unit in the carton.

Remote

“AA” (R6P)

Audio (Red and White)

control • • • • • • • • 1

batteries • • • • • • 2

cable• • • • • • • • • • • 1





Video (Yellow)





cable• • • • • • • • • • • 1

Remote control

User Guide

Warranty card

bus cable (Orange)

• • • • • • • • • • • • • • • 1

for USA• • • • • • 1

• • • • • • • • • • • • • • • 1



Warranty card





for Canada • • • 1







Symbols Used in this Manual

The following symbols appear below in some headings and notes in this manual, with the following meanings.

DVD-V :

DVD-A :

VCD :

Super :

Audio CD

CD :

Description refers to playback of DVD-Video discs.

Description refers to playback of DVD-Audio discs.

Description refers to playback of Video CDs.

Description refers to playback of Super Audio CDs.

Description refers to playback of Audio CDs.

MP3 :

JPEG :

WMA :

DivX® :

DVD-RW :

Description refers to playback of discs formatted with MP3. Description refers to viewing of JPEG discs.

Description refers to playback of discs formatted with WMA. Description refers to playback of discs formatted with DivX®. Description refers to playback of

the VR mode (Video Recording format).

is a trademark of DVD Format/Logo Licensing Corporation.

is trademark of Eastman Kodak Company.

This label indicates playback compatibility with DVD-RW discs recorded in VR mode (Video Recording format).

Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

– 5 –

EN

ABOUT THE DISCS

Playable Discs

Playable

Mark (logo)

Region code

Recorded

Disc size





Disc types







discs

signals



































DVD-Audio







Digital audio

12 cm



Example

Group 1



Group 2





-

+

or



Track 1

Track 2

Track 3

Track 4

Track 1

Track 2









Digital video

8 cm



* 2, 3, 5























DVD-Video



























* 1, 2, 3, 5































1

or

Digital video

12 cm



Example















or



Title 1



Title 2

DVD-RW







DivX®















8 cm



Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 1 Chapter 2

DVD-R





































* 1, 3, 4, 5,



























6, 7, 8



























Video CD







Sound























-

and



















* 1, 3, 5, 9

DIGITAL VIDEO

























Pictures



Video CD,

































































Super











Super



















-

Digital audio



Audio CD,















Audio CD































Audio CD

Example











































12 cm



Track 1

Track 2

Track 3

Track 4

Track 5

Track 6

Audio CD





-

Digital audio

or

















* 4, 5





8 cm

















































Digital audio



MP3,























MP3

















CD-RW









JPEG,





















WMA*10

























WMA,















CD-R





-

Digital picture

















* 4, 5, 7,







DivX®

Example

Group 1



Group 2







(JPEG)







8, 9































DivX®





Track 1

Track 2

Track 3

Track 4

Track 5

Track 6













Picture CD





-

JPEG

12 cm

















If you cannot play back a disc which bears one of the marks above, check the following notes.

*1: This player conforms to the NTSC color system. Also you can play discs recorded with the PAL system via a PAL system TV set.

*2: Certain DVD-Video discs do not operate as described in this manual due to the intentions of the disc’s producers. *3: Scratched or stained discs may not be played back.

*4: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs.

*5: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not play them back. Even if they are played back, the sound or video quality will be compromised.

*6: Only the discs recorded in the video format or Video Recording format, and finalized can be played back.

Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may be distorted, etc.).

*7: If there is too much recordable space left on a disc (the used portion is less than 55mm across), it may not play back properly.

*8: Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly. *9: This unit conforms to ver.1.1 and ver.2.0 of Video CD standard with PBC function.

Ver.1.1 (without PBC function): You can enjoy playback picture as well as music CD.

Ver.2.0 (with PBC function): While using a Video CD with PBC function, “Pbc” appears on the screen and the display. NOTE: When playing Video CDs with PBC function, some operations (e.g., track search and repeat tracks) cannot be

performed. Cancel PBC function temporarily to perform those operations (refer to page 17).

What is PBC? “PBC” stands for Playback Control.

You can play interactive software using menu screens. Refer to instructions in the Video CD.

*10: This player cannot play the disc contents protected by Windows Media Digital Rights Management (DRM). NOTE: This player cannot play the DVD-RW discs that supports CPRM (Content Protection for Recordable Media).

This player cannot play the DVD-R discs recorded in VR mode (Video Recording format).

¡NEVER play back the following discs. Otherwise, malfunction may result!

DVD-RAM / CD-I / Photo CD / DVD with region codes other than 1 or ALL / DVD-ROM for personal computers / CD-ROM for personal computers

¡Any other discs without compatibility indications

CAUTION:

Use caution not to pinch your finger in the disc slot.

Be sure to remove a disc and unplug the AC power cord from the outlet before carrying the DVD player.

– 6 –

EN

FEATURES

¡Progressive Scan system

Unlike conventional interlace scanning, the progressive scan system provides less flickering and images in higher resolution than that of traditional 525i television signals.

¡Analog 5.1-channel Dolby and DTS surround output

This player is equipped with analog 5.1-channel Dolby and DTS surround audio out jacks for playback.

¡Dolby Digital Sound

By hooking this player up to a Multi - Channel Dolby Digital decoder, you can enjoy high-quality Dolby Digital 5.1 channel surround sound as heard in the movie theaters.

¡HDMI (High-Definition Multimedia Interface)

You can enjoy clearer video output when connecting this player to a display equipment with an HDMI terminal.

¡Still/Fast/Slow/Step Playback

Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.

¡Random Playback for DVD-Audio, Super Audio

CD, Audio CD, MP3, JPEG, and WMA

This player can shuffle the order of tracks to play them in random order.

¡Program Playback for DVD-Audio, Super Audio

CD, Audio CD, MP3, JPEG, and WMA

You can program the order of tracks to play them in any desired order.

¡DVD menus in a desired language

You can display DVD menus in a desired language if the language is available on the DVD.

¡Auto Power Off

The power turns off automatically if there is no activity at the player or its remote control for more than 30 minutes. (Refer to page 31.)

¡Subtitles in a desired language

You can select a desired language for subtitles if the language is available on the disc.

¡Selecting a camera angle

You can select a desired camera angle if a disc contains sequences recorded from different angles.

¡Choices for audio language and sound mode

You can select a desired audio language and sound mode if different languages and modes are available on the disc.

¡Parental Lock

You can set the control level to limit playback of discs which may not be suitable for children.

¡Super Audio CD multi-channel playback compatibility

In addition to playing DVD-Video and DVD-Audio discs, this player can play multi-channel Super Audio CDs with a playback frequency range covering 100kHz and a dynamic range of 120dB or greater within the audible frequency range, and a maximum of 5.1 channels can be output.

¡Automatic detection of discs

¡Search

Chapter search:

Search for a desired chapter.

Title search:

Search for a desired title.

Group search:

Search for a desired group.

Page search:

Search for a desired page.

Track search:

Search for a desired track.

Time search:

Search for a desired time point of a title



or track.

¡Repeat

Chapter:

Repeated playback of a chapter of the disc.

Title:

Repeated playback of a title of the disc.

Track:

Repeated playback of a track of the disc.

All:

Repeated playback of the entire disc.



(exclude DVD-Video)

A-B:

Repeated playback of a part between two points.

Group:

Repeated playback of a folder of the



DVD-Audio/Super Audio CD/MP3/JPEG/WMA/



DivX® disc.

¡Zoom

2-time or 4-time magnified screen can be displayed.

¡Marker

The part designated by user can be called back.

¡Resume Play

You can resume playback from the point at which the play has been stopped even if the power is turned off.

¡Component Video Out Jacks

Jacks located on the back of the DVD player which are used to send high-quality video to a TV via Component Video In Jacks.

¡Bit rate indication

¡DRC (Dynamic Range Control)

You can compress the range of sound volume.

¡Displaying JPEG files

Kodak Picture CDs can be played. Still images stored in JPEG format on CD-R/RW can also be played.

¡Reproducing WMA files

You can enjoy WMA files which are recorded on CD-R/RW.

¡Reproducing DivX® files

You can enjoy DivX® files which are recorded on DVD- R/RW or CD-R/RW.

Official DivX CertifiedTM product

Plays DivX®5, DivX®4, DivX®3, and DivX® VOD video content (in compliance with DivX CertifiedTM technical requirements).

This player supports Quarter Pixel.

This player does not support GMC.

¡AUDIO EX

The sound quality of analog audio output is improved by turning off analog video signal output and the front panel display.

¡PAL disc playback

You can play discs recorded with the PAL system via a PAL system TV set.

This player automatically detects if a loaded disc is DVDVideo, DVD-Audio, Video CD, Super Audio CD, Audio CD, MP3, JPEG, WMA, or DivX®.

¡Playing an MP3 disc

You can enjoy MP3 files which are recorded on CD-R/RW.

¡Direct Search

You can search a desired title, chapter, and track with the numeric buttons during playback or in stop mode.

¡On-screen display

Information about the current operation can be displayed on the TV screen, allowing you to confirm the currently active functions (such as program playback).

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

“WMA” (Windows Media Audio) is a new audio codec developed by Microsoft® in the United States of America.

English

English

– 7 –

EN

FUNCTIONAL OVERVIEW

FRONT PANEL

36

STANDBY

POWER ON/STANDBY





A

HDMI

AUDIO EX.

OPEN/CLOSE

1

2

3

4

5

6 7/8

9

10

1112/13

35

REMOTE CONTROL

POWER

OPEN/

CLOSE

1.POWER (ON/STANDBY) Button [page 17]

2.STANDBY Indicator

This indicator lights when the DVD player turns off.

3.HDMI Button [page 17]

1







A

5



Press to set the HDMI output mode.







4.

AUDIO EX. Button [page 17]



SEARCH





















Press to activate AUDIO EX function to reduce noise level.

14

MODE







34





1

2

3





5.

OPEN/CLOSE Button [page 17]

15

A-B









6.

Disc loading tray



4

5

6







7.

H(SKIP) Button [page 19]



REPEAT









16











Plays back from the beginning of the current chapter or



7

8

9





17







track.

RANDOM

CLEAR









0

+10



8.

h(REV) Button [page 19]









18









Press more than 2 seconds when you use the front panel



























button for this function.



SETUP





TOP MENU



9.

PLAY Button [page 17]

19





33

10.

STOP Button [page 17]



K











11.

PAUSE Button [page 18]













20











12.

G(SKIP) Button [page 19]

s

ENTER



B





Plays back from the beginning of the next chapter or track.







13.

g(FWD) Button [page 19]

21























Press more than 2 seconds when you use the front panel

22

RETURN

L



MENU

32



button for this function.





14.

SEARCH MODE Button [page 19]









23

ANGLE

SUBTITLE

AUDIO

31

15.

A-B REPEAT Button [page 21]

16.

REPEAT Button [page 20]









24









30

ZOOM

DISPLAY

MODE

17.

RANDOM Button [page 21]

25









29

18.

CLEAR Button [page 20]



SKIP





19.

SETUP Button [page 27]

7







12

20.

ENTER Button [page 17]



j

i



10



STOP

PLAY



9

21.

Cursor Buttons [page 17]







Use when making settings while watching the display on

REV

C

B

FWD









a TV screen.

8









13



E

PAUSE



D

22.

RETURN Button [page 18]





F





11

23.

ANGLE Button [page 26]



GROUP

PAGE









Press to change the camera angle to see the sequence











being played back from a different angle.

26





















28

24.

SUBTITLE Button [page 26]



SOUND MODE





27













Press to select a desired subtitle language.











25.

ZOOM Button [page 19]

























26.

GROUP Button [page 18]













27.

SOUND MODE Button [page 26]



REMOTE CONTROLLER



28.

PAGE Button [page 18]





29.

MODE Button [page 18]





RC6600DV

















30.

DISPLAY Button [page 24]













31.

AUDIO Button [page 25]

NOTE:













Press to select a desired audio language or sound mode.











32.

MENU Button [page 17]

• The buttons with circled numbers can only be operated

33.

TOP MENU Button [page 17]

with the remote control.









34.

Numeric Buttons [page 17]













35.

Panel Display, Remote Sensor Window













36.

AUDIO EX. Indicator















This indicator lights when the AUDIO EX. button is ON.

– 8 –

EN

FUNCTIONAL OVERVIEW

Tour of the Remote Control

Buttons on remote control work in different ways for DVD-Video, DVD-Audio, Video CD, Super Audio CD, Audio CD, MP3, JPEG, WMA and DivX®.

Refer to the following table for correct use.







DVD-Video, DVD-Audio

VCD

Super Audio CD, CD,

DivX®







MP3, JPEG, WMA





















POWER Button

To turn on or to

To turn on or to

To turn on or to

To turn on or to













standby the unit.

standby the unit.

standby the unit.

standby the unit.



























A-B REPEAT Button

To mark a segment

To mark a segment

To mark a segment

To mark a segment

between A and B for







between A and B for

between A and B for

between A and B for







repeated playback.







repeated playback.

repeated playback.

repeated playback.







(Super Audio CD, CD)





























































To repeat playback of







REPEAT Button

To repeat playback of

To repeat playback of

a track or disc.

To repeat playback of

(Super Audio CD, CD)







a title, chapter, group







a track or disc.

To repeat playback of

a track, group or disc.







or track.













a track, group, or disc.









































(MP3, JPEG, WMA)







RANDOM Button

To shuffle the playing







To play back tracks in













order of groups and

























random order.













tracks. (DVD-Audio)





































































To activate the 3D

























sound (Virtual







To program a specific













Surround system).

To activate the 3D

playback order.







MODE Button

To set the Black Level

To activate the 3D







Setting.

sound (Virtual

sound (Virtual













Surround system).













To program a specific

Surround system).













To set the Black Level













playback order.

(CD, MP3, WMA)













Setting.













(DVD-Audio)

To activate the Slide































To play all groups.







Show Mode. (JPEG)













(DVD-Audio)













































ZOOM Button

To magnify part of the

To magnify part of the

To magnify part of the

To magnify part of the













picture (x2/x4).

picture (x2).

picture (x2). (JPEG)

picture (x2).



























ANGLE Button

To access various

























camera angles on

















































the disc.













































SUBTITLE Button

To select a subtitle













To select a subtitle

























language on the disc.













language on the disc.



























AUDIO Button

To access various

To select STEREO,

To select STEREO,

To access various







audio functions on the

audio functions on the













L-ch or R-ch.

L-ch or R-ch. (CD)







disc.

disc.













































DISPLAY Button

To display the current

To display the current

To display the current

To display the current













disc or HDMI mode.

disc or HDMI mode.

disc or HDMI mode.

disc or HDMI mode.

































SEARCH MODE Button

To search for a

To search for a track,

To search for a track.

To search for a track







chapter, title, track,

To search for time or a







time or marker.

marker.

or time.







time or marker.













(Super Audio CD, CD)





















































OPEN/CLOSE Button

To open or close

To open or close

To open or close

To open or close













the disc tray.

the disc tray.

the disc tray.

the disc tray.



























Numeric Buttons



























To select a chapter,

To select a track

To select a track

To select a track







title, track or group







directly.

directly.

directly.







directly.



















































English

– 9 –

EN

FUNCTIONAL OVERVIEW

Tour of the Remote Control



DVD-Video, DVD-Audio

VCD

CLEAR Button

To clear the markers.

To clear the markers.

To clear the numbers

To clear the numbers



entered incorrectly.

entered incorrectly.



To cancel the A point

To cancel the A point



for A-B Repeat.

for A-B Repeat.

MENU Button

TOP MENU Button

ENTER, Cursor Buttons

To call up the menu on a disc.

To call up the top menu on a disc.

Super Audio CD, CD,

DivX®

MP3, JPEG, WMA



To clear the markers. (Super Audio CD, CD)

To clear the numbers entered incorrectly.

To cancel the A point for A-B Repeat. (Super Audio CD, CD)

To call up the FILE LIST. (MP3, JPEG, WMA)

To return to the first item in the highest hierarchy of the FILE LIST.

(MP3, JPEG, WMA)

To clear the numbers entered incorrectly.

To cancel the A point for A-B Repeat.

To call up the FILE LIST.

To return to the top file in the highest hierarchy of the FILE LIST.

RETURN Button

SETUP Button

SKIP Buttons

To move the cursor and determine its position.

To return to the previous operation in the setup menu.

To call up the setup menu.

To skip chapters/titles/ tracks.

To move the cursor and determine its position.

To return to the previous operation in the setup menu.

To call up the setup menu.

To skip tracks.

To move the cursor and determine its position.

To return to the previous operation in the setup menu.

To call up the setup menu.

To skip tracks.

To move the cursor and determine its position.

To return to the previous operation in the setup menu.

To call up the setup menu.

To skip tracks.

REV / FWD Buttons

STOP Button

PLAY Button

To search forward/ backward through a disc.

To begin slow forward/ slow reverse. (DVD-Video)

To stop playback.

To search forward/ backward through a disc.

To begin slow forward.

To stop playback.

To begin fast forward/ reverse search. (except JPEG)

To stop playback.

To search forward/ backward through a disc.

To begin slow forward.

To stop playback.



To begin playback.

To begin playback.

To begin playback.

To begin playback.

PAUSE Button

To pause playback.

To pause playback.



To pause playback.







To advance playback

To advance playback

To pause playback.

To advance playback



frame by frame.

frame by frame.



frame by frame.

GROUP Button To begin playback from a desired group. (DVD-Audio)

SOUND MODE Button

PAGE Buttons

To select a desired background display image for playback. (DVD-Audio)

To select the Super Audio CD setup. (Super Audio CD)

– 10 –

EN

Displays a type of the disc which is inserted on the tray.
• DVD: DVD-Video, DivX® on DVD
• DVD A: DVD-Audio
• M: Playing the MULTI-CH AREA of Super Audio CD
• CD: Audio CD, MP3, JPEG, WMA, Picture CD, DivX® on CD
• VCD: Video CD
Lights up when the progressive scan system is activated.

FUNCTIONAL OVERVIEW

Panel Display

Lights up when the

Lights up when the

Lights up when

Super Audio CD

A-B Repeat function is on. repeat function is on.

is on the tray.



Lights up when the ALL

SACD

Repeat function is on.



P.SCAN



DVD A

Lights up when the

M

VCD

inserted disc comes



to a pause.



Lights up when playing back

Displays the elapsed time of the title

in slow mode. (DVD, VCD)

or track. The number of a new title,

Lights up when the inserted

chapter, or track is displayed when

a chapter or track is switched.

disc is being played back.

Selected HDMI output mode is displayed.

Displays during Operation

Power on

No disc inserted or cannot read

Tray open

Tray closed

Loading the Disc

Lights up when the playback control is activated (VCD)

Power off

HDMI output mode is selected. 480p is displayed when playing back a NTSC disc, while 576p is displayed for PAL disc playback.

HDMI output mode (720p) is selected

HDMI output mode (1080i) is selected

HDMI output mode (hdOFF) is selected

Using the Remote Control

Keep in mind the following when using the remote control:

Make sure that there is no obstacle between the remote control and the remote sensor on the unit.

Use within the operating range and angle, as shown.



m



5

Within

about



60

1.2. 3.

Cautions On Batteries

Use “AA” (R6P) batteries in this remote control unit.

Replace the batteries with new ones approximately once a year, though this depends on the frequency with which the remote control unit is used.

If the remote control unit does not operate close to the main unit, replace the batteries with new ones, even if less than a year has passed.

The included batteries are only for verifying operation. Replace them with new batteries as soon as possible.

When inserting the batteries, be careful to do so in

the proper direction, following the and marks in the remote control unit’s battery compartment.

To prevent damage or battery fluid leakage:

Do not use a new battery with an old one.

Do not use two different types of batteries such as alkaline and manganese.

Do not short-circuit, disassemble, heat or dispose of batteries in flames.

Remove the batteries when not planning to use the remote control unit for a long period of time.

If the batteries should leak, carefully wipe off the fluid from the inside of the battery compartment,

then insert new batteries.

English

– 11 –

EN

CONNECTIONS

Description - Rear Panel

















5.1CH AUDIO OUT

8

9

1

2

3

4

5

6

7

1.DIGITAL OUT Jacks

Use either an optical or coaxial digital cable to connect to an AV amplifier.

2.HDMI OUT Terminal

Use an HDMI connection cable (commercially available) to connect to a display with an HDMI terminal.

3.2CH AUDIO OUT Jacks

Connect to the Audio input jacks of your TV or Stereo system.

4.VIDEO OUT Jack

Use a video cable to connect the jack to the Video input jack of your TV or Stereo system.

5.COMPONENT VIDEO OUT Jacks

Use these jacks if you have a TV with Component Video input jacks. These jacks provide CR/PR, CB/PB and Y video. Component Video provides the best picture quality.

6.S-VIDEO OUT Terminal

Use the S-Video cable to connect this terminal to the S-Video input terminal of your TV for higher picture quality.

7.5.1CH AUDIO OUT Jacks

Use Audio cables to connect these jacks to the 5.1 ch Audio input jacks of your AV amplifier with 5.1-channel input jacks.

8.REMOTE CONTROL IN/OUT Jacks

By connecting this DVD player to another Marantz audio component using a supplied Remote control bus cable, you can remotely operate the components as a signal system.

9.REMOTE CONTROL EXTERNAL / INTERNAL Switch

Set this switch to “INTERNAL” when using this DVD player independently. If you use this DVD player in a system with a Marantz receiver equipped with a remote sensor, set the switch to “EXTERNAL”.

NOTES:

When there is video output from the HDMI OUT terminal, no progressive signal is output from the COMPONENT VIDEO OUT jacks.

When connecting to a component with a remote sensor, be sure to connect the REMOTE CONTROL IN jack of this DVD player to the REMOTE CONTROL OUT jack of the component.

When connecting to a component which is not equipped with a remote sensor, be sure to connect the component to the REMOTE CONTROL OUT jack of this DVD player.

Selecting Progressive Scan (525p/480p or Interlaced 525i/480i) Playback

If your TV is compatible with progressive scanning (525p/480p), connect the TV to the COMPONENT VIDEO OUT jacks of the DVD player and set “PROGRESSIVE” to “ON” in the display setting. Next, set your TV to the progressive scan mode. Refer to page 28 for instructions on changing the display setting.

If your TV is not compatible with progressive scanning, set “PROGRESSIVE” to “OFF”.

Use a commercially available adaptor if the video input jacks of your TVs or monitors are the BNC type.

What is Progressive Scanning?

Unlike conventional interlace scanning, the progressive scan system provides less flickering and images in higher resolution than that of traditional (525i/480i) television signals.

The DCDi (Directional Correlational Deinterlacing) system of this DVD player produces smooth and natural video images, even if really dynamic, by eliminating the jagged edges.

*“DCDi” is a trademark of Faroudja, a division of Genesis Microchip Inc.

– 12 –

EN

CONNECTIONS

The following show examples of connections commonly used to connect the DVD player to the TV and other components.

If using this DVD player to play back a DVD in a Dolby Digital 5.1 channel surround or DTS surround format, the DVD player outputs a Dolby Digital or DTS data stream from its OPTICAL or COAXIAL DIGITAL OUT jacks. By hooking the player up to a Dolby Digital or DTS decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound of a professional standard, which can be heard in movie theaters. Use an audio coaxial digital or optical cable (commercially available) for the audio connections.

NOTES:

Be sure to turn off the power of all components in the system before connecting another component.

Refer to the instruction manuals for your TV, Stereo system and any other components to be connected to the DVD player.

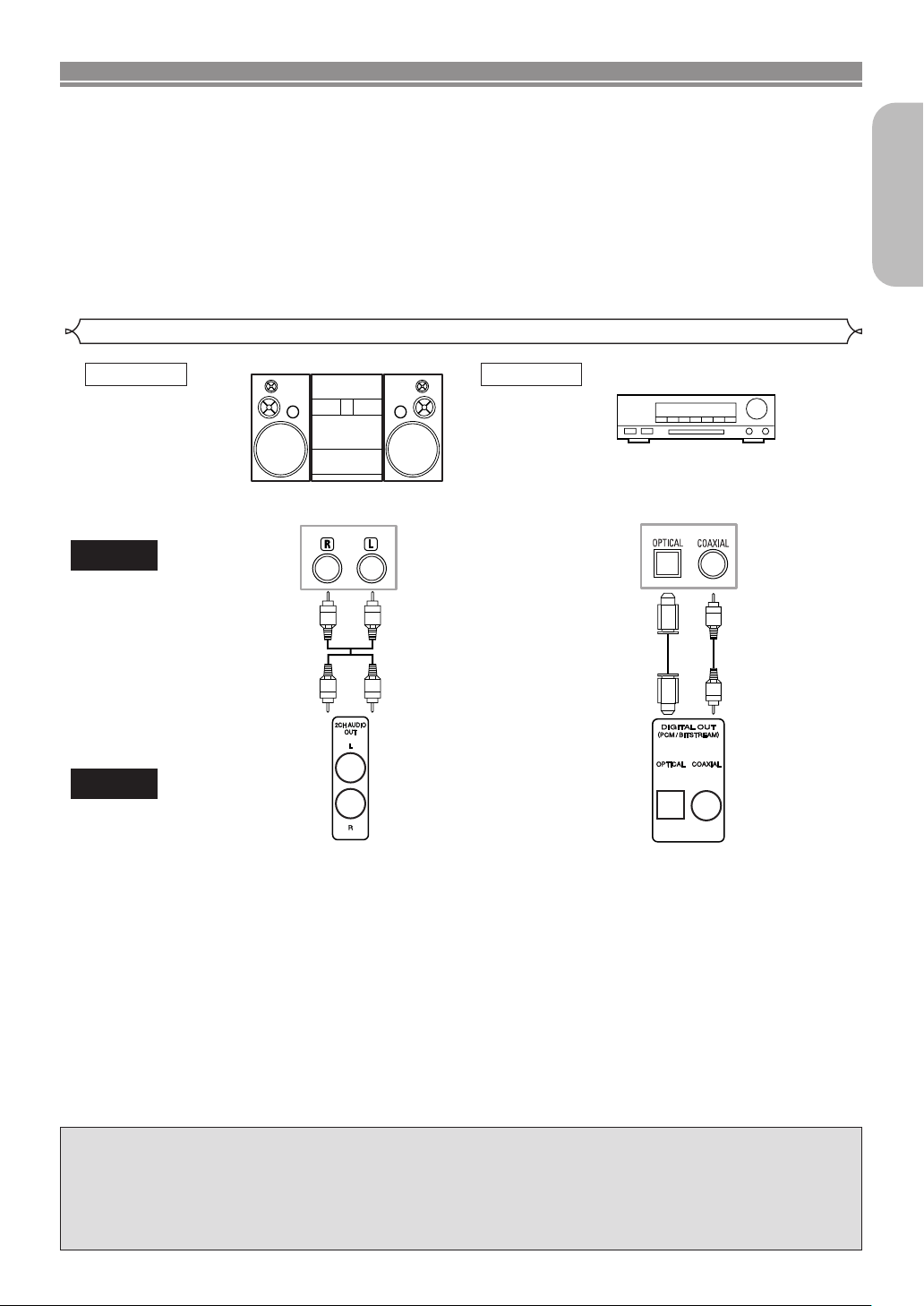

Connection to an Audio System

Method 1

Method 2







Dolby Digital decoder





Stereo system

or DTS decoder









AUDIO

Audio Input

Digital Audio





Input Jacks







Jacks











Optical Cable



Audio Coaxial



Audio Cable



Digital Cable



(commercially

or



(supplied)

(commercially



available)









available)









DVD

AUDIO OUT

DIGITAL OUT



(Analog)



Method 1 DVD Player + Stereo system

Method 2 DVD Player + Dolby Digital decoder or DTS decoder

NOTES (for method 2 only):

When using an AV amplifier with a built-in decoder (Dolby Digital or DTS decoder) as shown in the Method 2, set “DOLBY DIGITAL” or “DTS” to “BITSTREAM” accordingly for audio output in the setup menu (refer to pages 28-29). Set it to “PCM” for the decoder that is not used currently. Playing a DVD using incorrect settings may generate noise distortion, and may also damage the speakers.

The audio source on a disc in a Dolby Digital 5.1 channel surround format cannot be recorded as digital sound by an MD deck or DAT deck.

Set “DOLBY DIGITAL” and “DTS” to “PCM” for audio output in the setup menu for connecting to an MD deck or DAT deck (refer to pages 28-29).

Harsh noise that could harm your ears or the speakers is generated when a DVD recorded in DTS is played while using a decoder, etc., that is not DTS-compatible.

When playing back a copyright-protected over 96kHz (88.2kHz) PCM DVD, the digital sound will be down-sampled at 48kHz (44.1kHz), even if you set “DOWN SAMPLING” to “OFF” (refer to page 28).

Super Audio CD sound is not output from the DIGITAL OUT.

Optical cable (not supplied)

Optical cable (not supplied) may be damaged when bent at sharp angles. Ensure cables are coiled in loops with a diameter of 6 inches (15cm) or more when storing them.

Use a cable which is 9.8 feet (3m) or shorter.

Insert cable plugs firmly into the connectors when making connections.

If a plug has dust or is dirty, clean it with a soft cloth before inserting it into a connector.

English

– 13 –

EN

CONNECTIONS

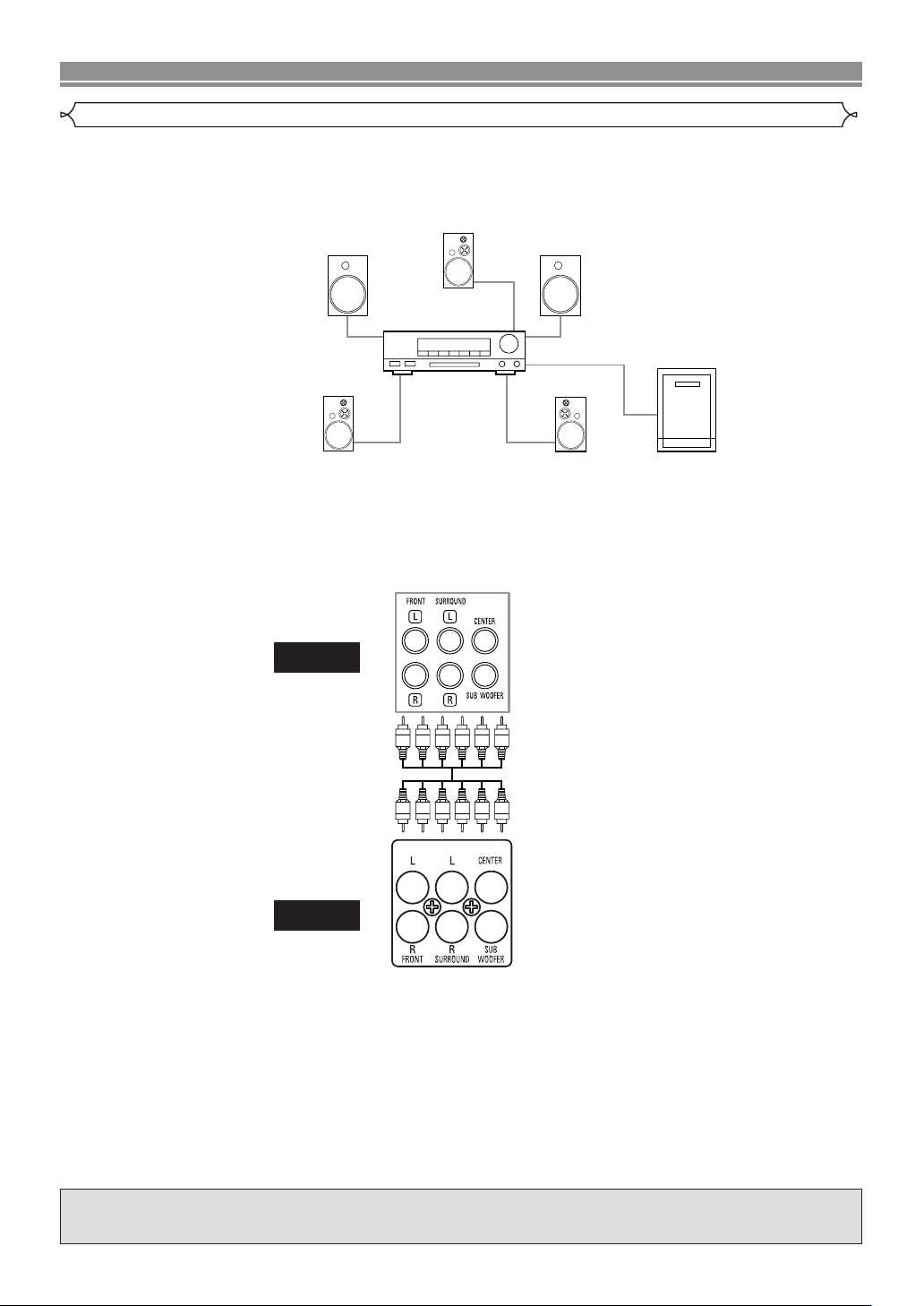

Connection to 5.1-channel Surround Sound System

Analog 5.1-channel audio signals can be output from the DVD player.

The multichannel audio signals recorded in packed PCM can be played back when an AV amplifier equipped with analog 5.1-channel audio inputs is connected.



Center speaker

Front speaker

Front speaker

(left)

(right)

Surround



Subwoofer





speaker





(left)

AV amplifier

Surround



with

speaker

5.1-channel

(right)

input jacks



AUDIO

To 5.1CH

Audio Input



Jacks



Audio Cable



(commercially



available)



5.1CH AUDIO OUT

DVD

5.1CH AUDIO OUT

NOTES:

For 5.1-channel connections, set “ANALOG AUDIO” to “5.1CH” in the setup mode and adjust “SPEAKER SIZE”, “DELAY

TIME” and “BALANCE” settings (refer to pages 29-30).

You can enjoy high-quality analog sound by cutting off analog video signals. Press the AUDIO EX. button on the front panel.

When using the HDMI connection, signals from the 5.1CH AUDIO OUT jacks can be limited in some cases. If it occurs, set “HDMI AUDIO” to “OFF” to output the signals (refer to pages 28-29).

“DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.

– 14 –

EN

CONNECTIONS

Connection to a TV (for Video)



Method 1



Method 2





Method 3





Basic

Good



Better









Best picture



Audio





































COMPONENT















VIDEO IN



R L

VIDEO IN



S-VIDEO IN

CR/PR Y CB/PB















TV

English

Audio Cable

Video Cable

S-Video Cable

Component

(supplied)

(supplied)

(commercially

Video Cable





available)

(commercially







available)

DVD

AUDIO OUT

VIDEO OUT

S-VIDEO OUT

COMPONENT VIDEO OUT

(Analog)







Method 1 DVD Player + TV with Video input jack

Method 2 DVD Player + TV with S-Video input terminal

Method 3 DVD Player + TV with Component Video input jacks

NOTES:

Connect the DVD player directly to a TV. If the Audio/Video cables are connected to a VCR, pictures may be distorted due to the copy protection system.

S-Video output terminal

The video signals are divided into color (C) and brightness (Y) signals, achieving a clearer picture.

If the TV is equipped with an S-Video input terminal, we recommend connecting it to this unit’s S-Video output terminal using a commercially available S-Video connection cord.

HOW TO CONNECT TO A TV WITHOUT AUDIO/VIDEO INPUT JACKS

If your TV does not have RCA type audio and video input jacks it is still possible to connect this DVD

player to your TV’s 75-ohm coaxial antenna terminal using an optional Stereo Audio/Video RF Modulator (not included). Connect the audio and video outputs of the DVD player to the audio and video inputs on the RF Modulator, and then connect the coaxial output of the RF Modulator (usually marked “TO TV”) to the 75 ohm coaxial antenna terminal on your TV. Follow the instruction supplied with the RF Modulator for more details.

If your TV’s 75 ohm coaxial antenna terminal is already occupied by an antenna or cable box connection, remove that cable from your TV’s antenna terminal and reconnect it to the coaxial antenna input terminal of the RF Modulator

(usually marked “ANT IN”), then connect the RF modulator to your TV’s antenna terminal as described above.

NOTE:

The picture quality from DVD discs will not be as good if the DVD player is connected to the TV’s antenna terminal through an RF Modulator.

– 15 –

EN

CONNECTIONS

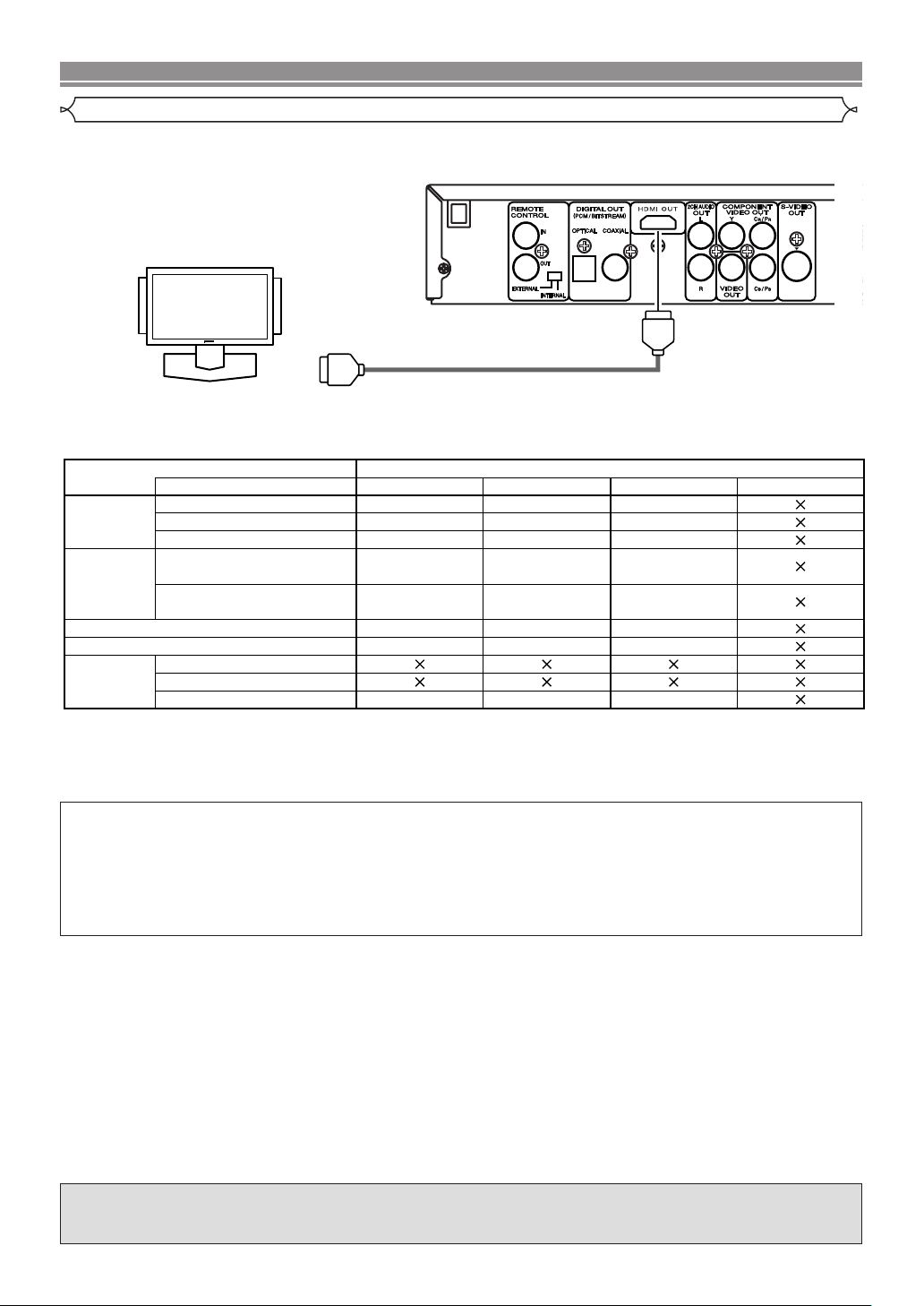

Connection to a TV with an HDMI Terminal

A simple 1-cable connection (using a commercially available cable) with a device having an HDMI (HighDefinition Multimedia Interface) terminal allows digital transfer of the digital images of DVD-Video and other sources, DVD-Video, and the multi-channel sound of DVD-Audio.

To HDMI Input

Terminal

HDMI Cable (commercially available)

A display equipment with an HDMI terminal

CActual output modes by media (when the connected equipment is compatible with Dolby Digital, DTS, and Multi PCM)

HDMI AUDIO Setting



Audio Recording Format

AUTO

MULTI PCM

2CH PCM

OFF

DVD-Video/

Dolby Digital

Dolby Digital*3

Multi PCM*5

2channel PCM



DTS

DTS*4

Multi PCM*5

2channel PCM



DVD-RW



LPCM

Multi PCM*5

Multi PCM*5

2channel PCM









LPCM or PPCM

Multi PCM*5

Multi PCM*5

2channel PCM





(with CPPM) *1



DVD-Audio









LPCM or PPCM











Multi PCM*5

Multi PCM*5

2channel PCM





(without CPPM)













Audio CD/Video CD

2channel PCM

2channel PCM

2channel PCM



MP3/WMA/DivX®

2channel PCM

2channel PCM

2channel PCM



Super

MULTI-CH AREA *2









Audio

2CH AREA *2









CD

CD AREA

2channel PCM

2channel PCM

2channel PCM



*1 If the connected equipment is compatible with HDMI ver. 1.0, audio signals are not output. Even if the connected equipment is compatible with HDMI ver. 1.1, audio signals are not output if the equipment is not compatible with CPPM.

*2 Sounds recorded on the MULTI-CH/2CH AREA of Super Audio CDs are not output.

*3 If the connected equipment is not compatible with Dolby Digital, audio signals are output as Multi PCM or 2 channel PCM. *4 If the connected equipment is not compatible with DTS, audio signals are output as Multi PCM or 2 channel PCM.

*5 If the connected equipment is not compatible with Multi PCM, audio signals are output as 2 channel PCM.

Copyright protection system

To play back the digital video images of a DVD via an HDMI connection, it is necessary that both the player and the display equipment (or an AV amplifier) support a copyright protection system called HDCP (High-bandwidth Digital Content Protection). HDCP is copy protection technology that comprises data encryption and authentication of the connected AV equipment.

This player supports HDCP. Please read the operating instructions of your display equipment (or AV amplifier) for more information.

NOTES:

When using an HDCP-incompatible display equipment, the image will not be viewed properly.

Some devices that support HDMI can control other devices via the HDMI terminal; however, this player cannot be controlled by another device via the HDMI terminal.

The audio signals from the HDMI terminal (including the sampling frequency, the number of channels and bit length) may be limited depending on the disc or the connected equipment.

When playing a Super Audio CD with an HDMI connection, audio signals cannot be transferred beyond the CD AREA. Make an analog connection for this.

The HDMI AUDIO setting cannot be changed when the connected device is not compatible with HDMI audio, or no device compatible with HDMI audio is connected to this player.

Even when the connected device is compatible with HDMI audio, the HDMI AUDIO setting is not possible if the power of the device is turned off or the HDMI output mode is set to “hdOFF”.

“HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.”

– 16 –

EN

PLAYING A DISC





Basic Playback















NOTES:



















































• Video and audio signals may be distorted temporarily



















































when switching to/from the HDMI output mode.







DVD-V



DVD-A



DVD-RW







VCD



Super





















Audio CD







• Use a display equipment with an HDMI terminal.



















































• Progressive video signal will not be output from the









CD





MP3



JPEG





WMA



DivX®





























COMPONENT VIDE OUT during the HDMI output mode.

Getting started

































• You cannot set a resolution which is not compatible on

• Turn on the power of the TV, amplifier



















the connected display equipment.





and any other components which are



















• You can check the HDMI connection status by pressing























connected to the DVD player.



















the DISPLAY button during playback with the HDMI

• Make sure the TV and audio receiver



















output mode. (Refer to pages 24-25.)





(commercially available) are set to the



















• The HDMI button is inoperative when no HDMI connec-





correct channel.

































tion is made or the connected HDMI equipment is





Press the POWER button.



















turned off.



1



































• “P-ON” will appear briefly on the display panel.









AUDIO EX Mode



2

Press the OPEN/CLOSE button to open disc loading tray.



You can enjoy higher quality audio by stopping the analog





Place the disc in the tray, with the label facing up.



3





Press the PLAY button.















video signals and display.



4

































1

Press the AUDIO EX. button on the front panel to





• The tray will close automatically, and playback will start

















from the first chapter or track of the disc. If the playback





output audio and HDMI signals only (no analog







does not start automatically, press the PLAY button.





video signals will be output, and the display will be





• When you play back the DVD with a title menu, it may





turned off).







appear on the screen. In this case, refer to “Title Menu”.





• You can press the AUDIO EX. button either during



5

Press the STOP button to stop playback.









playback or in stop mode.







NOTES:

































• The AUDIO EX. indicator will light up.





• A “prohibited icon” may appear at the top-









• The higher quality sound will be achieved.







right on the TV screen during operation,





NOTES:







warning that a prohibited operation has









• In setup menu, the AUDIO EX. button is not available.







been done to the DVD player or the disc.









• The AUDIO EX mode will be released when you press





• With DVDs that use some titles for play-





















the buttons listed below.







back program signals, playback may























OPEN/CLOSE button (on both the remote control and







start from the second title, or it may skip these titles.





the front panel), SETUP, POWER or DISPLAY button





• During the playback of two layered disc, pictures may





(on the remote control), POWER ON/STANDBY or







stop for a moment. This happens when the 1st layer





AUDIO EX. button (on the front panel).







switches to the 2nd layer. This is not a malfunction.





General Features





• The operation may vary when you playback DVDs with











disc menu or Video CDs with PBC. Refer to the manual



















accompanying the disc for details.





















DVD-V



DVD-A





• A DVD-RW disc recorded in the VR mode may freeze

















DVD may contain menus to navigate the disc and access spe-







momentarily during playback depending on how the playlist

cial features. Press the appropriate Numeric buttons or use the







was made and edited (deleted titles, repeated recording).

Cursor buttons (L/ K / B/ s) to highlight your selection in the















































DVD main menu and press the ENTER button to confirm.



CANCELLING AND CALLING BACKTHE PBC FUNCTION



NOTE:















































VCD

1Insert a Video CD.

2Press the STOP button.

3Press the Numeric buttons to enter the desired track number.

The PBC function is now cancelled and the playback of the Video CD will start.

4To call back the PBC function, press the STOP button twice, and then press the PLAY button.

Title menu will appear on the display.

HDMI Setup

1

Press the HDMI button on the front panel to select



the HDMI output mode.







The output mode changes as follows every time



the HDMI button is pressed.







480P/576P

720P

1080i

hdOFF



• Press the HDMI button once to display the current



HDMI output mode.







• Press the HDMI button appropriate times to display the



desired mode.









• Leave the display showing the desired resolution for 3



seconds, and the current HDMI output mode will be



changed to the selected one.





480P/576P (Default)

: Video output from the HDMI OUT terminal at 480p or 576p.

720P : Video output from the HDMI OUT terminal at 720p.

1080i : Video output from the HDMI OUT terminal at 1080i. hdOFF: No video output from the HDMI OUT terminal.

Unless stated, all operations described are based on remote control use. Some operations can be carried out using the menu bar on the TV screen.

Disc Menus

DVD-V

1 Press the MENU button.

• The DVD main menu will appear.

2 If the feature is not available,

symbol may

appear on the TV screen.



3If disc menu is available on the disc, audio language, subtitle options, chapters for the title and other options will appear for selection.

4Press the Cursor buttons (L/ K/ B/ s) to select an item, and the ENTER button to confirm selection.

Title Menu

DVD-VDVD-A

1 Press the TOP MENU button.

• The title menu will appear.

2 If the feature is not available,

symbol may

appear on the TV screen.



3Press the Cursor buttons (L/ K/ B/ s) to select an item, and the ENTER button to confirm selection.

Playback will begin at the selected title.

VCD

1When playing a Video CD with PBC function, the title menu will appear automatically.

English

– 17 –

EN

2
DVD-AUDIO
BONUS GROUP
P l e a s e e n t e r a 4 - d i g i t p a s s w o r d .
In stop mode, press the GROUP button to open the group search screen.
Press the Numeric buttons to select a bonus group number.
1 During playback, press the PAGE + or button to select a desired page number to be displayed.
PLAYBACK OF THE BONUS GROUP
The password popup window appears.
3 Press the Numeric buttons to enter the 4-digit
password.
When the correct password is entered, playback starts from the top of the bonus group.
NOTES:
• In some cases the password window is displayed on the menu screen. Follow the instructions on the screen.
• Once the password is entered, playback will be repeated until the disc is removed from the disc tray.
Some discs are recorded with the Bonus Group that can be played back by entering a password. Refer to the disc jackets.
1
<Example: DVD>
PAGE SELECTION
Some DVD-Audio discs that include still images feature a selection of images you can choose from.

PLAYING A DISC

2 Press the Numeric buttons to select the desired

Still / Pause

title.



• Playback will begin at the selected title.

3Press the RETURN button to go back to the Title Menu.

CALLING UP A MENU SCREEN DURING PLAYBACK

DVD-VDVD-A

Press the MENU button to call up the DVD main menu (DVD-V).

Press the TOP MENU button to call up the title menu.





DVD-V



DVD-A



DVD-RW



VCD



Super













Audio CD



































CD

MP3

JPEG

WMA

DivX®



During playback, press the







1





F



PAUSE button.













Playback will pause and sound will be muted.

2 To continue playback, press the PLAY button.

NOTE:

NOTE:

Contents of menus and corresponding menu operations may vary between discs. Refer to the manual accompanying the disc for details.





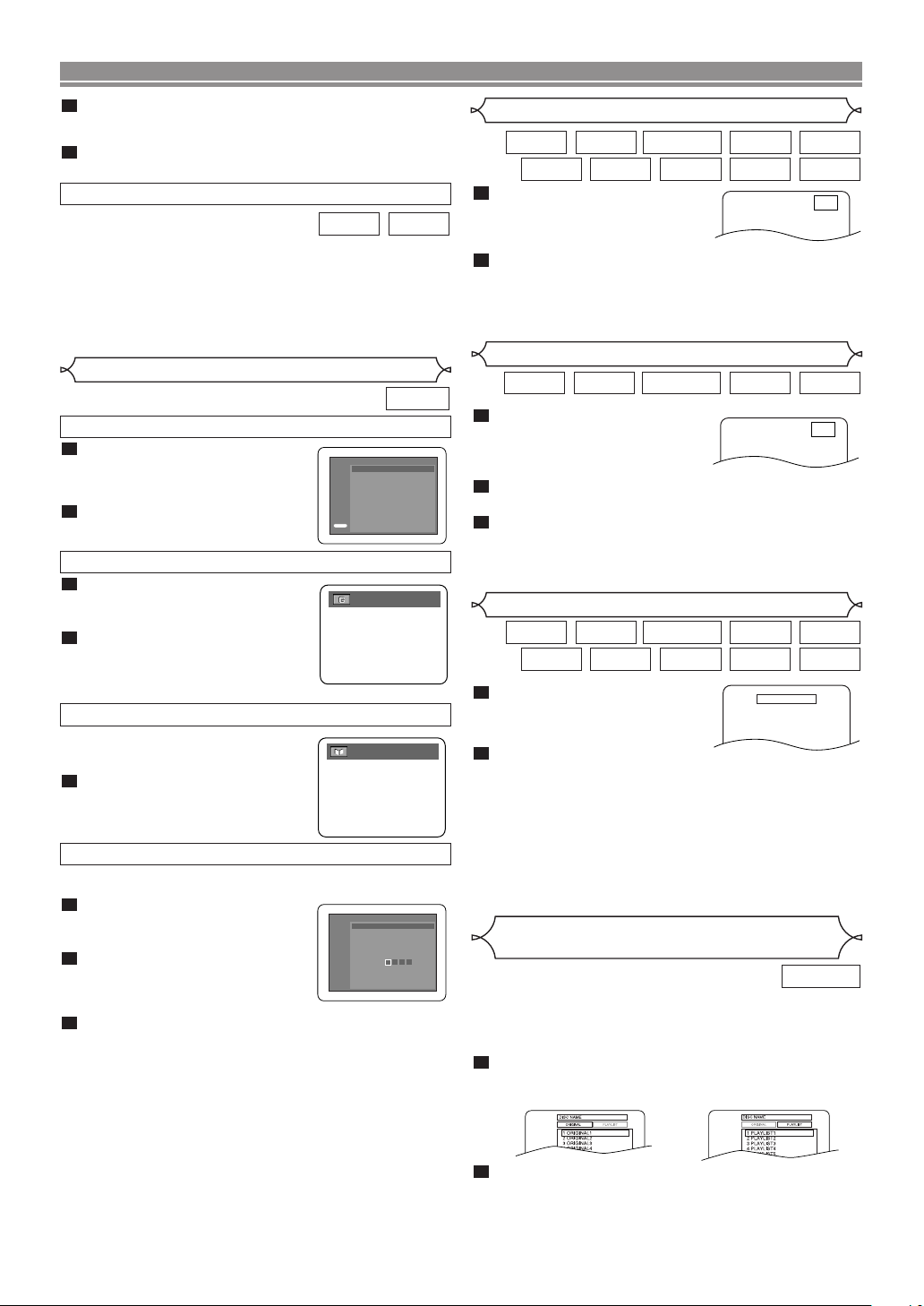

DVD Audio Playback









































DVD-A



















PLAYBACK OF ALL GROUPS























In stop mode, press the MODE













1















button.

ALL GROUP











DVD-AUDIO TOTAL 2:05:55









The ALL GROUP screen















appears.



All Group Playback









--no indication--









Press the PLAY button to begin













2















playback.

PLAY































PLAYBACK FROM A DESIRED GROUP





During playback or in stop













1















mode, press the GROUP but-



1/12























ton.

2Press the Numeric buttons to select a group.

The group will be located and playback will start.

1/12

On DVDs, set “STILL MODE” to “FIELD” on the display menu if pictures in the pause mode are blurred. (Refer to page 28.)

Step by Step Playback

DVD-VDVD-ADVD-RW VCD DivX®

Only Moving Picture

1 During playback, press the



PAUSE button.

F



Playback will pause and sound will be muted.

2The disc advances by one frame each time the PAUSE button is pressed.

3To exit Step by Step Playback, press the PLAY button.

NOTE:

On DVDs, set “STILL MODE” to “FIELD” on the display menu if pictures in the pause mode are blurred. (Refer to page 28.)

Resume





DVD-V



DVD-A



DVD-RW



VCD





Super















Audio CD









































CD

MP3

JPEG

WMA



DivX®



During playback, press the













1













Resume ON







STOP button.

Press 'PLAY' to play from here.



Resume message will appear

To play the beginning,







press 'STOP' first and then 'PLAY'.

on the TV screen.

2 Press the PLAY button, playback will resume from

the point at which playback was stopped.

• To cancel Resume, press the STOP button twice.

NOTES:

Some Video CDs with the PBC function resume playback from the beginning of the track.

The resume information will be saved even when the power is switched off.

For MP3, JPEG or WMA, playback will resume from the beginning of the current track.

Playing the Disc Recorded in

VR Mode (Video Recording Format)

DVD-RW

DVDs recorded in VR mode can have a PLAYLIST assigned to alter the order or content to be played. If a PLAYLIST has been created, you can choose the ORIGINAL or PLAYLIST option.

1

Press the MENU button in stop mode.



• The current setting screen will appear.



• Pressing the MENU button during playback is not valid.



6 PLAYLIST6

2

Press the Cursor buttons (s or B) to select



ORIGINAL or PLAYLIST.



• PLAYLIST will not be displayed when it has not been



made.



• Resume playback will not be possible if you change the



setting.

– 18 –

EN

PLAYING A DISC

3Press the Cursor buttons (K or L) to select a title, then press the ENTER button.

Playback will start.

NOTE:

• ORIGINAL: A list of titles which are recorded with a DVD recorder.

PLAYLIST: A list of titles which is made based on the ORIGINAL edited list.

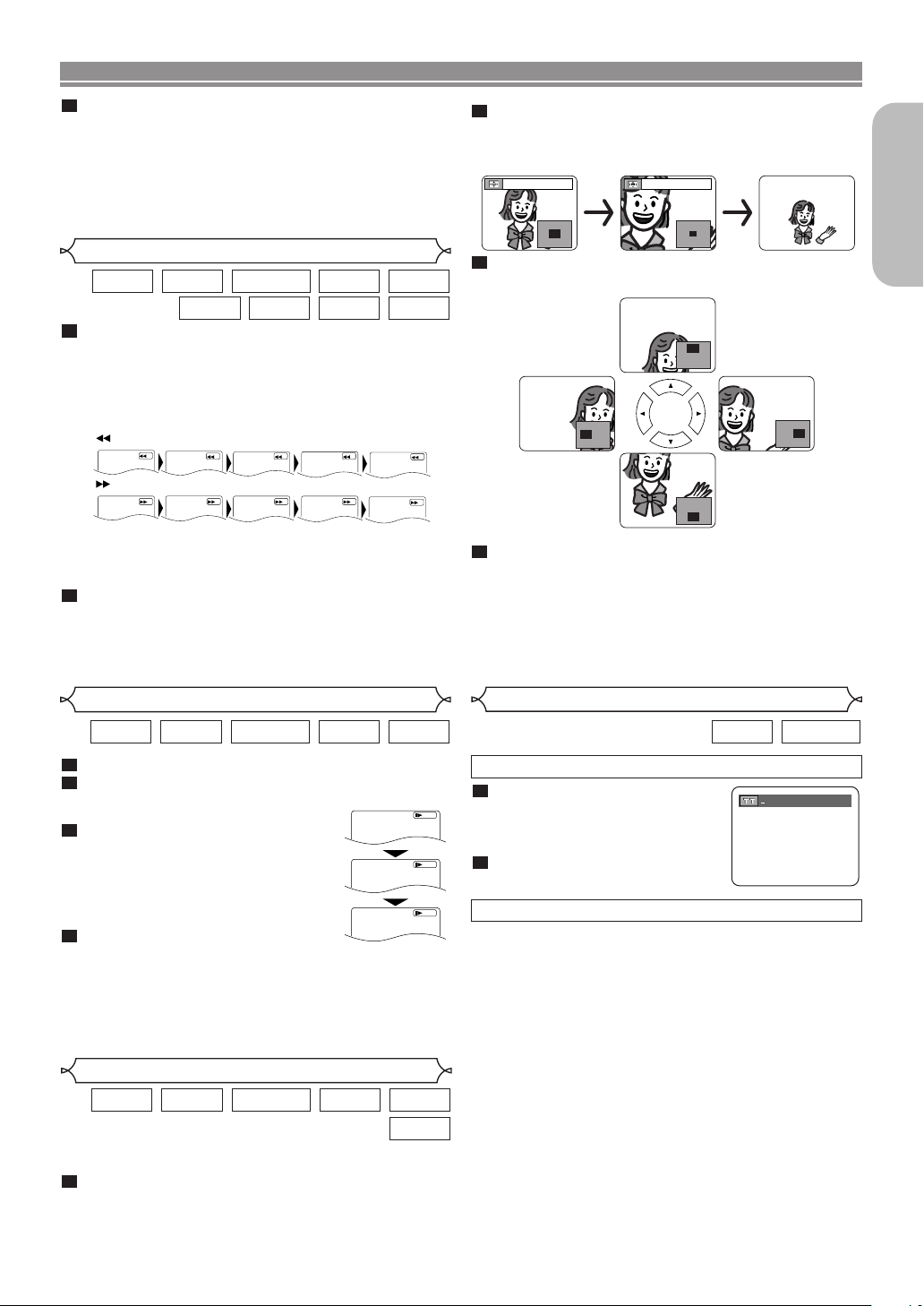

Fast Forward / Reverse Search

DVD-V



DVD-A



DVD-RW



VCD



Super









Audio CD

























CD

MP3

WMA

DivX®

1During playback, press the FWD g or REV h button repeatedly to select the required forward or reverse speed.

For DVDs, Fast Forward or Reverse Search speed is different depending on the disc.The approximate speed is 1 (x2), 2(x8), 3 (x20), 4 (x50) and 5 (x100).

REVButton

1

2

3

4

5

FWDButton

1

2

3

4

5

2Press the ZOOM button repeatedly to select the required zoom factor: x2, x4 or off.

Only x2 zoom is available on Video CDs, JPEG and DivX® .

x2

x4

3Use the Cursor buttons (L / K / B / s) to move the zoomed picture across the screen.

For Video CDs, Super Audio CDs, Audio CDs, MP3, WMA and DivX®, Fast Forward or Reverse Search speed is different depending on the disc. The approximate speed is 1(x2), 2(x8) or 3(x30).

2 To return to normal playback, press the PLAY button.

NOTES:

Picture quality of DivX® files in fast reverse is lower than that in fast forward.

For some DivX® files, Fast Forward/Reverse Search may not function.

4 To exit Zoom mode, press the ZOOM button.

NOTES:

Zooming function does not work while disc menu is shown.

x4 zoom is not available on some discs.

Playback will pause in the zoom mode on JPEG.

Navigation screen is not available on JPEG.

You cannot move the zoomed picture on some JPEG files.

Slow Forward / Slow Reverse

DVD-VDVD-ADVD-RW VCD DivX®

Only Moving Picture

1During playback, press the PAUSE button.

2Press the FWD g or REV h button.

• Slow motion playback will begin and

FWD DButton

sound will be muted.

1

3Press the FWD g or REV h button repeatedly to select the

required speed.

2

• Slow Forward or Reverse speed is different depending on the disc.

Approximate speed is 1 (1/16), 2 3 (1/8), and 3 (1/2).

4To return to normal playback, press the PLAY button.

NOTES:

On DVDs, set “STILL MODE” to “FIELD” on the display menu if pictures in the pause mode are blurred. (Refer to page 28.)

Only Slow Forward is available when playing Video CD and discs with DivX® files.

Zoom

DVD-VDVD-ADVD-RW VCD JPEG

Only Moving Picture

DivX®

The Zoom function allows you to enlarge the video image and to pan through the enlarged image.

1Press the ZOOM button during playback.

Playback will continue.

Title / Chapter Search

DVD-VDVD-RW

BY USING THE SEARCH MODE BUTTON

1 Press the SEARCH MODE button

/2

repeatedly until the Chapter Search, or the Title Search appears during playback.

2Enter the desired chapter/title number with the Numeric buttons.

BY USING THE SKIP BUTTONS H G

During playback, press the SKIP G button to move to the next chapter. Press it repeatedly to skip subsequent chapters. Press the SKIP H button to go back to the beginning of the current chapter. Press it repeatedly to go to the previous chapter.

Chapter number will appear briefly on the front panel display.

If the SKIP Hor Gbutton is pressed while the playback is paused, the playback after skipping to the next chapter will be also paused.

NOTES:

Depending on the disc being played, the Numeric buttons can be used to search for a desired chapter by entering the chapter number directly. Refer to the manual accompanying the disc.

The SKIP H and G buttons are not available when playback is stopped.

A disc that does not contain chapters within titles, the SKIP H and G buttons change the titles.

English

– 19 –

EN

PLAYING A DISC

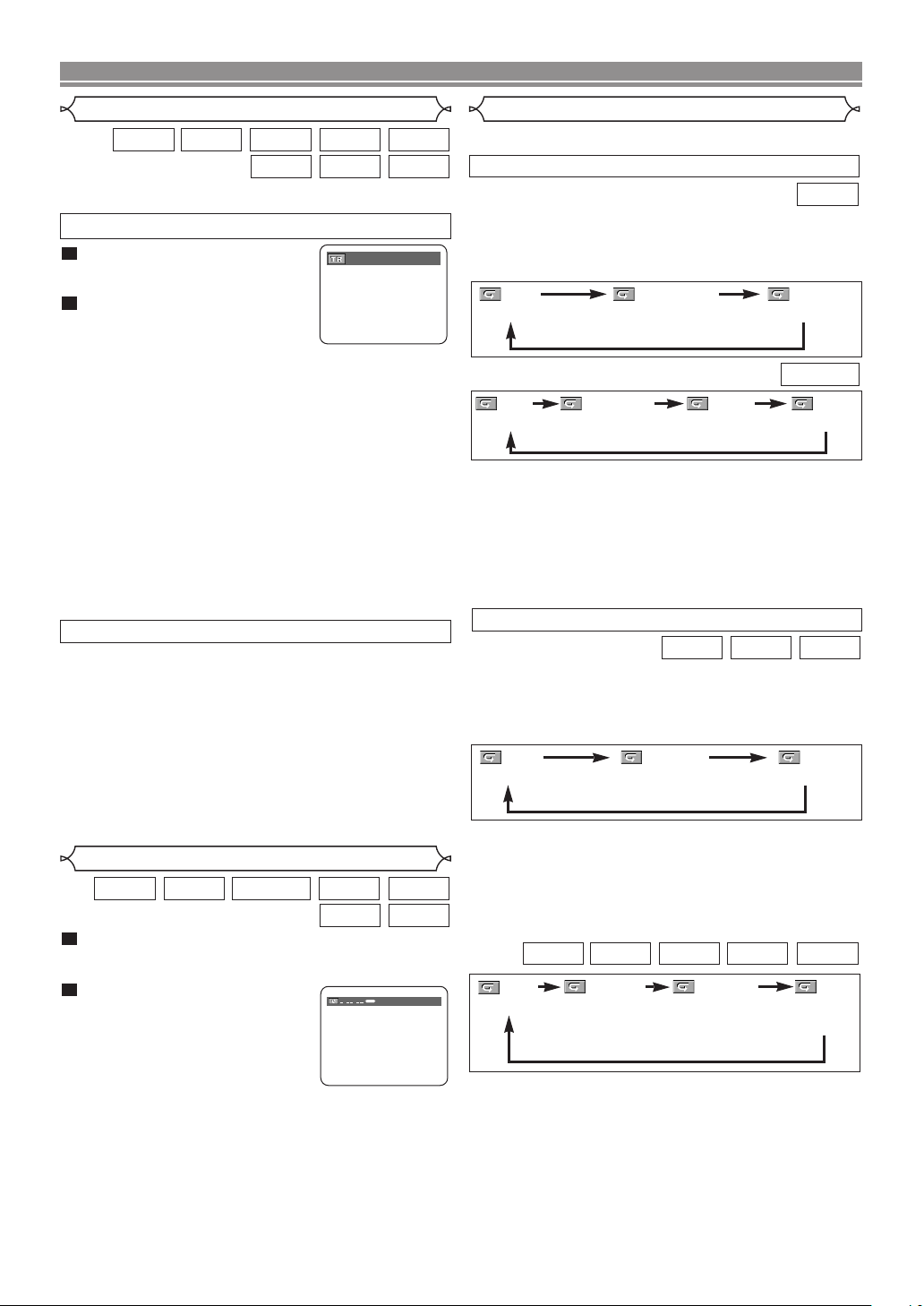

Track Search















Repeat

























• The REPEAT button is available only during playback.



DVD-A



VCD



Super



CD



MP3









Audio CD















































JPEG



WMA



DivX®



REPEAT TITLE / CHAPTER

There are three ways to begin playback on a disc at a specific track.

BY USING THE SEARCH MODE BUTTON

1 Press the SEARCH MODE button.

__/ 15

• The Track Search display appears.

2Within 30 seconds, select a desired track number using the Numeric buttons.

For the disc with less than 10 tracks, press the track number directly.

For discs with 10 or more but less than 100 tracks, to play a single-digit track, press 0 first, then the track number (e.g. for track 3, press 0, 3). To play a doubledigit track, press the track number.

For discs with 100 or more tracks, to play a singleor a double-digit track, press 0 first, then the track number (e.g. for track 3, press 0, 0, 3, and for track 26, press 0, 2, 6). To play a triple-digit track, press the track number.

Press the CLEAR button to erase the incorrect input.

NOTE:

The +10 button can also bring up the Track Search display except for the disc with less than 10 tracks. For such a disc, Track Search can be done by just pressing the track number.

BY USING THE SKIP BUTTONS H G

During playback, press the SKIP G button to move to the next track. Press it repeatedly to skip subsequent tracks. Press the SKIP H button to go back to the beginning of the current track. Press it repeatedly to go to the previous tracks.

Track number will appear briefly on the panel display.

If the SKIP Hor Gbutton is pressed while the playback

DVD-V

To activate the Repeat function, press the REPEAT button during playback.

The Repeat mode changes as described below every time you press the button.

OFF

CHAPTER

TITLE

(repeat off)

(current chapter repeat)

(current title repeat)

DVD-RW

OFF CHAPTER TITLE ALL

(repeat off) (current chapter repeat) (current title repeat) (entire disc repeat)

NOTES:

The Repeat Title/Chapter setting will be cleared when moving to other title or chapter.

Repeat playback does not function during A-B Repeat playback.

Repeat Title/Chapter is not available with some scenes.

“ALL” is not displayed when playing the DVD-RW discs recorded in Video mode.

REPEAT TRACK / GROUP / ALL

VCD

Super

CD

Audio CD

To activate the Repeat function, press the REPEAT button during playback.

The Repeat mode changes as described below every time you press the button.

is paused, the playback will be also paused after skipping

OFF

TRACK

ALL

to the next track.

(repeat off)

(current track repeat)

(entire disc repeat)

NOTE:







• The SKIP H and G buttons are not available when







playback is stopped.

NOTES:











Time Search

DVD-V DVD-A DVD-RW VCD

Super

Audio CD

CD

DivX®

1 During playback, press the SEARCH MODE button until the Time Search screen appears on the TV screen.

2 Within 30 seconds, enter a

: : TOTAL 1 : 23 : 45

desired disc time with the Numeric buttons.

Playback will start at the specified time.

For Time Search, “0” appears automatically when there is no

need to enter a number. For example, “0:0_:_ _” appears in the Time Search screen if the total time of the disc is less than 10 minutes.

Press the CLEAR button to erase the incorrect input.

NOTE:

For some DivX® files, Time Search may not function.

The Repeat Track setting will be cleared when moving to other track.

Repeat playback does not function during A-B Repeat playback.

Repeat playback is not available when playing the Video CD with PBC function.

DVD-A MP3

JPEG

WMA

DivX®

OFF

TRACK

GROUP



ALL

(repeat off)

(current track

(current folder

(entire disc



repeat)

repeat)





repeat)

NOTES:











The Repeat Track / Group setting will be cleared when moving to other track or group.

For DVD-Audio, ALL repeat is effective only when all groups are being played back.

– 20 –

EN

PLAYING A DISC

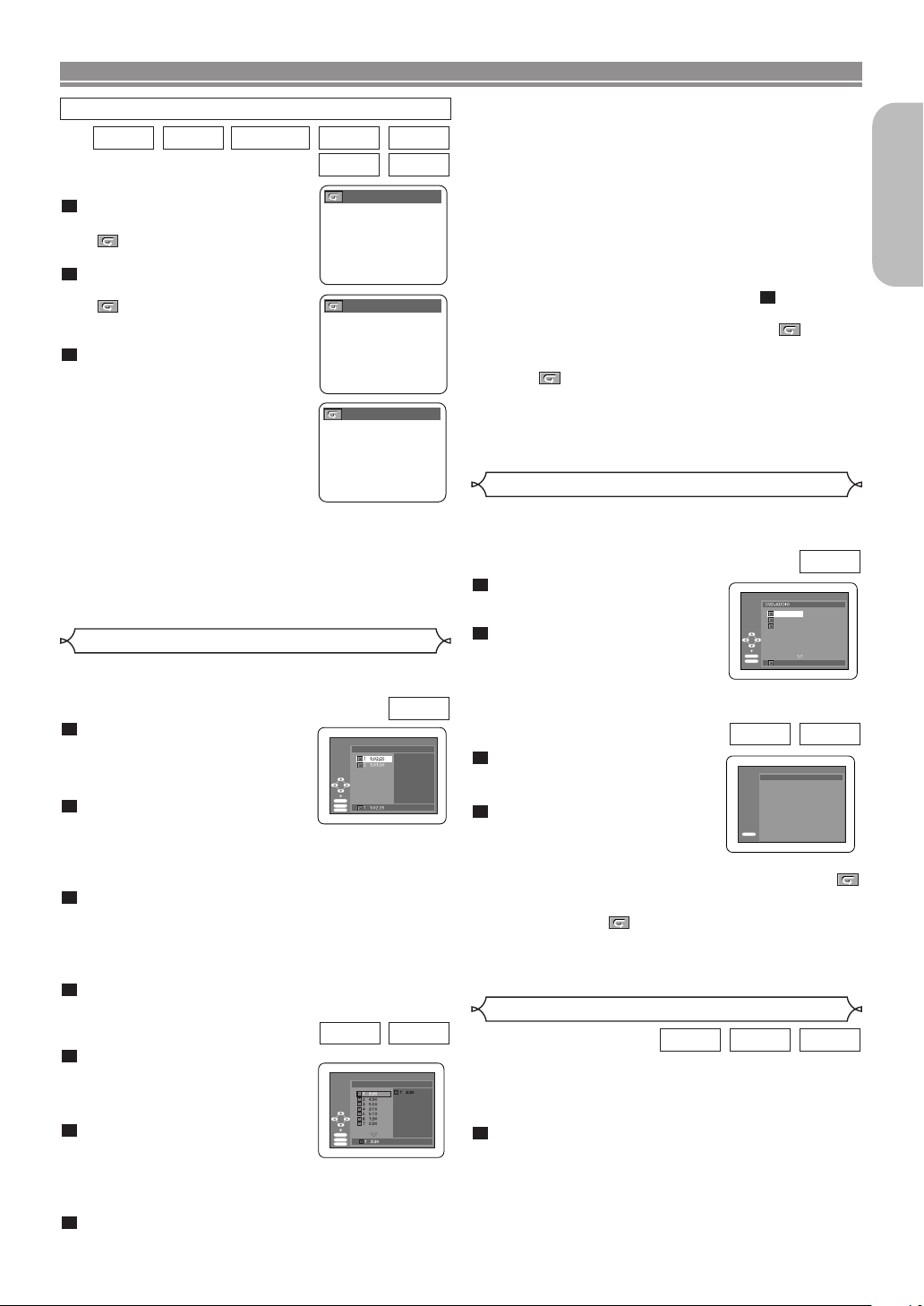

A-B REPEAT





DVD-V



DVD-A



DVD-RW





VCD



Super















Audio CD













































CD

DivX®



























Press the A-B REPEAT button



A -





1













at your chosen starting point.













A- appears briefly on the TV















screen.











2

Press the A-B REPEAT button













again at your chosen end point.













A-B appears briefly on the



A - B





















TV screen, and the repeat















sequence begins.











3To exit the sequence, press the

A-B REPEAT button.

NOTES:

• The A-B Repeat section can only

OFF

be set within the current title (for DVD-Video), or current track (for DVD-Audio, Video CD, Super Audio CD, Audio CD and disc with DivX® files).

A-B Repeat is not available with some scenes in DVD.

To cancel the A point which was set, press the CLEAR button.

A-B Repeat playback does not function during title, chapter, track or all repeat playback.

For some DivX® files, A-B Repeat playback may not function.

Program Playback

This function allows you to program a playback order in a desired sequence.

DVD-A

1

In stop mode, press the MODE









button repeatedly until the

PROGRAM







DVD-AUDIO

TOTAL 0:00:00



PROGRAM screen appears.



ALL CLEAR





• The group selection screen















appears.









Press the Cursor buttons

ENTER

1/ 1

1/ 1

2

PLAY





CLEAR





(▲ or ▼) to select a group, then

press the Cursor button (B) or ENTER button.

The track selection screen will be displayed.

It takes approximately 5 seconds until the track selection screen appears.

3Press the Cursor buttons (▲ or ▼) to select a track, then press the ENTER button.

Press the CLEAR button to erase the most recently entered track.

Press the Cursor button (s) button to go back to the group selection screen from the track selection screen.

4Press the PLAY button to start programmed playback.

Super

CD

Audio CD

1

In stop mode, press the MODE











button.

PROGRAM











CD-DA





TOTAL 0:03:30



• The PROGRAM screen will











appear.









2

Press the Cursor buttons (▲ or

PLAY

1/

2

1/ 1



ENTER



▼) to select a track, then press

CLEAR



















the ENTER button.









Press the CLEAR button to erase the most recently entered track.

3Press the PLAY button to start programmed playback.

NOTES:

While the program is being played back, the STOP button works as follows.

Press the STOP button once and then the PLAY button again. Playback will restart from the point where the STOP button was pressed. (Program continued.)

Press the STOP button twice and then the PLAY button again. Playback will restart from the first track in the usual way. Your programs will be stored unless either the disc tray is opened or power is turned off.

Up to 99 tracks can be entered.

To erase all tracks in the program at once, select ALL CLEAR at the bottom of the list at step 2 .

If you wish to repeat the current track in the program, press the REPEAT button repeatedly until TRACK appears during playback. If you wish to repeat the entire program, press the REPEAT button repeatedly until ALL appears during playback.

Refer to page 25 for Program Playback of MP3, WMA, and JPEG.

If eight or more tracks have been set in a program, the user can switch the right part of the screen with the SKIP H or G button.

Random Playback

This shuffles the playing order instead of playback in the original sequence.









DVD-A

1

In stop mode, press the









RANDOM button.

RANDOM















• The RANDOM screen will appear.



ALL





1

0:44:44

2

Press the Cursor buttons (K or



2

0:03:26









L) to select the desired group to

ENTER







playback randomly, then press

PLAY

ALL



the ENTER or PLAY button.







Random playback will start.

1In stop mode, press the RANDOM button.

The RANDOM screen will appear.

2Press the PLAY button to start Random Playback.

NOTES:

Super

CD

Audio CD

RANDOM



CD-DA

TOTAL 0:45:55

RANDOM PROGRAM



--no indication--

PLAY



If you wish to repeat the current track in the random selection, press the REPEAT button repeatedly until

TRACK appears during playback. If you wish to repeat

the entire random selection press the REPEAT button repeatedly until ALL appears during playback.

You cannot go back to the previous track during Random Playback.

Refer to page 25 for Random Playback of MP3, WMA, and JPEG.

MP3 / JPEG / WMA Playback

MP3 JPEG WMA

When a CD-R or CD-RW disc with MP3, JPEG or WMA files is inserted in the DVD player and the MENU button is pressed, the FILE LIST will appear on the display. The number of tracks is also displayed on the front panel.

1Press the Cursor buttons (K or L) to select the desired group (folder) or track.

If a group (folder) is selected, press the Cursor button (B) or ENTER button to go on to the track selection screen. Press the Cursor buttons (K or L) to choose a track, then press the PLAY or ENTER button.

To return to the previous screen, press the Cursor button (s).

English

– 21 –

EN

Picture4 Picture5 Picture6
1/32
Current track number / the number of total tracks

PLAYING A DISC

If a track is selected, press the PLAY or ENTER button. The selected track and the subsequent tracks will be played back.

When selecting the folders:

–Press the Cursor button (B) when you want to go to the next hierarchy.

–Press the Cursor button ({) button when you want to go back to the previous hierarchy (except for the top hierarchy).

Press the TOP MENU button to return to the first item.

2 Press the STOP button to stop playback.

NOTES:

Folders are known as groups; files are known as tracks.

A symbol of “” is shown on the top of the group name.

A symbol of “” is shown on the top of MP3 files.

A symbol of “” is shown on the top of JPEG files.

A symbol of “” is shown on the top of WMA files.

Maximum of 255 folders can be recognized.

If the track extends beyond the scope of screen, a down arrow “L” appears, indicating that the user can view another part on the previous page. The current page number and the number of total pages are shown on the right of the down arrow “L”. Use the SKIP H or G button to view the previous or next page.

Maximum of 999 files can be recognized.

Up to 8 hierarchies can be recognized.

If no MP3, JPEG or WMA files are found in the group, the group is not displayed.

The DVD player can reproduce data recorded as per ISO 9660 Level 1, Level 2 or Joliet on the disc.

It can also run a disc on which data is recorded in a multi-session.

For more details of recording systems, refer to the instruction manual for the CD-R / CD-RW drive or the writing software.

For MP3 and WMA file recorded in Variable Bit Rate (VBR), the unit may not display the actual elapsed

time.

This player recommends the use of files recorded at the below specifications:

Applicable MP3 file

Remarks







• It is prohibited to record

Sampling



44.1kHz

MP3 sound on a digital

frequency



48kHz

device when connection is







made digitally.





MPEG1

• MP3 files recorded at fixed

Type



bit rate of 32 kbps to 320



audio layer 3





kbps are recommended.













Applicable JPEG file

Remarks









Upper limit:

• A JPEG image that extends

Size of

6300x5100 dots

beyond the screen is


Lower limit:

reduced so that it will be



32x32 dots

displayed within the screen.









Applicable WMA file

Remarks









Sampling



44.1kHz

• Those frequencies are



applicable to WMA version

frequency



48kHz



9.





















• Ensure that the copyright

Bit rate



48–192kbps

function is set to off when







preparing a WMA disc.







• A prohibition symbol will







appear if the user attempts







to run a non-reproducible

Type



WMA version 9

file such as copyright-pro-



tected.







• Recorded in 5.1 channel







format cannot be played







back.









Information on MP3, JPEG and WMA discs

This DVD player can play back images and sounds from data recorded in MP3, JPEG and WMA formats on CD-R and CD-RW discs.

A file with an extension of “.mp3 (MP3)” is called an “MP3 file”.

A file with an extension of “.jpg (JPG)” or “.jpeg (JPEG)” is called a “JPEG file”.

The DVD player can run an image file conforming to the

Exif specification. Exif is a file format, Exchangeable Image File format established by Japanese Electronic Industry Development Association (JEIDA).

A file with an extension of “.wma (WMA)” is called a “WMA file”.

Files whose extension is other than “.mp3 (MP3)”, “.jpg (JPG)” and “.jpeg (JPEG)” or “.wma (WMA)” will not be listed in the MP3, JPEG or WMA menu.

If the file is not recorded in MP3, JPEG or WMA format, noise may be produced even if the file extension is either

“.mp3 (MP3)”, “.jpg (JPG)”, “.jpeg (JPEG)” or “.wma (WMA)”.

The name of group and track can be displayed in up to 25 characters. Unrecognizable characters will be replaced with asterisks. The ninth and deeper hierarchies cannot be displayed.

Unplayable groups or tracks may be displayed depending on the recording conditions.

If the TOP MENU button is pressed when FILE LIST is displayed, the first item will be highlighted.

Kodak Picture CD

The DVD player can also run JPEG files stored on Kodak Picture CDs. The Picture CD is a service to convert photographs taken by a conventional film camera into digital data and write the data on a CD. The user can enjoy picture images on the television set by playing back the Picture CDs. For details of Kodak Picture CD, contact a shop that deals with developing service of Kodak Inc.

1 Press the MENU button.



Kodak Picture CD menu

Picture1 Picture2 Picture3

appears.



• If all menu items cannot be displayed in the screen scope, “G” appears at the right bottom of the screen, indicating that the user can view remaining items on the next page. “H” appears, it

indicates that the user can view other items on the previous page. The track number of the currently highlighted item and the total tracks are shown at the center bottom of the screen.

If “G” is shown at the right bottom, use the SKIP G button to view the next page. If “H” is shown at the left bottom, use the SKIP H button to view the previous page.

Press the TOP MENU button to get back to the first page.

It may take some time until all menu items are displayed on the menu screen.

2Press the Cursor buttons (L / K / B / s), select a desired track to be played, then press the PLAY or ENTER button.

If a Kodak Picture CD file is selected, an image will be played back from the selected track and go to the next one in turn.

3Press the STOP button, to stop playback.

– 22 –

EN

– 23 –

PLAYING A DISC

Notes on JPEG and Kodak Picture CD:

A track is displayed for 5 or 10 seconds and then the next track is displayed. Refer to page 31 for SLIDE SHOW.

Every press on the Cursor button (B) will turn the image clockwise by 90 degrees when an image is displayed. A press on the Cursor button (s) will turn the image counterclockwise by 90 degrees.

To change the size of the playback image, press the

MODE button twice. The size change mode appears on top of the TV screen during playback. Then press the Cursor buttons (s or B) or ENTER button to switch between NORMAL (100%) and SMALL (95%).

Progressive JPEGs (JPEG files saved in the progressive format) will not be played back on this DVD player.

High resolution JPEG files take longer to be displayed.

The size change mode may have no effect on some files (e.g. files with a small picture size).

Notes on WMA:

The DVD player can reproduce data recorded as ISO 9660 level 2 with 31 characters file name included punctuation marks. The name of a file can be displayed in up to 25 characters.

Maximum of 8 subfolders can be recognized.

It can also display tag information of WMA 64 characters at maximum.

A file with an extension of Joliet as Unicode format in up to 64 characters can be recognized.

This unit cannot play back copyright protected WMA files.

DivX® Playback

DivX®

This DVD player can play back DVD-R/RW and CD-R/RW discs recorded in DivX® Format. When a DVD-R/RW or CD- R/RW with DivX® files is inserted in the DVD player and the MENU button is pressed, the FILE LIST will appear. The number of tracks will be also displayed on the front panel.

1Press the Cursor buttons (K or L) to select the desired group (folder) or track.

To return to the previous screen, press the Cursor button (s).

If a group (folder) is selected, press the Cursor button (B) or ENTER button to go on to the track selection screen. Press the Cursor buttons (K or L) to choose a track, then press the PLAY or ENTER button.

If a track is selected, press the PLAY or ENTER button. The selected track and the subsequent tracks will be played back.

When selecting the folders:

–Press the Cursor button (B) when you want to go to the next hierarchy.

–Press the Cursor button ({) when you want to go back to the previous hierarchy (except for the top hierarchy).

Press the TOP MENU button to return to the first item.

2Press the STOP button to stop playback.

NOTES:

DivX® is a codec (compression/decompression) that can compress images to a very small amount of data. The software can compress video data from almost any sources to the size that can be sent on the Internet without compromising visual quality of the images.

A file with an extension of “.avi” or “.divx” is called a DivX® file.

All files with the “.avi” extention are recognized as MPEG 4.

Files with the extension other than “.avi” and “.divx” will not be listed on the DivX® menu. However, unplayable groups or tracks may be displayed, depending on the recording conditions.

Even if the file has an extension of either “.avi” or “.divx”, this player cannot play it back if it is recorded in the format other than DivX®.

Folders are known as groups; files are known as tracks.

A symbol of is shown on the top of the group name.

Maximum of 255 folders can be recognized.

Maximum of 999 files can be recognized.

If the track extends beyond the scope of screen, a down arrow “L” appears, indicating that the user can view another part on the previous page. The current page number and the number of total pages are shown on the left of the down arrow “L”.

The name of a group and track can be displayed up to 25 characters. Unrecognizable characters will be replaced with asterisks. The ninth and deeper hierarchies cannot be displayed.

You can play back the disc recorded in multi-session.

Playback will be paused if the FILE LIST is displayed during the playback.

It may take a while for audio and images to be output after you inserted a disc and pressed the PLAY button.

When playing back the files recorded in high bit rates, the images can be interrupted on some occasions.

Although DivX® logo has been obtained for this player, it may not be able to play back some data, depending on the disc characteristics, bit rates, or audio format settings, etc.

Use the software recognized by DivX®, Inc. when you make DivX® files.

When using tools or utilities to make up DivX® files, read their instruction manual beforehand.

A DivX® file whose file size exceeds 2GB cannot be played back.

If a large-sized DivX® file is selected, it may take a while to start the playback (over 20 seconds sometimes).

If DivX® files wrote on CD discs cannot be played back, rewrite them on a DVD disc and try to play back.

For more information for DivX®, please visit http://www.divx.com.

If you insert a CD-R/RW with DivX® files that are mixed with MP3, JPEG, or WMA files, the Playback Media Selection screen will be displayed. Please select Video and proceed to Step 1.

Please select the media to play back.

Video

Audio & Picture

ENTER

Press the TOP MENU button to call up the Playback Media Selection screen in stop mode.

If you select Audio & Picture, instead of Video on the Playback Media Selection screen, the DVD player can play back MP3/JPEG/WMA files. Refer to page 21 for details.

This player recommends the use of files recorded at the following specifications:

Applicable DivX® file

Remarks

Playable

DivX®3.1.1,

• They are recognized as

Codec of AVI

DivX®4.x,

files

DivX®5.1.1

MPEG4.



720 x 480



Maximum size

@30 fps



of image

720 x 576





@25fps



Sampling



• It is prohibited to record



MP3 sound on a digital

frequency of

8 kHz - 48kHz

device when the connection

audio





is made digitally.













MPEG1 audio

• MP3 files recorded at fixed

Audio type

layer 3 (MP3)

bit rate of 32 kbps to 320

MPEG1 audio



kbps are recommended.



layer 2









EN

English

TRACK 01
TITLE NAME
ARTIST NAME

PLAYING A DISC

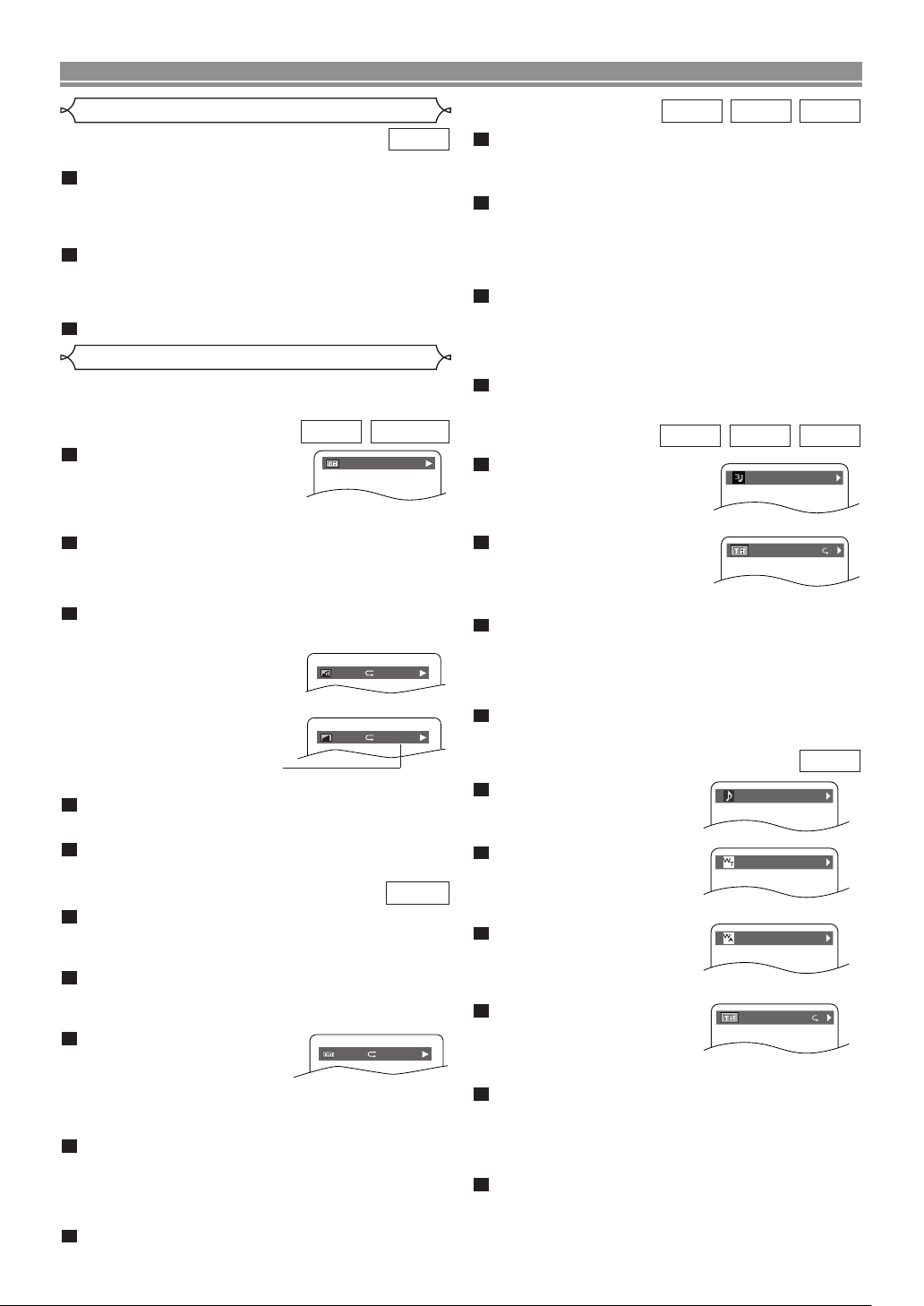

Slide Show Mode

JPEG

You can switch to the Slide Show Mode during playback.

1Press the MODE button during playback.

The Slide Show Mode screen will appear.

The Slide Show Mode cannot be switched when it is stopped, or from the FILE LIST screen or the Picture CD menu screen.

2Press the Cursor buttons (s or B) or ENTER button.

The Slide Show Mode will change.

CUT IN/OUT: The entire image appears in one time. FADE IN/OUT: The image appears gradually and then

disappears.

3Press the MODE button twice to exit.

On-Screen Information

VCD

Super

CD

Audio CD

1Press the DISPLAY button during playback, the current track will be displayed on the TV screen.

The elapsed and remaining playing time of the current track will be displayed.

2Press the DISPLAY button again to show the total tracks.

The elapsed and remaining playing time of the disc will be displayed.

If you are playing Super Audio CD, press the DISPLAY button again to show the area currently being played.

3Press the DISPLAY button again.

During Program or Random Playback, each playback status will be displayed when you press the DISPLAY button. Then press the DISPLAY button again.

Current HDMI status will be displayed during the HDMI output mode.

You can check information about the current media by pressing the DISPLAY button on the remote control.

4Press the DISPLAY button again to remove the display.

DVD-VDVD-RW

1 Press the DISPLAY button

9/49 0:00:00 -0:00:00

during playback to show the current chapter.

The elapsed and remaining

playing time of the current chapter will be displayed.

2Press the DISPLAY button again to show the current title.

The elapsed and remaining playing time of the current title will be displayed.

3Press the DISPLAY button again to show the bit rate and the current repeat setting.

If you are playing a dual layered

disc, the layer number will also













IIII

T

L0

be displayed (L0: Layer 0 is











played. L1: Layer 1 is played).











• If you are playing a DVD-RW











with setting the PLAYLIST, the



IIII

T

ORG

following will also be displayed.











ORG: Playing the ORIGINAL.

























PL: Playing the PLAYLIST.











4Press the DISPLAY button again.

Current HDMI status will be displayed during the HDMI output mode.

5Press the DISPLAY button again to remove the display.

DVD-A

1Press the DISPLAY button during playback to show current track.

The elapsed and remaining playing time of the current track will be displayed.

2Press the DISPLAY button again to show current group.

The elapsed and remaining playing time of the current group will be displayed.

3Press the DISPLAY button

again to show the bit rate

IIII

T L0

and the current repeat set-





ting.





If you are playing a dual layered disc, the layer number will also be displayed (L0: Layer 0 is played. L1: Layer 1 is played).

4Press the DISPLAY button again.

During all group, Program or Random Playback, each playback status will be displayed when you press the DISPLAY button. Then press the DISPLAY button again.

Current HDMI status will be displayed during the HDMI output mode.





MP3



JPEG



DivX®



Press the DISPLAY button







1









during playback.

TRACK 01













• The name of the file currently









played will be displayed.

<Example: MP3>











Press the DISPLAY button







2

TR 1/36 0:01:15

T









again to show the track number, the elapsed time (MP3 and DivX®), the repeat status,

and the playback status at the top of the screen.

3Press the DISPLAY button again.

During Program or Random Playback, each playback status will be displayed when you press the DISPLAY button. Then press the DISPLAY button again.

Current HDMI status will be displayed during the HDMI output mode.

4Press the DISPLAY button again to remove the display.

WMA

1 Press the DISPLAY button during playback.

The name of the file currently played will be displayed.

2 Press the DISPLAY button again.

Title name based on tag information currently played will be displayed.

3 Press the DISPLAY button again.

• Artist name based on tag information currently played will be displayed.

4

Press the DISPLAY button

TR 1/36 0:01:15

T





again to show the track







number, the elapsed time,







the repeat status, and the





playback status at the top of the screen.

5Press the DISPLAY button again.

During Program or Random Playback, each playback status will be displayed when you press the DISPLAY button. Then press the DISPLAY button again.

Current HDMI status will be displayed during the HDMI output mode.

6Press the DISPLAY button again to remove the display.

NOTE:

5 Press the DISPLAY button again to remove the





• If the file does not contain tag information, “NOT AVAIL-

display.

– 24

ABLE” will be displayed.



EN

VIDEO INFO. : YCbCr/1080i AUDIO INFO. : BITSTREAM MAX CHANNEL : 2ch

PLAYING A DISC

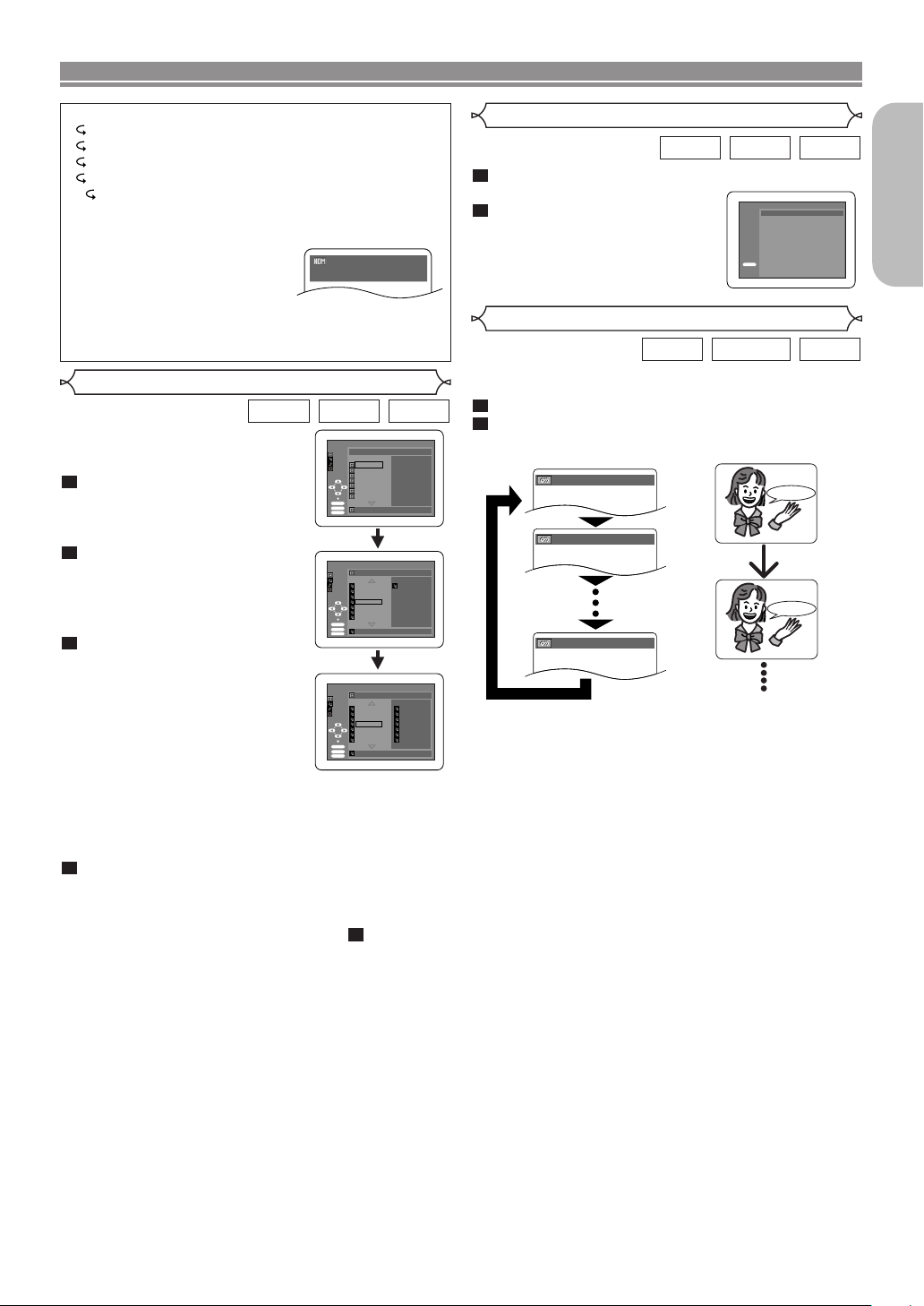

Hints for repeat indications

C - indicates Chapter repeat

T - indicates Title or Track repeat

G - indicates Group (folder) repeat

A - indicates Disc repeat

AB- indicates A-B repeat

Hints for HDMI indications

The displayed HDMI status are

as follows: 1. Information for image out-

put/Resolution of image

2.Sound output format

3.Maximum number of audio channels that can be accepted by the connected equipment

Random Playback

MP3 JPEG WMA

1In stop mode, press the RANDOM button.

The RANDOM screen will appear.

2

Press the PLAY button to start

RANDOM



DISC TITLE



Random Playback.



RANDOM PROGRAM



• For a disc containing mixed MP3,



--no indication --









JPEG and WMA files, Random

PLAY





Playback of those files will be













performed.





Audio Language

DVD-VDVD-RW DivX®

Program Playback

MP3 JPEG WMA

This feature allows you to program an MP3, JPEG or WMA disc to play in a desired sequence.

1In stop mode, press the MODE button.

The PROGRAM screen will appear.

2Press the Cursor buttons (K or L) to select a group, then press the Cursor button (B) or ENTER button.

A track selection screen appears.

3Press the Cursor buttons (K or L) to select a track, then press the ENTER button to save it in a program.

Press the CLEAR button to erase the most recently entered track.

The programmed track is displayed in the right-hand screen.

PROGRAM





FOLDER

MP3 - COLECTION



MP3







WMA

ALBUM01





JPEG

ALBUM02







ALBUM03







ALBUM04







ALBUM05







ALBUM06







ALBUM07





ENTER

1/

3

1/ 1

PLAY

ALBUM01





CLEAR





PROGRAM





FOLDER

ALBUM01











MP3







WMA

TRACK08



TRACK11

JPEG

TRACK09







TRACK10







TRACK11







TRACK12







TRACK13







TRACK14





ENTER

2/

3

1/ 1

PLAY

TRACK11





CLEAR





PROGRAM











FOLDER

ALBUM05



















MP3

TRACK48





TRACK11

WMA





JPEG

TRACK49





TRACK81



TRACK50





TRACK31



TRACK51





TRACK22



TRACK52





TRACK03



TRACK53





TRACK53



TRACK54





TRACK25

ENTER



2/

3

H 2/ 3

G

PLAY

TRACK51









CLEAR









If the entire program cannot be

displayed at once on the screen, “L” appears to go to the next page.

Pressing the Cursor button (s) will show a list of folders that belong to the one-level upper hierarchy than the currently selected folder.

4Press the PLAY button to start programmed playback.

NOTES:

To erase all tracks in the program at once, select ALL CLEAR at the bottom of the list at step 2 .

During the display of the PROGRAM screen, press the

RETURN button, and the stop screen will show up with the program contents in memory.

Press the STOP button once and then the PLAY button again. Playback will restart from the beginning of the track played previously. (Program continued.)

Press the STOP button twice and then the PLAY button again. Playback will restart from the first track in the usual way. Your programs will be stored unless either the disc tray is opened or power is turned off.

Up to 99 tracks can be set in a program.

If an inserted disc contains mixed MP3, JPEG and WMA files, Program function allows 99 tracks in combination of MP3, JPEG and WMA files.

If eight or more tracks have been set in a program, the user can switch the right part of the screen with the

SKIP H or G button.

The DVD player allows you to select a language during DVD disc playback if multiple languages are available.

1Press the AUDIO button during playback.

2Press the AUDIO button repeatedly to select your desired language.

1.

ENG

DolbyD 3/2.1ch 48k/3





HELLO

2.

FRE

DolbyD 3/2.1ch 48k/3





Bon jour

3.

JPN

DolbyD 3/2.1ch 48k/3

NOTES:

The sound mode cannot be changed during playback of discs not recorded in double sound.

Some discs allow Audio Language setting on the disc menu. (Operation varies between discs. Refer to the manual accompanying the disc.)

For discs with DivX® files, the screen only displays MP3 audio or MPEG1 audio layer 2. (MPEG1 audio layer 2 will be displayed as “MP2”.) Other audio sounds will be displayed as “---”.

Pressing the AUDIO button may not work on some DVDs with multiple audio languages (e.g. DVDs which allow Audio Language setting on the disc menu).

If you choose a language that has a 3-letter language code, the code will be displayed every time you change the Audio Language setting. If you choose any other languages, “---” will be displayed instead. (Refer to page 32.)

If the disc has no audio language, ‘NOT AVAILABLE’ will be displayed.

For DVD-RW (VR mode), pressing the AUDIO button cycles the sound mode through MAIN, SUB and MAIN + SUB.

For DVD-RW (VR mode), discs recorded in double sound (two languages) can be played back in sound mode of MAIN, SUB or MAIN + SUB.

With the digital connection, the audio language of DVDRW (VR mode) with double sound will not be affected even though you can change the setting on the display.

English

– 25 –

EN

OFF
OFF
3 To turn off subtitles, press the SUBTITLE button repeatedly until OFF appears.
NOTES:
• Some discs allow Subtitle Language setting on the disc menu. (Operation varies between discs. Refer to the manual accompanying the disc.)
• Pressing the SUBTITLE button may not work on some DVDs with multiple subtitle languages (e.g. DVDs which allow Subtitle Language setting on the disc menu).
• If the desired language is not shown after pressing the SUBTITLE button several times, the disc does not have subtitles in that language.
• If you choose a language that has a 3-letter language code, the code will be displayed every time you change the Subtitle Language setting. If you choose any other languages, ‘---’ will be displayed instead. (Refer to page 32.)
• If the disc has no subtitle language, ‘NOT AVAILABLE’ will be displayed.
• For discs with DivX® files, the screen only displays the number of subtitle languages.
Sound Mode / Stereo Sound Mode
DVD-A
1 Press the AUDIO button during playback.
2 Press the AUDIO button repeatedly to select your desired sound.
Subtitle 2
2.FRE/6
• The selected language will be displayed on the display bar at the top of the screen.
• Press the Cursor buttons (s or B) to turn ON or OFF subtitles during playback.
Subtitle 1
2
Press the SUBTITLE button during playback. Press the SUBTITLE button repeatedly to select your desired subtitle language.
The DVD player allows you to select a language for subtitle during DVD disc playback if multiple languages are available.
1
DVD-V DivX®
PLAYING A DISC
Subtitle Language

VCD CD

1 Press the AUDIO button repeatedly during playback to select between STEREO, L-ch or R-ch.



STEREO

- both right and left channels are active (stereo)



L-ch

- only left channel is active





R-ch

- only right channel is active



STEREO

Both right and left channels are active (stereo).

L-ch

Only the left channel is active.

R-ch

Only the right channel is active.

NOTES:

Stereo sound mode will not be changed when playing DTS CD.

Stereo sound mode cannot be changed during the playback of Super Audio CD. (It may be possible to switch stereo sound mode when playing back discs including a CD AREA.)

Super

Audio CD

1Press the SOUND MODE button repeatedly to select MULTI-CH AREA, CD AREA or 2CH AREA.

MULTI-CH AREA: Playback in multi channel format. The number of channels depends on the played disc.

CD AREA: Playback in the sound quality equivalent to Audio CDs.

2CH AREA: Playback in higher quality than that of Audio CD sound.

MULTI-CH AREA

MULTI-CH AREA is selected (Default: when the ANALOG AUDIO

is set to 5.1CH)

CD AREA

CD AREA is selected

2CH AREA

2CH AREA is selected

(Default: when the ANALOG AUDIO is set to 2.0CH)

NOTE:

When selecting a multi-channel sound, it may not be mixed down in some cases even though the Audio Setting is 2 channel.

1.LPCM 3/2.1ch 96k/2

2.PPCM 2/0ch 96k/2

NOTES:

Virtual Surround setting is not available for Super Audio CDs. (If a disc contains the CD AREA, Virtual Surround setting is available only for the CD AREA.)

Some playback options may not be available. They will be skipped.

Camera Angle

DVD-V

Some DVD discs contain scenes which have been shot simultaneously from various angles. You can change the Camera Angle when the mark ( ) appears on the screen.

1Press the ANGLE button during playback.

The selected angle will be displayed on the display bar at the top of the screen.

2Press the ANGLE button repeatedly to select your desired angle.

– 26 –

EN

PLAYING A DISC

1 / 8

Angle 1

2 / 8

Angle 2

8 / 8

Angle 8

NOTE:

If the “ANGLE ICON” setting is “OFF” in the display menu, the mark ( ) will not appear. (Refer to page 31.)

Marker Setup Screen

DVD-V DVD-A DVD-RW VCD

Super

Audio CD

CD

Use markers to memorise your favourite places on a disc.

1Press the SEARCH MODE button repeatedly until the display screen and markers

appear during playback.

2Press the Cursor buttons (s or B) to select 1, 2, 3, 4, 5, 6, 7, 8, 9, or 10 and ensure that “_ : _ _

:_ _” appears on the display.

3When the disc reaches the desired point, press the ENTER button.

The title or track and elapsed playing time will appear on the TV screen.

4To return to the marker later, press the SEARCH MODE button repeatedly during playback and the Cursor buttons (s or B) to choose a desired marker, then pressing the ENTER button.

NOTES:

Opening the disc tray, turning off the power or selecting AC at step 2 and pressing the ENTER button will erase all markers.

To clear a marker, use the Cursor buttons (s or B), position the cursor on to the marker number to be cleared and press the CLEAR button.

• You can mark up to 10 points.

5Press the SEARCH MODE or RETURN button to exit.

Virtual Surround

DVD-VDVD-ADVD-RW VCD CD MP3 WMA

You can enjoy stereophonic virtual space through your existing 2 channel stereo system.

1 During playback, press the MODE button repeatedly until Virtual Surround setting appears.

2Press the ENTER button to set

it 1(Natural effect), 2(Emphasised effect) or OFF.

3Press the MODE or RETURN button to exit.

NOTES:

When Virtual Surround is set to 1 or 2, audio signals are output as 2 channel sound.

Select Virtual Surround OFF or adjust the volume down if the sound is distorted.

Virtual Surround will not be effective if the sound mode is set to something other than “STEREO”. (for Audio CDs or Video CDs playback only)

The setting will kept OFF when the player is turned off.

Black Level Setting

DVD-VDVD-ADVD-RW VCD

Adjust the Black Level Setting to make the black parts of the picture as bright as you prefer.

1Press the MODE button during playback.

2Press the ENTER button to switch ON/OFF.

ON : Makes the dark parts brighter.

OFF (Default) : Shows the original

OFF



picture as recorded.



3Press the RETURN button to exit.

NOTE:

• The setting will be saved even if the player is turned off.

DVD SETUP

In setup menu, QUICK mode, CUSTOM mode and QUICK mode consists of the setting menus often needed, mode. You can make the settings of the items with QUICK When you make some settings, the setup menu will close HDMI cable is connected/disconnected, or the connected

Language Setting

mode.

2

Press the Cursor buttons (sor

LANGUAGE





B) to select CUSTOM, then

SUBTITLE

ENGLISH



press the ENTER button.

AUDIO

ENGLISH



DISC MENU

ENGLISH





PLAYER MENU

ENGLISH

• The CUSTOM mode will appear.

3Press the Cursor buttons (sor

B) to select LANGUAGE, then press the ENTER button to confirm.

4Press the Cursor buttons (K or L) to select the below items, then press the ENTER button.

LANGUAGE

AUDIO

ORIGINAL

ENGLISH

FRENCH

SPANISH

GERMAN

ITALIAN

SWEDISH

• Sets the language for the on-screen display.

5Press the Cursor buttons (K or L) to select a setting, then press the ENTER button.

If OTHER is selected in the AUDIO, SUBTITLE or DISC MENU screen, press 4-digit number to enter the code for the desired language. (Refer to the Language Code

List on page 32.)

English

– 27 –

EN

DISPLAY
TV ASPECT 16:9 WIDE STILL MODE AUTO PROGRESSIVE OFF PROGRESSIVE MODE AUTO 1 FORMAT RGB
RGB RANGE NORMAL
• The CUSTOM mode will appear.

DVD SETUP

Only the languages supported by the disc can be selected.

6 Press the SETUP button to exit.

NOTE:

Language Setting for AUDIO and SUBTITLE is not available with some discs. Then use the AUDIO and SUBTITLE buttons. Details are on pages 25-26.

DISPLAY PROGRESSIVE MODE

AUTO 1

AUTO 2

VIDEO 1

VIDEO 2

VIDEO 3

Display Setting

You can change certain aspects of the DVD display screens, and various display mode settings.

1

Press the SETUP button in







stop mode.

DISPLAY



2

Press the Cursor buttons (s

TV ASPECT

16:9 WIDE



STILL MODE

AUTO



or B) to select CUSTOM, then

PROGRESSIVE

OFF



PROGRESSIVE MODE AUTO 1



press the ENTER button.

FORMAT

RGB



RGB RANGE

NORMAL







3Press the Cursor buttons (sor B) to select DISPLAY, then press the ENTER button to confirm.

4Press the Cursor buttons (K or L) to select the below items, then press the ENTER button.

TV ASPECT (Default: 16:9 WIDE) QUICK

• Press the Cursor buttons (Kor



L) for an item selection, then



press the ENTER button.

TV ASPECT



DISPLAY

• Select 16:9 WIDE if a wide-



4:3 LETTER BOX

screen TV is connected to the

4:3 PAN & SCAN

16:9 WIDE

DVD player.

16:9 SQUEEZE



Select 4:3 LETTER BOX for a

black bars appears on top and bottom of the screen.

Select 4:3 PAN & SCAN for a full height picture with both sides trimmed.

Select 16:9 SQUEEZE if a wide-screen TV is connected to the DVD player and you want to maintain the original source aspect of 4:3. However, when playing back discs recorded on 16:9, images will be output as 16:9 WIDE.

STILL MODE (Default: AUTO)

• Press the Cursor buttons

(K or L) for



(AUTO, FIELD



press the ENTER

FRAME

• This adjusts the resolution of



pictures in the still (PAUSE)



mode.



If you select AUTO, automatically select the best resolution setting (FRAME or FIELD) based on the data characteristics of the pictures.

If you select FIELD, pictures in the still mode will be stabilized although they will be coarse due to a little amount of data.

If you select FRAME, pictures in the still mode will be highly defined although they will be blurred due to output of two fields at the same time.

NOTE:

An individual picture on TV screen is called as “frame”, which consists of two separate images called as “field”. Some pictures may be blurred at the AUTO setting in the still mode due to their data characteristics.

PROGRESSIVE (Default: OFF) QUICK

Press the Cursor buttons (Kor L) to set PROGRESSIVE to ON or OFF, then press the ENTER

button.

• The setting will be effective when you exit the setup screen by pressing the SETUP button.

When PROGRESSIVE is ON,

“P.SCAN” appears on the DVD player’s display.

This setting is fixed to OFF during the HDMI output mode. Set the HDMI mode to hdOFF or remove the HDMI cable to change the setting.

Refer to page 12 for more details.

DISPLAY

TV ASPECT

16:9 WIDE

STILL MODE

AUTO

PROGRESSIVE

OFF

PROGRESSIVE MODE AUTO 1

FORMAT

RGB

RGB RANGE

NORMAL

DISPLAY

TV ASPECT

16:9 WIDE

STILL MODE

AUTO

PROGRESSIVE

OFF

PROGRESSIVE MODE AUTO 1

FORMAT

RGB

RGB RANGE

NORMAL

Audio Setting

Choose the appropriate Audio Setting for your equipment as it only affects during the playback of DVD discs of the DVD player.

1Press the SETUP button in stop mode.

2Press the Cursor buttons (s or B) to select CUSTOM, then press the ENTER button.

• The CUSTOM mode will appear.

3Press the Cursor buttons

(s or B) to select AUDIO, then the ENTER button to confirm.

4Press the Cursor buttons (K or L) to select the below

items, then press the ENTER button.

DRC (Dynamic Range Control)

(Default: ON)

To compress the range of sound volume.

DRC function is available only on the discs that are recorded in the Dolby Digital format.

DOWN SAMPLING (Default: ON)

Set to ON when outputting in 48kHz (or 44.1kHz).

This function is available only on digital outputting of a disc recorded in over 96kHz (or 88.2kHz).

AUDIO

DRC

ON

DOWN SAMPLING

ON

DOLBY DIGITAL

BITSTREAM

DTS

BITSTREAM

HDMI AUDIO

AUTO

ANALOG AUDIO

2.0CH





AUDIO



DRC

ON

DOWN SAMPLING

ON

DOLBY DIGITAL

BITSTREAM

DTS

BITSTREAM

HDMI AUDIO

AUTO

ANALOG AUDIO

2.0CH





AUDIO



DRC

ON

DOWN SAMPLING

ON

DOLBY DIGITAL

BITSTREAM

DTS

BITSTREAM

HDMI AUDIO

AUTO

ANALOG AUDIO

2.0CH





• This function is not effective for the HDMI sound output.

– 28 –

EN

DVD SETUP

• The sound of DVD-Audio which exceeds 96kHz(or





Speaker Setting for ANALOG AUDIO

88.2kHz) will be output as 96kHz (or 88.2kHz) even if





DOWN SAMPLING is set to OFF.











When 5.1CH is selected for ANALOG AUDIO, some speaker

When playing disc with copyright protection





settings will be required.





• The sound will be down-sampled at 48kHz (or

















• During the HDMI output mode, any of the Speaker Setting

44.1kHz), even if you set to OFF.























is ineffective.





DOLBY DIGITAL (Default: BITSTREAM)

QUICK



























1

Press the Cursor buttons (K or L) to select

• Set to BITSTREAM when the























5.1CH, then press the ENTER button.

player is connected to a Dolby























2

Press the Cursor buttons (K or





Digital decoder.

AUDIO





















DRC

ON





L) to select the below items,





• This function is effective only for





AUDIO

DOLBY DIGITAL

BITSTREAM





then press the ENTER button.



DOWN SAMPLING ON









the COAXIAL and OPTICAL con-

DTS

BITSTREAM













5.1CH



ANALOG AUDIO

2.0CH







SPEAKER SIZE



HDMI AUDIO

AUTO











nections.















DELAY TIME















BALANCE

When HDMI AUDIO is set to AUTO, this setting is fixed and cannot be changed in some cases.

BITSTREAM: Output by Dolby Digital.







SPEAKER SIZE









PCM: Convert Dolby Digital to PCM.







• Press the Cursor buttons (K or L)



SPEAKER SIZE

















to select the speaker to set.







DTS (Default: BITSTREAM)

QUICK









• Press ENTER until the desired



AUDIO















































FRONT (L/R)

LARGE



• Set to BITSTREAM when the unit









CENTER

LARGE









speaker size appears.



SUB WOOFER

ON



is connected to a DTS decoder.









SURROUND (L/R) LARGE





















• This function is effective only for the

AUDIO

















DRC

ON















COAXIAL and OPTICAL connections.















DOLBY DIGITAL

BITSTREAM





















DOWN SAMPLING ON



FRONT(L/R), CENTER, SURROUND(L/R)











DTS

BITSTREAM







• When HDMI AUDIO is set to

HDMI AUDIO

AUTO



(Default: LARGE)









ANALOG AUDIO

2.0CH











AUTO, this setting is fixed and







LARGE:Select this when the connected speaker is







cannot be changed in some cases.









capable of playing back sounds of 100Hz or

BITSTREAM: Output DTS sound.









less.









PCM: Convert DTS sound to PCM.







SMALL: Select this when the connected speaker is not









capable of playing back sounds of 100Hz or

NOTE:

















less.









• Audio settings for DOLBY DIGITAL and DTS may be

OFF:

Select this when it is not connected. (It cannot

automatically changed to BITSTREAM or PCM in some



be set OFF on the FRONT speaker.)





cases when using the HDMI connection.





SUB WOOFER (Default: ON)









HDMI AUDIO (Default: AUTO)





















ON:

Select this when SUB WOOFER is connected.

• Select the number of channels







OFF: Select this when it is not connected.





for the HDMI audio output.

AUDIO

HDMI AUDIO

• Refer to the table on page 16 for

MULTI PCM



AUTO

the actual output settings.

2CH PCM

OFF

Connect appropriate external equipment for each setting.

This setting cannot be changed when no equipment compatible with HDMI audio is connected to the HDMI OUT terminal.

Even if an equipment compatible with HDMI audio is connected, this setting cannot be changed when the equipment is turned off or the HDMI output mode is set to hdOFF.

AUTO: The output channel number is selected automatically from Bitstream, Multi-channel or 2-channel. Suitable for monitors or amplifiers compatible with HDMI bitstream.

MULTI PCM:

Multi-channel or 2-channel signals are output from the HDMI OUT terminal.

Suitable for monitors or amplifiers incompatible with HDMI bitstream.

2CH PCM:

2 channel signals are output from the HDMI OUT terminal.

Suitable for monitors or projectors compatible with HDMI 2CH.

OFF: No audio signals are output from the HDMI OUT terminal. To use the 5.1CH AUDIO OUT jacks.

ANALOG AUDIO (Default: 2.0CH)

• This setting may not be changed depending on the HDMI connec-

AUDIO

tion. Set HDMI AUDIO to OFF if

NOTES:

OFF is not available for SUB WOOFER when SMALL is selected for FRONT(L/R).

SMALL is not available for FRONT(L/R) when OFF is selected for SUB WOOFER.

During DVD-Audio playback, the sound may not come out as setting due to restrictions in the disc or the player.

During DVD-Audio playback, the Low Pass Filter (which filters out the sound with the sound wave frequency over 100Hz) of the SUB WOOFER will be turned off with the following speaker setting. Otherwise, the Low Pass Filter will be turned on.

FRONT(L/R): LARGE

CENTER: LARGE

SUB WOOFER: ON

SURROUND(L/R): LARGE

DELAY TIME

To enjoy 5.1-channel surround sound, the distance between the listening position and all speakers (excluding the SUB WOOFER) should ideally be set at a uniform distance on a circle. If the speakers cannot be set at this manner, the ideal listening position can be virtually created with the DELAY TIME setting.

Use the Cursor buttons (K or L) to select the setting item, then press the ENTER button.

• Press the Cursor buttons (K or L)





to select the speaker to set, then





press the ENTER button.

AUDIO





DELAY TIME











DISTANCE

FEET



FRONT(L/R)

10ft



CENTER

10ft



SURROUND

10ft



DEFAULT

ON







it occurs.

DRC

ON

DISTANCE (Default: FEET)

DOWN SAMPLING

ON

DOLBY DIGITAL

BITSTREAM

2.0CH : Output 2ch sound from the

DTS

BITSTREAM

FEET (when the ENTER button is pressed):

ANALOG AUDIO

2.0CH



HDMI AUDIO

AUTO



5.1CH AUDIO OUT jacks.





The unit of distance is set to feet (“ft”).

5.1CH : Output multi channel





METERS (when the ENTER button is pressed):

sound from the 5.1CH AUDIO OUT jacks.

The unit of distance is set to meters (“m”).

5 Press the SETUP button to exit.

English

– 29 –

EN

DVD SETUP

FRONT(L/R), CENTER, SURROUND (Default: 10ft)

FRONT(L/R):

The distance can be set within the range of 0 to 60ft.

CENTER, SURROUND:

These depend on the setting value of FRONT(L/R).

NOTES:

AUDIO

DELAY TIME

DISTANCE

FEET

FRONT(L/R)

10ft

CENTER

10ft

SURROUND

10ft

DEFAULT

ON

AUDIO

FRONT(L/R)

11ft

10ft

9ft

8ft

7ft

6ft

5ft

It is not possible to adjust this item

if CENTER and SURROUND have been set to OFF in the SPEAKER SIZE setting.

When DEFAULT is selected and the ENTER button is pressed, all the items are restored to their factory default settings.

BALANCE

When the channel level differs from each speaker, the adjustment can be made in the unit of dB (-12dB to 0dB).

TEST:

• Press the Cursor buttons (K or L)





to select TEST, then press the





ENTER button.

AUDIO



The test tone will output from each

BALANCE







TEST

0dB

speaker in turn.

CENTER



FRONT (L)

0dB



FRONT (R)

0dB



SUB WOOFER

0dB



SURROUND (R)

0dB



SURROUND (L)

0dB

CHANNEL LEVEL:

Press the Cursor buttons (K or L) to select the speaker to set, then

press the ENTER button.

AUDIO



TEST











FRONT (L)

0dB



CENTER

0dB



FRONT (R)

0dB



SURROUND (R)

0dB



SURROUND (L)

0dB

• Press the Cursor buttons (K or L)









to select the desired level for each





speaker, then press the ENTER





button.

AUDIO



FRONT (L)











0dB





-1dB





-2dB





-3dB





-4dB



NOTES:

-5dB



-6dB



While the test tone is being out-

put, the channel balance adjustment cannot be made.

When TEST is selected, no test tone will be output from SUB WOOFER.

It is not possible to adjust this item for the speaker that has been set to OFF in SPEAKER SIZE setting.

3 Press the SETUP button to exit.

Parental Control

Parental Control limits playback of discs with unsuitable audience ratings. A 4-digit password established by the user will unlock the Parental Lock.

This feature allows you to prevent your children from playing discs with objectionable scenes.

PARENTAL LEVEL

Parental Level allows you to set the rating level of your DVD discs. Playback will stop if the disc’s ratings exceed the level you set.

1Press the SETUP button in stop mode.

2Press the Cursor buttons (s or B) to select CUSTOM, then press the ENTER button.

3Press the Cursor buttons (sor B) to select PARENTAL, then press the ENTER button.

4Press the Numeric buttons to enter your 4-digit password.

When doing this for the first time, enter any 4-digit number by pressing the Numeric buttons (except for 4737), then press the ENTER button. That number will be used as the password from the second time onward. Record your password in case you forget it.

5Press the Cursor buttons

(Kor L) to select PARENTAL LEVEL, then press the ENTER button.

6Press the Cursor buttons

(Kor L) to select the desired level, then press the ENTER but-

ton.

7 Press the SETUP button to exit.

NOTE:

PARENTAL

PASSWORD

Please enter a 4-digit password.

PARENTAL

PARENTAL LEVEL ALL

PASSWORD CHANGE

PARENTAL

PARENTAL LEVEL

ALL 8

7[NC-17] 6[R]

5

4[PG13]

3[PG]

This function may not work on some DVDs. Be sure if the ratings operate in the way you have set.

To Change the Password:

1)Follow the steps 1 to 4 above.

2)Press the Cursor buttons (K or L) to select “PASSWORD CHANGE”, then press the ENTER button.

3)Enter a new 4-digit password, then press the ENTER button.

4)Press the SETUP button to exit.

IF YOU FORGET THE PASSWORD

1Press 4, 7, 3, 7 at step 4 .

The original password will be cleared and the Parental Level will be set to “ALL”. Enter a new 4-digit password, then press the ENTER button.

2Repeat steps 5 to 7 to re-establish the Parental Level.

CONTROL LEVELS

ALL

Parental Lock is cancelled.

Level 8

DVD softwares of any grades (adult/general/children) can be played back.

Levels 7 to 2

Only DVD softwares intended for general use and children can be played back.

Level 1

Only DVD softwares intended for children can be played back. DVD softwares intended for adult and general use will be prohibited.

TIPS FOR LEVELS

• 7

[NC-17]:

No one under 17 admitted

• 6 [R]:

Restricted; under 17 requires accompanying





parent or adult guardian

• 4

[PG13]:

Unsuitable for children under 13

• 3

[PG]:

Parental Guidance suggested

• 1

[G]:

General Audience

– 30 –

EN

DVD SETUP

Others Setting

This function allows you to adjust Angle Icon availability, Auto Power Off, brightness of the player’s display panel, Slide Show Mode and to obtain DivX® registration code.

1Press the SETUP button in stop mode.

2Press the Cursor buttons (sor B) to select CUSTOM,

then press ENTER.

• The CUSTOM mode will appear.

3

Press the Cursor buttons (sor

OTHERS





B) to select OTHERS, then

AUTO POWER OFF

ON



press the ENTER button to con-

ANGLE ICON

ON



PANEL DISPLAY

BRIGHT





SLIDE SHOW

5sec



firm.

DivX(R) VOD









4Press the Cursor buttons (Kor

L) to select an item, then press ENTER.

Reset to the Default Settings

(except for PARENTAL)

This allows you to return all selections of SETUP (except for PARENTAL) to their default settings.

1Press the SETUP button in stop mode.

2Press the Cursor buttons (s or B) to select INIT., then press the ENTER button.

3Press the Cursor buttons (K or L) to select YES, then press the ENTER button.

4Press the SETUP button to exit.

NOTE:

• If you like to cancel initializing, select NO at step 3 .

ANGLE ICON (Default : ON)

Press the ENTER button repeatedly to turn ANGLE ICON ON or

OFF.

AUTO POWER OFF (Default : ON)

Press the ENTER button repeatedly to turn AUTO POWER OFF ON or OFF.

It will turn the DVD player off automatically after 30 minutes of no use.

PANEL DISPLAY

(Default : BRIGHT)

Press the Cursor buttons (Kor L) to select an item among

BRIGHT, DIMMER and AUTO, then press the ENTER button.

When AUTO is selected, the display dims only during playback.

SLIDE SHOW (Default : 5sec)

This adjusts the playback speed of the JPEG SLIDE SHOW.

Press the Cursor buttons (Kor L) to select between 5 sec and 10 sec, then press the ENTER button.

DivX(R) VOD

This player allows you to use the DivX® Video-On-Demand (VOD) services. You can play back the files purchased or rental from the VOD services. You need to have a registration code to pur-

chase or rental VOD files. Please visit www.divx.com/vod for more details.

NOTES:

OTHERS

ANGLE ICON

ON



AUTO POWER OFF

ON



PANEL DISPLAY

BRIGHT



SLIDE SHOW

5sec



DivX(R) VOD











OTHERS





ANGLE ICON

ON



AUTO POWER OFF

ON



PANEL DISPLAY

BRIGHT



SLIDE SHOW

5sec



DivX(R) VOD











OTHERS





PANEL DISPLAY











BRIGHT





DIMMER





AUTO











OTHERS

SLIDE SHOW

5sec

10sec

OTHERS

DivX(R) VOD

Your registration code is: 1 2 3 4 5 6 7 8

To learn more visit www.divx.com/vod

You cannot play back the DivX® VOD files obtained with different registration codes on this player.

You cannot play back the DivX® VOD files, of which rental period has been expired. In such case, press the MENU button and select other files that can be played back.

Some DivX® VOD files are restricted with the limited playable times (you cannot play them back beyond the limit). If your DivX® VOD file has such limit, the playback confirmation screen will appear. Use the Cursor button

(s or B) to select YES if you want to play back the file, or to select NO if you do not wish to play it back. Then, press the ENTER button to confirm the selection.

Please send your inquiries regarding the VOD files to DivX®, Inc.

5 Press the SETUP button to exit.

English

– 31 –

EN

DVD SETUP

Language Code List

Language

Code

Language

Code

Language

Code

Language

Code

A-B



Frisian

5271

Malay

5965

Somali

6561

Abkhazian

4748

Galician

5358

Malayalam

5958

Spanish [SPA]

5165

Afar

4747

Georgian

5747

Maltese

5966

Sundanese

6567

Afrikaans

4752

German [GER]

5051

Maori

5955

Swahili

6569

Albanian

6563

Greek [GRE]

5158

Marathi

5964

Swedish [SWE]

6568

Amharic

4759

Greenlandic

5758

Moldavian

5961

T



Arabic

4764

Guarani

5360

Mongolian

5960

Tagalog

6658

Armenian

5471

Gujarati

5367

Nauru

6047

Tajik

6653

Assamese

4765

Hausa

5447

Nepali

6051

Tamil

6647

Aymara

4771

Hebrew

5569

Norwegian [NOR]

6061

Tatar

6666

Azerbaijani

4772

Hindi

5455

O-R



Telugu

6651

Bashkir

4847

Hungarian [HUN]

5467

Occitan

6149

Thai

6654

Basque

5167

I-K



Oriya

6164

Tibetan

4861

Bengali;Bangla

4860

Icelandic [ICE]

5565

Oromo(Afan)

6159

Tigrinya

6655

Bhutani

5072

Indonesian

5560

Panjabi

6247

Tonga

6661

Bihari

4854

Interlingua

5547

Pashto;Pushto

6265

Tsonga

6665

Bislama

4855

Interlingue

5551

Persian

5247

Turkish [TUR]

6664

Breton

4864

Inupiak

5557

Polish

6258

Turkmen

6657

Bulgarian

4853

Irish [IRI]

5347

Portuguese [POR]

6266

Twi

6669

Burmese

5971

Italian [ITA]

5566

Quechua

6367

U-Z



Byelorussian

4851

Japanese [JPN]

5647

Rhaeto-Romance

6459

Ukrainian

6757

C-E



Javanese

5669

Romanian [RUM]

6461

Urdu

6764

Cambodian

5759

Kannada

5760

Russian [RUS]

6467

Uzbek

6772

Catalan

4947

Kashmiri

5765

S



Vietnamese

6855

Chinese [CHI]

7254

Kazakh

5757

Samoan

6559

Volapuk

6861

Corsican

4961

Kinyarwanda

6469

Sangho

6553

Welsh

4971

Croatian

5464

Kirghiz

5771

Sanskrit

6547

Wolof

6961

Czech

4965

Kirundi

6460

Scots Gaelic

5350

Xhosa

7054

Danish [DAN]

5047

Korean [KOR]

5761

Serbian

6564

Yiddish

5655

Dutch [DUT]

6058

Kurdish

5767

Serbo-Croatian

6554

Yoruba

7161

English [ENG]

5160

L-N



Sesotho

6566

Zulu

7267

Esperanto

5161

Laothian

5861

Setswana

6660





Estonian

5166

Latin

5847

Shona

6560





F-H



Latvian;Lettish

5868

Sindhi

6550





Faroese

5261

Lingala

5860

Singhalese

6555





Fiji

5256

Lithuanian

5866

Siswat

6565





Finnish [FIN]

5255

Macedonian

5957

Slovak

6557





French [FRE]

5264

Malagasy

5953

Slovenian

6558





If you choose a Language that has a 3-letter language code, the code will be displayed every time you change the Audio or Subtitle Language setting on pages 25-26. If you choose any other languages, ‘---’ will be displayed instead. (3-letter language code is written in bracket.)

MAINTENANCE

Cleaning the Cabinet

Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Cleaning Discs

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center out. Do not wipe in a circular motion.

Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analog records.

Cleaning the disc lens

If the player does not perform properly while referring to the relevant sections and to “TROUBLESHOOTING GUIDE” in this User Guide, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

Disc Handling

Use discs with the following logos on them.

Handle the discs carefully so that fingerprints and dust do not adhere to the surfaces of the discs.

Always store the disc in its protective case when it is not used.

• Note that discs with special shapes (heart-shaped discs, octagonal discs, etc.) cannot be played on this player. Do not attempt to play such discs, as they may damage the player.

DIGITAL VIDEO

– 32 –

EN

TROUBLESHOOTING GUIDE

If the DVD player does not perform properly when operated as instructed in this User Guide, check the player, consulting the following checklist.

Problem

Solution

No power

–Check if the AC power cord is properly connected.



–Unplug the AC power cord, and wait for 5-10 seconds and then plug



it in again.





No sound or picture

–Check if the TV is switched on.



–Check the video and HDMI connection.



–Check the VIDEO/AUDIO cable connections to the TV.



(Refer to page 15 for Connection to a TV (for video).)



–When signals are output from the HDMI OUT terminal, progressive



signals are not output from the COMPONENT VIDEO OUT jacks.



Press the HDMI button on the front panel to set the HDMI output



mode to “hdOFF”.



–Check if the AUDIO EX is set to “ON”. If it is the case, set it to



“OFF”.



–Check if the PROGRESSIVE mode is set correctly. See pages 12



and 28.





Distorted picture

–Sometimes a small amount of picture distortion may appear.



This is not a malfunction.



–Connect the player directly to the TV.



–Check if the PROGRESSIVE mode is set correctly. See pages 12



and 28.





Completely distorted picture or

–Connect the player directly to the TV.

black/white picture with DVD

–Make sure the disc is compatible with the player.





No sound or distorted sound

–Adjust the volume.



–Check if the speakers are connected correctly.



–HDMI sound is not output when HDMI AUDIO is set to “OFF”.





No audio at digital output

–Check the digital connections.



–Check the Audio Setting.



–Digital signals cannot be output with Super Audio CDs. Use analog



connections.



–Area of Super Audio CD being played (MULTI-CH/2CH/CD) does



not match amplifier connections.





No image from the HDMI connection

–Check the HDMI connection. (Check the status of the HDMI related



indications.)



–Check if the connected monitor equipment or other equipment sup-



ports HDCP. (This player will not output a video signal unless the



other equipment supports HDCP.)



–Connect the player to the display equipment using the Video cable



(supplied), and check the HDMI settings.



–Check if the output format of this player (HDMI FORMAT) matches



the supported input format of other connected equipment.





Picture freezes momentarily

–Check the disc for fingerprints/scratches and clean with a soft cloth

during playback

wiping from center to edge.



–Clean the disc.





Disc can’t be played

–Clean the disc.



–Ensure the disc label is facing up.



–Check if the disc is defective by trying another disc.



–Cancel the Parental Lock or change the control level.



–Insert a correct disc that can be played on this player.





No return to start-up screen when disc is removed

–Reset the player by switching the player off, then on again.





The player does not respond to the remote control

–Aim the remote control directly at the sensor on the front of the



player.



–Reduce the distance to the player.



–Replace the batteries in the remote control.



–Re-insert the batteries with their polarities (+/– signs) as indicated.





Buttons do not work or the player stops

–To completely reset the player, unplug the AC cord from the AC

responding

outlet for 5-10 seconds.





The remote control doesn’t seem to work

–Check if the REMOTE CONTROL IN jack on the rear panel is



connected.



–Check if the REMOTE CONTROL switch is set to the correct



position.





English

– 33 –

EN

TROUBLESHOOTING GUIDE

Problem

Solution

The player does not respond to some

–Operations may not be permitted by the disc.

operating commands during playback

Refer to the instructions of the disc.





The player cannot read CDs/DVDs

–Use a commercially available CD/DVD cleaner to clean the lens



before sending the player for repair.





Angle does not switch

–The angle cannot be switched for DVDs which do not contain multi-



ple angles. In some cases multiple angles are only recorded for spe-



cific scenes.





Playback does not start when the title is selected

–Check the “PARENTAL” setting.

The password for rating level has been forgotten

–Enter the default password “4737”, then your forgotten password will



be cleared.





The player does not recognize DivX® files

–Check if the file name, including an extension, consists of more than



136 characters. If that does, the player does not recognize the file.





NOTES:

Some functions are not available in specific modes, but this is not a malfunction. Read the description in this User Guide for details of correct operations.

Playback from a desired track and Random Playback are not available during Program Playback.

Some functions are prohibited on some discs.

When playing back Video CDs with PBC function, some operations (e.g., select and track repeat) cannot be performed.

Cancel PBC function temporarily to perform those operations. See page 17.

When connecting to an A/V amplifier using an HDMI cable, the audio signals can not be output correctly in some cases if the speaker settings of the A/V amplifier are changed.

– 34 –

EN

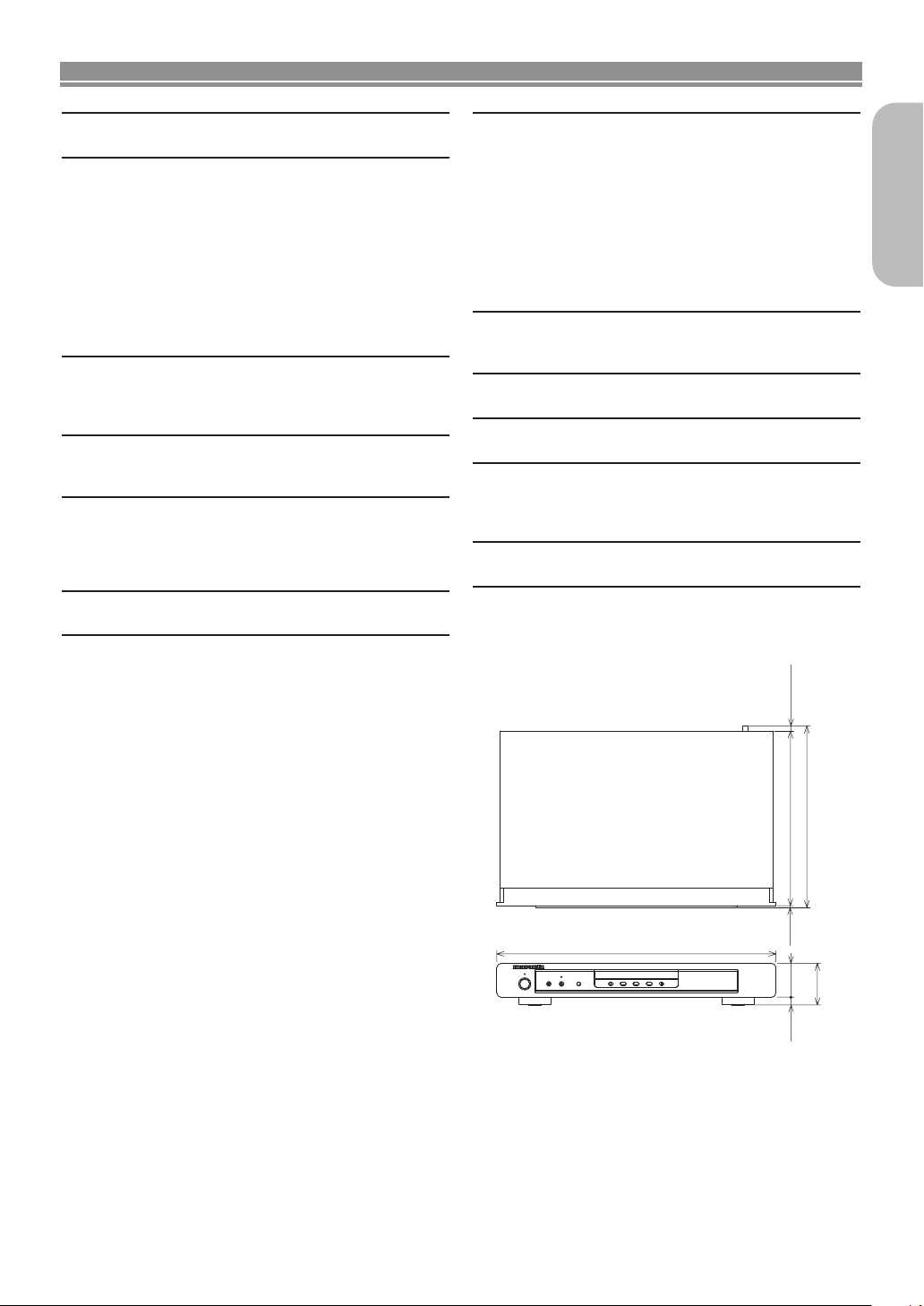

SPECIFICATIONS

SIGNAL SYSTEM

NTSC color

APPLICABLE DISCS

(1)DVD-Video/DVD-Audio Discs

1-layer 12cm single-sided discs, 2-layer 12cm single-sided discs, 2-layer 12cm double-sided discs (1 layer per side)

1-layer 8cm single-sided discs, 2-layer 8cm single-sided discs, 2-layer 8cm double-sided discs (1 layer per side)

(2)Super Audio CD

(3)DVD-R/DVD-RW

(4)Compact discs (Audio CD, Video CD)

12cm discs, 8cm discs

(5)CD-R/CD-RW

S-VIDEO OUTPUT

Y output level: 1Vp-p (75Ω/ohms)

C output level: 0.286Vp-p

Output connectors: S connectors, 1 set

VIDEO OUTPUT

Output level: 1Vp-p (75Ω/ohms)

Output connector: Pin jacks, 1 set

COMPONENT OUTPUT

Y output level: 1Vp-p (75Ω/ohms)

CB/PB output level: 0.7Vp-p (75Ω/ohms)

CR/PR output level: 0.7Vp-p (75Ω/ohms)

Output connector: Pin jacks, 1 set

HDMI OUTPUT

HDMI terminal, 1 set

AUDIO OUTPUT

Output level: 2Vrms

2 channel (L, R) output connector: Pin jack, 1 set

Multi channel (FL, FR, C, SL, SR, SW) output connector:

Pin jack, 1 set

AUDIO OUTPUT PROPERTIES

(1) Frequency response

1 DVDs (linear PCM) : 4Hz to 22kHz (48kHz sampling)





: 4Hz to 44kHz (96kHz sampling)





: 4Hz to 88kHz (192kHz sampling)



2 CDs

: 4Hz to 20kHz



3 Super Audio CD

: 4Hz to 100kHz

(2)

S/N ratio

: 115dB

(3)

Total harmonic distortion : 1kHz

CD: 0.0045%

(4)

Dynamic range

: DVD: 100dB





CD:

98dB

DIGITAL AUDIO OUTPUT

Optical digital output: Optical jack, 1 set

Coaxial digital output: Pin jack, 1 set

POWER SUPPLY

AC 120V, 60Hz

POWER CONSUMPTION

20W

MAXIMUM EXTERNAL DIMENSIONS

W: 17-5/16" (440mm)

H: 2-9/16" (65mm)

D: 12-5/16" (313mm)

MASS

5.5 lbs (2.5 kg)

REMOTE CONTROL UNIT

RC6600DV

Infrared pulse type

Supply: DC 3V, 2 R6P/AA batteries



1/4" (7)





12" (303)

-5/16" (313)





12

17-5/16" (440)

1/8"

(3)







2-1/8"

(53.5) 2-9/16" (65)

inch (mm)

1/2"

(11.5)





English

– 35 –

EN

www.marantz.com

You can find your nearest authorized distributor or dealer on our website.

U.S.A

Marantz America, Inc.

1100 Maplewood Drive, Itasca, IL 60143, U.S.A.

EUROPE

Marantz Europe B.V.

P.O. Box 8744, 5605 LS Eindhoven, The Netherlands







is a registered trademark.

2005/10

00M38BW851250 R

Printed in China

1VMN21026



E61M5UD/E61MVUD
