Page 1
For more Parts Information:
https://manitowocfsg.sysonline.com/Default.aspx
Page 2
TABLE OF CONTENTS
Manitowoc Foodservice [Updated: Sep. 30, 2013]
Manitowoc - Ice & Related
Parts Catalog
Ice Machine
S Series
S Model - Flake/Nugget
SF0900, SN0950, RFC0985
SF0900/SN0950 Control Box 1
SF0900/SN0950 Evaporator Assembly 3
SF0900/SN0950 Refrigeration Compartment - Common Parts 5
SF0900/SN0950 Refrigeration Compartment - Common Parts 2 7
SF0900/SN0950 Refrigeration Compartment - Air-cooled 9
SF0900/SN0950 Refrigeration Compartment - Water-cooled 11
SF0900C/SN0950C QuietQube Remote Air-cooled 13
SF0900/SN0950 Panels 15
RFC0985 Condensing Unit 17
RFC0985 Condensing Unit Panels 19
i
Page 3
SF0900, SN0950, RFC0985
SF0900/SN0950 CONTROL BOX
SF0900_SN0950_2.PDF
1
Page 4
SF0900, SN0950, RFC0985
SF0900/SN0950 CONTROL BOX
# PART # DESCRIPTION QTY Note
1 000001238 Control Board
1a 4302253 Control Board Mounting Supports
2 2511493 10 Amp Fuse
3 2007939 Toggle Switch
3a 2009973 Compressor to Control Board Wiring Harness
4 Contactor [1]
4a 2006589 Contactor - 115V/60 Hz/1 Ph
4b 2006599 Contactor - 230V/50-60 Hz/1 Ph
5 8503933 Run Capacitor - 115-230V/50-60 Hz/1 Ph [2]
6 8505723 Start Capacitor (Compressor) 230/50-60/1
7 2007559 Start Potential Relay - 50-60 Hz/1 Ph
8 000000029 Gearmotor Run Capacitor 230V/50-60 Hz/1 Ph
9 Wiring Harness
9a 000001434 Wiring Harness 115V
9b 000001432 Wiring Harness 230V/60 Hz
9c 000001435 Wiring Harness 230V/50 Hz
10 2009953 Start Capacitor Wiring Harness
11 000002866 Control Box
12 000000934 Control Box Cover
12a 5202069 Screw - #10-24 x 0.50" HEX
13 000000971 Capacitor Mounting Strap [3]
14 6024951 Capacitor Bracket [4]
15 5004129 Screw - #6 x 0.5"
16 5202169 Screw - #10-24 x 0.50" Ground
17 2501409 Bushing - 0.875"
18 2500139 Bushing - 1.5"
PART NOTES:
[1] - Left = Gearmotor, Right = Compressor
[2] - Compressor
[3] - Air, Water
[4] - CVD
SF0900_SN0950_2.PDF
2
Page 5
SF0900, SN0950, RFC0985
SF0900/SN0950 EVAPORATOR ASSEMBLY
SF0900_SN0950_3.PDF
3
Page 6
SF0900, SN0950, RFC0985
SF0900/SN0950 EVAPORATOR ASSEMBLY
# PART # DESCRIPTION QTY Note
1 Evaporator Assembly
1a Evaporator - Flake [1]
1b Evaporator - Nugget [1]
2 000002699 Evaporator Foundation
3 000003061 Coupler
4 Gear Motor Assembly
4a 2009553 Gearmotor Assembly - 60 Hz
4b 000002088 Gearmotor Assembly - 50 Hz
5 000006516 Float Chamber Assembly [2]
5a 2008633 Float Switch Only
5b 000006515 Float Chamber Only
6 5650729 Compression Nut
7 6072531 Float Valve Bracket
7a 5202069 Screw - #10-24 x 0.50" HEX
8 6071881 Gearmotor Bracket
8a 5000293 Screw
9 Evaporator Mounting to Gear Motor
9a 5000273 Bolt
9b 5573049 Flatwasher
9c 5545119 Mounting - Lockwasher
9d 5000269 Screw
10 000000465 Clamp Assembly [3]
10a 000001070 O-Ring
PART NOTES:
[1] - No Longer Available
[2] - includes float, switch, cover & housing
[3] - secures evaporator to ice chute
SF0900_SN0950_3.PDF
4
Page 7
SF0900, SN0950, RFC0985
SF0900/SN0950 REFRIGERATION COMPARTMENT - COMMON PARTS
SF0900_SN0950_4.PDF
5
Page 8
SF0900, SN0950, RFC0985
SF0900/SN0950 REFRIGERATION COMPARTMENT - COMMON PARTS
# PART # DESCRIPTION QTY Note
1 Compressor
1a 7602913 Compressor - Copeland - 230V/60 Hz/1 Ph [1]
1b 7602923 Compressor - Copeland - 230V/50 Hz/1 Ph [1]
2 Water Dump Valve
2a 000007429 Water Dump Valve 115V
2b 000007428 Water Dump Valve 208-240V
3 000002947 Expansion Valve
4 4000403 Valve Insulation Boot - Body
5 4000923 Valve Insulation Boot - Bulb
5a 3000503 Strap - Expansion Valve Bulb - 0.5"
5b 5650529 Clamp - Expansion Valve Bulb
6 Liquid Line Solenoid Valve
6a 7630081 Solenoid Valve 208-230V
6b 7630021 Solenoid Valve 115V
7 Liquid Line Solenoid Coil
7a 000005157 Danfoss Solenoid Valve Coil Only - 230V/50-60 Hz [2]
7b 000005156 Danfoss Solenoid Valve Coil Only - 115V/60 Hz [3]
8 2001243 High Pressure Cut-out Control
9 8250963 Manifold Strainer - 4 Hole
10 Liquid Line Drier - See Note for Usage
10a 8930249 Drier [4]
10b 8930259 Drier [5]
11 8373253 Access Valve
12 Compressor Mounting
12a 8503069 Mounting - Rubber Grommet
12b 5004819 Compressor Mounting - Bolt
12c 8503949 Mounting - Sleeve
12d 5004829 Compressor Mounting - Nut
13 8706093 Female Wing Adapter - 0.375"
13a 5202069 Screw - #10-24 x 0.50" HEX
14 1360961 Male Connector
15 4420291 Vinyl Tube - 0.25" OD
16 6042901 Water Inlet Tubing Insulation
17 000000008 Water Dump Valve Guard
17a 5202329 Screw - #10-24 x 0.25" PH
PART NOTES:
[1] - does not include start components
[2] - \pages from 000005156_02.jpg" width=266 height=183>
[3] - \pages from 000005156_02.jpg" width=280 height=256>
[4] - CVD
[5] - Self-Contained
SF0900_SN0950_4.PDF
6
Page 9
SF0900, SN0950, RFC0985

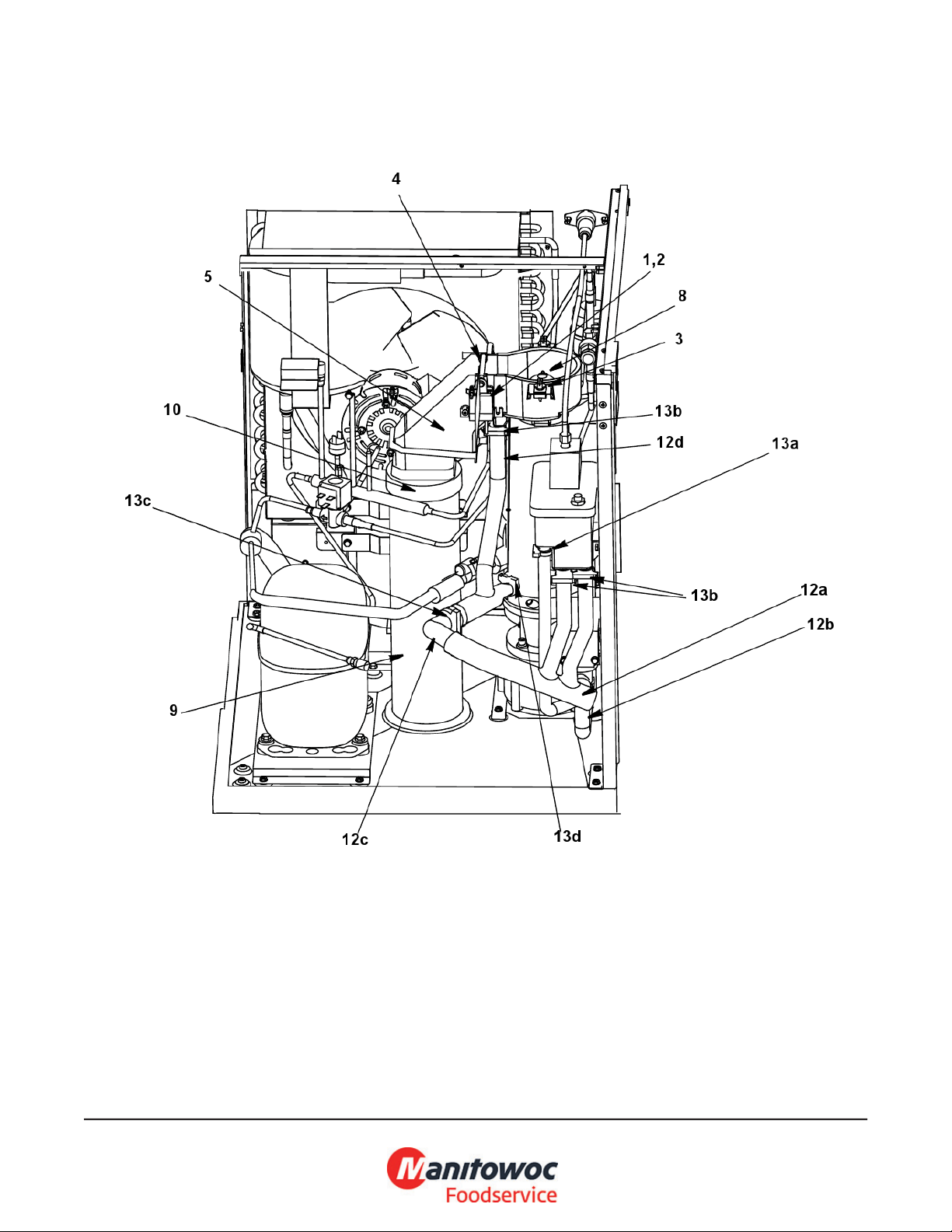

SF0900/SN0950 REFRIGERATION COMPARTMENT - COMMON PARTS 2
SF0900_SN0950_5.PDF
7
Page 10
SF0900, SN0950, RFC0985
SF0900/SN0950 REFRIGERATION COMPARTMENT - COMMON PARTS 2
# PART # DESCRIPTION QTY Note
1 2009793 Hall Effect Switch with Wiring
2 2009803 Hall Effect Switch Housing
2a 5121629 Screw
3 5650853 Receptacle
3a 5000453 Wing-head Mounting Stud
4 Damper Door
4a 000000710 Damper Door Flake
4b 4014443 Damper Door Nugget
5 000000039 Ice Chute
6 000000077 Strainer Ramp
7 000000272 Chute Cover - sits on receptacle
8 Ice Wiper
8a 000002948 Ice Wiper Flake
8b 000002949 Ice Wiper Nugget
9 4015973 Ice Tube
10 4015663 Ice Chute/Ice Tube Union
11 Secure Ice Chute to Evaporator
11a 000000465 Clamp Assembly
12 Molded Vinyl Tubes
12a 4015813 Float Chamber Tube
12b 4015793 Drain
12c 000000009 Elbow [1]
12d 4015823 Ice Chute Drain Tube
13 Snap Clamps
13a 5650539 Snap Clamp - 1.123 x 1.296
13b 5650603 Snap Clamp - 1.0" ID
13c 5650993 Snap Clamp - 3/4" ID
13d 5650649 Hose Clamp - 0.759"/0.848" ID
13e 5650703 Snap Clamp - 0.799"/0.899" ID
PART NOTES:
[1] - connects Float Chamber Tube to Ice Chute Drain Tube
SF0900_SN0950_5.PDF
8
Page 11
SF0900, SN0950, RFC0985
SF0900/SN0950 REFRIGERATION COMPARTMENT - AIR-COOLED
SF0900_SN0950_6.PDF
9
Page 12
SF0900, SN0950, RFC0985
SF0900/SN0950 REFRIGERATION COMPARTMENT - AIR-COOLED
# PART # DESCRIPTION QTY Note
1 Compressor (Refer to COMMON PARTS PAGE)
2 8252139 Air Condenser
3 2416203 Fan Blade
4 2412939 Fan Motor 208-230V/50-60 Hz
5 4015323 Air Baffle
6 3005569 Air Filter
7 000000545 Head Pressure Control Valve
8 000008893 Receiver
9 6073201 Fan Shroud
10 5202069 Screw - #10-24 x 0.50" HEX
11 6072461 Fan Motor Bracket
12 5650699 Air Filter Clip
12a 5202069 Screw - #10-24 x 0.50" HEX
13 Fan Motor to Bracket Mounting
13a 000000936 Nut
13b 5573059 Mounting - Flatwasher
14 Back Corner Channel
14a 6072361 Back Corner Channel Right
14b 6072311 Back Corner Channel Left
SF0900_SN0950_6.PDF
10
Page 13
SF0900, SN0950, RFC0985

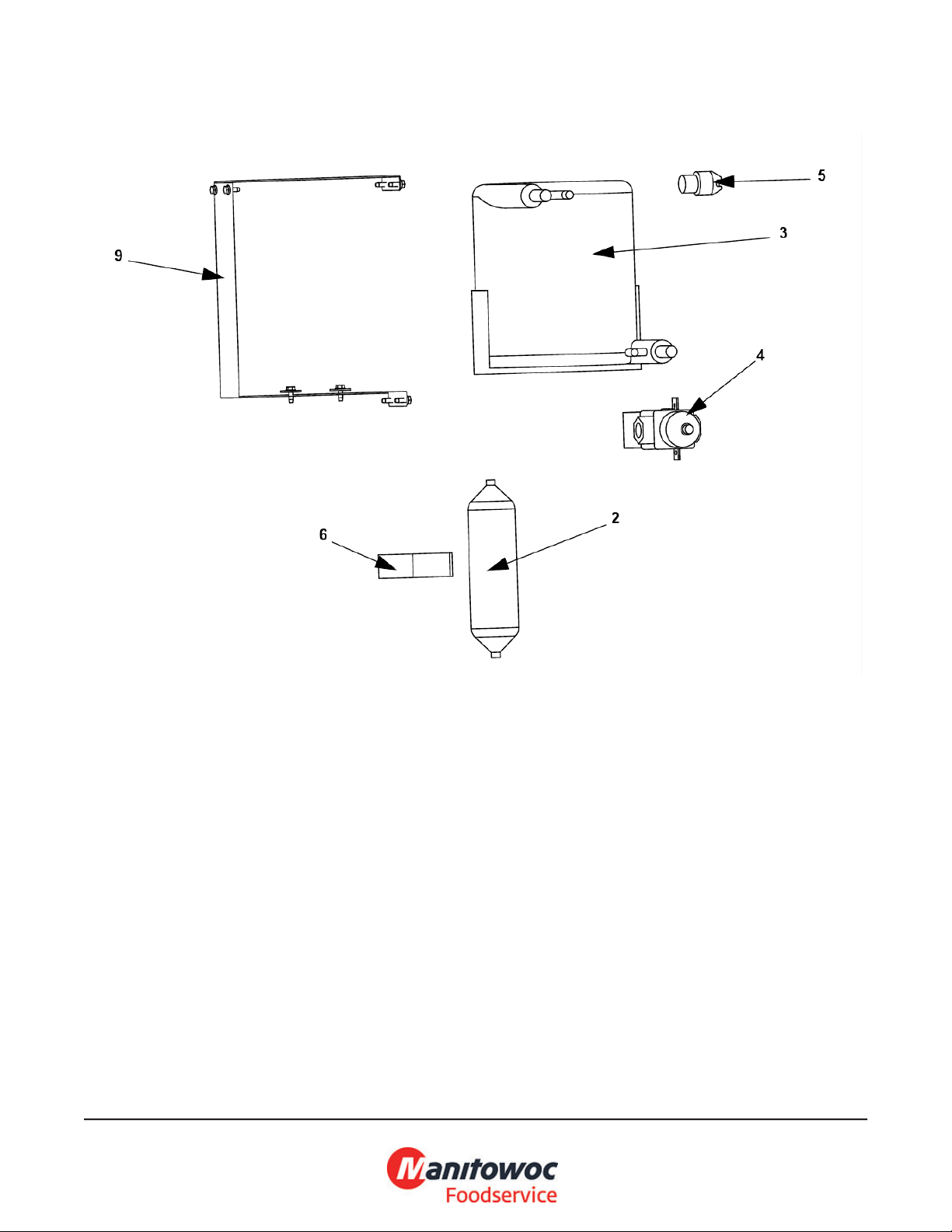

SF0900/SN0950 REFRIGERATION COMPARTMENT - WATER-COOLED
SF0900_SN0950_7.PDF
11
Page 14
SF0900, SN0950, RFC0985
SF0900/SN0950 REFRIGERATION COMPARTMENT - WATER-COOLED
# PART # DESCRIPTION QTY Note
1 Compressor (Refer to COMMON PARTS Page)
2 000008892 Receiver
3 8865333 Water-cooled Condenser
4 8372069 Water Regulating Valve
5 8706083 Female Wing Adapter - 0.50"
6 6000541 Receiver Strap
7 5202069 Screw - #10-24 x 0.50" HEX
8 5573419 Washer
9 000000963 Water Condenser Bracket
10 Back Corner Channel
10a 6072361 Back Corner Channel Right
10b 6072311 Back Corner Channel Left
SF0900_SN0950_7.PDF
12
Page 15
SF0900, SN0950, RFC0985
SF0900C/SN0950C QUIETQUBE REMOTE AIR-COOLED
SF0900_SN0950_8.PDF
13
Page 16
SF0900, SN0950, RFC0985
SF0900C/SN0950C QUIETQUBE REMOTE AIR-COOLED
# PART # DESCRIPTION QTY Note
1 7629573 Receiver
2 8930249 Drier
3 8373149 Magni-Check Valve - 0.375"
4 8373169 Receiver Service Valve
4a 5650753 Caps for Refrigeration Service Valve
5 8373303 Manual Shut-Off Valve - Suction Line
5a 8373023 Valve Cap
5b 4007403 Valve Insulation Boot - Body [1]
6 8373293 Manual Shut-off Valve - Liquid Line
7 Wiring Harness
7a 000001434 Wiring Harness 115V
7b 000001435 Wiring Harness 230V/50 Hz
8 000000441 Shut-Off Box
9 Receiver Mounting
9a 6000561 Receiver Mounting Bracket [2]
9b 6307214 Receiver Mounting Strap
9c 5202069 Screw - #10-24 x 0.50" HEX
9d 000000412 Bracket [3]
9e 5474883 Pushnut, Bolt Retainer
10 000000410 Back Panel
PART NOTES:
[1] - \pages from 400740_02.jpg" width=362 height=281>
[2] - back
[3] - top
SF0900_SN0950_8.PDF
14
Page 17
SF0900, SN0950, RFC0985
SF0900/SN0950 PANELS
SF0900_SN0950_9.PDF
15
Page 18
SF0900, SN0950, RFC0985
SF0900/SN0950 PANELS
# PART # DESCRIPTION QTY Note
1 6072601 Front Panel
2 6060549 Right Side Panel
3 6060559 Left Side Panel
4 6072571 Back Panel, Water
5 4012029 Top Cover
6 4015323 Air Baffle
7 3005569 Air Filter
8 000000260 Front Panel - Shoulder Bolt
8a 000000305 Front Panel - Nut
9 5650699 Air Filter Clip
10 000000263 Top Cover Bracket
11 000000010 Top Front Bracket
12 6072561 Top Support Brace
13 000002867 Front Corner Channel
13a 5012319 Screw - #12-16 x 0.75"
14 6072371 Top Channel
14a 5202069 Screw - #10-24 x 0.50" HEX
15 Back Panel
15a 5012319 Screw - #12-16 x 0.75"
15b 5202099 Screw - #10-24 x 0.50" PHIL
16 6067299 Rear Connection Box Cover
17 6067289 Rear Connection Box
17a 7628783 Terminal Bock
17b 2008503 Ground Wire
17c 5202169 Screw - #10-24 x 0.50" Ground
18 7112389 Cartoning
SF0900_SN0950_9.PDF
16
Page 19
SF0900, SN0950, RFC0985
RFC0985 CONDENSING UNIT
SF0900_SN0950_10.PDF
17
Page 20
SF0900, SN0950, RFC0985
RFC0985 CONDENSING UNIT
# PART # DESCRIPTION QTY Note
1 Compressor
1a 7600053 Compressor - Copeland - 208-230V/50-60 Hz/1 Ph
1b 7600073 Compressor - Copeland - 208-230V/50 Hz/1 Ph
2 8250539 Suction Line Filter
3 000007280 Suction Accumulator
4 8373253 Access Valve
5 8851443 Air-cooled Condenser
6 Fan Motor
6a 2000189 Fan Motor - 208-230V/60 Hz/1-3 Ph
6b 2000589 Fan Motor - 230-415V/50 Hz/1-3 Ph
7 2416303 Fan Blade
8 000004070 Head Pressure Control Valve
9 2001243 High Pressure Cut-out Control
10 2007539 Start Potential Relay - 230V/50-60 Hz/1 Ph
10a 2007549 Start Potential Relay - 50 Hz/1 Ph
11 Contactor
11a 2007869 Contactor - 60 Hz/1 Ph [1]
11b 2006609 Contactor - 208-230V/50-60 Hz/1 Ph
12 000006454 Start Capacitor - 50-60 Hz/1 Ph
8505513 Start Capacitor - 50-60 Hz/1 Ph
13 8503933 Run Capacitor - 115-230V/50-60 Hz/1 Ph
14 Wiring Harness
14a 000000969 Wiring Harness 208-230V/60 Hz/1 Ph
14b 000000970 Wiring Harness 208-230V/50 Hz/1 Ph
15 6037041 Fan Shroud
16 000001524 Screw
16a 5545119 Mounting - Lockwasher
16b 5429529 Mounting - Hexnut
17 3006823 Fan Motor Mounting Bracket
18 000001524 Screw
18a 5429559 Mounting - Rubber Wellnut
19 5202069 Screw - #10-24 x 0.50" HEX [2]
20 6034981 Capacitor Mounting Bracket
20a 5202069 Screw - #10-24 x 0.50" HEX
21 6021601 Capacitor Mounting Strap
21a 5202069 Screw - #10-24 x 0.50" HEX
22 2006143 Terminal Block - 50 Hz - 3 Pole [3]
PART NOTES:
[1] - Discontinued
[2] - Used for Panel Attachment
[3] - 50 Hz Only
SF0900_SN0950_10.PDF
18
Page 21
SF0900, SN0950, RFC0985
RFC0985 CONDENSING UNIT PANELS
SF0900_SN0950_11.PDF
19
Page 22
SF0900, SN0950, RFC0985
RFC0985 CONDENSING UNIT PANELS
# PART # DESCRIPTION QTY Note
1 3406893 Condenser Fan Guard
2 6040171 Control Box Cover
3 6037071 Control Box Panel
4 6037051 Left Side Panel
5 6034751 Cover Top
6 6034701 Right Side Panel
7 6042261 Condensing Unit Tube Shield
8 5202069 Screw - #10-24 x 0.50" HEX
9 000000768 Cartoning
SF0900_SN0950_11.PDF
20
Loading...
