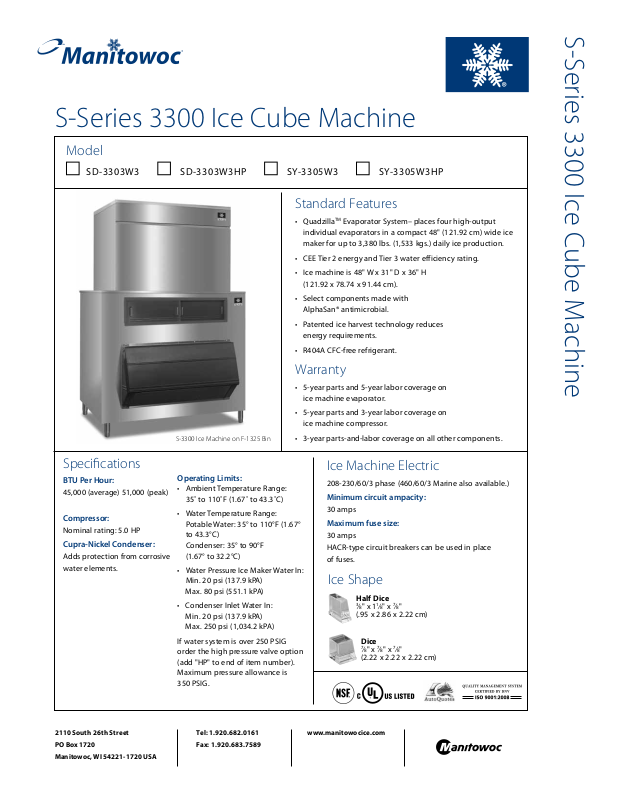

Manitowoc Ice SD-3303W3 User Manual

S-Series 3300 Ice Cube Machine

Model

SD-3303W3 SD -3303W3HP SY-3305W3 SY-3305W3HP

Standard Features

• QuadzillaTM Evaporator System– places four high-output
individual evaporators in a compact 48" (121.92 cm) wide ice
maker for up to 3,380 lbs. (1,533 kgs.) daily ice production.

• CEE Tier 2 energy and Tier 3 water efficiency rating.

• Ice machine is 48" W x 31" D x 36" H
(121.92 x 78.74 x 91.44 cm).

• Select components made with
AlphaSan® antimicrobial.

• Patented ice harvest technology reduces
energy requirements.

• R404A CFC-free refrigerant.

S-Series 3300 Ice Cube Machine

Specifications

BTU Per Hour:

45,000 (average) 51,000 (peak)

Compressor:

Nominal rating: 5.0 HP

Cupra-Nickel Condenser:

Adds protection from corrosive

water elements.

S-3300 Ice Machine on F-1325 Bin

Operating Limits:

• Ambient Temperature Range:
35˚ to 110˚F (1.67˚ to 43.3˚C)

• Water Temperature Range:
Potable Water: 35° to 110°F (1.67°
to 43.3°C)
Condenser: 35° to 90°F
(1.67° to 32.2°C)

• Water Pressure Ice Maker Water In:
Min. 20 psi (137.9 kPA)
Max. 80 psi (551.1 kPA)

• Condenser Inlet Water In:
Min. 20 psi (137.9 kPA)
Max. 250 psi (1,034.2 kPA)

If water system is over 250 PSIG
order the high pressure valve option
(add "HP" to end of item number).
Maximum pressure allowance is
350 PSIG.

Warranty

• 5-year parts and 5-year labor coverage on
ice machine evaporator.

• 5-year parts and 3-year labor coverage on
ice machine compressor.

• 3-year parts-and-labor coverage on all other components.

Ice Machine Electric

208-230/60/3 phase (460/60/3 Marine also available.)

Minimum circuit ampacity:

30 amps

Maximum fuse size:

30 amps

HACR-type circuit breakers can be used in place

of fuses.

Ice Shape

Half Dice

3

⁄8" x 11⁄8" x 7⁄8"

(.95 x 2.86 x 2.22 cm)

Dice

7

⁄8" x 7⁄8" x 7⁄8"

(2.22 x 2.22 x 2.22 cm)

2110 South 26th Street

PO Box 1720

Manitowoc, WI 54221-1720 USA

Tel: [phone]

Fax: [phone]

www.manitowocice.com

S-Series 3300 Ice Cube Machine

S-3300 on
F-1325
Storage Bin

Ice Bin & Accessories
Sold Separately

ICE

MACHINE

+

DEFLECTOR

+

ADAPTER

+

ICE BIN

=

PACKAGE

Installation Note

Recommended installation
clearance– Top/sides 8"
(20.3 cm), back: 24" (61 cm),
although 24" (61 cm) is
recommended on all sides.
Bin drain– located in exact
center of bin.

A

Electrical Entrance
(2) Options

Condenser Water Inlet

B

1.00" (2.54 cm) F.P.T.
(water-cooled units)

Water Condenser Outlet

C

1.00" (2.54 cm) F.P.T.

Base Drain 1.00"

D

(2.54 cm) F.P.T.

Ice Making Water

E

Drain 1.00" (2.54 cm) F.P.T.

F

Ice Making Water Inlet
1/2" (1,27 cm) F.P.T.

31.00"

(78.74 cm)

48.00"

(121.92 cm)

Space-Saving Designs

31.00"

(78.74 cm)

B

C

A

E

D

3/4" (1,91 cm)
Bin Drain

60.00"

(152.4 cm)

36.00"

(91.44 cm)

F

S-3300C S-3300
F-1300 F-1325**

Height 99.50" 90.50"

252.73 cm 229.87 cm

Width 48.00" 60.00"

121.92 cm 152.40 cm

Depth* 31.00" 31.00"

78.74 cm 78.74 cm

Bin 1,320 lbs. 1,325 lbs.
Storage 599 kgs. 601 kgs.

Height i ncludes adjustabl e bin legs 6 .00" to 7.50",
(15.24 to 20.32 cm) s et at 6.00" ( 15.24 cm).

48.5"

(123.19 cm)

*Depth at bin base, 39" including bin door.

**Requires K-604800 bin ad apter.

Accessories

K-00391 Ice Deflectors (Set of 2)

6.00"

(15.24 cm)

K-00395 Bin Thermostat

NOTE: S-3300 not for use on B-970 Bin.

K-604800 Bin Adapter for F-1325 / F-1650 Bins

K-614800 Bin Adapter for FC-1350 Bin &

Cart System

Ice Production

24 Hours

Power kWh/

100 lbs

@ 90°Air/70°F

Water Usage/100 lbs.

45.4 kgs. of Ice

Potable

Model

SD-3303W3

SD-3303W3HP* 1,506 kgs. 1,279 kgs. 75 L. 628 L.

SY-3305W3

SY-3305W3HP* 1,533 kgs. 1,329 kgs. 75 L. 500 L.

*High pre ssure water regula tion valve model. Order ice storag e bin separately.

2110 South 26th Street

PO Box 1720

Manitowoc, WI 54221-1720 USA

Shape

dice

half­dice

50°F Water

3,320 lbs. 2,820 lbs.

3,380 lbs. 2,930 lbs.

70°Air/

Ice

90°Air/

70°F Water 3 ph

3.55 2

3.55 2

Tel: [phone]

Fax: [phone]

www.manitowocice.com

CEE†

Tier

Water
Usage

19.7 gal.

19.7 gal.

CEE†

Tier

3

3

Water-

Cooled

Condenser

166 gal.

132 gal.

Condenser

Water

Temperature

Water Temp.

Out F°

Water Temp.

Out C°

†Consort ium for Energy Efficiency
(CEE) is a North Am erican nonprofit

organizatio n that promotes energy­efficient products, techno logies and
services; also the pri ncipal entity
for the development of ice maker
efficienc y standards.

50°F

70°F

10°C

21°C

100° to 110°

37.8° to 43.3°

90°F
32°C

4306A ©2010 Ma nitowoc 9 /10 Con tinuing product improvement may ne cessitate change of speci fications without notice.
