Manitowoc Ice SD1403WM Parts Manual

For more Parts Information:

https://manitowocfsg.sysonline.com/Default.aspx

TABLE OF CONTENTS

Manitowoc Foodservice [Updated: Sep. 30, 2013]
Manitowoc - Ice & Related
Parts Catalog
Ice Machine
S Series
S Model - Marine
S1400M
S1400M Control Box 1
S1400M Evaporator Compartment 3
S1400M Refrigeration Compartment - Common Components 5
S1400M Refrigeration Compartment - Water-cooled Components 8
S1400M Panels 10

i

S1400M

S1400M CONTROL BOX

S1400M_2.PDF

1

S1400M

S1400M CONTROL BOX

# PART # DESCRIPTION QTY Note
1 2006199 Control Board

1a 000008240 7 Amp Fuse - Mounted on Control Board
2 2007939 Toggle Switch
2a 2009069 Toggle Switch Wiring Harness
2b 4011639 Toggle Switch Box
3 Contactor
3a 2009089 Contactor - 208-230V/50-60 Hz/1 Ph
3b 2006619 Contactor - 230V/60 Hz/3 Ph
4 8504913 PTCR
5 2010133 Run Capacitor - 115-230V/50-60 Hz/1 Ph
6 8373263 Refrigeration Service Valve Assembly
7 000005204 Transformer [1]
7a 000005418 Transformer Box
7b 000005427 Transformer Cover
7c 000005500 Electrical Noise Filter Wiring Harness
8 7603333 Control Box
8a 7603363 Control Box Cover
8b 6067243 Control Box Bracket
9 8504953 PTCR Bracket
10 4302253 Control Board Mounting Supports
11 6024953 Capacitor Mounting Strap
12 5202169 Screw - #10-24 x 0.50" Ground
12a 5573209 Star Washer
13 5202069 Screw - #10-24 x 0.50" HEX
14 Wiring Harness - Control Box
14a 2008999 Control Box Wiring Harness - 230V/60 Hz/1 Ph
14b 2008979 Control Box Wiring Harness - 230V/60 Hz/3 Ph
14c 2008989 Control Box Wiring Harness - 230V/50 Hz/1 Ph
14d 000005499 Control Box Wiring Harness - 440-480V/60 Hz/3 Ph
14e 2009009 Harvest Air Assist Pump Wiring Harness

PART NOTES:

[1] - 440-480/60/3 Only

S1400M_2.PDF

2

S1400M

S1400M EVAPORATOR COMPARTMENT

S1400M_3.PDF

3

S1400M

S1400M EVAPORATOR COMPARTMENT

# PART # DESCRIPTION QTY Note
1 Evaporator Assembly

1a 7603163 Evaporator - Dice Cube
1b 7603173 Evaporator - Half Dice Cube
2 Water Pump
2a 8252109 Water Pump - 230V/50-60 Hz
2b 2007389 Water Pump - 230V/50 Hz
3 2006549 Water Level Probe
3a 2009169 Wire - Control Box to Probe
4 2008029 Ice Thickness Control Probe
5 000007888 Magnetic Bin Switch
6 4014233 Water Curtain
7 7603193 Water Distribution Tube - 48" Models
7a 5004649 O-Rings [1]
8 4009159 Water Trough
9 000000406 Evaporator Top Filler Panels [2]
9a 6063339 Bracket - Top Filler Panel
9b 5202099 Screw - #10-24 x 0.50" PHIL
10 8373263 Refrigeration Service Valve Assembly
11 7603203 Evaporator Top Frame Assembly
12 7603183 Water Diverter - 48" Models
12a 5305123 Thumbscrew SS - #8-32 x 0.44"
13 5004799 Thumbscrew SS - #8-32 x 0.375" [3]
13a 5004629 O-Ring - 0.125" ID
14 5004619 Screw - #12-16 x 0.687"
15 5004659 Water Pump Base O-Ring - 4.00" ID
16 5004679 Water Pump Outlet O-Ring - 0.875" ID
17 000001382 Vinyl Tubing 0.625" ID [4]
17a 6038831 Insulation 0.88 ID X 0.25W X 13.50L

PART NOTES:

[1] - Back of Distribution Assembly
[2] - set of two
[3] - Water Distribution Tube Mounting
[4] - dump valve to drain adapter

S1400M_3.PDF

4

S1400M

S1400M REFRIGERATION COMPARTMENT - COMMON COMPONENTS

S1400M_4.PDF

5

S1400M

S1400M REFRIGERATION COMPARTMENT - COMMON COMPONENTS

# PART # DESCRIPTION QTY Note
1 Compressor - Copeland [1]

1a 7603213 Compressor - Copeland - 208-230V/60 Hz/1 Ph
1b 7603223 Compressor - Copeland - 208-230V/60 Hz/3 Ph
1c 7603233 Compressor - Copeland - 230V/50 Hz/1 Ph
1 Compressor - Bristol
1a 000005173 Compressor - Bristol - 208-230V/60 Hz/1 Ph
1b 000005174 Compressor - Bristol - 208-230V/60 Hz/3 Ph
1c 000005175 Compressor - Bristol - 230V/50 Hz/1 Ph
1 Compressor
1a 000005442 Compressor 440-480/60 Hz/3 Ph
2 Water Dump Valve
2a 000001768 Water Dump Valve - 208-230V/50-60 Hz
2b Dump Valve Rebuild Kit [2]
3 Harvest Valve
3a 7630101 Solenoid Valve with Coil - 230V/50-60 Hz
3b 000005157 Danfoss Solenoid Valve Coil Only - 230V/50-60 Hz [3]
4 Water Inlet Valve
4a 000007966 Water Inlet Valve - 208-230V/50-60 Hz
5 7603243 Expansion Valve
5a 4013299 Valve Insulation Boot - Body
5b 4007203 Valve Insulation Boot - Bulb [4]
6 8253579 Manifold Strainer
7 2001243 High Pressure Cut-out Control
8 Electrical Box on Rear of Ice Machine
8a 6067283 Box
8b 2006143 Terminal Block - 50 Hz - 3 Pole
8c 5202169 Screw - #10-24 x 0.50" Ground
9 Air Compressor
9a 000000443 Air Compressor Pump with bracket
9b 4004579 Air Manifold [5]
10 Compressor Compartment Wiring Harness
10a 000005521 Compressor Compartment Wiring Harness - Water-cooled
10b 000005525 Compressor Compartment Wiring Harness Water-cooled

11 6058453 Water Dump Valve Mounting Bracket
12 8706093 Female Wing Adapter - 0.375"
13 1360961 Male Connector
14 8706083 Female Wing Adapter - 0.50"
15 4420383 Clear Tubing - 0.625" ID
16 4420383 Clear Tubing - 0.625" ID
17 6065903 Compressor Mounting Base
18 8504859 Rubber Grommet
19 8503949 Mounting - Sleeve

440-480/60 Hz/3 Ph

S1400M_4.PDF

6

S1400M

S1400M REFRIGERATION COMPARTMENT - COMMON COMPONENTS

# PART # DESCRIPTION QTY Note
20 5004819 Compressor Mounting - Bolt

21 5004829 Compressor Mounting - Nut
22 2006239 Compressor Wiring Harness
23 5650709 Snap Clamp - 0.799"/0.899" ID
24 5650529 Clamp - Expansion Valve Bulb
25 3000503 Strap - Expansion Valve Bulb - 0.5"
26 5202069 Screw - #10-24 x 0.50" HEX
27 6068653 Left Corner Post - SS
28 6068643 Left Top Channel - SS
29 000008753 Right Corner Post - SS
30 6062573 Right Top Channel - SS
31 000003407 Insulated Tube [6]
31a 5650603 Snap Clamp - 1.0" ID
31b 5650703 Snap Clamp - 0.799"/0.899" ID
32 4010439 Tubing - Water Inlet Valve [7]
33 1360989 Connector - Water Inlet Valve
34 6066443 Water Inlet Valve Bracket
35 000002474 Check Valve Replacement [8]
36 2006559 Water Level Probe Holder
36a 5202069 Screw - #10-24 x 0.50" HEX

PART NOTES:

[1] - NOTE: Copeland compressors must be replaced with Copeland compressors and Bristol compressors must
[2] - No Longer Available

[3] - \pages from 000005156_02.jpg" width=266 height=183>
[4] - \pages from 400720_08.jpg" width=923 height=583>
[5] - (Air Pump Tubing Outlet)
[6] - vinyl tubing from distribution tube to water pump & dump valve
[7] - \pages from 401043_05.jpg" width=1797 height=2238>
[8] - includes water diverter, vinyl tubing & insulation

be replaced with Bristol compressors.

S1400M_4.PDF

7

S1400M

S1400M REFRIGERATION COMPARTMENT - WATER-COOLED COMPONENTS

S1400M_6.PDF

8

S1400M

S1400M REFRIGERATION COMPARTMENT - WATER-COOLED COMPONENTS

# PART # DESCRIPTION QTY Note
1 Compressor (Refer to COMMON PARTS Page)

2 8930279 Drier
3 000008894 Receiver
4 000001508 Water-Cooled Condenser
5 8372127 Water Regulating Valve
6 8706083 Female Wing Adapter - 0.50"
7 6000543 Receiver Strap
8 6066823 Back Panel
9 5005453 Elbow 0.50 MF x 0.50 NPT
10 5202063 Screw - #10-24 x 0.50" HEX
11 5573419 Washer
12 6066843 Base, Water Condenser/Receiver

S1400M_6.PDF

9

S1400M

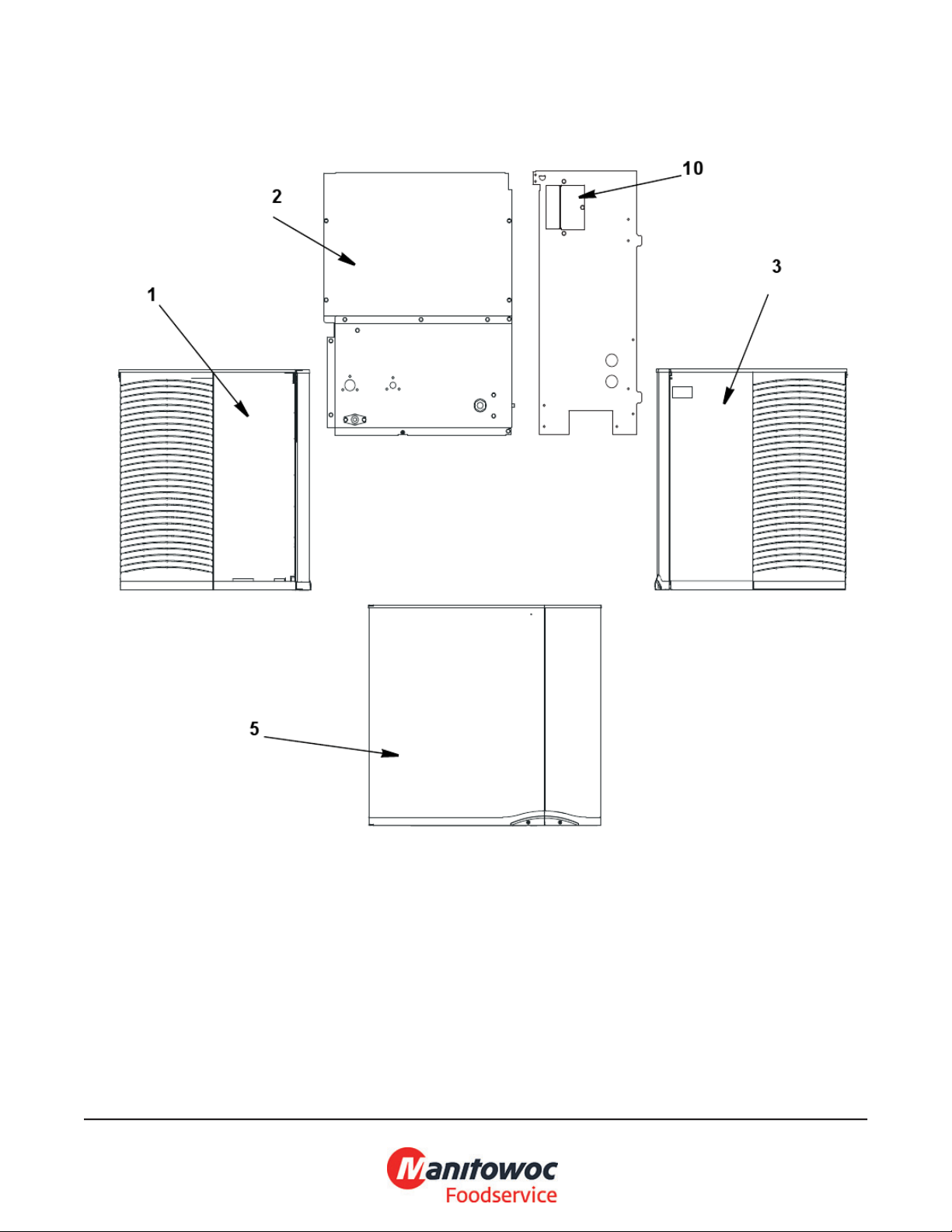

S1400M PANELS

S1400M_7.PDF

10

S1400M

S1400M PANELS

# PART # DESCRIPTION QTY Note
1 6068661 Left Side Panel - Non-Louvered

2 6072473 Back Panel with Electrical Connection Box,
3 6068731 Right Side Panel - Non-Louvered
4 6071481 Top Cover
5 6071811 Front Panel
6 5004899 Front Door Screw
7 5005403 Front Panel Thumbscrew 10-32 x 1.5
8 6071471 Front Top Support
9 6071461 Bottom Door Frame
10 6070461 Electrical Connection Box Cover
11 000000548 Cartoning

S1400M_7.PDF

11
