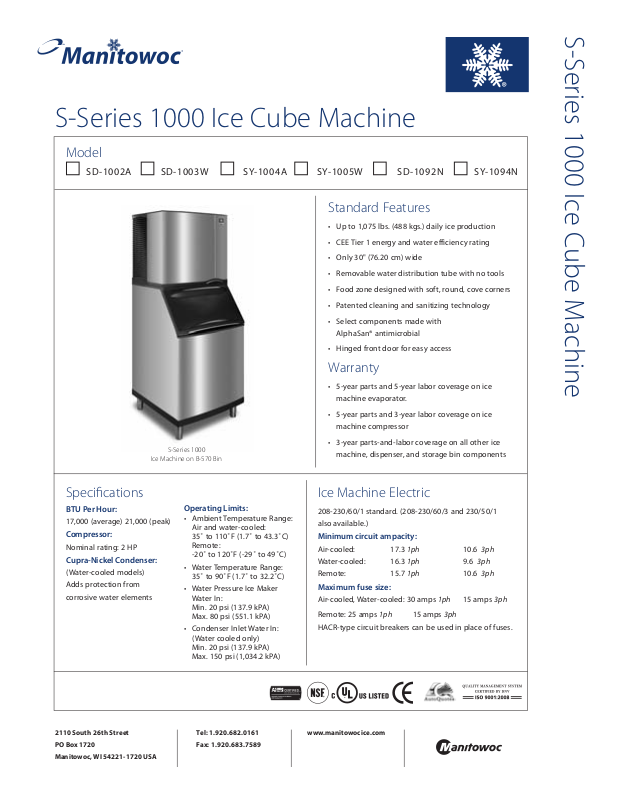

Manitowoc Ice SD-1002A User Manual
S-Series 1000 Ice Cube Machine
Model
SD-1002A SD-1003W
SY-1004A SY-1005W
Standard Features
• Up to 1,075 lbs. (488 kgs.) daily ice production
• CEE Tier 1 energy and water efficiency rating
• Only 30" (76.20 cm) wide
• Removable water distribution tube with no tools
• Food zone designed with soft, round, cove corners
• Patented cleaning and sanitizing technology
• Select components made with
• Hinged front door for easy access
SD-1092N
AlphaSan® antimicrobial
SY-1094N
S-Series 1000 Ice Cube Machine
Ice Machine on B-570 Bin
Specifications
BTU Per Hour:
17,000 (average) 21,000 (peak)
Compressor:
Nominal rating: 2 HP
Cupra-Nickel Condenser:
(Water-cooled models)
Adds protection from
corrosive water elements
S-Series 1000
Operating Limits:
• Ambient Temperature Range:
Air and water-cooled:
35˚ to 110˚F (1.7˚ to 43.3˚C)
Remote:
-20˚ to 120˚F (-29˚ to 49˚C)
• Water Temperature Range:
35˚ to 90˚F (1.7˚ to 32.2˚C)
• Water Pressure Ice Maker
Water In:
Min. 20 psi (137.9 k PA)
Max. 80 psi (551.1 k PA)
• Condenser Inlet Water In:
(Water cooled only)
Min. 20 psi (137.9 k PA)
Max. 150 psi (1,034.2 k PA)
Warranty
• 5-year parts and 5-year labor coverage on ice
machine evaporator.
• 5-year parts and 3-year labor coverage on ice
machine compressor
• 3-year parts-and-labor coverage on all other ice
machine, dispenser, and storage bin components
Ice Machine Electric
208-230/60/1 standard. (208-230/60/3 and 230/50/1
also available.)
Minimum circuit ampacity:
Air-cooled: 17.3 1ph 10.6 3ph
Water-cooled: 16.3 1ph 9.6 3ph
Remote: 15.7 1ph 10.6 3ph
Maximum fuse size:
Air-cooled, Water-cooled: 30 amps 1ph 15 amps 3ph
Remote: 25 amps 1ph 15 amps 3ph
HACR-type circuit breakers can be used in place of fuses.
2110 South 26th Street
PO Box 1720
Manitowoc, WI 54221-1720 USA
Tel: 1.920.682.0161
Fax: 1.920.683.7589
www.manitowocice.com
26.50"
(67.3 cm)
24.50" (62.23 cm)
34.00" (86.30 cm)
30.00" (76.20 cm)
44.00"
(111.76 cm)
6.00"
(15.24 cm)
B
A
C
D
E
F
G
S-Series 1000 Ice Cube Machine
S-1000 on B-570
24.50" (62.23 cm)
Storage Bin
A
C
D
E
F
G
34.00" (86.30 cm)
A Electrical Entrance (2) Options
3/8" (0.95 cm) F.P. T. Water Condenser Inlet
B
(water-cooled units)
1/2" (1.27 cm) F.P. T. Water Condenser Outlet
C
(water-cooled units)
Installation Note
Minimum installation clearance: Top/sides: 8" (20.32 cm); Back is 5" (12.7 cm)
D
1/2" (1.27 cm) Auxillary Base Drain Socket
3/8" (0.95 cm) F.P. T. Ice Making Water Inlet
E
1/2" (1.27 cm) F.P. T. Ice Making Water Drain
F
3/4" (1.91 cm) Bin Drain
G
B
30.00" (76.20 cm)
26.50"
(67.3 cm)
44.00"
(111.76 cm)
6.00"
(15.24 cm)
Space-Saving Designs
S-1000 S-1000
B-570 B-970*
Height 76.50" 76.50"
194.30 cm 194.30 cm
Width 30.00" 48.00"
76.20 cm 121.92 cm
Depth 34.00" 34.00"
86.30 cm 86.30 cm
Bin 430 lbs. 710 lbs.
Storage 195 kgs. 322.2 kgs.
Height includes adjustable bin legs 6.00" to 8.00",
(15.24 to 20.32 cm) set at 6.00" (15.24 cm).
*K-00370 bin adapter required.
Model Ice Shape
SD-1002A dice 1,050 476 840 381 5.5 Tier 1 5.5 Tier 1
SD-1003W dice 1,000 454 955 433 4.3 Tier 1 4.3 Tier 1
SY-1004A half-dice 1,050 476 840 381 5.5 Tier 1 5.5 Tier 1
SY-1005W half-dice 1,075 488 960 435 4.3 Tier 1 4.3 Tier 1
SD-1092N dice 1,030 467 870 395 5.2 Tier 1 5.2 Tier 1
SY-1094N half-dice 1,060 481 920 417 5.2 Tier 1 5.2 Tier 1
Potable Water: 18 gallons, 68 liters • Water-cooled Condenser: 160 gallons, 625 liters
Order ice storage bin separately. “A” or “W” following model number indicates
“Ai r” or “Water” condensing unit. Ice storage bin and JC-0895A remote condenser
must be ordered separately. Consult remote condenser specification sheet for details.
To order 3 phase add “3” suffix to model # (SD-1002A3).
Ice Shape
Half Dice
3
⁄8" x 11⁄8" x 7⁄8"
(.95 x 2.86 x 2.22 cm)
2110 South 26th Street
PO Box 1720
Manitowoc, WI 54221-1720 USA
Ice Production 24 Hours
70°Air/50°F Water 90°Air/70°F Water
Power kWh/100 lbs.
@ 90°/70°F
lbs. kgs. lbs. kgs. 1 ph CEE† Rating 3 ph CEE† Rating
Remote Air-Cooled with JC-0895A condenser
Water usage/100 lbs./45.4 kgs. of Ice
†Consortium for Energy Efficiency (CEE) is a North American
Dice
7
⁄8" x 7⁄8" x 7⁄8"
(2.22 x 2.22 x 2.22 cm)
Tel: 1.920.682.0161
Fax: 1.920.683.7589
www.manitowocice.com
Air Flow Top View
Air-cooled
nonprofit organization that promotes energy- efficient products,
technologies and services; also the principal entity for the
development of ice maker efficiency standards.
AuCS®SI Accessory
Front
Automatic Cleaning System
purchased factory installed
Filter
in the machine or as an
option for field retrofit.
2707E ©2010 Manitowoc 1/10 Continuing product improvement may necessitate change of specifications without notice.
