S0850M CONTROL BOX
S0850M_2.PDF
1
S0850M
S0850M CONTROL BOX
# PART # DESCRIPTION QTY Note
1 2006199 Control Board
1a 000008240 7 Amp Fuse - Mounted on Control Board
2 2007939 Toggle Switch
2a 2008079 Toggle Switch Wiring Harness
2b 4011639 Toggle Switch Box
3 Contactor
3a 2006599 Contactor - 230V/50-60 Hz/1 Ph
3b 2006619 Contactor - 230V/60 Hz/3 Ph
4 8504993 PTCR Compressor Starter
5 8503933 Run Capacitor - 115-230V/50-60 Hz/1 Ph
6 8373263 Refrigeration Service Valve Assembly
7 7603333 Control Box
7a 7603343 Control Box Cover
8 8505013 PTCR Compressor Starter Mounting Bracket
9 4302253 Control Board Mounting Supports
10 6024953 Capacitor Mounting Strap
11 5202169 Screw - #10-24 x 0.50" Ground
11a 5573209 Star Washer
12 5202069 Screw - #10-24 x 0.50" HEX
13 Control Box Wiring Harness
13a 2007349 Control Box Wiring Harness - 230V/60 Hz/1 Ph
13b 2007369 Control Box Wiring Harness - 230V/60 Hz/3 Ph
13c 2007359 Control Box Wiring Harness - 230V/50 Hz/1 Ph
S0850M_2.PDF
2
S0850M
S850M EVAPORATOR COMPARTMENT
S0850M_3.PDF
3
S0850M
S850M EVAPORATOR COMPARTMENT
# PART # DESCRIPTION QTY Note
1 Evaporator Assembly
1a 7602163 Evaporator - Dice Cube
1b 7602173 Evaporator - Half Dice Cube
1c 7602183 Evaporator - Regular Cube
2 Water Pump
2a 8251139 Water Pump - 230V/50-60 Hz
2b 8252709 Water Pump - 230V/50-60 Hz
3 2006549 Water Level Probe
3a 2007989 Wire - Control Box to Probe
4 2008029 Ice Thickness Control Probe
5 000007888 Magnetic Bin Switch
6 6065651 Water Curtain
7 Water Curtain Assembly
7a 6065641 Water Curtain Bracket
7b 6065631 Magnet Bracket
8 7602193 Water Distribution Tube - 30" Models
9 4003609 Water Trough [1]
10 4008469 Evaporator Top Filler Panel
10a 6063339 Bracket - Top Filler Panel
10b 5202093 Screw - #10-24 x 0.50"
11 8373263 Refrigeration Service Valve Assembly
12 7602203 Evaporator Top Frame Assembly
13 7602213 Water Diverter - 30" Models
13a 5305123 Thumbscrew SS - #8-32 x 0.44"
14 5004799 Thumbscrew SS - #8-32 x 0.375" [2]
14a 5004629 O-Ring - 0.125" ID
15 5004619 Screw - #12-16 x 0.687" [3]
16 5004659 Water Pump Base O-Ring - 4.00" ID
17 5004679 Water Pump Outlet O-Ring - 0.875" ID
18 000001382 Vinyl Tubing 0.625" ID [4]
18a 6038831 Insulation 0.88 ID X 0.25W X 13.50L
19 Evaporator Foamed Frame
19a 6058763 Right Side
19b 6058773 Left Side
PART NOTES:
[1] - \water trough.jpg" width=313 height=169>
[2] - Water Distribution Tube Mounting
[3] - Used to Mount Evaporator
[4] - dump valve to drain adapter
S0850M_3.PDF
4
S0850M

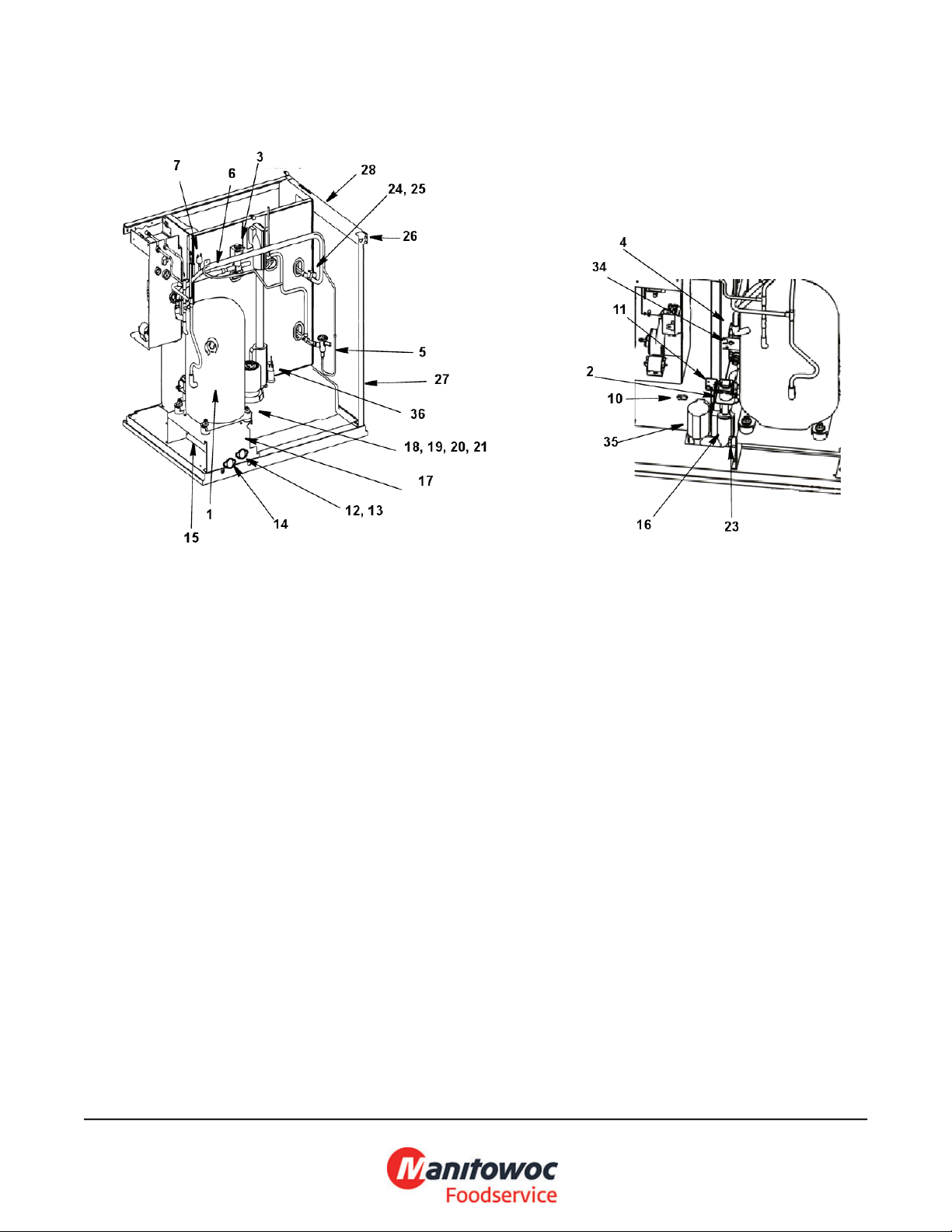

S0850M REFRIGERATION COMPARTMENT - COMMON COMPONENTS
S0850M_4.PDF
5
S0850M
S0850M REFRIGERATION COMPARTMENT - COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
1 Compressor [1]
1a 000008723 Compressor - Copeland - 208-230V/60 Hz/1 Ph [1]
1b 000008724 Compressor - Copeland - 208-230V/60 Hz/3 Ph [1]
1c 000008725 Compressor - Copeland - 208-230V/50 Hz/1 Ph [1]
1 Compressor [2]
1d 7602223 Compressor - Copeland - 208-230V/60 Hz/1 Ph [2]
1e 7602233 Compressor - Copeland - 208-230V/60 Hz/3 Ph [2]
1f 7602243 Compressor - Copeland - 220-240V/50 Hz/ 1 Ph [2]
2 Water Dump Valve
2a 000001768 Water Dump Valve - 208-230V/50-60 Hz
3 Harvest Valve
3a 7630121 Solenoid Valve wtih Coil - 208-230V
3b 2404483 Alco Solenoid Valve Coil Only - 230V/50 Hz
4 Water Inlet Valve
4a 000007966 Water Inlet Valve - 208-230V/50-60 Hz
5 7602253 Expansion Valve
5a 4000363 Valve Insulation Boot - Body
5b 4007203 Valve Insulation Boot - Bulb [3]
6 8251049 Manifold Strainer
7 2001243 High Pressure Cut-out Control
8 Electrical Box on Rear of Ice Machine
8a 6067283 Box
8b 6070461 Electrical Connection Box Cover
8c 2006143 Terminal Block - 50 Hz - 3 Pole
8d 5202169 Screw - #10-24 x 0.50" Ground
9 2007329 Compressor Compartment Wiring Harness - Water-cooled
10 000007888 Magnetic Bin Switch
11 6058453 Water Dump Valve Mounting Bracket
12 8706093 Female Wing Adapter - 0.375"
13 1360961 Male Connector
14 8706083 Female Wing Adapter - 0.50"
15 4420383 Clear Tubing - 0.625" ID
16 4420383 Clear Tubing - 0.625" ID [4]
17 6061703 Compressor Mounting Base
18 8503069 Mounting - Rubber Grommet
19 8503949 Mounting - Sleeve
20 5004819 Compressor Mounting - Bolt
21 5004829 Compressor Mounting - Nut
22 2006239 Compressor Wiring Harness
23 5650709 Snap Clamp - 0.799"/0.899" ID
24 5650529 Clamp - Expansion Valve Bulb
25 3000503 Strap - Expansion Valve Bulb - 0.5"
S0850M_4.PDF
6
S0850M
S0850M REFRIGERATION COMPARTMENT - COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
26 5202069 Screw - #10-24 x 0.50" HEX
27 6068653 Left Corner Post - SS
28 6068643 Left Top Channel - SS
29 000008753 Right Corner Post - SS
30 6062573 Right Top Channel - SS
31 000003406 Insulated Tube [5]
31a 5650603 Snap Clamp - 1.0" ID
31b 5650703 Snap Clamp - 0.799"/0.899" ID
32 4010439 Tubing - Water Inlet Valve [6]
33 1360989 Connector - Water Inlet Valve
34 6058453 Water Dump Valve Mounting Bracket
35 000002473 Check Valve Replacement [7]
36 2006559 Water Level Probe Holder
36a 5202099 Screw - #10-24 x 0.50" PHIL [8]
PART NOTES:
[1] - After Serial Number 110683282
[2] - Before Serial Number 110683282
[3] - \pages from 400720_08.jpg" width=923 height=583>
[4] - 3.25 inches
[5] - vinyl tubing from distribution tube to water pump & dump valve
[6] - \pages from 401043_05.jpg" width=1797 height=2238>
[7] - includes water diverter, vinyl tubing & insulation
[8] - mounts Water Level Probe Holder
S0850M_4.PDF
7
S0850M

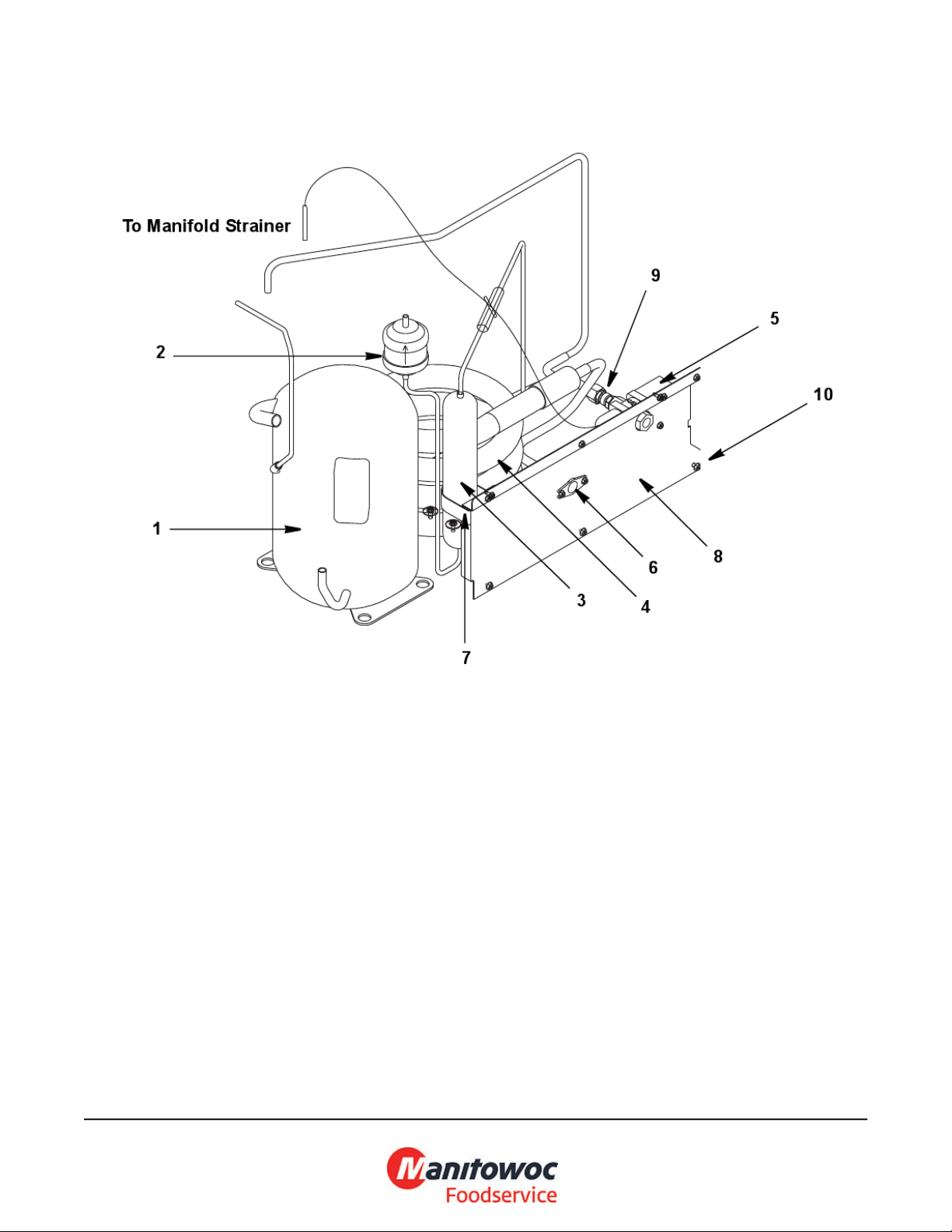

S0850M REFRIGERATION COMPARTMENT - WATER COMPONENTS
S0850M_6.PDF
8
S0850M
S0850M REFRIGERATION COMPARTMENT - WATER COMPONENTS
# PART # DESCRIPTION QTY Note
1 See S0850M Common
Components
2 8930259 Drier
3 000008893 Receiver
4 000001507 Water-cooled Condenser
5 8253153 Water Regulating Valve
6 8706083 Female Wing Adapter - 0.50"
7 6000543 Receiver Strap
8 000008481 Back Coupling Panel, Water-cooled Connections
9 5002249 Elbow 1/2 MF x 3/8 MPT
10 5202063 Screw - #10-24 x 0.50" HEX
11 5573419 Washer
12 6058653 Back Coupling Panel, Drain/Water Connection
Compressor
S0850M_6.PDF
9
S0850M
S0850M PANELS
S0850M_7.PDF
10
S0850M
S0850M PANELS
# PART # DESCRIPTION QTY Note
1 6068661 Left Side Panel - Non-Louvered
2 6072491 Back Panel, Electrical connection side
3 000008481 Back Coupling Panel, Water-cooled Connections
4 6060541 Right Side Panel
Aluminum Front Top Support on machine (replace all)
5 6068781 Top Cover
6 6065001 Front Panel Assembly
7 000000295 Front Top Rail
7a 5005379 Mounting Screw - #8-32 x 1" PHIL
7b 5005099 Mounting Screw - #10-16 x 0.625" PHIL
7c Plastic Front Top Support on machine (replace as needed)
8 5004899 Front Door Screw
9 5005403 Front Panel Thumbscrew 10-32 x 1.5
10 6064991 Bottom Door Frame
10a 5005069 Mounting Screw 10-24 x 0.5 TCS-23 PHIL/FL
10b 5202099 Screw - #10-24 x 0.50" PHIL
11 6062369 Door Catch Bracket
11a 5026249 Mounting Screw - #8-32 x 0.50" PHIL
12 3005579 Left Door Pivot Leaf Hinge [1]
12a 5005069 Mounting Screw 10-24 x 0.5 TCS-23 PHIL/FL
13 6067283 Box
14 4004593 Sachet Holder [2]
14a 5004799 Thumbscrew SS - #8-32 x 0.375"
15 7112359 Cartoning
PART NOTES:
[1] - Top or Bottom
[2] - Inside Left Door
S0850M_7.PDF
11
