TABLE OF CONTENTS
Manitowoc Foodservice [Updated: Sep. 30, 2013]
Manitowoc - Ice & Related
Parts Catalog
Ice Machine
RN Series
RN Model - QuietQube
RN1200C, RCU1275
RN1200C Control Box 1
RN1200C Evaporator Compartment 3
RN1200C Common Components 6
RN1200C Head Section Panels 8
RCU1275 Remote Condenser 10
RCU1275 Condensing Unit Panels 12
i
RN1200C, RCU1275
RN1200C CONTROL BOX
RN-1200C_2.PDF
1
RN1200C, RCU1275
RN1200C CONTROL BOX
# PART # DESCRIPTION QTY Note
1 000007401 Cover, electrical box, remote
2 000007402 Control Board - 120V [1]
3 000007293 Stand offs [2]
4 000007301 Switch, Evaporator Purge
5 000007302 Switch, Evaporator Clean
6 000007303 Switch, Ice Machine Power
7 000007403 Circuit Breaker - 8 amp
8 000007404 Power Cord - 120V
PART NOTES:
[1] - Includes 000007293
[2] - Set of 6
RN-1200C_2.PDF
2
RN1200C, RCU1275
RN1200C EVAPORATOR COMPARTMENT
RN-1200C_3.PDF
3
RN1200C, RCU1275
RN1200C EVAPORATOR COMPARTMENT
# PART # DESCRIPTION QTY Note
1 000007196 Ice Transport Tube
2 000007197 Shuttle Assembly [1]
2a 000007450 Transport Tube Shuttle Actuator
3 000007198 Optical Switch
4 000007199 Compression Nozzle
5 000007200 Water Elbow
6 000007201 Shuttle Gasket
7 000007203 Stream Divider
8 000007204 Auger Bolt
9 000007205 Washer
10 000007206 Retainer
11 000007207 Auger Bolt Kit [2]
12 000007208 Key
13 000007209 Gearmotor Mounting Bolt [3]
14 000007453 Gearmotor - 120V [4]
15 000007211 Gearmotor Gasket
16 000007212 Main Housing [5]
17 000007213 Coupling, V-band
18 000007214 O-ring
19 000007215 Seal - Auger Shaft
20 000007216 Sanitizer Cup
21 000007217 Gasket, Sanitizer
22 000007218 Cap, Sanitizer [6]
23 000007219 Water Tubing - 0.375" OD
24 000007220 Water Tubing - 0.25" OD
25 000007221 Hardware - Mounting Evaporator Cap
26 000007562 Water Inlet Valve [7]
27 000007225 Water Tee
28 000007226 Sensor Assembly, Water Level and Drain Clog
29 000007227 Evaporator Cap [8]
30 000007228 Clip, Water Shut-off Valve
31 000007229 Water Strainer
32 000007230 Water Shut-off Valve
33 000007233 Auger [9]
34 000007234 Evaporator [10]
35 000007243 Journal Housing and Bearing [11]
36 000007244 Water Reservoir
37 000007245 Evaporator Base
38 000007246 Boot - Solenoid
39 000007561 Purge Solenoid [7]
40 000007248 Insulation - Evaporator
41 000007249 Solenoid Spacers
RN-1200C_3.PDF
4
RN1200C, RCU1275
RN1200C EVAPORATOR COMPARTMENT
# PART # DESCRIPTION QTY Note
PART NOTES:
[1] - Includes 000007201
[2] - auger bolt, washer, retainer, nut and washer
[3] - 4
[4] - includes capacitor
[5] - includes 000007215 & 000007214
[6] - includes 000007217
[7] - 120V
[8] - includes 000007250 & 000007221
[9] - includes 000007215 and 000007214
[10] - includes 000007215 & (2) 000007214
[11] - includes (2) 000007214
RN-1200C_3.PDF
5
RN1200C, RCU1275
RN1200C COMMON COMPONENTS
RN-1200C_5.PDF
6
RN1200C, RCU1275
RN1200C COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
1 000007307 Shuttle Actuator
2 000007308 Clamp
3 000007309 Actuator Elbow [1]
4 000007311 Gasket
5 000007312 Actuator Body
6 000007313 Gasket, Coupling
7 000007319 Locking Ring [2]
8 000007322 Insulation, Transport Tube
9 000007323 Insulation, Elbow
10 000007324 Insulation, Actuator
11 000007325 Ice Transport Tube - Top Mount 30"
12 000007326 Integration Kit, Top Mount
13 000007327 Integration Kit, Satellite-fill [3]
14 00135723 Extension-fill Tube, 9" [4]
15 00153684 Extension-fill tube, 4" [4]
16 000007358 Sani-Sponge Kit [4]
PART NOTES:
[1] - Includes 000007311 And Hardware
[2] - Includes 000007313
[3] - Requires Transport Tube
[4] - Not Shown
RN-1200C_5.PDF
7
RN1200C, RCU1275

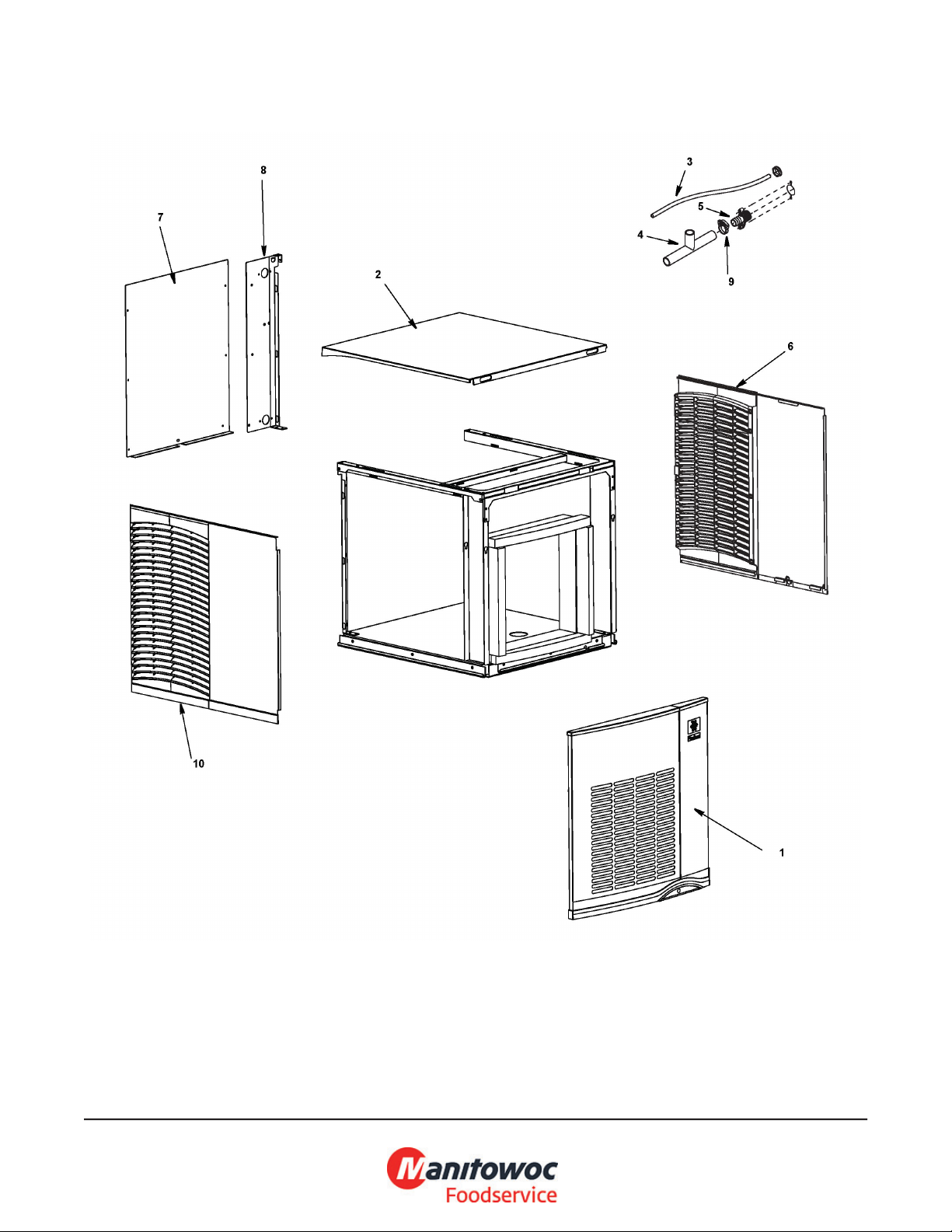

RN1200C HEAD SECTION PANELS
RN-1200C_6.PDF
8
RN1200C, RCU1275
RN1200C HEAD SECTION PANELS
# PART # DESCRIPTION QTY Note
1 000006745 Front Panel
2 4012029 Top Cover
3 000007219 Water Tubing - 0.375" OD
4 000007363 Drain Tubing
5 000007364 Drain Fitting
6 6060521 Right Side Panel
7 000008373 Back Panel
8 6072361 Back Corner Channel Right
9 000007375 Clamp - Drain Line
10 6060531 Left Side Panel
11 000007447 Air Filter
12 000007449 Air Filter Retaining Rod, PVC
13 000007452 Water Inlet Fitting - Female Wing Adapter
14 000007365 Ice Making Water Inlet Fitting, Plastic
15 000007451 Drain Tube
16 Return Packaging
16a 000009086 Cartoning
16b 000009087 Skid
RN-1200C_6.PDF
9
RN1200C, RCU1275
RCU1275 REMOTE CONDENSER
RN-1200C_8.PDF
10
RN1200C, RCU1275
RCU1275 REMOTE CONDENSER
# PART # DESCRIPTION QTY Note
1 Compressor
1a 7602293 Compressor - Copeland - 208-230V/60 Hz/1 Ph
1b 7602303 Compressor - Copeland - 208-230V/60 Hz/3 Ph
2 2007559 Start Potential Relay - 50-60 Hz/1 Ph
3 000006454 Start Capacitor - 50-60 Hz/1 Ph
4 2010133 Run Capacitor - 115-230V/50-60 Hz/1 Ph
5 000007280 Suction Accumulator
6 7629573 Receiver
7 8373253 Access Valve
8 8851453 Air-cooled Condenser
9 000002369 Head Pressure Control Valve
10 000001289 Check Valve
11 8930279 Drier
12 2001243 High Pressure Cut-out
13 2001263 Fan Cycling Control - 200-250 psig [1]
14 Contactor
14a 2006609 Contactor - 208-230V/50-60 Hz/1 Ph
14b 2006619 Contactor - 230V/60 Hz/3 Ph
15 2002229 Low Pressure Cut-out
16 8373303 Manual Shut-off Valve - 0.625"
17 8373293 Manual Shut-off Valve - 0.375"
18 2000189 Fan Motor - 208-230V/60 Hz/1-3 Ph
19 2416303 Fan Blade
20 3006823 Fan Motor Mounting Bracket
21 5429559 Mounting - Rubber Wellnut
22 6034981 Capacitor Mounting Bracket
23 6021601 Capacitor Mounting Strap
24 5650659 Cable Tie with Mounting Hole
25 8250539 Suction Line Filter
26 Wiring Harness
26a 000006532 Wiring Harness - 230V/60 Hz/1 Ph
26b 2033089 Wiring Harness - 230V/60 Hz/3 Ph
26c 000007729 Fan Cycle Control
26d 000007425 Wiring Harness - Heater/Therm
27 6000561 Receiver Mounting Bracket
28 2007619 Copeland Plug Assembly Wiring Harness, 230V/50-60Hz/1-3
Ph
PART NOTES:
[1] - \pages from 200126_09.jpg" width=150 height=306>
RN-1200C_8.PDF
11
RN1200C, RCU1275

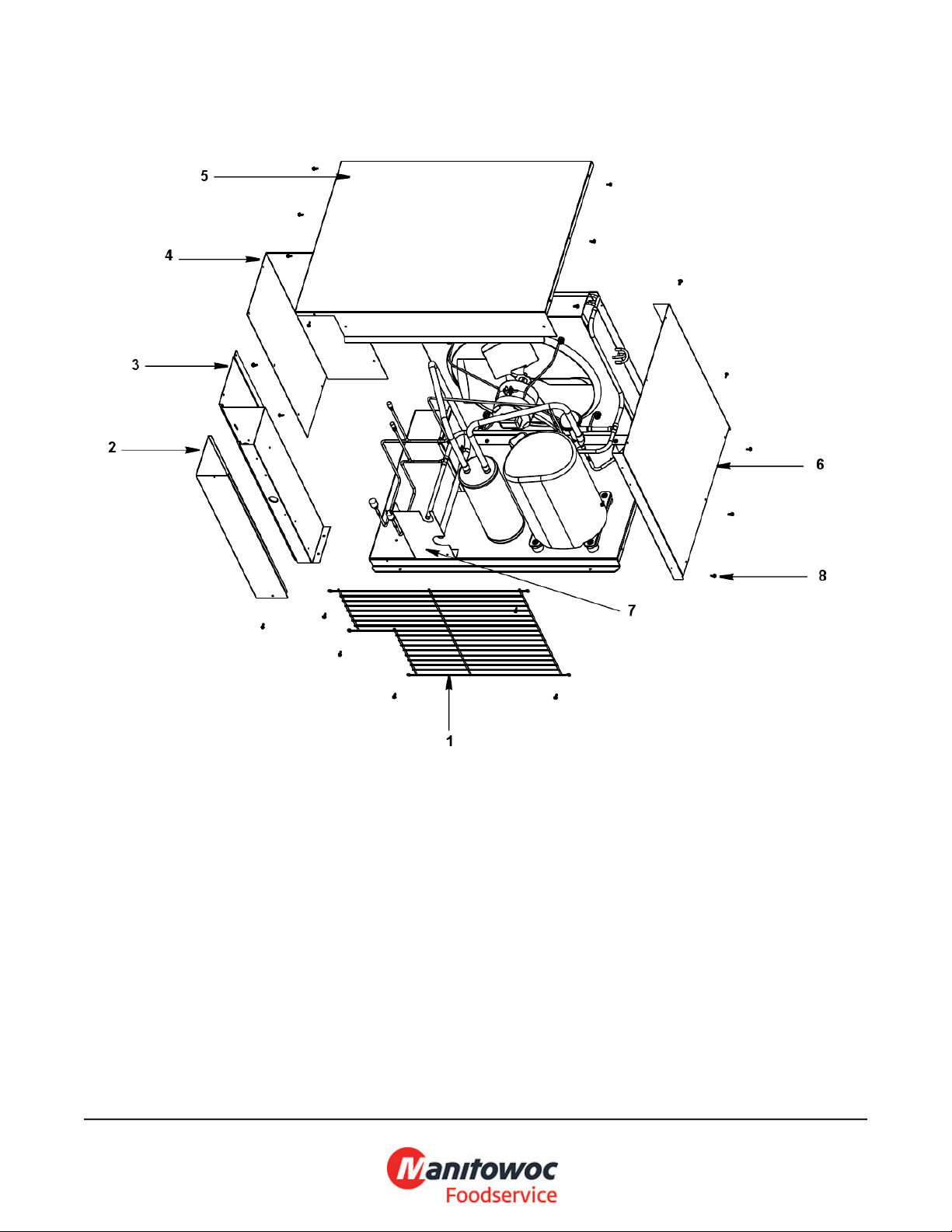

RCU1275 CONDENSING UNIT PANELS
RN-1200C_10.PDF
12
RN1200C, RCU1275
RCU1275 CONDENSING UNIT PANELS
# PART # DESCRIPTION QTY Note
1 3406893 Condenser Fan Guard
2 6040171 Control Box Cover
3 6037071 Control Box Panel
4 6037051 Left Side Panel
5 6034751 Cover Top
6 6034701 Right Side Panel
7 6042261 Condensing Unit Tube Shield
8 5202069 Screw - #10-24 x 0.50" HEX
9 000000768 Cartoning
RN-1200C_10.PDF
13
