TABLE OF CONTENTS
Manitowoc Foodservice [Updated: Sep. 30, 2013]
Manitowoc - Ice & Related
Parts Catalog
Ice Machine
RN Series
RN Model - Air & Water
RN0400
RN0400 Control Box 1
RN0400 Evaporator Compartment 3
RN0400 Refrigeration Compartment - Air-cooled 5
RN0400 Panels 7
i
RN0400
RN0400 CONTROL BOX
RN-0400_2.PDF
1
RN0400
RN0400 CONTROL BOX
# PART # DESCRIPTION QTY Note
1 000007123 Start Capacitor - 115V/60 Hz
2 000007080 Start Relay - 115V/60 Hz
3 000007104 Control Board - 115V/60 Hz
4 000007102 Water Sensor (Not Shown)
5 000007105 ON/OFF Switch - Compressor
6 000007978 ON/OFF Switch - Power
7 000007128 Bin Thermostat [1]
8 000007081 Board, stand off control [2]
9 000007157 Power Cord & Plug
PART NOTES:
[1] - RN0408A 60Hz only
[2] - 4 required
RN-0400_2.PDF
2
RN0400
RN0400 EVAPORATOR COMPARTMENT
RN-0400_3.PDF
3
RN0400
RN0400 EVAPORATOR COMPARTMENT
# PART # DESCRIPTION QTY Note
1 000007119 Bearing assembly, top
2 000007118 Coupling, vee band, includes nut
3 000007103 Ice Compression Loop - Beveled
4 000007120 Auger
5 000007107 Evaporator [1]
5a 000007983 Cap
6 000007131 Insulation jacket, evaporator
7 000007130 Ice Transport Tube
7a 000007154 Bracket
8 000007121 Bearing assembly, bottom [2]
9 000007078 O ring, mounting base
10 000007079 Screw, Allen 1/4 20 x 1/2
11 000007112 Mounting base, evap [3]
12 000007134 Bolt, mounting base
13 000007129 Drain Pan, Evaporator
14 000007077 Shield, condensate
15 000007109 Gearbox / Gearmotor Assembly - 115V/60 Hz/1 Ph
16 000007122 Gearmotor Start Relay - 115V/60 Hz/1 Ph
17 000007979 Shuttle Actuator
18 000007141 Gearmotor Oil [4]
19 000007133 O ring, bearing housing
20 000007140 Bracket, drain hose
21 000007984 Tubing, evaporator outlet to compression nozzle 3.75"
22 000007138 Tubing, compression nozzle drain(s) [5]
23 000007136 Compression nozzle, with double drain
24 000007137 Clamp, compression nozzle and screw
25 000007139 Grease, Chevron SRI-2, 14oz
26 000007135 Gearbox Mounting Bracket
27 Extension Tubes for Ice Chute
27a 000007981 Extension Tube 11.6"
27b 000007982 Extension Tube 16.6"
PART NOTES:
[1] - includes insulation jacket, 000007131
[2] - includes O rings and condensate shield
[3] - includes 000007078
[4] - 1 pint
[5] - sold by foot
RN-0400_3.PDF
4
RN0400
RN0400 REFRIGERATION COMPARTMENT - AIR-COOLED
RN-0400_5.PDF
5
RN0400
RN0400 REFRIGERATION COMPARTMENT - AIR-COOLED
# PART # DESCRIPTION QTY Note
1 000007108 Thermal Expansion Valve
2 Evaporator [1]
3 000007129 Drain Pan, Evaporator
4 000007135 Gearbox Mounting Bracket
5 000007075 Float Valve And Reservoir
5a 000007980 Mounting Bracket
5b 000007102 Water Sensor (Not Shown)
6 000007146 Tubing, Plastic, Food Grade, 1/2" (13mm) ID [2]
7 000007132 Evaporator Drain Kit
8 000007142 Reservoir Mounting Bracket
9 000007109 Gearbox / Gearmotor Assembly - 115V/60 Hz/1 Ph
10 000007110 Compressor - 115V/60 Hz/1 Ph
11 000007149 Base
12 000007148 Fan Motor Bracket
13 000007076 Fan Motor - 115V/60 Hz
14 000007147 Fan Blade
15 000007270 Drier
16 000007111 High Pressure Cut-out
17 000007127 Condenser Coil, A/C
17a 000007155 Grill
17b 000007985 Air Filter
18 000007220 Water Tubing - 0.25" OD [3]
19 000007144 Float Valve Plastic Fitting [4]
20 000007102 Water Sensor (Not Shown)
21 000007145 Tubing, Evaporator Drain, 3/4" (19mm) ID X 1" (26mm) OD [3]
22 000007124 Overload - 115V/60 Hz
23 000009084 Water Strainer - Threaded Connections
24 000007229 Water Strainer
25 000007150 Condenser Coil Shroud
26 000009085 Water Inlet And Drain Assembly, Brass
27 000007365 Ice Making Water Inlet Fitting, Plastic
28 000007366 Water Inlet Elbow, Plastic
30 000007125 Expansion Valve Insulation
31 000007274 Expansion Valve Insulation
32 000007985 Air Filter
PART NOTES:
[1] - See RN0400 Evaporator Compartment For Complete Breakdown
[2] - Sold By Foot
[3] - Sold By Foot
[4] - Includes Sleeve And Stem
RN-0400_5.PDF
6
RN0400

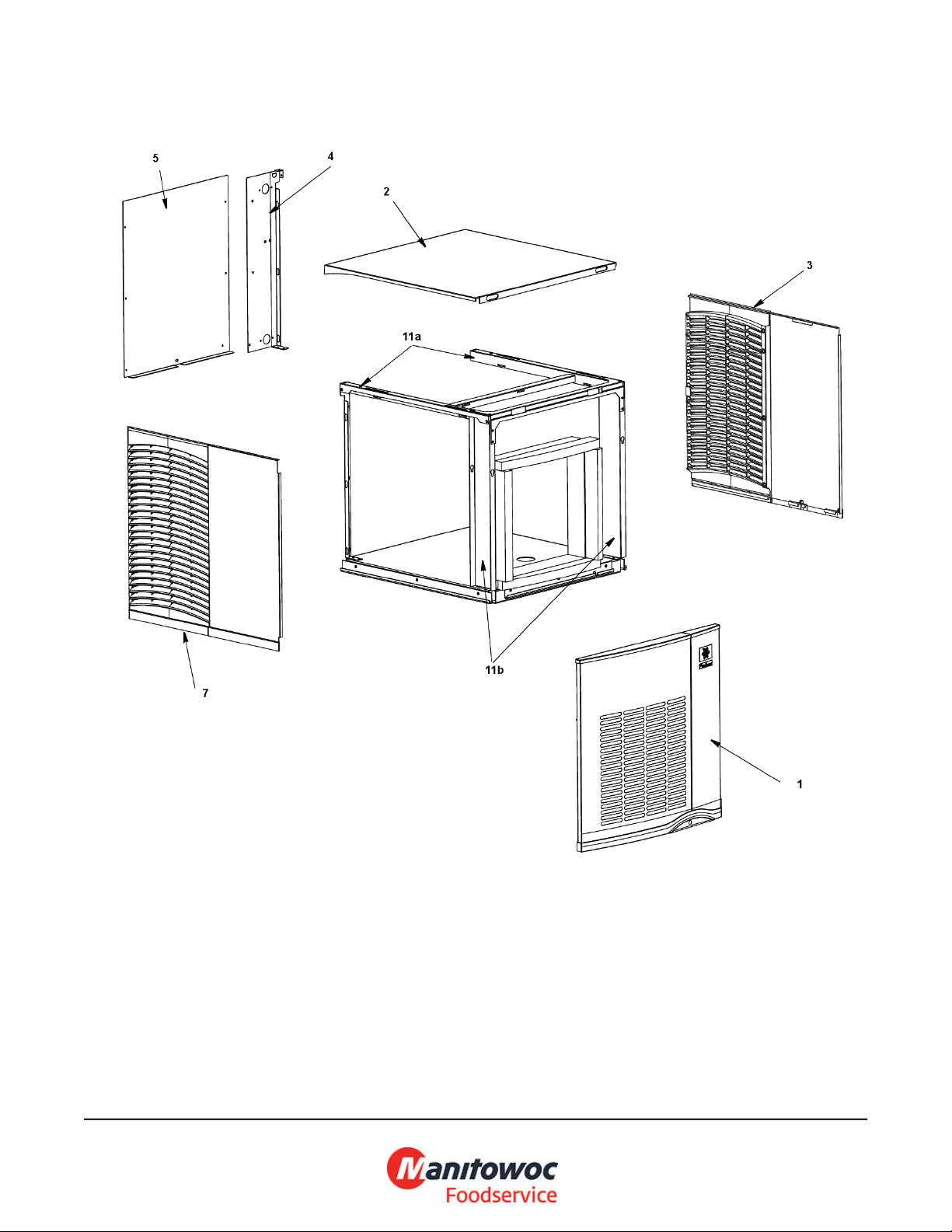

RN0400 PANELS
RN-0400_7.PDF
7
RN0400
RN0400 PANELS
# PART # DESCRIPTION QTY Note
1 000006736 Front Panel
2 000006737 Top Cover
3 6060541 Right Side Panel
4 6072361 Back Corner Channel Right
5 000008371 Back Panel
6 000007377 Bulkhead Connector Kit
7 6060551 Left Side Panel
8 000007985 Air Filter
9 000007449 Air Filter Retaining Rod, PVC
10 Return Packaging
10a 000009086 Cartoning
10b 000009087 Skid
11 Supports
11a 000009933 Upper Support
11b 000009934 Front Support
RN-0400_7.PDF
8
