Manitowoc Ice RFC1285 PARTS LIST

For more Parts Information:

https://manitowocfsg.sysonline.com/Default.aspx

TABLE OF CONTENTS

Manitowoc Foodservice [Updated: Sep. 30, 2013]
Manitowoc - Ice & Related
Parts Catalog
Ice Machine
S Series
S Model - Flake/Nugget
SF1200, SN1250, RFC1285
SF1200/SN1250 Control Box 1
SF1200/SN1250 Evaporator Assembly 3
SF1200/SN1250 Refrigeration Compartment Common Parts 5
SF1200/SN1250 Refrigeration Compartment - Common Parts 2 7
SF1200/SN1250 Refrigeration Compartment - Air-cooled 9
SF1200/SN1250 Refrigeration Compartment - Water-cooled 11
SF1200C/SN1250C QuietQube Remote Air-cooled 13
SF1200/SN1250 Panels 15
RFC1285 Condensing Unit 17
RFC1285 Condensing Unit Panels 20

i

SF1200, SN1250, RFC1285

SF1200/SN1250 CONTROL BOX

SF1200_SN1250_2.PDF

1

SF1200, SN1250, RFC1285

SF1200/SN1250 CONTROL BOX

# PART # DESCRIPTION QTY Note
1 000001238 Control Board

1a 4302253 Control Board Mounting Supports
2 2511493 10 Amp Fuse
3 2007939 Toggle Switch
3a 2009973 Compressor to Control Board Wiring Harness
4 Contactor [1]
4a 2006589 Contactor - 115V/60 Hz/1 Ph
4b 2006599 Contactor - 230V/50-60 Hz/1 Ph
4c 2006619 Contactor - 230V/60 Hz/3 Ph
5 8505723 Start Capacitor (Compressor) 230/50-60/1
6 8503933 Run Capacitor - 115-230V/50-60 Hz/1 Ph
7 000000029 Gearmotor Run Capacitor 230V/50-60 Hz/1 Ph
8 Start Relay
8a 2007533 Start Potential Relay - 230V/50-60 Hz/1 Ph
8b 2007543 Start Potential Relay - 230V/50 Hz/1 Ph
9 Wiring Harness
9a 000001073 Wiring Harness 230/50/1
9b 000001075 Wiring Harness 230/60/1
9c 000001069 Wiring Harness 230/60/3
10 2009953 Start Capacitor Wiring Harness
11 2009973 Compressor to Control Board Wiring Harness
12 000002866 Control Box
13 6073041 Control Box Cover
13a 5202069 Screw - #10-24 x 0.50" HEX
14 000000971 Capacitor Mounting Strap
15 6024951 Capacitor Bracket
16 5004129 Screw - #6 x 0.5"
17 5202169 Screw - #10-24 x 0.50" Ground
18 2501409 Bushing - 0.875"
19 2500139 Bushing - 1.5"

PART NOTES:

[1] - Left = Gearmotor, Right = Compressor

SF1200_SN1250_2.PDF

2

SF1200, SN1250, RFC1285

SF1200/SN1250 EVAPORATOR ASSEMBLY

SF1200_SN1250_3.PDF

3

SF1200, SN1250, RFC1285

SF1200/SN1250 EVAPORATOR ASSEMBLY

# PART # DESCRIPTION QTY Note
1 Evaporator Assembly

1a 000000527 Evaporator Assembly Flake
1b 000000526 Evaporator Assembly Nugget
2 000002699 Evaporator Foundation
3 000003061 Coupler
4 Gear Motor Assembly
4a 000002088 Gearmotor Assembly - 50 Hz
4b 2009553 Gearmotor Assembly - 60 Hz
5 000006516 Float Chamber Assembly [1]
5a 2008633 Float Switch Only
5b 000006515 Float Chamber Only
6 5650729 Compression Nut
7 6072531 Float Valve Bracket
7a 5202069 Screw - #10-24 x 0.50" HEX
8 6071881 Gearmotor Bracket
8a 5000293 Screw
9 Evaporator Mounting to Gear Motor
9a 5000273 Bolt
9b 5573049 Flatwasher
9c 5545119 Mounting - Lockwasher
9d 5000269 Screw
10 000000465 Clamp Assembly [2]
10a 5006203 O-ring

PART NOTES:

[1] - includes float, switch, cover & housing
[2] - secures evaporator to ice chute

SF1200_SN1250_3.PDF

4

SF1200, SN1250, RFC1285

SF1200/SN1250 REFRIGERATION COMPARTMENT COMMON PARTS

SF1200_SN1250_4.PDF

5

SF1200, SN1250, RFC1285

SF1200/SN1250 REFRIGERATION COMPARTMENT COMMON PARTS

# PART # DESCRIPTION QTY Note
1 Compressor

1a 7602223 Compressor - Copeland - 208-230V/60 Hz/1 Ph
1b 7602243 Compressor - Copeland - 220-240V/50 Hz/ 1 Ph
1c 7602233 Compressor - Copeland - 208-230V/60 Hz/3 Ph
1d 8252973 Compressor Overload - 115V/60 Hz/1 Ph
2 Water Dump Valve
2a 000007429 Water Dump Valve 115V
2b 000007428 Water Dump Valve 208-240V
3 000001939 Expansion Valve
4 4000403 Valve Insulation Boot - Body
5 4000923 Valve Insulation Boot - Bulb
5a 3000503 Strap - Expansion Valve Bulb - 0.5"
5b 5650529 Clamp - Expansion Valve Bulb
6 8251393 Liquid Line Solenoid Valve
7 000005157 Danfoss Solenoid Valve Coil Only - 230V/50-60 Hz [1]
8 2001243 High Pressure Cut-out Control
9 000000886 Manifold Strainer
10 8253333 Drier
11 8373253 Access Valve
12 000000544 Compressor Base
12a 5012319 Screw - #12-16 x 0.75"
13 Compressor Mounting
13a 8503069 Mounting - Rubber Grommet
13b 5004819 Compressor Mounting - Bolt
13c 8503949 Mounting - Sleeve
13d 5004829 Compressor Mounting - Nut
14 8706093 Female Wing Adapter - 0.375"
14a 5202069 Screw - #10-24 x 0.50" HEX
15 1360961 Male Connector
16 4420291 Vinyl Tube - 0.25" OD
17 6042901 Water Inlet Tubing Insulation
18 000000008 Water Dump Valve Guard
18a 5202329 Screw - #10-24 x 0.25" PH

PART NOTES:

[1] - \pages from 000005156_02.jpg" width=266 height=183>

SF1200_SN1250_4.PDF

6

SF1200, SN1250, RFC1285

SF1200/SN1250 REFRIGERATION COMPARTMENT - COMMON PARTS 2

SF1200_SN1250_5.PDF

7

SF1200, SN1250, RFC1285

SF1200/SN1250 REFRIGERATION COMPARTMENT - COMMON PARTS 2

# PART # DESCRIPTION QTY Note
1 2009793 Hall Effect Switch with Wiring

2 2009803 Hall Effect Switch Housing
2a 5121629 Screw
3 5650853 Receptacle
3a 5000453 Wing-head Mounting Stud
4 Damper Door
4a 000000710 Damper Door Flake
4b 4014443 Damper Door Nugget
5 000000039 Ice Chute
6 000000077 Strainer Ramp
7 000000272 Chute Cover - sits on receptacle
8 Ice Wiper
8a 000002948 Ice Wiper Flake
8b 000002949 Ice Wiper Nugget
9 000000781 Ice Tube/Chute Base
10 000000779 Ice Chute/Ice Tube Union
11 Secure Ice Chute to Evaporator
11a 000000465 Clamp Assembly
12 Molded Vinyl Tubes
12a 000000788 Float Chamber Tube
12b 000000790 Drain
12c 000000009 Elbow [1]
12d 000000792 Ice Chute Drain Tube
13 Snap Clamps
13a 5650539 Snap Clamp - 1.123 x 1.296
13b 5650603 Snap Clamp - 1.0" ID
13c 5650993 Snap Clamp - 3/4" ID
13d 5650649 Hose Clamp - 0.759"/0.848" ID
13e 5660703 Snap Clamp - 0.799"/0.899" ID

PART NOTES:

[1] - connects Float Chamber Tube to Ice Chute Drain Tube

SF1200_SN1250_5.PDF

8

SF1200, SN1250, RFC1285

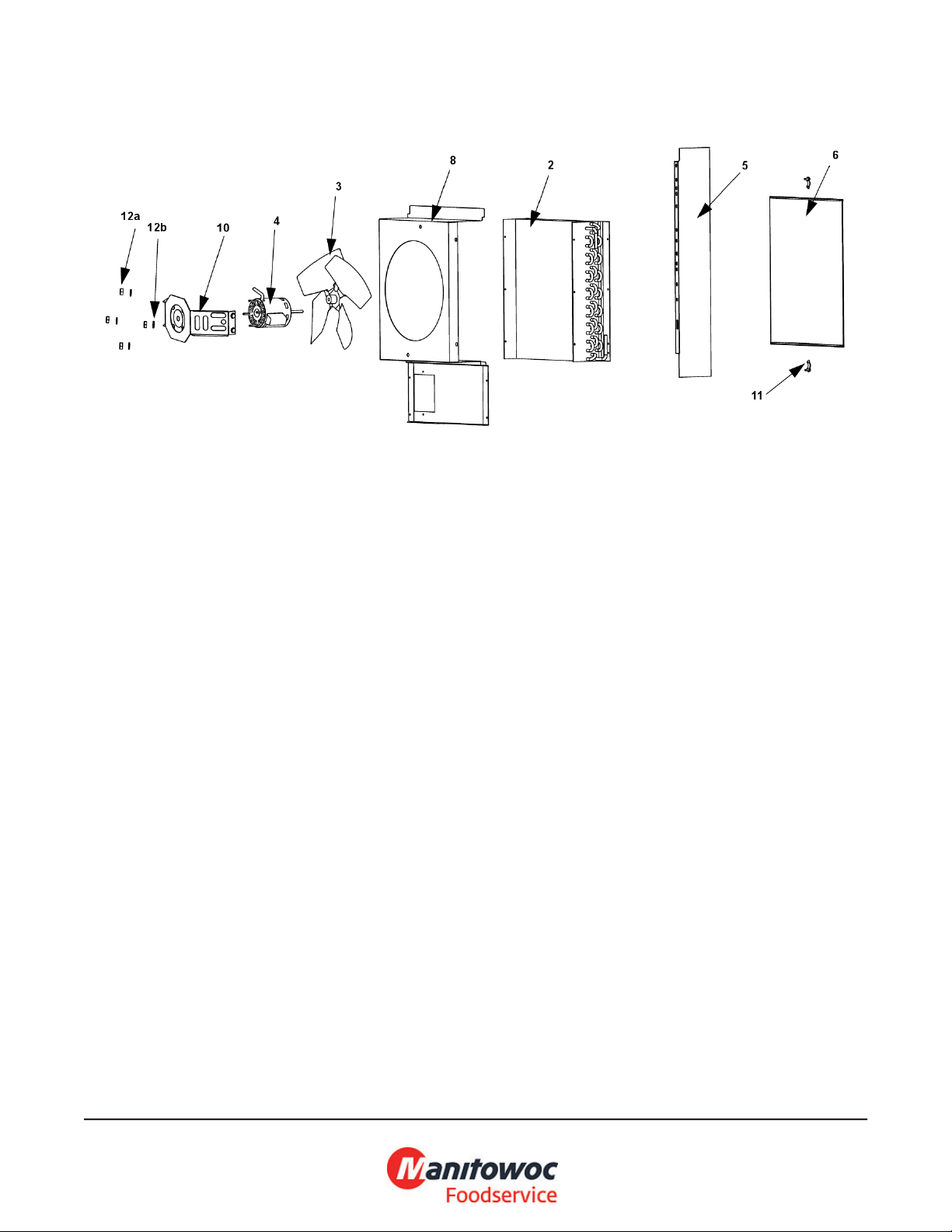

SF1200/SN1250 REFRIGERATION COMPARTMENT - AIR-COOLED

SF1200_SN1250_6.PDF

9

SF1200, SN1250, RFC1285

SF1200/SN1250 REFRIGERATION COMPARTMENT - AIR-COOLED

# PART # DESCRIPTION QTY Note
1 Compressor [1]

2 8252393 Air Condenser
3 2416123 Fan Blade
4 2009653 Fan Motor 208-230V/50-60 Hz
5 4015333 Air Baffle
6 3005559 Air Filter
7 000000545 Head Pressure Control Valve
8 000001309 Fan Shroud
9 5032389 Fan Bracket Mounting Screw
10 6072461 Fan Motor Bracket
11 5650699 Air Filter Clip
12 Fan Motor to Bracket Mounting
12a 000000936 Nut
12b 5573059 Mounting - Flatwasher
13 Back Corner Channel
13a 6072361 Back Corner Channel Right
13b 6072311 Back Corner Channel Left

PART NOTES:

[1] - Refer to COMMON PARTS PAGE

SF1200_SN1250_6.PDF

10

SF1200, SN1250, RFC1285

SF1200/SN1250 REFRIGERATION COMPARTMENT - WATER-COOLED

SF1200_SN1250_7.PDF

11

SF1200, SN1250, RFC1285

SF1200/SN1250 REFRIGERATION COMPARTMENT - WATER-COOLED

# PART # DESCRIPTION QTY Note
1 Compressor [1]

2 000008894 Receiver
3 8865333 Water-cooled Condenser
4 8372069 Water Regulating Valve
5 8706083 Female Wing Adapter - 0.50"
6 8706093 Female Wing Adapter - 0.375"
7 6000541 Receiver Strap
8 5202069 Screw - #10-24 x 0.50" HEX
9 5573419 Washer
10 000000963 Water Condenser Bracket
11 Back Corner Channel
11a 6072361 Back Corner Channel Right
11b 6072311 Back Corner Channel Left

PART NOTES:

[1] - Refer to COMMON PARTS Page

SF1200_SN1250_7.PDF

12

SF1200, SN1250, RFC1285

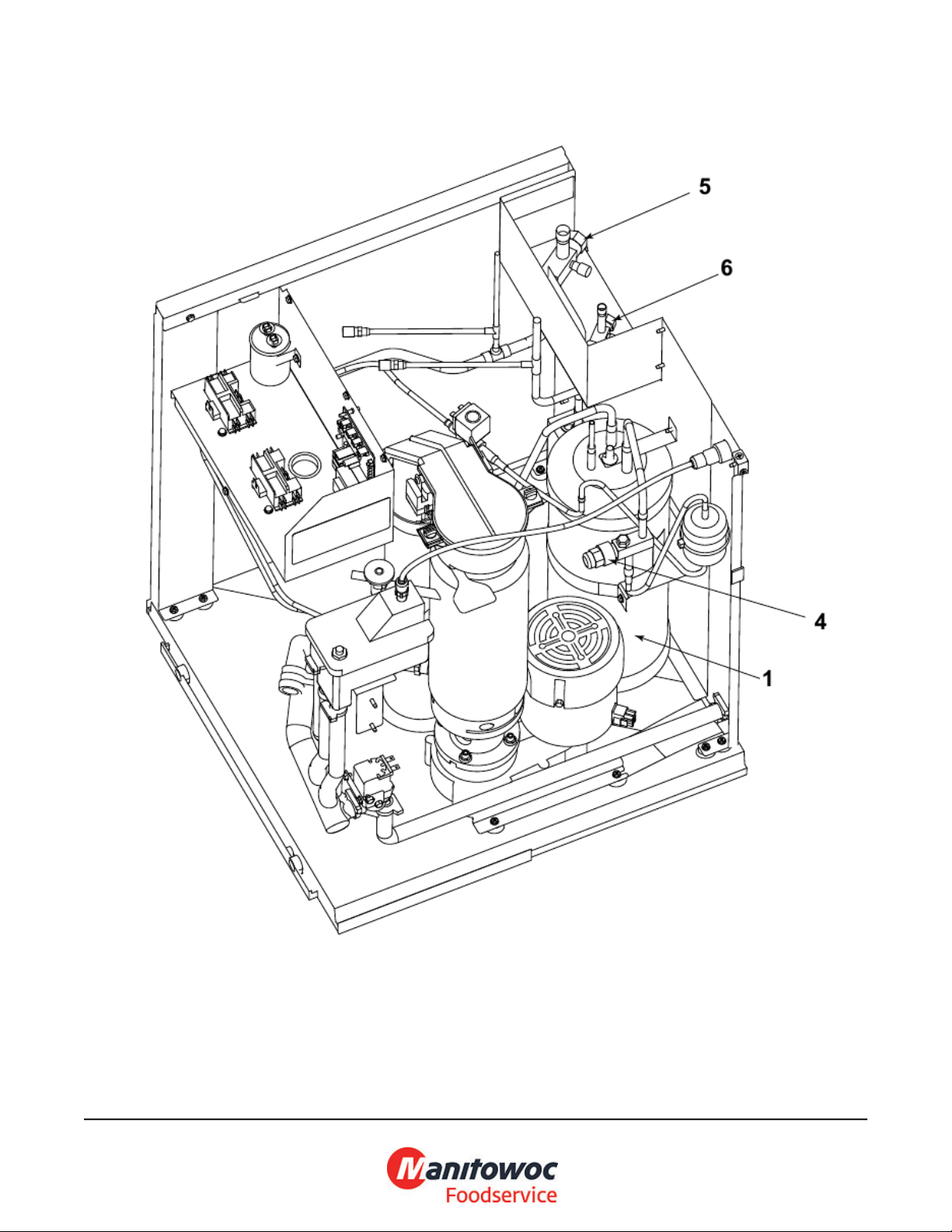

SF1200C/SN1250C QUIETQUBE REMOTE AIR-COOLED

SF1200_SN1250_8.PDF

13

SF1200, SN1250, RFC1285

SF1200C/SN1250C QUIETQUBE REMOTE AIR-COOLED

# PART # DESCRIPTION QTY Note
1 8900023 Receiver

2 8250539 Suction Line Filter
3 000001289 Check Valve
4 8373169 Receiver Service Valve
4a 5650753 Caps for Refrigeration Service Valve
4b 6037451 Bracket
5 8373303 Manual Shut-Off Valve - Suction Line
5a 8373023 Valve Cap
5b 4007403 Valve Insulation Boot - Body [1]
6 8373293 Manual Shut-off Valve - Liquid Line
7 Wiring Harness
7a 000001077 Wiring Harness - 115V
7b 000001078 Wiring Harness - 230V
8 000000441 Shut-Off Box
9 6000561 Receiver Mounting Bracket
10 000000410 Back Panel

PART NOTES:

[1] - \pages from 400740_02.jpg" width=362 height=281>

SF1200_SN1250_8.PDF

14

SF1200, SN1250, RFC1285

SF1200/SN1250 PANELS

SF1200_SN1250_9.PDF

15

SF1200, SN1250, RFC1285

SF1200/SN1250 PANELS

# PART # DESCRIPTION QTY Note
1 000000747 Front Panel

2 000001054 Right Side Panel
3 000001053 Left Side Panel
4 Back Panel, Water
5 000001548 Top Cover
6 4015333 Air Baffle
7 3005559 Air Filter
8 000000260 Front Panel - Shoulder Bolt
8a 000000305 Front Panel - Nut
9 5650699 Air Filter Clip
10 000000263 Top Cover Bracket
11 000001171 Top Front Bracket
12 000001091 Top Support Brace
13 Front Corner Channel
13a 000002868 Front Corner Channel After Serial Number 110709148
13b 000001092 Front Corner Channel Before Serial Number 110709148
13c 5012319 Screw - #12-16 x 0.75"
14 6072371 Top Channel
14a 5202069 Screw - #10-24 x 0.50" HEX
15 Back Panel
15a 5012319 Screw - #12-16 x 0.75"
15b 5202099 Screw - #10-24 x 0.50" PHIL
16 6067299 Rear Connection Box Cover
17 6067289 Rear Connection Box
17a 2006143 Terminal Block - 50 Hz - 3 Pole
17b 2008503 Ground Wire
17c 5202169 Screw - #10-24 x 0.50" Ground
18 000001260 Cartoning

SF1200_SN1250_9.PDF

16

SF1200, SN1250, RFC1285

RFC1285 CONDENSING UNIT

SF1200_SN1250_10.PDF

17

SF1200, SN1250, RFC1285

RFC1285 CONDENSING UNIT

# PART # DESCRIPTION QTY Note
1 Compressor

1a 7600053 Compressor - Copeland - 208-230V/50-60 Hz/1 Ph
1b 7600063 Compressor - Copeland - 208-230V/60 Hz/3 Ph
2 8252743 Suction Filter
3 000007281 Suction Accumulator
4 8373253 Access Valve
5 8851443 Air-cooled Condenser
6 Fan Motor
6a 2000189 Fan Motor - 208-230V/60 Hz/1-3 Ph
6b 2009643 Fan Motor - 208-230V/50 Hz/1 Ph
7 2402403 Fan Blade
8 2068093 Head Pressure Control Valve
9 000001289 Check Valve
10 2001243 High Pressure Cut-out Control
11 Start Potential Relay
11a 2007553 Start Potential Relay - 50-60 Hz/1 Ph
11b 2007523 Start Potential Relay - 50 Hz/1 Ph
12 Contactor
12a 2006583 Contactor 60 Hz/1 Ph
12b 2006593 Contactor 50 Hz/1 Ph
13 Start Capacitor
13a 000006455 Start Capacitor 60 Hz/1 Ph
13b 8505823 Start Capacitor 50 Hz/1 Ph
14 8504983 Run Capacitor 50-60 Hz/1 Ph
15 Wiring Harness
15a 000000969 Wiring Harness 208-230V/60 Hz/1 Ph
15b 000000970 Wiring Harness 208-230V/50 Hz/1 Ph
16 6037041 Fan Shroud
17 5033589 Mounting - Screw
17a 5545119 Mounting - Lockwasher
17b 5429529 Mounting - Hexnut
18 5033589 Mounting - Screw
18a 5545119 Mounting - Lockwasher
18b 5573059 Mounting - Flatwasher
18c 5429559 Mounting - Rubber Wellnut
19 5202069 Screw - #10-24 x 0.50" HEX [1]
20 6034981 Capacitor Mounting Bracket
21 6021601 Capacitor Mounting Strap
22 2006143 Terminal Block - 50 Hz - 3 Pole [2]
23 5202169 Screw - #10-24 x 0.50" Ground
24 8250539 Suction Line Filter
24a 000002252 Bracket

SF1200_SN1250_10.PDF

18

SF1200, SN1250, RFC1285

RFC1285 CONDENSING UNIT

# PART # DESCRIPTION QTY Note

PART NOTES:

[1] - Used for Panel Attachment
[2] - 50 Hz Only

SF1200_SN1250_10.PDF

19

SF1200, SN1250, RFC1285

RFC1285 CONDENSING UNIT PANELS

SF1200_SN1250_11.PDF

20

SF1200, SN1250, RFC1285

RFC1285 CONDENSING UNIT PANELS

# PART # DESCRIPTION QTY Note
1 3406893 Condenser Fan Guard

2 6040171 Control Box Cover
3 6037071 Control Box Panel
4 6037051 Left Side Panel
5 6034751 Cover Top
6 6034701 Right Side Panel
7 6042261 Condensing Unit Tube Shield
8 5202069 Screw - #10-24 x 0.50" HEX
9 000000768 Cartoning

SF1200_SN1250_11.PDF

21
