RF0644
RF0644 EVAPOATOR ASSEMBLY
RF-0644_3.PDF
1
RF0644
RF0644 EVAPOATOR ASSEMBLY
# PART # DESCRIPTION QTY Note
1 000008550 Evaporator Assembly
2 000005694 Evaporator Foundation
2a 000012459 Bolt - Evaporator Foundation - M6 x 25mm
3 Gear Motor Assembly
3a 000011126 Gearmotor Assembly - 115V/60 Hz/1 Ph
3b 000011800 Gearmotor Assembly - 208-230V/50-60 Hz/1 Ph
4 000005572 Flex Jaw Coupling Upper
5 000005644 Flex Jaw Coupling Spider
6 000005643 Flex Jaw Coupling Lower
7 000005733 Insulating Cap
8 000005645 Bearing Cap
9 000005758 Snap Ring
10 000005600 Auger Bolt
11 000005610 Bearing Shim
12 000005651 Self Lubricating Disc
13 000005606 Upper Bearing
14 000005736 Upper O-ring
15 000005648 Cutter Head
16 000005596 Auger
17 000005778 Water Seal
18 000005584 Lower O-ring
19 000005781 Water Seal Retainer
20 000005603 Lower Bearing
21 000011883 Rotation Sensor
RF-0644_3.PDF
2
RF0644
RF0644 EVAPORATOR COMPARTMENT
RF-0644_2.PDF
3
RF0644
RF0644 EVAPORATOR COMPARTMENT
# PART # DESCRIPTION QTY Note
1 Compressor
1a 000008549 Compressor - 115V/60 Hz/1 Ph
1b 000009105 Compressor - 230V/50 Hz/1 Ph
2 Compessor Relay - Internal
2a 000010799 Compressor Relay - 115V/60 Hz/1 Ph
2b 000010800 Compressor Relay - 230V/50 Hz/1 Ph
3 Run Capacitor
3a 000010808 Run Capacitor - 115V/60 Hz/1 Ph
3b 000010809 Run Capacitor - 230V/50 Hz/1 Ph
4 Start Capacitor
4a 000010814 Start Capacitor - 115V/60 Hz/1 Ph
4b 000010815 Start Capacitor - 230V/50 Hz/1 Ph
5 Overload
5a 000010805 Overload - 115V/60 Hz/1 Ph
5b 000010806 Overload - 230V/50 Hz/1 Ph
6 Condenser Fan Motor
6a 000008302 Fan Motor - 115V/60 Hz/1 Ph
6b 000005579 Fan Motor - 208-230V/50-60 Hz/1 Ph
6c 000012281 Bracket - Fan Motor
7 000005631 Air Condenser
8 000012290 Water Reservoir Assembly [1]
8b 000008553 Bracket
9 000005760 Float Microswitch (each)
10 000008552 Evaporator Drain Tap
11 000008557 High Pressure Safety Switch
12 000006076 Low Pressure Safety Switch
13 000005766 Bin Thermostat
14 000012279 Compressor Contactor - 115V/60 Hz/1 Ph
15 Fan Cycle Control - See Note for Usage
15a 000006060 Fan Cycle Control - 115-230V/50-60 Hz/1 Ph [2]
15b 000006191 Fan Cycle Control - 208-230V/50-60 Hz/1 Ph [3]
16 000006069 ON/OFF Rocker Switch
17 Water Inlet Valve
17a 000006063 Water Inlet Valve - 115V/60 Hz/1 Ph
17b 000005770 Water Inlet Valve - 220-230V/50-60 Hz/1 Ph
18 000005676 Drier
19 000008548 Expansion Valve
20 000006190 Condenser Fan Blade - 115V/60 Hz/1 Ph
21 Access Valve
21a 000006408 Fitting - Access Valve
21b 000006409 Core - Access Valve
21c 000006410 Cap - Access Valve
RF-0644_2.PDF
4
RF0644
RF0644 EVAPORATOR COMPARTMENT
# PART # DESCRIPTION QTY Note
22 Screws
22a 000009040 Screw - M5 x 10TC [4]
22b 000009041 Screw - 3.9 x 13TC [4]
23 Backflow Preventer
23a 000009971 Backflow Preventer 60 Hz - 3/8"
23b 000009972 Backflow Preventer 50 Hz - 3/4"
PART NOTES:
[1] - Includes Reservoir, Hoses, Clamps, Drain Tap & Two Microswitches
[2] - 115V
[3] - 230V
[4] - No Longer Available
RF-0644_2.PDF
5
RF0644

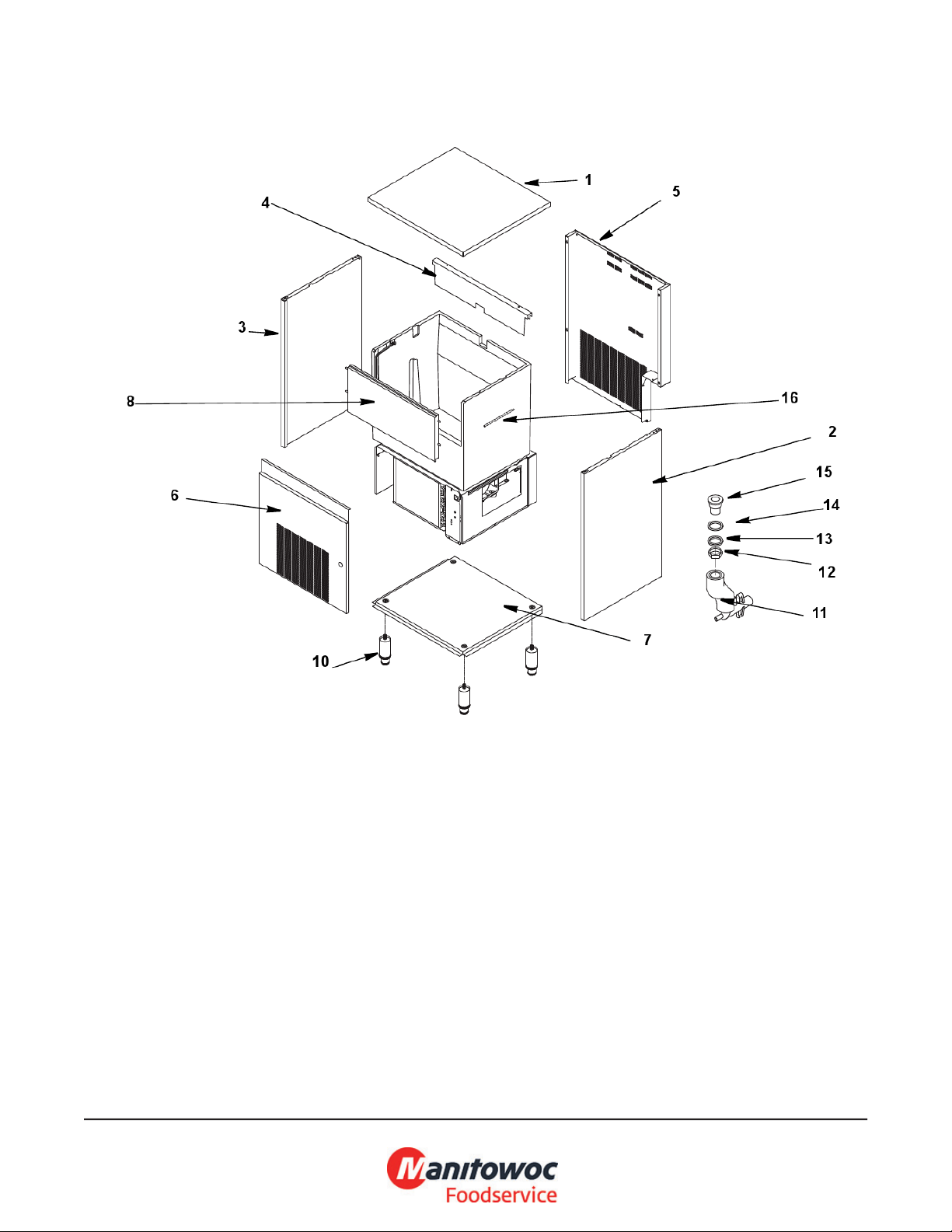

RF0644 PANELS
RF-0644_4.PDF
6
RF0644
RF0644 PANELS
# PART # DESCRIPTION QTY Note
1 000008542 Top Panel
2 000008544 Right Side Panel
3 000008546 Left Side Panel
4 000008547 Ice Spout Cover Bracket
5 000008543 Back Panel Assembly
6 000008545 Front Grill Panel
7 000005602 Base Plate
8 000005660 Door Assembly
9 000005783 Plastic Legs
10 000005663 Adjustable Stainless Steel Legs
11 000008554 Drain Manifold - 115V/60 Hz/1 Ph
12 000005581 Bin Drain Nut
13 000005695 Bin Drain Gasket Bottom
14 000005696 Bin Drain Gasket Top
15 000005692 Bin Drain Fitting
16 000005729 Bin Bulb Holder
RF-0644_4.PDF
7
