TABLE OF CONTENTS
Manitowoc Foodservice [Updated: Sep. 30, 2013]
Manitowoc - Ice & Related
Parts Catalog
Ice Machine
RF Series
RF Model - Air & Water
RF0300
RF0300 Evaporator Assembly 1
RF0300 Evaporator Compartment 3
RF0300 Panels 6
i
RF0300
RF0300 EVAPORATOR ASSEMBLY
RF-0300_3.PDF
1
RF0300
RF0300 EVAPORATOR ASSEMBLY
# PART # DESCRIPTION QTY Note
1 000005685 Evaporator Assembly
2 000005693 Evaporator Foundation
2a 000012459 Bolt - Evaporator Foundation - M6 x 25mm
3 Gear Motor Assembly
3a 000011126 Gearmotor Assembly - 115V/60 Hz/1 Ph
3b 000011800 Gearmotor Assembly - 208-230V/50-60 Hz/1 Ph
4 Gearmotor Capacitor
4a 000007825 Gearmotor Capacitor - 115V/60 Hz/1 Ph
4b 000007824 Gearmotor Capacitor - 230V/50 Hz/1 Ph
4c 000007826 Gearmotor Capacitor - 220V/60 Hz/1 Ph
5 000005734 Insulating Cap
6 000005608 Bearing Cap
7 000005757 Snap Ring
8 000005599 Auger Bolt
9 000005609 Bearing Shim
10 000005650 Self Lubricating Disc
11 000005607 Upper Bearing
12 000005735 Upper O-ring
13 000005647 Cutter Head
14 000005598 Auger
15 000005778 Water Seal
16 000005681 Evaporator
17 000005583 O-ring Gasket
18 000005782 Water Seal Retainer
19 000005605 Lower Bearing
20 000005642 Coupling
21 000011626 Ice Chute Assembly
21 000007911 Ice Chute Assembly [1]
21a 000007906 Ice Exhaust with Microswitch
21b 000011625 Ice Chute with Bulb Holder and Bin Thermostat
21c 000011623 Bin Thermostat [2]
21c 000011621 Ice Chute with Bulb Holder
21c 000007908 Bulb Holder [1]
21d 000007909 Ice Outlet Pipe Assembly [1]
21e 000007907 Locking Strip
21f 000007910 Cross Bar
22 000008641 Ice Chute Extension
PART NOTES:
[1] - Discontinued
[2] - Before Serial Number M05106452010 must order 000011625 (bin thermostat AND ice chute with bulb
holder).
RF-0300_3.PDF
2
RF0300

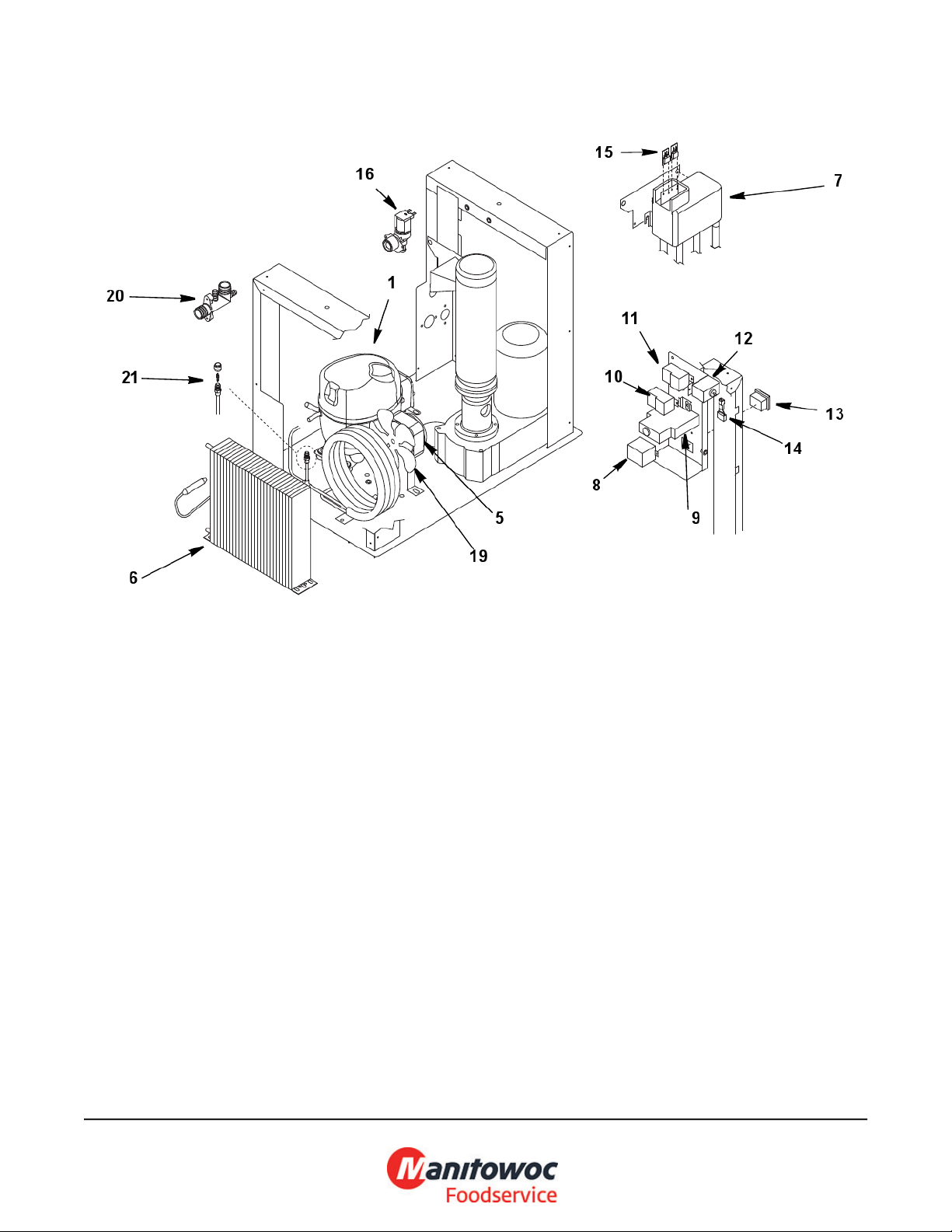

RF0300 EVAPORATOR COMPARTMENT
RF-0300_2.PDF
3
RF0300
RF0300 EVAPORATOR COMPARTMENT
# PART # DESCRIPTION QTY Note
1 Compressor
1a 000005626 Compressor - 115V/60 Hz/1 Ph
1b 000005628 Compressor - 220V/60 Hz/1 Ph
1c 000005627 Compressor - 208-230V/50-60 Hz/1 Ph [1]
2 Compressor Overload
2a 000008402 Overload - 115V/60 Hz/1 Ph
2b 000008401 Overload - 230V/50 Hz/1 Ph
3 Compressor Start Relay
3a 000008384 Start Relay - 115V/60 Hz/1 Ph
3b 000008383 Start Relay - 230V/50 Hz/1 Ph
4 Start Capacitor
4a 000008428 Start Capacitor - 115V/60 Hz/1 Ph
4b 000008427 Start Capacitor - 230V/50 Hz/1 Ph
5 Condenser Fan Motor
5a 000005576 Fan Motor - 115V/60 Hz/1 Ph
5b 000005577 Fan Motor - 208-230V/50-60 Hz/1 Ph
6 000005632 Air Condenser
7 000005753 Water Reservoir Assembly [2]
8 Compressor Delay Relay
8a 000005746 Compressor Delay Relay - 115V/60 Hz/1 Ph
8b 000005745 Compressor Delay Relay - 230V/50-60 Hz/1 Ph
9 000012012 Electronic Compressor Delay Timer
10 000005768 Evaporator Safety Thermostat
11 000011623 Bin Thermostat
11 000005765 Bin Thermostat [3]
12 Fan Cycle Control
12a 000006060 Fan Cycle Control - 115-230V/50-60 Hz/1 Ph
12b 000006191 Fan Cycle Control - 208-230V/50-60 Hz/1 Ph
13 000005763 ON/OFF Rocker Switch
14 Electronic Noise Reducer - Radio Interference Filter [4]
14a 000005680 Electronic Noise Reducer
15 000005760 Float Microswitch (each)
16 Water Inlet Valve
16a 000006063 Water Inlet Valve - 115V/60 Hz/1 Ph
16b 000005770 Water Inlet Valve - 220-230V/50-60 Hz/1 Ph
17 000005674 Drier
18 000010457 Suction Line Assembly
19 000005686 Condenser Fan Blade
20 Drain Manifold
20a 000006162 Drain Manifold - 115V/60 Hz/1 Ph
21 Access Valve
21a 000006408 Fitting - Access Valve
RF-0300_2.PDF
4
RF0300
RF0300 EVAPORATOR COMPARTMENT
# PART # DESCRIPTION QTY Note
21b 000006409 Core - Access Valve
21c 000006410 Cap - Access Valve
22 000005754 Reservoir Bracket
23 Screws
23a 000009040 Screw - M5 x 10TC [5]
23b 000009041 Screw - 3.9 x 13TC [5]
24 Backflow Preventer
24a 000009971 Backflow Preventer 60 Hz - 3/8"
24b 000009972 Backflow Preventer 50 Hz - 3/4"
PART NOTES:
[1] - 230V/50 Hz
[2] - Includes Hoses, Float & Two Microswitches
[3] - Discontinued
[4] - Radio Interference Filter
[5] - No Longer Available
RF-0300_2.PDF
5
RF0300
RF0300 PANELS
RF-0300_4.PDF
6
RF0300
RF0300 PANELS
# PART # DESCRIPTION QTY Note
1 000006054 Top Panel
2 Back Panel
3 000005702 Back Grill
4 000005664 Left Side Panel
5 000005666 Right Side Panel
6 000005787 Front Panel Assembly
7 000005662 Air Filter
8 000008681 Cartoning
RF-0300_4.PDF
7
