For more Parts Information:
https://manitowocfsg.sysonline.com/Default.aspx
TABLE OF CONTENTS
Manitowoc Foodservice [Updated: Sep. 30, 2013]
Manitowoc - Ice & Related
Parts Catalog
Ice Machine
RNS Series
RNS Model - QuietQube
RNS1078C, RCU1098
RNS1078C Evaporator Assembly 1
RNS1078C Evaporator Compartment 3
RNS1078C Panels 5
RCU1098 Remote Condenser 7
RCU1098 Condensing Unit Panels 9
i
RNS1078C, RCU1098
RNS1078C EVAPORATOR ASSEMBLY
RNS-1000_EVAPORATOR
1
RNS1078C, RCU1098
RNS1078C EVAPORATOR ASSEMBLY
# PART # DESCRIPTION QTY Note
1 000011927 Ice Exhaust with Microswitch
2 000012891 Ice Breaker
3 000011912 Extruder Flange - O-ring
4 000011928 Extruder Flange
5 000011929 Extruder with Bearings Assembly
6 000011930 Auger
7 000008935 Upper O-ring
8 000005779 Water Seal
9 000005582 Lower O-Ring
10 000011931 Water Seal Retainer
11 000011933 Nilos Ring
12 000011932 Bearing
13 000005694 Evaporator Foundation
14 000005643 Flex Jaw Coupling Lower
15 000005644 Flex Jaw Coupling Spider
16 000005571 Flex Jaw Coupling Upper
17 000012917 EvaporatorAssembly
18 Gearmotor Assembly
18a 000006064 Gearmotor Assembly - 220V/60 Hz/1 Ph
18b 000005699 Gearmotor Assembly - 230V/50 Hz/1 Ph
19 Gearmotor Capacitor
19a 000007825 Gearmotor Capacitor - 115V/60 Hz/1 Ph
19b 000007822 Gearmotor Capacitor - 230V/50 Hz/1 Ph
20 000011883 Rotation Sensor
21 000005649 Cutter Head
22 000012503 Flex Jaw Coupling Assembly
RNS-1000_EVAPORATOR
2
RNS1078C, RCU1098
RNS1078C EVAPORATOR COMPARTMENT
RNS-1000C_PARTS_MII-0
3
RNS1078C, RCU1098
RNS1078C EVAPORATOR COMPARTMENT
# PART # DESCRIPTION QTY Note
1 000012451 Water Reservoir Assembly [1]
1a 000012282 Water Reservoir Only
2 000005745 Compressor Delay Relay - 230V/50-60 Hz/1 Ph
3 000011623 Bin Thermostat
4 000005763 ON/OFF Rocker Switch
5 000005760 Float Microswitch (each)
6 000006058 Water Inlet Valve - 220V/60 Hz/1 Ph
7 000008689 Expansion Valve
8 000006244 Solenoid Valve
8a 000008763 Valve Coil - 60 Hz
8b 000008690 Valve Coil
9 000011883 Rotation Sensor
10 000005678 Electronic Noise Reducer
11 000008552 Evaporator Drain Tap
12a 000006161 Drain Manifold - 115-230V/60 Hz/1 Ph
12b 000005669 Drain Manifold - 208-230V/50-60 Hz/1 Ph
13 Access Valve
13a 000006408 Fitting - Access Valve
13b 000006409 Core - Access Valve
13c 000006410 Cap - Access Valve
14 000005754 Reservoir Bracket
15 Backflow Preventer
15a 000009971 Backflow Preventer 60 Hz - 3/8"
15b 000009972 Backflow Preventer 50 Hz - 3/4"
16 000008761 Filter
PART NOTES:
[1] - Includes Reservoir, Hoses, Clamps, Drain Tap & Two Microswitches
RNS-1000C_PARTS_MII-0
4
RNS1078C, RCU1098

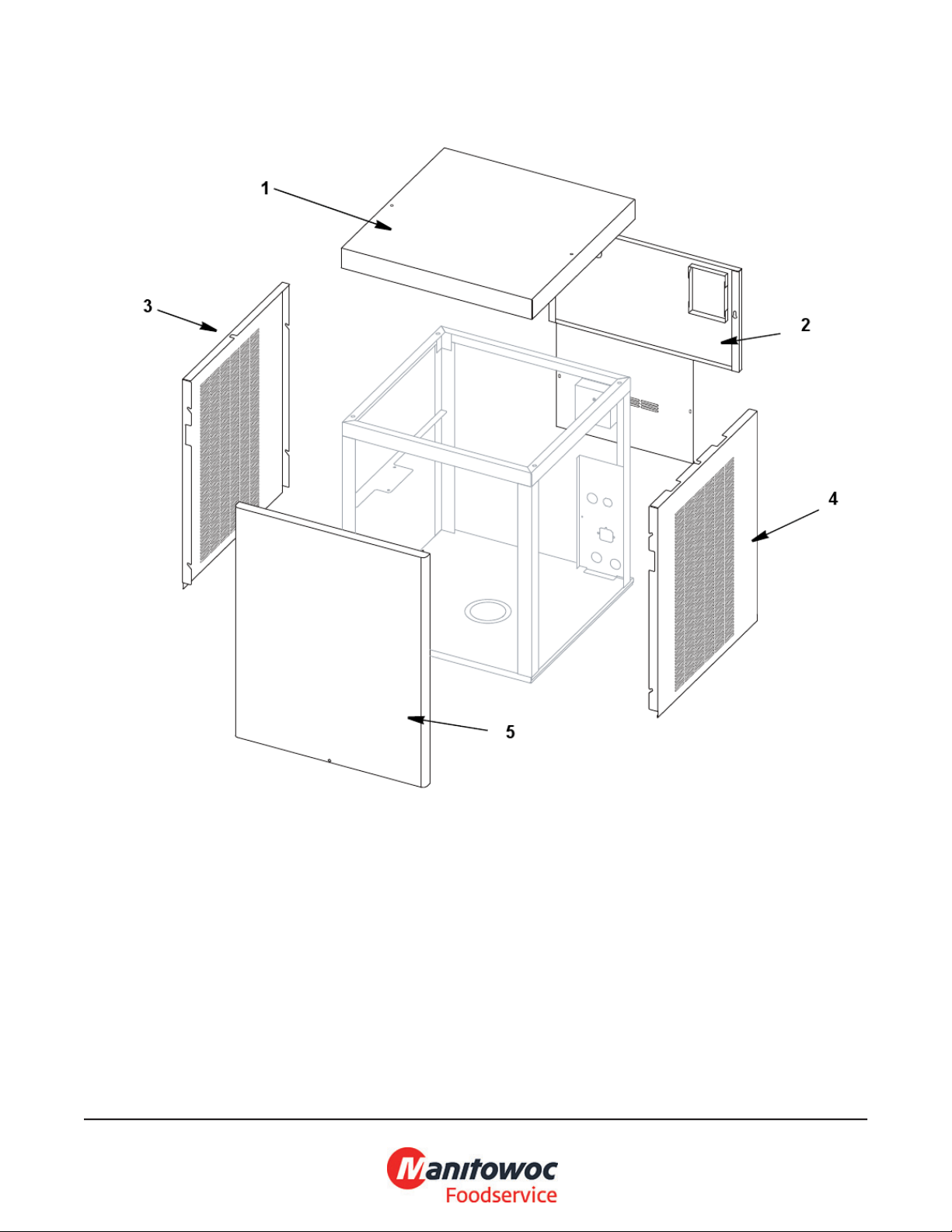

RNS1078C PANELS
RNS-1000C_PARTS_MII-3
5
RNS1078C, RCU1098
RNS1078C PANELS
# PART # DESCRIPTION QTY Note
1 000009983 Top Panel
2 000009984 Back Panel - 208-230V/60 Hz/1 Ph
3 000008766 Left Side Panel
4 000008757 Right Side Panel
5 000009985 Front Panel Assembly
RNS-1000C_PARTS_MII-3
6
RNS1078C, RCU1098

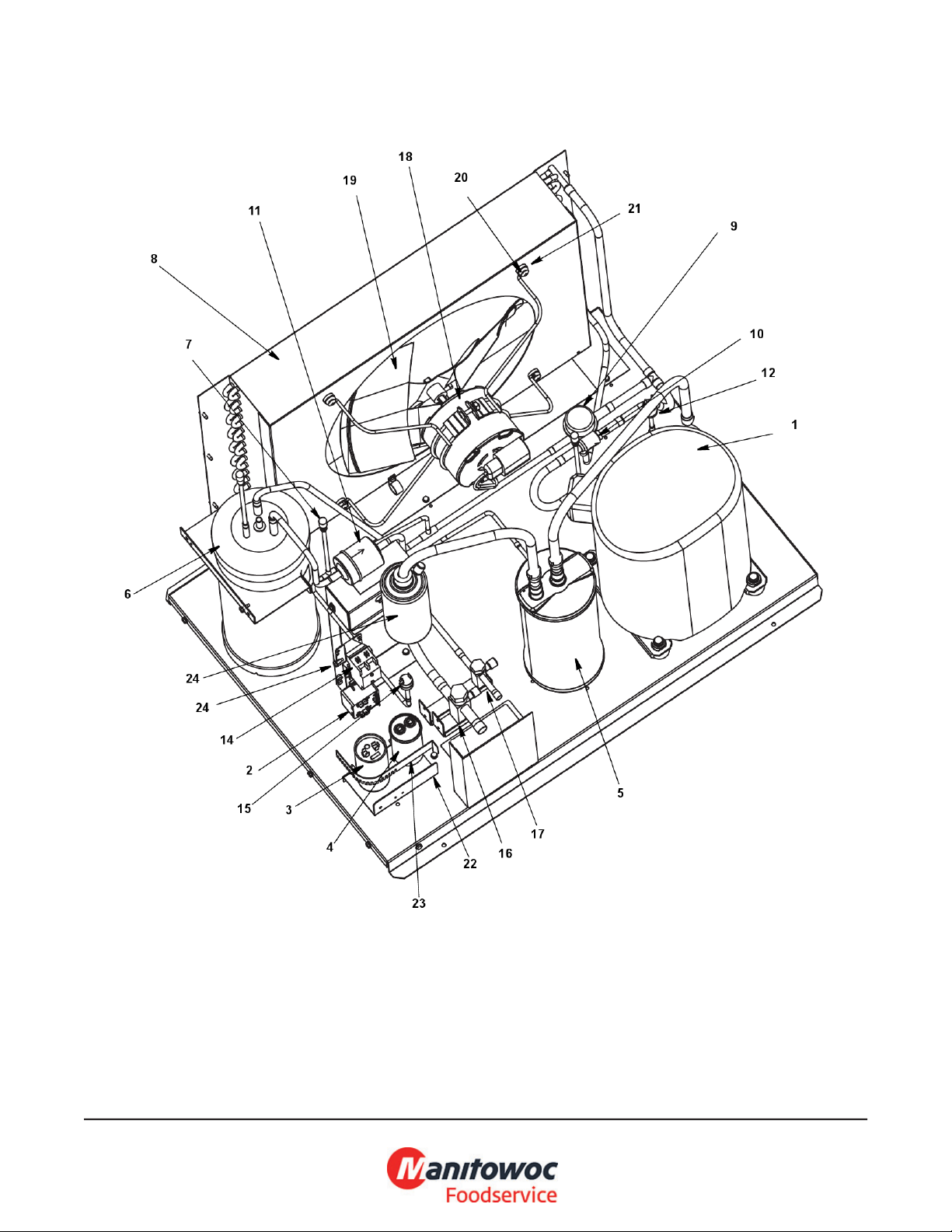

RCU1098 REMOTE CONDENSER
RNS-1000C_PARTS_MII-4
7
RNS1078C, RCU1098
RCU1098 REMOTE CONDENSER
# PART # DESCRIPTION QTY Note
1 Compressor
1a 000007748 Compressor - Bristol - 208-230V/60 Hz/1 Ph
1b 000007749 Compressor - Bristol - 208-230V/60 Hz/3 Ph
2 000007761 Start Potential Relay - 60 Hz/1 Ph
3 000006454 Start Capacitor - 50-60 Hz/1 Ph
4 8503933 Run Capacitor - 115-230V/50-60 Hz/1 Ph
5 000007280 Suction Accumulator
6 7629573 Receiver
7 8373253 Access Valve
8 8851453 Air-cooled Condenser
9 000002369 Head Pressure Control Valve
10 000001289 Check Valve
11 8930279 Drier
12 2001243 High Pressure Cut-out
13 2001263 Fan Cycling Control - 200-250 psig [1]
14 Contactor
14a 2006609 Contactor - 208-230V/50-60 Hz/1 Ph
14b 2006619 Contactor - 230V/60 Hz/3 Ph
15 2002229 Low Pressure Cut-out
16 8373303 Manual Shut-off Valve - 0.625"
17 8373293 Manual Shut-off Valve - 0.375"
18 000003031 Fan Motor - 208-230V/60 Hz/1-3 Ph
19 2416303 Fan Blade
20 3006823 Fan Motor Mounting Bracket
21 5429559 Mounting - Rubber Wellnut
22 6034981 Capacitor Mounting Bracket
23 6021601 Capacitor Mounting Strap
24 5650659 Cable Tie with Mounting Hole
25 8250539 Suction Line Filter
26 Wiring Harness
26a 000006532 Wiring Harness - 230V/60 Hz/1 Ph
26b 2033089 Wiring Harness - 230V/60 Hz/3 Ph
27 000007729 Fan Cycle Control
28 000007425 Wiring Harness - Heater/Therm
29 6000561 Receiver Mounting Bracket
30 2007619 Copeland Plug Assembly Wiring Harness, 230V/50-60Hz/1-3
Ph
PART NOTES:
[1] - \pages from 200126_09.jpg" width=150 height=306>
RNS-1000C_PARTS_MII-4
8
RNS1078C, RCU1098

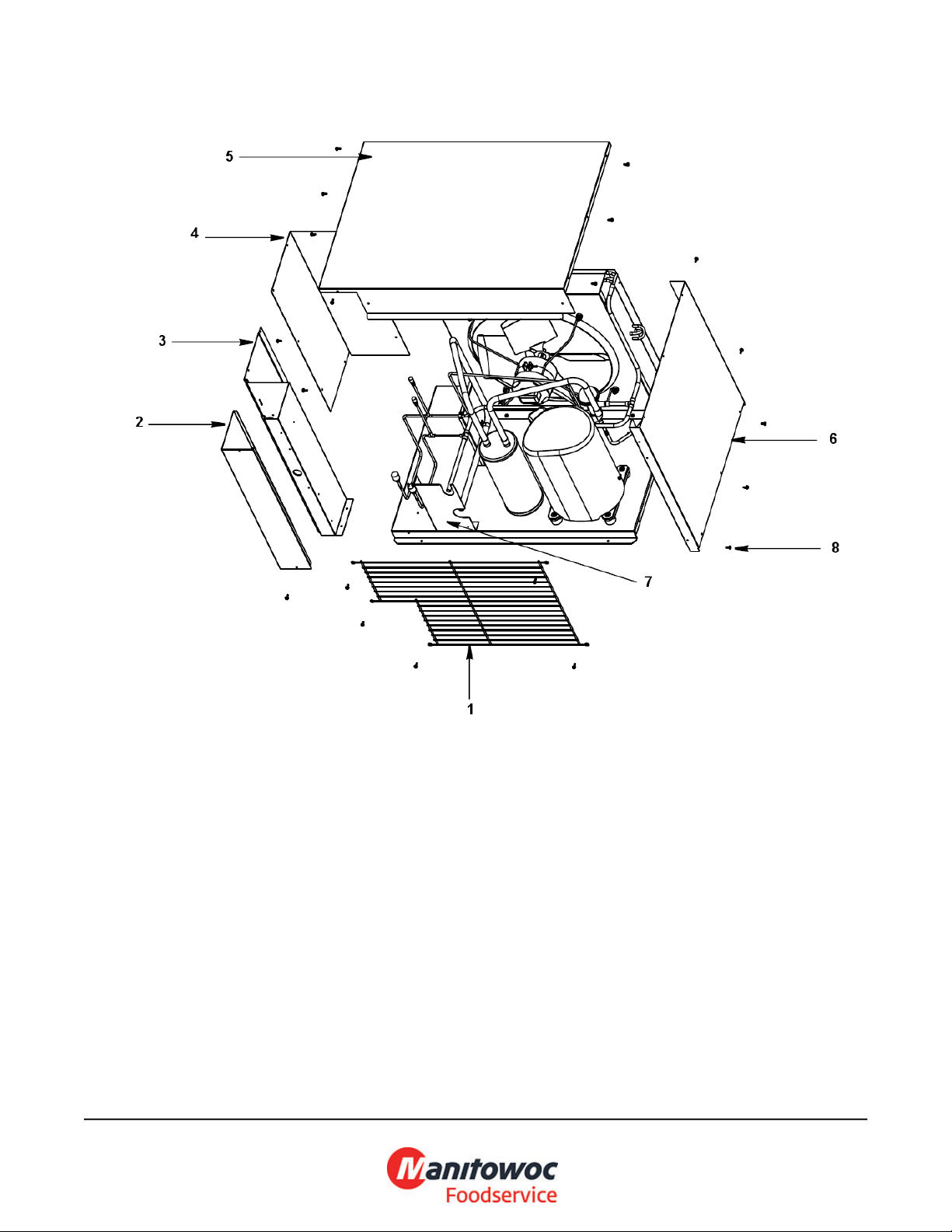

RCU1098 CONDENSING UNIT PANELS
RNS-1000C_PARTS_MII-5
9
RNS1078C, RCU1098
RCU1098 CONDENSING UNIT PANELS
# PART # DESCRIPTION QTY Note
1 3406893 Condenser Fan Guard
2 6040171 Control Box Cover
3 000009054 Control Box Panel
4 6037051 Left Side Panel
5 6034751 Cover Top
6 6034701 Right Side Panel
7 6042261 Condensing Unit Tube Shield
8 5202069 Screw - #10-24 x 0.50" HEX
9 000000768 Cartoning
RNS-1000C_PARTS_MII-5
