TABLE OF CONTENTS
Manitowoc Foodservice [Updated: Sep. 30, 2013]
Manitowoc - Ice & Related
Parts Catalog
Ice Machine
Q Series
Q Model - UnderCounter
Q0130
Q130 - Control Box Components 1
Q130 - Evaporator Compartment - Common Components 3
Q130 - Refrigeration Compartment - Common Components 5
Q130 - Refrigeration Compartment - Air-cooled Components 8
Q130 - Refrigeration Compartment - Water-cooled Components 10
Q130 - Panels 12
i
Q0130
Q130 - CONTROL BOX COMPONENTS
Q0130_2.PDF
1
Q0130
Q130 - CONTROL BOX COMPONENTS
# PART # DESCRIPTION QTY Note
1 7629073 Control Board
2 2511493 10 Amp Fuse
3 2301513 Toggle Switch
3a 2032483 Wiring Harness - Toggle Switch
4 Contactor
4a 2006569 Contactor - 115V/60 Hz/1 Ph
4b 2006579 Contactor - 230V/50-60 Hz/1 Ph
5 Wiring Harness
5a 2002183 Wiring Harness - Air-cooled
5b 2002193 Wiring Harness - Water-cooled
5c 2007013 Ice Thickness Control Probe [1]
6 Power Cord
6a 2006863 Power Cord - 115V/60 Hz
6b 2006873 Power Cord - 230V/60 Hz
6c 2033023 Power Cord - 230V/50-60 Hz
7 6046931 Control Box
8 7629083 Control Box Cover
9 4302253 Control Board Mounting Supports
10 5202323 Screw, #10-24 x .50 Ground
10a 5573203 Lockwasher, #10
11 2500139 Bushing - 1.5"
12 2502189 Bushing - 0.625"
PART NOTES:
[1] - Wire Lead and Connectors Only
Q0130_2.PDF
2
Q0130
Q130 - EVAPORATOR COMPARTMENT - COMMON COMPONENTS
Q0130_3.PDF
3
Q0130
Q130 - EVAPORATOR COMPARTMENT - COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
1 Evaporator Assembly
1a 7629453 Evaporator - Regular Cube
1b 7629463 Evaporator - Dice Cube
1c 7629473 Evaporator - Half Dice Cube
2 Water Pump - See Note for Serial Break
2a 7623063 Water Pump - 115V/60 Hz
2b 7626013 Water Pump - 230V/50-60 Hz [1]
2c 040000946 Water Pump - 230V/50-60 Hz [2]
Float Valve Assembly - See Note for Serial Break
3 7602133 Float Valve Assembly [3]
4 8369049 Float Valve Assembly [4]
4a 8369069 Float Valve Screen
4b 8369089 Float Valve Plunger
4c 5650729 Compression Nut
4d 7621403 Bracket
5 7601603 Ice Thickness Control Probe
6 000007337 Magnetic Bin Switch
7 7600493 Ice Damper
7a 7629093 Ice Damper Magnet and Cap
8 000007163 Water Distribution Tube - QM30/QM45
9 040001233 Water Trough
10 4302223 Siphon Cap
11 000006754 Water Pump Cover
11a 040001217 Thumbscrew - #8-32 x 0.625"
12 7600853 Drain Tube
13 040001234 Tubing
14 040001217 Thumbscrew - #8-32 x 0.625"
15 5202069 Screw - #10-24 x 0.50" HEX
16 040001217 Thumbscrew - #8-32 x 0.625"
17 2500169 Bushing - 0.91" OD x 0.44" ID
18 2078063 Water Pump Lead - 208-230V/50-60 Hz
PART NOTES:
[1] - Up to Serial Number 310145261
[2] - After to Serial Number 310145261
[3] - Up to Serial Number 031100000 Complete Assembly
[4] - After Serial Number 031100000 Complete Assembly
Q0130_3.PDF
4
Q0130
Q130 - REFRIGERATION COMPARTMENT - COMMON COMPONENTS
Q0130_4.PDF
5
Q0130
Q130 - REFRIGERATION COMPARTMENT - COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
1 Tecumseh Compressor - Before Serial Number 021100000
1a 7629103 Compressor 115V/60 Hz/1 Ph
8505623 Overload for Compressor
8505653 Starting Device [1]
8505803 Start Capacitor [1]
1b 7629113 Compressor 208/230V 60 Hz/1 Ph [1]
8505633 Overload for Compressor
8505663 Starting Device [1]
8505763 Overload for Compressor [1]
1c 7629123 224/240V 50 Hz/1 Ph [1]
8505643 Overload for Compressor
8505673 Tecumseh AE4430Y B/M AE540ET-964-A4D [1]
8505813 Start Capacitor [1]
2 Danfoss Compressor - Between Serial Number 021100000
2a 7601323 Compressor - Danfoss - 115V/60 Hz/1 Ph
2002043 Current Relay with Overload - 115V/60 Hz/1 Ph [2]
2002033 Start Capacitor - 115V/60 Hz/1 Ph [2]
2b 7601333 Compressor - Danfoss - 230V/50 Hz/1 Ph [2]
2004873 Current Relay with Overload - 230V/50 Hz/1 Ph [2]
2004863 Start Capacitor - 230V/50 Hz/1 Ph [2]
2c 7601333 Compressor - Danfoss - 230V/50 Hz/1 Ph [2]
2004873 Current Relay with Overload - 230V/50 Hz/1 Ph [2]
2004863 Start Capacitor - 230V/50 Hz/1 Ph [2]
3 Compressor - After Serial Number 310047287
3a 040000435 Compressor - 115V/60 Hz/1 Ph
000002899 Current Relay with Overload - 115V/60 Hz/1 Ph
000002901 Start Capacitor - 115V/60 Hz/1 Ph
3b 040000434 Compressor - Danfoss - 230V/50-60 Hz/1 Ph
000002900 Current Relay with Overload - 230V/50-60 Hz/1 Ph
040000674 Start Capacitor - 230V/50-60 Hz/1 Ph
4 Harvest Valve - Up to SN310061221 [3]
4a 7630001 Danfoss Solenoid Valve with Electrical Coil - 115V/60 Hz [2]
4b 000005156 Danfoss Solenoid Valve Coil Only - 115V/60 Hz [4]
4c 2404363 Alco Solenoid Valve Coil Only - 115V/60 Hz
4d 7630061 Danfoss Solenoid Valve with Coil - 208-230V/50-60 Hz [2]
4e 000005157 Danfoss Solenoid Valve Coil Only - 230V/50-60 Hz [5]
4f 2404483 Alco Solenoid Valve Coil Only - 230V/50 Hz
5 Harvest Valve - After to SN310061221 [6]
5a 040000689 Solenoid Valve Including Coil - 115V/60 Hz
5b 040000101 Coil - Solenoid Valve - 115V
5c 040000690 Solenoid Valve Including Coil - 208-230/50-60 Hz
5d 040000103 Coil - Solenoid Valve - 208-230V/50-60 Hz
and Serial Number 310047287
Q0130_4.PDF
6
Q0130
Q130 - REFRIGERATION COMPARTMENT - COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
5e 040000104 Bracket Hot Gas Valve
6 2001243 High Pressure Cut-out Control
7 Expansion Valve - See Note for Serial Break
7a 040000594 Expansion Valve [7]
7b 7600503 Expansion Valve [8]
8 Expansion Valve Body Insulation Boot
8a 4007213 Valve Insulation Boot - Body
8b 4000363 Valve Insulation Boot - Body
9 4007203 Valve Insulation Boot - Bulb [9]
10 8251063 Manifold Strainer
11 8373253 Access Valve
12 6026821 Coupling Panel
13 8706093 Female Wing Adapter - 0.375"
14 1360961 Male Connector
15 8706133 Female Wing Adapter - 0.50"
16 4420983 Bin Drain Tubing
17 5650649 Hose Clamp - 0.759"/0.848" ID
18 4420291 Vinyl Tube - 0.25" OD
19 5650529 Clamp - Expansion Valve Bulb
20 5202069 Screw - #10-24 x 0.50" HEX
21 8503069 Mounting - Rubber Grommet
22 5573099 Mounting - Flatwasher
23 5037709 Foundation Mounting Bolt
24 8503949 Mounting - Sleeve
PART NOTES:
[1] - Tecumseh
[2] - Danfoss
[3] - except 310047701, 310047696, 310047699, 310047698
[4] - \pages from 000005156_02.jpg" width=280 height=256>
[5] - \pages from 000005156_02.jpg" width=266 height=183>
[6] - including 310047701, 310047696, 310047699, 310047698
[7] - After Serial Number 310047287
[8] - Before Serial Number 310047287
[9] - \pages from 400720_08.jpg" width=923 height=583>
Q0130_4.PDF
7
Q0130

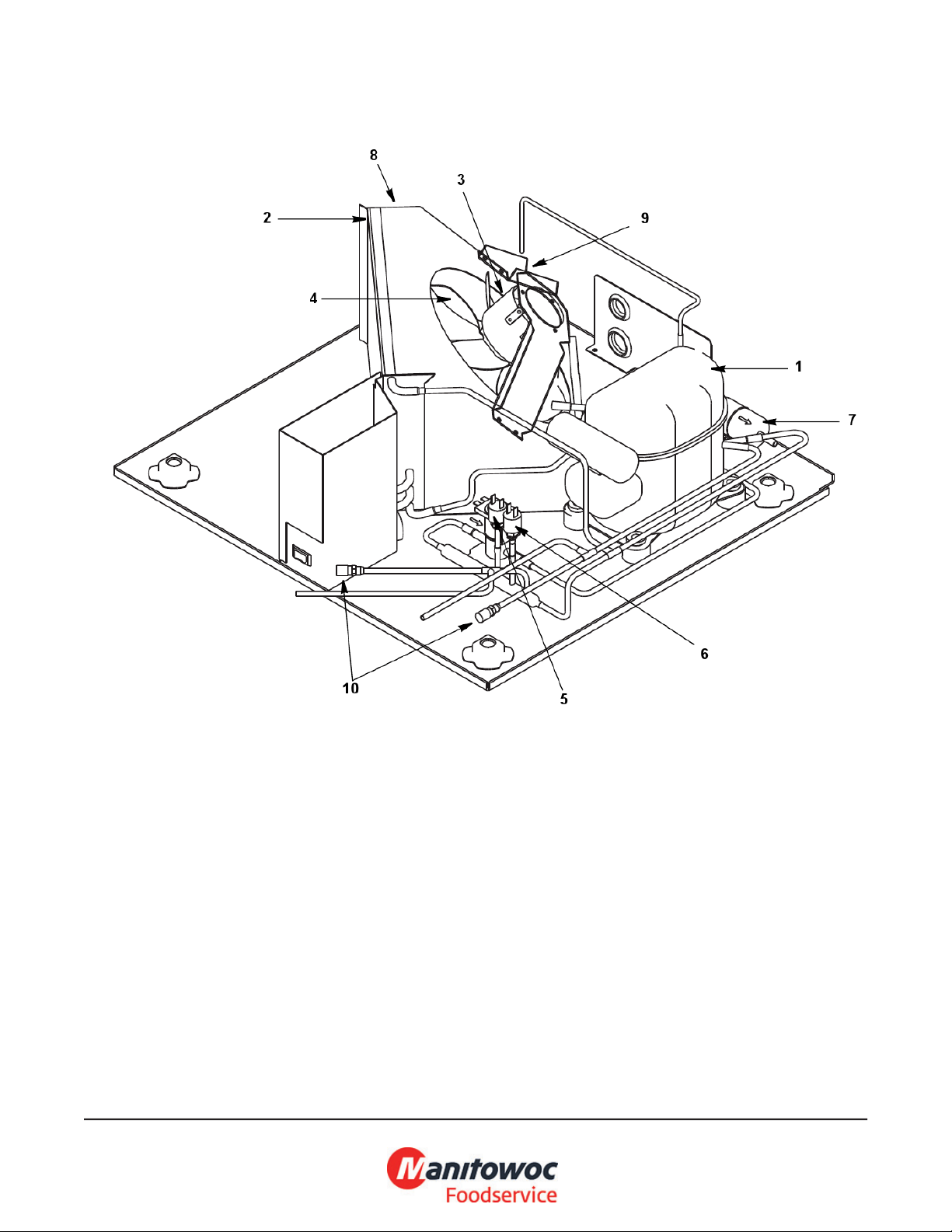

Q130 - REFRIGERATION COMPARTMENT - AIR-COOLED COMPONENTS
Q0130_5.PDF
8
Q0130
Q130 - REFRIGERATION COMPARTMENT - AIR-COOLED COMPONENTS
# PART # DESCRIPTION QTY Note
1 Compressor - See Common Components
2 8851373 Air Condenser
3 Fan Motor
3a 2000223 Fan Motor - 115V/60 Hz/1 Ph
3b 2000219 Fan Motor - 208-230V/50-60 Hz
4 3005653 Fan Blade
5 2001263 Fan Cycling Control - 200-250 psig [1]
6 2001243 High Pressure Cut-out Control
7 8930259 Drier
8 6026851 Fan Shroud
9 6027431 Fan Motor Mounting Bracket
10 8373253 Access Valve
PART NOTES:
[1] - \pages from 200126_09.jpg" width=150 height=306>
Q0130_5.PDF
9
Q0130

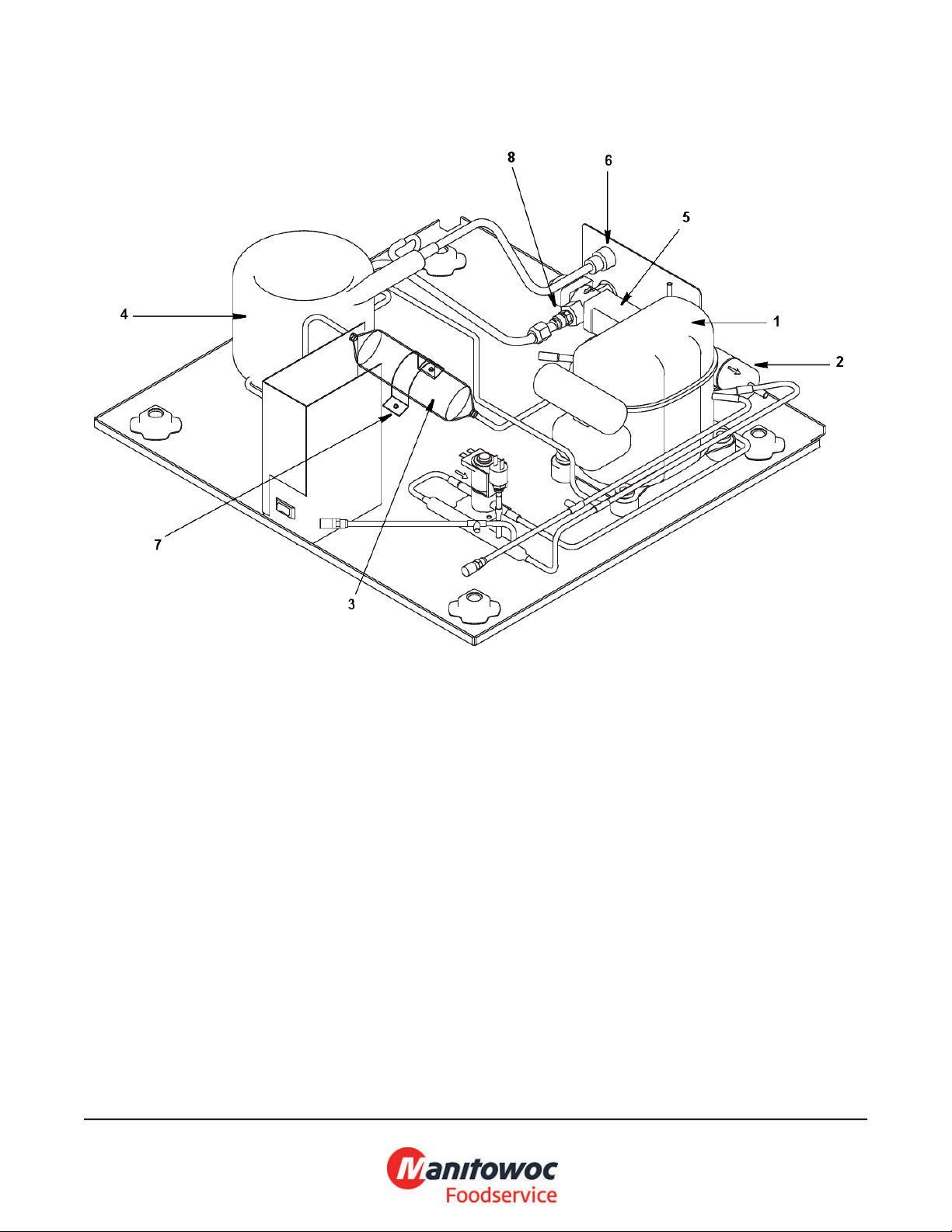

Q130 - REFRIGERATION COMPARTMENT - WATER-COOLED COMPONENTS
Q0130_6.PDF
10
Q0130
Q130 - REFRIGERATION COMPARTMENT - WATER-COOLED COMPONENTS
# PART # DESCRIPTION QTY Note
1 Compressor - See Common Components
2 8930259 Drier
3 000008892 Receiver
4 8865383 Water-cooled Condenser
5 8372103 Water Regulating Valve
6 8706103 Female Wing Adapter - 0.50"
7 6001891 Receiver Strap
8 8332023 Water Coupling Connection - 0.375" NPT
Q0130_6.PDF
11
Q0130
Q130 - PANELS
Q0130_7.PDF
12
Q0130
Q130 - PANELS
# PART # DESCRIPTION QTY Note
1 040001716 Bin Door & Door Frame Assembly
1a 000006837 Door Pin Sleeve
2 7629143 Air Filter
3 7629153 Front Panel Assembly
4 6026801 Back Panel, Upper
5 6033501 Back Panel, Lower
6 3302603 Ice Scoop
7 6026821 Coupling Panel
8 5202239 Front Cover Screw
9 5202069 Screw - #10-24 x 0.50" HEX
11 Legs - Refer to Sales Price List
Q0130_7.PDF
