Manitowoc Ice QR1070C Parts Manual

For more Parts Information:

https://manitowocfsg.sysonline.com/Default.aspx

TABLE OF CONTENTS

Manitowoc Foodservice [Updated: Sep. 30, 2013]
Manitowoc - Ice & Related
Parts Catalog
Ice Machine
Q Series
Q Model - QuietQube
Q1000C, CVD1075, CVD1285
Q1000C - Control Box Components 1
Q1000C - Evaporator Compartment - Common Components 3
Q1000C - Refrigeration Compartment - Common Components 5
Q1000C - Head Section - Panels 8
CVD1075 - Condensing Unit 10
CVD1075 - Condensing Unit - Panels 12
CVD1285 - Condensing Unit 14
CVD1285 - Condensing Unit - Panels 16

i

Q1000C, CVD1075, CVD1285

Q1000C - CONTROL BOX COMPONENTS

Q1000C_2.PDF

1

Q1000C, CVD1075, CVD1285

Q1000C - CONTROL BOX COMPONENTS

# PART # DESCRIPTION QTY Note
1 7627823 Control Board

2 2511003 7 Amp Fuse - Mounted on Control Board
3 2301343 Toggle Switch Only
3a 2032173 Toggle Switch with Wiring Harness Attached
4 Wiring Harness
4a 2033063 Wiring Harness - 115V/60 Hz/1 Ph
4b 2033193 Wiring Harness - 230V/50 Hz/1 Ph
5 6025593 Control Box
6 7628523 Control Box Cover
7 4302253 Control Board Mounting Supports
8 5202169 Screw - #10-24 x 0.50" Ground
9 5202069 Screw - #10-24 x 0.50" HEX

Q1000C_2.PDF

2

Q1000C, CVD1075, CVD1285

Q1000C - EVAPORATOR COMPARTMENT - COMMON COMPONENTS

Q1000C_3.PDF

3

Q1000C, CVD1075, CVD1285

Q1000C - EVAPORATOR COMPARTMENT - COMMON COMPONENTS

# PART # DESCRIPTION QTY Note
1 Evaporator Assembly

1a 7625019 Evaporator - Regular Cube
1b 7625029 Evaporator - Dice Cube
1c 7625039 Evaporator - Half Dice Cube
2 Water Pump
2a 7625523 Water Pump - 115V/60 Hz
2b 1480279 Water Pump - 208-230V/50-60 Hz
3 2511293 Water Level Probe
4 7627813 Ice Thickness Control Probe
5 2301483 Magnetic Bin Switch
6 7620543 Water Flow Clamp - Use on Regular Cube Evap. Only
7 4004733 Water Curtain
8 7624983 Water Distribution Tube - B/J/Q
9 4300629 Water Trough Plug
10 4303883 Water Inlet Flow Tube
11 7628023 Water Curtain Magnet and Cap
12 4421243 Drain Pump Vent Tube
13 4421153 Tubing
14 5000013 Thumbscrew - #8-32 x 0.375"
15 5202069 Screw - #10-24 x 0.50" HEX
16 5202189 Screw - #10-24 x 0.75"
17 7628063 Base and Water Trough Repair Kit
18 7626213 Evaporator Top Molding and Gasket Assembly
19 7627763 Water Curtain Pin Assembly

Q1000C_3.PDF

4

Q1000C, CVD1075, CVD1285

Q1000C - REFRIGERATION COMPARTMENT - COMMON COMPONENTS

Q1000C_4.PDF

5

Q1000C, CVD1075, CVD1285

Q1000C - REFRIGERATION COMPARTMENT - COMMON COMPONENTS

# PART # DESCRIPTION QTY Note
1 Water Dump Valve

1a 000001767 Water Dump Valve - 115V/60 Hz
1b 000001768 Water Dump Valve - 208-230V/50-60 Hz
2 Cool Vapor Valve
2a 7630051 Danfoss Solenoid Valve with Coil - 115V/60 Hz
2b 000005156 Danfoss Solenoid Valve Coil Only - 115V/60 Hz [1]
2c 2404363 Alco Solenoid Valve Coil Only - 115V/60 Hz
2d 7630111 Danfoss Solenoid Valve with Coil - 230V/50-60 Hz
2e 000005157 Danfoss Solenoid Valve Coil Only - 230V/50-60 Hz [2]
2f 2404483 Alco Solenoid Valve Coil Only - 230V/50 Hz
3 Water Inlet Valve
3a 000007965 Water Inlet Valve - 115V/60 Hz/1 Ph
3b 000007966 Water Inlet Valve - 208-230V/50-60 Hz
4 7600223 Expansion Valve
5 Expansion Valve Body Insulation Boot
5a 4007213 Valve Insulation Boot - Body
5b 4000363 Valve Insulation Boot - Body
6 4007203 Valve Insulation Boot - Bulb [3]
7 8373283 Manual Shut-off Valve Suction Line
7a 4007403 Valve Insulation Boot - Body [4]
8 8373273 Manual Shut-off Valve Liquid Line
9 8373169 Receiver Service Valve
9a 5650753 Caps for Refrigeration Service Valve
10 Liquid Line Solenoid Valve
10a 7630011 Danfoss Solenoid Valve With Coil - 115V/60 Hz [5]
10b 000005156 Danfoss Solenoid Valve Coil Only - 115V/60 Hz [1]
10c 2404363 Alco Solenoid Valve Coil Only - 115V/60 Hz
10d 7630071 Danfoss Solenoid Valve With Coil - 208-230V/50-60 Hz
10e 000005157 Danfoss Solenoid Valve Coil Only - 230V/50-60 Hz [2]
10f 2404483 Alco Solenoid Valve Coil Only - 230V/50 Hz
11 7629593 Receiver
12 8373159 Magni-Check Valve - 0.5"
13 8930279 Drier
14 6022051 Left Corner Post Weldment
15 6022041 Right Corner Post Weldment
16 8706083 Female Wing Adapter - 0.50"
17 4420383 Clear Tubing - 0.625" ID
18 5650709 Snap Clamp - 0.799"/0.899" ID
19 5650529 Clamp - Expansion Valve Bulb
20 5202189 Screw - #10-24 x 0.75"
21 7000623 Dump Valve Shield

Q1000C_4.PDF

6

Q1000C, CVD1075, CVD1285

Q1000C - REFRIGERATION COMPARTMENT - COMMON COMPONENTS

# PART # DESCRIPTION QTY Note

PART NOTES:

[1] - \pages from 000005156_02.jpg" width=280 height=256>
[2] - \pages from 000005156_02.jpg" width=266 height=183>
[3] - \pages from 400720_08.jpg" width=923 height=583>
[4] - \pages from 400740_02.jpg" width=362 height=281>
[5] - Danfoss

Q1000C_4.PDF

7

Q1000C, CVD1075, CVD1285

Q1000C - HEAD SECTION - PANELS

Q1000C_5.PDF

8

Q1000C, CVD1075, CVD1285

Q1000C - HEAD SECTION - PANELS

# PART # DESCRIPTION QTY Note
1 7600553 Front Panel Assembly

2 4303313 Top Cover
3 7628593 Left Side Panel
4 6035211 Back Panel
5 6039971 Service Valve Back Panel
6 6039961 Service Valve Panel
7 7628603 Right Side Panel
8 7628523 Control Box Cover
9 5119019 Screw - #8 x 1.75"
9a 5573389 Washer - Nylon 0.171" x 0.38"
9b 5648279 Screw Retainer - Nylon #8
9c 5473039 Speed Nut Assembly to Mount Front Cover
10 5202063 Screw - #10-24 x 0.50" HEX
11 5023509 Screw, #10-24 x 0.375 Phillips [1]

PART NOTES:

[1] - Discontinued

Q1000C_5.PDF

9

Q1000C, CVD1075, CVD1285

CVD1075 - CONDENSING UNIT

Q1000C_6.PDF

10

Q1000C, CVD1075, CVD1285

CVD1075 - CONDENSING UNIT

# PART # DESCRIPTION QTY Note

NOTE: There are two condensing units available for the

Q1000C, please verify your condensing unit.
1 Compressor
1a 7600023 Compressor 208-230V/60 Hz/1 Ph
1b 7600033 Compressor 208-230V/60 Hz/3 Ph
1c 7600043 Compressor 208-230V/50 Hz/1 Ph
2 000007280 Suction Accumulator
3 8373253 Access Valve
4 8851393 Air-cooled Condenser
5 Fan Motor
5a 2000189 Fan Motor - 208-230V/60 Hz/1-3 Ph
5b 2000589 Fan Motor - 230-415V/50 Hz/1-3 Ph
6 2416113 Fan Blade
7 000000973 Head Pressure Control Valve
8 2001263 Fan Cycling Control - 200-250 psig [1]
9 2001243 High Pressure Cut-out Control
10 2002229 Low Pressure Cut-out Control
11 2007559 Start Potential Relay - 50-60 Hz/1 Ph
12 2006609 Contactor - 208-230V/50-60 Hz/1 Ph
12a 2006619 Contactor - 230V/60 Hz/3 Ph
13 000006454 Start Capacitor - 50-60 Hz/1 Ph
13a 8505823 Start Capacitor 50 Hz/1 Ph
14 2010133 Run Capacitor - 115-230V/50-60 Hz/1 Ph
14a 000001395 Run Capacitor - 208-230V/50-60 Hz/1 Ph
15 6034491 Fan Shroud
16 3006823 Fan Motor Mounting Bracket
17 5033589 Mounting - Screw
17a 5545119 Mounting - Lockwasher
17b 5429529 Mounting - Hexnut
18 5033589 Mounting - Screw
18a 5545119 Mounting - Lockwasher
18b 5573059 Mounting - Flatwasher
18c 5429559 Mounting - Rubber Wellnut
19 5202069 Screw - #10-24 x 0.50" HEX
20 6034981 Capacitor Mounting Bracket
21 6021601 Capacitor Mounting Strap
22 2006143 Terminal Block - 50 Hz - 3 Pole [2]
23 5202169 Screw - #10-24 x 0.50" Ground
24 8250549 Suction Line Filter

PART NOTES:

[1] - \pages from 200126_09.jpg" width=150 height=306>
[2] - 50 Hz Only

Q1000C_6.PDF

11

Q1000C, CVD1075, CVD1285

CVD1075 - CONDENSING UNIT - PANELS

Q1000C_7.PDF

12

Q1000C, CVD1075, CVD1285

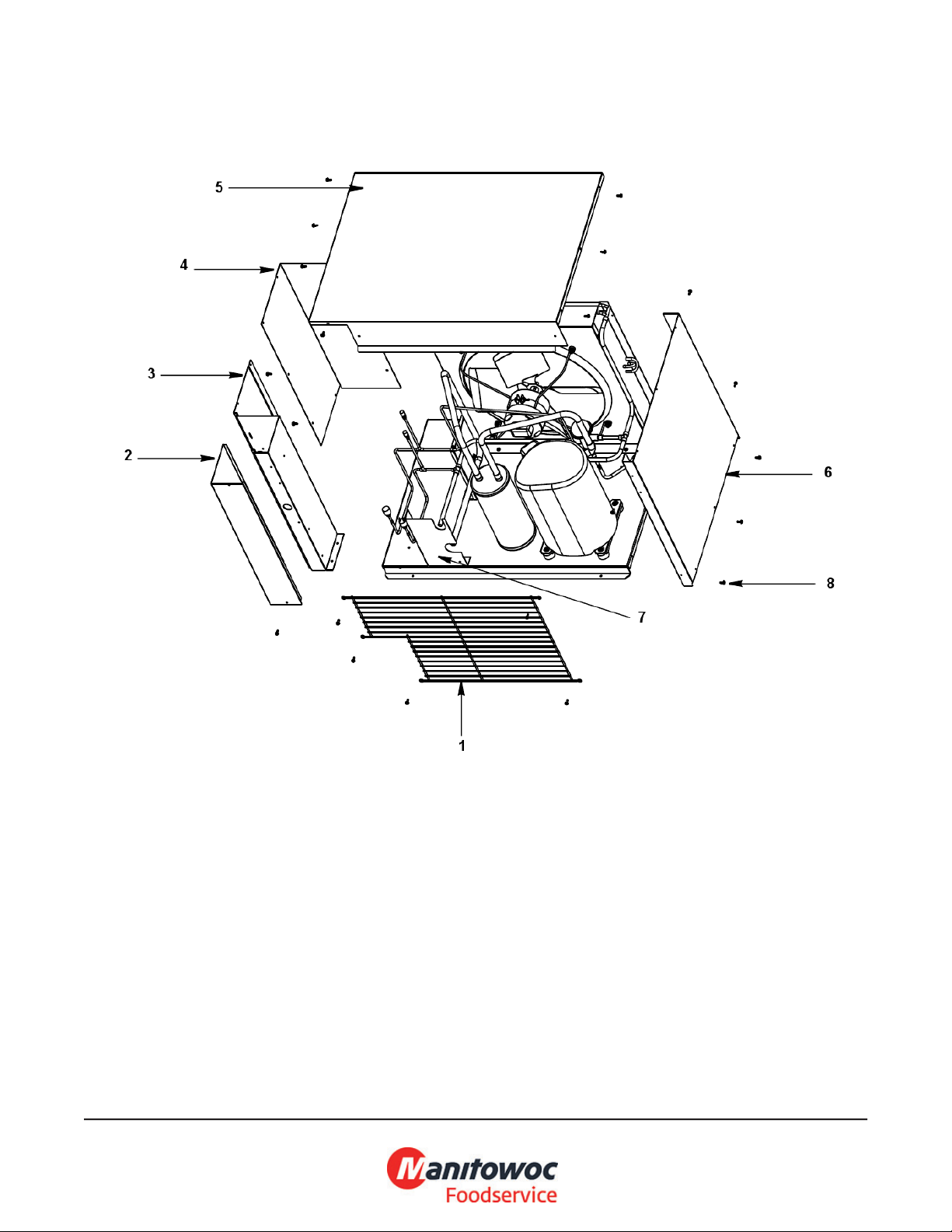

CVD1075 - CONDENSING UNIT - PANELS

# PART # DESCRIPTION QTY Note

NOTE: There are two condensing units available for the

Q1000C, please verify your condensing unit.
1 3406893 Condenser Fan Guard
2 6040171 Control Box Cover
3 6037071 Control Box Panel
4 6037291 Left Side Panel
5 6034751 Cover Top
6 6034701 Right Side Panel
7 6042261 Condensing Unit Tube Shield
8 5202069 Screw - #10-24 x 0.50" HEX

Q1000C_7.PDF

13

Q1000C, CVD1075, CVD1285

CVD1285 - CONDENSING UNIT

Q1000C_8.PDF

14

Q1000C, CVD1075, CVD1285

CVD1285 - CONDENSING UNIT

# PART # DESCRIPTION QTY Note

NOTE: There are two condensing units available for the

Q1000C, please verify your condensing unit.
1 Compressor
1a 7603213 Compressor - Copeland - 208-230V/60 Hz/1 Ph
1b 7603223 Compressor - Copeland - 208-230V/60 Hz/3 Ph
1c 7603233 Compressor - Copeland - 230V/50 Hz/1 Ph
2 000007281 Suction Accumulator
3 8373253 Access Valve
4 8851393 Air-cooled Condenser
5 Fan Motor
5a 2000189 Fan Motor - 208-230V/60 Hz/1-3 Ph
5b 2000589 Fan Motor - 230-415V/50 Hz/1-3 Ph
6 2416113 Fan Blade
7 000001982 Head Pressure Control Valve
8 2001263 Fan Cycling Control - 200-250 psig [1]
9 2001243 High Pressure Cut-out Control
10 2002229 Low Pressure Cut-out Control
11 2007559 Start Potential Relay - 50-60 Hz/1 Ph
12 2006609 Contactor - 208-230V/50-60 Hz/1 Ph
12a 2006619 Contactor - 230V/60 Hz/3 Ph
13 000006454 Start Capacitor - 50-60 Hz/1 Ph
14 2010133 Run Capacitor - 115-230V/50-60 Hz/1 Ph
15 6034491 Fan Shroud
16 3006823 Fan Motor Mounting Bracket
17 5033589 Mounting - Screw
17a 5545119 Mounting - Lockwasher
17b 5429529 Mounting - Hexnut
18 5032389 Fan Bracket Mounting Screw
18a 5545119 Mounting - Lockwasher
18b 5573059 Mounting - Flatwasher
18c 5429559 Mounting - Rubber Wellnut
19 5202069 Screw - #10-24 x 0.50" HEX
20 6034981 Capacitor Mounting Bracket
21 6021601 Capacitor Mounting Strap
22 2006143 Terminal Block - 50 Hz - 3 Pole [2]
23 5202169 Screw - #10-24 x 0.50" Ground
24 8250549 Suction Line Filter
25 2007619 Copeland Plug Assembly Wiring Harness, 230V/50-60Hz/1-3

Ph

PART NOTES:

[1] - \pages from 200126_09.jpg" width=150 height=306>
[2] - 50 Hz Only

Q1000C_8.PDF

15

Q1000C, CVD1075, CVD1285

CVD1285 - CONDENSING UNIT - PANELS

Q1000C_9.PDF

16

Q1000C, CVD1075, CVD1285

CVD1285 - CONDENSING UNIT - PANELS

# PART # DESCRIPTION QTY Note

NOTE: There are two condensing units available for the

Q1000C, please verify your condensing unit.
1 3406893 Condenser Fan Guard
2 6040171 Control Box Cover
3 6037071 Control Box Panel
4 6037291 Left Side Panel
5 6034751 Cover Top
6 6034701 Right Side Panel
7 6042261 Condensing Unit Tube Shield
8 5202069 Screw - #10-24 x 0.50" HEX

Q1000C_9.PDF
