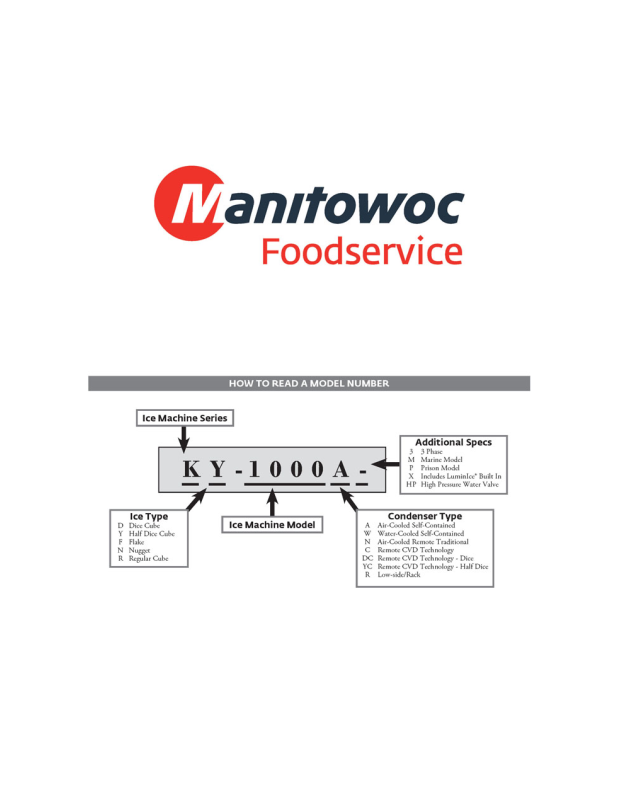

TABLE OF CONTENTS
K1000
Parts
K1000 Control Box 1
K1000 Evaporator Compartment 3
K1000 Refrigeration Compartment 5
K1000 Air-cooled Compartment 8
K1000 Water-cooled Compartment 10
K1000 Remote Compartment 12
K1000 Panels 14
KC1000 Remote Condenser 16
i
K1000
K1000 Control Box
Parts
K1000 Control Box
1
K1000
K1000 Control Box
# PART # DESCRIPTION QTY Note
1 040002007 Control Board
1a 000012211 3.5 amp Ceramic Fuse
1b 4302253 Control Board Mounting Supports
2 Run Capacitor - See Note for Usage
2a 000000028 Run Capacitor - 208-230V/60 Hz/1 Ph [1]
2b 000001395 Run Capacitor - 208-230V/50-60 Hz/1 Ph [2]
2c 000011640 Run Capacitor - 230V/50-60Hz/1 Ph [3]
2d 000010708 Run Capacitor - 208-230V/50 Hz/1 Ph [4]
2e 000010711 Bracket - Run Capacitor
3 2006599 Contactor - 230V/50-60 Hz/1 Ph
4 8373263 Refrigeration Service Valve Assembly
5 000011172 Manifold Strainer
5a 000011055 Manifold Strainer - Bracket
6 000008816 High Pressure Cut-out
7 000010617 Control Box
8 000012138 Control Box Cover
9 2501409 Bushing - 0.875"
10 2500019 Bushing - 1.187"
11 2502189 Bushing - 0.625"
12 5202169 Screw - #10-24 x 0.50" Ground
13 2007939 Toggle Switch
14 Wiring Harnesses
14a 000010265 Control Box Wiring Harness - 230V/60 Hz/1 Ph
14b 000010599 Control Box Wiring Harness - 230V/50 Hz/1 Ph
14c 000005176 Compressor Molded Plug Wiring Harness
14d 000010724 Wiring Harness - Toggle Switch
14e 000010511 Wiring Harness - Float Switch to Control Box
14f 000011771 Wiring Harness - PTCR
14g 000007185 Wiring Harness - Compressor Compartment - Air-cooled
14h 000007177 Wiring Harness - Compressor Compartment - Water-cooled
14i 000011725 Wiring Harness - Compressor Compartment - Remote
14j 000011182 Wiring Harness - Compressor
15 8505003 PTCR Compressor Starter [5]
PART NOTES:
[1] - Used on Remote Models - 230V/60 Hz
[2] - Used on Remote Models - 230V/50 Hz
[3] - Used on Air- and Water-cooled Models - 230V/60 Hz
[4] - Used on Air- and Water-cooled Models - 230V/50 Hz
[5] - Used on Remote Models
Parts
K1000 Control Box
2
K1000
K1000 Evaporator Compartment
Parts
K1000 Evap Comp
3
K1000
K1000 Evaporator Compartment
# PART # DESCRIPTION QTY Note
1 000011186 Foodzone Seal Panel
2 3006729 Evaporator Top Filler Panel
2a 5202099 Screw - #10-24 x 0.50" PHIL
3 7602193 Water Distribution Tube - 30" L
3a 5004799 Thumbscrew SS - #8-32 x 0.375"
3b 5004629 O-Ring - 0.125" ID
4 Evaporator Assembly
4a 7604203 Evaporator - Dice Cube
4b 7604213 Evaporator - Half Dice Cube
4c 5004619 Screw - #12-16 x 0.687"
5 000012651 Ice Thickness Float
5a 000010630 Bracket - Ice Thickness Float
6 000012649 Harvest Float
6a 000010818 Bracket - Harvest Float
7 7602213 Water Diverter - 30" Models
7a 5305123 Thumbscrew SS - #8-32 x 0.44"
8 000010337 Water Trough [1]
9 4014489 Water Curtain
10 Water Pump - See Note for Usage
10a 2008109 Water Pump - 230V/60 Hz
10b 2008119 Water Pump - 230V/50-60 Hz [2]
10d 000010244 Water Pump Mount
10e 5004659 Water Pump Base O-Ring - 4.00" ID
10f 5004679 Water Pump Outlet O-Ring - 0.875" ID
11 000010510 Magnetic Bin Switch
12 7602203 Evaporator Top Frame Assembly
13 4009613 Evaporator Bottom Frame Assembly
PART NOTES:
[1] - \water trough with tabs.jpg" width=355 height=194>
[2] - 50 Hz
Parts
K1000 Evap Comp
4
K1000
K1000 Refrigeration Compartment
Parts
K1000 Ref Comp
5
K1000
K1000 Refrigeration Compartment
# PART # DESCRIPTION QTY Note
1 Compressor - See Note for Usage
1a 000011176 Compressor - Samsung - 208-230V/60 Hz/1 Ph [1]
1b 000011177 Compressor - Samsung - 230V/50 Hz/1 Ph [1]
1c 000011760 Compressor - Bristol - 230V/60 Hz/1 Ph [2]
1d 000011761 Compressor - Bristol - 230V/50 Hz/1 Ph [2]
2 Harvest Valve
2a 000007015 Solenoid Valve Including - 208-230V/50-60 Hz Electrical Coil
2b 000005157 Danfoss Solenoid Valve Coil Only - 230V/50-60 Hz [3]
3 Water Dump Valve
3a 000001768 Water Dump Valve - 208-230V/50-60 Hz
3b 6058459 Water Dump Valve Mounting Bracket
3c 4420383 Clear Tubing - 0.625" ID
4 Drier - See Note for Usage
4a 8930259 Drier [4]
4b 8930249 Drier [5]
5,6 000003408 Insulated Tube
7 000012467 Expansion Valve
7a 4013299 Valve Insulation Boot - Body
8 000002719 Valve Insulation Boot - Bulb
9 000012651 Ice Thickness Float
9a 000010630 Bracket - Ice Thickness Float
10 000012649 Harvest Float
10a 000010818 Bracket - Harvest Float
11 000010244 Water Pump Mount
12 Water Pump - See Note for Usage
12a 2008109 Water Pump - 230V/60 Hz
12b 2008119 Water Pump - 230V/50-60 Hz [6]
13 8706093 Female Wing Adapter - 0.375"
14 8706133 Female Wing Adapter - 0.50"
15 Water Inlet Valve
15a 000009121 Water Inlet Valve - 208-230V/50-60 Hz
15b 4010439 Tubing - Water Inlet Valve [7]
16 5650609 Snap Clamp - 1.0" ID
17 5650709 Snap Clamp - 0.799"/0.899" ID
18 000001382 Vinyl Tubing 0.625" ID
18a 6038831 Insulation 0.88 ID X 0.25W X 13.50L
19 1360961 Male Connector
20 5650529 Clamp - Expansion Valve Bulb
21 3000503 Strap - Expansion Valve Bulb - 0.5"
22 5202069 Screw - #10-24 x 0.50" HEX
23 000008346 Compressor Base
23a 6061709 Compressor Mounting Base [8]
23b 000010698 Rubber GrommetSamsung Mounting - [9]
23c 8503069 Mounting - Rubber GrommetBristol [10]
24 000011505 Terminal Cover [11]
24a 000011506 Terminal Cover Gasket [11]
Parts
K1000 Ref Comp
6
K1000
K1000 Refrigeration Compartment
# PART # DESCRIPTION QTY Note
24b 000010854 Terminal Cover Nut [11]
25 8373149 Magni-Check Valve - 0.375"
PART NOTES:
[1] - Used on Air- and Water-cooled Models
[2] - Used on Remote Models
[3] - \pages from 000005156_02.jpg" width=266 height=183>
[4] - Air-cooled Water-cooled Models
[5] - Remote Models
[6] - 50 Hz
[7] - \pages from 401043_05.jpg" width=1797 height=2238>
[8] - Includes mounting hardware, order grommet separately
[9] - Pkg of 1
[10] - Pkg of 4
[11] - Used withSamsung Compressors
Parts
K1000 Ref Comp
7
K1000
K1000 Air-cooled Compartment
Parts
K1000 Air-cooled
8
K1000
K1000 Air-cooled Compartment
# PART # DESCRIPTION QTY Note
1 3005559 Air Filter
2 000011691 Air Condenser
3 000010727 Fan Shroud
4 2416123 Fan Blade
5 3006843 Fan Motor Bracket
6 7626723 Fan Motor - 208-230V/50-60 Hz
7 Fan Motor Mounting
7a 5033589 Mounting - Screw
7b 000000936 Mounting - NutMounting 8 5202069 Screw - #10-24 x 0.50" HEX
9 000008831 Fan Cycle Control
10 000007678 Air Baffle Assembly
Parts
K1000 Air-cooled
9
K1000
K1000 Water-cooled Compartment
Parts
K1000 Water-cooled
10
K1000
K1000 Water-cooled Compartment
# PART # DESCRIPTION QTY Note
1 000001507 Water-cooled Condenser
2 000010620 Water Regulating Valve
3 000008893 Receiver
4 8930259 Drier
5 8706083 Female Wing Adapter - 0.50"
6 000010604 Receiver Mounting BaseWater Condenser Mounting
7 6000541 Receiver Strap
8 5002249 Elbow - 0.5" MF x 0.375" MPT
9 5202069 Screw - #10-24 x 0.50" HEX
10 5573419 Washer
11 5003883 Flare Nut - 0.50"
Parts
K1000 Water-cooled
11
K1000

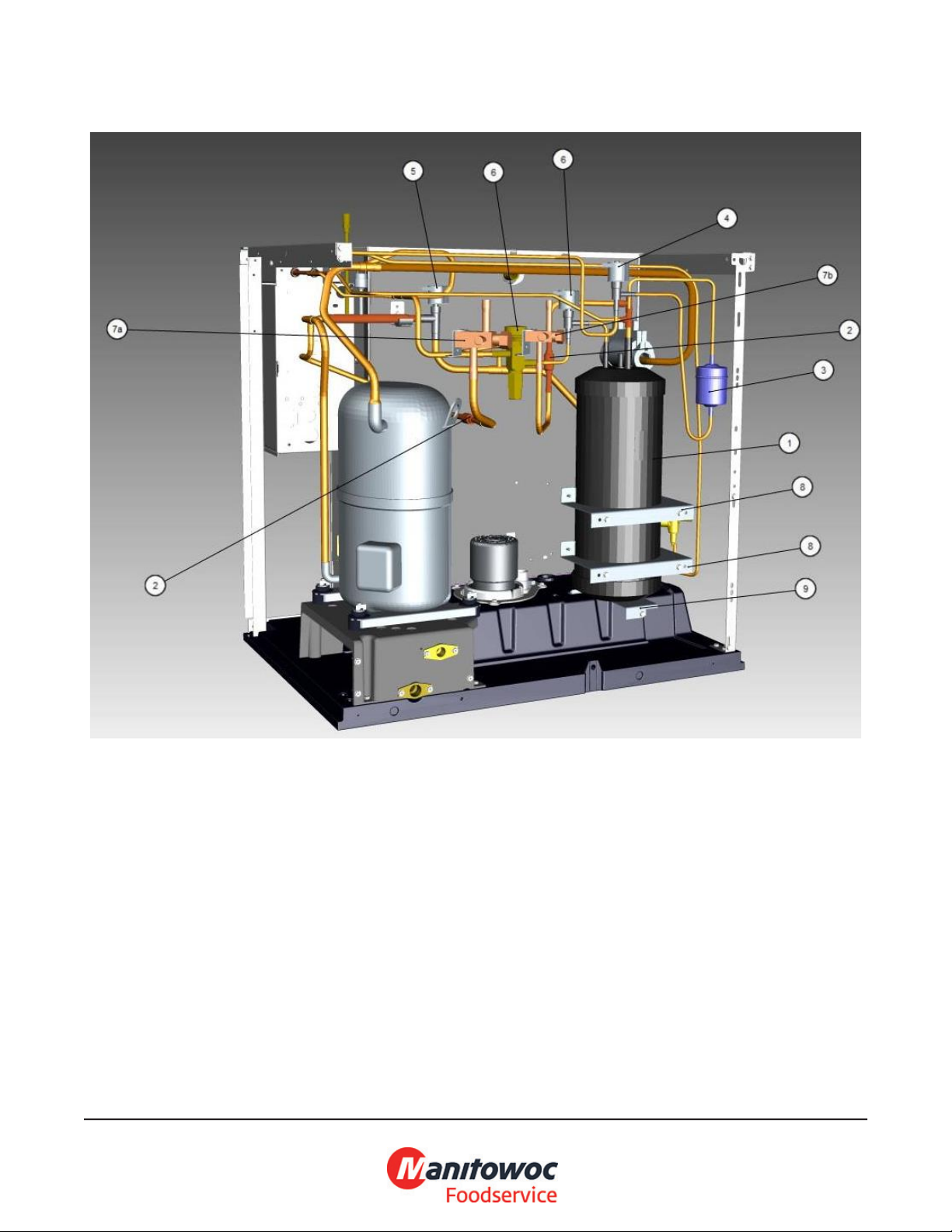

K1000 Remote Compartment
Parts
K1000 Remote
12
K1000
K1000 Remote Compartment
# PART # DESCRIPTION QTY Note
1 7629573 Receiver
2 8373149 Magni-Check Valve - 0.375"
3 8930249 Drier
4 Liquid Line Solenoid Valve
4a 000007034 Solenoid Valve Including - 208-230V/50-60 Hz Electrical Coil [1]
4b 000005157 Danfoss Solenoid Valve Coil Only - 230V/50-60 Hz [2]
5 Harvest Valve
5a 000007015 Solenoid Valve Including - 208-230V/50-60 Hz Electrical Coil [3]
6 000008869 Harvest Pressure Regulating (HPR) Valve
7 Manual Shut-off Valve
7a 8373273 Manual Shut-off Valve - 0.5"
7b 8373293 Manual Shut-off Valve - 0.375"
7c 5650753 Caps for Refrigeration Service Valve
7d 6049331 Bracket - Valve
8 000010915 Receiver Mounting Bracket
9 000010604 Receiver Mounting BaseReceiver Mounting
10 5202069 Screw - #10-24 x 0.50" HEX
PART NOTES:
[1] - 1/4 x 1/4
[2] - \pages from 000005156_02.jpg" width=266 height=183>
[3] - 1/2 x 1/2
Parts
K1000 Remote
13
K1000
K1000 Panels
Parts
K1000 Panels
14
K1000
K1000 Panels
# PART # DESCRIPTION QTY Note
1 000010523 Top Cover
2 000012466 Front Panel
3 000011597 Left Side Panel
4 000011598 Right Side Panel
5 000007678 Air Baffle Assembly
6 3005559 Air Filter
7 000010726 Back Panel - Air-cooled
8 000011150 Back Panel - Water-cooled
8a 000011148 Back Panel - Large - Remote
8b 000011737 Back Panel - Small - Remote
9 000010603 Back Coupling Panel - Water-cooled/Remote
10 6068649 Left Top Channel
11 000011322 Right Top Channel
12 000011504 Left Corner Post
13 000011335 Right Top Channel
14 000010269 Front Top Support
15 000010268 Bottom Door Frame
16 6067289 Rear Connection Box
16a 6067299 Cover - Rear Connection Box
17 000011147 Shut-off Valve Panel - Left
17a 000011149 Shut-off Valve Panel - Right
18 2006143 Terminal Block - 50 Hz - 3 Pole
19 000012438 Cartoning
Parts
K1000 Panels
15
K1000
KC1000 Remote Condenser
Parts
kc1000
16
K1000
KC1000 Remote Condenser
# PART # DESCRIPTION QTY Note
1 3400643 Fan Guard
2 6017751 Top Cover
3 2416113 Fan Blade
4 2415053 Rain Slinger
5 7629413 Fan Motor - 208-230V/50-60 Hz/1 Ph
5a 000010947 Fan Motor Mounting Bracket - Support
5b 6017681 Fan Motor Mounting Bracket
6 000008870 Head Pressure Control Valve
7 000008040 Terminal Block - 3 Pole
8 8850629 Air Condenser
9 000000607 Panel - Front
10 000000609 Panel - Side
11 000000608 Panel - Rear
12 6017761 Electrical Box Cover
13 000000718 Legs
14 5035659 Fan Motor Mounting Screw
14a 5573099 Mounting - Flatwasher
14b 5573139 Mounting - Lockwasher
14c 5429759 Mounting - Hexnut
15 5033459 Screw - 0.25"-20 x 0.625"
15a 5573049 FlatwasherMounting 15b 5545119 Mounting - Lockwasher
15c 5429529 Mounting - Hexnut
16 5202069 Screw - #10-24 x 0.50" HEX
17 7108369 Cartoning
Parts
kc1000
17
