Manitowoc Ice K00194 User Manual

S-970 Bin

Adapter Panel

Support Angle

Detail A

Foam Tape

Support Angle

See Detail A

Adapter Panel

20.500

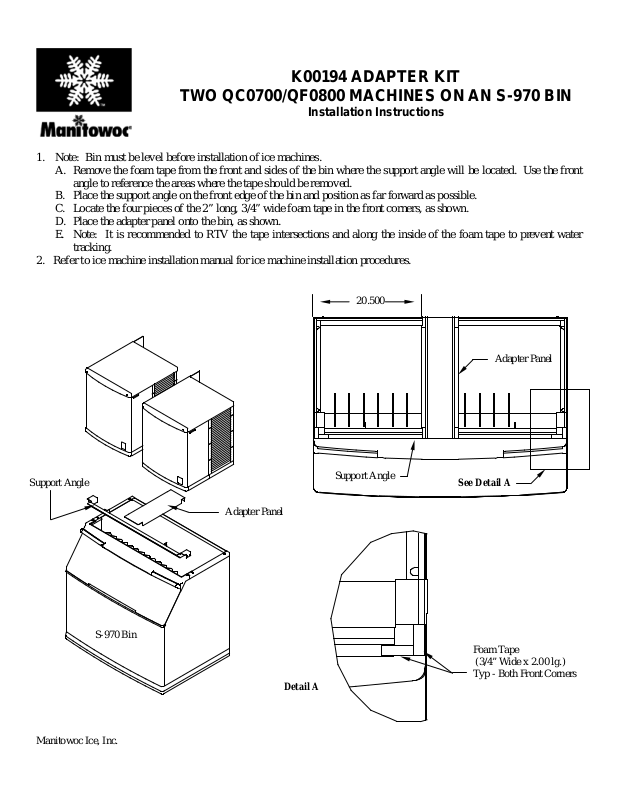

K00194 ADAPTER KIT

TWO QC0700/QF0800 MACHINES ON AN S-970 BIN

Installation Instructions

1. Note: Bin must be level before installation of ice machines.
A. Remove the foam tape from the front and sides of the bin where the support angle will be located. Use the front

angle to reference the areas where the tape shoul d be removed.

B. Place the support angle on the front edge of the bin and position as far forward as possible.
C. Locate the four pieces of the 2” long, 3/4” wide foam tape in the front corners, as shown.
D. Place the adapter panel onto the bin , as shown.
E. Note: It is recommended to RTV the tape intersections and alon g the insid e of the foam tape to prevent water

tracking.

2. Refer to ice machine installation manual for ice machine i nstallation procedures.

Manitowoc Ice, Inc.

(3/4” Wide x 2.00 lg.)
Typ - Both Front Corners
