i0906, JC0995 Indigo
I0906 CONTROL BOX
I0906_PARTS_MII_2.PDF
1
i0906, JC0995 Indigo
I0906 CONTROL BOX
# PART # DESCRIPTION QTY Note
1 000008309 Control Board
1a 000009181 8 amp Ceramic Fuse Mounted on Control Board
2 Contactor
2a 2006599 Contactor 230V/5060 Hz/1 Ph
3 8504993 PTCR Compressor Starter
3a 8505013 PTCR Compressor Starter Mounting Bracket
4 Compressor Run Capacitor
4a 8503933 Run Capacitor 115230V/5060 Hz/1 Ph [1]
4b 2010133 Run Capacitor 50 Hz [2]
5 8373263 Refrigeration Service Valve Assembly
6 8251049 Manifold Strainer
6a 6058571 Bracket
7 2001243 HPCO
8 2001273 Fan Cycling Control 225275 psig [3]
9 000008279 Control Box
10 000010421 Control Box Cover Control Box Cover
11 000007564 Control Board Mounting Bracket
12 4302253 Control Board Mounting Supports
13 6033131 Capacitor Mounting Bracket
14 5202169 Screw #1024 x 0.50" Ground
14a 5573209 Star Washer Star Washer
15 5202069 Screw #1024 x 0.50" HEX
16 5573209 Star Washer
17 Control Box Bushings
17a 2500019 Bushing 1.187"
17b 2501409 Bushing 0.875"
18 Control Box Wiring Harness
18a 000007179 Control Box Wiring Harness 230V/60 Hz/1 Ph
18b 000007181 Control Box Wiring Harness 230V/60 Hz/3 Ph
18c 000007180 Control Box Wiring Harness 230V/50 Hz/1 Ph
19 Compressor Compartment Wiring Harness
19a 000007178 Compressor Compartment Wiring Harness Aircooled
19b 000007176 Compressor Compartment Wiring Harness Watercooled
19c 000007175 Compressor Compartment Wiring Harness Remote Air
20 000007772 Terminal Block 6 Pole [4]
cooled
PART NOTES:
[1] 208230V/60 Hz/1 Ph
[2] 208230V/50 Hz/1 Ph
[3] \pages from 200126_09.jpg" width=170 height=228>
[4] Remote Only
I0906_PARTS_MII_2.PDF
2
i0906, JC0995 Indigo
I0906 EVAPORATOR COMPARTMENT - COMMON COMPONENTS
I0906_PARTS_MII_3.PDF
3
i0906, JC0995 Indigo
I0906 EVAPORATOR COMPARTMENT - COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
1 Evaporator Assembly
1a 7602283 Evaporator - Dice Cube
1b 7602273 Evaporator - Half Dice Cube
1c 000011867 Evaporator - Regular Cube
2 Water Pump - See Note for Usage
2a 8251139 Water Pump - 230V/50-60 Hz [1]
2b 8252709 Water Pump - 230V/50-60 Hz [2]
3 000007052 Water Level Probe
3a 000007724 Wire - Control Box to Water Level Probe
3b 000007053 Water Level Probe - Holder
3c 5202099 Screw - #10-24 x 0.50" PHIL [3]
4 000008660 Ice Thickness Control Probe
5 4010989 Water Curtain
6 7602193 Water Distribution Tube - 30" L
6a 5004649 O-Rings [4]
7 000010337 Water Trough [5]
8 000009055 Foodzone Seal Panel
9 4008469 Evaporator Top Filler Panel
9a 6063339 Bracket - Top Filler Panel
9b 5202099 Screw - #10-24 x 0.50" PHIL
10 7602203 Evaporator Top Frame Assembly
11 7602213 Water Diverter - 30" Models
11a 5305123 Thumbscrew SS - #8-32 x 0.44"
12 000006728 LCD Display
13 000007926 Touch Pad with Housing
14 000007737 LCD Wiring Harness - 30" Long
15 000006697 Touch Pad/Housing Mounting Bracket
16 Front Panel LCD Frame
16a 000006647 LCD Frame with Key Guard
16b 000006564 LCD Frame without Key Guard
16c K00433 Display Cover [6]
17 000006700 Ice Deflector
18 5004799 Thumbscrew SS - #8-32 x 0.375" [7]
18a 5004629 O-Ring - 0.125" ID
19 5004619 Screw - #12-16 x 0.687"
20 000010244 Water Pump Mount
21 5004659 Water Pump Base O-Ring - 4.00" ID
22 5004679 Water Pump Outlet O-Ring - 0.875" ID
PART NOTES:
[1] - 60 Hz
[2] - 50 Hz
[3] - Mount Water Level Probe Holder
[4] - Back of Distribution Assembly
[5] - \water trough with tabs.jpg" width=355 height=194>
I0906_PARTS_MII_3.PDF
4
i0906, JC0995 Indigo
I0906 EVAPORATOR COMPARTMENT - COMMON COMPONENTS
PART NOTES:
[6] - hides the display completely
[7] - Water Distribution Tube Mounting
I0906_PARTS_MII_3.PDF
5
i0906, JC0995 Indigo
I0906 REFRIGERATION COMPARTMENT - COMMON COMPONENTS
I0906_PARTS_MII_4.PDF
6
i0906, JC0995 Indigo
I0906 REFRIGERATION COMPARTMENT - COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
1 Compressor
1a 000011853 Compressor - Bristol - 230V/60 Hz/1 Ph
1b 000011855 Compressor - Bristol - 230V/60 Hz/3 Ph
1c 000011854 Compressor - Bristol - 230V/50 Hz/1 Ph
1d 000005176 Compressor Molded Plug Wiring Harness
1e 2008263 Compressor - Wiring Harness - 3 Ph
2 Water Dump Valve [1]
2a 000001768 Water Dump Valve - 208-230V/50-60 Hz
2b 6058459 Water Dump Valve Mounting Bracket
2c 4420383 Clear Tubing - 0.625" ID
3 Harvest Valve
3a 000007017 Solenoid Valve Including 208-230V/50-60 Hz Electrical Coil
3b 000005157 Danfoss Solenoid Valve Coil Only - 230V/50-60 Hz [2]
4 Water Inlet Valve with Bracket
4a 000009122 Water Inlet Valve - 208-230V/50-60 Hz
5 000011866 Expansion Valve
5a 4013299 Valve Insulation Boot - Body
5b 000002719 Valve Insulation Boot - Bulb
6 8373149 Magni-Check Valve - 0.375"
7 000008310 Thermistor with Spring Clips
8 000007888 Magnetic Bin Switch
8a 000007410 Bin Switch Wiring Harness
9 K00424 LuminIce
9a K00425 LuminIce Bulb
9b 000007409 LuminIce Wiring Harness
9c 000007990 Bulkhead Fitting 2.25"
9d 000008269 Bulkhead Fitting 2.75"
10 000003406 Insulated Tube [3]
10a 5650609 Snap Clamp - 1.0" ID
10b 5650709 Snap Clamp - 0.799"/0.899" ID
11 000001382 Vinyl Tubing 0.625" ID [4]
11a 6038831 Insulation 0.88 ID X 0.25W X 13.50L
11b 5650709 Snap Clamp - 0.799"/0.899" ID
12 8706093 Female Wing Adapter - 0.375"
12a 1360961 Male Connector
13 4010439 Tubing - Water Inlet Valve [5]
14 1360989 Connector - Water Inlet Valve
15 8706133 Female Wing Adapter - 0.50"
16 Compressor Mounting
16a 6061709 Compressor Mounting Base
16b 8503069 Mounting - Rubber Grommet
16c 8503949 Mounting - Sleeve
16d 5004819 Compressor Mounting - Bolt
16e 5004829 Nut Compressor Mounting - Nut
17 5650529 Clamp - Expansion Valve Bulb
18 3000503 Strap - Expansion Valve Bulb - 0.5"
I0906_PARTS_MII_4.PDF
7
i0906, JC0995 Indigo
I0906 REFRIGERATION COMPARTMENT - COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
19 5202069 Screw - #10-24 x 0.50" HEX
PART NOTES:
[1] - with bracket
[2] - \pages from 000005156_02.jpg" width=266 height=183>
[3] - vinyl tubing from distribution tube to water pump & dump valve
[4] - dump valve to drain adapter
[5] - \pages from 401043_05.jpg" width=1797 height=2238>
I0906_PARTS_MII_4.PDF
8
i0906, JC0995 Indigo
I0906 REFRIGERATION COMPARTMENT - AIR-COOLED
I0906_PARTS_MII_5.PDF
9
i0906, JC0995 Indigo
I0906 REFRIGERATION COMPARTMENT - AIR-COOLED
# PART # DESCRIPTION QTY Note
1 8252399 Air Condenser
2 Fan Motor
2a 7626723 Fan Motor - 208-230V/50-60 Hz
3 2416123 Fan Blade
4 8930259 Drier
5 6058119 Fan Shroud
6 3006843 Fan Motor Bracket
7 5033589 Mounting - Screw
7a 5545109 Lockwasher
7b 5429529 Mounting - Hexnut
8 Fan Bracket Mounting
8a 5033589 Mounting - Screw
8b 5545109 Lockwasher
8c 5573059 Mounting - Flatwasher
8d 5429559 Mounting - Rubber Wellnut
9 5202069 Screw - #10-24 x 0.50" HEX
I0906_PARTS_MII_5.PDF
10
i0906, JC0995 Indigo
I0906 REFRIGERATION COMPARTMENT - WATER-COOLED
I0906_PARTS_MII_6.PDF
11
i0906, JC0995 Indigo
I0906 REFRIGERATION COMPARTMENT - WATER-COOLED
# PART # DESCRIPTION QTY Note
1 000008893 Receiver
2 000001507 Water-cooled Condenser
3 000007546 Water Regulating Valve
4 8706083 Female Wing Adapter - 0.50"
5 8930259 Drier
6 6000541 Receiver Strap
7 5002249 Elbow - 0.5" MF x 0.375" MPT
8 5202069 Screw - #10-24 x 0.50" HEX
9 5573419 Washer
10 6058659 Base, Water Condenser/Receiver
I0906_PARTS_MII_6.PDF
12
i0906, JC0995 Indigo
I0906 REFRIGERATION COMPARTMENT - REMOTE
I0906_PARTS_MII_7.PDF
13
i0906, JC0995 Indigo
I0906 REFRIGERATION COMPARTMENT - REMOTE
# PART # DESCRIPTION QTY Note
1 7629573 Receiver
2 8373149 Magni-Check Valve - 0.375"
3 8373169 Receiver Service Valve
3a 5650753 Caps for Refrigeration Service Valve
4 Harvest Pressure Regulating Valve
4a 000007034 Solenoid Valve Including - 208-230V/50-60 Hz Electrical Coil [1]
4b 000005157 Danfoss Solenoid Valve Coil Only - 230V/50-60 Hz [2]
5 Liquid Line Solenoid Valve
5a 000007032 Solenoid Valve Including - 208-230V/50-60 Hz Electrical Coil [1]
5b 000005157 Danfoss Solenoid Valve Coil Only - 230V/50-60 Hz [2]
6 8367793 Harvest Pressure Regulating Valve
7 8930279 Drier
8 8360343 Coupling - Male - 0.625"-18
9 8360353 Coupling - Male - 1.17"-12
10 8360053 Coupling Mounting Flange for 0.625"-18
11 8360063 Coupling Mounting Flange for 1-1/16-12
12 5650619 Screw Mounting Base
13 Receiver Mounting
13a 6000561 Brackets Receiver Mounting Bracket [3]
13b 6307214 Receiver Mounting Strap
13c 000006721 Support Bracket
13d 6058659 Base, Water Condenser/Receiver
13e 5202069 Screw - #10-24 x 0.50" HEX
PART NOTES:
[1] - Danfoss
[2] - \pages from 000005156_02.jpg" width=266 height=183>
[3] - between receiver and panel
I0906_PARTS_MII_7.PDF
14
i0906, JC0995 Indigo
I0906 PANELS
I0906_PARTS_MII_8.PDF
15
i0906, JC0995 Indigo

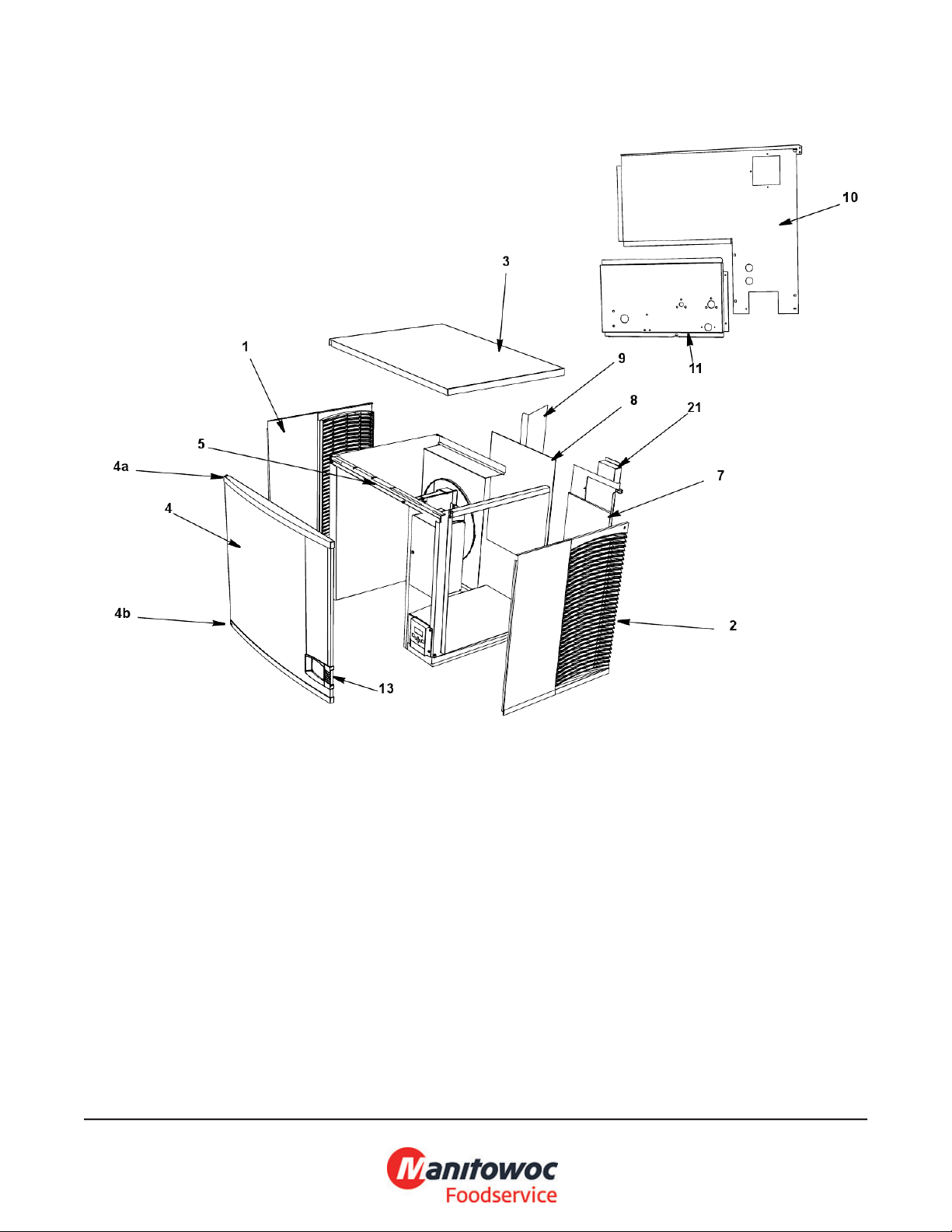

I0906 PANELS
# PART # DESCRIPTION QTY Note
1 000005224 Left Side Panel
2 000005222 Right Side Panel
3 000006699 Top Cover
4 000006578 Front Panel Assembly
4a 000006538 Top Endcap
4b 000006539 Bottom Endcap
5 000010051 Front Top Support
5a 5005379 Mounting Screw - #8-32 x 1.0" PHIL
5b 5005099 Screw - #10-16 x 0.625"
6 6061709 Compressor Mounting Base
Air-cooled Back Panels
7 000007868 Back Panel with Electrical Connection Box, Air-cooled
8 3005559 Air Filter
9 000007502 Air Baffle Assembly
10 000007870 Back Panel with Electrical Connection Box
11 6061739 Back Coupling Panel - Water-cooled and Remote Air-cooled
12 8706083 Female Wing Adapter - 0.50"
13 Front Panel LCD Frame
13a 000006647 LCD Frame with Key Guard
13b 000006564 LCD Frame without Key Guard
13c K00433 Display Cover [1]
14 5004899 Front Door Screw
15 7602263 Bottom Door Frame
15a 5005379 Mounting Screw - #8-32 x 1.0" PHIL
15b 5202099 Screw - #10-24 x 0.50" PHIL
16 3005579 Left Door Pivot Leaf Hinge [2]
16a 5005379 Mounting Screw - #8-32 x 1.0" PHIL
17 6068649 Left Top Channel
18 6062579 Right Top Channel
19 000010300 Left Corner Post
20 000010683 Right Corner Post
21 Electrical Box on Rear of Ice Machine
21a 6067289 Rear Connection Box
21b 6067299 Cover - Rear Connection Box
21c 2006143 Terminal Block - 50 Hz - 3 Pole
21d 5202169 Screw - #10-24 x 0.50" Ground
22 7112359 Cartoning
Models
Water-cooled & Remote Air-cooled Back Panels
PART NOTES:
[1] - hides the display completely
[2] - Top or Bottom
I0906_PARTS_MII_8.PDF
16
i0906, JC0995 Indigo
JC0995 REMOTE CONDENSER
I0906_PARTS_MII_9.PDF
17
i0906, JC0995 Indigo
JC0995 REMOTE CONDENSER
# PART # DESCRIPTION QTY Note
1 8850629 Air Condenser
2 7629413 Fan Motor - 208-230V/50-60 Hz/1 Ph
3 8504583 Fan Motor Run Capacitor [1]
4 2416113 Fan Blade
5 3400643 Fan Guard
6 2415053 Rain Slinger
7 000004070 Head Pressure Control Valve
8 000008040 Terminal Block - 3 Pole
9 8360343 Coupling - Male - 0.625"-18
10 8360353 Coupling - Male - 1.17"-12
11 K00129 Female Line Set Coupling Kit
12 8360053 Coupling Mounting Flange for 0.625"-18
13 8360063 Coupling Mounting Flange for 1-1/16-12
14 6017751 Top Cover
15 000000609 Panel - Side
16 000000608 Panel - Rear
17 000000607 Panel - Front
18 6017681 Fan Motor Mounting Bracket
19 6017761 Electrical Box Cover
20 5035659 Fan Motor Mounting Screw
20a 5573099 Mounting - Flatwasher
20b 5573139 Mounting - Lockwasher
20c 5429759 Mounting - Hexnut
21 5033459 Screw - 0.25"-20 x 0.625"
21a 5573049 Flatwasher
21b 5545119 Mounting - Lockwasher
21c 5429529 Mounting - Hexnut
22 5121539 Panel/Condenser Mounting Screw - #8 x 0.50"
22a 5544599 Panel/Condenser Mounting Lockwasher
23 5202069 Screw - #10-24 x 0.50" HEX
24 7626843 Valve Cores [2]
25 000000718 Legs
26 7108369 Cartoning
27 000007580 Fan Cycle Control
PART NOTES:
[1] - Emerson
[2] - used in line sets
I0906_PARTS_MII_9.PDF
18
Loading...
