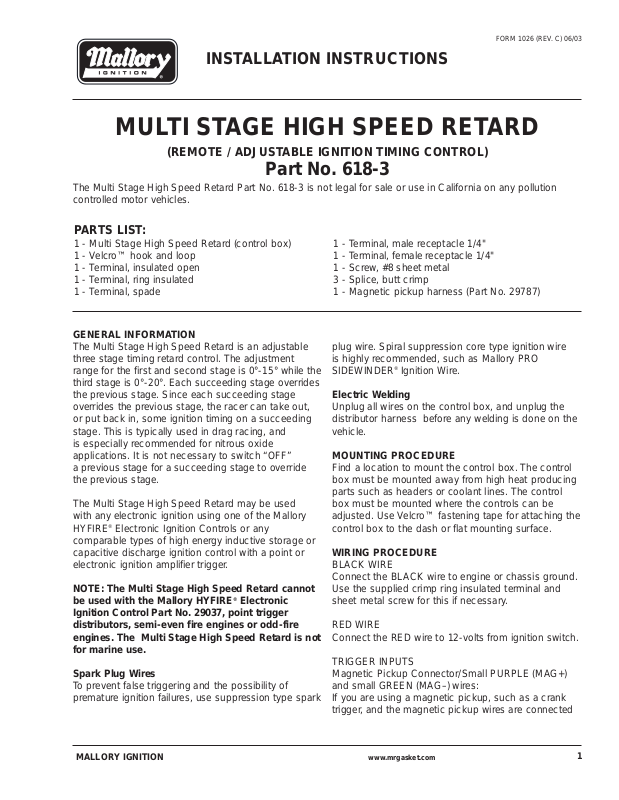

MULTI STAGE HIGH SPEED RETARD
(REMOTE / ADJUSTABLE IGNITION TIMING CONTROL)
Part No. 618-3
The Multi Stage High Speed Retard Part No. 618-3 is not legal for sale or use in California on any pollution
controlled motor vehicles.
INSTALLATION INSTRUCTIONS
FORM 1026 (REV. C) 06/03
GENERAL INFORMATION
The Multi Stage High Speed Retard is an adjustable
three stage timing retard control. The adjustment
range for the first and second stage is 0°-15° while the
third stage is 0°-20°. Each succeeding stage overrides
the previous stage. Since each succeeding stage
overrides the previous stage, the racer can take out,
or put back in, some ignition timing on a succeeding
stage. This is typically used in drag racing, and
is especially recommended for nitrous oxide
applications. It is not necessary to switch “OFF”
a previous stage for a succeeding stage to override
the previous stage.
The Multi Stage High Speed Retard may be used
with any electronic ignition using one of the Mallory
HYFIRE®Electronic Ignition Controls or any
comparable types of high energy inductive storage or
capacitive discharge ignition control with a point or
electronic ignition amplifier trigger.
NOTE: The Multi Stage High Speed Retard cannot
be used with the Mallory HYFIRE®Electronic
Ignition Control Part No. 29037, point trigger
distributors, semi-even fire engines or odd-fire
engines. The Multi Stage High Speed Retard is not
for marine use.
Spark Plug Wires
To prevent false triggering and the possibility of
premature ignition failures, use suppression type spark
plug wire. Spiral suppression core type ignition wire
is highly recommended, such as Mallory PRO
SIDEWINDER
®
Ignition Wire.
Electric Welding
Unplug all wires on the control box, and unplug the
distributor harness before any welding is done on the
vehicle.
MOUNTING PROCEDURE
Find a location to mount the control box. The control
box must be mounted away from high heat producing
parts such as headers or coolant lines. The control
box must be mounted where the controls can be
adjusted. Use Velcro™ fastening tape for attaching the
control box to the dash or flat mounting surface.
WIRING PROCEDURE
BLACK WIRE
Connect the BLACK wire to engine or chassis ground.
Use the supplied crimp ring insulated terminal and
sheet metal screw for this if necessary.
RED WIRE
Connect the RED wire to 12-volts from ignition switch.
TRIGGER INPUTS
Magnetic Pickup Connector/Small PURPLE (MAG+)
and small GREEN (MAG–) wires:
If you are using a magnetic pickup, such as a crank
trigger, and the magnetic pickup wires are connected
PARTS LIST:
1 - Multi Stage High Speed Retard (control box)
1 - Velcro™ hook and loop
1 - Terminal, insulated open
1 - Terminal, ring insulated
1 - Terminal, spade
1 - Terminal, male receptacle 1/4"
1 - Terminal, female receptacle 1/4"
1 - Screw, #8 sheet metal
3 - Splice, butt crimp
1 - Magnetic pickup harness (Part No. 29787)
MALLORY IGNITION www.mrgasket.com
Page 2
2
trigger input terminal or wire on the inductive storage
or capacitive discharge ignition control.
TIMING RETARD WIRES
Stage-1 ORANGE wire
Stage-2 YELLOW wire
Stage-3 BROWN wire
Each retard circuit activates when connected to a
switched 12-volt source and switched “ON.” Many
types of switches can be used such as a dash
mounted toggle switch, a push button switch on the
steering wheel (such as a nitrous system switch), a
switch on the transmission shifter or an RPM activated
switch. It is not necessary to switch “OFF” a previous
stage for a succeeding stage to override the previous
stage. When all 12-volt sources for the retard circuits
are switched “OFF,” the retard circuits revert to normal
ignition timing.
to the ignition control, transfer the magnetic pickup
wires to the magnetic pickup connector (small
PURPLE/MAG+ and small GREEN/MAG– wires) on the
control box.
If you are using a magnetic pickup, such as a crank
trigger, and the magnetic pickup wires are connected
to another timing accessory, the magnetic pickup
wires shall remain connected to that timing accessory.
The magnetic pickup connector on the control box will
not be used. Install the female receptacle terminal on
the trigger output wire from the timing accessory and
connect it to the GREEN (trigger input) wire with the
male receptacle terminal.
If you are using an electronic ignition distributor, install
the female receptacle terminal on the trigger output
wire from the ignition module and connect it to the
GREEN (trigger input) wire with the male receptacle
terminal.
TRIGGER OUTPUT
Connect the WHITE wire with the female receptacle
terminal to the point or electronic ignition amplifier
www.mrgasket.com MALLORY IGNITION
Page 3
3

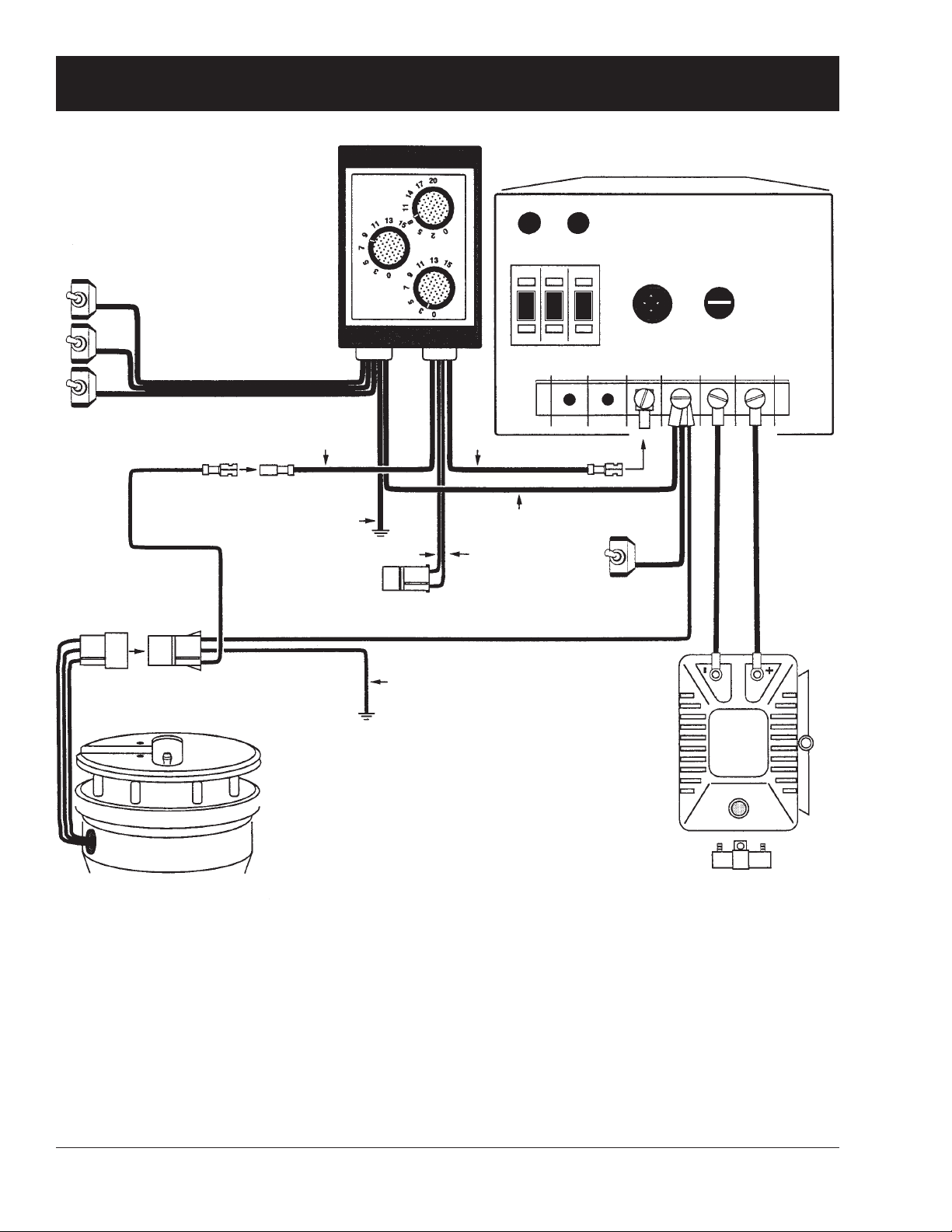

FIGURE 1: HYFIRE® VII IGNITION CONTROL; MAGNETIC PICKUP DISTRIBUTOR OR
CRANK TRIGGER IGNITION
Each retard circuit activates when
connected to a switched 12-volt source
and switched “ON.” Many types of
switches can be used such as a dash
mounted toggle switch, a push button
switch on the steering wheel (such
as a nitrous system switch), a switch on
the transmission shifter or an RPM
activated switch. It is not necessary to
switch “OFF” a previous stage for a
succeeding stage to override the previous stage. When all 12-volt sources for
the retard circuits are switched “OFF,”
the retard circuits revert to normal
ignition timing.
ORANGE/STAGE-1
YELLOW/STAGE-2
BROWN/STAGE-3
EXTERNAL
RPM CONTROL
THE HYFIRE® VII PRO
CD IGNITION CONTROL
IS SHOWN FOR
ILLUSTRATION
PURPOSES. THE
HYFIRE® V IGNITION
CONTROL CONNECTS
IN THE SAME MANNER.
TACH
12V
BLACK
WHITE
MAGNETIC PICKUP POINTS +12V COIL
– + – +
LIMITER STATUS
SET ERROR
RPM LIMITER
PURPLE
GREEN
RED
GREEN (NOT USED)
MAGNETIC PICKUP
CONNECTOR
12V / IGNITION
SWITCH
IGNITION BALLAST
RESISTOR
(NOT USED)
PART NO.
618-3
3-STAGE
HIGH SPEED
RETARD
MALLORY
PROMASTER
®
COIL
PART NP. 28880
0
9 8
MAGNETIC PICKUP/CRANK TRIGGER COLOR CODES
PICKUP PICKUP
MAGNETIC PICKUP DISTRIBUTOR OR CRANK TRIGGER MAG+ MAG–
MALLORY BILLET COMPETITION DISTRIBUTOR SERIES NOS. 81 AND 84 ORANGE PURPLE
MALLORY COMP 9000® SERIES NOS 96-99 ORANGE PURPLE
MALLORY CRANK TRIGGER OR WIRE HARNESS PART NO. 29787 PURPLE GREEN
MALLORY DISTRIBUTOR WIRE HARNESS PART NO. 29788 ORANGE PURPLE
MALLORY HARNESS PART NO. 29040 RED BLACK
MSD
TM
CRANK TRIGGER OR WIRE HARNESS PART NOS. 8859 OR 8860 PURPLE GREEN
MSD
TM
CRANK TRIGGER (OLD STYLE) ORANGE BLACK
MSD
TM
DISTRIBUTOR ORANGE PURPLE
MOROSOTMCRANK TRIGGER BLACK WHITE
MOROSOTMDISTRIBUTOR ORANGE PURPLE
ACCEL® CRANK TRIGGER BLACK WHITE
CHRYSLER ELECTRONIC DISTRIBUTOR (NON-COMPUTER) ORANGE BLACK
FORD DURASPARK DISTRIBUTOR (NON-COMPUTER) ORANGE PURPLE
GM/DELCO HEI DISTRIBUTOR (NON-COMPUTER) WHITE GREEN
HYFIRE® VII PRO CD
IGNITION CONTROL
MALLORY IGNITION www.mrgasket.com
Page 4
4
Each retard circuit activates when
connected to a switched 12-volt source
and switched “ON.” Many types of
switches can be used such as a dash
mounted toggle switch, a push button
switch on the steering wheel (such
as a nitrous system switch), a switch on
the transmission shifter or an RPM
activated switch. It is not necessary to
switch “OFF” a previous stage for a
succeeding stage to override the previous stage. When all 12-volt sources for
the retard circuits are switched “OFF,”
the retard circuits revert to normal
ignition timing.
ORANGE/STAGE-1
YELLOW/STAGE-2
BROWN/STAGE-3
EXTERNAL
RPM CONTROL
THE HYFIRE® VII PRO
CD IGNITION CONTROL
IS SHOWN FOR
ILLUSTRATION
PURPOSES. THE
HYFIRE® V IGNITION
CONTROL CONNECTS
IN THE SAME MANNER.
TACH
12V
BLACK
WHITE
MAGNETIC PICKUP POINTS +12V COIL
– + – +
LIMITER STATUS
SET ERROR
RPM LIMITER
PURPLE
GREEN
BROWN
GREEN
GREEN
RED
RED
MAGNETIC PICKUP
CONNECTOR
(NOT USED)
IGNITION
MODULE
FEMALE
CONNECTOR
12V / IGNITION
SWITCH
IGNITION BALLAST
RESISTOR
(NOT USED)
PART NO.
618-3
3-STAGE
HIGH SPEED
RETARD
MALLORY
PROMASTER
®
COIL
PART NP. 28880
0
9 8
HYFIRE® VII PRO CD
IGNITION CONTROL

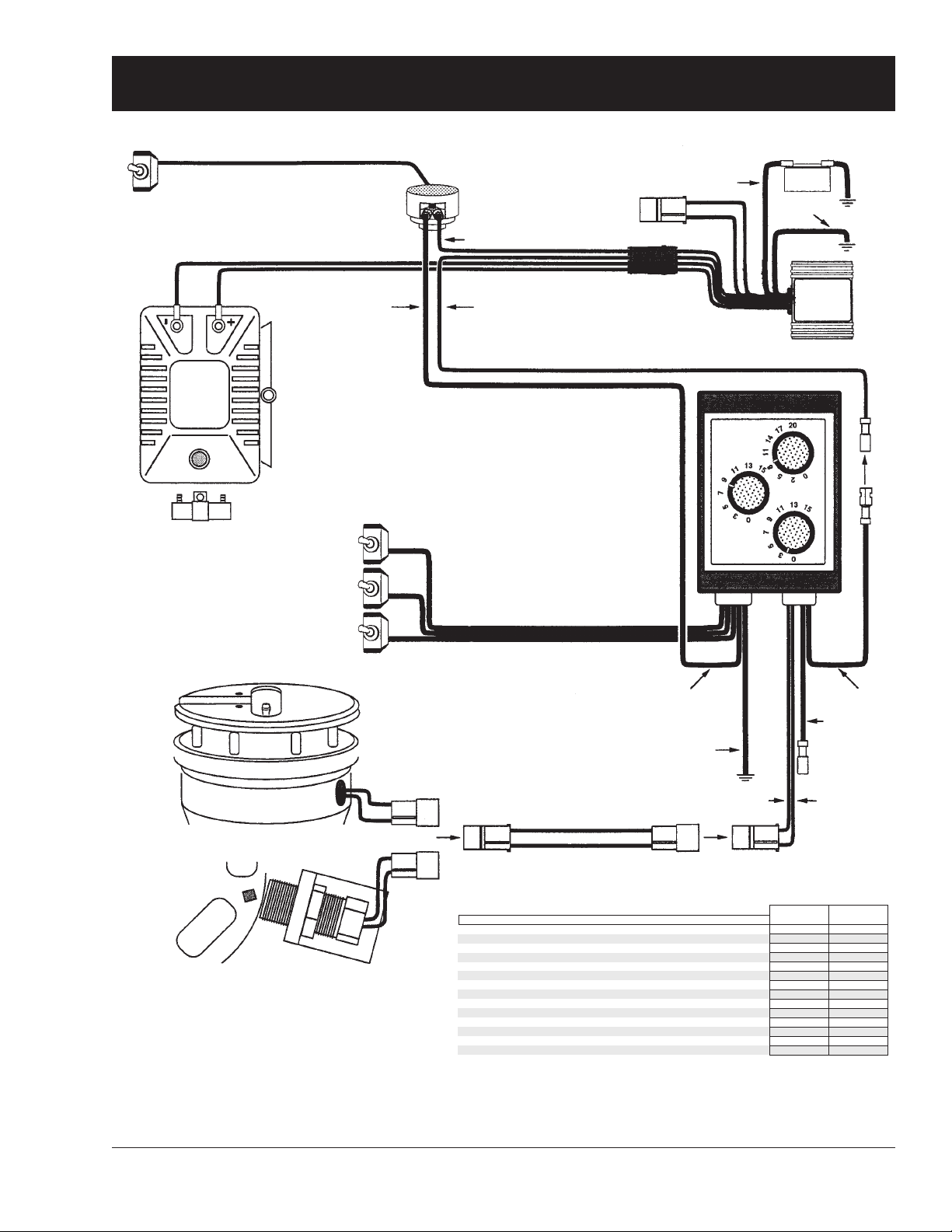

FIGURE 2: HYFIRE® VII IGNITION CONTROL; MALLORY UNILITE® DISTRIBUTOR,
MAGNETIC BREAKERLESS IGNITION DISTRIBUTOR OR ELECTRONIC ADVANCE DISTRIBUTOR
www.mrgasket.com MALLORY IGNITION
Page 5
5
Each retard circuit activates when
connected to a switched 12-volt source
and switched “ON.” Many types of
switches can be used such as a dash
mounted toggle switch, a push button
switch on the steering wheel (such
as a nitrous system switch), a switch on
the transmission shifter or an RPM
activated switch. It is not necessary to
switch “OFF” a previous stage for a
succeeding stage to override the previous stage. When all 12-volt sources for
the retard circuits are switched “OFF,”
the retard circuits revert to normal
ignition timing.
ORANGE/STAGE-1
YELLOW/STAGE-2
BROWN/STAGE-3
GREEN (NOT USED)
WHITE
RED
RED
BLACK
YELLOW
BLACK
12V / IGNITION SWITCH
RED
GREEN
RING TERMINAL
CONNECTOR
PART NO. 450
MAGNETIC PICKUP
CONNECTOR
(NOT USED)
MAGNETIC PICKUP
CONNECTOR
HYFIRE®
IGNITION
SYSTEM
(+) (–)
12V/BATTERY
GREEN
(MAG–)
PURPLE
(MAG+)
BLACK
RED
IGNITION BALLAST
RESISTOR
(NOT USED)
MALLORY
PROMASTER
®
COIL
PART NP. 28880

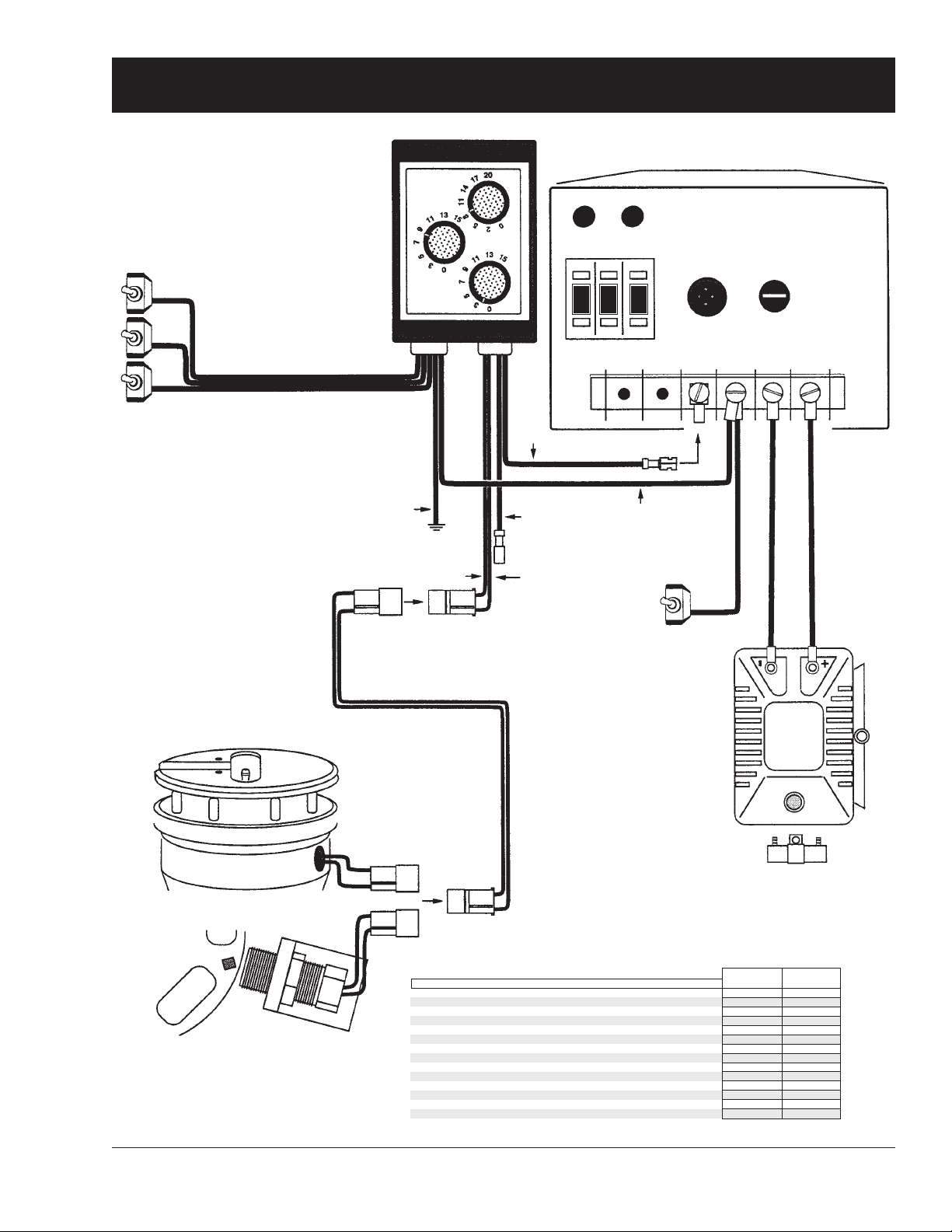

FIGURE 3: HYFIRE® IA, IIA, IIIA, IV/A-C, CD/IS AND SD IGNITION CONTROL;
MAGNETIC PICKUP DISTRIBUTOR OR CRANK TRIGGER
12V
PART NO.
618-3
3-STAGE
HIGH SPEED
RETARD
MAGNETIC PICKUP/CRANK TRIGGER COLOR CODES
PICKUP PICKUP
MAGNETIC PICKUP DISTRIBUTOR OR CRANK TRIGGER MAG+ MAG–
MALLORY BILLET COMPETITION DISTRIBUTOR SERIES NOS. 81 AND 84 ORANGE PURPLE
MALLORY COMP 9000® SERIES NOS 96-99 ORANGE PURPLE
MALLORY CRANK TRIGGER OR WIRE HARNESS PART NO. 29787 PURPLE GREEN
MALLORY DISTRIBUTOR WIRE HARNESS PART NO. 29788 ORANGE PURPLE
MALLORY HARNESS PART NO. 29040 RED BLACK
MSD
TM
CRANK TRIGGER OR WIRE HARNESS PART NOS. 8859 OR 8860 PURPLE GREEN
MSD
TM
CRANK TRIGGER (OLD STYLE) ORANGE BLACK
MSD
TM
DISTRIBUTOR ORANGE PURPLE
MOROSOTMCRANK TRIGGER BLACK WHITE
MOROSOTMDISTRIBUTOR ORANGE PURPLE
ACCEL® CRANK TRIGGER BLACK WHITE
CHRYSLER ELECTRONIC DISTRIBUTOR (NON-COMPUTER) ORANGE BLACK
FORD DURASPARK DISTRIBUTOR (NON-COMPUTER) ORANGE PURPLE
GM/DELCO HEI DISTRIBUTOR (NON-COMPUTER) WHITE GREEN
MALLORY IGNITION www.mrgasket.com
Page 6
6
FORM 1026
(REV. C) 06/03
Made in U.S.A.
Printed in U.S.A.
MALLORY IS A DIVISION OF THE MR. GASKET PERFORMANCE GROUP
10601 MEMPHIS AVE. #12, CLEVELAND, OH 44144
216.688.8300 FAX 216.688.8306
Each retard circuit activates when
connected to a switched 12-volt source
and switched “ON.” Many types of
switches can be used such as a dash
mounted toggle switch, a push button
switch on the steering wheel (such
as a nitrous system switch), a switch on
the transmission shifter or an RPM
activated switch. It is not necessary to
switch “OFF” a previous stage for a
succeeding stage to override the previous stage. When all 12-volt sources for
the retard circuits are switched “OFF,”
the retard circuits revert to normal
ignition timing.
ORANGE/STAGE-1
YELLOW/STAGE-2
BROWN/STAGE-3
WHITE
RED
RED
BLACK
YELLOW
BLACK
GREEN
RING TERMINAL
CONNECTOR
PART NO. 450
MAGNETIC PICKUP
CONNECTOR
(NOT USED)
MAGNETIC PICKUP
CONNECTOR
(NOT USED)
HYFIRE®
IGNITION
SYSTEM
(+) (–)
12V/BATTERY
GREEN
GREEN
GREEN
BROWN
RED
PURPLE
BLACK
RED
IGNITION BALLAST
RESISTOR
12V / IGNITION
SWITCH
MALLORY
PROMASTER
®
COIL
PART NP. 28880
12V
PART NO.
618-3
3-STAGE
HIGH SPEED
RETARD

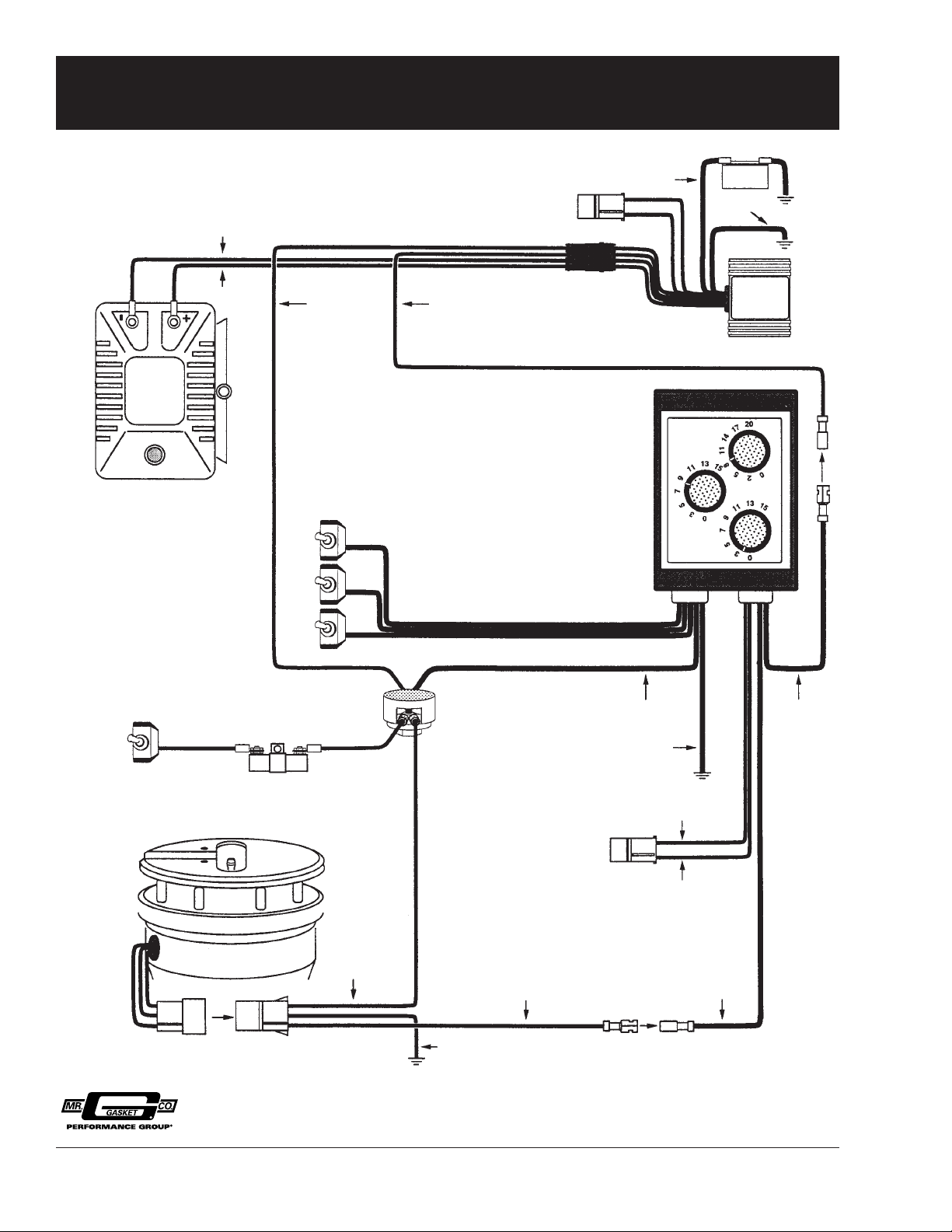

FIGURE 4: HYFIRE® IA, IIA, IIIA, IV/A-C, CD/IS AND SD IGNITION CONTROL;
MALLORY UNILITE®DISTRIBUTOR, MAGNETIC BREAKERLESS IGNITION DISTRIBUTOR OR
ELECTRONIC ADVANCE DISTRIBUTOR
Loading...
