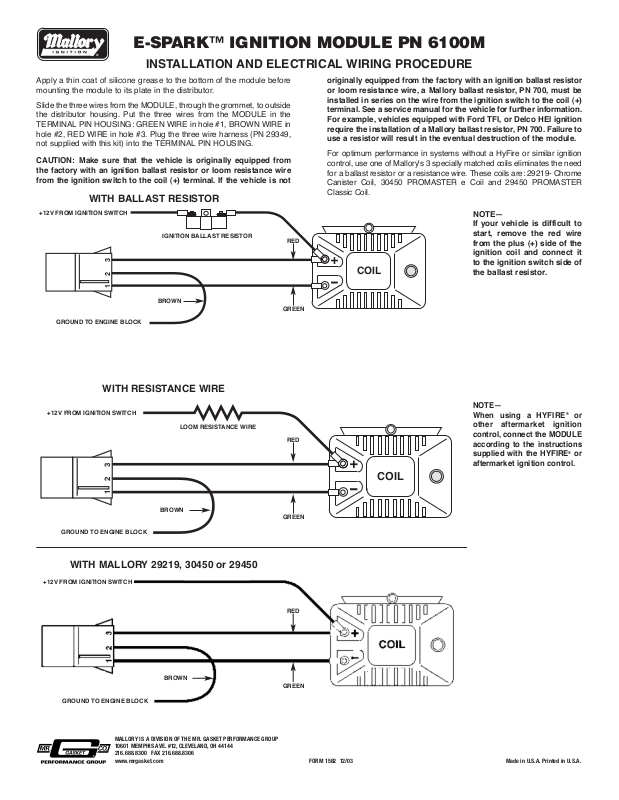

E-SPARK™ IGNITION MODULE PN 6100M
COIL
+
–
1
23
INSTALLATION AND ELECTRICAL WIRING PROCEDURE
Apply a thin coat of silicone grease to the bottom of the module before
mounting the module to its plate in the distributor.
Slide the three wires from the MODULE, through the grommet, to outside
the distributor housing. Put the three wires from the MODULE in the
TERMINAL PIN HOUSING: GREEN WIRE in hole #1, BROWN WIRE in
hole #2, RED WIRE in hole #3. Plug the three wire harness (PN 29349,
not supplied with this kit) into the TERMINAL PIN HOUSING.
CAUTION: Make sure that the vehicle is originally equipped from
the factory with an ignition ballast resistor or loom resistance wire
from the ignition switch to the coil (+) terminal. If the vehicle is not
WITH BALLAST RESISTOR
+12V FROM IGNITION SWITCH
IGNITION BALLAST RESISTOR
RED
originally equipped from the factory with an ignition ballast resistor
or loom resistance wire, a Mallory ballast resistor, PN 700, must be
installed in series on the wire from the ignition switch to the coil (+)
terminal. See a service manual for the vehicle for further information.
For example, vehicles equipped with Ford TFI, or Delco HEI ignition
require the installation of a Mallory ballast resistor, PN 700. Failure to
use a resistor will result in the eventual destruction of the module.
For optimum performance in systems without a HyFire or similar ignition
control, use one of Mallory's 3 specially matched coils eliminates the need
for a ballast resistor or a resistance wire. These coils are: 29219- Chrome
Canister Coil, 30450 PROMASTER e Coil and 29450 PROMASTER
Classic Coil.
NOTE—
If your vehicle is difficult to
start, remove the red wire
from the plus (+) side of the
ignition coil and connect it
to the ignition switch side of
the ballast resistor.
BROWN
GROUND TO ENGINE BLOCK
WITH RESISTANCE WIRE
+12V FROM IGNITION SWITCH
LOOM RESISTANCE WIRE
23
1
BROWN
GROUND TO ENGINE BLOCK
WITH MALLORY 29219, 30450 or 29450
+12V FROM IGNITION SWITCH
GREEN
RED
GREEN
+
–
COIL
NOTE—
When using a HYFIRE®or
other aftermarket ignition
control, connect the MODULE
according to the instructions
supplied with the HYFIRE
®
or
aftermarket ignition control.
GROUND TO ENGINE BLOCK
MALLORY IS A DIVISION OF THE MR. GASKET PERFORMANCE GROUP
10601 MEMPHIS AVE. #12, CLEVELAND, OH 44144
216.688.8300 FAX 216.688.8306
www.mrgasket.com FORM 1582 12/03 Made in U.S.A. Printed in U.S.A.
BROWN
RED
GREEN
