INSTRUCTION MANUAL MANUEL D'INSTRUCTION MANUAL DE INSTRUCCIONES

Recipro Saw Scie Recipro Sierra Recíproca

JR3050T

DOUBLE INSULATION DOUBLE ISOLATION DOBLE AISLAMIENTO

005783

ENGLISH

SPECIFICATIONS

Model JR3050T

Length of stroke 28 mm (1-1/8")

Max. cutting capacities

Strokes per minute 0 - 2,800/min.

Overall length 452 mm (17-4/5")

• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.

• Specifications may differ from country to country.

• Weight according to EPTA-Procedure 01/2003

Net weight 3.3 kg (7.3 lbs)

GENERAL SAFETY RULES

WARNING! Read all instructions. Failure to follow all

instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

SAVE THESE INSTRUCTIONS.

Work area safety

1. Keep work area clean and well lit. Cluttered and

dark areas invite accidents.

2. Do not operate power tools in explosive

atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools

create sparks which may ignite the dust or fumes.

3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

4. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will

reduce risk of electric shock.

5. Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of

electric shock if your body is earthed or grounded.

6. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

7. Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords

increase the risk of electric shock.

Pipe 130 mm (5-1/8")

Wood 255 mm (10")

GEA001-3

8. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

Personal Safety

9. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while

operating power tools may result in serious personal injury.

10. Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

11. Avoid accidental starting. Ensure the switch is in the off-position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

12. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

13. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

14. Dress properly. Do not wear loose clothing or

jewellery. Keep your hair, clothing, and gloves away from moving parts. Loose clothes,

jewellery or long hair can be caught in moving parts.

15. If devices are provided for the connection of

dust extraction and collection facilities, ensure these are connected and properly used.

Use of these devices can reduce dust-related hazards.

Power tool use and care

16. Do not force the power tool. Use the correct power tool for your application. The correct

power tool will do the job better and safer at the rate for which it was designed.

17. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

18. Disconnect the plug from the power source

and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such

preventive safety measures reduce the risk of starting the power tool accidentally.

19. Store idle power tools out of the reach of

children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are

dangerous in the hands of untrained users.

20. Maintain power tools. Check for misalignment

or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents

are caused by poorly maintained power tools.

21. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

22. Use the power tool, accessories and tool bits

etc. in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use

of the power tool for operations different from those intended could result in a hazardous situation.

Service

23. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power

tool is maintained.

24. Follow instruction for lubricating and

changing accessories.

25. Keep handles dry, clean and free from oil and grease.

GEB008-2

SPECIFIC SAFETY RULES

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to recipro saw safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

1. Hold power tools by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Contact with a "live" wire

will make exposed metal parts of the tool "live" and shock the operator.

2. Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

3. Always use safety glasses or goggles.

Ordinary eye or sun glasses are NOT safety glasses.

4. Avoid cutting nails. Inspect workpiece for any nails and remove them before operation.

5. Do not cut oversize workpiece.

6. Check for the proper clearance beyond the

workpiece before cutting so that the blade will not strike the floor, workbench, etc.

7. Hold the tool firmly.

8. Make sure the blade is not contacting the

workpiece before the switch is turned on.

9. Keep hands away from moving parts.

10. Do not leave the tool running. Operate the tool

only when hand-held.

11. Always switch off and wait for the blade to come to a complete stop before removing the blade from the workpiece.

12. Do not touch the blade or the workpiece immediately after operation; they may be extremely hot and could burn your skin.

13. Do not operate the tool at no-load unnecessarily.

14. Always use the correct dust mask/respirator for the material and application you are working with.

15. Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation and skin contact. Follow material supplier safety data.

SAVE THESE INSTRUCTIONS.

WARNING:

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

USD201-2

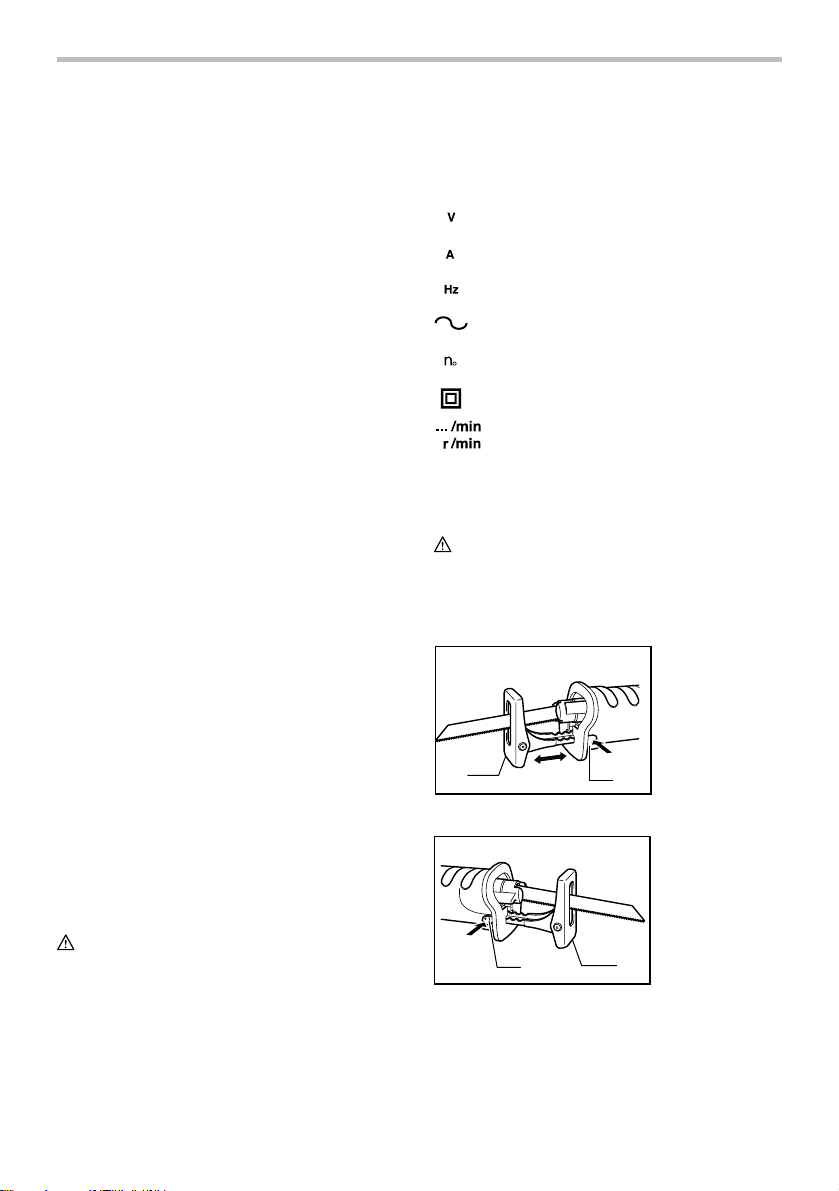

Symbols

The followings show the symbols used for tool.

･ volts

･ amperes

･ hertz

･ alternating current

･ no load speed

･ Class II Construction

･ revolutions or reciprocation per minute

FUNCTIONAL DESCRIPTION

CAUTION:

• Always be sure that the tool is switched off and

unplugged before adjusting or checking function on the tool.

Adjusting the shoe

1. Shoe

2. Shoe button

005784

005785

When the blade loses its cutting efficiency in one place along its cutting edge, reposition the shoe to utilize a sharp, unused portion of its cutting edge. This will help to lengthen the life of the blade. To reposition the shoe, push the shoe button in the "A" direction with a click and reposition as shown in the figure which allows you to make five-way adjustment. To secure the shoe, push the

1. Shoe button

2. Shoe

shoe button in the "B" direction with a click.

Switch action

1. Switch trigger

2. Lock button

005786

CAUTION:

• Before plugging in the tool, always check to see

that the switch trigger actuates properly and returns to the "OFF" position when released.

• Switch can be locked in "ON" position for ease of

operator comfort during extended use. Apply caution when locking tool in "ON" position and

maintain firm grasp on tool. To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop. For continuous operation, pull the switch trigger and then push in the lock button. To stop the tool from the locked position, pull the switch trigger fully, then release it.

ASSEMBLY

CAUTION:

• Always be sure that the tool is switched off and

unplugged before carrying out any work on the

tool.

Installing or removing the saw blade

CAUTION:

• Always clean out all chips or foreign matter

adhering to the blade, blade clamp and/or slider.

Failure to do so may cause insufficient tightening

of the blade, resulting in a serious injury. To install the saw blade, always make sure that the blade clamp lever is in released position insulation cover before inserting the saw blade. If the blade clamp lever is in fixed position, rotate the blade clamp lever in the direction of the arrow so that it can be locked at the released positon

on the

1. Blade clamp sleeve

2. Released position

3. Fixed position

005787

Insert the saw blade into the blade clamp as far as it will go. The blade clamp lever rotates and the saw blade is fixed. Make sure that the saw blade cannot be extracted even though you try to pull it out.

005788

1. Blade

NOTE:

• If you do not insert the saw blade deep enough, the

saw blade may be ejected unexpectedly during

operation. This can be extremely dangerous. If the lever is positioned inside the tool, switch on the tool just a second to let the blade out as shown in the figure. Switch off and unplug the tool from the mains. To remove the saw blade, rotate the blade clamp lever in the direction of the arrow fully. The saw blade is removed and the blade clamp lever is fixed at the released position

1. Blade clamp lever

006665

NOTE:

• Keep hands and fingers away from the lever during

the switching operation. Failure to do so may cause personal injuries.

• If you remove the saw blade without rotating the

blade clamp lever fully, the lever may not be locked

in the released position

. In this case, rotate the blade clamp lever fully again, then make sure that the blade clamp lever locked at the released position

OPERATION

005790

CAUTION:

• Always press the shoe firmly against the workpiece

during operation. If the shoe is held away from the workpiece during operation, strong vibration and/or twisting will be produced, causing the blade to snap dangerously.

• Always wear gloves to protect your hands from hot

flying chips when cutting metal.

• Be sure to always wear suitable eye protection

which conforms with current national standards.

• Always use a suitable coolant (cutting oil) when

cutting metal. Failure to do so will cause premature blade wear.

Press the shoe firmly against the workpiece. Do not allow the tool to bounce. Bring the blade into light contact with the workpiece. First, make a pilot groove using a slower speed. Then use a faster speed to continue cutting.

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and

unplugged before attempting to perform inspection or maintenance.

Replacing carbon brushes

1. Limit mark

001145

Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes. Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps.

1. Brush holder

005791

cap

2. Screwdriver

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

ACCESSORIES

CAUTION:

• These accessories or attachments are

recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or

attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Recipro saw blades

• Plastic carrying case

MAKITA LIMITED ONE YEAR WARRANTY

Warranty Policy

Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one year period, return the COMPLETE tool, freight prepaid, to one of Makita’s Factory or Authorized Service Centers. If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at our option, replace) without charge.

This Warranty does not apply where:

repairs have been made or attempted by others: repairs are required because of normal wear and tear: the tool has been abused, misused or improperly maintained: alterations have been made to the tool.

IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PRODUCT. THIS DISCLAIMER APPLIES BOTH DURING AND AFTER THE TERM OF THIS WARRANTY. MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF "MERCHANTABILITY" AND "FITNESS FOR A SPECIFIC PURPOSE," AFTER THE ONE YEAR TERM OF THIS WARRANTY. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

EN0006-1
