Makita CC301DZ, CC301DSYE User Manual

05 - 2016

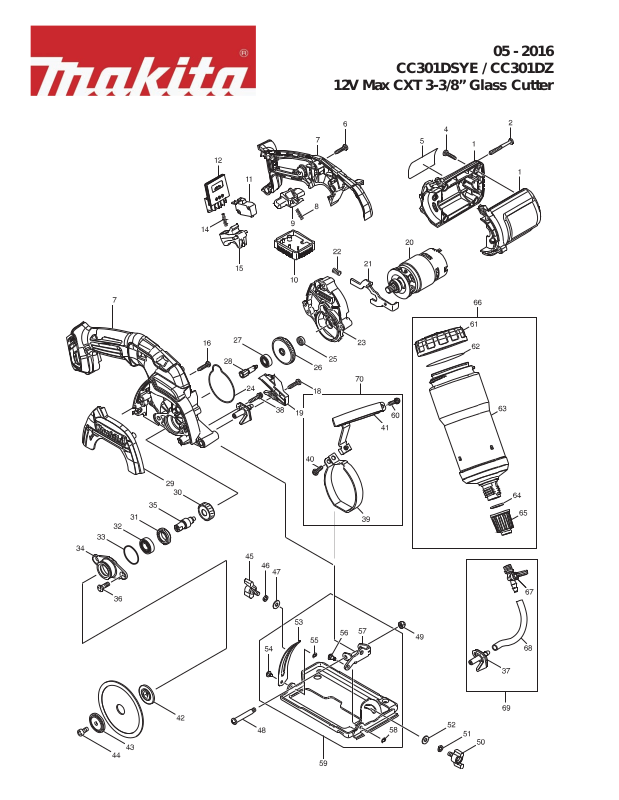

CC301DSYE / CC301DZ

12V Max CXT 3-3/8” Glass Cutter

Item No. Type Sub Part No. Description Qty Unit

1 183E38-1 MOTOR HOUSING SET 1 SET

54 268004-0 PIN 4 1 PC.

1

INC.

809N93-6 CAUTION LABEL 1 PC.
2 266560-4 TAPPING SCREW 4X40 3 PC.
4 265995-6 TAPPING SCREW 4X18 4 PC.
5 852H02-8 NAME PLATE F/CC301D 1 PC.
6 265995-6 TAPPING SCREW 4X18 6 PC.
7 183D87-2 HANDLE SET 1 SET

7
7
7

INC. 263002-9 RUBBER PIN 4 2 PC.
INC. 931102-0 HEX. NUT M4 1 PC.
INC.

931202-6 HEX. NUT M5 3 PC.
8 231469-9 COMPRESSION SPRING 4 1 PC.
9 419664-3 LOCK OFF LEVER 1 PC.
10 632F84-2 CONTROLLER UNIT 1 PC.
11 650577-1 SWITCH SD-006-BB2AA-AA 1 PC.
12 644813-5 TERMINAL 1 PC.
14 231469-9 COMPRESSION SPRING 4 1 PC.
15 419665-1 SWITCH LEVER 1 PC.
16 265995-6 TAPPING SCREW 4X18 2 PC.
18 265995-6 TAPPING SCREW 4X18 1 PC.
19 452234-5 DUCT 1 PC.
20 629885-1 DC MOTOR 1 PC.
21 346337-4 SHAFT LOCK 1 PC.
22 233117-6 COMPRESSION SPRING 6 1 PC.
23 140625-9 GEAR HOUSING COMPLETE 1 PC.

23

24 424358-7 PACKING 1

INC. 213325-5 O RING 19 1 PC.

PC.
25 210036-3 BALL BEARING 604ZZ 1 PC.
26 227737-6 HELICAL GEAR 47 1 PC.
27 210028-2 BALL BEARING 606ZZ 1 PC.
28 227735-0 HELICAL GEAR 9B 1 PC.
29 456906-4 BLADE COVER 1 PC.
30 227736-8 HELICAL GEAR 28 1 PC.
31 285847-5 BEARING RETAINER 14-23 1 PC.
32 210069-8 BALL BEARING 6900DDW 1 PC.
33 213435-8 O RING 26 1 PC.
34 318660-7 BEARING BOX 1 PC.
35 325983-6 SPINDLE 1 PC.
36 265034-2 + COUNTERSUNK HEAD SCREW M5X16 2 PC.
37 453555-8 NOZZLE 1 PC.
38 911138-5 PAN HEAD SCREW M4X20 1 PC.
39 346578-2 BAND B 1 PC.
40 911138-5 PAN HEAD SCREW M4X20 1 PC.
41 346579-0 TANK HOLDER 1 PC.
42 224435-3 INNER FLANGE 28 1 PC.
43 224177-9 OUTER FLANGE 28 1 PC.
44 922212-4 HEX. SOCKET HEAD BOLT M5X12 1 PC.
45 265760-3 THUMB SCREW M5X10 1 PC.
46 942101-7 SPRING WASHER 5 1 PC.
47 941101-4 FLAT WASHER 5 1 PC.
48 265056-2 + PAN HEAD SCREW Q5 1 PC.
49 252103-8 HEX. LOCK NUT M5-8 1 PC.
50 265760-3 THUMB SCREW M5X10 1 PC.
51 942101-7 SPRING WASHER 5

1 PC.
52 941101-4 FLAT WASHER 5 1 PC.
53 346587-1 DEPTH GUIDE 1 PC.

2 MODEL CC301DSYE, CC301DZ (03/05/2016)
