Magma DM10-016NG User Manual

WNER’ S M ANUAL

O

Care and Use Guide
for Del Mar
Natural Gas BBQ Grill
Model DM10-016NG

© Magma Products, Inc.

2003 6/03

IMPORTANT SAFETY WARNINGS

•

Installation of grill must conform to local codes, or in the absence of local codes,
with the National Fuel Gas Code, ANSI #223.1 latest edition, or CAN/CGA - B149.1,
Natural Gas Installation Code or CAN/CGA - B149.2, Propane Installation Code.

AVERTISSEMENT

S’il y a une odeur de gaz:

1. Coupez l’admission de gaz de
l’appariel.

2. Éteindre toute flamme nue.

3. Ouvrir le couvercle.

4. Si l’odeur persiste, appeler
immédiatement votre
compagnie de gaz ou votre
départment des incendies.

AVERTISSEMENT

1. Ne pas entreposer ni utiliser de
l’essence ni d’autres vapeurs ou
liquides inflammables dans le
voisinage de l’appareil, ni de
tout autre appareil.

FOR YOUR SAFETY
If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, immediately
call your gas supplier or your
fire department.

FOR YOUR SAFETY

1. Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.

•

CALIFORNIA PROPOSITION 65 - WARNING - The burning of gas cooking fuel

generates some by-products, which are on the list of substances, which are known by
the State of California to cause cancer or reproductive harm. California law requires
businesses to warn customers of potential exposure to such substances. To minimize
exposure to these substances, always operate this unit according to the use and care
manual, ensuring you provide good ventilation when cooking with gas.

PLEASE READ THE FOLLOWING BEFORE OPERATION

OF YOUR DEL MAR

™

BBQ GRILL.

2

➤

Always place your Del Mar

®

on a solid and
secure base. A patio slab or substantial
deck is recommended.

➤

Do not obstruct the flow of combustion
and ventilation air.

➤

This outdoor cooking gas appliance is not
intended to be installed in or on
recreational vehicles or boats.

➤

Do not install or use the grill within 36" (1
meter) of combustible materials from the
front, back or sides of the grill.

➤

Grill is for outdoor use only. Grill should be
operated only in a well-ventilated area.
Never operate in an enclosed space, garage
or building.

➤

Grill shall not be located under unprotected
overhead (enclosed carport, garage, porch,
patio, etc.) made of combustible
construction.

➤

The outdoor cooking gas appliance and its

individual shutoff valve must be
disconnected from the gas supply piping
system during any pressure testing of that
system at test pressures in excess of 1/2
psi (3.5 kPa).

➤

The outdoor cooking gas appliance must be

isolated from the gas supply piping system
by closing its individual manual shutoff
valve during any pressure testing of the gas
supply piping system at test pressures
equal to or less than 1/2 psi (3.5 kPa).

➤

Never leave any fire unattended. Never
leave children unattended while the
barbecue is in operation or while the
barbecue is cooling after use. Keep all
barbecue utensils out of the reach of
children.

➤

Keep the ventilation openings free and

clear from debris.

➤

Connect only to regulated residential

natural gas supply.

➤

Keep outdoor cooking gas appliance area

clear and free from combustible materials,
gasoline and other flammable vapors and
liquids.

➤

Visually check burner flames upon lighting

the outdoor cooking gas appliance.

➤

Always check the venturi tube and burner

for insects and insect nests. A clogged
tube or burner can lead to a fire beneath
the grill or could adversely effect the
operation of the appliance. Clean the
venturi tube and/or burner with a small
bottle brush or similar devise.

➤

Check all hoses before each use of the

outdoor cooking gas appliance. If there is
evidence of excessive abrasion or wear, or
the hoses are cut, they must be replaced
prior to the outdoor cooking gas appliance
being put into operation.

➤

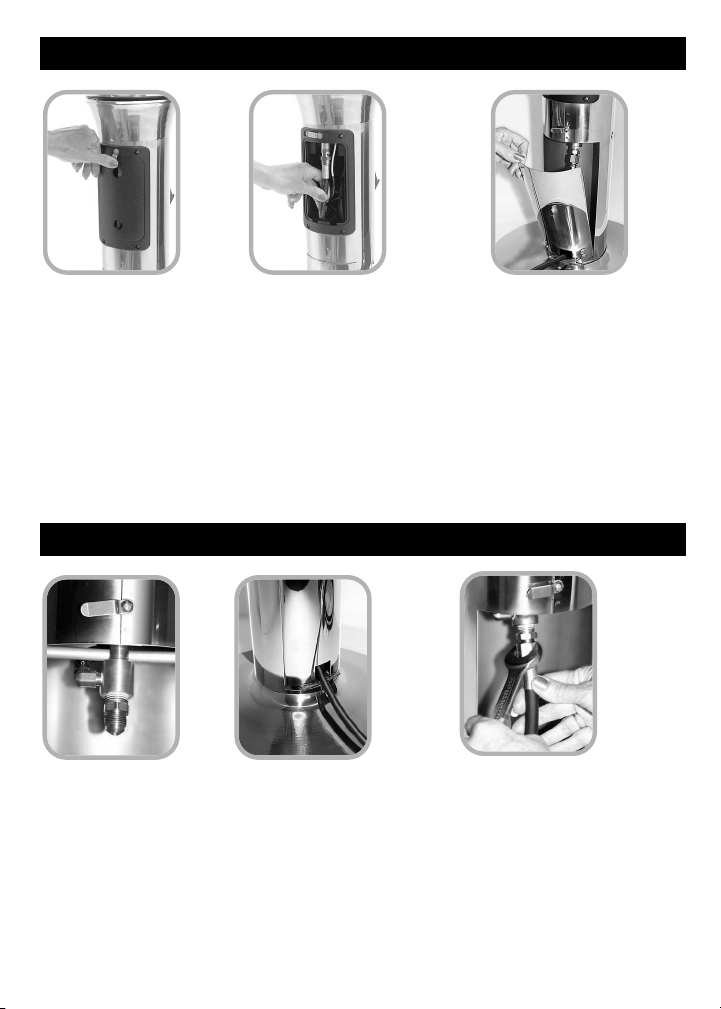

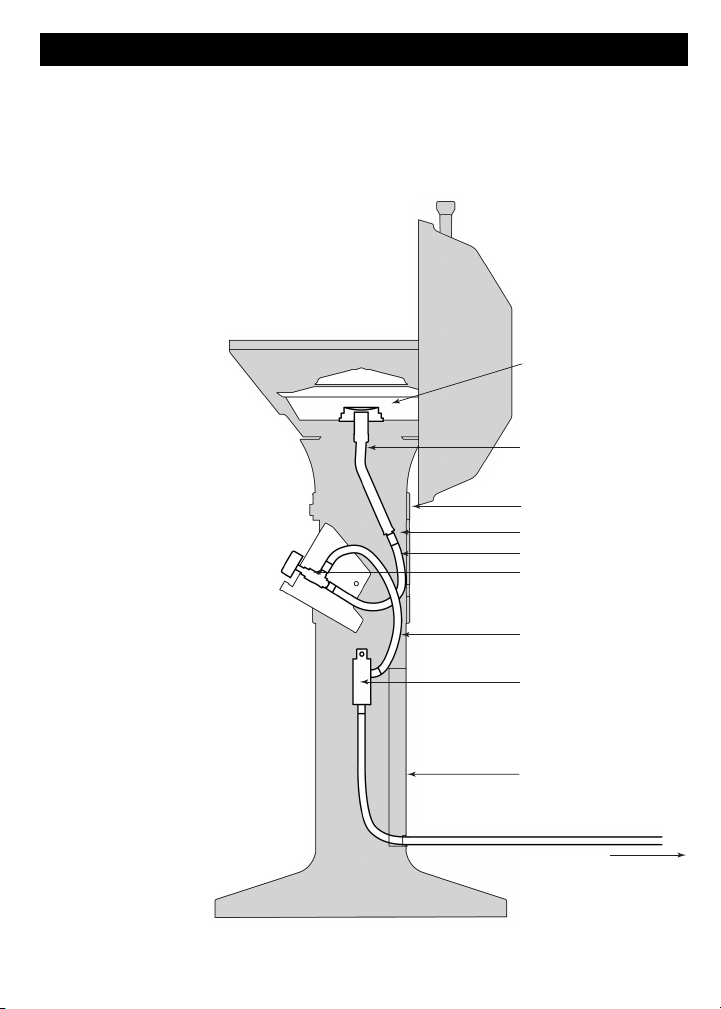

Inspection of the hoses can be achieved

by removing the access panels on the rear
of the barbecue. The top access panel
(inspection panel) allows inspection of the
hoses to and from the valve and to the
venturi tube. The bottom access panel
allows inspection of the hose from the
natural gas supply line.

➤

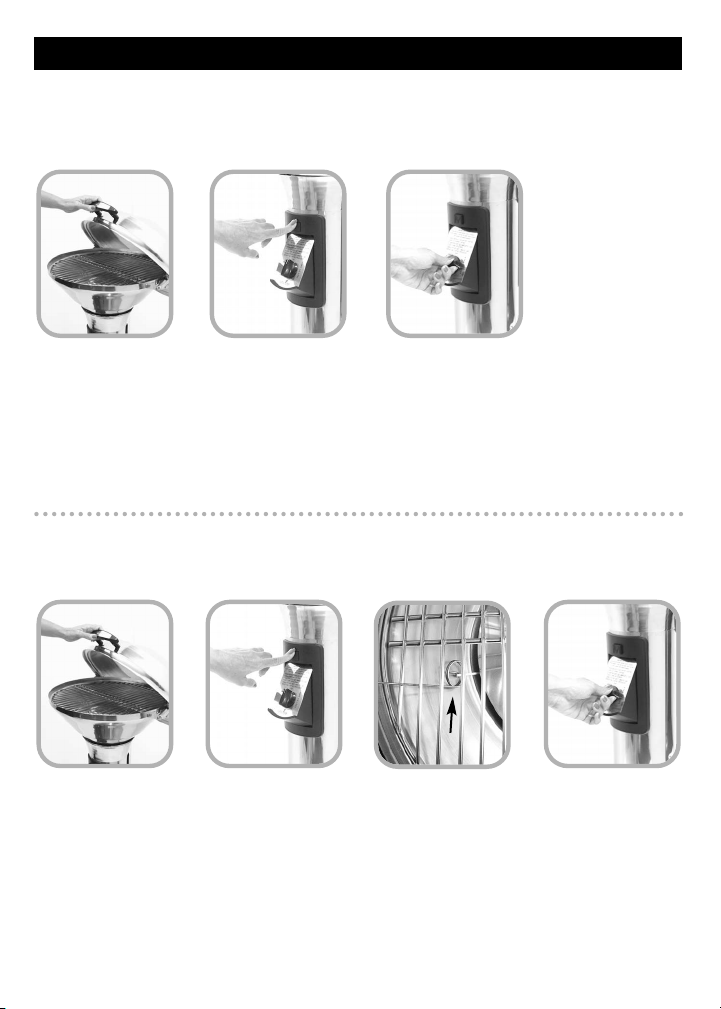

Always light this outdoor cooking gas

appliance with the lid open.

➤

The top cover (lid) should be closed during

the preheat period.

➤

Always use a glove or hot pad when

operating or handling a hot barbecue.

➤

Always turn Barbecue grill off after use.

3

Thank you for purchasing a Magma

®

Del Mar Series Barbeque Grill. We have

used the finest materials in its construction

and with only minimal care, the BBQ and its

components will give you many years of

dependable service. Please take time to read

this Care and Use manual to familiarize

yourself with the safety precautions and

operation of your BBQ. If we can answer

any questions, or be of any assistance

please give us a call at

(800) 86 MAGMA,

or e-mail us at [e-mail]

4

“Hideaway”

control panel

One knob design with
dependable integrated

Piezo igniter

No exposed hoses,

tanks or wires

Stainless steel

grill grate

16” diameter,

201 sq. inches

All stainless steel
construction

(Inside)

Stainless steel

Radiant Burner Plate

and Dome System

permits use of the

Del Mar as a BBQ,

a stove, or as an oven

Double lined
Stainless steel
Bowl-design to
generate even cooking
temperatures across
the grill surface

Stainless steel
double lined lid

“Easy Lift”
hinged lid

Nylon leveling pads

Valve, hose
inspection panel

(Inside)

Stainless steel burner

FEATURES

5

REMOVING PACKING MATERIALS

1. Remove the grill
grate by depressing
the grate at the tabs
and turning the
grate clockwise until
it is free of the
holding clips.

PEELING PROTECTIVE COVER OFF OF HANDLE

1. Use a small

protective

2. Take out the
cardboard packaging
that includes the
radiant plate and
dome.

3. Remove the radiant
plate and dome from
the cardboard
packaging

pointed object
(pen knife, nail
file, etc.) to
carefully lift the
edge of the

covering from
the faceplate.

4. Place the radiant
plate and dome
in to the fire pan

2. Once started,
peel by hand.

6

5. Replace the grill
grate ensuring
that the tabs are
locked into the
holding clips.

6. Remove any tape
that may be
holding the
Hideaway Control
panel in place.

7. Remove any tape
that may be
holding the access
panel in place.

3. Repeat process
for indented logo.
