Magic Chef MCSTCW09W1 User Manual

0.9 Cu. Ft. Portable Washer

User’s Manual

Model MCSTCW09W1

PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR WASHER AND KEEP IT FOR FUTURE REFERENCE.

PRODUCT REGISTRATION

Thank you for purchasing this Magic Chef® product. The first step to protect your new product is to complete the product registration on our website: www.mcappliance.com/register. The benefits of registering your product include the following:

1. Registering your product will allow us to contact you regarding a safety notification or product update.

2. Registering your product will allow for more efficient warranty service processing when warranty service is required.

3. Registering your product could act as your proof of purchase in the event of insurance loss.

Once again, thank you for purchasing this Magic Chef product.

CONTENTS

PRODUCT REGISTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

PARTS AND FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

OPERATION INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

PRECAUTIONS

EXPLANATION OF SYMBOLS

WARNING

Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION

Hazards or unsafe practices which COULD result in minor personal injury or property damage.

WARNING: Read and understand all safety precautions. Failure to follow all instructions described in this user

manual may result in electric shock, fire and/or serious personal injury. The warnings, cautions and instructions discussed in this user manual cannot cover all possible conditions and situations that may occur.

IMPORTANT SAFETY INSTRUCTIONS

1. Read all instructions before using this appliance.

2. Use this appliance only for its intended purpose as described in this user manual.

3. ALWAYS follow the fabric care instructions supplied by the garment manufacturer.

4. DO NOT wash or dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode.

5. DO NOT allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children.

6. If your old appliance is not being used, we recommend that you remove the door or properly dispose your old appliance according to local law ordinances.

7. The loading door of the washer must be closed when the tub is spinning.

8. DO NOT install or store this washer where it will be exposed to the weather or freezing temperatures.

9. Do not operate your appliance when parts are either missing or broken.

10. DO NOT repair or replace any part of the washer or attempt any servicing unless it is specifically recommended in the care and maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.

11. DO NOT add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

12. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more.

13. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for 2 weeks or more, before using a washer or combination washer-dryer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, DO NOT smoke or use an open flame during this time.

14. Keep the area underneath and around your washer free of combustible materials (lint, paper, rags, etc.), gasoline, chemicals and other flammable vapors and liquids.

15. DO NOT place items exposed to cooking oil in your washer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

16. This washer is not designed for mobile installations such as in RVs, aircraft, etc. ; for household use only.

17. Turn off the water faucets and unplug the washer if the machine is going to be left for an extended period of time, such as during vacations.

18. Packaging material can be dangerous for children. There is a risk of suffocation! Keep all packaging away from children.

19. ALWAYS check the inside of the washer for foreign objects before loading laundry. Keep the lid closed when not in use.

WARNING: Power Cord and Socket

1. Plug the power cord into an AC 120V/60Hz wall socket rated at 15amps or higher. Use the socket for this washer only.

2. DO NOT use an extension cord. Sharing a wall socket with other appliance, using a power strip, or extending

the power cord may result in electric shock or fire.

3. DO NOT use an electric transformer. It may result in electric shock or fire.

4. Have this washer installed by a qualified technician or service company. Failing to do so may result in electric shock, fire, explosion, problems with the product, or injury.

5. Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis. Unplug the power plug and clean it with a dry cloth. Failing to do so may result in electric shock or fire.

6. Plug the power plug into the wall socket in the right direction so that the cord runs towards the floor. If you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be damaged and this may result in electric shock or fire.

7. Plug the power plug into the wall socket firmly. DO NOT use a damaged power plug, or loosen wall socket. This may result in electric shock or fire.

8. NEVER unplug your appliance by pulling on its power cord. Always grasp the plug firmly and pull it straight out from the outlet.

9. DO NOT twist or tie the power cord.

10. DO NOT hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the washer. This may result in electric shock or fire.

11. If the power plug or power cord are damaged, contact your nearest service center.

WARNING: GROUNDING INSTRUCTIONS

This appliance must be properly grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a power cord with a three-pronged plug for grounding purposes. This three-pronged plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Installation

1. DO NOT install this washer near a heater or inflammable material.

2. DO NOT install this washer in a humid, oily, or dusty location, or in a location exposed to direct sunlight or water (rain drops).

3. DO NOT install this washer in a location where gas may leak. This may result in electric shock or fire.

4. If the washer is moved to a new location, have it checked and re-installed by a qualified technician. Failing to follow this warning may result in electric shock or fire.

5. DO NOT install on carpet. Install washer on a level and solid floor that can support its weight. Failing to do so may result in abnormal vibrations, noise, or problems with the product.

6. The washer is heavy. Two or more people may be needed to install and move the washer. Failing to do so may result in bodily injuries.

7. Store and install the washer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions. Failing to do so may result in serious leak damage.

8. Position the washer so that the power plug is easily accessible. Failing to do so may result in electric shock or fire due to electric leakage.

9. To reduce the risk of injury to persons, adhere to all industry recommended safety glasses. Failing to follow all of the safety warnings in this manual may result in property damage, or injury to persons.

WARNING: Use and Maintenance

1. If the washer is flooded, immediately turn the power off and contact your nearest service center.

2. If the washer emits a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact your nearest service center. Failing to do so may result in electric shock or fire.

3. In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area immediately. DO NOT turn any appliance or light on or off. Do not use a ventilating fan. A spark may result in an explosion or fire.

4. DO NOT wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol, dry cleaning detergent or other flammable or explosive substances. This may result in electric shock, fire, or an explosion.

5. DO NOT force the washer lid open while the washer is operating (high temperature washing/drying/spinning). Water flowing out of the washer may cause burns or cause the floor to be slippery. This may result in injury. Forcing the lid open can damage the product or may cause serious injury.

6. Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the washer before using it.

7. DO NOT insert your hand or a metal object under the washer. This may result in injury.

8. DO NOT attempt to operate this washer if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug. This may result in electric shock, fire or death.

9. DO NOT touch the power plug with wet hands. This may result in electric shock.

10. DO NOT turn the washer off by unplugging the power plug while the washer is in operation. Plugging the power plug into the wall socket again may cause a spark and result in electric shock or fire.

11. Keep all packaging material well out of the reach of children, as packaging materials can be dangerous to children. To avoid danger of suffocation, keep all plastic bags away from babies and children.

12. DO NOT let children or impaired people use this washer unsupervised. Failing to do so may result in electric shock, burns or injury.

13. DO NOT attempt to repair, disassemble, or modify the washer yourself. DO NOT use any fuse (such as cooper, steel wire, etc.) other than the standard fuse. If you need to repair or reinstall the washer, contact your nearest service center. Failing to do so may result in electric shock, fire, problems with the product, or injury.

14. If any foreign substance such as water enters the washer in any area other than the tub, turn off and unplug the power plug and contact your nearest service center. Failing to do so may result in electric shock or fire.

15. If the water supply hose becomes loose from the faucet and floods the washer, turn off and unplug the power plug. Failing to do so may result in electric shock or fire.

16. DO NOT mix chlorine bleach with ammonia or acids such as vinegar. Incorrect usage can produce poisonous gas, result in serious injury.

17. DO NOT reach into the washer while parts are moving. Before loading, unloading, or adding items, press the START/PAUSE button and allow the basket to come to complete stop before reaching inside. Failing to do so may result in electric shock, serious injury or fire.

18. DO NOT allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. As children grow, teach them the proper, safe use of all appliances. Failing to do so may result in serious injury to persons.

19. Keep laundry products out of children’s reach. Read and follow all product warning labels, failure to do so may result in serious injury.

20. Disconnect this washer from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this washer from the power supply. Failing to do so may result in electric shock, injury or fire.

21. DO NOT directly rinse the machine with water when cleaning.

22. DO NOT use benzene, thinner, or alcohol to clean the washer. This may result in discoloration, deformation, damage, electric shock or fire.

CAUTION: Usage and Maintenance

1. Unplug the power plug when the washer is not being used for long periods of time or during a thunder/ lightning storm. Failing to do so may result in electric shock or fire.

2. Keep hands and foreign objects clear of the lid and latch area when closing the lid. Failing to do so may result in personal injury.

3. If the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc., unplug the power plug and clean the washer with a damp, soft cloth. Failing to do so may result in discoloration, deformation, damage or rust.

4. DO NOT place heavy objects on the lid of the washer as it may crack or break and may cause injury. Use care when utilizing the washer.

5. After a water supply failure or when reconnecting the water supply hose, open the faucet slowly.

6. Open the faucet slowly after a long period of non-use. The air pressure in the water supply hose or the water pipe may result in damage to a part or in water leakage.

7. If a drain error occurs during an operation, check if there is a draining problem. If the washer is used when it is flooded because of a draining problem, it may result in electric shock or fire due to electric leakage.

8. DO NOT insert your hand or a metal object under the washer. This may result in injury.

9. Insert the laundry into the washer completely so that laundry does not get caught in the lid. If laundry gets caught in the lid, it may result in damage to the laundry or the washer, or result in water leakage.

10. Ensure that the faucet is turned off when the washer is not being used. Ensure that the water supply hose connectors are properly tightened. Failing to do so may result in property damage or injury.

11. Open the faucet and check if the water supply hose connector is firmly tightened and that there is no water leaking before using the product. If the water supply hose connectors are loose, it may result in water leakage.

12. DO NOT stand on top of the washer or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the washer. This may result in electric shock, fire, problems with the product, or injury.

13. DO NOT operate the washer with wet hands. This may result in electric shock.

14. DO NOT spray volatile material such as insecticide onto the surface of the washer. As well as being harmful to humans, it may also result in electric shock, fire, or problems with the product.

15. DO NOT place an object that generates an electromagnetic field near the washer. This may result in injury due to a malfunction.

16. Since the water drained during a high temperature wash or drying cycle is hot, DO NOT touch the water. This may result in burns or injury.

17. DO NOT wash, spin, or dry water-proof seats, mats, or clothing. DO NOT wash thick, hard mats even if the washer mark is on the care label. This may result in injury or damage to the washer, walls, floor, or clothing due to abnormal vibrations.

18. DO NOT operate the washer when detergent dispenser is removed. This may result in electric shock or injury due to water leakage.

19. DO NOT insert your hand into the detergent dispenser after opening it. This may result in injury as your hand may be caught.

20. DO NOT place any non-laundry objects, such as shoes, food waste, or animals into the washer. This can cause abnormal vibrations that can damage the washer, and, in the case of pets, cause severe injury or death.

21. DO NOT press the buttons using sharp objects such as pins, knifes, fingernails, etc. This may result in electric shock or injury.

22. DO NOT wash laundry contaminated by oils, creams, or lotions usually found in skincare shops or massage clinics. This may result in the rubber seal becoming deformed and water leakage.

23. Ensure that the water inlet pipe is connected and the tap is opened before washing clothes.

24. DO NOT leave metal objects (safety pins, hair pins, etc.) or bleach in the tub for long periods of time. This may cause the tub to rust. If rust appears on the surface of the tub, apply a neutral cleansing agent to the surface and use a sponge to clean it. NEVER use a metal brush.

25. DO NOT use hot water from water cooling/heating devices. This may result in problems with the washer.

26. DO NOT use natural hand-washing soap in the washer. If it hardens and accumulates inside the washer, it may cause problems with the product, discoloration, rust, or bad odors.

27. DO NOT wash large laundry items such as bedding in the washing net. Failing to do so may result in injury due to abnormal vibrations. Place smaller items, such as lace socks and lingerie in the washing net.

28. DO NOT use hardened detergent. If it accumulates inside the washer, it may result in water leakage.

29. DO NOT wash throw rugs or doormats. If you wash throw rugs or doormats, the sand will accumulate inside the washer. It may result in error such as no draining.

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

SPECIFICATIONS

Figure 1

31.5” (800 mm)

17.7” (450 mm)

Height 31.5” (800 mm) Height with the Lid Opened 41.3" (1050 mm) Width 17.7” (450 mm) Depth 18.1” (460 mm) Weight 44 lbs. (20.0 kg) Capacity 0.9 Cu. Ft. Power Supply 120 V / 60 Hz Rated Power Consumption 2.0 A

18.1” (460 mm)

PARTS AND FEATURES

PRODUCT PARTS

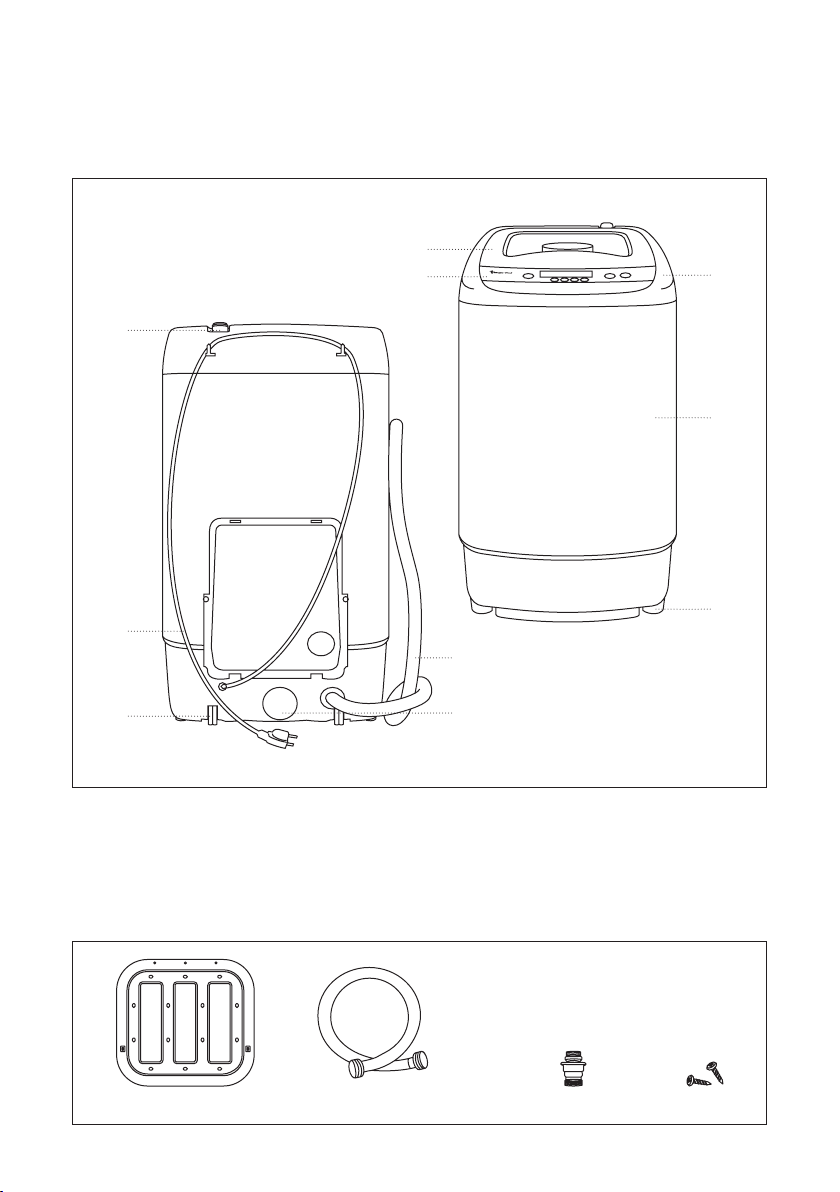

Figure 2

a. Top Lid b. Control Panel c. Frame

ACCESSORIES

Bottom Cover Water Supply Hose Quick Connection Adaptor Screws

d. Cabinet e. Adjustable Leg (1) f. Water Inlet

g. Drain Hose h. Power Supply Line i. Roller (2)

j. Pump Filter

Figure 3

INSTALLATION INSTRUCTIONS

UNPACKING AND REMOVING SHIPPING MATERIALS

1. Remove the box packaging by lifting up and away from the base cushion. (Refer to figure 4.)

2. Open the lid of washer to take out all accessories including protection foam. (Refer to Figure 5.)

WARNING: Packaging materials can be

dangerous to children; Keep all packaging material (plastic bags, polystyrene, etc.) well out of children’s reach. Use of washer with the foam cushion is strictly prohibited.

Packaging Box Protection Foam

LOCATION REQUIREMENTS

Flooring

• For best performance, you must install your washer on a solidly constructed floor. Wood floors may need to be reinforced to minimize vibration and/or unbalanced load situations.

• Carpeting and soft tile surfaces are contributing factors to vibration which can cause your washer to move slightly during the spin cycle.

WARNING: DO NOT install your washer in areas where water may freeze, since your washer will always retain

some water in its water valve, pump, and hose areas. Frozen water can damage the belts, the pump, hoses, and other components. NEVER install on a platform or weakly supported structure.

Electric

• Use 120Volt 60Hz 15 Amps fuse or circuit breaker.

• Individual branch circuit serving only for your washer is recommended

WARNING: NEVER use an extension cord.

Grounding

• Electrical grounding is required for this washer.

• This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk

of electric shock by providing a path of least resistance for electric current.

• This appliance is equipped with a power cord having a three-prong grounding plug for use in a properly installed and grounded outlet.

• The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: An improperly connected equipment-grounding conductor can increase the risk of electrical shock.

Check with a qualified technician if you are not sure whether the appliance is properly grounded. DO NOT modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified

Figure 4 Figure 5

technician. To prevent unnecessary risk of fire, electrical shock or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No.70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance.

WARNING: NEVER connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

Water

• To correctly fill your washer in the proper amount of time, water pressure of 14 to 70psi (100 to 500 kPa) is required.

• Water pressure less than 14psi may cause water valve failure, or may not allow the water valve to shut off completely, or may extend the fill time beyond what your washer controls allow, causing your washer to turn off and alarm error.

• A time limit is built into the controls to prevent flooding in your home if a hose becomes loose.

• The water faucet must be within 4 feet / 122cm of the back of your washer to match the inlet hoses

provided with your washer.

• To avoid the possibility of water damage:

- Have water faucets easily accessible

- Turn off faucets when the washer is not in use.

- Periodically check that there is no leakage from the water inlet hose fittings.

Drain facility

• The recommended height of the standpipe is 35in. or 90cm.

• The drain hose must be routed through the drain hose clip to the standpipe.

• The standpipe must be large enough to accept the outside diameter of the drain hose.

INSTALLATION

Accessories Included

Bottom Cover

Tools Required

Pliers Phillip Screwdriver Level

Figure 6

Water Supply Hose Quick Connection Adaptor Screws

Figure 7

WARNING: Before installing, make sure there

are rubber gaskets inside the fittings at both

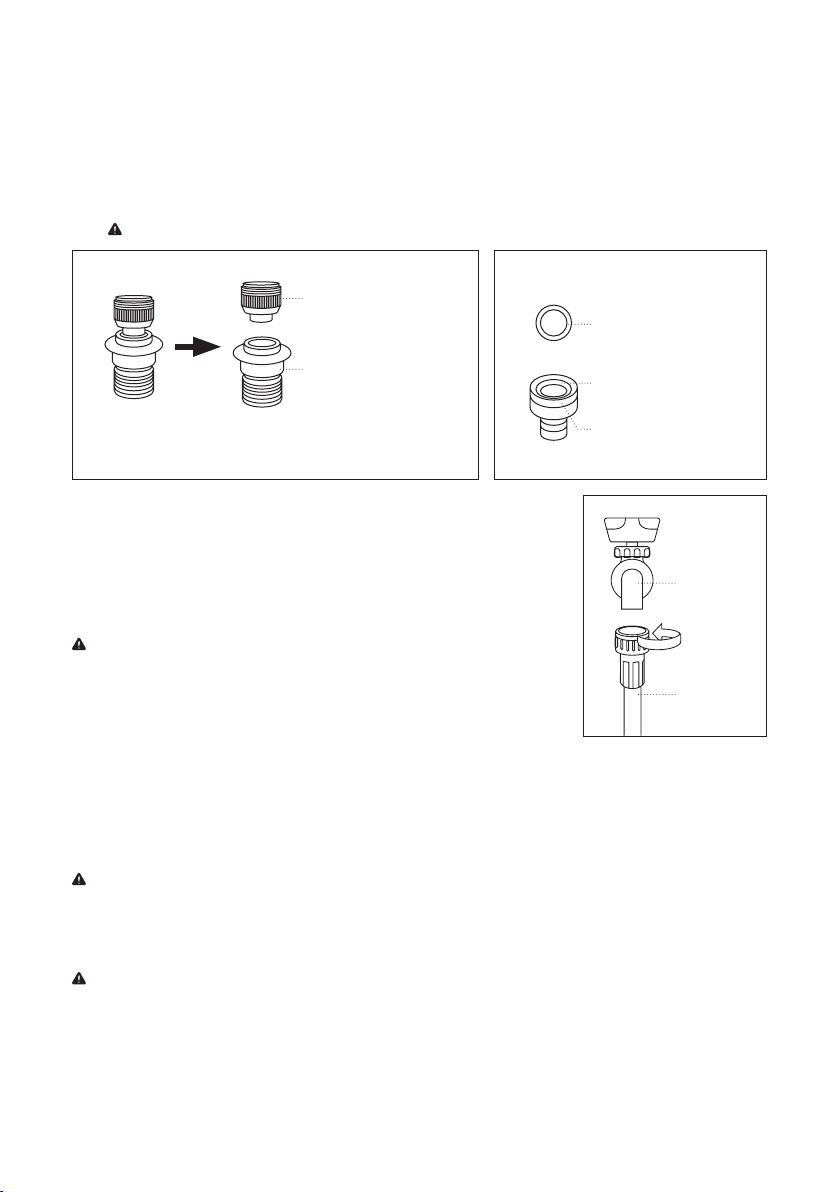

Figure 8

ends of the water supply hoses. (Refer to Figure

8.) If there are no water inlet hoses packed with

the washer or if the hoses are damaged, call 888-775-0202. Installing the water supply hoses without rubber gaskets can cause water leakage. When you initially install the washer, be sure to use new hoses. Failing to do so may result in a water leakage or overflow and may damage your property. If a hose is too short, replace the hose with a longer, high pressure hose.

Step 1: Move your Washer to Selected Position Tilt the unit back onto its rear rollers and push

it forward as shown in the figure to your right. (Refer to Figure 9.) Move the unit to a location as described in the previous Location Requirements section on page 12.

Front of

the Washer

Figure 9

Back of

the Washer

WARNING: Make sure the location has a hard,

level surface without carpeting.

WARNING: There should be no direct sunlight.

60-70°

WARNING: DO NOT expose the unit to freezing

temperatures (under 32° F or 0° C).

Step 2: Install the Bottom Cover

Figure 10

Slide the bottom cover into the slots of the bottom surface and screw in the provided screws. (Refer to Figure 10.)

Bottom Cover

Step 3: Connect the Water Hose

1. The Quick Connection Adaptor is primarily for quick connection to a single faucet, such as a typical kitchen sink, in cases where the washer is stored in a different place than where it is used. Skip this step if you are connecting the washer to a sink with separate hot and cold faucets.

The adaptor consists of two parts that quickly connect or disconnect. One part, the faucet fitting, is for connection to the faucet and the other part, the hose fitting, connects to the cold water hose of the washer. (Refer to Figure 11 and 12 on page 16.)

• Pull back on the white ring to free the faucet fitting from the adaptor for installation into the faucet.

• Screw the end of the cold water hose onto the base of the hose fitting.

• If the faucet has internal screw threads, unscrew the aerator if present from the tip of the faucet.

Then screw the faucet fitting into the faucet. Make sure that the black rubber gasket is on the top of the adaptor before screwing it in.

• If the faucet has external screw threads, remove the gasket from the top of the faucet fitting, and

screw the fitting over the external threads.

• Pull back on the white ring to connect the two parts of the adaptor back together.

NOTE: When connected to a single faucet, be sure to only run cold water washers.

Figure 11

Top Part: Faucet Fitting

Figure 12

Rubber Gasket

Bottom Part: Hose Fitting

Pull down on the white ring

to divide the adaptor into two parts.

2. Connect the ends of the water supply hoses to the COLD water faucet. (Refer to Figure 13.) For convenience, use the Quick Connection Adaptor

Inner Threads for Outer Threaded Faucet

Outer Threads for Inner Threaded Faucet

Figure 13

for connection to the cold water faucet. See instructions for Quick Connection Adaptor Use in Step 1 above.

3. Tighten the fittings by hand until they are snug, and then tighten them an

Cold Water Faucet

additional two-thirds of a turn with a wrench.

WARNING: When you fasten the fittings, DO NOT fasten them too tightly or

apply tape or sealant to the faucets or water supply intakes. This can damage the fittings. After you have connected the water supply hoses to the faucets, ensure

Water Supply Hose

that they are connected securely by pulling the water supply hoses downwards.

4. Place the unconnected ends of the hoses into a bucket and open the faucets connected to the two water supply hoses for 10 or 15 seconds to remove any foreign substances from the hoses. Close the faucets before continuing.

5. Connect the ends of the water supply hoses to the water supply intake connections at the top of the washer.

WARNING: The water hose connected to the COLD faucet must be connected to the cold water supply intake.

6. Tighten the fittings by hand until they are snug, and then tighten them an additional two-thirds of a turn with a wrench.

WARNING: Confirm that the water supply hoses are not twisted or bent. If the hoses are twisted or bent, the

hoses can leak and cause electric shock due to the water leakage. To ensure the correct water usage, connect the COLD water faucets.

7. Turn on the COLD water supplies and check all the water supply intake and connections the faucets for water leaks.

Step 4: Connect the Drain Hose Position the other end of the drain hose. It can be positioned

Figure 14

in three ways. (Refer to Figure 14.) a. Over the edge of a wash basin. Secure the guide to the

side of the basin wall with a hook or to the tap with piece of string to prevent the drain hose from moving.

b. In a standpipe the standpipe must be no shorter than

32 in. (81cm) and no longer than 39 in. (100cm).

c. In a laundry tub. The laundry tub must be no shorter

than 32 in. (81cm) and no higher than 39 in. (100cm).

WARNING: Make sure that the connection between the

drain hose and the wash basin, standpipe or laundry tub is not airtight.

+ 34 hidden pages
