Magic Chef MCSDRY35W User Manual

3.5 Cu. Ft. Compact Dryer

User’s Manual

Model MCSDRY35W

PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR DRYER AND KEEP IT FOR FUTURE REFERENCE.

PRODUCT REGISTRATION

Thank you for purchasing this Magic Chef® product. The first step to protect your new product is to complete the product registration on our website: www.mcappliance.com/register. The benefits of registering your product include the following:

1. Registering your product will allow us to contact you regarding a safety notification or product update.

2. Registering your product will allow for more efficient warranty service processing when warranty service is required.

3. Registering your product could act as your proof of purchase in the event of insurance loss.

Once again, thank you for purchasing this Magic Chef product.

CONTENTS

PRODUCT REGISTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

PARTS AND FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

OPERATION INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

PRECAUTIONS

EXPLANATION OF SYMBOLS

WARNING

Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION

Hazards or unsafe practices which COULD result in minor personal injury.

WARNING: Read and understand all safety precautions. Failure to follow all instructions described in this user

manual may result in electric shock, fire and/or serious personal injury. The warnings, cautions and instructions discussed in this user manual cannot cover all possible conditions and situations that may occur.

READ THIS GUIDE CAREFULLY

The user guide is intended to help you operate and maintain your new appliance properly. Keep it handy to answer your questions. If you do not understand certain aspects or you need additional help, call Magic Chef® Customer Service: 1-888-775-0202. Keep proof of the original purchase date (i.e. sales receipt) with this guide to establish the warranty period.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, the grounding plug reduces the risk of electric shock by providing an escape wire for electric current. This appliance is equipped with a power cord that has a grounding wire with a grounding plug. The plug must be plugged into an electrical outlet that is properly installed and grounded.

This appliance requires a standard 120 Volt, 60 Hz electrical outlet with a 3-prong ground receptacle. To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or dangling.

WARNING: Improper use of the grounding plug and/or outlet can result in a risk of electric shock. Consult a

qualified electrician or serviceman if the grounding instructions are not completely understood, if doubt exists as to whether the appliance is properly grounded, or either:

• If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.

• If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.

WARNING: DO NOT cut or remove the third (ground) prong from the power cord under any circumstances.

3-Prong Plug

3-Prong Receptacle

Figure 1

Receptacle Box Cover

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should

ALWAYS be followed when using electrical appliances. When using electrical appliances, basic safety precautions should be followed, including the following:

1. Read all instructions before using the appliance.

2. Risk of child entrapment and suffocation; NEVER allow children to operate, play with, or crawl inside the appliance.

3. This appliance must be grounded. Connect only to a properly grounded outlet. See the “GROUNDING INSTRUCTIONS” section found on page 4.

4. Install or locate the appliance only in accordance with the provided installation instructions.

5. DO NOT place the dryer in steamy rooms or where the dryer is directly exposed to rain. Moisture may destroy the electrical insulation causing an electrical shock hazard.

6. Use the dryer only for its intended use as described in the user guide. This type of dryer is specifically designed to dry clothes. It is not designed for industrial or laboratory use.

7. As with any appliance, close supervision is necessary when used around children or incapacitated persons.

8. DO NOT operate the dryer if it has a damaged power cord or plug, if it is not working properly, or if it has been damaged or dropped in any manner.

9. The dryer should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair, or adjustment.

10. DO NOT cover or block any openings on the appliance.

11. DO NOT put your hand in the spin basket during operation. The spin basket is rotating at a high speed and the rotating parts may cause injury to your hand.

12. DO NOT immerse the power cord or plug in water.

13. Keep the cord away from all heated surfaces.

14. DO NOT store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

15. When cleaning the surfaces of the door and the frame, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. NEVER clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.

16. This dryer is for indoor use only. DO NOT use outdoors.

17. DO NOT place the appliance or cord near heat sources such as radiators, heaters, air ducts, or direct sunlight.

18. DO NOT run the cord under floor coverings. Arrange the cord away from high traffic areas so it will not be a trip hazard.

19. To disconnect the appliance, turn the appliance off, switch off the power outlet and remove the plug from the power outlet.

20. After turning off the power supply to the dryer, wait at least 2 minutes before turning it on again.

21. DO NOT carry the appliance by the cord or pull to disconnect it from the outlet. To disconnect, grasp the plug and pull.

22. DO NOT excessively bend, stretch, twist, or bind the power cord or place heavy objects on it.

23. It is not recommended to use an extension cord with this product.

24. DO NOT install in a tight fitting cabinet.

25. DO NOT overload the dryer.

26. The door window may be hot after a long drying cycle. Ensure children are kept away from the machine.

27. If the dryer is not wall mounted, place in a flat, firm, dry place. DO NOT place it on any soft material such as foam or plastic.

28. DO NOT use flammable or combustible materials such as gas, petrol, alcohol or lacquer in the dryer.

29. DO NOT use if the power supply cord is damaged.

30. Items will oil on them can ignite spontaneously, especially when exposed to heat sources such as this dryer. Piling, stacking, or storing oil-affected items can prevent heat from escaping and create a fire hazard.

31. If it is unavoidable that fabrics with vegetable oil, cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waves, wax removers or hair care products be placed in the dryer, they should first be washed in hot water with extra detergent. This will reduce, but not eliminate the fire hazard.

32. If the dryer is stopped before the end of the drying cycle, the items inside will be hot.

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

SPECIFICATIONS

23.6” (600 mm)

Figure 2

32.3” (820 mm)

21.5” (545 mm)

Height 32.3” (820 mm) Width 23.6” (600 mm) Depth 21.5” (545 mm) Weight 53 lbs. (24.0 kg) Power Supply 110 V / 60 Hz Capacity 3.5 Cu. Ft. Rated Power 1500 W

* Due to continuing product development, specifications and design may be subject to change without prior notice.

PARTS AND FEATURES

FRONT

The appearance of your model may slightly differ from the illustrations in this manual.

a. Door b. Window c. Control Panel d. Door Gasket e. Drum f. Lint Filter g. Air Intake Shroud

BACK

The appearance of your model may slightly differ from the illustrations in this manual.

a. Dryer Housing b. Back Cover c. Exhaust Vent

Figure 3

d e

Figure 4

INSTALLATION INSTRUCTIONS

LOCATION

1. Examine the dryer after unpacking. Check for damage such as a misaligned door, broken door or dent in the cavity. If any damage is visible, DO NOT install, and notify your dealer immediately.

2. Check to ensure that you have the wall-mounting kit and four (4) legs.

3. Install the dryer on a flat, level surface. If you are going to wall mount your dryer, use the included wallmounting kit.

4. Install the dryer away from direct sunlight; direct sunlight may affect the acrylic coating, plastic and electrical components. The room temperature should not fall below 32°F.

5. Check the ventilation. DO NOT block the air vents, especially when the dryer is installed on a carpeted floor. If the air vents are blocked during operation, the dryer may overheat and eventually fail. For proper ventilation, allow at least 5 inches of space between the dryer top, sides, rear, and adjacent surfaces.

6. Install the dryer away from heating appliances and water taps. Keep the dryer away from heat, steam, or splashing liquids. NEVER splash water onto the control panel. These things can adversely affect the wiring and electrical conduction contacts of the dryer.

7. Check the power supply. a) Check your local power source. The dryer requires a current of approximately 12 Amperes, 110 Volts,

and a 60 Hz grounded outlet.

b) A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or

tripping over a longer cord. Ensure that the dryer does not stand on its power cord.

c) Use of an extension cord is not recommended. If an extension cord is used:

• The marked electrical rating of the cord set or extension cord should be at the very least equal to the electrical rating of the appliance.

• The extension cord must be a grounding type, 3-wire cord.

• A longer cord should be arranged so that it will not drape over the appliance where it can be

pulled on by children or tripped over unintentionally.

d) Plug the dryer into a properly installed receptacle box that is fully grounded. DO NOT under any

circumstances modify, cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center.

INSTALLING THE LEGS

The dryer is shipped with a bag containing the user guide and four (4) legs. It is recommended to screw the legs all the way in. See the illustration to the right to install the legs.

Figure 5

Bottom of Dryer

Leg

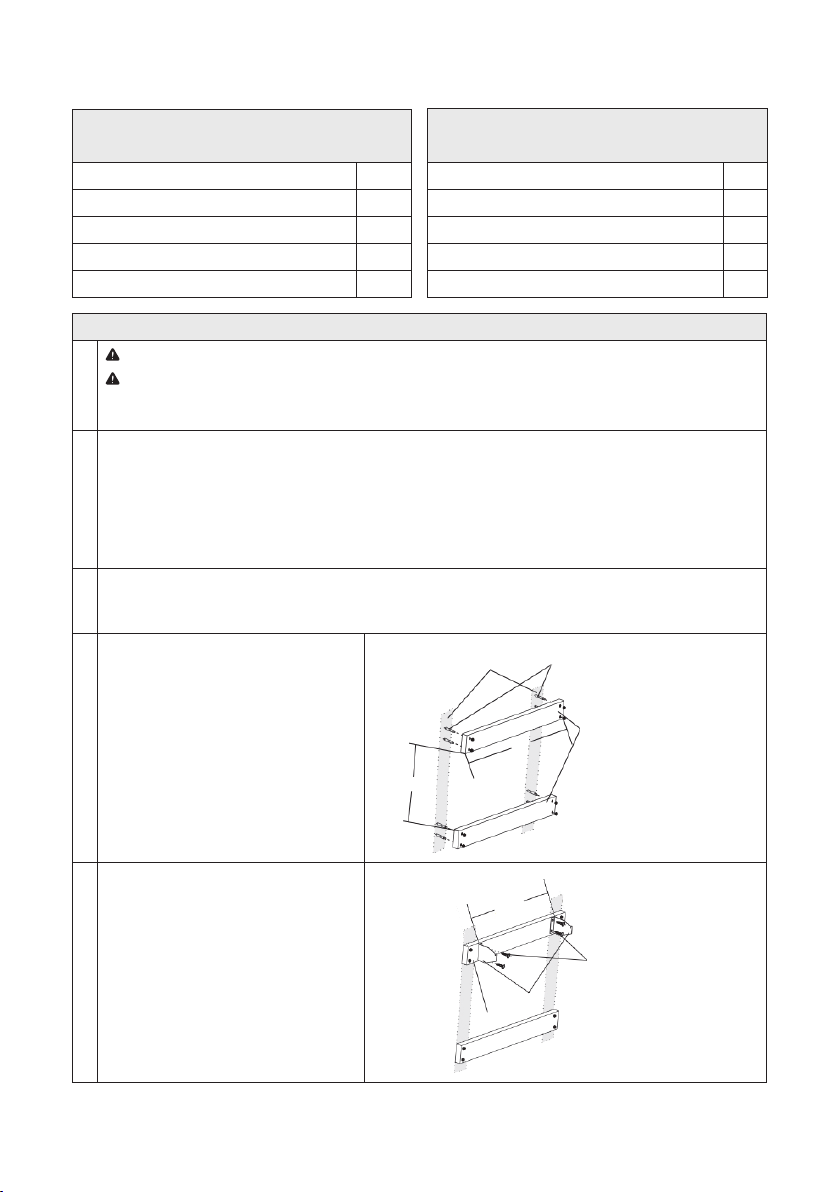

WALL-MOUNTING INSTRUCTIONS

Tools and Parts Required for Plaster

and/or Wood Installation (Not Included)

Drill & 3mm Bit 1 Phillips Head Screwdriver 1 Expanding Wall Anchor Bolts 2" 8 Wooden Slats 22.3" (L) 3.0" (H) x 1.0" (D) 2 Wood Screws (12 mm x 50 mm) 4

Wall-Mounting Instructions

NOTE: It is recommended to complete the following procedure with at least 2 people. NOTE: As wall materials vary, the supplied hardware for fixing to the wall may be inappropriate for your wall type.

Consult your local hardware/home improvement center for suggestions on the necessary hardware for your particular wall type.

Determine the position where you will be installing the mounting hooks.

•Thisdryerisnotdesignedtositontopofyourwashingmachine. •Aminimumof2inchesisrequiredbetweenthetopofthedryerandtheceilingabovetoalloweasyinstallation

and adequate spacing for exhaust. If mounting above a top load washing machine, allow sufficient spacing to open the lid of the washer. In the case of a front loading washer, allow sufficient breathing space.

Although the supplied mounting hooks can be installed directly to the wall using the existing wooden studs, the preferred method of installation is using wooden slats that provide a flat, level installation surface and added stability

to the whole wall installation.

Use two wooden slats (not included) between the studs to mount the hooks. Recommended wooden slat size is 23.0" (L) x 3.0" (H) x 1.0" (D).

When using the wooden slats to install on drywall material, you must use expanding

wall anchor bolts to safely secure the slats to the drywall.

Use four (4) expanding wall anchor bolts per each wooden slat.

Wall-Mounting Hooks 2 1” Phillips Head Screws 4 Plastic Spacers 2 ½” Phillips Flat Head Screws 4 Exhaust Connector 1

21.3”

Wall-Mounting Kit (Includes)

Wall

Expanding Wall Anchor 2.0" (8)

23.0”

Wooden Slats

23.0" (L) x 3.0" (H) x 1.0" (D)

Install the wall-mounting hooks using the four (4) 1" Phillips Head Screws to the top

wooden slat.

22.2”

1" Phillips Head Screws

Mounting Hooks

Wooden Slat

Install the four (4) wood screws to the

bottom wooden slat.

Install the exhaust connector as shown in the illustration using the (3) ½” Phillips round head screws included.

•Fordownwardexhaust,refertoSection1.

•Forupwardexhaust,refertoSection2.

Install the lower wall spacers (included) using the (2) ½” Phillips flat head screws (included).

These spacers are required when installing the unit on the wall to allow the necessary ventilation for efficient operation.

Failure to install the spacers will both reduce the ventilation needed to operate your unit as well as put the appliance in a tilted position on the wall which could present a possible unstable wall installation.

Wood Screws

Section 1

Exhaust Connector

Section 2

Wall

Spacers

½” Phillips Flat Head Screws

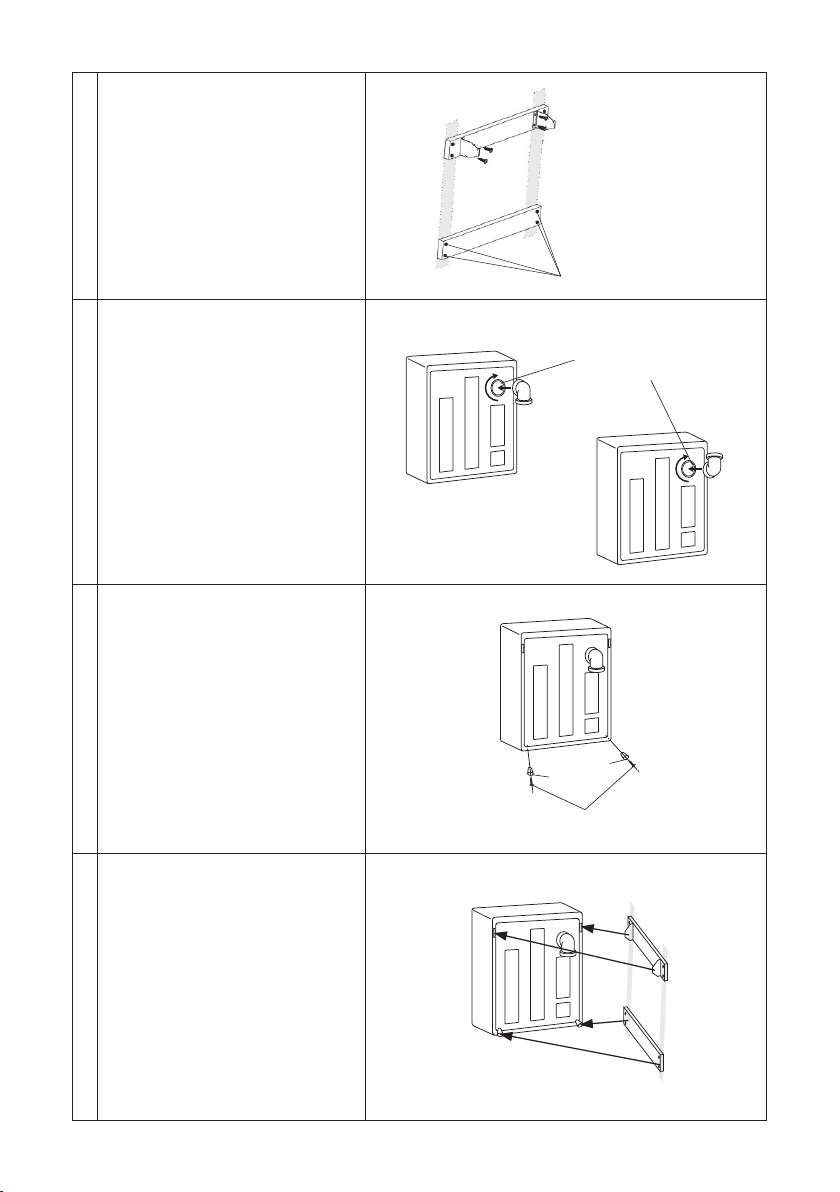

Mount the dryer to the wall hanging assembly.

With the assistance of a 2nd person, lift the dryer and align the mounting holes at the rear of the dryer with the mounting hooks.

Tilting the dryer to a 45° angle, insert the

hanging brackets into the mounting holes on the dryer as shown in the figure to the right.

Once the dryer mounts are in place, slowly lower the dryer in place and check all installation points for stress or weakened contact.

OPERATION INSTRUCTIONS

CONTROL PANEL

Figure 6

a b c f d e

a. POWER: Turn the power on by pressing the “Power” button. The unit will beep and the light above the

button will come on, indicating power is being supplied to the dryer. The default settings (Extra Dry and Medium) will be selected. Press the button again to turn the power off.

b. DEWRINKLE: Press this button to add the Dewrinkle program to any dry cycle. This program will add a 20

minute air-dry cycle after the selected drying program. During this program, only cool air will be generated to help prevent creasing of the items that were just dried.

NOTE: DO NOT overload the dryer. Remove the dried items from the dryer immediately and hang up or fold them.

c. PROGRAM: Press this button, repeatedly, until the desired drying program is selected. The respective light

beside the program will illuminate, indicating which program is selected. The drying times also include a 10 minute cooling function.

• EXTRA DRY: Sensor Dry – The unit will run until the humidity level in the drum has reached ≤35%. Then the unit will stop heating and go through 10 min. of air cooling to end the program.

• NORMAL DRY: Sensor Dry – The unit will run until the humidity level in the drum has reached ≤40%. Then the unit will stop heating and go through 10 min. of air cooling to end the program.

• LESS DRY: Sensor Dry – The unit will run until the humidity level in the drum has reached ≤45%. Then the unit will stop heating and go through 10 min. of air cooling to end the program.

• 1 HOUR DRY: The unit runs for a set time of 60 minutes – 50 min. on full power heating and 10 min. of air cooling. PLEASE NOTE: For this Program, Temperature Selection is disabled.

d. TEMPERATURE: Press this button, repeatedly, until the desired heat setting is selected. The respective light

next to the heat setting will illuminate, indicating which program is selected.

• High: Dryer uses two sets of heating elements running simultaneously, providing the strongest hot air flow.

• Medium: Dryer uses two sets of heating elements for 10 minutes, and then uses one set of elements

for another 10 minutes, alternating back and forth.

• Low: Dryer uses one set of heating elements, providing the weakest hot air flow.

e. START/PAUSE: Press the button to start the set drying program. The light above the button will illuminate,

indicating that the dryer has started running. To pause a drying program, press the “Start/Pause” button. If
