ADOBE® INDESIGN® CS4

ADOBE INDESIGN CS4 PRODUCTS

PROGRAMMING GUIDE

© 2008 Adobe Systems Incorporated. All rights reserved.

Adobe InDesign CS4 Products Programming Guide

If this guide is distributed with software that includes an end user agreement, this guide, as well as the software described in it, is furnished under license and may be
us ed o r co pied onl y in acc ord anc e with the ter ms of s uch licen se. Exc ept as per mit ted b y an y su ch l ice nse , no pa rt o f this gui de may be reproduced, stored in a retrieval
system, or transmitted, in any form or by any means, electronic, mechanical, recording, or otherwise, without the prior written permission of Adobe Systems
Incorporated. Please note that the content in this guide is protected under copyright law even if it is not distributed with software that includes an end user license
agreement.

The content of this guide is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Adobe Systems
Incorporated. Adobe Systems Incorporated assumes no responsibility or liability for any errors or inaccuracies that may appear in the informational content
contained in this guide.

Pl ea se r eme mb er t hat ex ist ing ar two rk o r i mag es t ha t yo u m ay w ant to inc lud e i n yo ur p ro jec t ma y b e pr ote ct ed u nde r c opy ri ght law. The unauthorized incorporation
of such material into your new work could be a violation of the rights of the copyright owner. Please be sure to obtain any permission required from the copyright
owner.

Any references to company names in sample templates are for demonstration purposes only and are not intended to refer to any actual organization.

Adobe, the Adobe logo, Acrobat, Bridge, Creative Suite, Illustrator, InCopy, InDesign, Photoshop, and Reader are either registered trademarks or trademarks of
Adobe Systems Incorporated in the United States and/or other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries. Apple and Mac OS are trademarks of Apple Computer, Incorporated, registered in the United States and
other countries. Java is a trademark of Sun Microsystems, Incorporated in the United States and other countries.All other trademarks are the property of their
respective owners.

Adobe Systems Incorporated, 345 Park Avenue, San Jose, California 95110, USA. Notice to U.S. Government End Users. The Software and Documentation are
“Commercial Items,” as that term is defined at 48 C.F.R. §2.101, consisting of “Commercial Computer Software” and “Commercial Computer Software
Documentation,” as such terms are used in 48 C.F.R. §12.212 or 48 C.F.R. §227.7202, as applicable. Consistent with 48 C.F.R. §12.212 or 48 C.F.R. §§227.7202-1
through 227.7202-4, as applicable, the Commercial Computer Software and Commercial Computer Software Documentation are being license d to U.S. Gover nment
end users (a) only as Commercial Items and (b) with only those rights as are granted to all other end users pursuant to the terms and conditions herein.
Unpublished-rights reserved under the copyright laws of the United States. Adobe Systems Incorporated, 345 Park Avenue, San Jose, CA 95110-2704, USA. For U.S.
Government End Users, Adobe agrees to comply with all applicable equal opportunity laws including, if appropriate, the provisions of Executive Order 11246, as
amended, Section 402 of the Vietnam Era Veterans Readjustment Assistance Act of 1974 (38 USC 4212), and Section 503 of the Rehabilitation Act of 1973, as
amended, and the regulations at 41 CFR Parts 60-1 through 60-60, 60-250, and 60-741. The affirmative action clause and regulations contained in the preceding
sentence shall be incorporated by reference.

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

For experienced InDesign developers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

For new InDesign developers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Persistent Data and Data Conversion . . . . . . . . . . . . . . . . . . . . . . . . 29

Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Persistence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Databases. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Persistent objects. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using persistent objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Implementing persistent objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Streams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

IPMStream methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Implementing a new stream . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Missing plug-ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Warning levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Missing plug-in alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Guidelines for handling a missing plug-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Data handling for missing plug-ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Conversion of persistent data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

When to convert persistent data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Converting data with the conversion manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Converting data without the conversion manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

PluginVersion resource, format numbers, and their macros . . . . . . . . . . . . . . . . . . . . . . 53

Setting up resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Schemas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

SchemaList . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

DirectiveList . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Advanced schema topics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Arrays of values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

FieldArray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Conditional-field inclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

3

Contents

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Command pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Databases and undoability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Command parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Command undoability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Command processing and the CmdUtils class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Command sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Command managers, databases, and undo support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

The command processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Scheduled commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Snapshots and interface implementation types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Command history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Merging changes with an existing step in the command history . . . . . . . . . . . . . . . . . . . 81

Undo and redo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Extension patterns involved in undo and redo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Notification within commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Error handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Protective shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Key client APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Command facades and utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Command-processing APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Extension patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Error string service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Persistent interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Persistent boss. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Snapshot interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Inval handler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Snapshot view interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

4 Adobe InDesign CS4 Products Programming Guide

Contents

Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Observer pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Responder pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Observers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Subjects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Observers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Message protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Subject and observer types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Regular and lazy notification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106

Observers and undo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

Relating observers to subjects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Document notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Observers and the model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Responders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Signal manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

Responder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Responders and the model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Responders and global error state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

Ordering of responders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

Responders and undo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

Key client APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Extension patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

User-interface widget observer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Model observer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

Selection observer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122

Document observer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122

Active context observer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122

Subject . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

Responder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Selection format and target . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

Design patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

Selection architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127

Abstract selection bosses and suites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

Adobe InDesign CS4 Products Programming Guide 5

Contents

Concrete selection bosses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131

Layout selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132

Table selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Text selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Galley text selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135

Story-editor text selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136

Note text selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

XML selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138

Document defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140

Application defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141

Integrator suites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142

CSB suites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142

Encapsulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Suites and the user interface: an example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143

Responsibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Basic client-code responsibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Selection-observer responsibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Custom-suite responsibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Custom suites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145

Selection extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

Caches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Selection change notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

Communication with Integrator suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

Selection observers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

Selection-utility interface (ISelectionUtils) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148

Layout Fundamentals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149

Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150

Documents and the layout hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152

Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152

Parent and child objects and IHierarchy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155

Spreads and pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157

Layers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Layers in a basic document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162

Layer options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .165

Navigating spread content using ISpread. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166

6 Adobe InDesign CS4 Products Programming Guide

Contents

Master spreads and master pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .168

Master spreads and master pages in a basic document . . . . . . . . . . . . . . . . . . . . . . . . .169

Master-page item overrides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .172

Basing one master page on another . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .172

Page items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173

Frames and paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173

Graphic page items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177

Text page items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177

Interactive page items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .178

Groups. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .178

Abstract page items and kPageItemBoss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .179

Guides and grids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .180

Ruler guides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .180

Margin and column guides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .180

Document grid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181

Baseline grid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181

Snap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181

Layout-related preferences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .182

Coordinate systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .183

Transformation matrices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .183

Pasteboard coordinate space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .184

Inner coordinate space and parent coordinate space . . . . . . . . . . . . . . . . . . . . . . . . . .185

Spread coordinate space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .188

Page coordinate space. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .189

Page-item coordinate space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .190

Bounding box and IGeometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .190

Transformation and ITransform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Measurement units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .192

Geometrical data types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .194

The layout presentation and view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .194

Layout presentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .194

Layout view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196

Current spread and active layer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .197

Layout-presentation and layout-view coordinate spaces . . . . . . . . . . . . . . . . . . . . . . . .198

Key client APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Extension patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .202

New-page-item responder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Custom page item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .203

Custom unit-of-measure service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .203

Adobe InDesign CS4 Products Programming Guide 7

Contents

Commands that manipulate page items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

Page-item creation commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .204

Page-item update commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .205

Page-item deletion commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

Graphics Fundamentals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

Paths. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

Path concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .211

Paths data model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .213

Path operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .215

Graphic page items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .217

Graphic page-item types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217

Graphic page-item settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219

Graphic page-item data model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .223

Graphic page-item examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .226

Graphics import . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .238

Export to graphics file format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .243

Colors and swatches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .246

Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .246

Swatches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .250

Solid colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .250

Gradients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .251

Swatch lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .251

Inks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .251

Color management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .252

ICC profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .253

Color-management workflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .253

Data model for color management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .253

Graphic attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .256

Graphic-attribute data model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .256

Representation of graphic attributes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .258

Graphic styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .258

Graphic state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259

Mapping graphic attributes between domains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260

Rendering attributes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .261

Color-rendering attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .261

Gradient attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262

8 Adobe InDesign CS4 Products Programming Guide

Contents

Stroke effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .262

Path stroker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .262

Path corners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .263

Path-end strokers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263

Transparency effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .263

Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263

Flattening. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272

Transparency data model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .272

Data model for drawing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .276

Presentation views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .276

Graphics context . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .277

Viewport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .277

Dynamics of drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .278

Drawing the layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .278

Drawing page items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281

Drawing in user-interface widget windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .283

Offscreen drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .284

Client APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .285

Path-related client APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .285

Graphic page-item client APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .286

Key color-related client APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287

Graphic-attribute client APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .288

Extension patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .289

Custom graphic attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .289

Custom path-stroker effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .289

Custom corner effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .290

Custom path-end effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .290

Custom page-item adornments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .291

Custom drawing-event handler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .294

Swatch-list state. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .296

Initial state of swatch list and ink list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .296

State of swatch list and ink list after adding a custom stop color . . . . . . . . . . . . . . . . . . .297

Swatch list and ink list after adding a gradient swatch. . . . . . . . . . . . . . . . . . . . . . . . . .299

Swatch list and ink list after applying an unnamed color to an object . . . . . . . . . . . . . . . .300

Color spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300

Catalog of graphic attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301

Mappings between attribute domains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .306

Spread-drawing sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .307

Adobe InDesign CS4 Products Programming Guide 9

Contents

Controlling the settings in a graphics port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .309

Drawing sequence for a page item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .310

Text Fundamentals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313

Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .313

Text content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315

Stories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .315

Text formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .324

Class associations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .330

Text presentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .331

Text layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .331

Text frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331

Frame list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .333

Threading and text frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .336

Parcels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .339

Span . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .342

Text frames and the wax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .343

Text-frame options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .345

Text-frame geometry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345

Text Inset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .346

Text wrap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .347

Text on a path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .350

The wax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354

Wax strand, wax line, and wax run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .354

Examples of the wax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .355

Text adornments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .358

Text composition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .364

Phases of text composition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .366

Damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .367

Recomposition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369

Wax strand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .370

Paragraph composers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .371

Shuffling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .371

Vertical justification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .371

Background composition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .371

Recomposition transactional model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .372

Recomposition notification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .372

Implementation notes for paragraph composers . . . . . . . . . . . . . . . . . . . . . . . . . . . . .372

10 Adobe InDesign CS4 Products Programming Guide

Contents

Fonts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .389

Font-subsystem architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .390

Fonts within the document. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .392

Composite fonts and international-font issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .395

Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397

Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .397

Table structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .397

Design and architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .402

Table model versus text model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .402

Table data model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404

Cell data model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .406

Table attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407

Table and cell styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409

Formatting tables, cells, and table text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413

Essential APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .414

Table commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .414

ITableSuite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .414

ITableStyleSuite and ITableStylesFacade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .415

ICellStyleSuite and ICellStylesFacade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415

Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417

Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .417

Printing is simply drawing to the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417

Control can be shared . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .417

Inks and colors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .417

Overprinting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .418

Trapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 418

Color management and proofing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 418

Preflight and packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .418

Exporting to EPS and PDF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .419

Printing data model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .419

Print settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .419

Print preset styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420

Trap styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .420

Utility APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420

The print action sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421

Common print interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422

Adobe InDesign CS4 Products Programming Guide 11

Contents

Print user interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .423

Print dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .423

Print Presets dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .435

Extending the Print dialog box or the Print Presets selectable dialog box . . . . . . . . . . . . .435

Printing extension patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .435

Print-setup provider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .435

Print-insert-PostScript proc provider. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .436

Print-data helper-strategy provider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .437

Draw-event handlers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .438

Printing solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438

Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .438

Working with print-preset styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .439

Working with trap styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .441

Participating in the print process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443

Bosses that aggregate IPrintData . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .448

Print-action and supporting commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .448

Japanese page-mark files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 449

Exporting to EPS and PDF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .450

Exporting to EPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .450

Exporting to PDF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 453

PDF Import and Export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455

PDF import . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .455

PDF export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .459

InDesign/InCopy document export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .459

InDesign book export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .468

Selected page-items export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .469

PDF-style import and export. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .470

Adding, deleting, and editing styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .471

Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 472

How does the PDF export provider determine whether it should start the viewer

after the export? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .472

How do I set the PDF clipboard setting as seen in the File Handling preferences? . . . . . . . .472

How do I control which layer of a document should be exported? . . . . . . . . . . . . . . . . . . 472

How do I make the two-page spreads in my document export as two separate PDF pages? .473

Why does kPDFExportCmdBoss give me an assert after the command is processed

(ASSERT 'db != nil' in PDFExportController.cpp)? . . . . . . . . . . . . . . . . . . . . . . . . . . . . .473

How do I set up line ranges for output in InCopy Galley or Story mode? . . . . . . . . . . . . . .473

Is it possible to export only selected text from an InDesign document? . . . . . . . . . . . . . .473

12 Adobe InDesign CS4 Products Programming Guide

Contents

Implementing Preflight Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . 475

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .475

About preflight in InDesign CS4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .475

About rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 475

Rule IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .476

Rule service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .476

IPreflightRuleService example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 477

Rule bosses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .478

IPreflightRuleVisitor interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .479

IPreflightRuleVisitor method examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .480

IPreflightRuleVisitor::GetClassesToVisit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 480

IPreflightRuleVisitor::Visit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .481

IPreflightRuleVisitor::AggregateResults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 483

IPreflightRuleVisitor::UpdateRuleData . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490

IPreflightRuleVisitor::ValidateRuleData . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490

More on specific objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .491

Native, UID-based objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .491

Artwork . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .492

Text runs and ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .494

Tables, rows, columns, and cells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 495

XML Fundamentals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 497

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .497

XML-based workflow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .497

Using XML with InDesign . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .498

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .498

XML features at a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .499

XML extension patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .499

Tagging in tables and inline graphics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .499

Throw away unmatched existing (right). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .499

Throw away unmatched incoming (left). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500

Importing repeating elements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500

Importing CALS table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500

Support for DOM core level 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500

Support table- and cell-styles import . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500

Support XML-rules processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500

Snippets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500

Adobe InDesign CS4 Products Programming Guide 13

Contents

The user interface for XML . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .501

Structure view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .501

Tags in layout view and story view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .501

Tags panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .502

Mapping between tags and styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 503

Validation window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .504

Other. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 504

XML model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .505

Native document model and logical structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .505

Elements and attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .505

Content items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .506

References to elements and content items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 507

Document element and root element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 508

Backing store. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 509

Persistence and the backing store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 510

Importing XML . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .511

Import architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .512

Importing a minimal XML file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .515

Unplaced content versus placed content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .518

XML template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 519

Matching against an XML template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .519

Importing repeating elements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .519

Throwing away unmatched existing elements on import (delete unmatched right). . . . . . .520

Throwing away unmatched incoming elements on XML import . . . . . . . . . . . . . . . . . . . 522

Attribute-style mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 522

Creating links on XML import . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .523

Sparse import . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .523

Importing a CALS table as an InDesign table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .524

Support table and cell styles when importing an InDesign table . . . . . . . . . . . . . . . . . . .524

Exporting XML. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .524

Export architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .525

Document order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 526

Tagged graphic placeholder, exported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .527

Tagged text range, exported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .528

Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .529

Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .530

Tag-to-style mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .531

Style-to-tag mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .532

14 Adobe InDesign CS4 Products Programming Guide

Contents

Elements and content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 534

Tagged graphic placeholder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 534

Tagged images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .536

Tagged stories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .537

Tagged text ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .538

Tagged inline graphics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .542

Tagged tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .543

DTD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .545

Processing instructions and comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .547

Structural (container) elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .549

XML-related preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .549

Workspace-level XML preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .549

Service-level XML preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .551

Key client API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .552

XML suites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .552

Command facades and utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 553

Extension patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .553

XML acquirer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .553

XML transformer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .554

XMl-import matchmaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .555

Post-import responder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .555

Custom suite for the structure view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .556

SAX-content handler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .556

SAX DOM serializer handler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .557

Custom-tag service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .557

SAX-entity resolver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .557

XML-export handler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 558

Commands and notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .558

Backing store and notification of changes in logical structure. . . . . . . . . . . . . . . . . . . . . 558

Entities supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .559

Assets from XSLT example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .560

Limitations of the InDesign XML architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .561

Adobe InDesign CS4 Products Programming Guide 15

Contents

Scriptable Plug-in Fundamentals . . . . . . . . . . . . . . . . . . . . . . . . . 563

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .563

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .565

Scripting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .565

Benefits of making a plug-in scriptable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 565

Scripting and IDML . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .566

Making a plug-in scriptable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .566

Tools for making a plug-in scriptable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .567

Scripting architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 567

Scripting DOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .568

Versioning the scripting DOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .569

Scripting plug-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .570

Script interaction with the scripting DOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .571

Scripting process overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .572

Script managers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .573

Scriptable plug-ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .573

Scripting resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 574

Script providers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .574

Scriptable boss classes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .574

How to make your plug-in scriptable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .575

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 575

Defining IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 576

Adding a new property to an existing script object . . . . . . . . . . . . . . . . . . . . . . . . . . .576

Adding a new event to an existing script object . . . . . . . . . . . . . . . . . . . . . . . . . . . . .576

Adding a new script object to make preferences scriptable . . . . . . . . . . . . . . . . . . . . . .577

Adding a new singleton script object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 578

Adding a new script object to make a boss with a UID scriptable. . . . . . . . . . . . . . . . . . .578

Adding a new script object to make a boss with no UID scriptable . . . . . . . . . . . . . . . . . .579

Adding a new script object to make a C++ object with no boss scriptable . . . . . . . . . . . . .580

Adding a new script object to make a panel scriptable . . . . . . . . . . . . . . . . . . . . . . . . .581

Adding an error-string service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .582

Handling multiple concurrent requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .582

Reviewing scripting resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 583

Running versioned scripts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .586

Supporting IDML . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .588

Maintaining IDML forward and backward compatibility . . . . . . . . . . . . . . . . . . . . . . . .589

Verifying your plug-in’s data is round-tripped through IDML . . . . . . . . . . . . . . . . . . . . . 590

Tips for debugging the scripting architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .591

16 Adobe InDesign CS4 Products Programming Guide

Contents

Scripting resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 591

VersionedScriptElementInfo resource . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 592

Object element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .593

Event element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .595

Property element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .597

Struct element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 601

TypeDef element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .602

Enum element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .603

Enumerator element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .604

Metadata element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .604

Provider element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .606

Suite element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .609

ScriptElementIDs, ScriptIDs, names, descriptions, and GUIDs . . . . . . . . . . . . . . . . . . . . .610

ScriptID/name registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .612

Scripting data types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .615

Script-object inheritance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .619

Overloading an existing event or property . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .621

Versioning of scripting resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 621

Client-specific scripting resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .632

Elements that are not applicable to a particular object . . . . . . . . . . . . . . . . . . . . . . . . .638

Key scripting APIs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .639

Scripting DOM reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .641

Scripting DOM versioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .641

Dumping the scripting DOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .642

Snippet Fundamentals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 643

Conceptual overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .643

Snippets as self-contained assets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 643

Snippet types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .644

Features that depend on snippets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .644

User interface for snippets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .644

Drag and drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .644

Asset library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .645

Export snippet from selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 645

Snippet model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .645

INX, IDML, and snippets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .645

Boss DOM overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .646

Scripting DOM overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .647

From boss DOM to scripting DOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 647

Adobe InDesign CS4 Products Programming Guide 17

Contents

Snippet types and policies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .648

Export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .648

Import . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .650

Snippet examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .652

Filled-rectangle snippet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .652

Image-item snippet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .657

XML element snippet, tagged placeholder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .660

Client API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .663

Suites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .663

Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .663

Extension patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .664

Adding persistent data to snippet files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 664

Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 664

What is a snippet, and how do I create one? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .664

What happens if I export a snippet of a placed image? . . . . . . . . . . . . . . . . . . . . . . . . . 664

What features are based on snippets? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .665

How accurately is data round-tripped through snippets?. . . . . . . . . . . . . . . . . . . . . . . .665

When do I have to care about snippets?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .665

Can I export spreads or pages as snippets?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .665

Should we generate snippet files from scratch? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .665

Can I import a snippet directly into a library? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 666

Can I import a snippet into the scrap database? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 666

Can we add our own new snippet types? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .666

Shared Application Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . 667

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .667

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .667

Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .667

How it works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 668

ISnippetExport. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .668

IAppPrefsExportDelegate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .669

ISnippetImport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 669

IAppPrefsImportOptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .669

IAppPrefsImportDelegate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .670

18 Adobe InDesign CS4 Products Programming Guide

Contents

Working with snippet APIs: frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . .670

How do I create streams for reading and writing snippets?. . . . . . . . . . . . . . . . . . . . . . . 670

How do I limit my export to those items in the preference panel? . . . . . . . . . . . . . . . . . .670

How do I export all text styles, object styles, XML tags, or swatches in the

application workspace? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .671

How do I import a snippet into the application? . . . . . . . . . . . . . . . . . . . . . . . . . . . . .671

How do I control whether existing objects like paragraph styles are replaced or

deleted on import. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .671

How do I determine the correct ScriptID to use for a preference I’m trying to include

or exclude? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 671

How do I know which list element types will be exported by default?. . . . . . . . . . . . . . . . 671

User-Interface Fundamentals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 673

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .673

Key concepts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .674

Design objectives for user-interface API. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .674

Idioms and naming conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .674

Abstractions and re-use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .675

Widgets versus platform controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .676

Commands, model plug-ins, and user-interface plug-ins . . . . . . . . . . . . . . . . . . . . . . .676

Suites and the user interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .677

Finding widgets in the API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .678

Notifications about control events or changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 678

Sample user interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .679

Type binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .680

Factorization of the user-interface model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 683

Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .683

Control views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .684

Control data models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .684

Event handlers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .685

Attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .685

Relevant design patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .686

Observer pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .686

How event handlers implement controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .687

The role of MVC in the user-interface model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .688

Chain of responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 689

Facade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .689

Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .690

Widget-observer pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .690

Persistence and widgets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .691

Adobe InDesign CS4 Products Programming Guide 19

Contents

Resource roadmap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .692

Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .692

OpenDoc framework (ODF) resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .693

Top-level framework resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 694

Localizing framework resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 694

Resource compilers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .695

Customizing a widget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .696

Advanced event handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 696

Writing a proxy event handler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .696

Watching events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 697

Key abstractions in the API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .697

Suppressed User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 699

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .699

Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .699

XML-based implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .700

XML file format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .701

SuppressedWidget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .702

SuppressedAction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .702

SuppressedMenu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .703

SuppressedDragDrop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .703

SuppressPlatformDialogControl. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .704

SuppressedUI tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .704

SuppressedUI tool limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .706

Working with the ISuppressedUI API. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .706

Other user-interface “suppression” mechanisms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .707

Using Adobe File Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 709

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .709

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .709

Adobe File Library architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .711

Adobe File Library classes and utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .711

Common file API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 713

File API specific to InDesign . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .714

Debugging IDFile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .716

Porting guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .716

Creative Suite 2 porting concerns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 716

Creative Suite 3 porting concerns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 716

20 Adobe InDesign CS4 Products Programming Guide

Contents

Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 717

Why should I use Adobe file library? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 717

Does Adobe file library support cross-platform path conversion? . . . . . . . . . . . . . . . . . . 717

Should I still use the ICoreFileName interface? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .717

Why was the GetSysFile method renamed GetIDFile in SDKFileHelper? . . . . . . . . . . . . . . .717

How do I navigate between IDFile and IDPath? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .717

What are the differences between a file and a directory? . . . . . . . . . . . . . . . . . . . . . . . .718

What are the relationships between IDPath and IDFile? . . . . . . . . . . . . . . . . . . . . . . . . .718

Why should IDFile not be treated as PMString? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .718

How do an invalid path and a nonexistent path differ? . . . . . . . . . . . . . . . . . . . . . . . . .718

Can I construct an AString from PMString? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .718

How can I convert a relative path to an absolute path? . . . . . . . . . . . . . . . . . . . . . . . . .719

Performance Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 721

Use profiling tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .721

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .721

Mac OS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .721

Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .722

Commands should operate on lists of inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .722

Notify on the document subject instead of the page item object . . . . . . . . . . . . . . . . . .722

Mark commands that do not require undo support . . . . . . . . . . . . . . . . . . . . . . . . . . . 723

Observers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .723

Attach to documents, not page items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .723

Do work only when the command is done . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .723

Do not update the user interface from an observer . . . . . . . . . . . . . . . . . . . . . . . . . . . 724

Watch for lazy notification whenever possible. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .724

File input/output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 724

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 724

Use memory caches for items accessed often . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .724

Avoid allocating too much memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .725

Idle tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 725

Honor the RunTask flags. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .725

Do a small amount of work during each RunTask call . . . . . . . . . . . . . . . . . . . . . . . . . .725

Adobe InDesign CS4 Products Programming Guide 21

Contents

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 727

Key concepts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .727

The toolbox and the layout view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 727

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .728

Cursors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .728

Tool tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .729

Trackers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 729

Tracker factory, tracking, and event handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .729

Beyond the toolbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .730

Drawing and sprites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .730

Documents, page items, and commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .731

Line-tool use scenario . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .731

Trackers with multiple behaviors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .734

Tool manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .735

Toolbox utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 735

Tool type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .735

Custom tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .736

Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .736

Class diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 736

Partial implementation classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .737

Default implementations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .737

ToolDef ODFRez type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 738

Icons and cursors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .738

InDesign trackers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .739

Working with tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .740

Catching a mouse click or mouse drag on a document . . . . . . . . . . . . . . . . . . . . . . . . .740

Implementing a custom tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .740

Displaying a Tool Options dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .740

Finding the spread nearest the mouse position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .740

Changing spreads. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .740

Performing a page-item hit test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .740

Setting or getting the active tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .741

Observing when the active tool changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 741

Changing the toolbox appearance from normal to skinny . . . . . . . . . . . . . . . . . . . . . . .741

Using default implementations for trackers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .741

Suppressing the application's default tracker for a custom toolbox . . . . . . . . . . . . . . . . .741

Tool-category information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 742

Default implementations of tool-related interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .745

Tracker listings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .746

22 Adobe InDesign CS4 Products Programming Guide

Contents

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 751

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .751

Using the diagnostics plug-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .751

Diagnostics menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .752

Diagnostics > Command menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .752

Diagnostics > Document Structure menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .753

Diagnostics > INX DTD menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .754

Diagnostics > Object Model menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 755

Diagnostics > Scripting DOM menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 756

Running the Diagnostics plug-in in indesign/incopy with a script . . . . . . . . . . . . . . . . . .756

Running the Diagnostics plug-in in InDesign Server on Windows with a script . . . . . . . . . . 757

Running the Diagnostics plug-in in InDesign Server on Mac OS with a script . . . . . . . . . . .757

Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 758

Where is the Diagnostics panel?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .758

What is trace? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .758

Why don’t I get trace messages? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 758

InCopy: Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 759

About InCopy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .759

Developing for InCopy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .759

Using the combined InDesign/InCopy SDK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .759

The InCopy API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .760

Compiler settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 760

Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 760

Synchronization of design and architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .760

File relationships . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .761

Stories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .762

Page geometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .762

Metadata . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .762

The document model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .763

User-interface differences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .763

Checking the feature set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .763

Workflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 764

Design and architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 764

InCopyBridge plug-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .766

InCopyBridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .766

InCopyBridgeUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .767

Adobe InDesign CS4 Products Programming Guide 23

Contents

InCopy: Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 769

Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .769

End-user requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .769

Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .771

Data model for notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .773

Essential APIs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .779

Useful commands and associated notification protocols . . . . . . . . . . . . . . . . . . . . . . . .783

Working with notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .786

Adding a note at the current insertion-point position . . . . . . . . . . . . . . . . . . . . . . . . . .786

Inserting text into a note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .787

Converting text to a new note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 787

Converting note content to text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .787

Navigating among notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .788

Splitting a note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .788

Expanding and collapsing notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .788

Selecting a note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 789

Getting kNoteDataBoss, given a text index whose position is anchored to note . . . . . . . . .789

Deleting notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .790

Changing notes-palette content to reflect particular note data . . . . . . . . . . . . . . . . . . . .790

Checking note spelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .790

Observing a note that is being modified . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .790

Using notes in InDesign . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .790

InCopy: Track Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 791

Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .791

User interface for Track Changes feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 791

Data model for Track Changes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .794

Redline strand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 794

Tracking text insertion and deletion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .795

Example: Track Changes in action. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 799

Track Changes preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .809

Key client APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 809

Track Changes utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .809

Suite interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .809

RedlineIterator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 811

kDeletedTextBoss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .812

24 Adobe InDesign CS4 Products Programming Guide

Contents

Useful commands and associated notification protocols . . . . . . . . . . . . . . . . . . . . . . . . . . .814

kSetRedlineTrackingCmdBoss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .814

kSetTrackChangesPrefsCmdBoss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .814

kActivateRedlineCmdBoss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 816

kDeactivateRedlineCmdBoss. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .816

kRejectAllRedlineCmdBoss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .816

kRejectRangeRedlineCmdBoss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .817

kRejectRedlineCmdBoss. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .817

kAcceptAllRedlineCmdBoss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .818

kAcceptRangeRedlineCmdBoss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .819

kAcceptRedlineCmdBoss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .819

kMoveRedlineChangeCmdBoss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .820

kRedlinePreserveDeletionCmdBoss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .821

Working with Track Changes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .821

Navigating tracked changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .821

Accepting and rejecting tracked changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .821

Understanding multiple change records in one location . . . . . . . . . . . . . . . . . . . . . . . .822

Avoid insignificant tracked changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .822

Undoing accepted deleted text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .822

Determining whether a location in a story is in deleted text . . . . . . . . . . . . . . . . . . . . . .822

Determining whether a primary story-thread location is at a deleted-text anchor . . . . . . . . 822

Getting kDeletedTextBoss, given a text index having deleted text . . . . . . . . . . . . . . . . . .823

Removing deleted text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .823

Moving a change record from one story to another . . . . . . . . . . . . . . . . . . . . . . . . . . .823

Maintaining kRedlineStrandBoss text-run information . . . . . . . . . . . . . . . . . . . . . . . . .823

InCopy: Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 825

Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .825

Assignment workflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .826

Assignment-export options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .826

Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .827

Assignment data model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .829

Assignment hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 829

Object structure of an assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .830

Moving assignment content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 832

Assignment files and links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .834

Assignment files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 834

Comparing assignment files to InDesign and InCopy files . . . . . . . . . . . . . . . . . . . . . . .835

Assignment-file format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 835

Adobe InDesign CS4 Products Programming Guide 25

Contents

The assignment API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .838

IAssignmentMgr. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 838

IAssignedDocument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .838

IAssignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .838

IAssignedStory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 838

IAssignmentSelectionSuite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 839

IAssignmentUtils . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .839

IAssignmentUIUtils . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .839

IAssignmentPreferences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .839

Common commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .839

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 841

26 Adobe InDesign CS4 Products Programming Guide

Introduction

This guide provides detailed information on the Adobe® InDesign® CS4 plug-in architecture.
This C++-based SDK can be used for creating plug-ins compatible with the CS4 versions of
InDesign, InDesign Server, and Adobe InCopy®.

This guide contains the most detailed information on plug-in development for InDesign prod­ucts. It is not designed to be a starting point. It picks up where Learning Adobe InDesign CS4
Plug-in Development leaves off, and it is more commonly used to understand particular sub­jects deeply.

For experienced InDesign developers

If you are an experienced InDesign plug-in developer, we recommend starting with Adobe
InDesign CS4 Porting Guide.

Introduction

For experienced InDesign developers

For new InDesign developers

If you are new to InDesign development, we recommend approaching the documentation as
follows:

1. Getting Started With the Adobe InDesign CS4 Products SDK provides an overview of the
SDK, as well as a tutorial that takes you through the tools and steps to build your first plug­in.

2. Learning Adobe InDesign CS4 Plug-in Development introduces the most common program­ming constructs for InDesign development. This includes an introduction to the InDesign
object model and basic information on user-interface options, scripting, localization, and
best practices for structuring your plug-in.

3. The SDK itself includes several sample projects. All samples are described in the “Samples”
section of the API reference. This is a great opportunity to find sample code that does some­thing similar to what you want to do, and study it.

4. Adobe InDesign CS4 Solutions provides step-by-step instructions (or “recipes”) for accom-
plishing various tasks. If your particular task is covered by the Solutions guide, reading it
can save you a lot of time.

5. This manual provides the most complete, in-depth information on plug-in development for
InDesign CS4 products.

Introduction 27

Introduction

For new InDesign developers

28

Persistent Data and Data Conversion

Persistent Data and Data Conversion

This chapter describes how an application stores and refers to persistent data as objects and
streams. The chapter also provides background information and implementation guidelines
related to data conversion.

This chapter has the following objectives:

z Describe how Adobe InDesign® stores data.

z Explain how an object is made persistent.

z Show how to refer to a persistent object.

z Define a stream and explain how to create a new stream.

z Identify when data conversion is used.

z Describe the types of conversion providers.

z Show how conversion providers are defined.

z Describe schemas and their use.

Concepts

For common procedures and troubleshooting related to converting persistent data, see the
“Versioning Persistent Data” chapter of Adobe InDesign CS4 Solutions.

Concepts

Persistence

A persistent object can be removed from main memory and returned again, unchanged. A per­sistent object can be part of a document (like a spread or page item) or part of the application
(like a dialog box, menu item, or default setting). Persistent objects can be stored in a database,
to last beyond the end of a session. Non-persistent objects last only until memory is freed,
when the destructor for the object is called. Only persistent objects are stored in databases.

Databases

The application uses lightweight databases to store persistent objects. The host creates a data­base for each document created. The host also creates a database for the clipboard storage
space, the object model information (the InDesign SavedData or Adobe InCopy® SavedData
file), and the workspace information (the InDesign Defaults or InCopy Defaults file).

Each document is contained in its own database. Each persistent object in the database has a
UID, a ClassID, and a stream of persistent data.

The stream with the persistent object data contains a series of records that correspond to the
persistent object. The object’s UID is stored with the object, as a key for the record. The vari-

Persistent Data and Data Conversion 29

Persistent Data and Data Conversion

ImplID Length Data ImplID Length Data ImplID Length

k<Foo>Boss object persistent data record

UID

Persistent objects

able-length records have one segment for each persistent interface. Every segment has the same
structure:

ImplementationID tag
int32 length
<data>

Figure 1 is a conceptual diagram of this structure. The figure is a conceptual diagram of the

database contents, and does not represent the actual contents of any database. The format and
content of the data are determined by the implementation of the interface. See “Reading and

writing persistent data” on page 34.

FIGURE 1 Conceptual diagram of an object’s data

For each object, the ClassID value is stored in the table, and the ImplementationID values are
stored in the stream, but the InterfaceID value is not stored with either. Adding an existing
implementation (i.e., an implementation supplied by the SDK) to an existing class can cause
problems if another software developer adds the same implementation to the class: one of the
two plug-ins will fail on start-up. To avoid this collision, create a new implementation for any
persistent interface to be added to a class, using ImplementationAlias. For an example, see
<SDK>/source/sdksamples/dynamicpanel/DynPn.fr.

Persistent objects

This section discusses how persistent objects are created, deleted, and manipulated.

The application stores persistent objects in a database, and each object has a unique identifier
within the database. The methods for creating, instantiating, and using a persistent object are
different from the methods for non-persistent objects.

Using persistent objects

When a persistent object is created, its record exists in memory. Certain events, like a user’s
request to save a document, trigger the writing of the record to storage. (See Figure 2) A count
is maintained of the number of references to each persistent object. Any object with a reference
count greater than zero remains active in memory. If the reference count for a persistent object
reaches zero, the object may be asked to write itself to its database and be moved to the instance
cache, which makes the object a candidate for deletion from memory. Events that require
access to the object, like drawing or manipulating it, trigger the host to read the object back

30

Persistent Data and Data Conversion

Host Main memory Storage

Instantiate
(no storage)

Dirty

ReadWrite

Instantiate
(with storage)

NewUID

Reference count
reaches zero

Persistent objects

into memory. Because individual objects can be saved and loaded, the host does not have to
load the entire document into memory at once.

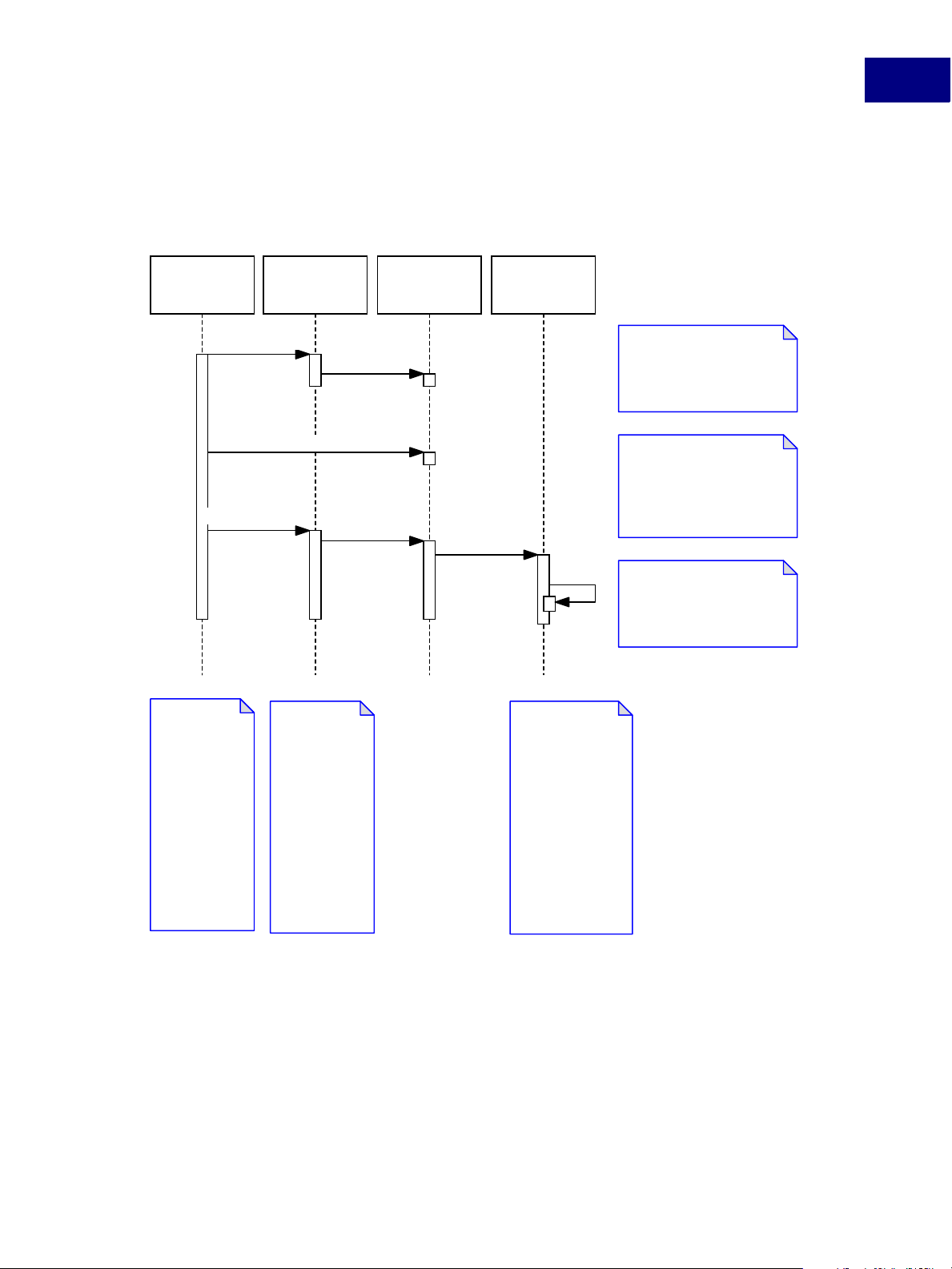

FIGURE 2 Creating and storing persistent objects

Creating a persistent object

Creating a new instance of a persistent object differs from creating a non-persistent object,
because it requires a unique identifier to associate the object with its record in the database. For
the CreateObject and CreateObject2 methods used to create persistent objects, see
<SDK>/source/public/includes/CreateObject.h.

For examples of the creation of persistent objects, see the CreateWidgetForNode method in
<SDK>/source/sdksamples/paneltreeview/PnlTrvTVWidgetMgr.cpp or the StartupSomePal-

Persistent Data and Data Conversion 31

ette method in <SDK>/source/sdksamples/dynamicpanel/DynPnPanelManager.cpp.

You also can call IDataBase::NewUID method to create a new UID in the database. It adds an
entry to the database relating the UID to the class of the object being created; however, the
object is not instantiated yet, and no other information about it exists in the database.

Instantiating a persistent object

Before you instantiate a new object, use the InterfacePtr template to retrieve one of the object’s
interfaces. Pass the returned InterfacePtr to the IDatabase::Instantiate method, which calls the
database to instantiate the object.

There is only one object in memory for any UID and database. This method checks whether
the object already is in memory and, if so, returns a reference to that object. If the object is

Persistent Data and Data Conversion

Persistent objects

marked as changed, it is written to the database. For more information, see “Reading and writ-

ing persistent data” on page 34. If the object is not in memory, the method checks for previ-

ously stored data in the database. If data is found, the method instantiates the object from this
data. Otherwise, the method instantiates the object from the object’s constructor. Each imple­mentation has a constructor, so the boss and all its implementations are instantiated.

An object is stored to the database only if it is changed, making the default object data invalid.
A single object could exist and be used in several user sessions without ever being written to
the database. A persistent object whose data is not stored in the database is constructed from
the object’s constructor.

Whether it instantiates a new object or returns a reference to an object previously instantiated,
IDatabase::Instantiate increments the reference count on the object and returns an IPMUn­known* to the requested interface, if the interface is available.

Using commands and wrappers

There are commands for creating new objects of many of the existing classes (e.g., kNewDocC­mdBoss, kNewPageItemCmdBoss, kNewStoryCmdBoss, and kNewUIDCmdBoss). When you
need to create an object, first look for a suite interface, utility interface, or facade interface to
make creating your object safe and easy. If no such interface exists, use a command if one is
available, rather than creating the object with general functions.

Using a command to create an object protects the database. Commands are transaction based;
if you use a command when the application already is in an error state, the command performs
a protective shut-down, which quits the application rather than permitting a potentially cor­rupting change to be made to the document. Commands also provide notification for changes
to the model, allowing observers to be updated when the change is made, including changes
made with undo and redo operations.

When you implement a new type of persistent object, also implement a command to create
objects of that type, using methods outlined in “Implementing persistent objects” on page 33.

Types of references to objects

There are four types of reference to a persistent object: UID, UIDRef, InterfacePtr, and
UIDList. Each type of reference serves a different purpose. Understanding these reference
types makes working with persistent objects easier.

z UID is the type used for a unique identifier within the scope of a database. The UID value

by itself is not sufficient to identify the object outside the scope of the database. Like a
record number, a UID value has meaning only within a given database. UID values are use­ful for storing, passing, and otherwise referring to boss objects, because UID values have no
run-time dependencies, and there is an instance cache ensuring fast access to the instanti­ated objects. kInvalidUID is a value used to identify a UID that does not point at a valid
object. Any time a UID is retrieved and needs to be tested to see if it points at a valid object,
the UID should be compared to kInvalidUID.

32

z A UIDRef object contains two pieces of information: a pointer to a database and the UID of

an object within this database. A UIDRef is useful for referring to objects, because it identi­fies both the database and the object. Using a UIDRef object is a common means of refer­ring to a persistent object, especially when the persistent object is to be passed around or

Persistent Data and Data Conversion

Persistent objects

stored, since a UIDRef does not require the referenced object to be instantiated. A UIDRef
object cannot itself be persistent data, because it has a run-time dependency, the database
pointer. An empty or invalid UIDRef object has kInvalidUID as its UID and a nil pointer as
its database pointer.

z A InterfacePtr object contains a pointer to an interface (on any type of boss object) and

identify an instantiated object in main memory. While an InterfacePtr object on the boss is
necessary for working with the boss, it should not be used to track a reference to a persistent
object, because this forces the object to stay in memory. In many cases, a nil pointer
returned from InterfacePtr does not indicate an error state but simply means the requested
interface does not exist on the specified boss.

z A UIDList object contains a list of UIDs and a single pointer to a database. This means all

objects identified by a UIDList must be within the same database. A UIDList is a class
object and should be used any time a list of objects is needed for a selection or a command.

Destroying an object

There are commands for deleting persistent objects. Use the command rather than calling the
DeleteUID method directly, to be sure of cleaning up all references to the object or item refer­ences contained in the object.

When you implement a command to delete a persistent object, after you remove the references
to the object, use DeleteUID to delete the object from the database, as follows:

IDataBase::DBResultCode dbResult = database->DeleteUID(uid);

Implementing persistent objects

To make a boss object persistent, add the IPMPersist interface. Any boss with this interface is
persistent and, when an object of the boss is created, it is assigned a UID. Even though the
object has a UID, and the UID has an entry in the (ClassID, UID) pairings in a database, the
object does not automatically store data. It is up to the interface to store the data it needs. To
implement this, add the ReadWrite method to the interface (see “Reading and writing persis-

tent data” on page 34), and make sure the PreDirty method is called before information is

changed (see “Marking changed data” on page 34).

NOTE: If you add an interface to an existing persistent boss, the interface also may be made

persistent. If so, you must obey the following implementation rules for it.

Adding the IPMPersist interface to a boss

All instances of IPMPersist must use the kPMPersistImpl implementation. For an example, see
the kPstLstDataBoss boss class definition in <SDK>/source/sdksamples/persistentlist/PstLst.fr

Creating an interface factory for a persistent interface

For a persistent implementation, use the CREATE_PERSIST_PMINTERFACE macro.

Persistent Data and Data Conversion 33

Persistent Data and Data Conversion

Streams

Reading and writing persistent data

To store data, your interface must support the ReadWrite method. This method does the actual
reading and writing of persistent data in the database. The method takes a stream argument
containing the data to be transferred. Read and write stream methods are generalized, so one
ReadWrite method handles transfers in both directions. For example, XferBool reads a boolean
value for a read stream and writes a boolean value for a write stream. For an example, see the
BPIDataPersist::ReadWrite method in <SDK>/source/sdksamples/basicpersistinterface/BPI­DataPersist.cpp.

Marking changed data

When data changes for a persistent object that resides in memory, there is a difference between
the current version of the object and the object as it exists in the database’s storage. When this
happens, the object in memory is said to be dirty, meaning it does not match the version in
storage. Before a persistent object is modified, you must call the PreDirty method to mark the
object as being changed, so it is written to the database. For an example, see the BPIDataPer­sist::Set method in <SDK>/source/sdksamples/basicpersistinterface/BPIDataPersist.cpp.

The PreDirty method called from within BPIDataPersist::Set is implementation-independent,
so you can rely on the version provided by HELPER_METHODS macros defined in Helper­Interface.h (DECLARE_HELPER_METHODS, DEFINE_HELPER_METHODS, and
HELPER_METHODS_INIT).

Streams

This section discusses how streams are used to move information into and out of a document.

Streams are used by persistent objects to store their information to a database. Streams also are
used by the host application, to move data like placed images, information copied to the clip­board, and objects stored in the database. IPMStream is the public interface to streams. Imple­mentations of IPMStream typically use the IXferBytes interface to move data.

Stream utility methods (in StreamUtil.h) are helpers for creating all the common types of
streams used to move information within or between InDesign databases. The stream utility
methods and general read, write, and copy methods are needed any time you work with a
stream.

IPMStream methods

IPMStream is a generalized class for both reading and writing streams. Any particular stream
implementation is either a reading stream or a writing stream, and the type of stream can be
determined with the IPMStream::IsReading and IPMStream::IsWriting methods.

Any persistent implementation has a ReadWrite method, which uses a set of data-transferring
methods on the stream to read and write its data. (See “Reading and writing persistent data” on

page 34.) The IPMStream methods starting with the Xfer prefix are used for transferring the

34

data type identified in the method name. For example, XferByte transfers a byte, XferInt16
transfers a 16-bit integer, XferBool transfers a boolean value, and so on. All transferring meth­ods are overloaded, so they can take a single item or an array of items. (The XferByte(uchar,
int32) version typically is used for buffers.) Streams also handle byte swapping, if required. If
swapping is not set (SetSwapping(bool16)), the default is to not do byte-order swapping.

Additional IPMStream methods, XferObject and XferReference, transfer boss objects and ref­erences to objects. XferObject transfers an owned object, and XferReference transfers a refer­ence to an object not owned by the object using the stream. To decide which method to use,
think about what should happen to the object if the owning object were deleted. If the object
should still be available (as, for example, the color a page item refers to), use XferReference. If
the item is owned by the object and should be deleted with the owner (as, for example, the page
a document refers to), use XferObject.

Implementing a new stream

If you must read from or write to a location the host application does not recognize, you must
create a new type of stream. For example, you might need to create a new stream type to import
and export files stored on an FTP site or in a database.

Persistent Data and Data Conversion

Streams

Stream boss

The first step in implementing a new stream is to define the boss. Typically, a stream boss con­tains IPMStream and any interface required to identify the type of information in the stream,
the target or source of the stream, or both. Example 1creates a pointer-based read-stream boss:

EXAMPLE 1 kExtLinkPointerStreamWriteBoss, a pointer based stream boss

Class
{

kExtLinkPointerStreamWriteBoss,
kInvalidClass,
{

IID_IPMSTREAM, kExtLinkPointerStreamWriteImpl,
IID_IPOINTERSTREAMDATA, kPointerStreamDataImpl,
}

};

IPMStream is the only interface all stream bosses have in common. In Example 1, the IPointer-
StreamData controls a stream that writes out to memory; it contains a buffer and a length.

Persistent Data and Data Conversion 35

Persistent Data and Data Conversion

Missing plug-ins

Example 2 is another example.

EXAMPLE 2 kFileStreamReadBoss, a stream commonly used in importing

Class
{
kFileStreamReadBoss,
kInvalidClass,
{
IID_IPMSTREAM, kFileStreamReadLazyImpl,
IID_IFILESTREAMDATA, kFileStreamDataImpl,
}
};

IPMStream interface and the IXferBytes class

When implementing your own stream, take advantage of the default implementations of IPM­Stream, CStreamRead, and CStreamWrite. These default implementations use an abstract base
class, IXferBytes, to do the actual reading and writing. To implement a stream for a new data
source, you must create an IXferBytes subclass that can read and write to that data source.

Missing plug-ins

This section discusses how to open a document that contains data saved by a plug-in that is no
longer available.

Plug-ins you create can add data to the document. When your plug-in is present and loaded, it
can open and interpret the data; however, if the user removes the plug-in and then opens the
document, or gives the document to someone who does not have the plug-in, the plug-in is not
available to interpret the data.

You have two ways to handle such situations:

z Control what warning is shown when the document is opened without the plug-in.

z Implement code to update the data the next time the document is opened with the plug-in.

The rest of this section describes these options.

Warning levels

The application can give a warning when it opens a document that contains data created by a
plug-in that is not available. There are three warning levels: critical, default, and ignore. By set­ting the warning level, the plug-in can specify the relative importance of its data. Data created
by the plug-in has the “default” warning level unless you override the setting and identify the
data as more important (critical) or less important (ignored). This importance settings can be
modified by adding resources to the plug-in’s boss definition file:

36

z CriticalTags — A “critical” warning tells the user the document contains data from missing

plug-ins and strongly advises the user not to open the document. If the user continues the

Persistent Data and Data Conversion

Missing plug-ins

open operation, the application opens an untitled document that is a copy of the original, to
preserve the original document. Use this level when the data is visible in the document or
contributes objects owned by another object in the database, like text attributes, owned by
the text model.

z DefaultTags — A “default” warning tells the user the document contains data from missing

plug-ins and asks whether to continue the open operation. If the user continues the open
operation, the application opens the original document. Use this level when the data is self­contained and invisible to the user, but the user might encounter missing function that
would have been provided by the plug-in.

z IgnoreTags — An “ignore” warning provides no warning message at all; the application pro-

ceeds with the open operation as if there were no missing plug-ins. Use this level when the
data is invisible to the user and completely self-contained. In this case, the user does not
need to know the plug-in was involved in the construction of this document. If the plug-in
stored data in the document, but that data is used only by this plug-in and does not refer­ence objects supplied by other plug-ins, the user sees no difference in the document when
the plug-in is missing. For example, the plug-in might store preferences information in
every document for its own use.

You can set these warnings to use ClassID (when the plug-in creates new bosses) or Implemen­tationID (when the plug-in adds interfaces to existing bosses) values as triggers. Use kImple­mentationIDSpace to specify a list of ImplementationID values, and kClassIDSpace for
ClassID values. You can put any number of IDs in the list, but all the IDs must be of the same
type. Use a second resource to mark IDs of another type. Example 3 and Example 4 set the
warning level to ignore data stored by the PersistentList plug-in in the SDK by adding two
resources to PstLst.fr:

EXAMPLE 3 Marking implementation IDs as ignored

resource IgnoreTags(1)
{
kImplementationIDSpace,
{
kPstLstDataPersistImpl,
kPstLstUIDListImpl,
}
};

EXAMPLE 4 Marking boss classes as ignored

resource IgnoreTags(2)
{
kClassIDSpace,
{
kPstLstDataBoss,
}
};

You do not need to mark any IDs that do not appear in the document (for example, data that
was written out to saved data) or implementations that are not persistent.

You do not need to mark IDs if you want the default behavior.

Persistent Data and Data Conversion 37

Persistent Data and Data Conversion

Missing plug-ins

Missing plug-in alert

This alert is activated when a document is opened and contains data from one or more missing
plug-ins that cannot be ignored. The document contains a list of the plug-ins that added data to
it. Each piece of data added has an importance attached to it; this may be critical, default, or
ignorable. Data marked as ignorable does not cause the alert to be activated. Data marked as
critical or default causes the alert to be activated. In the case of critical data, the alert works
more strongly; this is the only difference between critical and default data.

The alert tells the user data is missing, presents a list of missing plug-ins, and allows the user to
continue or cancel the open operation. Each missing plug-in has the chance to add a string to
the alert that specifies additional useful information (e.g., a URL for purchasing or download­ing the plug-in). The alert is modeled on the missing-font alert.

The “Don’t Warn Again For These Plug-ins” option is de-selected by default. If this option is
selected, the alert is not activated the next time a document is opened and any subset of the
listed plug-ins is missing (and no other plug-ins are missing). This allows users accustomed to
seeing (and ignoring) alerts concerning specific plug-ins to automatically bypass the alert,
while still getting warned about data from any plug-ins newly found to be missing. The alert is
activated again if a document is opened that uses other missing plug-ins. The alert is activated
again if the “Don’t Warn Again For These Plug-ins” option is de-selected.

Guidelines for handling a missing plug-in

If a plug-in creates persistent data in a document, these guidelines ensure the document
behaves gracefully if a user tries to open it when the plug-in is missing or if the document is
edited by a user who did not have the plug-in:

If your plug-in does not store data in documents, you do not need to take any special precau­tions.

If the data stored by your plug-in does not reference other data in the document and does not
appear visually in the document, mark the data as ignorable.

If editing the document without your plug-in could corrupt the document, mark the data as
critical. You can specify a string that is displayed when the plug-in is missing and the user
opens a document that contains data added by the plug-in. See the ExtraPluginInfo resource,
which may provide information like the URL of a site from which the missing plug-in can be
obtained. See an example of the use of this resource in <SDK>/source/sdksamples/transparen-
cyeffect/TranFx.fr.

If there are checks your plug-in can do to restore the data’s integrity on opening a document
edited without the plug-in, supply a FixUpData method. For an example, see
<SDK>/source/sdksamples/persistentlist/PstLstPlugIn.cpp.

If you want your plug-in to handle the storage of its own data, use the application-supplied
mechanism that treats the plug-in’s data like a black box. (See “Black-box data storage” on

page 39.)

38

Data handling for missing plug-ins

If a document contains data placed there by a plug-in that is not available, the user can choose
to open the document anyway. If the data is completely self-contained, there may be no prob­lem; however, if the plug-in’s data depends on anything else in the document, undesirable
things can happen.

Missing data not copied

InDesign maintains most data in a centrally managed model in which the core-content man­ager keeps track of what information is added to the document, handles conversion of the data,
and provides a convenient mechanism for instantiating objects based on the data. This
approach does not allow the data to be copied when the plug-in is missing, however, because
the content manager would not be able to provide these services for the missing plug-in’s cop­ied data, and that potentially can leave the document in an invalid state. With the exception of
those objects that hold onto only ClassID values, InDesign blocks copying data associated with
missing plug-ins.

This means no attribute is copied if the plug-in that supplies the attribute is missing. This
applies to all attributes: text, graphics, table, cjk, etc. Furthermore, if a plug-in attached a data
interface to an existing attribute, and the plug-in is missing, the attribute is copied but the add­in data interface is not. This is consistent with how InDesign handles UID-based objects.

Persistent Data and Data Conversion

Missing plug-ins

Likewise, if a data interface is added to an XML element, the data interface is not copied if the
plug-in that supplied it is missing.

There are several features based on an object from a required plug-in holding a ClassID from
an optional plug-in, including adornments, text composer, pair-kern algorithm, section num­bers, and unit defaults. In these cases, the consequences of losing track of the plug-in that sup­plied the data is much less severe. Conversion of these ClassIDs is quite unusual and could be
handled if necessary by issuing new ClassIDs. Error handling in the user interface when the
plug-in is missing is much more graceful.

Black-box data storage

A second, simpler data-model storage mechanism was added for software developers requiring
that data (like text attributes) is copied with the text, and for developers who want to attach
data to other ID objects, such that it gets copied even when the source plug-in is missing. This
mechanism is black-box data storage.

In the simplest case, the black box is just a new persistent interface that sits on the object. A
plug-in can store data in the box or fetch data out of the box. The data is keyed by a ClassID,
which is supplied by the plug-in. Multiple plug-ins can store their data in the same black box,
and each plug-in gets its own, unique, streamed access to its data. The black box just keeps
track of the key, the length of the data, and the data stream. The software developer is responsi­ble for handling everything else—conversion, swapping, etc. Users do not get a missing plug-in
alert for data placed in a black box.

Any UID-based object could have a black box. In addition, attributes and small bosses (used
for XML elements) also can have black boxes.

Persistent Data and Data Conversion 39

Persistent Data and Data Conversion

Conversion of persistent data

The following objects support black boxes:

z kDocBoss — The root object of the document does not get copied.

z kPageItemBoss — This includes all page item objects, including spreads, master pages,

splines, frames, images, and text frames.

z Attributes — This includes text, graphic, table, cjk, etc. (i.e., everything that appears in an

AttributeBossList).

For more information on the black-box mechanism, see IBlackBoxCommands, IBlackBoxCm­dData, and IBlackBoxData in the API reference documentation.

FixUpData

Suppose a hyperlink attribute is linked to another frame, and the user can double-click the link
to go to the frame. A plug-in supplies an observer, so if the frame is deleted, the link is severed.
Now suppose you give the document containing the hyperlinks to someone who does not have
the hyperlink plug-in. This person edits the document, deletes the frame, saves the document,
then returns the document to you. The document is now corrupted, because your plug-in was
unable to delete the associated link, which now points to an undefined frame.

To restore the integrity of a document in this case, the plug-in can override the IPlugIn::FixUp­Data method. This method is called when the document is opened, if the plug-in was used to
store data in the document and the document was edited and saved without the plug-in. In this
case, the hyperlinks plug-in could override FixUpData to scan all its objects, checking whether
the linked frame UIDs were deleted; when the document is opened with the plug-in, the
method correctly severs the links.

40

Conversion of persistent data

This section describes types of conversion providers and the advantages of each type.

Converting persistent data from an old document to a new one is complex, because each plug­in can store data independently in the document. When the host opens a document created
with an older version of the application or an older version of any plug-in used in the docu­ment, you must convert and update the older data to match the new format.

Versioning persistent data is the process of converting persistent data in a database from one
format to another. The data in different formats usually resides in different databases; for
example, data in a database (document) from a previous version of InDesign versus that in a
database (document) from a newer version of InDesign. Just as each plug-in having a persistent
data implementation is responsible for the order of reading and writing its own data (thus
implicitly defining a data format), each plug-in also is responsible for converting its own data
from one format to another. Whether data in a database requires conversion usually is deter­mined when the database is opened.

There are two approaches to converting persistent data:

z You can use the host’s conversion manager to manage the conversion process. This

approach is the most common. See “Converting data with the conversion manager” on

page 42.

z The plug-in that owns the data can manage when and how data is converted, using version

information or other data embedded with the object data. See “Converting data without the

conversion manager” on page 52.

When to convert persistent data

As a plug-in developer, you want to ensure your users can open documents with persistent data
from an older version of your plug-in. To do this, your plug-in must provide data conversion
function. The best time to consider your data-conversion strategy is when you realize your
plug-in will store some data to a database. You need to implement data-conversion utilities in
the following cases:

z You change the order of IPMStream::Xfer* calls in the ReadWrite method.

z You change a persistent object’s definition.

Persistent Data and Data Conversion

Conversion of persistent data

z You re-number (change the value of) an ImplementationID or ClassID identifier.

z You remove a plug-in and data from the removed plug-in might be in a document a user

wants to open.

In any of these cases, the conversion manager needs to be notified how to convert the persistent
data for use by the loaded plug-in.

Specifying how the persistent data format changed is somewhat different from adding persis­tent data to or removing it from a document. Besides telling the conversion manager to add or
delete any obsolete data, the conversion provider has to be able to tell the conversion manager
about every implementation in the plug-in that was ever removed, to keep the content manager
up to date about the various persistent data formats.

NOTE: To provide a document for use with an earlier version of InDesign, use the InDesign

Interchange file format.

At the very least, the resources required to support data conversion can help you keep a log of
how your persistent data format has changed. Such a log can be useful.

Sample conversion scenario

Consider a plug-in with two released versions, 1 and 2, which use the same data format; in this
case, both versions of the plug-in have the same format version number, 1. The new release of
the plug-in, version 3, stores additional data, such as a time stamp. You must update the format
version number to match the current plug-in version number; so, for plug-in version 3, the for­mat version also would be 3. Because you changed the format version number, you must create
a converter that converts from version 1 to version 3. See Tab le 1.

Persistent Data and Data Conversion 41

Persistent Data and Data Conversion

Conversion of persistent data

TABLE 1 Version changes example

Plug-in version Format change Format version

1 N/A (new plug-in) 1.0

2No1.1

3 Ye s 3

4Yes4

For a fourth version of the plug-in, you again change the format, allowing a date stamp to be
signed. Change the plug-in and format version numbers to 4, and add an additional converter
to convert from version 3 to version 4. Conversions from version 1 to version 4 are done by the
conversion manager, which chains the converters together; the first converts from format ver­sion 1 to format version 3, and the second converts from format version 3 to format version 4).

Converting data with the conversion manager

Each document contains header information about the content, which includes a list of all
plug-ins that wrote data to the document and the version number of the plug-in last used to
write that data. When a document is opened, the application checks whether any plug-ins are
missing or out of date. If a plug-in is missing, it might provide an alert embedded in the docu­ment. (See “Missing plug-ins” on page 36.)

If a plug-in is out of date, data written by the old plug-in must be updated to match the format
required by the loaded plug-in. A plug-in can register a conversion service to do the update.
The InDesign conversion manager (IConversionMgr) determines which conversions are
required for opening the document and calls the appropriate plug-in to do the conversion.

When the persistent data for any plug-in changes, this is a document format change. Any of the
following can change the document format:

z Changes to the ReadWrite method — If the ReadWrite method is used to stream data to the

document, changing the ReadWrite method might change the document format; however,
an implementation might have a ReadWrite method that works with some other database
or other data source, not with the document itself. For example, a widget has a ReadWrite
method used for streaming to and from resources and to and from the SavedData file.
Changes to a method that does not work with the document database do not require any
special conversion.

z Changes to an object’s definition — If you add an implementation to (or remove an imple-

mentation from) the definition of a persistent boss in the framework resource (.fr) file, you
change how the object is streamed. If you add a new implementation, an old version of the
object will stream, but it will not contain the data normally appearing for the implementa­tion you added. This is fine if the data can be initialized adequately from the implementa­tion’s constructor; otherwise, you may need to add a converter. If you change the
implementation of an interface from one ImplementationID to another, you must convert
the data. If you remove an ImplementationID from a class, you should add a converter to

42

Persistent Data and Data Conversion

Conversion of persistent data

strip the old data from the object; otherwise, the obsolete data is carried around with the
object indefinitely.

z Re-numbering an ImplementationID or ClassID — If an ImplementationID or ClassID

changes, you must register a converter so occurrences of the ImplementationID or ClassID
in old documents can be updated. In practice, re-numbering a ClassID or Implementa­tionID is a source of many bugs and typically leads to corrupt documents, so we strongly
recommend you not re-number an ImplementationID or ClassID.

When you make a format change, you must do two things to maintain backward compatibility:

z Update the version number of the plug-in whose data format you changed.

z Provide a converter that can convert between the previous format and the new format.

Updating version numbers

Each plug-in has a plug-in version resource of type PluginVersion. The PluginVersion resource
appears in the boss definition file. The first entry of this resource describes the application's
build number; on the release build, this entry is the final-release version number. The second
entry of the resource is the plug-in's ID, followed by three sets of version numbers, followed by
an array of feature-set IDs. If any of the IDs in this list matches the current feature-set ID, the
plug-in is loaded. To see an example, open any example .fr file in the SDK.

Each version number has a major number and a minor number. The first version number is the
version of the plug-in, which gets updated for every release of the plug-in. The second version
number is the version of the application with which the plug-in expects to run. This ensures
the user does not drop a plug-in compiled for one version of the application into an installation
of another version of the application. The last number is the format version number, which
indicates the version of the plug-in that last changed the file format; this is the version number
written into the document, and it is the number the conversion manager checks to see whether
conversion is required.

The format version number does not always match the plug-in’s version number. The format
version number does not generally change as often as the plug-in version number. The plug-in
version number changes for every release of a plug-in, but the format version number changes
only if the format for the data the plug-in stores in the document has changed and the conver­sion manager is required to convert the data.

Adding a converter

Converters can be implemented as conversion services. InDesign supports two types of ser­vice-provider-based data conversion:

z Schema-based provider — Schema-based converters are configured through resources, are

easier to use than code-based converters, and cover most format-change needs. Use this
type of converter unless it cannot handle the special needs of your plug-in.

z Code-based provider — If your implementation uses a special data-compression algorithm

or other storage optimizations, involves data of variable length, or uses virtual object store
(VOS) objects, schema-based converters cannot handle the necessary data format conver­sions. In this case, you must implement your own custom conversion provider.

Persistent Data and Data Conversion 43

Persistent Data and Data Conversion

Conversion of persistent data

A conversion service is responsible for all conversions done by the plug-in. A converter might
at first handle only a single conversion, from the first format to the second. Later, if you change
the format again, you can add another conversion to the converter, to convert from the second
format to the third.

Suppose you market a plug-in that supplies a date stamp. You had released two versions (ver­sion 1.0 and version 2.0) of the plug-in without changing the persistent data created by the
plug-in; so both releases have the same format version number (1.0). For the third released ver­sion of the plug-in, you add a time stamp. You must update the format version number to
match the current plug-in version number; i.e., for plug-in version 3.0, the format version also
must be 3.0.

Suppose for the fourth released version of the plug-in (version 4.0), you again change the for­mat, allowing a date stamp to be signed. You then change the format version number to 4.0 and
add an additional converter, capable of converting from format version 3.0 to format version

4.0. Conversions from format version 1.0 to format version 4.0 can be done by the conversion

manager, which chains the two converters together, using the first converter to convert from
format version 1.0 to format version 3.0, and using the second converter to convert format ver­sion 3.0 to format version 4.0.)

Adding a converter (either schema-based or code-based) to your plug-in means adding a new
boss with two interfaces, IK2ServiceProvider and IConversionProvider. The
IK2ServiceProvider implementation, kConversionServiceImpl, is provided by the application.
You need to supply the IConversionProvider implementation. Here is a sample boss:

/**
This boss provides a conversion service to the conversion manager
to use the schema-based implementation.
*/
Class
{
kMyConversionProviderBoss,
kInvalidClass,
{
IID_ICONVERSIONPROVIDER, kMySchemaBasedConversionImpl,
IID_IK2SERVICEPROVIDER, kConversionServiceImpl,
}
},

44

Most of the work is done in the conversion provider supplied with the SDK.

The default implementation of IConversionMgr calls IConversionProvider::CountConversions
and IConversionProvider::GetNthConversion to determine which conversions are supported
by the converter. When you implement a new converter, CountConversions returns 1, and Get­NthConversion returns fromVersion set to the version number before your change and toVer­sion set to the version number having your change in it. VersionID is a data type in the Public
library; it consists of the PluginID value, the major format version number, and the minor for­mat version number.

For a new converter, fromVersion should be VersionID(yourPluginID, kOldPersistMajorVer­sionNumber, kOldPersistMinorVersionNumber). The toVersion should be the new format ver­sion number.

Persistent Data and Data Conversion

Conversion of persistent data

Your new conversion is added as conversion index 0. For a new converter, it looks like this:

int32 TextConversionProvider::CountConversions() const
{
return 1;
}

void TextConversionProvider::GetNthConversion(
int32 i, VersionID* fromVersion, VersionID* toVersion) const
{
*fromVersion = VersionID(kTextPluginID, kOldPersistMajorVersionNumber,
kOldPersistMinorVersionNumber);
*toVersion = VersionID(kTextPluginID, kNewPersistMajorVersionNumber,
kNewPersistMinorVersionNumber);
}

When adding another change after a changed version already exists, the change numbers
should chain together so the conversion manager can do changes across multiple formats. So, if
your plug-in used three formats—starting with version 1, then changed in version 3, and
changed again in version 4—your plug-in should register one converter that handles the con­version from format version 1 to format version 3 and another converter that handles the con­version from format version 3 to format version 4. If necessary, the conversion manager can
chain them together to convert a document from version 1 to version 4. The methods would
look like this:

const int32 kFirstFormatVersion = 1;
const int32 kSecondFormatVersion = 3;
const int32 kThirdFormatVersion = 4;

const int32 kFirstChange = 0;
const int32 kNewChange = 1;

int32 TextConversionProvider::CountConversions() const
{
return 2;
}

void TextConversionProvider::GetNthConversion(
int32 i, VersionID* fromVersion, VersionID* toVersion) const
{
if (i == kFirstChange)
{
*fromVersion = VersionID(kTextPluginID, kMajorVersionNumber,
kFirstPersistMinorVersionNumber);
*toVersion = VersionID(kTextPluginID, kMajorVersionNumber,
kSecondPersistMinorVersionNumber);
}
else if (i == kNewChange)
{
*fromVersion = VersionID(kTextPluginID, kMajorVersionNumber,
kSecondPersistMinorVersionNumber);
*toVersion = VersionID(kTextPluginID, kMajorVersionNumber,
kThirdPersistMinorVersionNumber);
}
}

Persistent Data and Data Conversion 45

Persistent Data and Data Conversion

Conversion of persistent data

Next, tell the conversion manager which information you changed. The default implementa­tion of IConversionMgr calls IConversionProvider::ShouldConvertImplementation with each
implementation in the document supplied by the plug-in. Depending on the data status of the
implementation, the plug-in must return kMustConvert when the content must be modified,
kMustRemove when the data is obsolete and must be removed, kMustStrip when the content
must be stripped, or kNothingToConvert for all other cases.

Using kTextFrameImpl as an example, define a method for IConversionProvider::ShouldCon­vertImplementation, returning kMustConvert when the tag is kTextFrameImpl and kNothing­ToConvert in all other cases. The plug-in should do this when the conversion manager is
converting that plug-in’s data and not performing another conversion, so check the conversion
index and make sure it is the one that you added. It might look like the following:

IConversionProvider::ConversionStatus
TextConversionProvider::ShouldConvertImplementation(
ImplementationID tag, ClassID context, int32 conversionIndex) const
{
IConversionProvider::ConversionStatus status =
IConversionProvider::kNothingToConvert;

switch (conversionIndex)
{
case 0:
if (tag == kTextFrameImpl)
status = IConversionProvider::kMustConvert;
break;
default:
break;
}

return status;
}

Next, implement ConvertTag to do the actual conversion. Suppose the TextFrame ReadWrite
method writes an integer value and a real value, and you are adding a boolean. The ConvertTag
implementation might look like the following, which illustrates what most converters look like:

ImplementationID TextConversionProvider::ConvertTag(
ImplementationID tag, ClassID forClass, int32 conversionIndex, int32 inLength,
IPMStream* inStream, IPMStream* outStream, IterationStatus whichIteration)
{
ImplementationID outTag = tag;
switch (conversionIndex)
{
case 0:
if (tag == kTextFrameImpl)
{
if (inLength > 0)
{
int32 passThruInt; inStream->XferInt32(passThruInt);
outStream->XferInt32(passThruInt);
int32 passThruReal; inStream->XferInt32(passThruReal);
outStream->XferInt32(passThruReal); // Adding new field bool16 smartQuotes =
kTrue;
outStream->XferInt32(smartQuotes);

46

Persistent Data and Data Conversion

Conversion of persistent data

}
} break;
default:
break;
} return outTag;
}

If the converter needs to convert a class, it implements ShouldConvertClass and ConvertClass.
This is necessary only if the class is being deleted or is a container for some other data. (See

“Containers and embedded data” on page 48.)

Removing classes or implementations

If you remove a ClassID or an ImplementationID from a version of your plug-in, the identifier
also must be removed from documents as they are converted. The conversion manager
removes an identifier for you if you implement your converter to return invalid status. For
example, to remove a tag, implement ConvertTag as follows:

ImplementationID TextConversionProvider::ConvertTag(
ImplementationID tag, ClassID forClass, int32 conversionIndex, int32 inLength,
IPMStream* inStream, IPMStream* outStream, IterationStatus whichIteration)
{
ImplementationID outTag = tag;
switch (conversionIndex)
{
case 0:
if (tag == kTagToRemove)
outTag = kInvalidImpl;
break;
default:
break;
}
return outTag;
}

Deleting a class is similar: implement ConvertClass to return kInvalidClass.

Changing an implementation in one class

Suppose a boss is defined with an IBoolData interface, implemented as kPersistBoolTrue,
meaning it defaults to true. Suppose you change this to kPersistBoolFalse. When you read an
old document with the new boss, you want it to use the new implementation. You would then
write a converter to take the data stored as kPersistBoolTrue and switch it to be stored as kPer­sistBoolFalse. When you first access the boss, it has the old value. If you do not make a con­verter, the boss will not read the old data, because there is no interface in the new boss using
the kPersistBoolTrue ImplementationID. Instead, the boss looks for kPersistBoolFalse but does
not find it, because the old boss did not have it; therefore, the value is false, because it is the
default value instead of the old value.

To change the ImplementationID of the data in the document, make a conversion method to
catch the old ImplementationID and change it to the new one. Do this only for your boss; do
not change other bosses using kPersistBoolTrue. Your method might look like this:

Persistent Data and Data Conversion 47

Persistent Data and Data Conversion

Conversion of persistent data

ImplementationID TextConversionProvider::ConvertTag(
ImplementationID tag, ClassID forClass, int32 conversionIndex, int32 inLength,
IPMStream* inStream, IPMStream* outStream, IterationStatus whichIteration)
{
ImplementationID outTag = tag;
switch (conversionIndex)
{
case 0:
if (tag == kPersistBoolTrue && forClass == kMyBoss)
outTag = kPersistBoolFalse;
bool16 theBool;
inStream->XferBool(theBool);
outStream->XferBool(theBool);
break;
default:
break;
}
return outTag;
}

forClass is the boss in which the data was found. The conversion should be done only if
forClass is the one you want changed.

Also implement ShouldConvertImplementation. forClass is either the class in which the data
was found or kInvalidClass if any class should match. The implementation of ShouldCon­vertImplementation looks like this:

IConversionProvider::ConversionStatus
TextConversionProvider::ShouldConvertImplementation (
ImplementationID tag, ClassID forClass, int32 conversionIndex) const
{
IConversionProvider::ConversionStatus status =
IConversionProvider::kNothingToConvert;

switch (conversionIndex){
case 0:
if (tag == kTextFrameImpl &&
(forClass == kMyBoss || forClass == kInvalidClass))
status = IConversionProvider::kMustConvert;
break;
default:
break;
}
return status;
}

Containers and embedded data

InDesign does not have many instances of containers. One example is in the text attribute code.
A text style is a UID-based boss object containing an implementation, TextAttributeList, that
contains a list of attribute bosses (Bold, Point Size, Leading, and so on). These attribute bosses
are not UID-based bosses; instead, TextAttributeList streams the ClassID for a boss, followed
by the boss’s data, then streams the next boss in the list. TextAttributeList, therefore, must call
the stream’s content tracker to notify the content manager that a new class was added to the
document.

48

Persistent Data and Data Conversion

Conversion of persistent data

The following example illustrates why this is important.

Suppose a new Red-Line plug-in adds an attribute to the style and the text does not compose
correctly if the Red-Line plug-in is removed. Red-Line can list the attribute as critical, so the
host provides a strongly worded warning when the user tries to open the document without the
Red-Line plug-in. However, if TextAttributeList does not register the attribute boss with the
content manager, the application never knows the attribute is in the document and cannot
warn the user. Suppose the Red-Line plug-in is updated, and the attribute boss in particular is
updated to store its data differently. The Red-Line plug-in registers a converter handling the
format change. If the host does not know the attribute appears in the document, the Red-Line
converter is never called to perform the conversion. The document appears to open correctly,
but it crashes on the attribute’s ReadWrite method the first time the style is read.

For the Red-Line attribute to be converted, TextAttributeList must register a converter. If the
content manager was notified when the attribute was streamed, the conversion manager knows
the attribute needs to be converted. It even knows the attribute was streamed by TextAt­tributeList. But the conversion manager has no way of knowing where the attribute is inside the
data streamed by TextAttributeList; therefore, TextAttributeList should register a converter that
calls back to the conversion manager to convert each piece of embedded data. Otherwise, the
embedded data is not converted.

Content manager

The host has a content manager that tracks what data is stored in the document, which plug-in
stored it, and the format version number of the plug-in last used to write the data.

Think of this as a table attached to the root of the document: every ImplementationID part of
the document appears in the table. This table also includes all ClassID values in the document.

Ta bl e 2 and Tab le 3 are an example.

TABLE 2 Version information

ImplementationID PluginID Format version number (only

minor number)

kSpreadImpl kSpreadPluginID 0

kSpreadLayerImpl kLayerPluginID 0

kTextAttrAlignJustImpl kTextAttrPluginID 1

kCMSProfileListImpl kColorMgmtPluginID 3

...

Persistent Data and Data Conversion 49

Persistent Data and Data Conversion

Conversion of persistent data

TABLE 3 Class IDs in the document

ClassID Plug-in ID Format version number (only

kSpreadBoss kSpreadPluginID 1

kSpreadLayerBoss kLayerPluginID 1

kTextAttrAlignBodyBoss kTextAttrPluginID 3

kDocBoss kDocFrameworkPluginID 1

When an object is streamed to a document, the document receives the ClassID of the object
and the data streamed by each of the object’s ReadWrite methods. The data written by a Read­Write method is marked with the ImplementationID of the ReadWrite implementation; this
way, when the data is read later, the system knows which C++ class to instantiate to read the
data. IContentMgr maintains an overall list of the ClassID and ImplementationID values used
in the document. When a new ClassID or ImplementationID is added to the document, ICon­tentMgr checks which plug-in supplied the ClassID or ImplementationID, notes the plug-in ID
and the format version number, and adds the new entry to the table.

minor number)

The plug-in supplying a ClassID is the one supplying the class definition. Only the plug-in sup­plying the original class definitions is considered; add-in classes do not count. The plug-in sup­plying an ImplementationID is the one that registered a factory for the ImplementationID.

This data is used to detect missing plug-ins and manage document conversion. When the user
opens a document containing data supplied by a missing plug-in, the host alerts the user that
the document contains data from a missing plug-in. The host detects missing plug-ins by look­ing in the content manager to see which plug-ins supplied data to the document and checking
this list against the list of loaded plug-ins to see whether any are missing.

This data also is used for document conversion. When the user opens a document, the default
implementation of IConversionMgr checks the format version number of the plug-ins supply­ing data to the document and compares it with the format version number of loaded plug-ins.
Any mismatch means a conversion is required before the document can be opened. If there is a
format version change without a supplied data converter, the document will not open.

Conversion manager

When a document is opened, the conversion manager is called to check whether any data in
the document requires conversion. If the data requires conversion and a converter is available,
the document is converted and opens as an untitled document. If a converter cannot be found,
the host displays an alert message that warns the user the document cannot be opened because
it cannot be converted.

This initial check, implemented in IConversionMgr::GetStatus, happens very early in the pro­cess of trying to open the document, before any objects in the document are accessed (i.e.,
before any of their ReadWrite methods are called). This is critical, because a ReadWrite
method will not succeed if the object needs to be converted. The conversion manager accesses
the content manager (converting it if necessary), and uses the content manager to find out what

50

Persistent Data and Data Conversion

Conversion of persistent data

plug-ins supplied data to the document. If any plug-ins used in the document have different
formats than the formats of the loaded plug-ins, conversion is necessary. Next, the conversion
manager sees whether there is a converter to convert from the format in the document to the
format associated with the loaded plug-in. If such a converter is available, conversion is possi­ble; the document may be closed and opened again as an untitled document.

If the GetStatus method returns with a result indicating conversion is not necessary, the open
operation proceeds without calling the conversion manager again. If the GetStatus method
returns with a result indicating conversion is necessary but impossible, the open operation is
aborted. If the GetStatus method returns with a result indicating conversion is required and a
converter is available, the conversion manager’s ConvertDocument method is called to per­form the conversion.

The first thing ConvertDocument does is compile a list of the classes and implementations in
the document that must be converted. A plug-in may have many different implementations
that wrote data to the document, but only one of these implementations might require conver­sion. The conversion manager uses the content manager to iterate over classes and implemen­tations supplied by the plug-in, and the conversion manager calls the converter to find out
which classes and implementations require conversion. Each class or implementation in the
document that the converter says must be converted is added to the list of classes or list of
implementations to be converted. Other data written by the plug-in is ignored by the converter;
it is not converted.

The next step is to iterate over the UIDs in the document. For each UID, the conversion man­ager gets the class of the UID. If the class is on the list of classes to be converted, the conversion
manager calls a converter for the class. If, as is more common, the class contains an implemen­tation needing to be converted, the conversion manager opens an input stream on the UID and
iterates through the implementations in the UID. If any implementation in the UID requires
conversion, an output stream is opened on the UID. Any implementation not requiring con­version is copied to the output stream. If an implementation requires conversion, its converter
is called. The converter gets passed the input stream and the output stream. The converter
reads from the input stream in the old format and writes to the output stream in the new for­mat.

After the UID iteration is completed, the content manager is called to update the format num­bers for all plug-ins that were outdated, to show their data was converted and is up to date.
After this, it is safe for ReadWrite methods to be called on objects in the document.

If any converter requires access to another object to do its conversion, it is called in the last
phase of conversion. For example, suppose there was one document-wide preference setting for
whether text in frames has smart quotes turned on, but you want to make this a per-frame set­ting. The text frame must store a new flag that indicates whether smart quotes are on or off.
The converter adds a new flag in the first phase of conversion, but the converter cannot set the
correct value for the flag until the preferences are converted. So, the converter needs to be
called once again, after the first phase is complete and it is safe to instantiate the preferences, to
get the value of the document-wide smart-quotes setting so the converter can set the frame’s
new smart-quotes setting accordingly.

Persistent Data and Data Conversion 51

Persistent Data and Data Conversion

ID Length ID Length

Data

k<Foo>Boss persistent data record

Vers. | Other

Data

Vers. | Other

Conversion of persistent data

Converting data without the conversion manager

To perform format conversion without the conversion manager, the persistent data itself must
identify the version of the plug-in that originally wrote the information. To use this method,
add a version number to the implementation classes, and implement the ReadWrite method to
write the version number first whenever the method writes data, as shown in Figure 3. This
method has the advantage of forward compatibility.

FIGURE 3 Persistent data with version number

For example, suppose the first version of your plug-in stores two-byte values, fOne and fTwo,
and uses a byte value to store the data’s version number. The ReadWrite method for this imple­mentation would be something like Example 5:

EXAMPLE 5 ReadWrite method supporting multiple versions (version 1 of the plug-in)

FooStuff::ReadWrite(IPMStream* stream, ImplementationID implementation)
{
stream->XferByte(0x01);
stream->XferByte(fOne);
stream->XferByte(fTwo);
}

The second version of this plug-in modifies the data format by adding a 16-bit integer value,
fThree. In this version, your ReadWrite method must be able to read data in either format, but
it always must write data back in the new format. See Example 6:

EXAMPLE 6 ReadWrite method supporting multiple versions (version 2 of the plug-in)

FooStuff::ReadWrite(IPMStream* stream, ImplementationID implementation)
{
uchar version = 0x02; //Always *write* version 2 data
stream->XferByte(version);
if (version == 0x01)
{
stream->XferByte(fOne);
stream->XferByte(fTwo);
}
else
{
stream->XferByte(fOne);
stream->XferByte(fTwo);
stream->XferInt16(fThree);
}
}

52

This code both reads and writes all data for this implementation. It could check whether the
stream is a reading or writing stream and perform only the needed operation, but the dual-pur­pose code actually is simpler and accomplishes the same thing. If the stream is a ReadStream,
the version is initialized as 0x02 but immediately replaced by the contents of the first byte in
the stream, and the rest of the stream is processed according to the version number found. If
this plug-in encounters data claiming a version number greater than 2, only the data it under­stands (processed by the else clause) is read. This method allows the version 2 plug-in to work
with data from both earlier and later versions. Each new version of the plug-in using this
method must preserve the portion of the stream previous versions created and add new infor­mation only to the end.

When using this approach, the plug-in’s data version number must not change between ver­sions of the plug-in, but only when a data converter is being supplied to convert the data from
one version to another.

Resources

Persistent Data and Data Conversion

Resources

This section explains the fundamental elements and ODFRez resources you need when incor­porating a converter in your plug-in.

PluginVersion resource, format numbers, and their macros

PluginVersion is a resource included in every InDesign and InCopy plug-in. Part of the
resource is the declaration of a persistent data format number, like the following:

kSDKDefPersistMajorVersionNumber, kSDKDefPersistMinorVersionNumber,

For an example, see the resource definition in <SDK>/source/sdksamples/basicdia-
log/BscDlg.fr.

Each plug-in specifies a different format number. These format numbers are stored in docu­ments, so when a document is opened, the content manager can determine whether data con­version is needed. This determination is made by comparing the format numbers stored in the
document for each plug-in with the format numbers declared by loaded plug-ins. If the format
numbers are different, the conversion manager is called upon to do a data conversion.

Format number values must meet the following criteria:

z Be greater than or equal to zero.

z Increase with each format change.

z Increment if the data format of any persistent class in a plug-in changes.

NOTE: If multiple persistent classes in a plug-in change their data formats at the same time, the

data-format version number needs to increment only once. How much you increment
data format version numbers is up to you.

Format-number values are just numbers; however, you might find it easier to use #define mac­ros for format numbers instead of using their values directly.

Persistent Data and Data Conversion 53

Persistent Data and Data Conversion

Resources

Ta bl e 4 lists format-number macros and their values from previous InDesign SDKs. See

<SDK>/source/sdksamples/common/SDKDef.h.

TABLE 4 Format number macros from prior InDesign SDKs

Version Macro: Major Macro: Minor Tuple

1.0 kSDKDef_10_PersistMajorVersionNumber kSDKDef_10_PersistMinorVersionNumber {0, 307}

1.5 kSDKDef_15_PersistMajorVersionNumber kSDKDef_15_PersistMinorVersionNumber {1, 0}

1.0J kSDKDef_1J_PersistMajorVersionNumber kSDKDef_1J_PersistMinorVersionNumber {2, 1}

2.0 / 2.0J kSDKDef_20_PersistMajorVersionNumber kSDKDef_20_PersistMinorVersionNumber {4, 1}

CS / CS
Japanese
(3.0 /

3.0J)

kSDKDef_30_PersistMajorVersionNumber kSDKDef_30_PersistMinorVersionNumber {5, 1}

Setting up resources

With the first format change for a plug-in, you must add a converter (either schema-based or
code-based) to your plug-in (only one converter per plug-in). See “Adding a converter” on

page 43.

Schemas

The schema resource defines which formats of which implementations the converter should
handle. The schema resource is defined in your .fr file and compiled using the ODFRC (Open
Document Framework Resource Compiler). See Example 7 and <SDK>/pub-
lic/includes/Schema.fh.

EXAMPLE 7 Schema resource

resource Schema(uniqueResourceID)
{
ImplementationID,
{ schemaFormatMajorNumber, schemaFormatMinorNumber },
{ // [0..n] SchemaFields go here (see SchemaFields.fh) }
};

54

Examples

When you define a schema resource, you explicitly state which format number of which imple­mentation it defines. It knows which plug-in contains the implementation, because it is defined
implicitly to be the plug-in that contains the schema resource. In other words, all schemas
defined in plug-in A are for implementations provided by plug-in A. The schema-based con­verter uses the information in this resource (or the SchemaList resource) to determine how to
map persistent data from one format to another.

Persistent Data and Data Conversion

Resources

In Example 8, (1) identifies the schema resource ID. The value does not matter, as long as it is
unique among all schema resources compiled into the plug-in. The first item in the schema
specifies the implementation ID, and the second item specifies the format number as a tuple {1,
0}. Next comes the schema field list. Curly brackets ( { } ) delimit the list, and commas separate
the individual fields. Each field has a type, name, and default value. It is extremely important
each field name is unique and these values are not re-used when a field is deleted. Field names
must be unique among the schemas that describe different formats of the same implementa­tion, because this is what allows data mapping between different format numbers.

NOTE: Although it is not done in the example below, we recommend you use #define macros

for each field name, to enhance readability.

EXAMPLE 8 Schema resource from <SDK>/sdksamples/snapshot/Snap.fr

resource Schema(1)
{
kSnapPrefsDataPersistImpl, // ImplementationID
{RezLong(1), RezLong(0)}, // format number
{
{PMString {0x0001, ""}}, // dialog default file name
{ClassID {0x0002, 0}}, // format class ID, fFormatClassID
{Real {0x0003, 1.0}}, // fScale
{Real {0x0004, 72.0}}, // fResolution
{Real {0x0005, 72.0}}, // fMinimumResolution
{Real {0x0006, 0.0}}, // fBleed
{Bool16 {0x0007, 0}}, // fDrawArea
{Bool16 {0x0008, 0}}, // fFullResolutionGraphics
{Bool16 {0x0009, 0}}, // fDrawGray
{Bool16 {0x000a, 0}}, // fAddAlpha
{Int32 {0x000b, 512}}, // fDrawingFlags, set default to IShape::kPrinting == 512
{Bool16 {0x000c, 0}}, // fIndexedColour
}
};

In Example 9 (based on the preceding Snap.fr example), there is a new schema resource ID (2).
Inside the schema, the following changes occurred:

z The implementation ID has not changed, but the format number is specified as a tuple {1,

1}.

z schemaFormatMinorNumber changed from 0 to 1.

z In the schema field list, the fifth field (0x0005, fMinimumResolution) was deleted. During

conversion, the fifth field (Real) is stripped from the existing data.

z The seventh field changed its type. It uses the same name but is now of type Bool8. This

requires an implicit conversion. (For a table of valid and invalid type conversions, see the
“Versioning Persistent Data” chapter of Adobe InDesign CS4 Solutions.)

z A new field (0x000d, fMaximumResolution) was added. On conversion, an element of type

Int32 (with a value of 3) is appended to the end of the existing data.

Persistent Data and Data Conversion 55

Persistent Data and Data Conversion

Resources

EXAMPLE 9 Hypothetical schema resource

resource Schema(2)
{
kSnapPrefsDataPersistImpl, // implementation ID
{RezLong(1), RezLong(1)}, // format number
{
{PMString {0x0001, ""}}, // dialog default file name
{ClassID {0x0002, 0}}, // format class ID, fFormatClassID
{Real {0x0003, 1.0}}, // fScale
{Real {0x0004, 72.0}}, // fResolution
{Real {0x0006, 0.0}}, // fBleed
{Bool8 {0x0007, 0}}, // fDrawArea
{Bool16 {0x0008, 0}}, // fFullResolutionGraphics
{Bool16 {0x0009, 0}}, // fDrawGray
{Bool16 {0x000a, 0}}, // fAddAlpha
{Int32 {0x000b, 512}}, // fDrawingFlags, set default IShape::kPrinting == 512
{Bool16 {0x000c, 0}}, // fIndexedColour
{Int32 {0x000d, 3}}, // minimum resolution enum
}
};

Default values

Default values in a schema are used only when the associated field is added to the data stream
by conversion. For example, if an implementation originally contained only one int32 value but
now also needs a bool16 value, the first schema lists only the int32 and the second schema lists
both the int32 and the bool16. When the conversion runs, the schema converter writes a
bool16 into the output stream, using the value specified as the default. Because the int32
already existed, the default value specified by the schema is not used.

Suppose you have an implementation with two int32 values. In your constructor, you give them
values of 11 and 52. The schema should reflect this. If you later decide 53 is a better default
value for the second one, change the schema to match. In this case, however, you do not need a
new schema.

SchemaList

The SchemaList resource allows you to specify several schemas in one resource, for conve­nience. Example 10 shows the two previous schema resources combined in one SchemaList.

Even if initially you have only one Schema inside your SchemaList, it is a good idea to create
this resource because, over the course of development, this SchemaList resource acts as a per­sistent data format log.

56

EXAMPLE 10 Hypothetical SchemaList resource

resource SchemaList(uniqueResourceID)
{{
Schema // schemaTypeIdentifier
{
kSnapPrefsDataPersistImpl,
{RezLong(1), RezLong(0)},
{
{PMString {0x0001, ""}},
{ClassID {0x0002, 0}},
{Real {0x0003, 1.0}},
{Real {0x0004, 72.0}},
{Real {0x0005, 72.0}},
{Real {0x0006, 0.0}},
{Bool16 {0x0007, 0}},
{Bool16 {0x0008, 0}},
{Bool16 {0x0009, 0}},
{Bool16 {0x000a, 0}},
{Int32 {0x000b, 512}},
{Bool16 {0x000c, 0}},
}
};

Schema // schemaTypeIdentifier
{
kSnapPrefsDataPersistImpl,
{RezLong(1), RezLong(1)},
{
{PMString {0x0001, ""}},
{ClassID {0x0002, 0}},
{Real {0x0003, 1.0}},
{Real {0x0004, 72.0}},
{Real {0x0006, 0.0}},
{Bool8 {0x0007, 0}},
{Bool16 {0x0008, 0}},
{Bool16 {0x0009, 0}},
{Bool16 {0x000a, 0}},
{Int32 {0x000b, 512}},
{Bool16 {0x000c, 0}},
{Int32 {0x000d, 3}},
}
};
}}

Persistent Data and Data Conversion

Resources

The possible types for schemaTypeIdentifier (see Example 10) are listed below. See Schema.fh
for their definitions.

z ClassSchema — Schema for classes in the current plug-in.

z OtherClassSchema — Like ClassSchema, but you can specify it for another plug-in by an

additional PluginID field.

z ImplementationSchema — Schema for implementations in the current plug-in.

Persistent Data and Data Conversion 57

Persistent Data and Data Conversion

Resources

z Schema — Another name for ImplementationSchema, because this is the most common

type.

z OtherImplementationSchema — Like ImplementationSchema, but you can specify it for

another plug-in by an additional PluginID field.

DirectiveList

To instruct the schema-based converter to add or remove implementations or an entire boss,
specify a DirectiveList resource to your resource file, as shown in Example 11. (The Direc-
tiveList resource formerly was known as BossDirective.) The DirectiveList resource is defined
in your .fr file and compiled using ODFRC.

EXAMPLE 11 DirectiveList syntax

resource DirectiveList(uniqueResourceID)
{
{ // [0..n] Directives go here }
};

A DirectiveList resource is required each time you do any of the following:

z Add a new boss or remove an existing one.

z Add an implementation to a boss or remove one from a boss.

z Change the ID of a boss or implementation.

The DirectiveList resource serves several purposes:

z Helps the conversion manager delete unnecessary data from a document when a boss or

implementation is removed.

z Keeps the content manager up to date regarding a document’s contents.

z Allows the conversion manager to do its job correctly, even when a boss or implementation

moves to a different plug-in.

The possible list of directives is in Tab l e 5.

TABLE 5 Possible list of directives

Directive Description

IgnorePlugin Mark a plug-in as ignorable.

MoveClass Moves a boss class from one plug-in to another.

MoveClassToPlugin A boss was moved from one plug-in to another.

MoveImplementation Moves an implementation from one plug-in to another.

58

MoveImplementationToPlugin An implementation was moved from one plug-in to another.

RemoveAllImplementation Removes an implementation from all boss classes.

RemoveAllOtherImplementation Removes an implementation from all boss classes.

Persistent Data and Data Conversion

Advanced schema topics

Directive Description

RemoveClass Removes a boss class from a plug-in.

RemoveImplementation Removes an implementation from a boss class.

RemoveOtherClass Removes a boss class from another plug-in.

RemoveOtherImplementation Removes an implementation from a boss class.

RemovePlugin Removes an entire plug-in.

RenumberPlugin Re-numbers an entire plug-in.

ReplaceAllImplementation Replaces one implementation with another in all plug-ins.

ReplaceClass Replaces one boss class with another.

ReplaceImplementation Replaces one implementation with another in a specific plug-in.

NOTE: See Schema.fh. Fields vary by type of directive.

Advanced schema topics

Arrays of values

Suppose an implementation contains three boolean flags followed by four uint32 values. The
schema could contain seven separate fields, or it could define two array fields, as in

Example 12:

EXAMPLE 12 Schema resource with array fields

#define kBarOptions 1
#define kBarValues 2
resource Schema(2)
{
kBarImpl,
{1, 0},
{
{Bool16Array{kBarOptions, {kTrue, kFalse, kTrue}}},
{Uint32Array{kBarValues, {0, 0, 0, 0}}}
}
};

The number of default values statically determines the number of elements in each array. Note
that the set of default values is enclosed in braces.

Persistent Data and Data Conversion 59

Persistent Data and Data Conversion

Advanced schema topics

FieldArray

If the quantity of array elements is dynamic or an array consists of structures rather than single
elements, use a FieldArray, which is a type of field, like Bool16, Uint32Array, or any of the
other types in Schema.fh.

In the following example, the Bar implementation differs slightly from the previous example.
Instead of having three flags followed by four values, it has a value associated with each flag,
and the number of (flag, value) pairs is dynamic:

EXAMPLE 13

#define kBarPairs 1
#define kBarOption 2
#define kBarValue 3
resource Schema(3)
{
kBarImpl,
{1, 0},
{
{FieldArray{kBarPairs, {Uint16{0}}, {{Bool16{kBarOption, kFalse}},
{Uint32{kBarValue, 0}}}}}
}
};

The syntax looks slightly complicated because of ODFRC limitations, but it is fairly straightfor­ward. The schema contains only one field; its type is FieldArray, and its name is kBarPairs.

Following the field's name is its iteration count. Because this is an attribute of the FieldArray, it
has a type but not a name. It also has a default value, which usually is zero. The counter might
be a signed or unsigned integer that is 8, 16, or 32 bits wide.

NOTE: The iteration count immediately precedes the iterated values. (If your implementation's

persistent data requires the count be elsewhere, you must write your own conversion
provider.)

Following the iteration count is the list of iterated fields. Each has a type, name, and default
value, like any other field. The default value is not used unless the iteration count has a nonzero
default. In the preceding example, the output stream would simply be “0.” If the default itera­tion count were 2, the output would be “2, kFalse, 0, kFalse, 0.”

FieldArrays can be nested up to three levels deep.

Conditional-field inclusion

An important variant of the FieldArray type is the FieldIf type. Use this construct to include a
block of fields zero times if a condition is not met or once if the condition is met. The condi­tional value can be of type Bool8, Bool16, ClassID, or ImplementationID. If the conditional
value is of type ClassID or ImplementationID, the fields are included if the ID is valid.

60

Persistent Data and Data Conversion

Advanced schema topics

Example 14 is a slight variant of Example 13:

EXAMPLE 14

resource Schema(4)
{
kBarImpl,
{1, 0},
{
{FieldIf{kBarPairs, {Bool16{kFalse}}, {{Bool16{kBarOption, kFalse}},
{Uint32{kBarValue, 0}}}}}
}
};

In this case, kBarOption and kBarValue are included zero or one times, depending on the
Bool16 value.

FieldIf constructs can be nested up to three levels deep.

Persistent Data and Data Conversion 61

Persistent Data and Data Conversion

Advanced schema topics

62

Commands

Client Invoker Command

+ Execute() : void

Receiver

+ Action() : void

ConcreteCommand

+ Execute() : void

receiver->Action();

This chapter describes InDesign’s command architecture. It also outlines how to find and use
the commands provided by the InDesign API, how to implement new commands of your own,
and other extension patterns associated with commands.

Concepts

This section introduces the generic command pattern, databases that provide persistence to the
application’s objects, and models that represent the application’s objects in memory.

Command pattern

The intent of the command pattern is as follows: “Encapsulate a request as an object, thereby
letting you parameterize clients with different requests, queue or log requests and support
undoable operations.” (This is described in Gamma, Helm, Johnson, and Vlissides, Design Pat-
terns, Addison-Wesley, 1995.) The structure of this pattern is shown in Figure 4.

Commands

Concepts

FIGURE 4 Command Pattern Structure

This pattern decouples the object that invokes an operation from the object that implements it.
The client wants an operation to be performed, the receiver knows how to perform the opera­tion, and the two are decoupled by this pattern. The command declares an interface for execut­ing an operation. The client does not send messages directly to the receiver; rather, the client
creates a concrete command object and sets its receiver. The concrete command implements
execute by calling the corresponding operation on the receiver. The invoker asks the command
to carry out the request, which causes the receiver to perform the operation.

Within the InDesign API, an implementation of the command pattern is used in situations
where preventing data corruption is paramount and users must be able to undo or redo
changes. See “Commands” on page 68.

Commands 63

Commands

Concepts

Databases and undoability

A persistent object has its state maintained outside the application runtime. It can be removed
from main memory and returned again, unchanged. The application maintains persistent
objects in a database. A database on disk is an opaque binary file in the operating system’s file
system. This database file stores the serialized state of a collection of objects. The set of objects
stored in a particular database is collectively known as a model. For example, an InDesign doc­ument file like Untitled-1.indd is a database file that represents the state of an instance of a doc­ument model. See “Models” on page 64.

Objects are stored in a database in the following format:

z Objects that persist are stored as a tree of objects, each of which is associated with and per-

sisted by a database.

z Each persistent object has a identifier, the UID, that identifies it uniquely within its data-

base.

z Each persistent object (except the root object) is owned and referred to by another object,

the parent. A persistent object also can be referenced by other objects, though this does not
indicate any form of ownership.

Models

The class that represents a database is IDataBase.

For more detail, see the “Persistent Data and Data Conversion” chapter.

Databases must be consistent and stable. Some databases also need to support undoability—the
ability for a user to undo or redo changes. For example, the ability to undo changes made to a
document is required; however, there is no requirement to undo changes made to the database
that persists the user interface state.

Ta bl e 6 shows the databases that exist and their support for undoability. If a database supports

undoability, that support cannot be turned off. All changes to objects that persist in the data­base must be undo-able. Turning off undo support is not allowed, because it would disable
error handling and increase the risk of document corruption.

NOTE: To change objects that persist in a database that supports undo, we recommend using

commands. If, however, you need to change data without showing something in the Edit >
Undo menu, you can bypass commands and wrap your changes in calls to
CmdUtils::BeginAutoUndoSequence and CmdUtils::EndAutoUndoSequence.

A model is a collection of objects backed by a database for persistent storage. A model is a tree­structured graph of objects. The ownership relationships between objects in a model defines
this tree structure. Ownership relationships are just parent-child relationships within the tree.

64

Document model

UID 75 :

kDocWorkspaceBoss

IWorkspace

UID 91 :

kPMColorBoss

IColorData

UID 125 :kStyleBoss

IStyleInfo

ITextAttributes

UID 1 :kDocBoss

IDocument

UID 60 :kSpreadBoss

ISpread

UID 41 :

kTextStoryBoss

ITextModel

Documen t co ntent
such as layout and
text.

Document
preference settings
such as styles and
swatches.

IStyleGroupManager

IDocument::GetDocWorkSpace

ISwatchList

ISpreadList IStoryList

Documents are represented by the document model. Figure 5 shows an example.

FIGURE 5 Objects in a document model (instance diagram)

Commands

Concepts

The document (kDocBoss) is the root object in the document model. It owns a collection of
spreads (kSpreadBoss), stories (kTextStoryBoss), a workspace (kDocWorkspaceBoss), and so
on. These objects may own further objects specific to their domain. The document’s workspace
owns objects like styles and swatches, which can be used throughout the document.

The database file that provides persistence for a document model is an end-user document file;
for example, a file Untitled-1.indd saved from InDesign.

Commands 65

Commands

UID 1 :

kWorkspaceBoss

IWorkspace

UID 27 :kStyleBoss

IStyleInfo

ITextAttributes

UID 42 :

kPMColorBoss

IColorData

Global default preference
settings such as styles and
swatches.

ISwatchList

IStyleGroupManager

Concepts

Defaults model

Global preference settings are represented by the defaults model. Figure 6 shows an example.

FIGURE 6 Objects in the defaults model (instance diagram)

The workspace (kWorkspaceBoss) is the root object in a defaults model. It owns the objects
that represent default preference settings like styles, swatches and so on. The defaults model is
global and is accessed from the session (kSessionBoss) via the ISession interface. When a new
document is created, preference settings can be copied from the defaults model into the docu­ment’s workspace (kDocWorkspaceBoss).

The database file that provides persistence for this model is an application defaults file. For
example, the file named InDesign Defaults is the database file used by InDesign to persist the
defaults model.

66

Commands

UID 2 :kAppBoss

UID 3 :

kActionManagerBoss

UID 4 :

kPanelManagerBoss

UID 5 :

kToolManagerBoss

UID 6 :

kDocumentListBoss

UID 1 :kSessionBoss

ISession

IApplication

Concepts

Session model

A session of an application is represented by the session model. Figure 7 shows an example.

FIGURE 7 Objects in the session model (instance diagram)

The session (kSessionBoss) is the root object in the session model. This model owns applica­tion-related objects that must persist from session to session. For instance, user interface
objects are found here, together with other objects that store the application’s type system (the
boss classes provided by all registered plug-ins).

The database file that persists objects in this model is the application’s saved data file. For
example, the file named InDesign SavedData is the database file used by InDesign to persist the
session model.

NOTE: Objects in the session model can be modified by calling mutator methods on their

interfaces directly. There is no need to modify them using commands. The database that
persists this model does not support undo.

Books, asset libraries, and other models

Several other features in an application have their own dedicated model, together with a data­base that provides that model with persistence. Prominent examples are books, asset libraries,
and the scrap. See Ta b le 6 for the level of undo support provided by their databases.

Commands 67

Commands

Commands

Commands

This section describes how commands are used in the application. It includes sections on the
CmdUtils class, which is fundamental to the processing of commands, and how to use com­mand sequences to group multiple commands into one logical unit.

Within the application, the most prevalent use of commands by client code is to modify persis­tent objects in the document model or defaults model. For example, plug-ins use commands to
create frames in a document or modify the default text style.

Commands encapsulate the changes made to persistent objects into a database transaction.
Encapsulating changes in this way helps prevent corruption. Furthermore, any change to the
state of persistent objects that needs to support undo must be made using a command.

Commands change persistent objects by doing the following:

z Calling mutator methods on interfaces that exist on persistent objects.

z Processing other commands (that call mutator methods on interfaces that exist on persis-

tent objects).

z Calling utilities that process commands (that call mutator methods on interfaces that exist

on persistent objects).

z A mixture of the above.

A command is processed by the application; this means an instance of the command is passed
to the application to be executed. A command can change persistent data within only one data­base each time it is processed. The processing of a command moves the database from one con­sistent state to another.

When a command is used to modify objects that persist in a database that supports undo, that
command can manifest on the undo and redo menu items, and the database automatically
reverts the state of affected objects on undo and restore the changed state on redo.

NOTE: Before InDesign CS4, commands were directly responsible for reverting or restoring

the changes they made to persistent objects on undo and redo. The application has
taken over this responsibility.

The InDesign API provides commands for plug-ins to use. See “Command processing and the

CmdUtils class” on page 70 and “Key client APIs” on page 84.

Plug-ins also can introduce new commands using the command extension pattern. See “Com-

mand” on page 86. This is required when a plug-in adds custom persistent data to a document,

defaults, or other objects that persist in a database that supports undo. The extension patterns
named persistent interface and persistent boss are ways in which custom persistent data can be
added to a database. See “Persistent interface” on page 89 and “Persistent boss” on page 91.

68

Command parameters

«boss»

kSomeCommandBoss

«interface»

ICommand

+ GetItemList() : const UIDList*
+ SetItemList(const UIDList&) : void

«interface»

ISomeData

+ GetData()
+ SetData()

Commands implement the protocol used to modify objects that persist in a database that sup-
ports undo. A client initiates this protocol by instantiating a command and passing it off to the
application for processing. The client also is responsible for initializing the state of the com­mand, including the setting of parameters. In general, the command pattern supports two
mechanisms for parameter passing:

1. The UIDList in the ICommand interface (the “item list”), which identifies a set of persistent
objects; see ICommand::SetItemList. On input, this might identify the set of page items on
which the command operates. For example, a page item move command (kMoveAbso­luteCmdBoss) would use this to identify the set of items to be moved. On output, the item
list might identify the set of object manipulated by a command. For example, a page item
create command (kNewPageItemCmdBoss) would provide the UIDs of the objects created
as a result of the command being processed. The use of the command’s item list is specific to
each command; a command is not required to use the item list.

2. Data-carrying interfaces on the command’s boss class. For example, the command used to
apply a particular text style aggregates an IBoolData interface to define whether character
styles should be overridden, and an IRangeData interface to indicate the range of text that
should be updated by the command.

Commands

Commands

These two approaches for passing parameters are shown in Figure 8. There is a command boss
class showing two aggregated interfaces, ICommand and a data-carrying interface (ISome­Data). Parameters can be passed through the item list in ICommand, the data-carrying inter­face, or both.

FIGURE 8 Passing parameters to commands

Commands 69

Commands

Commands

Command undoability

Each command has a property called undoability (see ICommand::Undoability), which deter­mines whether the command name can appear in undo and redo menu items (i.e., whether the
changes made by the command can be undone or redone in a distinct step).

z An undoability of kRegularUndo is used by commands whose changes need to appear as a

separate named step in undo and redo menu items. This is the default behavior.

z An undoability of kAutoUndo is used by commands whose changes do not appear as a sep-

arate named step; for example, commands whose changes should be undone or redone with
an existing step.

Changes made to objects that persist in a database that supports undo must be undoable. To
achieve this, the various extension patterns involved, such as commands and persistent inter­faces, must be implemented following the rules described in this chapter. The database then
automatically reverts the state of affected objects on undo and restores the changed state on
redo. The undoability of a command (kRegularUndo / kAutoUndo) has no effect on this behavior.
It affects only whether the command appears as a distinct step in undo and redo menu items.

Command processing and the CmdUtils class

Client code uses commands when changing objects that persist state in any database that sup­ports undo. For example, commands are used to change objects in the document model or the
defaults model. The level of support for undo of each database is given in Ta bl e 6 .

To change the objects, client code creates instances of one or more commands and submits
these instances to the application for execution. For example, to create frames in a document, a
plug-in either creates commands to be processed and passes them to the application or calls a
helper class that encapsulates both the creation and request for processing. The helper classes
provided by the InDesign API are introduced in “Command facades and utilities” on page 84.

Client code that must create commands uses the CmdUtils class. CmdUtils::CreateCommand
creates an instance of a specific command. The client code parameterizes the command, using
the command’s item list and data interfaces. The client code submits the command to the appli­cation for execution, by calling CmdUtils::ProcessCommand. Client code can group the com­mands it processes into command sequences, using methods and classes provided by
CmdUtils. Guidance on processing commands and command sequences is in “Command-pro-

cessing APIs” on page 86 and the “Commands” chapter of Adobe InDesign CS4 Solutions.

The sequence of calls involved in processing a command is shown in Figure 9. The client code
creates the command, populates the item list and other data interfaces, then passes the com­mand off for processing.

70

FIGURE 9 Client processing a command

Client code CmdUtils A Command A Persistent

Interface

Some client code creates an
instance of a command using
CmdUtils::CreateCommand

The client sets the command
parameters, both through the
item list (shown here) or
through data carrying
interfaces.

The processing of the
command is initiated through
the client calling
CmdUtils::ProcessCommand.

Client code
creates
command, sets
parameters and
passes it for
processing. The
client should
also test error
state on return,
before
processing
further
commands.

CmdUtils should
be used for all
client
interactions with
the commands
sub-system. The
rest of the
internals are not
shown in this
diagram.

The update to some
interface on a (UID
based) boss object.
The call to PreDirty
allows the
application to track
the changes made
so that the
application can
undo or redo the
changes
automatically.

CreateCommand

construct

SetItemList

ProcessCommand

Do

Set

PreDirty

Commands

Commands

Command sequences

Commands 71

A command sequence (see ICommandSequence) groups a set of commands into a single
undoable step that changes the model from one consistent state into another. The command
sequence manifests on the undo and redo menu items as a single item.

Commands

Client code CmdUtils ICommandSequence

The client creates a new
command sequence.

The client gives the sequence

a name, otherwise the
sequence uses the name of
the first command processed.

Multiple commands are
processed within the scope of
a sequence.

The client indicates the
sequence is complete.

BeginCommandSequence

ICommandSequence*=

SetName

ProcessCommand

ProcessCommand

EndCommandSequence

Commands

Command sequences can be nested. For example, say you begin a sequence in one method,
then call a second method that begins a second sequence. The second sequence is said to be
nested within the first. When sequences are nested, only one sequence—the outermost one—
appears on undo and redo menu items.

Command sequences assimilate all commands are processed within their scope, whether the
command is processed directly from within the sequence or indirectly through subcommands
(commands processed by a command). See the “Commands” chapter of Adobe InDesign CS4
Solutions for how to write code that uses command sequences.

A typical scenario for a command sequence is shown in Figure 10. Between the BeginCom­mandSequence and EndCommandSequence calls, all commands processed act as a single set of
changes; only one element will appear on undo and redo menu items.

FIGURE 10 Calls made for a command sequence

A command sequence can change persistent objects in more that one database. (A command,
on the other hand, can change objects only in one database each time it is processed.) Opera­tions that change objects in two or more documents can be implemented using a command
sequence. Such a set of modifications manifests in undo and redo menu items for all affected
documents.

72

Command managers, databases, and undo support

A command sequence has limited support for error handling: the sequence either succeeds
entirely or fails. An abortable command sequence (see IAbortableCmdSeq) allows more
sophisticated error handling, to allow for fail/retry semantics. Abortable command sequences
incur a significant performance overhead and should be used only where absolutely necessary.
Guidance on using these types of sequence is in the “Commands” chapter of Adobe InDesign
CS4 Solutions.

Command managers, databases, and undo support

This section describes how command managers relate to the application’s databases.

The application object model realizes a tree-structured graph of boss objects. Within this tree
are several distinct models, notably the session model, the defaults model, and one or more
document models (see “Models” on page 64). Each model has a distinct database that provides
persistence for its objects (see “Databases and undoability” on page 64). Each database has an
associated boss, called a command manager. When commands are used to change objects in a
model, the command manager is responsible for executing the commands.

Commands

Figure 11 shows that the application object model has several distinct databases that provide

persistence for its objects. The diagram shows some of the objects in an InDesign session (with
two open documents) and the databases with which these objects are associated. Each UID­based object refers to its associated database through its IPMPersist interface. The defaults
model, represented by an instance of kWorkspaceBoss, persists in the InDesign Defaults data­base file. Each document model, represented by an instance of kDocBoss, persists in an InDe­sign document database file. The session model, represented by the instance of kSessionBoss
and the child objects that do not belong to any other model, persists in the InDesign SavedData
database file.

Each database has an associated command manager (see objects in Figure 11 that have an
ICommandMgr interface). The command manager is responsible for managing database
transactions and executing the commands that change the objects that persist in the database.
If an object has an ICommandMgr interface, it is the root object of its associated database. This is
shown in Figure 11. Key objects that are command managers are listed in Ta bl e 6 ; for the com-
plete list, see ICommandMgr in the API Reference.

NOTE: The class that represents a database is IDataBase. This class is an abstract C++ class, but

it is not an IPMUnknown interface.

Commands 73

Commands

UID 1 :kSessionBoss

ICommandMgr

UID 2 :kAppBoss

UID 3 :kDocumentListBoss UID 1 :kWorkspaceBoss

ICommandMgr

UID 1 :kDocBoss

ICommandMgr

UID 1 :kDocBoss

ICommandMgr

InDesign SavedData :

IDataBase

Untitled-1.indd :

IDataBase

Untitled-2.indd :

IDataBase

InDesign Defaults :

IDataBase

IPMPersist

IPMPersist

IPMPersist

IPMPersist

IPMPersist IPMPersist

IDocumentList::GetNthDoc(1)

IDocumentList::GetNthDoc(0)

ISession::QueryWorkspace

IApplication::QueryDocumentList

ISession::QueryApplication

Command managers, databases, and undo support

FIGURE 11 Models and databases in an indesign session (object diagram)

74

Command managers, databases, and undo support

TABLE 6 Frequently Used Databases and their Support for Undoability

Commands

Command manager /
root boss class

kSessionBoss Application SavedData None InDesign SavedData User interface objects like

kWorkspaceBoss Application Defaults Full InDesign Defaults Default resources like

kDocBoss InDesign Document Full Your.indd Document content like spreads,

kBookBoss InDesign Book Partial Your.indb A collection of InDesign documents

kCatalogBoss InDesign Asset Library Partial Your.indl A collection of page items.

Clipboard/scrap Application ClipboardScrap Partial

Database Undo

support

Example filename and use

tools, menus, panels, dialogs, controls, and
string translations. Objects that define the
application object model, like plug-ins and boss
classes.

swatches, fonts, and styles inherited by new
documents.

pages, page items, and text.

and associated resources.

Each database has a level of support for undo which is fixed when the database is created and
can be one of the following:

z Full — The database fully supports undoable operations. The changes made by a transac-

tion can be reversed automatically on undo and restored on redo. Undo and redo menu
items are fully supported.

z Partial — The database can undo only the most recent operation. If an error occurs, the

database is rolled back to its state before the transaction began; however, once a transaction
is committed, it is irreversible. There is no support for undo and redo menu items.

z None — The database does not support undoable operations. There is no support for error

handling, abortable command sequences, or undo and redo menu items.

NOTE: Undo support varies by product. In InDesign and InCopy, full undo support is

provided for documents and defaults. In InDesign Server, only partial undo support is
provided for these databases; the server has no concept of user undo and redo.

Objects that persist in a database with full or partial support for undo must be modified using
commands. For example, a plug-in must process commands to change document content such
as spreads, pages, or page items.

Objects that persist in a database without support for undo can be modified by calling mutator
methods on persistent interfaces directly. Commands are not required. For example, a plug-in
can call interfaces on user interface objects, such as widgets, that set state directly.

Commands 75

Commands

«boss»

kSessionBoss

«boss»

kCommandProcessorBoss

ICommandProcessor

«boss»

kSomeCommandBoss

ICommand

«boss»

kSomeModelRootBoss

ICommandMgr

IDataBase

IDataBase::GetRootUID 1

IPMPersist::GetDataBase 1

changes objects that persist in

1

1..*

1

ISession::QueryCommandProcessor

1

The command processor

The command processor

This section describes how a command is passed through the application until it is processed.

The session (see the ISession interface) has a singleton instance of the command processor (see
kCommandProcessorBoss and the ICommandProcessor interface). The command processor is
the core application component to which all commands are submitted via CmdUtils.

The command processor’s structure is shown in Figure 12. A command targets one or more
objects for change, and these objects persist in a particular database. Normally, client code cre­ates a command instance and sets this target by passing parameters to the command (see

“Command parameters” on page 69). The client code submits the command instance for pro-

cessing using CmdUtils. Figure 13 shows the internal collaboration between the objects
involved.

FIGURE 12 Command processor (class diagram)

76

The command processor examines the command and determines which database contains the
objects the command changes. Each database has an associated command manager boss (see
ICommandMgr interface), shown in Figure 12 as the boss class named kSomeModelRootBoss.
For example, the root of the document model is kDocBoss, and kDocBoss is a command man­ager. The command processor calls the associated command manager to execute the com­mand.

Commands

A CommandCmdUtils A Command

Manager

CommandProcessor A Persistent

Interface

The command is
passed to the
session wide
command
processor which
determines the
target database
and calls
ICmdManager::Do
for that database.

The command
manager
invokes the
command.

The command
updates the
persistent
interface.
Generally the
command will
derive from the
Command class,
providing an
implementation
of Do().

The persistent
interface calls
PreDirty before
making any
update to the
data.

ProcessCommand

ProcessCommand

Do

DoImmediate

Set

PreDirty

The command processor

Figure 13 shows the internal processing of a command. The call to process a command is

passed to the session-wide command processor. This determines which database is targeted by
the command, and the command is passed to the command manager for the specified data­base. The command manager processes the command, and the command updates an interface
on a persistent (UID based) boss object. On completion, control returns to the client that initi­ated the process.

FIGURE 13 Internals of command processing (sequence diagram)

NOTE: Third party plug-ins should not interact directly with the command processor or

command manager interfaces. CmdUtils provides all methods needed by third parties
for processing commands.

Commands 77

Commands

A CommandA CmdManagerCommandProcessorCmdUtils A Persistent

Interface

Some client code schedules the
command. The command is
processed as part of the main
event loop after all other
processing has completed, and
before idle tasks are processed.

Processing of a scheduled command is identical to that of a non-scheduled
command. The only difference is with a non-scheduled command, client code is
responsible for the initiation, upon completion, control returns to the client. With
a scheduled command the

event loop initiates processing, upon completion
control returns to the main event loop. If a scheduled command returns an error,
it is reported to the user, the error condition is cleared and processing resumes.

ScheduleCommand

ProcessScheduledCmds

ProcessCommand

Do

DoImmediate

Set

PreDirty

Scheduled commands

Scheduled commands

Commands can be scheduled for later processing, using CmdUtils::ScheduleCommand. The
command is placed in a queue and processed when the application is idle as part of the main
event loop, before idle tasks are processed. The sequence of calls involved in processing a
scheduled command is shown in Figure 14. Compare this with the more normal case of imme­diately processing a command, shown in Figure 13. In Figure 14, the scheduled command is
passed to the command processor (through the CmdUtils::ScheduleCommand call). At some
later time, after all other processing is complete and control is returned to the main application
event loop, all scheduled commands are processed.

Guidance on using scheduled commands is in the “Commands” chapter of Adobe InDesign CS4
Solutions.

FIGURE 14 Processing a scheduled command

78

Snapshots and interface implementation types

Snapshots and interface implementation types

A snapshot is a copy of the state of an interface at a particular time. Undo and redo are achieved
automatically by the application, which keeps snapshots of the interfaces changed within an
undoable transaction. The snapshots are kept in the command history (see “Command his-

tory” on page 80) of the database with which the interface is associated.

The way in which an IPMUnknown interface is implemented determines whether its data is
persistent and/or needs a snapshot to support undo or redo:

z Regular interfaces store transient data that is not maintained on undo or redo. They are

declared to the object model using CREATE_PMINTERFACE, and their state is lost if they
are removed from memory. Data in a regular interface is not persistent, and no snapshot is
taken.

z Persistent interfaces are declared to the object model using the

CREATE_PERSIST_PMINTERFACE macro. They serialize their state to their associated
database via the ReadWrite method and can be removed from memory and returned again
unchanged. Persistent interfaces that are part of a database that supports undo also are
called to serialize their state (again via their ReadWrite method) to a snapshot. This mecha­nism is required to support undo and redo. See “Persistent interface” on page 89.

Commands

z Snapshot interfaces store transient data that must be maintained on undo and redo. They

are declared to the object model using the CREATE_SNAPSHOT_PMINTERFACE macro,
and they serialize their state in a snapshot via the SnapshotReadWrite method. Snapshot
interfaces are aggregated on a boss that persists in a database that supports undo; however,
their data is not persistent. Data maintained by a snapshot interface is lost whenever the
associated database is closed or when the command history for the database is cleared. See

“Snapshot interface” on page 92.

z Snapshot view interfaces are similar to snapshot interfaces, which also store transient data

that must be maintained on undo and redo. The distinction is that a snapshot view interface
depends on model objects that persist in another database. A snapshot view interface is part
of a user interface object and must explicitly identify the database containing the model of
interest. Also, the database on which a snapshot view interface depends can change. For
example, a widget that tracks some state in the front document must change the database on
which its snapshot view interface depends when the front document changes. Snapshot
view interfaces are declared to the object model using the
CREATE_VIEW_PMINTERFACE macro. See “Snapshot view interface” on page 99.

z It also is possible to create a hybrid interface to allow the data that persists in the database to

differ from the data of which a snapshot is taken for undo and redo. This can be used by
complex data structures, like collections that need to optimize performance. Such an inter­face is declared to the object model using the
CREATE_PERSIST_SNAPSHOT_PMINTERFACE macro. Data is serialized to the data­base via the ReadWrite method and to the snapshot via the SnapshotReadWrite method.
For example, consider this approach if you have a collection of some sort and want to serial­ize only those objects that changed relative to the snapshot (rather than the entire collec­tion).

Commands 79

Commands

Command history

Command history

Consider a database to be the state of the persistent object model. For example, a document
database is the state of the document object model (kDocBoss and all its dependents) at a par­ticular time. Persistent interfaces (on dependent objects) are called to serialize their state to the
database when necessary, via their ReadWrite method.

The command history (ICmdHistory) provides a history of the undoable operations that were
performed on each database. It records the state changes made by a particular command or
command sequence, for the purposes of undo and redo. The name of the first command or
command sequence processed to perform an operation on the model appears as a named step
in the command history. These steps manifest as undo and redo menu items. The command
history is used to automatically revert the state of affected objects on undo and to restore the
changed state on redo.

The database and its command history are related but distinct states.

To maintain the command history, the database monitors which of its objects change when
commands are processed. It tracks the UIDs that are deleted, created, or un-deleted. It tracks
persistent interfaces, snapshot interfaces and snapshot view interfaces that are modified, and it
takes snapshots of them. This information is kept in the command history as a set of CmdStac­kItem objects. (CmdStackItem is opaque on the SDK; third parties cannot access its data.)
When undo is invoked, the application automatically reverts the database state to its previous
revision, using this information. When redo is invoked, the application automatically restores
the database state to its next revision.

See Figure 15. The command processor (kCommandProcessorBoss) aggregates the command
history (interface ICmdHistory), which is responsible for maintaining the state changes made
by a particular command or command sequence (which manifests on the undo and redo
menu). This state, represented as CmdStackItems, is used to move the model to previous and
next states on undo and redo. The CmdStackItem encapsulates all data required for an undo
and redo that occurred while processing a command or command sequence.

80

FIGURE 15 Command history

«boss»

kCommandProcessorBoss

«interface»

ICmdHistory

CmdStackItem

The command
processor
aggregates a
command history
interface.

The command history maintains a set of
CmdStackItems (opaque in the SDK). These items
represent the set of UIDs added, deleted and modified.
For the modified persistent interfaces, the changes are
captured through a call to ReadWrite.

Any UID based object that has an associated snapshot
interface

that has been modified, will have its state

captured through a call to its SnapshotReadWrite.

On undo/redo, the state that is maintained in the
CmdStackItem (opaque in the SDK), which is used to
reset the UID based objects (through calls to
ReadWrite and

SnapshotReadWrite).

0..*

1

1

1

Commands

Undo and redo

Merging changes with an existing step in the command history

Sometimes it is desirable to extend the scope of an existing step shown in the undo/redo menu
to include functionality that occurs after the step finished. This can be done using either of the
following:

z A command with undoability of kAutoUndo.

z A command sequence with undoability of kAutoUndo.

Undo and redo

To enable a user to undo or redo a change, the objects changed must:

z Persist in a database that supports undo (see Tab l e 6).

z Be modified by processing commands.

The application maintains the state required for undo/redo of changes made to persistent
objects, as commands are processed. Each database that supports undo has a command history
in which the necessary information is recorded, as described in “Command history” on

page 80. Each persistent interface on a UID-based boss object has its ReadWrite method called

to add the state to the command history (for undo and redo) and to the database (to persist its

Commands 81

Commands

CmdHistory Internals

«interface»

ICmdHistory

DB1:

CmdStackItem1

DB1:

CmdStackItem2

DB1:

CmdStackItemN

DB2:

CmdStackItem1

DB2:

CmdStackItem2

DB2:

CmdStackItemN

DBN:

CmdStackItem1

DBN:

CmdStackItem2

DBN:

CmdStackItemN

kCommandProcessorBoss

1

1

Undo and redo

state). On undo, the ReadWrite method is called to reset the state back to that from before the
action, and on Redo, the ReadWrite method is called again to set the state back to that from the
initial action. The sequence of calls to a persistent interface is shown in Figure 17. Snapshot
interfaces are called on their SnapshotReadWrite method using a similar approach; see

Figure 18.

The command processor records in the command history the set of undoable operations it has
performed (see the ICmdHistory interface on kCommandProcessorBoss). The steps in the
command history appear in undo and redo menu items and are modelled internally using
CmdStackItems. (These are internal only. Discussion is provided here to give some notion of
how the command processor works.) This is shown in Figure 16.

FIGURE 16 Command history internals (instance diagram)

82

The command history maintains a stack of CmdStackItem objects for each database that sup­ports undo; see Figure 16. A CmdStackItem (opaque in the SDK) represents the set of changes
made by the sequence or command that manifests on the undo/redo menu. It contains data
gathered during a database transaction for the purposes of undo and redo. On undo/redo, the
“current” CmdStackItem is used to revert the state of the model. The CmdStackItem encapsu­lates all data required for an undo/redo that occurred while processing a command or com­mand sequence. This includes all changes to persistent interface and snapshot interface data
that were pre-dirtied. The CmdStackItem also maintains any inval handler cookies (see “Inval

handler” on page 94) created as part of the sequence.

Each step has a name of either a command or a command sequence that performed the opera­tion. On undo, the application automatically reverts the database to its state before the opera­tion was performed. On redo, the application automatically restores the database to its state
after the operation was performed.

Extension patterns involved in undo and redo

The following extension patterns are called at undo or redo:

z Persistent interfaces; see “Persistent interface” on page 89.

z Snapshot interfaces; see “Snapshot interface” on page 92 (introduced in InDesign CS4).

z Snapshot view interfaces; see “Snapshot view interface” on page 99 (introduced in InDesign

CS4).

z Inval cookies; see “Inval handler” on page 94 (introduced in InDesign CS4).

z Observers, via their LazyUpdate method (introduced in InDesign CS4); see the “Notifica-

tion” chapter.

Commands

Notification within commands

Notification within commands

A command can initiate notification, so observers interested in changes to the objects it modi­fies are notified. See the “Notification” chapter.

Commands also can be processed within observers and responders. Take care with commands
that modify the model in this way. See the “Notification” chapter for further discussion of
model changes within the context of notification.

If you are implementing your own command, see “Command” on page 86 for additional infor­mation on notification in the command extension pattern.

Error handling

In response to a user gesture or another event, the application calls a plug-in to carry out an
action. For example, the user creates a text frame. In this case, the plug-in creates and processes
the commands that perform the action. On detecting an error, a plug-in normally sets the glo­bal error code (see ErrorUtils) to something other than kSuccess and returns. When control
returns to the application, the global error code is checked. If it is set, the database is reverted to
the state it had before the modifications began. Extension patterns that participated in the
transaction being rolled back are called as follows:

Commands 83

Commands

Key client APIs

1. Persistent interfaces, snapshot interfaces, and snapshot view interfaces modified by the
transaction are called to revert their state. See “Persistent interface” on page 89, “Snapshot

interface” on page 92, and “Snapshot view interface” on page 99.

2. Inval cookies created during the transaction are called to undo. See “Inval handler” on

page 94).

When the application returns to its main event loop, it informs the user through an alert, using
the string associated with the error code that is set (see “Error string service” on page 88). The
global error code is then cleared, and the application continues.

Plug-in code that processes commands or command sequences must check for errors. CmdU­tils::ProcessCommand returns an error code that should be checked for kSuccess before con­tinuing. Alternatively, you can check the global error code using ErrorUtils. Details are in the
“Commands” chapter of Adobe InDesign CS4 Solutions. If a plug-in tries to process a command
while the global error code is set, protective shutdown occurs to protect the integrity of the
document or defaults databases (see “Protective shutdown” on page 84).

Command implementation code also must check for errors. If a command encounters an error
condition within the scope of its Command::Do method, it should set the global error code
using ErrorUtils and return. Details on error handling is in the command extension pattern;
see “Command” on page 86.

Plug-in code that requires more sophisticated error handling, to allow for fail/retry semantics,
must use an abortable command sequence. For information on using abortable command
sequences, see the “Commands” chapter of Adobe InDesign CS4 Solutions.

Protective shutdown

Protective shutdown is a mechanism that helps prevent document corruption. Any attempt to
process a command when the global error code is set (to something other than kSuccess)
causes a protective shutdown. The application creates a log file describing the problem it
encountered and then exits.

Key client APIs

This section summarizes the APIs a plug-in can use to interact with commands.

Command facades and utilities

There are many command-related boss classes named k<whatever>CmdBoss, but in many
cases you do not need to instantiate these commands, as there are command facades and utili­ties in the API that encapsulate parameterizing and processing these commands.

84

Interfaces like those in Ta bl e 7 are examples of command facades and utilities. These encapsu­late processing of many commands required by plug-in code. These interfaces are aggregated

Commands

Key client APIs

on kUtilsBoss; the smart pointer class Utils makes it straightforward to acquire and call meth­ods on these interfaces. You can call their methods by writing code that follows this pattern:

Utils<IDocumentCommands>()->MethodName(...)

TABLE 7 Useful command facades and utilities

API Used for manipulating...

IDocumentCommands Documents.

IPathUtils Frames and splines. See the “Layout Fundamentals” chapter

for other APIs that help with layout.

IGraphicAttributeUtils Graphic attributes. See the “Graphics Fundamentals”

chapter for other APIs that help with graphics.

ITextModelCmds Text. See the “Text Fundamentals” chapter for other APIs

that help with text.

ITableCommands Tables. See the “Tables” chapter for other APIs that help

with tables.

IXMLUtils XML. See the “XML Fundamentals” chapter for other APIs

that help with XML.

kUtilsBoss See kUtilsBoss in the API Reference for a complete list of

command facades and utilities.

These utility classes abstract over low-level commands. Before using commands, always look
for such a utility to see if there is a method that serves your purpose on one of these interfaces.
By doing so, you avoid the increased chance of confusion and error that comes with processing
commands. Your use case may require you to process some commands, if the utilities do not
provide all of the functionality you require.

As used in the application, command “facade” and “utility” are just different names for the
same thing, a class that reduces and simplifies the amount of client code you need to write to
change objects in the model. They decouple client code from command creation, initialization,
and processing.

When implementing custom commands, it is advisable to provide your own command facade
or utility. If you want to share your class with other plug-ins, implement it as an add-in inter­face on kUtilsBoss; for example, see XDocBkFacade. If the class is used only by one plug-in, a
C++ class is sufficient; for example, see BPIHelper.

Commands 85

Commands

Extension patterns

Command-processing APIs

The classes used when writing client code to process commands are listed in Tab le 8.

TABLE 8 Useful classes for processing commands

API Description

CmdUtils Provides methods that create, process, or schedule commands and

manage command sequences.

PersistUtils Provides methods like GetDataBase, GetUID, and GetUIDRef, which

are used to identify the objects to be operated on by a command.

ErrorUtils Provides access to the global error code.

NOTE: You must use CmdUtils to process commands. Do not use the ICommandProcessor or

ICommandMgr interfaces for this. Misuse of these interfaces can easily cause
document corruption.

For information on finding and processing the commands provided by the API, see the “Com­mands” chapter of Adobe InDesign CS4 Solutions.

Extension patterns

This section summarizes the mechanisms a plug-in can use to extend the command subsystem.

Command

Description

Suppose:

z You added a new persistent boss to a document or a persistent interface to an object in a

document, and you need to set custom data in these objects.

z The API does not provide a command that sets the model data you need to change.

z You want do some processing, and you concluded that a command provides the best pattern

in which to encapsulate it.

Architecture

To implement a command, follow these steps:

z Define a new boss class in your plug-in that aggregates IID_ICOMMAND. If you require

input parameters over and above the command’s item list, aggregate further data interfaces
to the boss through which the parameters can be passed.

z Provide an implementation of ICommand using Command as a base class.

86

Commands

Extension patterns

z Add client code that processes your new command. See the “Commands” chapter of Adobe

InDesign CS4 Solutions.

z For more guidance, see the Command page in the API Reference and “Best Practice” below.

Best practices

z The Do method contains the code that modifies the model. The model is changed by calling

mutator methods on model interfaces, processing commands, processing commands in a
command sequence, or calling utilities that process commands for you.

z If you encounter an error condition within your Do method, set the global error code

(ErrorUtils::PMSetGlobalErrorCode) and return. The application is responsible for revert­ing the model back to its state before the Do method was called and informing the user of
the error.

z If you need more sophisticated flow control that allows for fail/retry semantics, use an

abortable command sequence (see IAbortableCmdSeq).

z The Do method can change objects in only one database each time it is called. To ch ang e

objects in more than one database in one undoable step, use a command sequence (ICom­mandSequence).

z Normally, the database containing the objects to be changed is passed using the command’s

item list. Alternatively, a command can target a predetermined database, by calling Com­mand::SetTarget in its constructor. It also can override Command::SetUpTarget and deter­mine the database containing the objects to be changed when the command is processed.

z Normally, the DoNotify method contains the code that initiates notification, should you

require it. Initiate notification by calling ISubject::ModelChange (not ISubject::Change).
Calling ISubject::ModelChange when model objects are changed broadcasts regular and
lazy notification (see the “Notification” chapter). The application calls DoNotify after the
Do method of the command is called; however, notification need not be restricted to this
method.

z Notification can be performed for each object that was modified using the ISubject inter-

face of affected objects. Notification also can be performed centrally. For example, many
commands that modify the document model notify change using the ISubject interface of
the document (kDocBoss). Sometimes commands use both these approaches. The benefit
of using a centralized approach is that an observer needs to attach to only one subject to
receive the notification.

z If you need to pre-notify observers before the model is changed, call your DoNotify method

from your Do method before making any changes to the model.

z Notification can result in the processing of further commands, which can result in global

error code being set. If further commands are processed, application shutdown occurs. If
multiple subjects are notified by a command, the global error code should be tested between
notifications. If the error code is set, the DoNotify method should return without calling
further subjects, or it should consume the error and reset the global error code.

z The undoability of a command should be fixed at command construction (see ICom-

mand::GetUndoability). Its default value is kRegularUndo. If a different undoability is

Commands 87

Commands

Extension patterns

z A command must have a name (see Command::CreateName), if it has an undoability of

z Commands with undoability of kAutoUndo do not need a name, because their changes

z The destructor of a command normally is empty. Do not change the model within the

See also

z For documentation on commands: Command and ICommand in the API Reference.

required, it should be set in the command’s constructor. See ICommand::Undoability in the
API Reference.

kRegularUndo and it returns kTrue for IsNameRequired. Such commands can appear in
undo and redo menu items. The name must have a translation, so it can be displayed in
undo and redo menu items in a localized form. Commands with an undoability of kRegu­larUndo that override IsNameRequired to return kFalse must pick up their name from a
subcommand. Some commands create and process other commands (subcommands) to
make their changes and want to pick up the name of the first subcommand called within
their scope instead of providing their own name.

merge with an existing step in the undo and redo menu items.

destructor.

z For documentation on notification: ISubject and IObserver in the API Reference.

z If you need error codes set by your command to map onto strings that describe the error

condition: “Error string service” on page 88.

z For sample code: kBPISetDataCmdBoss, BPISetDataCmd, and BPIHelper from the

BasicPersistInterface plug-in.

Error string service

Description

Suppose error conditions can occur in your plug-in, and you need to inform the user of these
errors.

Architecture

Sometimes, error conditions can occur in your plug-in, often within commands or command
sequences. When control is returned to the application by your plug-in, and the global error
code is set to something other than kSuccess, the user is informed and the model is reverted
back to the last consistent state. An error string service provides the ability to map error codes
onto error strings. To handle this, follow these steps:

z You Provide an error string service. This service allows ODFRez resources in your plug-in

to map error codes onto strings that describe the error. Detailed documentation on how to
define the error codes, resources, and implementations involved is the API Reference for
IErrorStringService.

88

z On detecting the error condition, call ErrorUtils::PMSetGlobalErrorCode to set your error

and return control to the application. The application informs the user of the error.

See also

For sample code: BPIErrorStringService from the BasicPersistInterface plug-in.

Persistent interface

Description

Suppose you need to add custom data to an existing object in the model and have that persist.
For example, you want frames in a document to have a set of custom properties that you con­trol.

Architecture

The state of a persistent interface that is associated with a database that supports undo is cap­tured by the application before it is changed; its state is reverted on undo and restored on redo.
The state is saved in the command history (see “Command history” on page 80) for undo and
redo, and in the database for persistence. Figure 17 shows the typical sequence of calls made to
modify persistent interface, and when that modification subsequently is undone or redone.

Commands

Extension patterns

Commands 89

Commands

Application core ICmdHistory CmdUtils A Command A Persistent

Interface

Some entity
processes a
command which
results in a
persistent interface
being modified. The
persistent interface
calls PreDirty before
mutating the data,
which allows the
application core to
snapshot the state of
the interface for the
command history
before it is changed
(to allow the
modification

to be
undone), and to
require it to be
streamed to the
database afterwards.

The application calls on
the persistent interface to
stream its data to the
database.

On undo, the command
history reverts the
persistent interface to the
state it had before the
modification was made.

On redo, the command
history restores the
persistent interface to the
state it had after the
modification was made.

ProcessCommand

DoImmediate

Set

PreDirty

PreDirty

ReadWrite

Push

Modify

ReadWrite

Undo

ReadWrite

Redo

ReadWrite

Extension patterns

FIGURE 17 Sequence of calls to a persistent interface

90

Commands

Extension patterns

To implement a persistent interface, follow these steps:

1. Aggregate your interface on the boss class in the model to which you want to add custom
data that persists. Use an add-in interface (an ODFRez AddIn statement) if you are adding
the interface to an existing boss class. To define a new type of persistent boss, see “Persistent

boss” on page 91.

2. Provide an abstract interface that uses IPMUnknown as a base class.

3. Provide an implementation of this abstract interface.

4. Use CREATE_PERSIST_PMINTERFACE to make your implementation class available to
the application (instead of CREATE_PMINTERFACE).

5. Define a ReadWrite method for your implementation class. It gets called to serialize your
data when needed.

6. Call PreDirty within mutator methods before changing member variables that need to be
serialized. This gives the application the ability to recognize that this interface is about to
change.

7. Call mutator methods to update the state of your interface. The application calls your Read­Write method to serialize your data when needed.

NOTE: If your interface persists in a document, you must consider what should happen when

users who do not have your plug-in open documents that contain your plug-in’s data.
See the section on missing plug-ins in the “Persistent Data and Data Conversion”
chapter.

See also

z “Command” on page 86.

z For sample code: IBPIData, BPIDataPersist and BPISetDataCmd from the BasicPersistInt-

erface plug-in.

z For documentation on persistence: the “Persistent Data and Data Conversion” chapter.

Persistent boss

Description

Suppose you need to add a new type of persistent object to the model. For example, you need to
add a list of custom style objects to defaults.

Architecture

To implement a persistent boss that has a UID, follow these steps:

1. Define a new boss class.

2. Aggregate IID_IPMPERSIST, and use the kPMPersistImpl implementation provided by the
API.

Commands 91

Commands

Extension patterns

3. Add persistent interfaces to the boss to store your custom data. See “Persistent interface” on

4. Choose a boss class to own the instances of your new persistent boss. Add a persistent inter-

NOTE: If your boss persists within a database that supports undo, such as a document or

See also

z For sample code: kPstLstDataBoss and PstLstUIDList from the PersistentList plug-in.

z For documentation on persistence: the “Persistent Data and Data Conversion” chapter.

z “Command” on page 86.

page 89.

face into the boss class you have chosen that stores the UIDs of the new persistent boss. For
example, to add custom styles to defaults, add this interface into kWorkspaceBoss.

defaults, you must create, modify, and delete the persistent boss using commands.
Implement a create command to allocate a new UID for each new instance of the
peristent boss, and store this UID in an interface on boss that owns it. The delete
command deletes all child UIDs owned by the persistent boss, removes all references to
the persistent boss from the model, then deletes the UID.

Snapshot interface

Description

Suppose you have an object containing transient data, which depends on model objects that
persist in a database that supports undo, and:

z Your object needs to be updated when the model objects are modified initially and on any

subsequent undo or redo.

z You cannot use lazy notification to update your object, because it must be kept up to date

with changes to the model at all times.

z Your object must be updated on undo or redo, before observers get called.

For example, the text state (see the ITextState interface) caches the text attributes that are
applied to the “text caret”; the next text insertion uses these attributes. This cache is imple­mented as a snapshot interface and maintained on undo and redo.

Architecture

The state of an snapshot interface is captured by the application before it is changed; its state is
reverted on undo and restored on redo. The state is saved in the command history (see “Com-

mand history” on page 80) for undo and redo. Figure 18 shows a typical sequence of calls for a

snapshot interface when it is modified, and when that modification is subsequently undone or
redone.

92

FIGURE 18 Sequence of calls for a snapshot interface

Application core ICmdHistory An Observer A Snapshot

Interface

Some change causes an observer to
be called which results in a snapshot
interface being modified. The
snapshot interface calls PreDirty
before mutating the data, which
allows the application core to
capture the state of the interface for
the command history before it is
changed

(to allow the modification

to be undone).

On undo, the command history is
invoked. This leads to a
SnapshotReadWrite call on the
snapshot interface, to revert the state
of the interface back to the was it
was before the modification.

Similarly, on redo, the snapshot
interface has the SnapshotReadWrite
method called to restore the state to
the way it was after the modification.

Update

Set

PreDirty

PreDirty

SnapshotReadWrite

Push

Modify

Undo

Undo

SnapshotReadWrite

Redo

Redo

SnapshotReadWrite

Commands

Extension patterns

Often, an observer or responder is used to modify a snapshot interface, as shown in Figure 18.
Before changing any data, the snapshot interface implementation calls PreDirty, indicating to
the application that the SnapshotReadWrite method should be called to capture the state of the
interface (this state is associated with the CmdStackItem for the current sequence)). On undo

Commands 93

Commands

Extension patterns

or redo, the SnapshotReadWrite method is invoked with the data associated with that particu­lar sequence on the undo/redo menu.

To implement a snapshot interface, follow these steps:

1. Add your interface to a persistent boss class that is part of the model on whose state your

2. Provide an abstract interface that uses IPMUnknown as a base class.

3. Provide an implementation of this abstract interface.

4. Use CREATE_SNAPSHOT_PMINTERFACE to make your implementation class available

5. Define a SnapshotReadWrite method for your implementation class. It gets called to serial-

6. Call PreDirty within mutator methods before changing member variables you serialize in

interface depends. Check that this class aggregates IPMPersist, since the boss must have a
UID to support a snapshot interface. For example, if your object depends on objects in a
document, you might choose kDocBoss.

to the application (instead of CREATE_PMINTERFACE).

ize snapshots of your data when needed.

SnapshotReadWrite.

7. When the model objects you depend on are changed, call mutator methods to modify the
state of your interface. You might need to track the change to the object using regular notifi­cation. The application takes a snapshot of your interface, reverts the state on undo, and
restores it on redo.

NOTE: Even though this extension pattern is very similar in its implementation to a persistent

See also

z For sample code: LnkWtchCache in the LinkWatcher plug-in and GTTxtEdtSnapshotInter-

fa ce in th e G oTo L as tTe xt Ed it plu g- in .

z The “Notification” chapter.

Inval handler

Description

Suppose you have an object that depends on model objects that persist in a database that sup­ports undo, and:

z Your object must be updated at undo and at redo when the model objects it depends on

change.

interface, its effect is very different. The information in your snapshot interface is
transient and not saved persistently with a document, defaults, or whatever other model
it is associated.

94

z You cannot use lazy notification (see the “Notification” chapter) to update your object,

because you need it to be kept up to date with changes to the model at all times.

Commands

Extension patterns

z You cannot use a snapshot interface (see “Snapshot interface” on page 92) because you need

to do more than restore the state of an object within the application.

z You need to program behavior that runs at undo and redo.

NOTE: This extension pattern is very rare. This is an advanced pattern and should be used only

if absolutely necessary.

For example, an observer might watch a subject that can be deleted from the model. Typically,
such observers are attached to the subject when it is created and detached just before it gets
deleted. If an object is created, the observer is attached. If there is an undo at this point, the
observer should be detached; a subsequent redo should result in the observer being re­attached. Similarly, if an object is deleted, the observer is detached. At this point, an undo
should result in the observer being attached; a subsequent redo should result in the observer
being detached.

Consider an observer that attaches to a spread (see kSpreadBoss). When a spread is created, the
observer gets attached to the new spread. If the creation of the spread is undone, this observer
must be detached before the undo takes place. If the creation of the spread is redone, the
observer must be re-attached after the redo takes place. The inval handler extension pattern
allows for this. The GoToLastTextExit plug-in provides sample code that shows how to use an
inval handler to manage the attachment and detachment of an observer that watches stories in
a document.

Architecture

Inval handlers allow plug-in code to be called at undo and redo. There are two parts to the
mechanism:

z An inval handler (see IInvalHandler) that registers interest in a database that supports

undo.

z An inval cookie that gets called on undo and redo. The inval cookie is created by the inval

handler at the end of a transaction that contained changes in which the plug-in was inter­ested.

Inval handlers are used in situations where a plug-in needs to achieve more than the restoration
of the state (through persistent interfaces and snapshot interfaces), and the lazy notification
broadcast occurs too late to meet this need. The plug-in has code that must be called immedi­ately at undo or redo.

To implement an inval handler, follow these steps:

z Provide an implementation of an inval handler (see the IInvalHandler class in the API Ref-

erence for details. See GTTxtEdtInvalHandler for sample code).

z Provide an implementation of an inval cookie (see the IInvalCookie class in the API Refer-

ence for details. See GTTxtEdtInvalCookie for sample code).

z Create an instance of the inval handler, and call DBUtils::AttachInvalHandler to associate

this instance with the database that persists the objects in which you are interested. The
scope of this association can be defined by the lifetime of the database or the enabling of
particular functionality. For example, an inval handler might be attached to a database
when a document is opened.

Commands 95

Commands

Extension patterns

z Once an inval handler is attached to a database, call DBUtils::StartCollectingInvals to indi-

z The plug-in code records the semantics of the change. Where this is recorded is implemen-

z Further changes of interest can occur within the same transaction. The plug-in code should

z At the completion of the transaction, the IInvalHandler::EndCollectingInvals method is

z The inval cookie is called on undo and redo of the transaction.

cate the inval handler is interested in participating in undo and redo. This usually occurs on
some event (through an observer or some other means). The StartCollectingInvals call
informs the database that the inval handler should be called at the end of the current trans­action. If an undoable transaction is ongoing, the inval handler is said to be “collecting
invals.”

tation-dependent: it could be in the state associated with the inval handler (recommended),
an inval handler cookie, or elsewhere.

record the semantics of the changes; for example, by adding state to a list within the inval
handler.

called. The inval handler can return an instance of an inval cookie representing the
change(s) of interest that occurred. This inval cookie is kept in the command history for
this database transaction. The inval handler is now said to be “not collecting invals.”

z When the lifetime of an inval handler is over, call DBUtils::DetachInvalHandler to detach

the inval handler from the database. For example, an inval handler might be detached from
a document database when a document is closed.

Figure 19 shows the lifetime of a typical inval handler. Figure 20 shows the typical sequence of

calls made to an inval cookie on undo. On undo, any inval cookies that were previously associ­ated with the CmdStackItem are called. The inval cookie setting the error state aborts the undo
(the model is reset to the state from before the undo).

96

FIGURE 19 Typicalinval handler calls (sequence diagram)

Observer (or

other type of

object)

An Inval HandlerApplication core An Inval CookieICmdHistory

New events in the model of interest for undo / redo cause the above sequence to be repeated and a new inval
cookie to be associated with the transaction.

An inval handler is created and associated
with the database that persists the objects
of interest. For example, an inval handler
might be attached when a document is
opened.

More events of interest for undo / redo can occur within the same transaction. The inval handler must be called to
record each event. At the end of the transaction, EndCollectingInvals is called. The inval handler returns the cookie
to be

called on undo and redo of the transaction. See sequence diagram showing inval cookie calls.

When the lifetime of an inval handler is over,
DetachInvalHandler is called to detach the
inval handler from the database. For
example, an inval handler might be
detached when a document is closed.

StartCollectingInvals is called to indicate
that the inval handler is interested in
participating in undo and redo of a
transaction. This usually occurs on some
event (through an observer, or some other
means).

Event that causes attach to the model

new

DBUtils::AttachInvalHandler

Event in the model of interest for undo / redo

AddInvalInfo(info)

bool16= DBUtils::StartCollectingInvals

IInvalCookie*= EndCollectingInvals

new

AddInvalInfo(vector of info)

Push

Event that causes detach from the model

DBUtils::DetachInvalHandler

delete

Commands

Extension patterns

Commands 97

Commands

Application core ICmdHistory An Inval CookieModel

Prior to the model state being
reverted, all inval cookies are
called.

After all inval cookies are
called, the model is reverted
(assuming no error).

After the model has been
reverted, all inval cookies are
called. Setting error here will
undo the "Undo".

Undo

ErrorCode= InvalBeforeUndo

ReadWrite / SnapshotReadWrite

ErrorCode= InvalAfterUndo

Extension patterns

FIGURE 20 Inval cookie calls on undo

There are times where the lifetime of an inval handler does not match that of the command his­tory. Inval handlers can be attached and detached at any time, asynchronously with anything
else happening in the model. This means there are entries in the command history that do not
have corresponding inval cookies for a particular inval handler. In this situation, the inval han­dler’s BeforeRevert_InvalAll and AfterRevert_InvalAll methods are used to provide the oppor­tunity to rebuild the required state directly.

There are times when an inval cookie instance can be asked to merge another instance. This
causes the IInvalCookie::Merge method to be called, to merge cookies that were returned by
each call to IInvalHander::EndCollectingInvals within one undoable transaction. For example,
this can happen at the end of an abortable command sequence.

See also

z IInvalHandler, IInvalCookie, DBUtils::AttachInvalHandler, DBUtils::StartCollectingInvals,

and DBUtils::DetachInvalHandler in the API Reference.

z For sample code: GTTxtEdtInvalHandler in the GoToLastTextEdit plug-in.

z For documentation on how to detect change in other objects using observers and respond-

ers: the “Notification” chapter.

98

Snapshot view interface

Description

Suppose you have a user interface object like a widget, which has data that depends on model
objects that persist in a database that supports undo, and:

z Your data needs to be updated when the model objects it depends on are modified or when

modifications are undone or redone.

z You cannot use lazy notification to update your data, because it must be kept up to date with

changes to the model at all times.

NOTE: Use of this pattern is extremely rare in the application codebase. For example, it is used

by interface ILayoutControlData on the layout widget. The data in this interface is
depended on by many other objects and always must be kept in tight synchronzsation
with the database. This is an advanced pattern and should be used only if absolutely
necessary.

Architecture

A snapshot is taken of the state of a snapshot view interface, before it is changed, reverted on
undo, and restored on redo. It is very similar to a snapshot interface (see “Snapshot interface”

on page 92). The distinction is that the database with which a snapshot interface is associated is

fixed and implicitly defined by the persistent boss on which it is aggregated. A snapshot view
interface, on the other hand, is part of a user interface object and must explicitly identify the
database containing the model objects on which it depends. Also, it is not one specific data­base. For example, a widget that tracks some state in the front document must change the data­base on which its snapshot view interface depends, when the front document changes.

Commands

Extension patterns

To implement a snapshot view interface, follow the steps described under CViewInterface in
the API Reference.

See also

The CViewInterface template class in the API Reference.

Commands 99

Commands

Extension patterns

100
