Macromedia Illustrator - 10.0 User Guide

Download

DOBE

LLUSTRATOR

CRIPTING

® 10

UIDE

Adobe Developer Support

345 Park Avenue San Jose, CA 95110-2704 408-536-9000 FaxYI: 206-628-5737 ada@adobe.com

http://partners.adobe.com

Europe: PO Box 12356 Edinburgh EH11 4GJ United Kingdom

+44.131.458.6800

Fax: +44.131.458 6801 euroADA@adobe.com



Adobe Illustrator 10 Scripting Guide

The information in this document is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Adobe Systems Incorporated. Adobe Systems Incorporated assumes no responsibility or liability for any errors or inaccuracies that may appear in this document. The software described in this document is furnished under license and may only be used or copied in accordance with the terms of such license.

Adobe, Adobe Aft er Effects, Adobe PhotoDeluxe, A dobe Premier e, Adobe Photoshop, Adobe Illustrator, Adobe InDesign, Adobe Type Manager, ATM and PostScript are trademarks of Adobe Systems Inc o rporated that ma y be registered in certain jurisdictions. Macintosh and Apple are registered trademarks, and Mac OS and AppleScript are trademarks of Apple Computer, Inc. Microsoft, Visual Basic, Windows, Windows 95, Windows 98, and Windows NT are registered trademarks of Microsoft Corporation. All other products or name brands are trademarks of their respective holders.

Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

What is scripting? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Why use scripting? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

What about actions?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Mac OS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Chapter 2: Scripting Basics. . . . . . . . . . . . . . . . . . . . . . . . . . 15

Object model concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Object classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Object inheritance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Object elements or collections . . . . . . . . . . . . . . . . . . . . . . . . .17

Object references. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Scripting concepts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

About long script lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Commands and methods . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Conditional statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Control structures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Handlers and subroutines. . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Testing and troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

About error handling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

iii

Table of Contentsiv

Chapter 3: Scripting Illustrator . . . . . . . . . . . . . . . . . . . . . . . . 31

Looking at Illustrator’s objects and commands . . . . . . . . . . . . . . . . . . .31

AppleScript . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Visual Basic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

The application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Your first Illustrator script . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Creating an AppleScript script . . . . . . . . . . . . . . . . . . . . . . . . .34

Creating a Visual Basic script. . . . . . . . . . . . . . . . . . . . . . . . . .35

VBScript. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Adding features to “Hello World” . . . . . . . . . . . . . . . . . . . . . . . . . .38

Measurement units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Unit conversion to points . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Coordinates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Fixed points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Zero point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Fixed rectangle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Page item positioning and dimensions . . . . . . . . . . . . . . . . . . . . .43

Object references . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Object references in AppleScript . . . . . . . . . . . . . . . . . . . . . . . .44

Object references in Visual Basic. . . . . . . . . . . . . . . . . . . . . . . .45

Object containment: document vs. layer . . . . . . . . . . . . . . . . . . . . . .45

Working with selections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Working with paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Working with color. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Working with symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Working with symbol items . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Working with text art. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Transformation matrices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Using a matrix in an AppleScript script . . . . . . . . . . . . . . . . . . . . .52

Using a matrix in a Visual Basic script . . . . . . . . . . . . . . . . . . . . .52

Working with variables and datasets . . . . . . . . . . . . . . . . . . . . . . . .53

Datasets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Launching and quitting Illustrator from a script . . . . . . . . . . . . . . . . . . .54

Launching and quitting from AppleScript . . . . . . . . . . . . . . . . . . . .54

Launching and quitting from Visual Basic. . . . . . . . . . . . . . . . . . . .54

Some objects that cannot be created by a script . . . . . . . . . . . . . . . . . .54

User Interaction Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

AppleScript . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Visual Basic and JavaScript . . . . . . . . . . . . . . . . . . . . . . . . . .55

The Scripts menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Adobe Illustrator 10 Scripting Guide Table of Contents v

Supported scripting languages . . . . . . . . . . . . . . . . . . . . . . . . .56

Script files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Installing scripts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Executing other scripts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Chapter 4: AppleScript Reference . . . . . . . . . . . . . . . . . . . . . . 59

About the script examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Illustrator’s object model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

art style, art styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

brush, brushes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

character, characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

CMYK color info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

compound path item, compound path items. . . . . . . . . . . . . . . . . . . . .77

dataset, datasets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

document, documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

ellipse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

EPS save options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

fixed point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

fixed rectangle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

Flash export options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

GIF export options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

gradient, gradients. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

gradient color info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

gradient stop, gradient stops . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

gradient stop info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

graph item, graph items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

gray color info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

group item, group items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Illustrator save options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

insertion point, insertion points . . . . . . . . . . . . . . . . . . . . . . . . . . 128

JPEG export options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

layer, layers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

line, lines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

mesh item, mesh items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

page item, page items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

paragraph, paragraphs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

path item, path items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

path point, path points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Table of Contentsvi

path point info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

pattern, patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

pattern color info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

PDF open options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

PDF save options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Photoshop options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Photoshop export options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

placed item, placed items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

plugin item, plugin items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

PNG24 export options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

PNG8 export options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

polygon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

raster item, raster items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

rectangle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

RGB color info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

rounded rectangle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

spot, spots. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

spot color info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

star. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205

SVG export options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

swatch, swatches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210

symbol, symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

symbol item, symbol items . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

tab stop info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216

tag, tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217

text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219

text art item, text art items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223

text face, text faces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228

text path, text paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

variable, variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232

view, views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233

word . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235

Command reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

activate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

apply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241

colorize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241

concatenate matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242

concatenate rotation matrix. . . . . . . . . . . . . . . . . . . . . . . . . . 242

concatenate scale matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

concatenate translation matrix . . . . . . . . . . . . . . . . . . . . . . . . 243

convert to paths. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244

Adobe Illustrator 10 Scripting Guide Table of Contents vii

copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244

count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245

cut. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246

delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

do javascript . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

do script. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248

duplicate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248

equal matrices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249

exists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249

export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250

export variables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251

get. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251

get identity matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

get rotation matrix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

get scale matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253

get translation matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254

end tell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254

invert matrix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255

make . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255

move . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256

open. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257

paste . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258

print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258

quit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259

redraw. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259

rotate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260

save. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264

set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

singular matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

transform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267

translate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

Chapter 5: Visual Basic Reference . . . . . . . . . . . . . . . . . . . . . .271

About the script examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271

Illustrator’s object model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272

Referencing and creating objects in Visual Basic . . . . . . . . . . . . . . . . . 274

Syntax differences between Sub and Function methods . . . . . . . . . . . 275

Table of Contentsviii

Application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277

ArtStyle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282

ArtStyles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284

Brush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286

Brushes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288

Character . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290

Characters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294

CMYKColor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296

Color. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298

CompoundPathItem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300

CompoundPathItems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306

DataSet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308

DataSets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309

Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310

Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317

EPSSaveOptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318

ExportOptionsFlash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320

ExportOptionsGIF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322

ExportOptionsPhotoshop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325

ExportOptionsJPEG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327

ExportOptionsPNG24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329

ExportOptionsPNG8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331

ExportOptionsSVG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334

Gradient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336

Gradients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338

GradientColor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340

GradientStop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342

GradientStops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343

GraphItem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345

GraphItems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349

GrayColor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350

GroupItem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351

GroupItems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357

IllustratorSaveOptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359

Layer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361

Layers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365

Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367

MeshItem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369

MeshItems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373

PageItem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375

PageItems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 381

Paragraph . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383

Adobe Illustrator 10 Scripting Guide Table of Contents ix

Paragraphs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388

PathItem. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390

PathItems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397

PathPoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399

PathPoints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 401

Pattern. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403

Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404

PatternColor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406

PDFOpenOptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408

PDFSaveOptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409

PhotoshopFileOptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 411

PlacedItem. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 412

PlacedItems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417

PluginItem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 418

PluginItems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422

RasterItem. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 423

RasterItems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 429

RGBColor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 431

Spot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433

Spots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435

SpotColor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 436

Swatch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438

Swatches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 439

Symbol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 440

Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441

SymbolItem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442

SymbolItems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 446

Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 447

Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 449

TextArtItem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 451

TextArtItems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 458

TextFace. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 459

TextFaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 460

TextLine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 462

TextLines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 466

TextPath. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 468

TextPaths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470

TextPath_PathItems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 471

TextRange. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 472

Variable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 476

Variables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 477

View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 478

Table of Contentsx

Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 479

Word. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 480

Words . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 484

Enumerations reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 486

Chapter : Bibliography . . . . . . . . . . . . . . . . . . . . . . . . . . . .493

AppleScript . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 493

Visual Basic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 493

Internet resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 493

Adobe Systems, Inc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 493

AppleScript . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 494

Visual Basic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 494

Introduction

Welcome to scripting, arguably the most exciting new feature of Illustrator. No other feature, new or old, can save you as much time, effort, and money as scripting.

About this manual

This manual provides an introduction to scripting Adobe Illustrator 10 on Mac OS and Windows. We realize that not every Illustrator user will be familiar with programming terms, concepts, and techniques, so we’ve included Chapter 2, “Scripting Basics,” which contains introductory information that should help get you started with scripting. If you’re an experienced AppleScript scripter or Visual Basic programmer, you will probably want to skip to Chapter 3 to get the speciﬁcs on scripting Illustrator.

This manual consists of the following chapters:

1. An introduction to scripting.

2. The basics of each platform’s scripting language: AppleScript in Mac OS and Visual Basic in Windows. If you are new to scripting, be sure to read this chapter. Beginners are heartily encouraged to consult the Bibliograph y for books on AppleScript and Visual Basic.

3. A brief introduction to the speciﬁcs of scripting Illustrator. Concepts and approaches speciﬁc to the application are covered here, such as measurement units, matrices, and color models.

4. The Illustrator AppleScript Reference. Here you’ll ﬁnd details and examples for every object and command in Illustrator’s AppleScript dictionary.

5. The Illustrator Visual Basic Reference. Details and examples are provided for every class in Illustrator’s Visual Basic type library.

6. A bibliography of helpful resources for learning more about scripting.

What is scripting? Introduction12

What is scripting?

A script is a series of commands that tells Illustrator to perform a series of actions. These actions can be simple, and affect only a single, selected object in the current document; or complex, and affect all of the objects in all of your Illustrator documents. The actions might involve only Illustrator, or they might involve other applications, such as word processors, spreadsheets, and database management programs. Many of the tasks you can perform with Illustrator’s tools, menus, palettes, and dialog boxes can be performed by a script (a notable exception is third-party plug-ins, which cannot be scripted at this time).

We naturally think of scripting as a way to automate repetitive tasks, but it can also be a creative tool. You can use scripts for creative tasks that would be too difﬁcult or time consuming to do manually. For example, you could write a script to systematically create a series of objects, modifying the new objects’ position, stroke, and ﬁll properties along the way. You could also write a script that accessed Illustrator’s built-in transformation matrix functions to stretch, scale and distort a series of objects. Without scripting, you’ll likely miss out on the creative potential of such labor-intensive techniques.

Scripting isn’t just for computer programmers—it’ s f or e v erybody. You don’t need a degree in computer science or mathematics to write scripts that can automate a wide variety of common tasks. If you can read this text, you can write scripts.

Why use scripting?

Graphic design is a ﬁeld characterized by creativity, but aspects of the actual work of illustration and page layout are anything but creative. When you think about the work that you do, chances are good you’ll ﬁnd that you spend most of your time doing the same or similar production tasks, over and over again. In fact, you’ll probably notice that the time you spend placing and replacing images, correcting errors in text, and preparing ﬁles for printing at an imagesetting service provider often reduce the time you have available for doing creative work.

Wouldn’t it be great if you had an assistant—one that wouldn’t mind doing some or all of the boring, repetitive tasks for you? With that kind of help, you’d have more time to concentrate on the creative aspects of your work.

With a small investment of time, Illustrator scripting can be the assistant you need. You can start with short, simple scripts that save you a few seconds every day, and move on to scripts that work all night while you’re sleeping.

Adobe Illustrator 10 Scripting Guide What about actions? 13

Think about your work—is there a repetitive task that’s driving you crazy? If so, you’ve identiﬁed a candidate for a script. What are the steps involved in performing the task? What are the conditions in which you need to do the task? Once you understand the process you go through to perform the task, you’ll be ready to turn it into a script.

What about actions?

Illustrator actions are different from scripts. An Illustrator action is a series of tasks you have recorded while using the application—menu choices, tool choices, object selection, and other commands. When you “play” an action, Illustrator performs all of the recorded commands.

You record, play, edit and delete actions using Illustrator’s built-in Actions palette. The “Automating Tasks” chapter in the Adobe Illustrator User Guide covers actions in detail.

With the introduction of scripting for Illustrator , it is important to avoid an y confusion about the difference between actions and scripting. Actions and scripts are both ways of automating repetitive tasks, but the y work v ery differently. The following points summarize the key differences.

• Actions use a program’s user interface to do their work. As an action runs, menu choices are executed, objects are selected, and recorded paths are created. Scripts do not use a program’s user interface to perform tasks, and can execute faster than actions.

• Actions have very limited facilities for getting and responding to information. You cannot add conditional logic to an action. Therefore, actions cannot make decisions based on the current situation. Scripts are capable of getting information and making decisions and calculations based on the information they receive from Illustrator.

•A script can execute an action, but actions cannot execute scripts.

System requirements

The language you use to write scripts depends on the operating system of the platform you’re using: AppleScript for Mac OS; Visual Basic for Windows. While the two scripting systems differ, the ways that they work with Illustrator are very similar. Each example script shown in this manual will be shown in both systems. Make sure the scripting plug-in is installed on your system before attempting to script Illustrator.

System requirements Introduction14

Mac OS

To write scripts on Mac OS, you must have Mac OS v ersion 8.6 or later . You will also need AppleScript and a script editor installed. AppleScript and the Script Editor application from Apple come installed on all supported versions of Mac OS. The default location for the Script Editor application is the Apple Extras folder. In the unlikely event that these items are not installed on your system, reinstall them from your original system software CD-ROM.

As your scripts become more complex, you may ﬁnd the need for debugging and productivity features not found in Script Editor. Third-party script editors, such as Script Debugger (from Late Night Software, http://www.latenightsw.com) or Scripter (from Main Event Software, http://www.mainevent.com) provide additional features that aid script development.

If your script would beneﬁt from a complete user interface, you might want to use FaceSpan (http://www.facespan.com) or Real Basic (http://www.realsoftware.com)— programs created in these development environments can have complete graphical user interfaces as well as send AppleScript commands to Illustrator.

We use the Script Editor from Apple in this manual.

Windows

To use Illustrator scripting in Windows, you must have Windows 98, Windows NT 4.0, or Windows 2000. You will also need the Microsoft Visual Basic dev elopment en vironment or one of the applications that contain a Visual Basic editor. Many applications that support the Visual Basic for Applications (VBA) language contain a built-in editor. Applications that contain a built-in editor include: Microsoft Word, Microsoft Excel, and Visio. You can use any Visual Basic editor to create your scripts.

As your scripts become more complex or require a user interface, you will ﬁnd the need for a complete development environment than one of the built-in editors. The Microsoft Visual Basic development environment comes in a variety of package, all of which provide everything you need to script Illustrator.

In this manual, we use the Microsoft Visual Basic development environment’s editor.

Scripting Basics

If you use Illustrator, then you work with documents and their contents. You create documents, layers, colors, and design elements. If you do all of this, you’ve probably gotten used to thinking of an Illustrator document as a series of objects.

Automating Illustrator with scripting uses the same object-oriented way of thinking. The heart of a scriptable application is the object model. In Illustrator, the object model is comprised of documents, layers, colors, and page items—objects that can appear in an Illustrator document. Each type of object has its own special properties, and every object in an Illustrator document has its own identity.

In this chapter, we’ll co v er the basic concepts of scripting f or both AppleScript on Mac OS and Visual Basic on Windows. This brief introduction to the basic concepts and syntax of each scripting language is by no means complete or exhaustive. The bibliography contains references to more complete language guides for both scripting languages.

For detailed information on using your particular scripting system with Illustrator, see the appropriate reference chapter later in this manual. Experienced scripters may want to skip to those chapters now.

Object model concepts

The terminology of object oriented programming can be hard to understand, at ﬁrst. “Objects” belong to “classes” and have “properties” you manipulate using “commands” (AppleScript) or “methods” (Visual Basic). What do these words mean in this context?

Here’s a way to think about objects and their properties. Imagine that you live in a house that responds to your commands (you can think of this house as technologically advanced, or magical, or both). The house is an object, and its properties might include the number of rooms, the color of the exterior paint, or the date of its construction.

Object classes Object model concepts16

Your house can also contain other objects. Just lik e y our house can contain other objects, the objects within the house can also contain a number of smaller objects. Each room, for example, is an object in the house, while each window, door, or appliance is an object inside of the room.

Each object can respond to various commands according to its capabilities. Windo ws and doors, for example, can open or close—but the ﬂoor and ceiling cannot. Using scripting, you can talk to each object directly, or you can talk to them as part of the house. You have to be very speciﬁc, though—you can’t tell your house to open a window without telling it which window you want to open. So windows, just like all other objects, need names or at least a numbering system so you can refer to them speciﬁcally. “Tell the house to open the north window of the living room,” you might say.

Objects also have properties that describe speciﬁc details about them, like color and size. Imagine that the properties of objects in your house can be changed. You might say, “Door, paint y ourself blue.” Because your door can respond to the command “paint,” you’ll soon have a door of a different color.

Now let’ s apply this object model idea to Illustrator . The Illustrator application is the house, its documents are the rooms, and the objects in your documents are the windows and doors. You can tell Illustrator documents to add and remove objects. You can ask objects to get or change their properties.

Object classes

Objects with the same properties and behaviors are grouped into “classes.” In the house example, windows and doors belong to their own classes, since they have unique properties, like number of panes for windows or the door style for doors. In Illustrator, every type of graphic object—paths, text, meshes, etc.—belongs to its own class, each with its own set of properties and behaviors. Properties such as

width

, and

height

, for example, are common to all

page items

visible bounds

Object inheritance

Object classes may also “inherit,” or share, the properties of a parent, or superclass. When an class inherits properties, we call that class a child, or subclass of the class from which it inherits properties. So in our house example , windo ws and doors are subclasses of an openings class, since they are both openings in a house. In Illustrator,

items page item

Classes will often have properties that aren’t shared with their superclass. In our house, both a window and door inherit an opened property from the opening class, but a window

, for example, inherit geometric properties like

class.

width

and

height

path

from the

Adobe Illustrator 10 Scripting Guide Scripting concepts 17

has number of panes property which the opening class doesn’t. In Illustrator,

items

, for example, have the property

page item

stroke color

class.

which isn’t inherited from the

path

Object elements or collections

Object elements (AppleScript) or collections (Visual Basic) are objects contained within other objects. For example, rooms are elements (or collections) of our house, contained within the house object. In Illustrator, documents are elements of the application object, and page items are elements of a document object.

Object references

The objects in your documents are arranged in a hierarchy like the house object—page items are in layers, which are inside a document, which is inside Illustrator. When you send a command to an Illustrator object, you need to make sure y ou send the message to the right object. To do this, you identify objects by their position in the hierarchy. You might, for example, write the following statement.

AppleScript

page item 1 of layer 1 of document 1

Visual Basic

Documents(1).Layers(1).PageItems(1)

When you identify an object in this fashion, you’re creating an AppleScript and Visual Basic use diff erent wa ys of creating object references , but the idea is the same—to give the script a way of ﬁnding the object you want to work with.

object reference

Scripting concepts

Comments

Comments are a way to add descriptive text to a script. Comments come in handy when you want to document the operation of a script (for y ourself or f or someone else). The use of comments is the most important technique for good scripting. Comments are where you should leave important notes about the speciﬁc operation of a script that might provide valuable help when the script is modiﬁed at a later date. The time you save later trying to ﬁgure out what the script does may be your own. Comments are ignored by the scripting system as the script executes and cause no run-time speed penalty.

About long script lines Scripting concepts18

AppleScript

To enter a single-line comment in an AppleScript, type “--” to the left of your description. For multiple line comments, start your comment with the characters “(*” and end it with “*)”.

-- this is a single-line comment

(* this is a multiple line comment *)

Visual Basic

In Visual Basic, enter “'” (a single straight quote) to the left of the comment.

' This is a comment

About long script lines

In some cases, individual script lines are too long to print on a single line in this guide.

AppleScript

AppleScript uses the special character (¬) to show that the line continues to the next line . This continuation character denotes a “soft return” in the script. You can enter this character in the script editor by pressing Option-Return at the end of the line you wish to continue.

Visual Basic

Visual Basic uses a special character (_) to show that the line continues to the next line. This continuation character denotes a “soft return” in the script. You can enter this character in the editor by pressing Shift--(dash) at the end of the line you wish to continue.

Values

Values are the data your scripts use to do their work. Most of the time , the values used in your scripts will be numbers or text.

Adobe Illustrator 10 Scripting Guide Scripting concepts 19

AppleScript

Value type: What it is: Example:

Boolean Logical true or false. true Integer Whole numbers (no decimal

points). Integers can be positive or negative.

Real A number which may contain

a decimal point.

String A series of text characters.

Strings appear inside (straight) quotation marks.

List An ordered list of values. The

values of a list may be any type.

Object reference A speciﬁc reference to an

object.

Record An unordered list of

properties, Each property is identiﬁed by its label.

13.9972

"I am a string"

{10.0, 20.0, 30.0, 40.0}

document 1

{name: "you", index: 1}

Visual Basic

Value type: What it is: Example:

Boolean Logical true or false true Long Whole numbers (no decimal

points). Longs can be positiv e or negative.

Double A number which may contain

a decimal point.

String A series of text characters.

Strings appear inside (straight) quotation marks.

Array A list of values. Arrays

contain a single value type unless the type is deﬁned as Variant.

Object reference A speciﬁc reference to an

object.

User-deﬁned A collection of elements

referenced by a key and stored as a key-value pair.

13.9972

"I am a string"

Array(10.0, 20.0, 30.0, 40.0)

Application.Documents(1)

Var.name = "you" Var.index = 1

Variables Scripting concepts20

Variables

Variables are containers for data. A variable might contain a number, a string, a list (or array), or an object reference. Variables have names, and you refer to a variable by its name. To put data into a variable, we assign the data to the variable. The ﬁle name of the current Illustrator document or the current date are both examples of data that can be assigned to a variable.

Why not simply enter the value directly in the script rather than using a variable? When you use a value directly the ﬂexibility of script is reduced. By using variables the scripts you write will be reusable in a wider variety of situations. As a script executes, it can assign data to the variables that reﬂect the state of the current document and selection, for example, and then make decisions based on the content of the variables.

In AppleScript, it is not important to declare your variables before assigning values to them. In Visual Basic, however, it is considered good form to declare all of your variables before using them with the to the variable, which helps us keep our scripts clear and readable. Memory is also used more efﬁciently if variables are declared before use. If you start your scripts in Visual Basic with the line

Option Explicit, you will be required to declare all variables

before assigning data to them.

Dim statement. Using the Dim statement assigns a value type

Visual Basic

Option Explicit Dim thisNumber As Single thisNumber = 10

Assigning values to variables is fairly simple, as shown below.

AppleScript

set thisNumber to 10 set thisString to "Hello, World!"

Visual Basic

thisNumber = 10 thisString = "Hello, World!"

Variables can also be used to store references to objects. In AppleScript, a reference is returned when you create a new object in an Illustrator document. This returned ref erence

Adobe Illustrator 10 Scripting Guide Scripting concepts 21

points to the newly created object. Storing references in variables is just the same as assigning any other value to the variable.

set thisLayer to make new layer at beginning of document 1

or you can ﬁll the variable with a reference to an existing object:

set thisLayer to layer 1 of document 1

Visual Basic works similarly, however, there is an important distinction to note. If you are assigning an object reference to a variable you must use the example, to assign a variable as you create a layer, use

Set thisLayer = Illustrator.Documents(1).Layers.Add

Set command. For

Set:

or in reference to an existing layer, since it is also an object reference, use Set:

Set thisLayer = Illustrator.Documents(1).Layers(1)

If you are simply trying to assign a value to a variable in Visual Basic that is not an object reference, do not use

set but simply use Visual Basic’s assignment operator, the equals

sign:

thisNumber = 12

Try to use descriptive names for your variables—something like firstPage or

corporateLogo, rather than x or c. While it will take a little more time to type the

longer names, using them will make your scripts much easier to read. The length of a variable’s name has no effect on the execution speed of your script, so use descriptive names. You can also give your variable names a standard preﬁx so that they’ll stand out from the objects, commands, and keywords of your scripting system. Variable names must be a single word, but you can use internal capitalization (such as myFirstPage)

or underscore characters (

my_first_page) to create more readable names. Variable

names cannot begin with a number, and they can’t contain punctuation or quotation marks.

Properties

Both AppleScript and Visual Basic allow you to deﬁne properties for your scripts. Script properties are much like variables, but with additional features and requirements speciﬁc to each language. Since the meaning and usage of script properties differs so greatly

Operators Scripting concepts22

between AppleScript and Visual Basic, please consult the bibliography for appropriate language references.

Operators

Operators perform calculations (addition, subtraction, multiplication, and division) on variables or values and return a result. For example:

docWidth/2

would return a value equal to half of the content of the variable docWidth. So if

docWidth contained the number 20.5, the value returned would be 10.25.

You can also use operators to perform comparisons (equal to, not equal to, greater than, or less than). For example:

docWidth > docHeight

Would return the value true if docWidth is greater than docHeight, or false, if it is not.

Some operators differ between AppleScript and Visual Basic. For example, AppleScript uses the non-equality symbol ( the greater and less than symbols juxtaposed:

Both scripting systems use the ampersand ( strings.

"Pride " & "and Prejudice."

would return the string “Pride and Prejudice.”

≠, use Option- = from keyboard), while Visual Basic uses

<>.

&) as the concatenation operator to join two

Commands and methods

If objects are “nouns” and properties are “adjectives” in our scripting systems, then commands (AppleScript) or methods (Visual Basic) are the “verbs”—they’re the parts of the script that make things happen. The type of the object you’re working with determines which methods you can use to manipulate it.

Adobe Illustrator 10 Scripting Guide Scripting concepts 23

AppleScript

In AppleScript, use the make command to create new objects, the set command to assign object references to variables and to change object properties, and the command to retrieve objects and their properties.

Visual Basic

In Visual Basic, use the Add method to create new objects, the Set statement to assign object references to Visual Basic variables or properties, the assignment operator ( to retrieve and change object properties.

get

= )

Conditional statements

If you could speak to Illustrator in the course of a work session, you might say, “If the selected object is a path, then set its stroke width to 12 points.” Conditional statements make decisions—they give your scripts a way to evaluate something (the color of the selected object, or the number of color swatches in the document, or the date) and then act according to the result. Most conditional statements start with the word scripting systems.

The following examples check the number of currently open documents. If no documents are open, the scripts display a messages in a dialog box.

if in both

Control structures Scripting concepts24

AppleScript

tell application "Adobe Illustrator 10" activate

set documentCount to count every document

if documentCount = 0 then

display dialog "No Illustrator documents are open!"

end if

end tell

Visual Basic

Private Sub Command1_Click()

Dim documentCount as long Dim appRef As New Illustrator.Application documentCount = appRef.Documents.Count If documentCount = 0 then

MsgBox "No Illustrator documents are open!"

End If

End Sub

Control structures

If you could talk to Illustrator, you might say, “Repeat the following procedure twenty times.” In scripting terms, this sort of direction is called a “control structure.” Control structures provide for repetitive processes , or “loops.” The idea of a loop is to repeat some action over and over again, with or without changes each time through the loop, until some condition is met.

Both AppleScript and Visual Basic have a variety of different control structures to choose from. The simplest form of a loop is one that repeats some series of script operations a set number of times.

AppleScript

repeat with counter from 1 to 20

display dialog counter

end repeat

Visual Basic

For counter = 1 to 20

MsgBox counter

A more complicated type of control structure includes conditional logic, so that it loops while or until some condition is true or false.

Adobe Illustrator 10 Scripting Guide Scripting concepts 25

AppleScript

repeat while flag = false

set flag to (button returned of display dialog "Quit?") = "Cancel"

end repeat

repeat until flag = true

set flag to (button returned of display dialog "Quit?") = "OK"

end repeat

Visual Basic

Do While flag = false

flag = (MsgBox ("Quit?", vbOKCancel)) = vbCancel

loop

Do Until flag = true

flag = (MsgBox ("Quit?", vbOKCancel)) = vbOK

loop

Handlers and subroutines

Handlers (in AppleScript) or subroutines (in Visual Basic) are scripting modules you can refer to from within your script. Handlers and subroutines are ways to re-use parts of scripts. Typically, you send one or more values to a handler (or subroutine), and it returns one or more values. Handlers (and subroutines) can be used for performing conversions from one measurement system to another, or f or calculating the geometric center point of an object from its geometric bounds.

There’s nothing special about the code used in subroutines and handlers—they are simply conveniences that save you from having to type the same lines of code over and over again in your script. If you ﬁnd yourself typing or pasting the same lines of code into several different places in a script, you’ve identiﬁed a good candidate for a subroutine or handler.

Handlers and subroutines Scripting concepts26

AppleScript

-- Calculate the geometric center of a selected art item

-- Assumes you have a single art item selected

tell application "Adobe Illustrator 10"

-- Get the selection from the current document

set selectedItems to selection

(* Make sure there is a selected item, and that the selection is not

text *)

if selectedItems ≠ {} and class of selectedItems ≠ text then

-- Get the first item from the list and get it bounds

set firstItem to item 1 of selectedItems set itemBounds to geometric bounds of firstItem

end if

end tell

set itemCenter to GetItemCenter(itemBounds) display dialog "Center x:" & item 1 of itemCenter & ", y:" & item 2 of itemCenter

-- This handler finds the center of an item given its bounds

on GetItemCenter(itemBounds)

-- Assign coordinates from the bounds to individual variables

set {itemLeft, itemTop, itemRight, itemBottom} to itemBounds

-- Calculate the center position

set xCenter to (itemLeft + itemRight) / 2 set yCenter to (itemTop + itemBottom) / 2 return {xCenter, yCenter}

end GetItemCenter

Visual Basic

Private Sub Command1_Click()

' Calculate the geometric center of a selected art item

' Assumes you have a single art item selected

Dim appRef As New Illustrator.Application Dim selectedObjects As Variant Dim objectBounds As Variant Dim objectCenter As Variant

If appRef.Documents.Count > 0 Then

Adobe Illustrator 10 Scripting Guide Testing and troubleshooting 27

selectedObjects = appRef.Documents(1).Selection

If TypeName(selectedObjects) = "Variant()" Then objectBounds = selectedObjects(0).GeometricBounds objectCenter = GetItemCenter(objectBounds)

MsgBox ("Center x:" & objectCenter(0) & ", y:" & objectCenter(1)) End If End If End Sub

' The following lines define the function

Function GetItemCenter(sourceBounds As Variant) As Variant Dim left As Single Dim top As Single Dim right As Single Dim bottom As Single

Dim xCenter As Single

Dim yCenter As Single

left = sourceBounds(0) top = sourceBounds(1) right = sourceBounds(2) bottom = sourceBounds(3)

xCenter = (left + right) / 2 yCenter = (top + bottom) / 2

GetItemCenter = Array(xCenter, yCenter) End Function

Testing and troubleshooting

Both scripting environments provide tools for monitoring the progress of your script while it is running—which make it easier for you to track down any problems your script might be encountering or causing.

AppleScript

While the basic syntax of your script will be checked when compiled, it is possible to create and compile scripts in AppleScript that will not run properly. The Script Editor doesn’t have extensive debugging tools, but it does have the an Event Log window.

Handlers and subroutines Testing and troubleshooting28

To watch the commands your script sends and the results it receives, choose Controls > Open Event Log. The Script Editor displays the Event Log window. Check the Show Events and Show Ev ents Results options at the top of the Event Log windo w and then run your script. As the script executes, you’ll see the commands sent to Illustrator, and Illustrator’s responses.

In addition, the Result window (choose Controls > Show Result) will display the value from the last script statement evaluated. Third-party editors offer additional debugging features.

Visual Basic

In Visual Basic, you can stop your script at any point, or step through your script one line at a time. To stop your script at a particular line, select that line in your script and choose

Adobe Illustrator 10 Scripting Guide About error handling 29

Debug > Toggle Breakpoint. When you run the script, Visual Basic will stop at the breakpoint you hav e set. Choose Debug > Step Into (or press F8) to execute the ne xt line of your script, or choose Run > Start (or press F5) to continue normal execution of the script. You can also observe the values of variables deﬁned in your script using the Watch window—a very valuable tool for debugging your scripts. To view a variable in the Watch window, select the variable and choose Debug > Quick Watch. Visual Basic displays the Quick Watch dialog box. Click the Add button. Visual Basic displays the Watch window.

If you have closed the Watch window, you can display it again by choosing View > Watch Window.

About error handling

Imagine that you’ve written a script that formats the current text selection. What should the script do if the current selection turns out not to be text at all, but a path item? “Error handling” is code you add to your script to respond to conditions other than those you expect it to encounter.

Handlers and subroutines About error handling30

If you have complete control over the situations in which your script will run, there’s no need for you to worry about error handling. If not, however, you’ll have to add some error handling capabilities to your script. The following examples show how to how you can stop a script from executing when a speciﬁc ﬁle cannot be found.

AppleScript

--Store a reference to the fifth path item of the document in a variable

--If the object does not exist in the current document, display a message

tell application "Adobe Illustrator 10"

activate try

set itemCount to count of path items in current document set fifthItem to path item 5 of current document

on error

display dialog "Couldn't locate 5th path object - Only " ¬

& itemCount & " objects."

end try

end tell

Visual Basic

Private Sub Command1_Click()

' Store a reference to the fifth path item of the document in a ' variable. If the object does not exist in the current document,

' display message.

Dim appRef As New Illustrator.Application Dim docRef As Illustrator.Document Dim aiObject As Illustrator.PathItem Dim numObjects As Single Dim errorMessage As String

Set docRef = appRef.ActiveDocument

numObjects = docRef.PathItems.Count On Error GoTo DisplayError Set aiObject = docRef.PathItems(5) Exit Sub

DisplayError: errorMessage = "Couldn't locate 5th path object - Only " errorMessage = errorMessage & numObjects & " objects." MsgBox errorMessage End Sub

Scripting Illustrator

At this point, you should have a good idea of what scripting is and how it works. We are ready to begin looking at scripting Adobe Illustrator.

Looking at Illustrator’s objects and commands

While the objects and commands available in Illustrator are all documented in this guide, you can also view them from inside your scripting system.

AppleScript

To view Illustrator’s AppleScript dictionary:

1. Start Illustrator and then your script editor. Apple’s Script Editor comes with all Macintosh systems. If you can’t ﬁnd the Script Editor application, you’ll have to reinstall it from your Mac OS System CD.

2. In Script Editor, choose File > Open Dictionary. Script Editor displays an Open File dialog.

3. Find and then select the Illustrator application and click the OK button. Script Editor displays a list of Illustrator’s objects and commands. You’ll also be able to see the properties and elements associated with each object, as well as the parameters for each command.

Looking at Illustrator’s objects and commands Scripting Illustrator32

Adobe Illustrator 10 Scripting Guide Looking at Illustrator’s objects and commands 33

Visual Basic

To view Illustrator’s type library:

1. In any Visual Basic project, choose Project > References. Visual Basic displays the References dialog box. If you are using a built-in editor in a VBA application, choose Tools > References.

2. Turn on the “Adobe Illustrator 10.0 Type Library” option from the list of available references and click the available references, reinstall Illustrator with your scripting plugins.

OK button. If the library does not appear in the list of

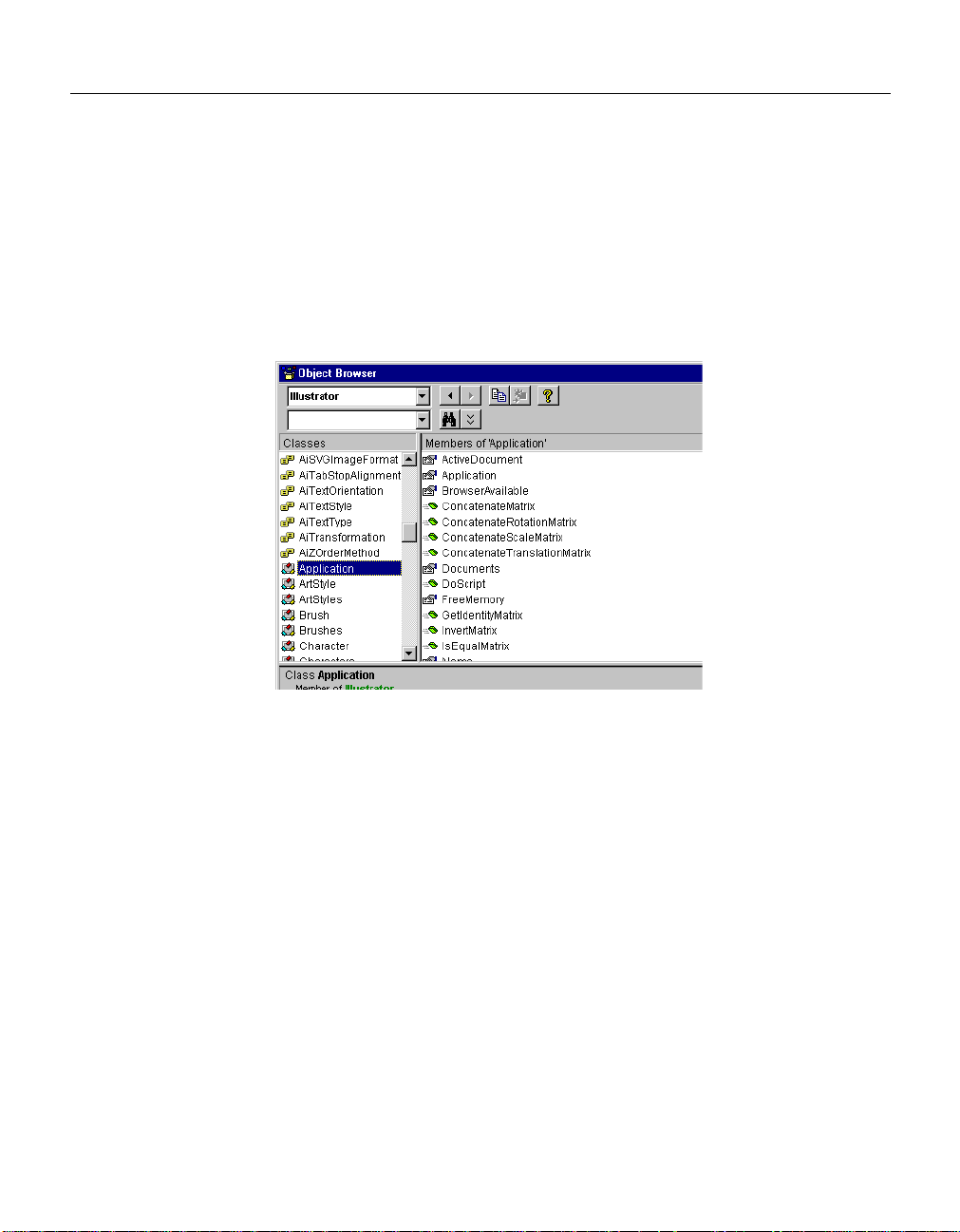

3. Choose View > Object Browser. Visual Basic displays the Object Browser window.

4. Choose “Illustrator” from the list of open libraries shown in the top-left pull-down menu. Visual Basic displays the classes and the members of those classes in the Object Browser window.

The application Scripting Illustrator34

5. Click an object class or class member. Visual Basic displays more information about the object in the frame at the bottom of the Object Browser window.

The application

In all of your scripts, in either AppleScript or Visual Basic, the ﬁrst thing you refer to is the application. As w e’ re concerned here with Illustrator 10, that is the application your scripts will target.

Your ﬁrst Illustrator script

The traditional ﬁrst project in any programming language is to displa y the message “Hello World!” In this example, we’ll create a new Illustrator document, then add a text art item containing this message.

Creating an AppleScript script

To create an AppleScript script follow these steps:

1. Locate and open Script Editor.

2. Enter the following script. The lines preceded by ignored by the scripting system. They’re included to document the operation of the script. As you look through the script, you’ll see how we create, then

-- are comments, and will be

Adobe Illustrator 10 Scripting Guide Your first Illustrator script 35

address, each object in turn. The AppleScript command tell indicates the object that will receive the next message we send.

-- Send the following commands to Illustrator

tell application "Adobe Illustrator 10"

-- Create a new document with the string "Hello World"

set docRef to make new document set textRef to make new text art item in docRef ¬ with properties {contents: "Hello World!", position:{200, 200}} end tell

3. Run the script. Illustrator will create a new document, add a text art item at position (200, 200) and set the text to “Hello World!”.

Creating a Visual Basic script

To create a Visual Basic script follow these steps:

1. Start Visual Basic and create a new project. Add the “Adobe Illustr ator 10.0 Type Library” reference to the project, as shown earlier. If you are using a built-in editor in a VBA application, skip to step 4.

2. Add a form to the project.

3. Create a new button on the form. Double-click the button to open the Code window.

Your first Illustrator script Scripting Illustrator36

4. Enter the following code. The lines preceded by’ (single-quote) are comments, and will be ignored by the scripting system. They’re included to describe the operation of the script. As you look through the script, you’ll see how we create, then address each object in turn.

'Hello World! Script

Private Sub Command1_Click()

Dim appRef As New Illustrator.Application Dim documentRef As Illustrator.Document Dim sampleText As Illustrator.TextArtItem

'Create a new document and assign it to a variable

Set documentRef = appRef.Documents.Add

'Create a new text art item and assign it to a variable

Set sampleText = documentRef.TextArtItems.Add

'Set the contents and position of the TextArtItem

sampleText.Position = Array(200, 200) sampleText.Contents = "Hello World!" End Sub

5. Save the form.

6. Start Illustrator.

7. Return to Visual Basic and run the program. If you created a form, click the button you created earlier.

8. Run the script. Illustrator will create a new document, add a text art item at the speciﬁed position, and set the text to “Hello World!”.

VBScript

You don't need to use Visual Basic to run scripts on Windows. Another way to script Illustrator is to use a VBA editor (such as the one that is included in Microsoft Word) or to use Windows Scripting Host.

Windows Scripting Host is part of Windows2000. If you don't ha v e Windows2000, y ou can download Windows Scripting Host from : http://msdn.microsoft.com/scripting/

Both VBA and Windows Scripting Host use VBScript as their scripting language. The syntax for VBScript is very similar to the Visual Basic syntax. The three main differences relating to the scripts shown in this guide are:

Adobe Illustrator 10 Scripting Guide Your first Illustrator script 37

• VBScript is not as strongly typed as Visual basic. In Visual Basic you say:

Dim aRef as Illustrator.PathItem

in VBScript you say:

Dim aRef

For VBScript simply omit the "as X" part

• VBScript does not support the "as New Illustrator.Application" form. In Visual Basic you retrieve the Application object as:

Dim appRef as New Illustrator.Application

In VBScript you write the following to retrieve the Application object:

Dim appRef Set appRef = CreateObject("Illustrator.Application")

• VBScript does not support enumerations. Here’s an example of how to close the

frontmost document without saving. In Visual Basic:

Dim appRef As New Illustrator.Application appRef.ActiveDocument.Close (aiDoNotSaveChanges)

In VBScript you must use integer values instead of the enumeration. (See “Enumerations reference” at the end of Chapter 5 to ﬁnd the values that correspond to the various enumerations.) The corresponding VBScript is:

Dim appRef Set appRef = CreateObject("Illustrator.Application") appRef.ActiveDocument.Close ( 2 )

Here is an example of Hello World! for VBScript:

'Hello World! script

Dim appRef Dim documentRef Dim SampleText

Adding features to “Hello World” Scripting Illustrator38

'Create a new document and assign it to a variable

Set appRef = CreateObject("Illustrator.Application") Set documentRef = appRef.Documents.Add

'Create a new text art item and assign it to a variable

Set SampleText = documentRef.TextArtItems.Add

'Set the contents and position of the TextArtItem

SampleText.Position = Array(200, 200) SampleText.Contents = "Hello World!"

To run this script create a text ﬁle and copy the script into it. Save the ﬁle with a "vbs" extension. If you have Windows Scripting Host installed, you can double-click on the ﬁle to execute the script.

Another way to e x ecute the script is to choose File>Scripts>Browse from the Scripts menu in Illustrator and select the ﬁle.

Adding features to “Hello World”

Next, let’ s create a ne w script that makes changes to the Illustrator document y ou created with your ﬁrst script. Don’t worry if you’ve closed the Illustrator document without saving it—just run your script to create a new one.

Our second script will demonstrate how to:

1. Get the active document.

2. Get the width of the active document.

3. Resize the text art item to match the document’s width.

Adding features to the AppleScript script

To create the enhanced script follow these steps:

1. Choose File > New in Script Editor to create a new script.

2. Enter the following code.

Adobe Illustrator 10 Scripting Guide Adding features to “Hello World” 39

tell application "Adobe Illustrator 10"

-- current document is always the active document

set docRef to the current document set docWidth to the width of docRef

-- resize the text art item to match the page width

set width of text art item 1 of docRef to docWidth

-- alternatively, one can reference the item directly, as follows:

set width of text art item 1 of current document to docWidth end tell

3. Save the script.

4. Make sure you have the document created by the original “Hello World” script

open, then run the script.

Adding features to the Visual Basic script

To create the enhanced script follow these steps:

1. Open the project you created for the “Hello World” script, if it’s not already open.

2. Add a new button to the form.

3. Double-click the button to display the Code window, then enter the following

code.

Private Sub Command1_Click()

Dim appRef As New Illustrator.Application Dim documentRef As Illustrator.Document Dim sampleText As Illustrator.TextArtItem Dim documentWidth As Single

' Get the active document

Set documentRef = appRef.ActiveDocument documentWidth = documentRef.Width Set sampleText = documentRef.TextArtItems(1)

' Resize the TextArtItem to match the document width

sampleText.Width = documentWidth sampleText.Left = 0

End Sub

4. Save the form.

5. Open the original document you created using the “Hello World” script, then

return to Visual Basic and run the script.

Measurement units Scripting Illustrator40

6. Click the button you created in Step 2.

Measurement units

Illustrator always uses points as the unit of distance measurement. One inch is equal to 72 points. Even if you change the current document ruler’s units of measurement, Illustrator will still use points when communicating with your scripts. Your scripts will need to perform any unit conversions needed to represent your measurements as points. For example, to move the current selection to a position 2 inches to the right of and 6 inches above its current position, you’d use the following script in AppleSccript:

tell application "Adobe Illustrator 10"

(* ﬁrst, manually select the text art item from the previous e xercise or use AppleScript to make the selection *)

set selection to text art item 1 of current document

(* There are 72 points per inch. To translate an item by 2 inches to the right and 6 inches to

the left, multiply by 72 translate selection delta x (2 * 72) delta y (6 * 72) *)

end tell

and this script for Visual Basic:

Private Sub Command1_Click() Dim appRef As New Illustrator.Application Dim documentRef As Illustrator.Document Dim selectedObjects As Variant Dim objectRef As Variant

Set documentRef = appRef.ActiveDocument selectedObjects = documentRef.Selection

If TypeName(selectedObjects) = "Variant()" Then For Each objectRef In selectedObjects

There are 72 points per inch, so the following will move the

'object 2" to the right and 6" up

objectRef.Translate 144, 226 Next End If End Sub

If your script depends on adding, subtracting, multiplying, or dividing speciﬁc measurement values for units other than points, the script will need to convert between the units numerically. For e xample, to use English measurements such as inch values for coordinates or measurement units, your script will need to multiply all inch values b y 72 to

Adobe Illustrator 10 Scripting Guide Coordinates 41

convert to points, since there are 72 points in an inch. To use metric measurements such as centimeters, you will need to multiply all centimeter values by 28.346, since there are

28.346 points in a centimeter.

Unit conversion to points

This table displays the conversion formulae for various units of measurement:

Unit Conversion formula

centimeters 28.346 points = 1 centimeter inches 72 points = 1 inch millimeters 2.834645 points = 1 millimeter picas 12 points = 1 pica Qs 0.709 point = 1 Q (1 Q equals 0.23 millimeter)

Coordinates

Illustrator uses simple two-dimensional geometry to record the position of objects in a document. The coordinates used in Illustrator are the same as the “traditional” geometric coordinate system you learned about in school. The horizontal component of a coordinate pair (or “point”) is referred to as “x” and the v ertical position is denoted by “y”. You can see these coordinates in the Info palette when you select or create an object in Illustrator.

Illustrator scripting uses a special class called

fixed point to receive and return

coordinate data. The ﬁxed point is represented as a list of two items in AppleScript and as a variant array of two elements in Visual Basic. In both cases, the ﬁrst item is the horizontal or “x” coordinate, while the second item is the vertical or “y” coordinate. The

position (Position in Visual Basic) of objects on a document are described with a

ﬁxed point.

Fixed points

In AppleScript, a ﬁxed point with an x coordinate of 5.0 and a y coordinate of 10.2 is represented as a list that looks like this:

{5.0, 10.2}

Coordinates Scripting Illustrator42

In Visual Basic, a ﬁxed point with an x coordinate of 5.0 and a y coordinate of 10.2 is represented as a variant array that looks like this:

Array (5.0, 10.2)

Note that if you declare an array to hold the values of a point, you should pass 1 as the dimension, since Visual Basic uses index position 0 for the ﬁrst item in an array.

Dim aPoint(1) As Single aPoint(0) = 5.0 aPoint(1) = 10.2

Zero point

The zero point (0, 0) for coordinate numbering in Illustrator is in the lo wer left corner of the document. On the horizontal axis, coordinates to the right of the ruler’s zero point are positive numbers, and on the vertical axis, coordinates above the zero point are positive.

page origin (PageOrigin in Visual Basic) of a document deﬁnes the lo wer left

The corner of the printable region of the document as a ﬁxed point.

Fixed rectangle

To work with rectangular coordinates where there are a pair of x and y values, Illustrator uses the special class called a with four items in AppleScript and a variant array with four elements in Visual Basic. The coordinates of a ﬁxed rectangle in order are: left, top, right, bottom.

fixed rectangle. This class is comprised of a list

In AppleScript, a ﬁxed rectangle with a left-top corner of (5.0, 200.0) and a right-bottom corner of (100.0, 20.0) is represented by a list that looks like this:

{5.0, 200.0, 100.0, 20.0}

In Visual Basic, a ﬁxed rectangle with a left-top corner of (5.0, 200.0) and a right-bottom corner of (100.0, 20.0) is represented by a variant array that looks like this:

Array (5.0, 200.0, 100.0, 20.0)

Alternatively, you can deﬁne your array and assign values to its elements like this:

Dim boundsRect(3) As Single boundsRect(0) = 5.0 boundsRect(1) = 20.0

Adobe Illustrator 10 Scripting Guide Object references 43

boundsRect(2) = 100.0 boundsRect(3) = 200.0

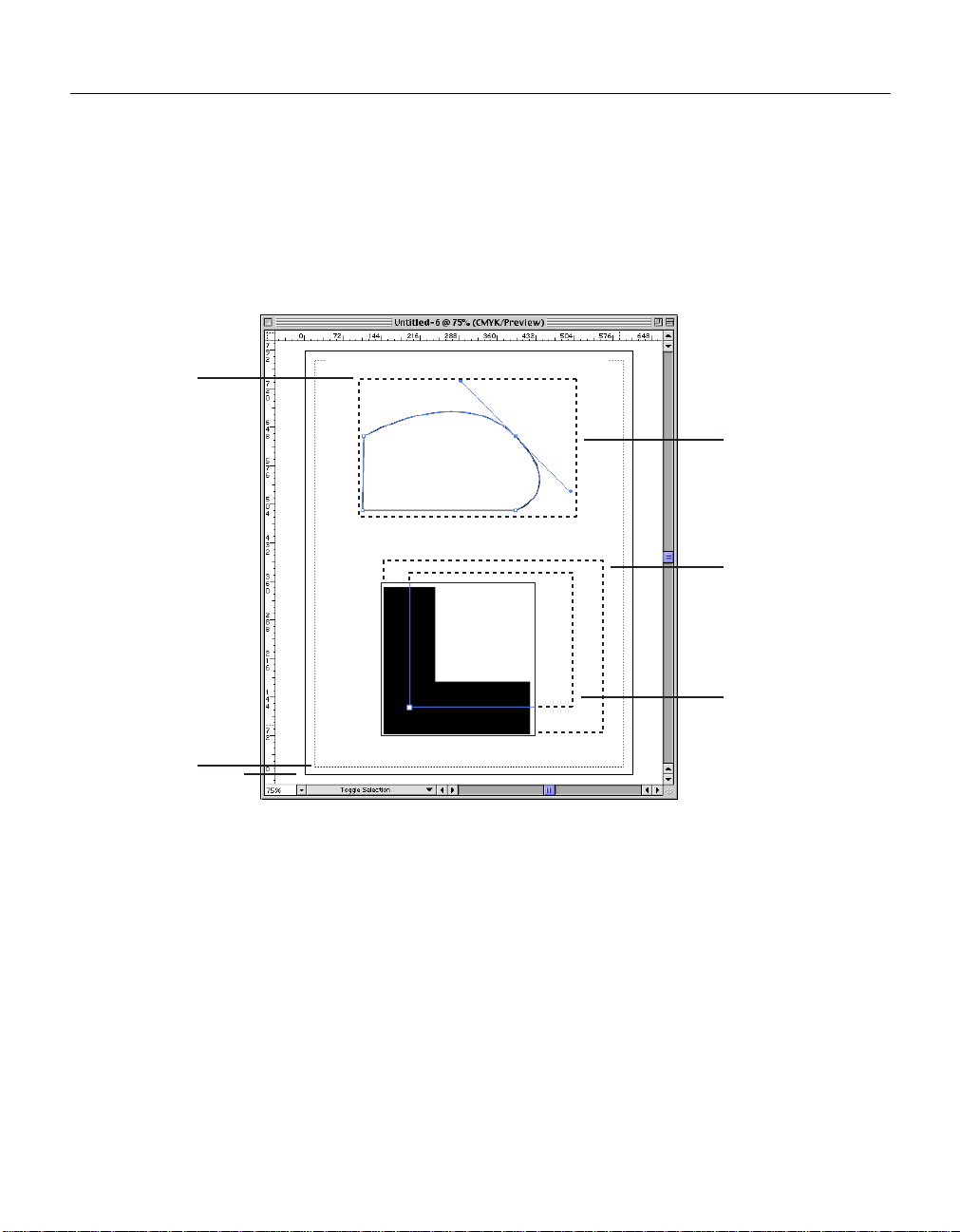

Page item positioning and dimensions

Every object, or page item, in a document has a position described by a ﬁxed point and a width and height. The maximum value allowed for the width or height of a page item is 16348 points.

position Position

control bounds ControlBounds

visible bounds VisibleBounds

geometric bounds GeometricBounds

page origin PageOrigin

(0,0)

Detail

Every page item also has three properties that describe the object’s overall extent using ﬁxed rectangles. The

geometric bounds (GeometricBounds in Visual Basic) of a

page item are the rectangular dimensions of the object excluding stroke width. The

visible bounds (VisibleBounds in Visual Basic) of a page item are the

dimensions of the object including any stroke widths. Finally, the (

ControlBounds in Visual Basic) deﬁne the rectangular dimensions of the object

including in- and out- control points.

control bounds

Object references

The different scripting languages take different approaches to object references.

Object references Scripting Illustrator44

Object references in AppleScript

In AppleScript, Illustrator returns object references by index position or name. For example, a ref erence to the ﬁrst path in la yer 2 would be:

of document 1

. An object’s index position may change when other objects are

path item 1 of layer 2

created or deleted. For example, when a new path item is created on layer 2, it will become

path item 1 of layer 2 of document 1. This new object displaces

our original path item, forcing it to index position 2. Therefore, any references made to

path item 1 of layer 2 of document 1 will refer to the ne w object. Consider

the following sample script.

-- Make 2 new objects and try to select both

tell application "Adobe Illustrator 10"

set newDocument to make new document set rectPath to make new rectangle in newDocument set starPath to make new star in newDocument set selection of newDocument to {rectPath, starPath}

end tell

This script will not select both the rectangle and the star. It will select only the star. Try running the script with the Event Log window open to observe the references returned from Illustrator for each of the consecutive

commands return the same object reference:

document 1

make commands. You will notice that both

path item 1 of layer 1 of

Therefore, the script really says:

set selection of document 1 to ¬

{path item 1 of layer 1 of document 1, path item 1 of layer 1 of

document 1}

Instead, you might try referencing the objects by name, such as:

tell application "Adobe Illustrator 10"

set newDocument to make new document make new rectangle in newDocument with properties {name:"rectangle"} make new star in newDocument with properties {name:"star"} set selection of newDocument to ¬

{path item "rectangle" of newDocument, path item "star" of newDocument} end tell

Adobe Illustrator 10 Scripting Guide Object containment: document vs. layer 45

This example illustrates the need to uniquely identify objects. It is recommended that you assign names to objects you need to access at a later time, as there’s no guarantee you’re accessing the objects you expect when accessing them by index.

Object references in Visual Basic

Object references in Visual Basic are dynamic and remain valid until disposed. To create a star and rectangle, and then select them, you could do:

Private Sub Command1_Click()

'Make 2 new objects and select both

Dim appRef As New Illustrator.Application Dim pathItemsRef As Illustrator.PathItems Dim rectPath As Illustrator.PathItem Dim starPath As Illustrator.PathItem

Set pathItemsRef = appRef.ActiveDocument.ActiveLayer.PathItems Set rectPath = pathItemsRef.Rectangle(50, 70, 100, 200) Set starPath = pathItemsRef.Star(40, 70, 200, 110, 5, False)

Dim pathSelection(1) As Variant Set pathSelection(0) = rectPath Set pathSelection(1) = starPath appRef.Selection = pathSelection End Sub

Object containment: document vs. layer

In Illustrator, all artwork objects are contained in layers, groups or compound paths that are themselves contained in a document. The index of an object in a layer or group indicates the object’s position in the stacking order of the layer or group. This means that

page item 1 of layer 1, or Layers(1).PageItems(1) in Visual Basic, is

the frontmost object in a document, while

Layers(1).PageItems(2) in Visual Basic, lies directly behind in the stacking order .

Note that if you delete all the layers in a document, the document is left with the default empty layer called

When you refer to an object in your document, you can reference it directly as part of the document or by its complete containment hierarchy, including layers and any group or compound path if valid. When y ou ref er to objects contained by the document directly, you can access the entire ﬂattened contents of the document, without regard to the

Layer 1.

page item 2 of layer 1, or

Object containment: document vs. layer Scripting Illustrator46

containment of objects within layers, groups, or compound paths. All objects, whether or not they are contained in groups or compound paths, are returned as individual objects contained by the document. The following scripts demonstrate how to reference an object as part of a document.

In AppleScript:

-- Get reference for ﬁrst page item of document 1

tell application "Adobe Illustrator 10"

set pageItemRef to page item 1 of document 1

end tell

In Visual Basic:

Private Sub Command1_Click()

'Get reference for ﬁrst page item of document 1

Dim appRef As New Illustrator.Application Dim documentRef As Illustrator.Document Dim pageItemRef As Illustrator.PageItem

Set documentRef = appRef.ActiveDocument Set pageItemRef = documentRef.PageItems(1) End Sub

In the scripts below, the variable pageItemRef will not necessarily refer to the same object as the above script since this script includes a reference to a layer:

In AppleScript:

-- Get reference for ﬁrst page item of layer 1 of document 1

tell application "Adobe Illustrator 10"

set pageItemRef to page item 1 of layer 1 of document 1

end tell

In Visual Basic:

Private Sub Command1_Click()

'Get reference for ﬁrst page item of document 1

Dim appRef As New Illustrator.Application Dim documentRef As Illustrator.Document Dim pageItemRef As Object

Adobe Illustrator 10 Scripting Guide Working with selections 47

Set documentRef = appRef.ActiveDocument Set pageItemRef = documentRef.Layers(1).PageItems(1) End Sub

Working with selections

There are instances where you will want to write scripts that act upon the currently selected object(s). For example, y ou might w ant to ha v e a script that applies f ormatting to selected text, or changes a selected path’s shape. To do this, you need to know the number of selected objects and the type of each object. The following scripts work with the current selection.

In AppleScript:

--selection sorter

tell application "Adobe Illustrator 10"

set selectedObjects to selection try

if selectedObjects is {} then

display dialog "No objects are selected"

else

if class of selectedObjects = list and ¬

(count of items in selectedObjects > 1) then

--selection contains more than one object.

else

--a single object is selected. What is it?

set selectedObjectClass to class of selectedObjects if selectedObjectClass = list then ¬

set selectedObjectClass to class of item 1 of

selectedObjects

if selectedObjectClass = text then

-- text is selected

else

-- determine what type of object is selected.

if selectedObjectClass = path item then

-- object is a path item

else if selectedObjectClass = compound path item then

-- object is a compound path

else if selectedObjectClass = raster item then

-- object is a raster image

else if selectedObjectClass = placed item then

-- object is a placed image

else if selectedObjectClass = mesh item then

-- object is a mesh

Working with selections Scripting Illustrator48

else if selectedObjectClass = text art item then

-- object is a text art item

else if selectedObjectClass = plugin item then

-- object is a plugin art item

else if selectedObjectClass = path point then

-- object is a point of a path

else if selectedObjectClass = group item then

-- object is a group

end if

on error errString

display dialog errString

end try

end tell

In Visual Basic:

'Selection sorter

Private Sub Command1_Click() Dim appRef As New Illustrator.Application Dim documentRef As Illustrator.Document Set documentRef = appRef.ActiveDocument selectedObjects = documentRef.Selection

If TypeName(selectedObjects) = "String" Then

'text is selected

Else

'Is anything selected?

If selectedObjects = Empty Then GoTo noSelection

For Each artObject In selectedObjects selectedObjectClass = TypeName(artObject)

Adobe Illustrator 10 Scripting Guide Working with paths 49

Select Case selectedObjectClass

'Something is selected, let’s ﬁnd out what it is.

Case "PathItem"

'Object is a path item

Case "CompoundPathItem"

'Object is a compound path

Case "RasterItem"

'Object is a raster image

Case "PlacedItem"

'Object is a placed image

Case "MeshItem"

'Object is a mesh

Case "TextArtItem"

'Object is a text art item

Case "PluginItem"

'Object is a plugin art item

Case "PathPoint"

'Object is a point of a path

Case "GroupItem"

'Object is a group of objects

End Select Next End If Exit Sub

noSelection: MsgBox "Select an object and try again." End Sub

Working with paths

Path items include all artwork that is comprised of paths, including rectangles, ellipses, polygons, as well as freeform paths. In Illustrator, every path is comprised of a series of points. Path items, as well as path points, can be created and manipulated from a script. Every aspect of a path point can be accessed from scripting, including the anchor

point direction

(

RightDirection in Visual Basic) properties. Refer to the Illustrator Plug-in Software

Development Kit Function Reference for more information on working with paths, bezier curves and path points. This document is available in Adobe Acrobat® Portable Document Format (PDF) as part of the Illustrator Software Development Kit (SDK). The

(AnchorPoint in Visual Basic) and both control points, known as the left

(LeftDirection in Visual Basic) and right direction

Working with color Scripting Illustrator50

SDK can be downloaded from the Adobe Solutions Network web site (http:// partners.adobe.com/asn/developer/sdks.html).

path point PathPoint

path item PathItem

right direction RightDirection

anchor Anchor

left direction LeftDirection

Working with color

Swatches can be created and manipulated from your scripts. You can also create new patterns, gradients and spot colors from scripts. Just as in the user interf ace , percentages (0.0 through 100.0) are used to specify grayscale , individual CMYK values and spot tints. The range 0.0 to 255.0 is used for the individual RGB color values. Special attention should be paid to working with CMYK and RGB color values. Illustr ator 10 supports only a single color model within each document, either CMYK or RGB. When you specify a CMYK color value in a document that uses the RGB color model, Illustrator will convert the values to RGB and return an RGB color, and vice-versa when specifying RGB colors in a CMYK document. However, there is some data loss during this conversion. Refer to the “Applying Color” chapter in the Adobe Illustrator User Guide for more information on working with color.

Working with symbols

Symbols are art objects that are stored in the Symbols palette and applied to documents. You can create, delete and duplicate symbols. When you create symbols, Illustrator adds them to the Symbols Palette for the target document. When you save the document, Illustrator also saves the symbols you created and used in the document.

Working with symbol items

Symbol items refer to instances of symbols in a document. You can create, delete, and duplicate symbol

items. They are “link ed” to the symbol deﬁnition such that changing the

Working with text art Scripting Illustrator51

deﬁnition of a symbol causes all of the instances of the symbol to change as well. Symbol items are Illustrator art objects and therefore can be treated as other art objects or page items. In other words, you can rotate, resize, select, lock, hide and perform other operations on them.

Working with text art

There are three types of text art items in Adobe Illustrator: point text, path text, and area text. The type of the text art item. While all three kinds of text art have some common characteristics, such as an orientation, each kind of text art also has unique characteristics.

kind property (Kind in Visual Basic) of a te xt art item is used to determine the

All three kinds of text art have least one text path associated with them. A (

TextPath in Visual Basic) is not the same as a path art item, but deﬁnes the text art

item’s position on the artboard and its orientation (horizontal or vertical). Point text is deﬁned completely by the properties of its text art item and associated text path.

For path and area text, text paths are associated with normal path art items. These path art items can be accessed and manipulated to modify the appearance of the associated text art item. If the text art item is path text, it will have a

(

TextPathOffset in Visual Basic), which indicates where on the path object the text

begins. All text art objects also have at least one line of text depending on the object’s geometry.

line of text (TextLine in Visual Basic) is all of the characters that ﬁt on a single line

A in the text art item. Text art will have multiple te xt lines if it contains hard line breaks or its characters ﬂow to a new line because they do not ﬁt in the width of the text art. Unlike characters, paragraphs and w ords , lines can only be created by the Illustrator application.

Refer to the “Using T ype” chapter in the Adobe Illustrator User Guide for more information on working with text art.

text path offset property

text path

Transformation matrices Scripting Illustrator52

Transformation matrices

Thanks to the matrix class and the many commands that support matrices, you have access to the power of geometric transformation matrices. Transformation matrices are mathematical concepts originating in the ﬁeld of linear algebra. Geometric manipulations like scaling, rotating and moving can all be described using transformation matrices.

Matrices are the basis of how Illustrator internally performs a user’s request to scale, rotate or move an object. Using the command set available to create, concatenate, and apply matrices, you can transform objects in documents with programmatic precision and control. By concatenating a series of rotation, translation and scaling matrices together and applying the resulting matrix, you can perform a large series of geometric transformations in record speed. The following examples demonstrate how to combine multiple modiﬁcations in a single matrix and then apply the matrix to every object in a document.

Refer to the Illustrator Plug-in Software Development Kit Function Reference for more information on working with transformation matrices.

Using a matrix in an AppleScript script

(* This script gets the identity matrix, combines it with a

rotation matrix and a scale matrix and then applies the

resulting matrix to all page items. *)

tell application "Adobe Illustrator 10"

set transformationmatrix to get identity matrix set transformationmatrix to concatenate rotation matrix ¬

transformationmatrix angle 45.0

set transformationmatrix to concatenate scale matrix ¬

transformationmatrix horizontal scale 60

transform every page item of document 1 using transformationmatrix

end tell

Using a matrix in a Visual Basic script

'This example shows how to apply 2 transformations to all art in 'a document using the matrix command. This is more efﬁcient than 'performing these transformations one at a time

Private Sub ApplyMatrix_Click() Dim appRef As New Illustrator.Application Dim moveMatrix As Illustrator.Matrix Dim totalMatrix As Illustrator.Matrix

Working with variables and datasets Scripting Illustrator53

'Move art half an inch to the right and 1.5 inch up on the page

Set moveMatrix = appRef.GetTranslationMatrix(72# * 0.5, 72# * 1.5)

'Add a rotation to the translation. We rotate 10 degrees counter clockwise

Set totalMatrix = appRef.ConcatenateRotationMatrix(moveMatrix,

10)

'Apply the transformation to all art in the document

Dim frontDocument As Illustrator.Document Dim artItem As Illustrator.PageItem

Set frontDocument = appRef.ActiveDocument For Each artItem In frontDocument.PageItems artItem.Transform totalMatrix Next End Sub

A matrix object in Illustrator is comprised of 6 properties. In AppleScript, these properties

mvalue_a, mvalue_b, mvalue_c, mvalue_d, mvalue_tx, and

are:

mvalue_ty. In Visual Basic, these properties are: MValueA, MValueB, MValueC, MValueD, MValueTX, and MValueTY. By e xperimenting with the matrix concatenation

commands in both AppleScript and Visual Basic, you can discover how to construct matrices that can applied to perform movement (also called translation), rotation, scaling, skewing and other transformations. See the script e xamples for the matrix commands for working samples.

Working with variables and datasets

By creating dynamic objects, you can create data-driven graphics. You can deﬁne dynamic objects by using to these variables. V ariables are document-le v el objects; theref ore , y ou create them in the document object. You can add and delete variables to/from a script by using the

Remove/ RemoveAll methods (Visual Basic) or make and delete (AppleScript).

Datasets

Datasets are closely related to variables in that a dataset collects variables and their

associated dynamic data into a single object. The is the object that corresponds to an

document class provides methods so you can create, update and delete datasets.

variables. In scripting, the variable class corresponds

Add and

DataSet (VB) / dataset (AS) class

AI DataSet. The dataset collection in the

Launching and quitting Illustrator from a script Scripting Illustrator54

Launching and quitting Illustrator from a script

Your scripts can control the activation and quitting of the Illustrator application. Take note of the particular comments below for your scripting system.

Launching and quitting from AppleScript

Use the activate and quit commands to control Illustrator’s run state. The

activate command will bring the Illustrator application to the front if it is not already

the frontmost application. Note that if the clipboard contains data at the time of quitting, Illustrator may show a dialog asking if the data on the clipboard should be sa v ed for other applications. You can avoid this dialog by clearing the clipboard with the statement:

set the clipboard to {}

Launching and quitting from Visual Basic

In Visual Basic , the Activate method will bring the Illustrator application to the front if it is not already frontmost.

Note that if the clipboard contains data at the time of quitting, Illustrator may show a dialog prompting the user to save the data on the clipboard f or other applications. You can avoid this dialog by clearing the clipboard with the command:

Clipboard.Clear

Some objects that cannot be created by a script

Following are some objects that cannot be created from a script:

•Art styles

•Brushes

•Graphs

• Mesh art

• Plugin art

• Spirals

User Interaction Levels Scripting Illustrator55

User Interaction Levels

An application will usually present a dialog when it needs to provide feedback or request information. This is called user interaction, and is useful and expected when you are directly interacting with the application. On the other hand, when a script is interacting with an application, an unexpected dialog will bring the execution of the script to a halt until the dialog is dismissed. This can be a serious problem in an automation environment where there is typically no one present to deal with dialogs.

The Illustrator 10 application class contains a user interaction level property. By setting this property a script can control the level of interaction allowed during script execution. All interaction is normally suppressed in an automation environment, and some interaction might be useful where scripts are being used in a more interactive fashion.

AppleScript

There are four possible values for the user interaction level property in AppleScript:

•never interact No interaction is allowed

• interact with self Interact only with scripts executed from the scripts menu

• interact with local Interact with script executed on the local machine (including self)

• interact with all Interact with all scripts Using AppleScript, it is possible to send commands from one machine to another. The

four possible values allow you to control interaction based on the source of the script commands. For example, if the application is acting as a server for remote users, it would be difﬁcult for a remote user to dismiss a dialog, but it would be no problem for someone sitting in front of the machine. In this case , an interaction level of ‘interact with local’ would prevent dialogs from halting remote scripts but would allow dialogs to be presented for local scripts.

Visual Basic and JavaScript

There are two possible values for the UserInteractionLevel property in Visual Basic:

• aiDontDisplayAlerts No interaction is allowed

• aiDisplayAlerts Interaction is allowed

The Scripts menu Scripting Illustrator56

The Illustrator 10 Windows scripting interface doesn’t support remote script execution so it doesn’t need to provide values based on where a script is being executed.

The Scripts menu

Illustrator 10’s interface includes a Scripts menu (File>Scripts) which provides quick and easy access to your scripts. To execute a script from the Scripts menu simply select it in the menu. The script associated with the selected menu item will be then be executed.

Notes

If there is an error encounter during script execution an error dialog will be displayed containing the error message returned by the script.

It is not possible to execute scripts that contain the

do script (DoScript in Visual

Basic) command from the Scripts menu. Attempting to do so will result in an error.

Supported scripting languages

The Scripts menu supports AppleScript and JavaScript scripts for Mac OS, and VBScript, JavaScript, and Visual Basic scripts for Windows.

Script ﬁles

For a ﬁle to be recognized by Illustrator as a valid script ﬁle it must have the correct ﬁle type (Mac OS) or name extension (Mac OS and Windows).

Script T ype File Type Extension Platform(s)

AppleScript compiled script .scpt Mac OS JavaScript text .js Mac OS &

Windows VBScript text .vbs Windows Visual Basic executable .exe Windows

Note: For ﬁles on Mac OS (9.x and 10.x) it is possible for ﬁles to be identiﬁed by the classic ﬁle type and creator codes, ﬁle name e xtensions, or both. The only required for AppleScript ﬁles which do not have ﬁle type information, such as those installed with Mac OS X. There is no harm in having a name extension when a ﬁle has ﬁle type codes.

.scpt extension is

The Scripts menu Scripting Illustrator57

Installing scripts

To install a script in the Scripts menu, place it in the Scripts folder (Illustrator

10>Presets>Scripts

name extension, will be displayed in the Scripts menu. Any number of scripts may be installed in the Scripts menu.

Note: Scripts added to the Scripts folder while Illustrator is running will not appear in the Scripts menu until the next time you launch Illustrator.

If you have a large collection of scripts you wish to use, you may use sub-folders in the Scripts folder to help organize the scripts in the Scripts menu. Each subfolder will be displayed as a separate submenu containing the scripts in that subfolder.

Note: Because of a limitation in the Mac OS, there is a limit of 4 levels of nested subfolders inside the Scripts folder for the Mac OS version of Illustrator.

). The names of the scripts in the Scripts folder, less any ﬁle

Executing other scripts

A Browse item is provided at the end of the Scripts menu (File>Scripts>Browse…) which allows you to execute scripts which are not installed in the Scripts folder. Selecting the Browse menu item will display a ﬁle browser dialog which will allow you to select a script ﬁle for execution. Only ﬁles which are of one of the supported ﬁle types, as listed in the Script Files section above will be displayed in the browse dialog. When a script ﬁle is selected in the browse dialog, it will be executed the same way as an installed script.

The Scripts menu Scripting Illustrator58

AppleScript Reference

This reference section describes the objects and commands in Illustrator’s AppleScript dictionary. All of the objects in the dictionary are presented alphabetically. Following the objects is a command reference which lists all of the commands in the Illustrator dictionary.

Each object listing includes the following:

• Elements that are contained within the object.

• Properties of the object, including value type, read-only status, and an explanation.

•Valid commands.

• Notes to explain special issues.

• Script examples. Throughout this guide, when an object inherits properties from another object, we repeat

all of the property deﬁnitions to maximize usability.

About the script examples

The examples presented here do not necessarily represent the most efﬁcient way to construct an AppleScript script. All example scripts are written in a manner that should be easy to read and understand. The samples contain little error checking, and assume that the proper context exists for the scripts to execute in, i.e., that there is a document open, items selected, etc. The purpose of these examples is to show you how to address and work with Illustrator’s objects. These examples may be combined to make scripts with greater functionality.

Illustrator’s object model AppleScript Reference60

Illustrator’s object model

A good understanding of Illustrator’s object model will impro v e your scripting abilities. This diagram shows the containment hierarchy of the object model, starting with the application object. Note that the additional objects of the same class which can in turn contain additional nested objects.

layer, group item, and all text classes can contain

Adobe Illustrator 10 Scripting Guide Illustrator’s object model 61

color-related

classes

gradient

pattern

spot

swatch

art style

brush

data set

application

document

layer

text face

group item

tag

page item

compound

path item

graph

item

mesh item

path item

placed

item

plugin

item

raster

item

path item

tag

path point

tag

symbol

variable

view

character

insertion

point

symbol

item

text art

item

line paragraph text word

text classes

path item

text path

tag

application AppleScript Reference62

application

The Adobe Illustrator application object, which contains all other Illustrator objects.

Elements

Element: Refer to by:

document name, index, before/after, range, test text face name, index, before/after, range, test

Properties

Property: R/O Value type: What it is:

best type R/O class The best type for the application

object's value. Always returns

reference.

browser available R/O boolean Is a web browser available? class R/O class The application object's class,

which is

current document object reference The active (frontmost)

document in Illustrator.

default type R/O class The default type for the

application object's value. Always returns

reference.

free memory R/O integer The amount of unused memory

(in bytes) within the Adobe Illustrator partition.

frontmost R/O boolean Is this the frontmost (active)

application?

name R/O string The application's name (not

related to the ﬁlename of the application ﬁle). Always returns

"Adobe Illustrator 10"

properties record All of the application's

properties returned in a single record (properties which are individually read-only remain so in this record).

scripting version R/O string The version of the Scripting

plugin.

application.

Adobe Illustrator 10 Scripting Guide application 63

Property: R/O Value type: What it is:

settings Illustrator preferences Preferences for the Illustrator

application.

selection list (of object references) All of the currently selected

objects in the active (frontmost) document. See the note for more information.

user interaction level interact with all/interact

with local/interact with self/never interact

version R/O string The version of the Adobe

The level of interaction with the user that is allowed when handling script commands. Default: interact with all

Illustrator application.

Valid Commands

• activate

• copy

• cut

• do script

• launch

• paste

• quit

• redraw

Notes

In Illustrator, the application’s selection can be accessed as well as modiﬁed. The selection will contain an empty list, all objects in the current document, simply set the reference to an insertion point is returned when there is an active insertion point in the

contents of a text art item. Similarly, a reference to a range of text is returned when characters are selected in the contents of a text art item.

{}, when there are no selected objects. To deselect

selection to an empty list. A

application AppleScript Reference64

Illustrator does not support the select command to change the application’s current selection. Use

-- Select the ﬁrst object in the document

tell application "Adobe Illustrator 10"

-- Make sure there is a page item to select

if (document 1 exists) and (page item 1 of document 1 exists) then

set the selection to page item 1 of document 1

end if

end tell

set the selection to in place of select.

Example 1.1

You don’t need to make objects part of the selection to act on them. The selection is most useful for moving objects to and from the clipboard using the commands, which act on the current selection. The clipboard can be used effectively for moving data between applications that do not share common object classes.

Note that Illustrator must be the frontmost application when executing any command that deals with the clipboard. We bring Illustrator to the front in Example 1.1 by using AppleScript’s

activate command.

cut, copy and paste

-- Copy the current selection to the clipboard then paste it into a new document

tell application "Adobe Illustrator 10"

-- If Illustrator is not the frontmost application, activate it.

if not frontmost then activate

-- Make sure there is a document to copy from

if (count of documents) > 0 then

-- and a selection to work with

set selectedItems to selection of current document if selectedItems is not {} then

copy set colorSpace to color space of current document make new document with properties {color space:colorSpace} paste

end if

end tell

Adobe Illustrator 10 Scripting Guide art style, art styles 65

art style, art styles

An art style or list of art styles. Each art style deﬁnes a set of appearance attributes that you can apply non-destructively to page items. Art styles are contained in documents.

Properties

Property: R/O Value type: What it is:

best type R/O class The best type for the art style

object's value. Always returns

reference.

class R/O class The art style object's class,

which is

container R/O object reference A reference to the document

that contains this art style.

default type R/O class The default type for the art style

object, which is

reference.

index R/O integer The index of this art style. name R/O string The name of this art style. properties R/O record All of the properties of this

object returned as a record.

art style.

Valid Commands

• apply

• count

• delete

•exists

Notes

Illustrator’s art styles can be accessed from scripting, but cannot be created. You cannot delete default art styles.

art style, art styles AppleScript Reference66

Example 2.1

This example demonstrates how to apply art styles to newly created groups of objects. Note how this script deals with the fact that applying an art style to a group item does not apply the art style to the page items contained in the group.

-- Duplicate and group the selected path items, then apply

-- a user-selected art style to the items in the new group

tell application "Adobe Illustrator 10" to ¬

set selectedItems to selection of document 1

-- Check for empty selection or a text selection before proceeding

if selectedItems is not {} and class of selectedItems is not text then

tell application "Adobe Illustrator 10"

-- Create the new group to contain the duplicated items

set groupRef to make new group item at document 1

-- Duplicate the selected items to the new group

set newItemList to duplicate selectedItems to beginning of groupRef

-- Get art style names for display in the choice list

set artStyleNames to name of every art style of document 1

end tell

-- Present dialog and let user choose the style to apply

set styleName to (choose from list artStyleNames ¬

with prompt "Style for selection?") as string

if styleName is not "" then

tell application "Adobe Illustrator 10"

The chosen art style is applied to the list of items returned by the duplicate command, rather than to the new group itself, because the apply command works on individual path items, not groups of items

apply art style styleName of current document to newItemList

end tell

end if

Adobe Illustrator 10 Scripting Guide brush, brushes 67

brush, brushes

A brush or list of brushes. Brushes are contained in documents.

Properties

Property: R/O Value type: What it is:

best type R/O class The best type for the brush

object's value. Always returns

reference.

class R/O class The brush object's class, which

brush.

container R/O object reference A reference to the document

that contains this brush.

default type R/O class The default type for the brush

object, which is

reference.

index R/O integer The index of this brush. name R/O string The name of this brush. properties R/O record All of the properties of this

object returned as a record.

Valid Commands

• apply

• count

•exists

Notes

Additional brushes may be created by the user within Illustrator. Illustrator’s brushes can be accessed from scripting, but cannot be created.

brush, brushes AppleScript Reference68

Example 3.1

This example demonstrates how to apply a series of brushes to objects.

-- Duplicate the current selection (if it is a single item)

-- and apply each available brush to the new object

tell application "Adobe Illustrator 10" to ¬

set selectedItems to selection

-- Check for selection of single non-text object

if class of selectedItems is text or (count of items of selectedItems) is not 1 then

display dialog "Select a single path item before running this script"

else

tell application "Adobe Illustrator 10"

set pathItem to item 1 of selectedItems

-- Get the item's position and use it to tile the new items below

set {itemX, itemY} to position of pathItem

-- Get a list of all brushes and apply each brush to the selectec item

set brushList to every brush of current document

-- Get coordinates of upper-left of document

set docLeft to 0 set docTop to height of current document

set brushCount to count of items of brushList repeat with i from 1 to brushCount

set aBrush to item i of brushList set itemOffset to i * 20 -- use to tile the duplicated items

-- Duplicate the selected path item, tiling them from the

-- upper-left of the document

set pathRef to duplicate pathItem to beginning of current document ¬

with properties {position:{docLeft + itemOffset, docTop -

itemOffset}}

-- Must clear the document's selection before applying a brush

-- since the duplicate above seems to add to it each time through

set selection of current document to {}

apply aBrush to pathRef

Adobe Illustrator 10 Scripting Guide brush, brushes 69

end repeat

end tell

end if

character, characters AppleScript Reference70

character, characters

A character or list of characters in the contents of a text art item.

Elements

Element: Refer to by:

character index, before/after, range, test insertion point index, before/after, range, test line index, before/after, range, test paragraph index, before/after, range, test text index, before/after, range word index, before/after, range, test

Properties

Property: R/O Value type: What it is:

auto kerning boolean Should the font’ s built-in k erning

rules be used?

baseline real Bottom position of horizontally-

oriented text or left position of

vertically-oriented text. baseline shift real The baseline offset. best type R/O class The best type for the character

object's value. Always returns

reference.

character offset R/O integer Offset from beginning (in

characters). class R/O class The character object's class,

which is clipping R/O boolean Is there a clipping path

associated with the text art item

containing this character? container R/O object reference A reference to the text art item

that contains this character. contents string The contents of the character

as a string.

text.

Adobe Illustrator 10 Scripting Guide character, characters 71

Property: R/O Value type: What it is:

default type R/O class The default type for the

character object, which is

string. The string value

returned is the value contained

in the character’s

contents property.

direction normal/rotated/KumiMoji The direction of characters in a

vertical text block. evenodd boolean Should the even-odd rule be

used to determine ﬁlls? ﬁll color CMYK color info/gray

color info/RGB color info/ spot color info/pattern color info/gradient color info

ﬁll overprint boolean Should art beneath the ﬁlled

ﬁlled boolean Should the character’s path be

font string The name of the text face (font). index R/O integer The index of this character in

kerning real The character spacing between

leading real The leading. length R/O integer Length (in characters). note R/O string A note associated with the text. properties record All of the character’s properties

resolution real The resolution of the path in

scaling ﬁxed point Horizontal and vertical scaling

size real The font size. stroke cap butted/rounded/

projecting

The character’s ﬁll color.

character be overprinted?

ﬁlled?

the complete string.

characters.

returned in a single record

(properties which are

individually read-only remain so

in this record).

dots per inch.

speciﬁed as a point value.

The type of cap on the

character’s stroke.

character, characters AppleScript Reference72

Property: R/O Value type: What it is:

stroke color CMYK color info/gray

color info/RGB color info/ spot color info/pattern color info/gradient color info

stroke dash offset real The default distance to start the

stroke dashes list (of real numbers) The lengths for dashes and

stroke join mitered/rounded/beveled The type of joins in the

stroke miter limit real The angle at which a stroke join

stroke overprint boolean Should art beneath the stroked

stroke width real The width of the stroke. stroked boolean Should the character’s path be

text orientation R/O horizontal/vertical Should this text be displayed

text path R/O object reference A reference to the text path

tracking real The uniform spacing amount

The character’s stroke color.

stroke dash pattern.

gaps in dashed lines, starting

with the ﬁrst dash length,

followed by the ﬁrst gap length,

and so on. Set to an empty list,

{}, for a solid line.

character’s stroke.

switches from mitered to

beveled.

character be overprinted?

stroked?

horizontally? Use the

path

value.

associated with the text art item

containing this text.

between characters.

class to modify this

text

Valid Commands

• count

• delete

• duplicate

•exists

• make

Adobe Illustrator 10 Scripting Guide character, characters 73

•move

Notes

The text contained within text art items in Illustrator can be accessed using the

character, insertion point, word, line, paragraph and text classes.

The properties and valid commands for all of these classes are similar, but not identical. For example, while

character has a kerning property, the other text classes do not.

Example 4.1

In the example below, the selection property has all of the properties that

character or any other text class would have.

-- Make the currently selected text superscript

tell application "Adobe Illustrator 10"

-- Make sure one or more characters of text are selected

set selectedText to selection of current document if class of selectedText is text ¬

or class of selectedText is character then

-- Adjust the properties of the selected text to superscript it

set fontSize to size of selectedText set fontBaseline to baseline shift of selectedText

set properties of selectedText to ¬

{size:fontSize / 2, baseline shift:fontBaseline + (fontSize / 2)}

end if

end tell

Example 4.2

This example demonstrates how to use char acter properties to create unique effects from a script.

(* Distort every character in the ﬁrst text art item of a document by incrementally modifying the horizontal scaling of each character to give the effect of stretching words out *)

-- A smaller value for this property means more difference between largest and

-- smallest horizontal scaling of the characters

property pVariability : 1.0

character, characters AppleScript Reference74

tell application "Adobe Illustrator 10"

-- Is there is a document and a text art item to work with

if (exists text art item 1 of current document) then

-- Make sure the text art item contains some text

set textArtItem to first text art item of current document if textArtItem is not "" then -- contains some text

-- Gather info needed to calculate the scale factor

set characterCount to count of characters in textArtItem set factor to (characterCount + 1) / 2

-- Iterate over each character, changing its horizontal scale

repeat with i from 1 to characterCount

set hScaling to (factor - i) / factor if hScaling < 0 then set hScaling to -hScaling

set widthScale to 100 * pVariability - (hScaling * 100) set scaling of character i of text art item 1 of document 1 ¬

to {widthScale, 100.0}

end repeat

end if

end tell

Adobe Illustrator 10 Scripting Guide CMYK color info 75

CMYK color info

A CMYK color speciﬁcation, used to specify a CMYK color in conjunction with the color property.

Properties

Property: R/O Value type: What it is:

cyan real The cyan color value as a value

in the range 0.0 - 100.0. magenta real The magenta color value as a

value in the range 0.0 - 100.0. yellow real The yellow color value as a

value in the range 0.0 - 100.0. black real The black color value as a v alue

in the range 0.0 - 100.0.

Valid Commands

none

Notes

This class is used to deﬁne a record which contains the color component values of a CMYK color. It is used for specifying and retrieving color information from an Illustrator document or from page items in a document.

If the

color space of a document is RGB and you specify the color value for a page

item in that document using color speciﬁcation into a RGB color speciﬁcation. The same thing happens if the document’s

color space is CMYK and you specify colors using RGB color info.

Since this translation can cause information loss you should specify colors using the color info class that matches the document’s

CMYK color info, Illustrator will translate the CMYK

color space.

CMYK color info AppleScript Reference76

Example 5.1

This example demonstrates how to create a new swatch in a document and assign a CMYK color to the swatch.

-- Make a new CYMK color swatch in the current document

tell application "Adobe Illustrator 10"

if not (exists swatch "Yellow" in current document) then

set swatchColor to {cyan:50.0, magenta:20.0, yellow:20.0, black:0.0} make new swatch at beginning of current document with properties ¬

{name:"Yellow", color:swatchColor}

end if

end tell

Adobe Illustrator 10 Scripting Guide compound path item, compound path items 77

compound path item, compound path items

A compound path or list of compound paths. Compound paths are objects composed of multiple intersecting paths, resulting in transparent interior spaces where the original paths overlapped.

Elements

Element: Refer to by:

path item name, index, before/after, range, test tag name, index, before/after, range, test

Properties

Property: R/O Value type: What it is:

best type R/O class The best type for the compound

path item object's value. Alw a ys

returns blend mode normal/multiply/screen/

overlay/soft light/hard light/color dodge/color burn/darken/lighten/ difference/exclusion/hue/ saturation blend/color blend/luminosity/numeric

class R/O class The compound path item

The mode to use when

compositing this object. An

object is considered

composited when its opacity is

set to less than 100.0 (or

100%).

object's class, which is always

compound path

item

container R/O object reference A reference to the layer that

contains this compound path

item. control bounds R/O ﬁxed rectangle The bounds of the object

including stroke width and

controls. default type R/O class The default type for the

compound path item object,

which is editable boolean Is this compound path editable?

geometric bounds R/O ﬁxed rectangle The object’s bounds excluding

the stroke width. graph item graph item object The graph item contained in this

compound path.

reference.

compound path item, compound path items AppleScript Reference78

Property: R/O Value type: What it is:

group item group item object The group items contained in

this compound path. height real The height of the compound

path item excluding stroke

width, calculated from the

geometric bounds. hidden boolean Is this compound path item

hidden? index R/O integer The position of this compound

path item in the current stacking

order of the containing layer,

where compound path item 1 is

always the topmost compound

path item. inheritance R/O class The class that is the parent for

this class. Always returns

page item.

isolated boolean Is this object isolated? knockout unknown/disabled/

enabled/inherited

layer R/O object reference The layer to which this

locked boolean Is this compound path item

mesh item mesh item object The mesh item contained in this

name string The name of this compound

opacity real The opacity of this object,

path item path item object The path item contained in this

placed item placed item object The placed item contained in

plugin item plugin item object The plugin item contained in

position ﬁxed point The position of the top left

Is this object used to create a

knockout?

compound path item belongs.

locked?

compound path item.

path item.

where 100.0 is completely

opaque and 0.0 is completely

transparent.

compound path.

this compound path.

corner of the compound path

item excluding stroke width.

Adobe Illustrator 10 Scripting Guide compound path item, compound path items 79

Property: R/O Value type: What it is:

properties record All of the compound path item’s

properties returned in a single

record (properties which are

individually read-only remain so

in this record). raster item raster item object The raster item contained in this

compound path. selected boolean Is this compound path item

selected? slices boolean Preserve slices? symbol item symbol item object The symbol item contained in

this compound path. text art item text art item object The text art item contained in

this compound path. URL string The v alue of the Adobe URL tag

assigned to this compound path

item. visibility variable anything The visibility variable to which

this compound path is bound. visible bounds R/O ﬁxed rectangle The object’s visible bounds,

including stroke width of any

objects in the illustration. width real The width of the compound

path item excluding stroke

width, calculated from the

geometric bounds.

Valid Commands

• count

• delete

• duplicate

•exists

•move

•translate

• rotate

• scale

•transform

compound path item, compound path items AppleScript Reference80

Notes

Paths contained within a compound path or group in a document will be returned as individual paths when a script asks for the paths contained in the document. However, paths contained in a compound path or group will not be returned when a script asks for the paths in a layer which contains the compound path or group.

All paths inside of a compound path share property values. Therefore, if y ou set the v alue of a property of any one of the paths in the compound path, all other path’s matching property will be updated to the new value.

Adobe Illustrator 10 Scripting Guide compound path item, compound path items 81

Example 6.1

This example demonstrates how to get a list containing all of the paths in a document that are not part of a compound path or a group by iterating through each layer in the document.

-- A handler which return paths in a document that are not part of a

-- compound path or group

to GetPathItemsOfDocument(docRef)

tell application "Adobe Illustrator 10"

set pathItemList to {} set layerCount to count of layers of docRef repeat with i from 1 to layerCount

set pathItemList to pathItemList & path items of layer i of docRef

end repeat

end tell

return pathItemList

end GetPathItemsOfDocument

-- Call handler

tell application "Adobe Illustrator 10" to set docRef to current document set allPathItems to GetPathItemsOfDocument(docRef)

Example 6.2

Compound paths contain path items that can be accessed from a script. This example shows how to duplicate the paths in a compound path and then group them in a new group item.

-- Create a group containing a set of paths duplicated from the

-- ﬁrst compound path item of the document

tell application "Adobe Illustrator 10"

set pathItemList to path every item of ¬

compound path item 1 of current document

set groupRef to make new group item at beginning of ¬

layer 1 of document 1

duplicate pathItemList to beginning of groupRef

end tell

dataset, datasets AppleScript Reference82

dataset, datasets

An object, or list of objects, that contains variables and their dynamic data.

Properties

Property: R/O Value type: What it is:

best type R/O class The best type for the dataset’s

value. Always returns

reference.

class R/O class The dataset object’s class,

which is container R/O object reference A reference to the art object

that contains this dataset. default type R/O class The default type for the dataset.

Always returns

reference.

index R/O integer The index of this dataset in the

art object. name string The name of the dataset. properties record all of the dataset’s properties

returned in a single record

dataset.

Valid Commands

• count

• delete

• display

•exists

• make

• update

Adobe Illustrator 10 Scripting Guide document, documents 83

document, documents

An Illustrator document or a list of documents. Documents are contained in the

application object.

Elements

Element: Refer to by:

art style name, index, before/after, range, test brush name, index, before/after, range, test compound path item name, index, before/after, range, test dataset name, index, before/after, range, test gradient name, index, before/after, range, test graph item name, index, before/after, range, test group item name, index, before/after, range, test layer name, index, before/after, range, test mesh item name, index, before/after, range, test page item name, index, before/after, range, test path item name, index, before/after, range, test pattern name, index, before/after, range, test placed item name, index, before/after, range, test plugin item name, index, before/after, range, test raster item name, index, before/after, range, test spot name, index, before/after, range, test swatch name, index, before/after, range, test symbol name, index, before/after, range, test symbol item name, index, before/after, range, test tag name, index, before/after, range, test text art item name, index, before/after, range, test variable name, index, before/after, range, test view index, before/after, range, test

Properties

Property: R/O Value type: What it is:

best type R/O class The best type for the document

object's value. Always returns

reference.

document, documents AppleScript Reference84

Property: R/O Value type: What it is:

class R/O class The document object's class,

which is color space R/O RGB/CMYK The color speciﬁcation system

to use for this document’s color

space. crop marks ﬁxed rectangle The boundary of the

document's cropping box for

output. crop style standard/japanese The style of the document's

cropping box, either standard or

japanese. current dataset object reference The currently active dataset. current layer object reference The active layer in the

document. current view R/O object reference The document's current view. default ﬁll color CMYK color info/gray

color info/RGB color info/ spot color info/pattern color info/gradient color info

default ﬁll overprint boolean Will art beneath a ﬁlled object

default ﬁlled boolean Should a new path be ﬁlled? default stroke cap butted/rounded/

projecting

default stroke color CMYK color info/gray

color info/RGB color info/ spot color info/pattern color info/gradient color info

default stroke dash offset real The default distance into the

default stroke dashes list (of real numbers) Default lengths for dashes and

default stroke join mitered/rounded/beveled Default type of joints in new

The color to ﬁll new paths if

default ﬁlled is

be overprinted by default?

Default type of line capping for

paths created.

The stroke color for new paths if

default stroked is

dash pattern at which the

pattern should be started for

new paths.

gaps in dashed lines, starting

with the ﬁrst dash length,

followed by the ﬁrst gap length,

and so on. Set to an empty list,

{}, for a solid line.

paths.

document.

true.

Adobe Illustrator 10 Scripting Guide document, documents 85

Property: R/O Value type: What it is:

default stroke miter limit real Speciﬁes when a join is mitered

(pointed) or beveled (squared-

off) by default, when default

stroke join is set to mitered. default stroke overprint boolean Will art beneath a stroked

object be overprinted by

default? default stroke width real Default width of stroke for new

paths. default stroked boolean Should a new path be stroked? default type R/O class The default type for the

document object's value.

Always returns

reference.

ﬁle path R/O ﬁle speciﬁcation The ﬁle associated with the

document, which includes the

complete path to the ﬁle. geometric bounds R/O ﬁxed rectangle The object’s bounds excluding

the stroke width. height R/O real The height of the document,

calculated from the geometric

bounds. index R/O integer The position of this document in

the stacking order of all open

documents. The current

(frontmost) document is always

document 1. modiﬁed boolean Has the document been

modiﬁed since the last save? name R/O string The document's name (not the

complete ﬁle path to the

document). output resolution R/O real The current output resolution for

the document in dots per inch

(dpi). page origin ﬁxed point The zero-point of the page in

the document without margins,

relative to the over all height and

width. print tiles R/O boolean Does this document print as

tiled output?

document, documents AppleScript Reference86

Property: R/O Value type: What it is:

properties record All of the document's properties

returned in a single record

(properties which are

individually read-only remain so

in this record). ruler origin ﬁxed point The zero-point of the rulers in

the document relative to the

bottom left of the document. ruler units R/O unknown/inches/

centimeters/points/picas/ millimeters/qs

selection list (of object references) The list of references to the

show placed images R/O boolean Are placed images displayed in

split long paths R/O boolean Are long paths to be split when

stationery R/O boolean Is the document saved as a

tile full pages R/O boolean Should full pages be tiled when

use default screen R/O boolean Should the printer's default

visible bounds R/O ﬁxed rectangle The object’s visible bounds,

width R/O real The width of this document,

The default units for the rulers

in the document.

objects in this document's

current selection.

the document?

printing?

stationery ﬁle?

printing this document?

screen be used when printing

this document?

including stroke width of any

objects in the illustration.

calculated from the geometric

bounds.

Valid Commands

• close

• count

•exists

•export

• make

• open

Adobe Illustrator 10 Scripting Guide document, documents 87

•print

•save

Notes

Illustrator’s default document settings—those properties starting with the word “default”— are global settings that affect the current document. Be sure to modify these default properties only when a document is open. Note that if you set default properties to desired values before creating new objects, you can streamline your scripts, eliminating the need to specify properties such as analogous default properties.

fill color and stroked that have

A document’s document is created. Once a document is created, these properties cannot be changed.

The frontmost document can be referred to as either

color space, height, and width can only be set when the

current document or

document 1.

document, documents AppleScript Reference88

Example 7.1

The following e xample sho ws how to mak e sure a document is open bef ore setting an y of the application’s default properties.

-- Check to make sure a document is open in Illustrator

-- before setting the application's default stroke width to 8 points

tell application "Adobe Illustrator 10"

if not (document 1 exists) then

make new document with properties {color space: CMYK, width: 100.0,

height: 50.0}

end if

set the default stroke width of document 1 to 8.0

end tell

Example 7.2

The following example shows how to make new documents with custom defaults.

-- Present a dialog to the user to choose a new document type

-- from, then create a new document with its properties set accordingly

-- Note: You can only change writable document defaults when a document is open

-- Prompt user for new document properties from list of choices

set listChoice to (choose from list ¬

{"CMYK, filled, 2 pt stroke with dashes", ¬

"RGB, filled, no stroke", ¬ "RGB, no fill, 1 pt stroke"} ¬ with prompt "What kind of new document to create?")

if listChoice is not false then

-- Gather the values needed to set the document's properties

set documentType to item 1 of listChoice

set fillPaths to (documentType contains "filled") set strokePaths to (documentType contains "pt stroke")

set strokeWidth to 0.0 if documentType contains "1 pt" then

set strokeWidth to 1.0

else if documentType contains "2 pt" then

set strokeWidth to 2.0

document, documents AppleScript Reference89

end if

if documentType contains "with dashes" then

set strokeDashes to {2.5, 1, 2.5, 1, 2.5, 1}

else

set strokeDashes to {}

end if

tell application "Adobe Illustrator 10"

-- Create a document with the requested color space

if documentType starts with "CMYK" then

set docRef to make new document with properties {color space:CMYK}

else

set docRef to make new document with properties {color space:RGB}

end if

-- Set the document's properties with one command

set properties of docRef to ¬

{default filled:fillPaths ¬

, default stroked:strokePaths ¬ , default stroke width:strokeWidth ¬ , default stroke dashes:strokeDashes}

end tell

end if

Example 7.3

This example demonstrates how to use document properties in other applications. In this case, the script uses the containing the Illustrator document in the Finder.

-- Reveal and select a document’s ﬁle icon in the Finder

tell application "Adobe Illustrator 10"

set filePath to file path of current document

end tell

tell application "Finder"

activate reveal filePath

end tell

file path property of the active document to open the folder

ellipse AppleScript Reference90

ellipse

A class used to create an elliptical path in an Illustrator document. This class can only be used to create new path item objects.

Properties

Property: R/O Value type: What it is:

bounds W/O ﬁxed rectangle The bounds of the ellipse. inscribed W/O boolean Is the ellipse path inscribed

(drawn inside the rectangle

described by the bounds)? reversed W/O boolean Is the ellipse path reversed?

Valid Commands

• make

Notes

Illustrator’s ellipse object is available exclusively for use with the make command. The class of the object created will be a path item. Therefore, the properties for an ellipse are write-once (W/O) in the sense that they can be used only to specify the creation of a new path item. This special class allows you to quickly create complex path items using the straightforward properties provided. If you do not specify any properties when making a new ellipse, default values will be used. Properties usually associated with path items, such as

fill color, can also be speciﬁed at the time of creation.

Example 8.1

This examples demonstrates how to create a series of ellipses based on the geometry of a single selected object.

-- Embellish a single selected path item by adding a bright red

-- ellipse to each point on the path

property pEllipseScale : 0.1

tell application "Adobe Illustrator 10"

activate set selectedItems to selection

-- A bit of sanity checking

ellipse AppleScript Reference91

if (count of selectedItems) is not 1 ¬

or class of selectedItems is text ¬ or class of item 1 of selectedItems is not path item then

display dialog "Please select a single path item before running this

script"

else

set pathItem to item 1 of selectedItems

-- Set ellipse color based on document color space

set docColorSpace to color space of current document if docColorSpace is RGB then

set ellipseColor to {red:255.0, green:0.0, blue:0.0}

else

set ellipseColor to {cyan:0.0, magenta:100.0, yellow:100.0,

black:0.0}

end if

-- Gather needed info about the path item to be embellished

set itemWidth to width of pathItem set itemHeight to height of pathItem set pathPointList to anchor of every path point of pathItem

-- Calculate the position and bounds for each ellipse

repeat with aPoint in pathPointList

set {x, y} to aPoint

set rectLeft to x - (itemWidth * pEllipseScale) set rectRight to x + (itemWidth * pEllipseScale) set rectTop to y + (itemHeight * pEllipseScale) set rectBottom to y - (itemHeight * pEllipseScale)

set ellipseRect to {rectLeft, rectTop, rectRight, rectBottom}

make new ellipse at beginning of current document ¬

with properties {bounds:ellipseRect, inscribed:true ¬ , reversed:false, stroke color:ellipseColor, fill

color:ellipseColor} ¬

end repeat

end if

end tell

EPS save options AppleScript Reference92

EPS save options

Options which may be supplied when saving a document as an Illustrator EPS ﬁle. See

save command in the command reference for additional details.

the

Properties

Property: R/O Value type: What it is:

CMYK PostScript boolean Use CMYK PostScript? default:

false

compatibility Illustrator 3/Illustrator 4/

Illustrator 5/Illustrator 6/ Illustrator 7/Illustrator 8/ Illustrator 9/Illustrator 10

embed all fonts boolean Include fonts used in the EPS

embed linked ﬁles boolean Are linked image ﬁles to be

ﬂatten output preserve paths/preserve

appearance

included document thumbnails boolean Include thumbnail image of the

japanese ﬁle format boolean Save the ﬁle using Japanese

PostScript level 1/level 2/level 3 Speciﬁes the PostScript lev el to

preview none/BW Macintosh/

color Macintosh/BW TIFF/color TIFF/ transparent color TIFF

Speciﬁes the version of the

Illustrator ﬁle format to create.

default:

Illustrator

ﬁle? default:

included in the saved

document? default:

How should transparency be

ﬂattened for ﬁle formats before

Illustrator 10. default:

false

preserve

appearance

EPS artwork? default:

version of ﬁle format? Valid only

for Illustrator 3 - 5 compatibility.

default:

use when saving the ﬁle.

default:

Speciﬁes the format for the EPS

preview image. default:

false

level 3

true

color Macintosh

Notes

Postscipt level 1 is only valid for compatibility with Illustrator 8 or earlier.

Adobe Illustrator 10 Scripting Guide EPS save options 93

This class is used to deﬁne a record containing properties that specify options when saving a document as an EPS ﬁle. conjunction with the

options

object.

save command. It is not possible to get or create an EPS save

EPS save options can only be used in

It is not necessary to specify values for all properties. Default values will be provided for any properties not speciﬁed.

Example 9.1

This handler processes a folder of Illustrator ﬁles, saving each as an EPS ﬁle with level 2 PostScript and Illustrator 10 compatibility. The ﬁles are save to the folder speciﬁed in the

destinationFolder parameter. Note that the class property is speciﬁed in the

record to ensure that Illustrator can determine the save option class.

-- ﬁleList is a list of aliases to Illustrator ﬁles

-- destinationFolder is an alias to a folder where the EPS ﬁles are to be saved

set sourceFolder to choose folder with prompt "Source folder?" tell application "Finder" to

set fileList to every file of folder sourceFolder as alias list

set destinationFolder to choose folder with prompt "Destination folder?"

set destinationPath to destinationFolder as string

repeat with aFile in fileList

tell application "Finder" to set fileName to name of aFile

set newFilePath to destinationPath & fileName & ".EPS" tell application "Adobe Illustrator 10"

open aFile

save current document in file newFilePath as eps ¬

with options {class:EPS save options ¬ , compatibility:Illustrator 10 ¬ , preview:color Macintosh ¬ , embed linked files:true ¬ , include document thumbnails:true ¬ , embed all fonts:true ¬ , japanese file format:false ¬ , CMYK PostScript:true ¬ , PostScript:level 2}

EPS save options AppleScript Reference94

close current document saving no

end tell

end repeat

Adobe Illustrator 10 Scripting Guide fixed point 95

fixed point

A pair of values that deﬁnes the coordinates for a point. Stored as a list of two real numbers, where the ﬁrst item is the horizontal (x) coordinate of the point and the second item is the vertical (y) coordinate of the point. For example, specify a point where the x coordinate is 10.0 and the y coordinate is 5.0.

Notes

The point is used to specify the coordinates for many properties of objects in Illustrator. All distance and measurement values in Illustrator use the points unit of measure.

It is not possible to get or create a ﬁxed point object.

Example 10.1

The values in ﬁxed point can be used in a number of way in a script.

tell application "Adobe Illustrator 10"

if (count of documents)>0 then

-- Get the position of a page item

set itemPos to position of page item 1 of document 1

--> {100.0, 200.0}

{10.0, 5.0} would

-- Assigns the two values in a ﬁxed point to two variables

set {x, y} to itemPos

--> x = 100.0, y = 200.0

-- or assign to two variables directly

set {x, y} to position of page item 1 of document 1

--> x = 100.0, y = 200.0

-- Change the x value in a ﬁxed point

set item 1 of itemPos to (item 1 of itemPos) + 100.0

--> {200.0, 200.0}

-- Change position of a page item

set position of page item 1 of document 1 to itemPos

-- or change it using the individual variables

set position of page item 1 of document 1 to {x + 100.0, y}

end if

fixed point AppleScript Reference96

end tell

Adobe Illustrator 10 Scripting Guide fixed rectangle 97

ﬁxed rectangle

Four coordinates that deﬁnes the rectangular geometry of an object. Stored as a list of four real numbers, where the ﬁrst item is the leftmost horizontal coordinate of the rectangle, the second item is the top vertical coordinate of the rectangle, the third item is the rightmost horizontal coordinate, and the fourth item is the bottom vertical coordinate of the rectangle.

Notes

The ﬁxed rectangle is used to specify the geometry for a number of properties for objects in Illustrator. All distance and measurement values in Illustrator use the points unit. It is not possible to get or create ﬁxed rectangle object.

Remember that in the Illustrator coordinate system, vertical coordinates increase from bottom to top, which is the opposite of screen coordinates. This mean that the top coordinate value in a ﬁxed rectangle will be larger than the bottom coordinate value.

Example 11.1

The values in a ﬁxed rectangle can be used in a number of way in a script.

tell application "Adobe Illustrator 10"

-- Get the bounds of a page item

set itemBounds to geometric bounds of page item 1 of document 1

--> {100.0, 400.0, 300.0, 200.0}

-- Assigns the four values in a rectangle point to four variables

set {l, t, r, b} to itemBounds

--> l = 100.0, t = 400.0, r = 300.0, b = 200.0

-- or assign to four variables directly

set {l, t, r, b} to geometric bounds of page item 1 of document 1

--> l = 100.0, t = 400.0, r = 300.0, b = 200.0

-- Calculate center of page item from its bounds

set xCenter to ((item 1 of itemBounds) + (item 3 of itemBounds)) / 2 set yCenter to ((item 2 of itemBounds) + (item 4 of itemBounds)) / 2

--> xCenter = 200.0, yCenter = 300.0

-- or calculate the center using the individual coordinate variables

set xCenter to (l + r) / 2 set yCenter to (t + b) / 2

fixed rectangle AppleScript Reference98

--> xCenter = 200.0, yCenter = 300.0

-- Change the left value in a ﬁxed rectangle

set item 1 of itemBounds to (item 1 of itemBounds) + 100.0

--> {200.0, 400.0, 300.0, 200.0}

end tell

Adobe Illustrator 10 Scripting Guide Flash export options 99

Flash export options

You can supply a number of options when exporting a document as Flash (.SWF). See

export command in the command reference for additional details.

the

Properties

Property: R/O Value type: What it is:

artboard clipping boolean Should the resulting image be

clipped to the artboard? default:

false

curve quality integer How much curve information

should be preserved (0-10,

default: 7) export style Flash ﬁle/layers to ﬁles/

layers to Flash frames

frame rate real When exporting layers to Flash

generate HTML boolean export as HTML ﬁle (default:

JPEG method optimized/standard What method to use (default:

JPEG quality integer Level of compression (0-10,

looping boolean Should the Flash ﬁle be set to

read only boolean Export as read only ﬁle (default:

replacing yes/no/ask If a ﬁle with the same name

resolution real Pixels per inch (72-2400,

How the Flash ﬁle should be

created (default: Flash ﬁle)

frames (0.01-120, default: 12)

true)

standard)

default: 3)

loop when run (default: false)

false)

already exists, should it be

replaced?

Default: ask

default: 72)

Notes

This class is used to deﬁne a record containing properties that specify options when exporting a document as a Flash (.SWF) ﬁle. supplied in conjunction with the

export command. It is not possible to get or create a

Flash export options can only be

Flash export options object.

Flash export options AppleScript Reference100

It is not necessary to specify values for all properties. Default values will be provided for all properties not speciﬁed.
