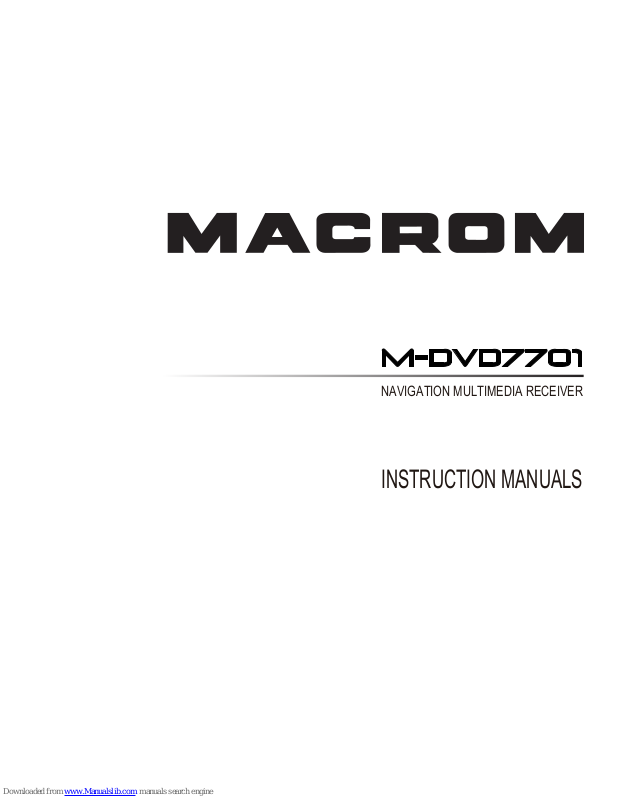

Macrom M-DVD7701, M-DVD7601 Instruction Manuals

NAVIGATION MULTIMEDIA RECEIVER

INSTRUCTION MANUALS

GB-1

Thank you for buying this product, please read through these operating instructions, so you will know how to operate
your model properly. After you have finished reading the instructions, put them away in a safe place for future
reference.

CONTENTS

ACCESSORIES ...................................................................................................................................................2

PRECAUTIONS ...................................................................................................................................................3

FRONT PANEL .....................................................................................................................................................5

MODES SWITCH .................................................................................................................................................7

SYSTEM SETUP ..................................................................................................................................................9

REMOTE CONTROL .........................................................................................................................................11

BASIC OPERATION ...........................................................................................................................................13

RADIO OPERATION ..........................................................................................................................................14

BLUETOOTH OPERATION ...............................................................................................................................17

DVD/VCD/CD OPERATION ...............................................................................................................................19

DVD SETUP .......................................................................................................................................................21

MP3 OPERATION ..............................................................................................................................................25

NAVIGATION OPERATION ................................................................................................................................26

INSTALLATION ..................................................................................................................................................27

CABLE CONNECTION ......................................................................................................................................29

SPECIFICATION ................................................................................................................................................30

TROUBLE SHOOTING ......................................................................................................................................31

Note:
Due to continuous product improvement, specifications and design are subject to change without prior notice.
IMPORTANT:
Please adjust screen to make the touching effect function best when you initiate the unit for the first time.

GB-2

ACCESSORIES

Mounting Bracket (Half Sleeve) X1
Removable Trim Ring equipped on the unit X1
Mounting Screw M5 X1
Rubber X1
Remote Control X1
Mount Strap X1
Wire connector X1
User manual X1
AV in cabl e X1
Screws(M5X6) X 4
Screws(M24) X 1
Release key X2
Washer X1
Desiccant X1
GPS antenna X1

GB-3

PRECAUTIONS

1. Be sure to connect the color coded leads according to the diagram. Incorrect connections may cause the unit to
malfunction or damage the vehicles electrical system.

2. Be sure to connect the speaker (-) leads to the speaker (-) terminal. Never connect the left and right channel
speaker cables each other or to the vehicle body.

3.Make sure all the connections are completely correct before turning on your unit.

4. When replacing the fuse(s), the replacement must be of the same amperage as shown on the fuse holder.

5. Do not block vents or radiator panels. Doing so many cause heat to build up inside and may result in fire.

6 .After completing the installation and beginning to play the unit (including replacing the battery),please press

RESET button on the front panel with pointed object (such as ballpoint pen) to set the unit to initial status.

Replacing the Fuse
Make sure the amperage matches the specified value when replacing the fuses.
If the fuse is blown, check the power connection and replace with a new one.
If the same problem occurs, lt would be subjected to the malfunction in-house.
In such cases, please consult the nearest service dealer.

WARNING:
Never use the fuse with the rated amperage more than that supplied to your unit, otherwise the unit maybe
damaged.

GB-4

PRECAUTIONS

This unit can play the following discs only:

Do not attempt to modify the unit, modifying the unit
may cause an accident. Stop the vehicle before
carrying out any operation that could interfere with
your driving.

Do not work in extremely high or low temperature. Be
sure the temperature inside the vehicle is between +60
°C and -10°C before turning on your unit.

To enjoy optimum sound and images while playing,
handle the discs as follows:
——Handle the disc by its edge to keep the disc clean,
and do not touch the surface.

——do not use your disc with paste residue or ink
attached.

——does not use disc with labels or stickers attached,
which may leave a sticky residue while beginning to
peel off. (Shown as the picture)

——clean the discs with an optional cleaning cloth.
Wipe each disc from the center out.

GB-5

FRONT PANEL

FRO NT PANEL OPERATIO N

1. MIC

2.
Press this button to open the front panel.

3. VOL/SEL
Adjust the volume by turning the knob clockwise or
counterclockwise.
Press this button briefly to display select TILT item then
adjust the viewing angle by rotating the VOL button.

4. POWER/MUTE
Press the button to turn on the unit, press and hold the
button for 1s to turn off the unit.
When the unit is switched on, press the button to shut
off the sound output.
Press it again to resume previous sound level.

5. SRC/NAV
Press this button to select one of the following sources.
Press and hold the button to start the navigation
operation.

6. LCD display

7. DISC Loading Slot
8/9. I<< / >>I
In radio mode, press one of these buttons to seek a
station automatically.
Hold down one of the buttons to seek a station
manually.
In DVD/USB/CARD mode press the buttons to select
the previous or next file.
Hold down the button for 2s to fast forward or fast
backward.

GB-6

10. AUX

Connect the AV cable (supplied) to your external AV
device, and then press the SRC button to switch to AV1
mode.

11. SD slot

Insert an SD/MMC card, the unit will play the files from
SD/MMC card automatically.
NOTE: Once the SD/MMC card could not eject after
pressing, just pull it out manually.

12. USB port

Insert USB device, the unit will play the files from USB
automatically.

13. IR window

To receive the infrared signal from the remote control.

14. EJ

Press the button to eject a disc when it is loaded into the
unit.
Press and hold this button to force ejecting a disc when
the system becomes frozen accidentally.

15. PTY

In radio mode, press the button to select one of the
program types.

16. TA

In radio mode, press this button to turn on or off the TA
mode.

17. AF/DISP

In radio mode, press this button to turn on or off the AF
mode.
Press and hold the button to display the current time,
soft version, current sources and medias (Disc, USB,
SD) available.

18.OPEN
Press to open or close the TFT display.

19. Anti-theft led indicator
It will flash when the detachable control panel is
removed.

20. RESET
Using a sharp object such as a pencil to reset the unit.

21. TFT display

22. TILT /∧/∨
Press ∧ / ∨ button to adjust the angle of TFT
display.

23. MENU
In DVD mode, press the button to display the DVD
SETUP menu. Press and hold to display the SYSTEM
SETUP menu.
In other modes, press the button to display the SYSTEM
SETUP menu.

24. GPS SD CARD slot

GB-7

☆ ☆☆TIPS FOR MODES SWITCH ☆☆☆

Using the Touch screen

In any mode, the controls on the touch screen change
dynamically to suit the task at hand.

Flick or drag left or right to scroll modes available page
to page.

For example, the current mode is inradio, then use your
finger to tap and drag left or right then DVD mode or
BLUETOOTH mode can be reached.

Please refer to the following example instruction for
details.

Flicking or dragging your finger to scroll will not choose
or activate anything on the screen.

RADIO OPERATION

1/9. < / >
Touch once: to seek a station automatically
downwards/upwards.

2.station preset button
Touch once: to select the preset station.
Touch and hold: to store the current station into the
preset station position.

3.BAND
To switch bands.

4. LOC
To select strong or weak stations reception mode.

5.AMS
Touch once: to browse preset stations.
Touch and hold: to search and store stations
automatically.
6/7. Seek-/Seek+
Touch to seek a station manually downwards/upwards.

8.RDS
To enter RDS page.

10. Display area

11. SOURCE MENU
To display the SOURCE MENU.

GB-8

RDS OPERATION

1. REG

To turn on or off the REG function.

2.PTY

To switch the RDS program types by ◀ / ▶ .

3.TA

to turn on /off TA function

4.AF

to turn on /off AF function

5.PTY

to search program type
6/7. Seek-/Seek+
Touch to seek a station manually downwards/upwards.

8.RADIO

To switch to radio operation page.

REG(Regional)
ON:active the REG function,the unit automatically keeps
receiving the related RDS station.
OFF:deactive the REG function

MULTI-- PLAYER OPERATION

In DVD mode, the touch screen displays as following
after touch at random position top right/left area.

1. PLAY/PAUSE
To start the playback and touch again to resume the
playback.

2. STOP
To stop playing, touch twice to stop completely.

3/4. PREV/NEXT

To select previous/next tracks.

5. SETUP
To display the DVD SETUP screen.

Note: In DVD playback mode, touch on the left middle
position twice and TITLE MENU will display; touch on
the right middle position twice and ROOT MENU will
display; touch on the middle/top right position once(DVD
mode) or the track sequential position once and the
numeric keyboard will be displayed.

All the functions can be performed by touching on the
screen directly.

GB-9

SYSTEM SETUP

Touch on the top left position to enter source interface.
The unit will return to previous mode display screen if
any operation is not performed in 5 seconds.

Touch on SET button on the above pic..The user can
start the system setting.

1.SETUP
Touch on the SET button and the screen will display as
following:

2.Audio
Touch on the AUDIO button and
the screen will display as following

In FIG.1, the user can adjust the value of BASS,
TREBLE and SUB WOOFER by tapping on + / - on the
touch screen.

In AUDIO setting, the user can adjust the sound output
effect leftwards or rightwards by tapping ▶ ◀ button;
the sound output effect front wards or rearwards by
tapping ▲▼ button.

3.Video

Press on the VIDEO button and the screen will display
as following:

In this setting, the user can adjust the value of
CONTRAST, BRIGHTNESS AND COLOR by tapping on
the items at the left/right end of each value bar.
According to the specific condition, the user can adjust
the light effect on screen by tapping BRIGHT, NORMAL
and SOFT modes.

GB-10

TIME SETTING

Tapping on TIME button to turn to time
adjust page.

TIME MODE
Set the time display mode(12H/24H).

TIME DISPLAY
ON: To display the time
OFF: To turn off the time display mode.

TIME ADJUSTMENT
To adjust the time by tapping ▲▼ button;

BEEP
ON: To turn on the BEEP function.
OFF: To turn off the BEEP function.

LOUD
ON: To turn on the LOUNNESS function.
OFF: To turn off the LOUDNESS function.

RADIO REGION
To select the right region as per the
user locates.

TOUCHSCREEN

Tapping on TOUCHSCREEN button to turn to time
TOUCHSCREEN adjust mode.

Touch Adjust
When the display position on the screen and the touch
position on the touch panel not matched, or initiating the
productat first time, the adjustment becomes necessary.

Accurately touch the X mark provided in the screen for
more than 2 seconds until the adjust succeed is
displayed.
