Mackie MR6T Parts list

Monitor Series

Compact Full-Range Speaker

MR6T

SPEAKER

■ The MR6T is a compact full-range speaker that

Zcombines excellent intelligibility with high efficiency
and power handling.

■ The single 6.3" driver is an extended range, dual

cone design that achieves wide bandwidth with single
source coherency. The cone is fitted with a durable
foam surround and treated to resist moisture.

■ The speaker enclosure is a vented design, formed

from high density polystyrene that is extremely strong,
lightweight and weather resistant. Threaded metal
sockets are molded into the cabinet to facilitate quick,
safe, deployment of the MR6T, as a single unit or in
clusters, using specially designed accessory mounting
hardware. Available in black or white (MR6WT).

■ The MR6T is a part of Mackie Industrial’s Monitor

Series, which includes two-way constant directivity,
compact speakers in easily installed enclosures.

■ This Mackie Industrial product is covered by an

exclusive, one-time, NO FAULT repair policy in addition
to a five year limited warranty.

Features

■ 6.3" high efficiency dual-cone driver

■ Built-in, multi-tap constant voltage transformer

■ Lightweight, UV/weather resistant, high density

polystyrene, trapezoidal shaped enclosure for multiple
applications and minimum visual intrusion

■ Integrated mounting points for use with optional

mounting hardware

■ Exclusive Mackie Industrial — one-time, NO FAULT

repair policy

■ Five year limited warranty

oF 6 PAGES

1

OF 6 PAGES

MR6T

APPLICATIONS

■ Foreground/Background Music

■ Distributed Speech Reinforcement

■ AV Production/Playback

■ Near-field Monitoring

MR6WT

Compact Full-Range Speaker

MR6T

SPEAKER

MR6T

oF 6 PAGES

2

OF 6 PAGES

Specifications

System

Freq. Range (–10dB): 70Hz–18kHz
Freq. Response (–3dB): 200Hz–15kHz
Coverage Angle (–6dB): 90° averaged

800Hz to 16kHz

Directivity Factor; Q (DI): 9.3 (9.7) averaged

800Hz to 16kHz
System Sensitivity1: 95dB, 1W @ 1m
Rated Maximum SPL: 118dB @ 1m
System Input Power Rating2: 50W IEC; 200W Peak

System Nominal Impedance: 4Ω (bypassed)

Constant Voltage: 25V, 50V, 70V, 100V
Power Taps: 10W, 25W, 50W

Transducer

Full-Frequency: 6.3" (160mm) dual-cone

woofer with 1.5" (38mm) coil

Physical

Enclosure: 45° back angles, high

density polystyrene

Attachment Inserts:

Integrated mounting points for

use with optional mounting hardware

Color: Matte black, white (MR6WT),

scratch resistant paint,

Grille: Matching perforated

steel grille
Input Connectors: Push connector plate
Dimensions (HxWxD): 11.82" x 8.39" x 8.96"

(300mm x 213mm x 227.6mm)

Net Weight: 15lb. (6.8kg)

Options

MA 6-8, MA 6-8W Articulated surface mount

hardware, black (W- white)

MA 6-9, MA 6-9W Ball-joint surface mount,

black (W- white)

1

Measured on axis in the far field with 1 watt (2.00 V RMS, 4Ω) input and referenced to
1 meter distance using the inverse square law. Listed sound pressure represents an average from
300Hz to 3kHz.

2

RMS using 20Hz to 20kHz, PN Spectrum, Peak for 2 hours with +6dB crestfactor.

Compact Full-Range Speaker

MR6T

oF 6 PAGES

3

OF 6 PAGES

Monitor 6T

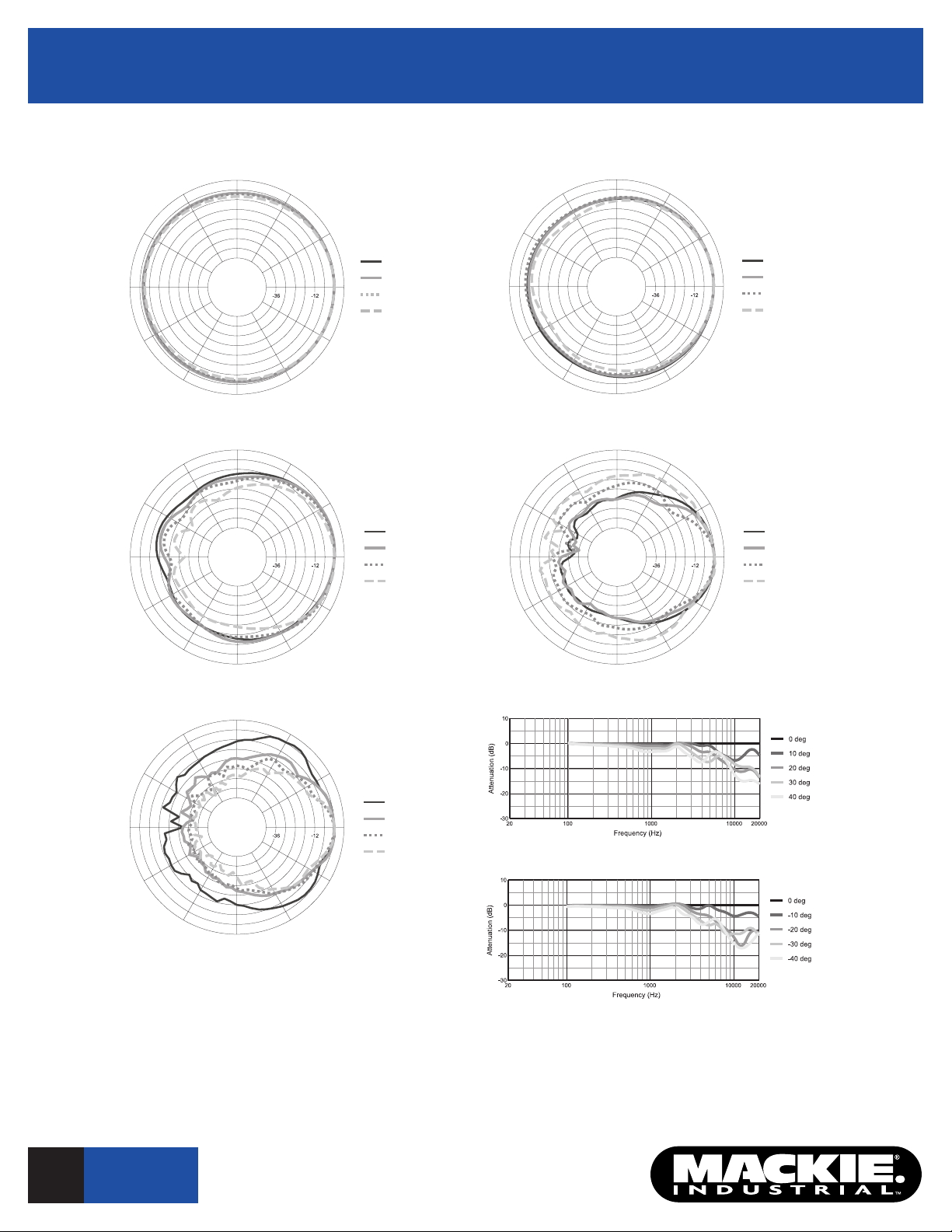

Vertical Polars

200Hz

250Hz

0˚

315Hz

400Hz

1.25kHz

1.6kHz

0˚

2kHz

2.5kHz

500Hz

630Hz

0˚

800Hz

1kHz

3.15kHz

4kHz

0˚

5kHz

6.3kHz

Vertical Off-Axis Frequency Response (UP)

8kHz

10kHz

0˚

12.5kHz

16kHz

Vertical Off-Axis Frequency Response (DOWN)

oF 6 PAGES

4

OF 6 PAGES

TRIM OFF THIS EDGE

Monitor 6T

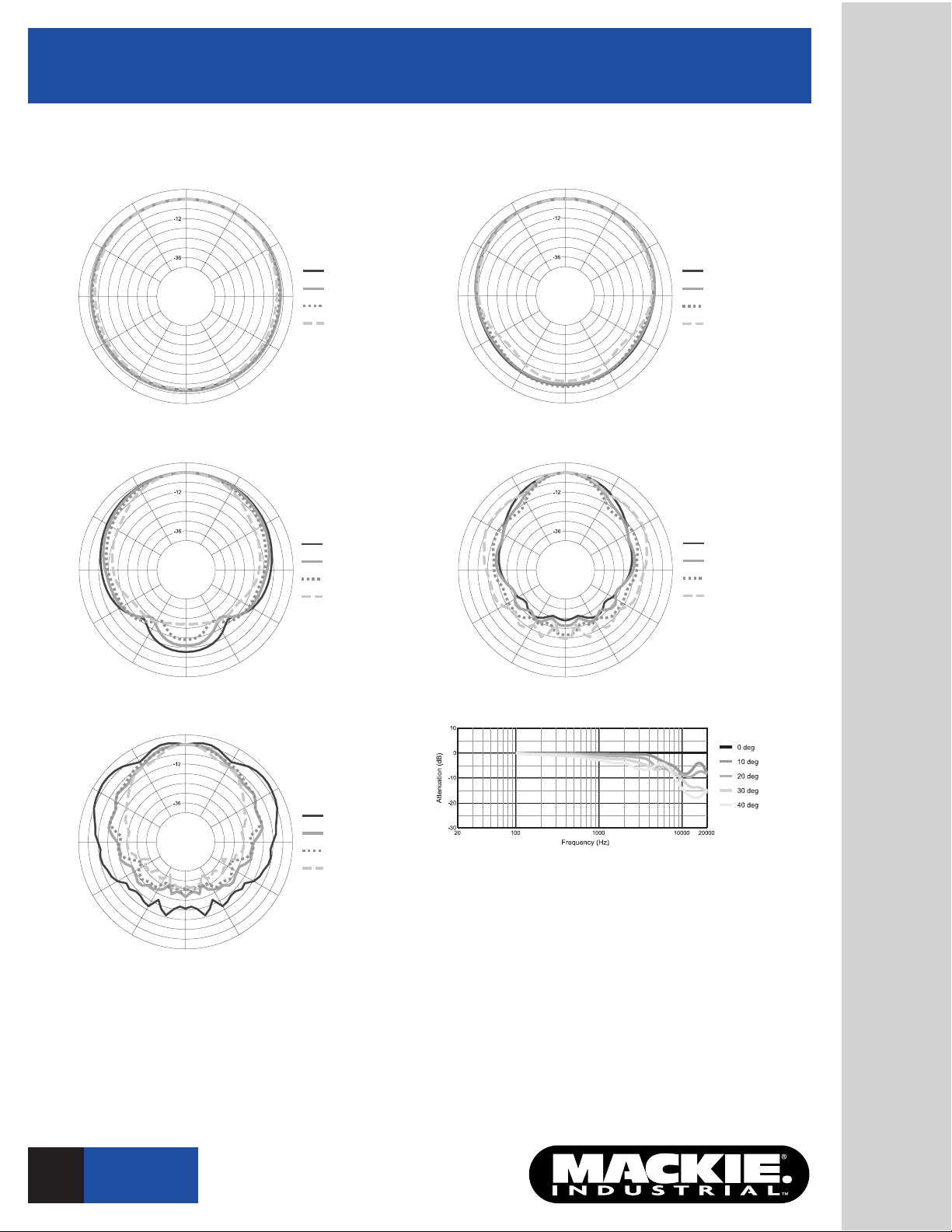

Horizontal Polars

0˚

0˚

200Hz

250Hz

315Hz

400Hz

0˚

1.25kHz

1.6kHz

2kHz

2.5kHz

0˚

Horizontal Off-Axis Frequency Response

0˚

500Hz

630Hz

800Hz

1kHz

3.15kHz

4kHz

5kHz

6.3kHz

8kHz

10kHz

12.5kHz

16kHz

Compact Full-Range Speaker

MR6T

oF 6 PAGES

5

OF 6 PAGES

TRIM OFF THIS EDGE

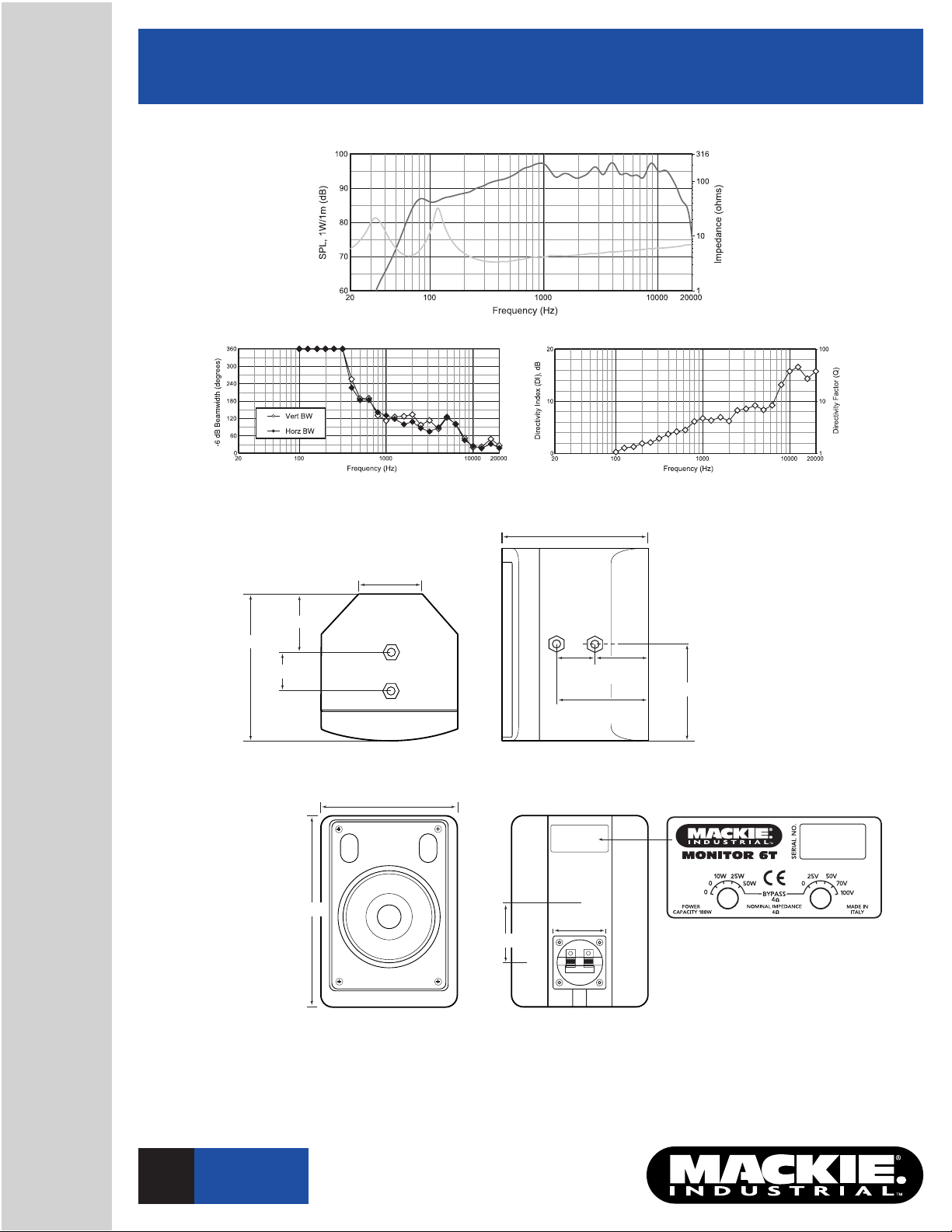

8.96" (227.6mm)

SIDE

8.39" (213mm)

FRONT

2.24" (57mm)

REAR

2.75" (70mm)

11.82" (300mm)

BOTTOM

3.62" (92mm)

4.00" (122mm)

2.36" (60mm)

8.96" (227.6mm)

5.94" (151mm)

2.36"

(60mm)

3.64"

(92.5mm)

6.0"

(152.5mm)

Frequency response is measured on-axis at a distance referenced back to
1m at 1-watt drive. Shown as a half space (2π) environment.

Beamwidth vs. Frequency

Directivity Index

Compact Full-Range Speaker

MR6T

SPEAKER

MR6T

oF 6 PAGES

6

OF 6 PAGES

Architects’ and Engineers’ Specifications

The loudspeaker system shall be self-contained and
consist of the following components: (1) a dual cone, full
range driver; (2) a constant voltage transformer; (3) a vented
enclosure.

The full-range transducer shall be a dual cone type
loudspeaker having a cone with a diameter of at least 6.3
inches (160mm). It shall present a nominal impedance load

of 4Ω to the constant voltage transformer or power amplifier.

The constant voltage transformer shall have multiple
power taps at 10, 25, and 50 Watts. It shall also have voltage
taps at 25, 50, 70 and 100V. Two detented rotary switches
shall be provided on the input panel to adjust the power and
voltage taps of the transformer. The voltage tap switch shall
have a position to bypass the transformer and allow the

loudspeaker to present a 4Ω load to a directly coupled

power amplifier.

The enclosure shall be a vented design. It shall be
constructed using high density polystyrene and finished with
black (or white), scratch resistant paint. It shall be trapezoidal
in shape with 45° angled sides. A full size, detachable, perfo­rated steel grille, finished in black (or white) scratch resistant
paint shall be provided. At least 4 reinforced threaded metal
sockets for attaching optional mounting hardware offered by
the manufacturer shall be provided. The overall dimensions of
the enclosure shall not exceed (HxWxD) 11.82" x 8.39" x

8.96" (300mm x 213mm x 227.6mm). The total weight of the
loudspeaker shall not exceed 15lbs. (6.8kg). Connections to
the loudspeaker shall be two color-coded, spring-loaded
push connectors.

The loudspeaker system shall have an overall frequency
response of at least 70Hz–18kHz when measured to –10dB
and at least 200Hz–15kHz when measured to –3dB. It shall
have a nominal average coverage pattern of at least 90° hori­zontal by 90° vertical to –6dB when measured between
800Hz and 16kHz. Calculated 1W/1m sensitivity shall be at
least 95dB when measured in the far field between 300Hz
and 3kHz. Maximum SPL shall be at least 118dB at 1m. The
loudspeaker shall be rated for continuous operation at 50W
IEC with 200W peaks.

The two-way loudspeaker system shall be a model MR6T
(MR6WT - white) manufactured by Mackie Industrial.

www.mackieindustrial.com

16220 Wood-Red Rd. NE, Woodinville, WA 98072 USA

888.337.7404, fax [phone], [e-mail]

UK +44.1268.571.212, fax [phone], [e-mail]
ITALY +39.0522.354.111, fax [phone], [e-mail]
FRANCE +33.3.8546.9160, fax [phone], [e-mail]
GERMANY +49.2572.96042.0, fax [phone], [e-mail]

Electronic files for this product available at:
www.mackieindustrial.com

This Specification Sheet MR6T.PDF
Quick-Start Manual MR6TQS.PDF

Mackie Designs continuallyengages in research related to product improvement. New material, produc­tion methods, and design refinements are introduced into existing products without notice as a routine
expression of that philosophy. Forthis reason, any current Mackie Industrial product may differ in some
respect from its published description, but will always equal or exceed the original design specifications
unless otherwise stated. ©1999-2001 Mackie Designs Inc. All rights Reserved. and are
registered trademarks of Mackie Designs Inc. Mackie Industrial is a trademark of Mackie Designs Inc.

part no. 910-301-10 Rev.B
