SIT-TO-STAND PATIENT LIFT

Models LF2020 & LF2090

OWNER’S MANUAL

LF2020-INS-LABRevB06

©GF Health Products, Inc. 2006

IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR PATIENT LIFT

CONTENTS

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 SPECIAL NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6 FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 HANDLING PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 ASSEMBLY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-12 CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 MAINTENANCE SCHEDULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17-18

LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

3

INTRODUCTION

Congratulations on your purchase of a Lumex patient lift. The following pages will provide you with important safety and operating instructions on the use of patient lifts, slings, and accessories, as well as maintenance and warranty information. Read this manual carefully before operating your patient lift and refer to it as often as needed. Consult your Graham-Field Health Products dealer and/or healthcare professional with any questions or concerns regarding safe and effective techniques for operating your patient lift.

DO NOT attempt any transfer without prior approval of the patient’s healthcare provider. With their assistance, select the sling that best serves the needs, abilities, comfort and safety of the person being lifted. It is important that you use correct slings adapted to the body shape and weight and ability of the patient and the specific type of transfer needed.

Upon receipt of the patient lift, and prior to each use, inspect it closely to ensure that nothing is damaged, there are no loose or broken parts, that all patient lift parts are in the proper place, etc. Immediately replace any worn or broken components. Your patient lift should receive maintenance on a regular schedule and should be inspected daily for proper operation. Contact your Graham-Field Health Products dealer for service and repairs.

Before lifting anyone, thoroughly read the instructions in this manual. Observe a team of trained experts perform the lifting procedures. The operator should practice the entire lifting procedure several times with proper supervision and a capable individual acting as patient. It is extremely important to know how a patient will feel in the patient lift. We suggest that the operator try all the various lifting slings and equipment until the operator is confident with how the patient lift operates. The lifting procedures should be explained to the patient before the actual lifting. Remember that safety requires the constant attention of the lift occupant and the operator. Use extreme care when operating a patient lift.

This guide covers the use of the LF2020/LF2090 Sit-to-Stand Patient Lift. Keep in mind that the basic safety procedures included in this manual are to be used as a guide only. Again, consult your healthcare professionals for their recommendations and never hesitate to ask for their assistance.

Note: Before attempting to assemble the patient lift, refer to the section titled “ASSEMBLY INSTRUCTIONS” contained elsewhere in this manual. Contact your Graham-Field Health Products dealer if additional assistance is needed.

SPECIAL NOTES

Warning: Do not operate this equipment without first reading and understanding this manual. If you are unable to understand the warnings, cautions and instructions, contact

your dealer or a healthcare professional before attempting to use this equipment. Failure to do so may result in serious injury or damage to your patient lift.

4

LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

MAINTENANCE

Maintenance MUST be performed by qualified personnel ONLY.

Warning: Warning notices as used in this

Note:

The information contained in this document is

manual apply to hazards or unsafe practices



based on the latest product information

which could result in personal injury.



available at the time of publication. Graham-





Field reserves the right to make changes at

Caution: Caution notices as used in this manual



any time without notice.

apply to hazards or unsafe practices





that could result in property damage.

Note:

In this manual, the person being lifted is





referred to as the “patient” or “occupant” and

Note: Notes highlight procedures and contain



the person operating the patient lift is called

information which assist the operator in



the “operator” or “attendant”.

understanding the information contained in





this manual.





SAVE THESE INSTRUCTIONS AND KEEP WITH PATIENT LIFT AT ALL TIMES.

SAFETY PRECAUTIONS

IMPORTANT: Before using patient lift, please read and adhere to the following safety precautions and warnings. Failure to do so could result in serious injury or damage to your patient lift.

Always consult your healthcare professional to determine safe methods most suitable for your individual abilities. Protect yourself, your attendant and patient lift by having it serviced

regularly. If you experience any malfunction, contact your Graham-Field Health Products dealer immediately, as a hazardous condition could result, causing personal injury or damage to your patient lift.

Periodic inspection, adjustment and replacement of worn parts are necessary to provide years of excellent service.

Warnings

Warning: Check all parts for shipping damage before using. In case of damage, DO NOT USE the equipment. Contact the carrier or your authorized Graham-Field Health Products dealer for further instructions.

Warning: Patient lift may tip over if used incorrectly. Read and adhere to the operating instructions prior to lifting anyone.

Warning: The Lumex LF2020/LF2090 Sit-To- Stand Patient Lift is designed for use by individuals who can support the majority of their own weight. Special care must be taken with patients who cannot provide assistance while being lifted. (i.e. such as patients who are comatose, spastic, agitated or otherwise severely handicapped).

LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

5

Warning: The LF2020/LF2090 Sit-To-Stand Patient Lift should be used solely for transferring a patient from one object (beds, bathtubs, toilets, etc.) to another. The lift should not be used for transporting or moving any patient from one location to another location.

Warning: Always keep the patient being lifted centered over the base and facing the caregiver operating the lifter.

Warning: Do not roll casters over any object while the user is in the sling.

Warning: To ensure stability while transferring a patient, the patient lift legs should be locked in the maximum open position.

Warning: Use only Lumex slings specially designed for the LF2020/LF2090 Sit-To-Stand Patient Lift.

Warning: Do not put anything (e.g. cushion, pad, etc…..) between the user and the sling. This may cause user to slide out of the sling and cause injury.

Warning: Replace any worn or broken parts immediately! Torn, cut, frayed, or broken slings can fail, resulting in personal injury. Use only slings that are in good condition.

Warning: Service and repair of the LF2020/LF2090 Sit-To-Stand Patient Lift should be performed only by an authorized Graham-Field Health Products dealer. Graham-Field is not responsible for any consequence resulting from any unauthorized service or repair.

Warning: Do not exceed the maximum weight allowed:

LF2020: 400 pounds LF2090: 600 pounds

Warning: Unauthorized modification of your patient lift or the use of non-Lumex replacement parts may change the structure of the lift and could create a hazardous condition, which could result in serious injury and will void the warranty.

Warning: The electronics and actuator contain no serviceable components. If service is required, the unit must be returned to the factory for repair. DO NOT attempt to open the electronics or actuator or obtain local service; this will void the warranty and could result in damage to the unit. Consult your Graham-Field Health Products Dealer for further information.

Warning: Do not attempt to transfer a patient without prior approval of the person’s healthcare provider.

Warning: Graham-Field Health Products specifically disclaims responsibility for any bodily injury or property damage which may occur during any use which does not comply with federal, state or local laws or ordinances.

6

LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

FEATURES

1.Base-

2.Mast-

3.Control Box-

4.Pendant-

5.Actuator-

6.Lifting Boom-

7.Kneepad Assembly-

8.Footrest-

9.Brake-

HANDLING PROCEDURES

SHIPPING AND TRANSPORTATION INSTRUCTIONS

If the patient lift is to be reshipped by common carrier, it should be packed in the same carton/s in which it was received.

Unpacking

Inspection

1.Check for any obvious damage to the carton or its contents. If damage is evident, notify the carrier or your authorized Graham-Field Health Products Dealer.

2.Remove all loose packing from the carton.

3.Carefully remove all the components from the carton.

Note: Unless the patient lift is to be used immediately, retain boxes, containers and packing material for use in storing until use of patient lift is required.

1.Examine the exterior of the patient lift for nicks, dents, scratches or other damage.

2.Inspect all components.

Storage

1.Store the repackaged patient lift in a dry area.

2.DO NOT place other objects on top of the repackaged patient lift.

LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

7

ASSEMBLY INSTRUCTIONS

1.Open the box and take lift out.

2.Unscrew nuts and bolts at top and bottom of the mast.

3.With one hand on the mast and another on the boom, stand the mast up.

4.Put bolts through the bottom two holes at the base of the mast and hand tighten them.

5.Attach boom to mast and hand tighten bolt and nut.

6.Attach the L-shaped arms to back of the kneepad. For desired height of the kneepad, use proper holes on the L-shaped arms.

7.Attach kneepad assembly to the mast.

8.Attach actuator and pendant to the control box.

9.Tighten all nuts.

Warning: Before using Sit-to-Stand Patient Lift, ensure that lift is assembled as described, that all attaching hardware is securely tightened, and that all lift components are secure.

8

LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

OPERATING INSTRUCTIONS

Preparation Before Lifting

1.Turn on the power by twisting the RED RESET BUTTON clockwise.

2.Press the UP or DOWN button on the hand control once. Check if the battery indicator lights are on. To proceed with lifting, make sure there is at least one green light. Batteries are fully charged when three (3) green lights are shown.

3.After the battery indicator lights go out, push the UP button and the DOWN button on the hand control and ensure that the lift is operating correctly.

4.Position of the base of lift around or under the object.

5.Widen the base.

Fitting Lumex Sit-to-Stand Sling

Warning: The Lumex Sit-to-Stand sling is not suitable for patients who have involuntary movements, or patients with limited postural control.

1.Position the patient in a sitting position.

2.Slide the sling down patient’s back to lumbar position.

3.Draw the shoulder straps to the front of the patient close to the chest.

4.Draw the waist belt around patient’s waist and press together to fasten.

5.Place shoulder straps inside of positioning loop.

6.Attach the shoulder straps to the hooks.

LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

9

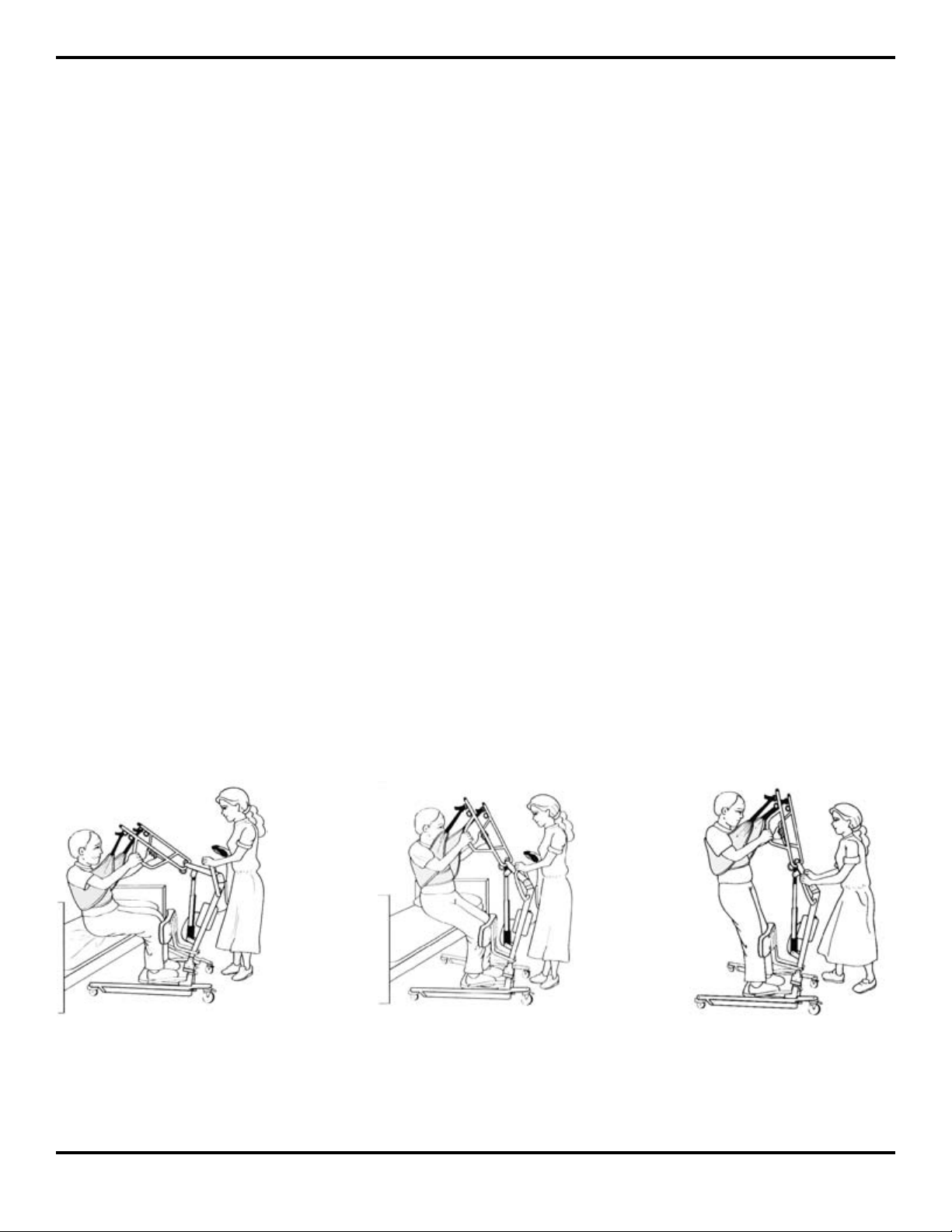

Lift and Transfer From Bed



1. Fit sling as described in “Fitting Lumex

10. Transfer to another object can be done at this

Sit-To-Stand Sling”.

position without the patient attending a full



standing position.

2.Push lift towards patient. Open the base of

the lift. Apply the brakes on both rear 11.Release the brakes, close the base, and pull

casters.

the lift away from the bed.

3.Position patient’s feet on the foot platform and knees against the knee pad.

4.Attach the sling straps to the hooks.

5.Have the patient’s hands holding the handles. For patients who cannot hold the handles, have them hold their arms around the chest.

6.Press the “UP” button on the hand control.

7.Before the patient’s body is lifted from the bed, stop and make sure the sling is secured and patient’s knees are against the knee pad.

8.The patient should be comfortable with the pressure under the arms. If not, adjust the sling and try another loop option to release pressure.

9.Press the “UP” button until the patient’s body is completely left the bed.

12.Lower the patient to the object intended.

13.To lift patient in a standing position, continue to lift until the patient’s knees are locked in a standing position.

14.At the standing position, patient’s knees may move away from the knee pad.

15.Close the base, and pull the lift away from the bed.

16.Lower the patient to the object intended.

17.Reverse the above procedures when lowering the patient to the bed.

10

LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

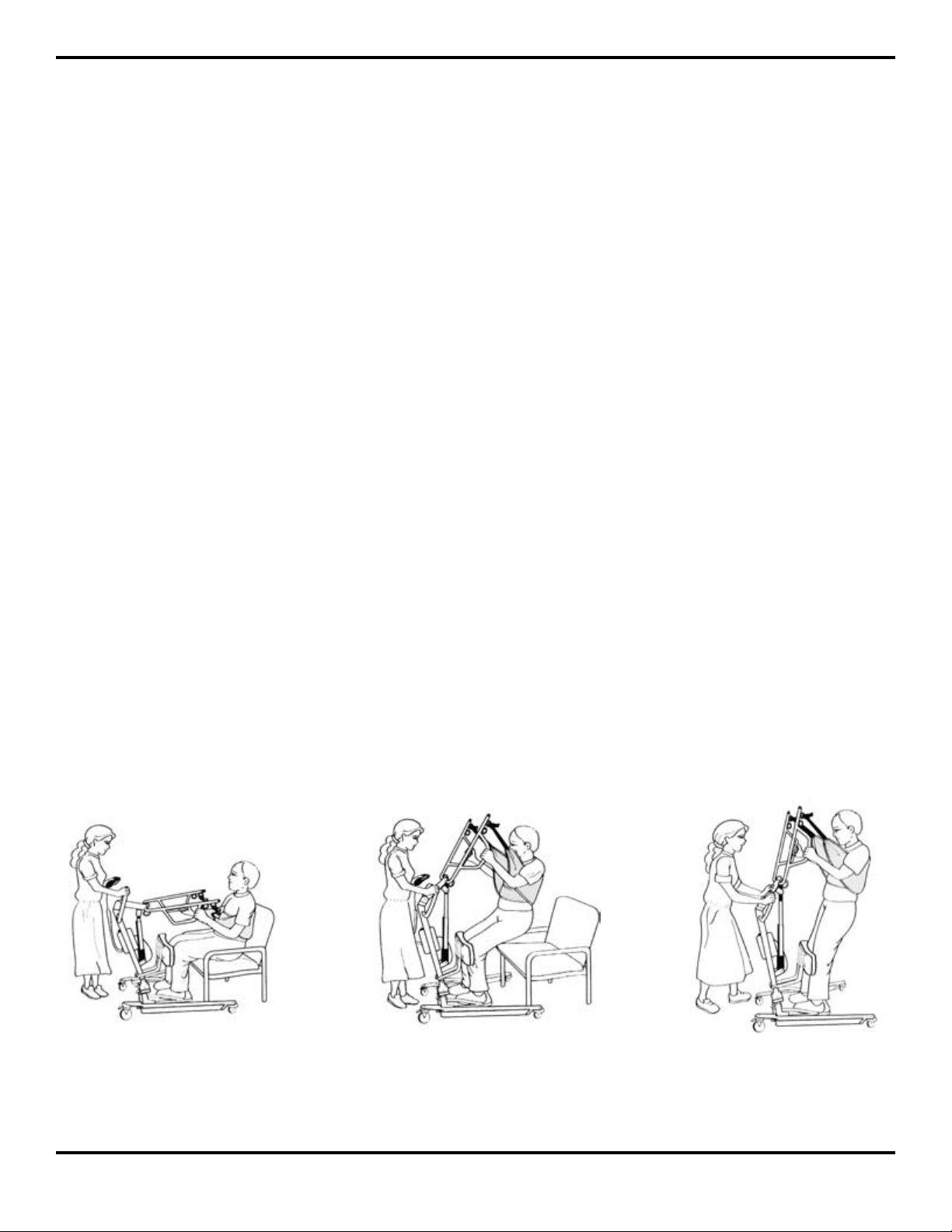

Lift and Transfer From Chair

1.Fit sling as described in “Fitting Lumex Sit-To-Stand Sling”.

2.Push lift towards patient. Open the base of the lift to go around the chair. Apply the brakes on both rear casters.

3.Position patient’s feet on the foot platform and knees against the knee pad.

4.Attached the sling straps to the hooks.

5.Have the patient’s hands holding the handles. For patients who cannot hold the handles, have them hold their arms around the chest.

6.Press the “UP” button on the hand control.

7.Before the patient’s body is lifted from the chair, stop and make sure the sling is secured and patient’s knees are against the knee pad.

8.The patient should be comfortable with the pressure under the arms. If not, adjust the sling and try another loop option to release pressure.

9.Press the “UP” button until the patient’s body is completely left the chair.

10.Transfer to another object can be done at this position without the patient attending a full standing position.

11.Release the brakes, close the base, and pull the lift away from the chair.

12.Lower the patient to the object intended.

13.To lift patient in a standing position, continue to lift until the patient’s knees are locked in a standing position.

14.At the standing position, patient’s knees may move away from the knee pad.

15.Release the brakes, close the base, and pull the lift away from the chair.

16.Lower the patient to the object intended.

17.Reverse the above procedures when lowering the patient to the chair.

LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

11

CHECKING THE BATTERIES

1.Check batteries by pressing the Battery Testing Button (blue circle with a battery sign) on the control box.

2.Batteries are fully charged when all lights on the Battery Indicator are "ON".

3.Charge batteries when Indicator shown only one “GREEN” light.

4.Do not use the lift when no “GREEN” light is shown. Charge the batteries immediately.

5.Replace batteries when frequent charging is needed. (Reorder #: DPL650BAT)

CHARGING THE BATTERIES

1.Ensure the power is switched "ON" (the red “RESET” button should be up).

2.Insert charging plug into charging port on the control box.

3.Plug charger to power supply.

4.All lights of battery indicator should be "ON" while charging.

5.It takes approximately 2-3 hours to fully

charge the batteries from one green light.

6.It takes approximately 7-9 hours to fully charge the batteries from the red light.

7.Do not leave the batteries on charging for an extended period of time. This will shorten the life of the batteries.

8.Do not let the batteries run down to the last red light. This could shorten the life of the batteries or damage the batteries.

9.Unplug the charger first before using the lift. THE LF2020/LF2090 SIT-TO-STAND PATIENT LIFT WILL NOT OPERATE WHILE CHARGING.

IMPORTANT NOTES ON CHARGING

1.Push lift to charging location and charge the batteries with the charger provided. Avoid unplugging hand control and motor from control box. Frequent plugging/unplugging of the hand control and motor into/from the control box could damage the control box.

2.Do not charge batteries over 12 hours.

Know What The Battery Indicator Lights Are Telling You

Red

Amber

Green

Green

Green















ON

ON

ON

ON

ON

FULLY CHARGED













ON

ON

ON

OFF

OFF

NEED CHARGE













ON

ON/OFF

OFF

OFF

OFF

CHARGE IMMEDIATELY. DON’T USE THE LIFT













OFF

OFF

OFF

OFF

OFF

BAD BATTERIES OR BAD CONNECTION













Warning Buzzers

The control box has a buzzer that provides you with information on the status of the batteries and the lift. To stop the buzzer, push down the RESET button or press the Battery Indicator.

BUZZER TYPE

INDICATION

NOTE







2 beeps/sec

Low Battery (red / amber lights on)

Charge batteries immediately







3 beeps/sec

Low Battery (red light on)

Charge batteries immediately







6 beeps/sec

Very Low Battery (no light on)

Charge batteries immediately







3 beeps every

Bad Battery (no light on)

Replace batteries

other second











3 long beeps

Overloaded. Batteries are charged

Exceeded maximum load capacity

but lift does not lift.











12

LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

CARE AND MAINTENANCE

Proper care and maintenance is essential to keeping your Lumex patient lift in safe operating condition.

In addition to inspecting the unit before each use, periodic maintenance checks should be done as needed. The lift should be thoroughly inspected by a person qualified to recognize any signs of wear and tear, and looseness of bolts or parts. Replace any worn parts immediately.

We further recommend that this unit be serviced at least once annually by an authorized dealer.

Warning: It is extremely important that the patient lift be inspected before each use. Ensure that all hardware and accessories are secure and that the actuator is functioning properly. Failure to do so could result in patient / attendant injury or damage to your patient lift. Torn, cut, frayed or broken slings could fail, resulting in serious injury. Use only slings in good condition. Inspect before each use. Destroy and discard old, worn and unusable slings. When you believe a component or part is not functioning properly, immediately contact your authorized Graham-Field Health Products dealer, as a potentially hazardous condition could exist.

Before each use

Before each use of the patient lift, ensure that:

All nuts and bolts are tight

The lift moves freely (with caster brakes off )

Rear caster brakes operate properly

Base adjustment mechanism operates easily

Lubrication

Under normal use, your Lumex patient lift was designed with minimum maintenance in mind; however, a six (6) month check and lubrication should ensure that your patient lift will remain in peak operating condition. The casters MUST roll and swivel freely. Lightweight waterproof grease

(such as automobile lubricant) should be applied to the ball bearings of the casters every six (6) months. Apply grease more frequently if the casters are exposed to periods of excess moisture. Lubricate all pivot points with lightweight oil. Clean patient lift of all excess oil and grease.

Before use of the patient lift, and every month thereafter, place a drop of oil on the following areas:

The point where mast and boom connect

Caster axles

The point where actuator and boom connect

Cleaning

Regular cleaning is recommended. A soft cloth, dampened with water and a mild NON-ABRASIVE detergent (household cleaner, soapy water, or hospital grade disinfectant) is all that is needed to clean your patient lift. Automobile wax or furniture polish will help maintain the finish over a long period of time.

DO NOT wash under water pressure or steam clean.

Checking for damage and wear

It is extremely important to frequently check the areas of the patient lift that are under a great deal of stress for damage and wear. These areas include slings, spreader bars, spreader bar suspension and mounting hardware, pump mounting hardware and all pivot points. Inspect for signs of cracking, fraying, deformation, and any loose components. Replace any defective parts immediately, and make certain that the patient lift is not used until repairs are made. Contact your authorized Graham-Field Health Products dealer for replacement parts.

Care of sling

Lumex slings are easy to maintain. They are washable at 150° F. The slings can be dried by using a dryer on LOW heat or by hanging.

Note: Slings should not be bleached!

LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

13

MAINTENANCE SCHEDULE

Note: Only qualified persons should service and repair your Lumex patient lift. Regular maintenance of your patient lift is necessary to ensure continuing proper and safe operation. Read and observe the following recommended maintenance schedule:

Item

Inspect

Inspect/

Inspect/

Inspect/adjust

initially

adjust

adjust

every





daily

monthly

6 months

Base, Casters, and Foot Paddle









Ensure that base is level (all four wheels touch the floor)

x



x

x











Ensure that bolts and nuts are tight

x



x













Ensure that casters swivel and roll freely

x



x













Apply a light grease to caster ball bearings







x











Check rubber parts of casters for deflection

x



x













Check welding joints for rust and cracks





x













Base Adjustments









Ensure that base opens and closes smoothly

x



x

x











Ensure that base locks securely in three positions

x



x













Ensure that locking knob is in place and operating properly

x



x













Inspect all base hardware for wear





x













Mast









Ensure that mast is fully engaged and locked into mast sleeve

x



x













Inspect mast for bends or deflections





x













Inspect all mast hardware for wear





x

x











Inspect boom for bends or deflections

x



x













Ensure that boom is centered between the base legs

x



x

x











Inspect all boom hardware for wear





x













Inspect sling hooks for wear or deflections





x

x











Check connections between boom and mast for improper



x

x



connection, looseness, or wear























Slings









Inspect slings and straps for wear or damage



x















Inspect metal/plastic parts for wear or damage



x















Lubricate all pivot points with light oil







x











Lubricate top and bottom of actuator mounting







x











Clean with mild non-abrasive detergent







x











Electronics and Actuator









Ensure that batteries are charged

x

x















Inspect for proper up / down operation

x

x















Ensure that mounting hardware is tight

x



x













Inspect mounting hardware for wear





x













Ensure that control box is firmly affixed to the mast

x



x













Ensure that the actuator connecting cable is tight

x



x













14

LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

TROUBLESHOOTING

Warning: If you experience a problem with your lift and are unable to service it yourself, contact your Graham-Field Health Products dealer.

Symptom

Possible Cause

Action









Batteries discharged

Charge batteries

Control box is not responding

Battery charger defective

Replace battery charger

and relay is not clicking

Batteries defective

Replace batteries



Hand control defective

Replace hand control









Actuator plug not properly

Push actuator plug firmly into

Actuator does not run,

seated

control box

but relay is clicking

Actuator defective

Replace actuator



Control box defective

Replace control box







Actuator goes up or down, but

Hand control defective

Replace hand control

not both

Control box defective

Replace control box







Cannot lift patient up and





battery indicator shows no

Batteries discharged

Charge the batteries

GREEN light















Check the connection between the

Lift does not work and the battery



actuator and the control box

indicator shows full charge



Check connection between Pendant





& control box











Make sure the emergency stop

Lift does not work and the



button is released

battery indicator shows no light



Check the connection of the





batteries in control box

Stop-and-Run while lifting or



Check socket for pendant plug-in

lowering patient



Check pendant cable







Battery Indicator shows no light



Check the emergency stop button is



released.

when charger is connected to





Check charger plug for damage.

power supply





Check charger cable for damage.











Lift does not work. Battery





indicator shows full charge.





Notice “click” sound from control



Actuator problem.

box when UP or DOWN button on





hand control was pressed.











LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

15

SPECIFICATIONS

Note: All dimensions given in inches unless otherwise specified.

LF2020/LF2090 SIT TO STAND PATIENT LIFT

Base width

Open: 43"

Closed: 26"

Base height

(Clearance): 6"

Overall base length

50"

Lifting height range

Note: As measured from sling hooks.

Minimum: 27"

Maximum: 71"

Range: 35"

Weight capacity:

LF2020: 400 lbs.

LF2090: 600 lbs.

Rear locking caster size

4" diameter

Front caster size

4" diameter

Lifting mechanism

24 DC actuator

Battery charger

AC 110V / 220V to DC 24V 1 amp

Mast height

50"

16

LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

LIMITED WARRANTY

NOTE: The warranty below has been drafted to comply with the Federal Law applicable to products manufactured after July 4,1975.This warranty is extended only to the original purchaser/consumer or dealer/non-consumer who does not buy for resale and to no other purchaser or transferee.

GF Health Products, Inc. warrants the

LIMITED TO SUCH REPAIR, REPLACEMENT

LF2020/LF2090 Sit-To-Stand Patient Lift against

AND/OR REFUND. This warranty does not

defects in materials and workmanship as listed

include any labor charges incurred in

below:



replacement part(s) installation. Freight charges





to the manufacturer are at the expense of the

PRODUCT WARRANTY PERIOD

consumer or purchaser, and will not be

Frame / Parts

1 Year

reimbursed.

Electric Motor

1 Year







LIMITATIONS AND EXCLUSIONS: The foregoing

The warranty period for the consumer

warranty shall not apply to serial numbered

commences on the first date a product is

products if the serial number has been removed

delivered to consumer by seller/dealer. If the

or defaced. Products subjected to negligence,

product is rented or leased, the warranty period

abuse, misuse, improper operation, improper

commences on the invoice date from GF Health

maintenance, improper cleaning, improper

Products, Inc. A copy of the invoice showing

storage, or damages beyond GF Health Products,

date of purchase must be provided. Without a

Inc.’s control are not covered by this warranty,

proof of purchase date, warranty coverage shall

and that evaluation will be solely determined by

commence upon GF Health Products, Inc.’s

GF Health Products, Inc. This warranty shall not

invoice date to the dealer/purchaser.

apply to problems arising from normal wear and





tear or failure to follow instructions. This

If within the warranty period, the product or

warranty shall also not apply to products

component part is proven to GF Health

modified without GF Health Products, Inc.’s

Products, Inc.’s satisfaction to be defective, GF

express written consent; nor will it apply if parts

Health Products, Inc. shall provide, at its option,

not manufactured by GF Health Products, Inc., or

one of the following: (1) repair or replacement of

if parts not complying with original equipment

any defective or non conforming part or

specifications are added to a GF Health Products,

product, or (2) a refund of the original purchase

Inc. product, or if the product or part is serviced

price, less depreciation. GF HEALTH PRODUCTS,

by an entity not authorized by GF Health

INC.’S SOLE OBLIGATION AND YOUR EXCLUSIVE

Products, Inc.

REMEDY UNDER THIS WARRANTY SHALL BE



LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

17

THE FOREGOING WARRANTY IS EXCLUSIVE

GF HEALTH PRODUCTS, INC. SHALL NOT BE

AND IN LIEU OF ALL OTHER EXPRESSED

LIABLE FOR ANY CONSEQUENTIAL OR

WARRANTIES AND IMPLIED WARRANTIES,

INCIDENTAL DAMAGES WHATSOEVER.

INCLUDING BUT NOT LIMITED TO THE IMPLIED



WARRANTIES OF MERCHANTABILITY AND

This warranty gives you specific legal rights and

FITNESS FOR A PARTICULAR PURPOSE, AND

you may also have other legal rights, which vary

SHALL NOT EXTEND BEYOND THE DURATION

from state to state (province to province). Some

OF THE EXPRESSED WARRANTY PROVIDED

states (provinces) do not allow the exclusion or

HEREIN, AND THE REMEDY FOR VIOLATIONS OF

limitation of incidental or consequential

ANY IMPLIED WARRANTY SHALL BE LIMITED

damages, or limitation on how long an implied

TO THE REPAIR OR REPLACEMENT OF THE

warranty lasts, so the aforementioned exclusion

DEFECTIVE PRODUCT OR PART PURSUANT TO

and limitation may not apply to you.

THE TERMS CONTAINED HEREIN.



18

LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

NOTES

LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual

19

U.S.A., Corporate Headquarters:

Graham-Field Health Products

2935 Northeast Parkway

Atlanta, Georgia 30360 telephone: 800-347-5678, 770-447-1609

fax: 800-726-0601, 678-291-3232
