Lucent Technologies INTUITY Messaging Solutions User Manual

INTUITY™ Messaging Solutions

Enhance d-Li st Application Release 1.0

585-310-575 Comcode 107975674 Issue 1 July 1997

Notice

Every effort was made to ensure that the information in this book was complete and accurate at the ti me of printing. However, inf or m ation is subjec t to change.

Your Responsibility for Your System’s Security

Toll fraud is the unauthorized use of your telecommunications system by an unauthorized party, for example, per s ons other than your com-

pany’s emplo yee s, age nts, sub con trac tor s, or per so ns worki ng on your company’s behalf. Note that th ere may be a risk of toll f r aud as s ociated with your telecommunications system and, if toll fraud occurs, it can result in substantial additional charges for your telecommunications services.

You and you r system manager are responsi ble for the security of your system, such as progra mming and configuring you r equipment to prevent unauthorized use. The system manager is also responsible for reading all installation, instruction, and system administration documents provided with this product in order to fully understand the features that can introduce ri s k of toll fraud and the steps that can be taken to re duce that risk. Lucent Technologies does not warra nt that this product is immune from or will prevent unauthorized use of common-carri er telecommunication ser vices or facilities accessed thr ough or connected to it. Luce nt Tec hno lo gi es will not be respo nsible for any charges that result from s uch unauthor ized use.

Lucent Technologies Fraud Intervention

If you suspect that you are being vict imi zed by tol l fraud and you need technical s upport or assistance, call Technical Service Center Toll Fraud Interventio n Hotlin e at 1 800 643-2 353 .

Federal Communications Commission Statement Part 15: Class A Statement. This equipment has been tested an d

found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer ence when the equi pment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not install ed and used in accor dance with the instructions, may cause harmful int erference to radio communications. Operation of this equipm ent in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

Canadian Department of Communications (DOC) Interference I nformation

This digital ap pa r a t u s do es no t ex c e ed the Cla s s A li m i ts f or r a dio noise emissi ons set out in t he radio interference regulations of the Canadian Depar tment of Communications.

ésent Appareil Nomé riqu e n’émet pas de brui ts r adioélectr iq ues

Le Pr

épassant les limites applicables aux appareils numériques de la class

éscrites dans le reglement sur le brouillage radio é l ectrique édicté

A pr par le minist

Trademarks

See the preface of this document.

Ordering Information Call: Lucent Technologies Publications Cent er

Write: Lucent Technologies Publications Cent er

Order: Document No. 585-310-575

For additional documents, refer to the section in “About This Document” entitled “Related Resou rc es .”

You can be placed on a standing order list for this an d other documents you may nee d. Standing order will enab le you to autom ati cally receive update d versions of individual documents or document sets , billed to account information that you provide. For more information on standing orders, or to be put on a li s t to receive future is s ues of thi s document, contact the Luce nt Technologies Publications Center.

Comments

To comment on this document, return the comment card at the front of the document.

Acknowledgment

This document was prepared by the Product Documentation Development, Lucent Technologies , Denver, CO and Co lumbus, OH.

ére des Communications du Canada.

Voice 1 800 457 -1 235 International Vo ice 317 361-5353 Fax 1 800 457-1764 International Fax 317 361-5355

P.O. Box 4100 Crawfordsv ille, IN 47933

Comcode 107975674 Issue 1, July 1997

Part 68: Network Registration Number. This equipment is registered with the FCC in accordance with Part 68 of the FCC Rules. It is identified by FCC registratio n numb er xxx.

Part 68: Answer-Supervision Signaling. Allo win g th is eq ui pme n t t o be operated in a manner that does not provide proper answer-supervision signaling is in viola tio n of Part 68 R ules. This eq uip men t ret urns answer-supervision s ignals to the public switched network when :

• Answered by the called station

• Answered by the attendant

• Routed to a recorded announcement that can be administered by the CPE user

This equipment returns answer-supervision signals on all DID calls forwarded back to the public switched telephone network. Per m issible exceptions are:

• A call is unanswered

• A busy tone i s re ceived

• A reorder tone is received

Contents

About This Book

■ Purpose v

■ Intended Audiences v

■ Trademarks and Service Marks vi

■ Related Resources viii

■ How to Comment on This Book viii

1 Enhanc e d-List A pplicat io n

■ Overview 1

Audience 1 What You Should Know 1

■ Enhanced-List Application 2

■ What ELA Can Do for You 2

■ ELA Administration 3

Basic Concep t s 3 Planning with Professional Services 3 Things to Consider 4

2 Installation

■ Overview 9

■ Installing the Software 9

■ Rebooting the System 11

3 Administering AUDIX for ELA

■ Overview 13

■ Activating ELA 14

■ Verifying that ELA is Enabled 14

Issue 1 July 1997 i

Contents

■ Increasing the Number of Mailing

Lists Allowed on the System 15

■ Defining an ELA Class of Service 16

■ Setting Up ELA and Shadow Mailbox

Community IDs 19

Things to Consider 19 Before You Begin 20 ELA Community ID 20 Shadow Mailbox Community ID 22

■ Administering TCP/IP 23

Before You Begin 23

■ Setting Up IMAPI Sessions for

Trusted Server Access 26

■ Defining Two ELA Trusted Servers 28

Before You Begin 28

4 Administering ELA for AUDIX

■ Overview 33

■ Defining the AUDIX server and

Administering Access 33

Before You Begin 33

■ Guidelines for Naming Enhanced Lists 37

■ Creating Enhanced Lists 38

Guidelines for Selecting Enhanced-List Members 41 Adding Members to Enhanced Lists 41 Adding/Deleting Mem bers to an Enhanced List 43

■ Deleting an Enhanced List 46

■ Recording Names for Enhanced Lists 48

■ Testing INTUITY Enhanced Lists 48

5 Preventative Maintenance and Troubleshooting

■ Overview 51

ii Issue 1 July 1997

Contents

■ Checking the Administrator’s Log 51

■ Checking the Delivery Failure Log 52

■ Delivery Failure Codes 54

■ Troubleshooting ELA 55

6 Alarms

■ Overview 59

■ DELIVTS Resource Type 59

■ REGISTRY Reso urce Type 61

■ SHADOW Resource Type 62

■ EL — Enhanced-List Application 65

IN Index

Issue 1 July 1997 iii

Contents

iv Issue 1 July 1997

About This Book

Purpose

This book contains instructions for installing and administrating the Enhanced-List Application (ELA) on an I

Intended Audiences

This book is intended primarily for the on-site technical personnel who are responsible for installing and configuring the system and performing initial administration and acceptance testing. Second ary audienc es include the following from Lucent:

■ Field support — Technical Service Organiza tion (TSO)

■ Helpline personnel

■ Factory assemble, load, and test (ALT) personnel

■ Provisioning project managers — Sales and Technical Resource Center

(STRC)

This book assumes that the primary users of this book have completed the

NTUITY AUDIX Administration training course.

NTUITY™ AUDIX

R4 system.

Issue 1 July 1997 v

About This Book

Trademarks and Service Marks

The following trademarked products are mentioned in books in the Lucent INTUITY document set:

■ AT™ is a trademark of Hayes Microcomputer Products, Inc.

■ AUDIX

■ cc:Mail

Development Corporation.

■ COMSPHERE

Paradyne Corp.

■ CONVERSANT

Lucent Technologies™.

■ DEFINITY

■ DMS-100™ is a trademark of Northern Telecom Limited.

■ Dterm™ is a trademark of NEC Telephones, Inc.

■ Equinox™ is a trademark of Equinox Systems, Inc.

■ 5ESS

is a registered trademark of Lucent Technologies™.

is a registered trademark of cc:Mail, a subsidiary of Lotus

is a registered trademark of Lucent Technologies™

Voice Information System is a registered trademark of

is a registered trademark of Lucent Technologies™.

■ INTUITY™ is a trademark of Lucent Technologies™.

■ Lotus Notes

is a registered trademark of Lotus Development

Corporation.

■ MEGAPORT™ is a trademark of Equinox Systems , Inc.

■ MEGAPLEX™ is a trademark of Equinox Systems, Inc.

■ Meridian™ is a trademark of Northern Telecom Limited.

■ MERL IN L EGEND

■ Microcom Networking Protocol

is a registered trademark of Lucent Technologies™.

is a registered trademark of Microcom,

Inc.

■ Microsoft

■ MS

■ MS-DOS

■ Mitel™ is a trademark of Mitel Corporation.

■ NEAX™ is a trademark of NEC Telephone, Inc.

■ NEC

■ Netware

■ Northern Telecom

is a registered trademark of Microsoft Corporation.

is a registered trademark of NEC Telephone, Inc.

is a registered trademark of Novell, Inc.

Loadable Module™ is a registered trademark of Novell, Inc.

is a registered trademark of Northern Telecom

Limited.

vi Issue 1 July 1997

Trademarks and Service Marks

■ Novell

■ Parady n e

■ Phillips

■ Rolm

■ SL-1™ is a trademark of Northern Telecom Limited.

■ softFAX

■ SUPERSET™ is a trademark of Mitel Corporation.

■ SX-100™ is a trademark of Mitel Corporation.

■ SX-200™ is a trademark of Mitel Corporation.

■ SX-2000™ is a trademark of Mitel Corporation.

■ Telephony OneStip™ is a trademark of Lotus Development Corporation.

■ TMI™ is a trademark of Texas Micro Systems, Inc.

■ UNIX

■ Voice Bridge

is a registered trademark of Novell, Inc.

is a registered trademark of Lucent Technologies™.

is a registered tradema rk of Ph illi ps Sc re w C ompany.

is a registered trademark of International Business Machines.

is a registered trademark of VOXEM, Inc.

is a registered trademark of UNIX Systems Laboratories, Inc.

is a registered trademark of Voice Technologies Group,

Inc.

■ VOXEM

■ VT100™ is a trademark of Digital Equipment Corporation.

is a registered trademark of VOXEM, Inc.

■ Windows™ is a trademark of Microsoft Corporation.

Issue 1 July 1997

vii

About This Book

Related Resources

If you need help with basic administrative procedures, see the

Messaging Solutions Release 4 Administration

How to Comment on This Book

We are always interested in your suggestions for improving this book. Please complete and return the reader comment card that is located behind the title page.

If the reader comment card has been removed, send your comments to:

Lucent Technologies Product Documentation Room 22-2H15 11900 North Pecos Street Denver, Colorado 80234

Alternatively, you can fax your comments to:

Lucent I (303) 538-1741

Please be sure to mention the name and order number of this book.

NTUITY Writing Team

NTUITY

book, 585-310-564.

™

viii Issue 1 July 1997

Enhanced-List Application

Overview

This chapter describes the Enhanced-List Application (ELA) on an INTUITY™

AUDIX

Release 4 system.

Audience

Read this book if you are the AUDIX system administrato r respon si b le fo r the configuration and maintenance of an I

What You Should Know

The procedures in this chapter assume you know basic Lucent INTUITY commands and navigation, such as logging in and out of the system, the difference between the VM and SA logins, command prompt function and usage, and how to move from field-to-field within a screen or window.

If you are not familiar with Lucent I

NTUITY

Messaging Solutions Release 4 Administration

NTUITY AUDIX Release 4 system.

NTUITY system basics, please read Chapter 1 i n

before you continue.

Issue 1 July 1997 1

Enhanced-List Application

Enhan c e d-List Applica tion

The Enhanced-List Application (ELA) greatly expands your business’ capability to deliver messages to large numbers of recipients. A single enhanced list can contain 1500 addresses and you – the system administrator – can create up to 100 such lists. Enhanced lists can be nested (or embedded) in each other, that is, a list (containing 1500 addresses) can be a member contained in another list. By doing so, your users can record a message, address it to the parent enhanced list, and send it to nearly 150,000 people – just as easily as if the message were being sent to a person 1 desk away.

All users administered in AUDIX (including e-mail and remote users) can send messages to the recipients on enhanced lists, or you can administer your system to only allow selected users in your AUDIX network access to the enhanced lists.

ELA has the following characteristics:

■ Up to 1500 recipients can be contained in an enhanced list (compared to

250 addresses in a standard AUDIX mailing list.)

■ Up to 100 enhanced lists can be created on an INTUITY AUDIX machine

■ Nesting (embedding an enhanced list within another Enhanced List)

enables a total recipient population of nearly 150,000

■ Changes in an enhanced list propagate to all lists that refer to the

changed list

■ Access to enhanced lists from anywhere within the AUDIX network

(standard AUDIX mailing lists are only accessible to those users with mailboxes on the same machine as the lists)

■ Delivery to local and remote AUDIX users, administered e-mail users, and

remote AMIS pre-administered users

■ Cross-domain delivery from an e-mail trusted server to AUDIX. This

enables administered e-mail users to access the Enhanced Lists

What ELA Can Do for You

ELA can:

■ Distribute messages to a targeted audience.

You can create a list of people that you send messages to frequently. Then, you can send them all the same message by entering one enhanced-list address.

■ Centralize messages into one AUDIX mailbox.

First select one office as your primary location. Then create an enhanced list at each secondary location that has, as its only member, the number of your primary office location. When a mailbox at a secondary location receives a message, ELA puts it into the mailbox for the primary office.

2 Issue 1 July 1997

ELA Adminis t r ation

■ Forward messages to support staff automatically.

If you often forward incoming messages, you can create an enhanced-list mailbox that automatically forwards messages to your staff. Your staff can review the messages and then respond to them as they normally would.

ELA Administra t ion

Only the system administrator (sa) login can administer enhanced lists.

Basic Concepts

To understand ELA, you first need to understand some concepts and terminology, such as

trusted server

NTUITY AUDIX that uses its own login and password to launch an IMAPI session

I and access AUDIX mailboxes. The ELA software, acting as a trusted server, can access and manipulate an AUDIX message just as the AUDIX application does.

is a computer or a software application in a domain outside of

trusted servers

and

domains

For the purposes of ELA, a applica tio n . I

NTUITY AUDIX voice/fax mail messaging is one domain, and ELA is

domain

another domain. The two domains are linked together to allow messages to be distributed between domains.

For a complete discussion and definition of trusted server and domain, see your

NTUITY

Messaging Solutions Release 4 Administration

Planning with Professional Services

ELA is a separately purchasable feature that incurs a Right-to-Use (RTU) fee. ELA requires some solid planning to ensure your system makes effective use of the feature. You can contract with Professional Services to work with you to plan and administer ELA, or you can do the planning and administration yourself using ELA worksheets that your account representative provides. In either case, the result of that planning is comp leted ELA wo rk sheet s that you will us e as you proceed to implement ELA.

ELA also requires some AUDIX Administration, as well as administration of the ELA server itself.

is a logical boundary defined by the

book.

Issue 1 July 1997

Enhanced-List Application

This administration can be divided as follows: AUDIX Administration:

■ Contact Professional Services (or your account representative, if you did

not contract with Professional Services) to have ELA installed.

■ Contact Professional Services (or your account representative, if you did

not contract with Professional Services) to have ELA activated.

■ Verify that ELA is enabled for your system.

■ Increase the number of mailing lists AUDIX allows on the system.

■ Define an ELA Class of Service.

■ Set up ELA and shadow mailbox Community IDs.

■ Administer TCP/IP on the AUDIX server.

■ Define two ELA trusted servers to the AUDIX server and administer

access (including the surrounding security requirements).

■ Set up IMAPI sessions for ELA server access to AUDIX.

ELA Adminis t r ation:

■ Define the AUDIX server to the ELA servers and administer access.

■ Select shadow mailbox extension.

■ Create and administer the Enhanced List(s).

■ Record a name for the enhanced list (optional).

The next section highlights the planning considerations for implementing ELA. Administration procedures begin with "Installing the Software" on page 2-9.

Things to Con s id er

ELA is a powerful messaging tool that can distribute large quantities of messages. The following section discusses various planning considerations that should be addressed to ensure effective implementation and use of ELA.

ELA Message Delivery

We recommend that you schedule delivery for large enhanced lists during off-peak hours.

ELA can deliver up to 100 messages a minute. However, during peak traffic hours, your system also processes other user-generated messages. ELA intentionally slows delivery of messages to large enhanced lists during peak traffic so your system can continue to process these other messages.

4 Issue 1 July 1997

ELA Adminis t r ation

Hardware/Software Requirements

ELA runs on the same machine as AUDIX.

■ ELA must be installed on a Lucent INTUITY R4.2-4 or higher machine. If

your site has an earlier release, contact your Lucent service representative to obtain the necessary upgrade. ELA is not available for pre-R4 Lucent

NTUITY systems.

■ MAP/40s machines require 64k of RAM.

LAN Impact

If your configuration includes a LAN, planning ELA implementation should involve your PC/LAN administrator(s) to ensure that AUDIX and the network are not adversely affected. The amount of LAN traffic on your system from ELA messages could increase if ELA will be sending messages for delivery to an e-mail or Message Manager recipient or to TCP/IP-networked remote machines. If none of these are valid for your site, ELA will not cause any LAN traffic.

See Chapter 6 in your book:

NTUITY

Messaging Solutions Release 4 Administra tion

■ If your site has e-mail, to calculate some initial traffic estimates

■ If your site has Message Manager, to calculate some initial traffic

estimates

Remote Message Impact

If your site is networked, estimate the increase in the amount of remote traffic by first determining the percent of current traffic that is remote and calculating the number of messages/minute that percent represents. When ELA is actively sending messages, add that number of messages to the traffic estimate for remote message delivery.

NOTE:

For typical applications of ELA, the increase in messaging traffic can be negligible.

Issue 1 July 1997

Enhanced-List Application

Port Usage Impact

Voice port usage increases as recipients retrieve messages sent by ELA. Plan for the increase with Professional Services when you purchase ELA. Refer to the worksheets that were compiled at the time of the purchase to determine the port usage impact.

You should monitor your system to determine if your Grade of Service (GOS) falls below acceptable levels. If that happens frequently, particularly during the peak busy hour, contact your Lucent account representative to purchase more ports, if necessary. For more information about GOS and monitoring your system , see

NTUITY

your

Messaging Solutions Release 4 Administra tion

NOTE:

If, in its application, ELA degrades service, you might suggest that those users with access to enhanced lists schedule delivery of ELA messages for off-peak hours, for example, at 10:00 p.m. or 4:00 a.m. That way, delivery of messages will not conflict with other user-g enerat ed traff ic.

Security

book.

Securing a system that allows access from another domain involves a 2-pronged approach. You must consider security from both an internal and an external perspective. External security involves administration to prevent access from an unauthorized source, such as an e-mail or AMIS-Analog message originator that

decides to send “mail bombs” to an Enhanced List. Internal security focuses on preventing, or recovering from, damage if a breach occurs, for example, a virus is transmitted in a message component such as an attached software file.

For an in-depth discussion and definition of such terms as

domain

, see your

NTUITY

Messaging Solutions Release 4 Administration

trusted server

and

book.

External Security

A new option — the trusted server — has been introduced in this release. The ELA application runs as a trusted server, making requests of the AUDIX server, via IMAPI, to distribute messages to designated recipients. The trusted server is empowered to do anything to an ELA mailbox that an AUDIX user can do.

To prevent unauthorized access to AUDIX from an external source such as a trusted server, system administrators have two levels of security at their disposal:

■ Trusted server password

■ IMAPI password

The trusted server password is administered on both the AUDIX server and on the trusted server. The trusted server must use this password when it connects to AUDIX.

6 Issue 1 July 1997

ELA Adminis t r ation

The IMAPI password is an optional, secondary level of security used to prevent an unauthorized source external to AUDIX from starting an IMAPI session. We

strongly recommend

If you choose to administer an IMAPI password, we recommend that you change

it on a regular basis, for example, monthly. (If you have set your administrator’s password to age automatically, the system prompts you to change your password. You can use this prompt to remind you to change the IMAPI password as well.)

NOTE:

If you change an IMAPI password in AUDIX, all trusted servers must be administered with the new IMAPI password. For example, if your I AUDIX R4 supports an e-mail server, the e-mail administrator must also administer the e-mail trusted server to reflect the new IMAPI password.

In addition to trusted server security, there is the possibility that an administered e-mail or remote AMIS Analog user could use an ELA mailbox in an unauthorized manner. One example is to send “mail bombs” to an Enhanced List. Mail bombs are harassing messages that do not serve your business needs, and impose unnecessary traffic on your system. ELA mailboxes are no more vulnerable to unauthorized use than other voice mailboxes. However, the impact on system performance can be many times greater than the potential for harassment when sending messages to an individual mailbox. Sending to an enhanced list that forwards a message to 1500 recipients will obviously have much farther reaching consequences than that of a handful of messages sent to individual mailboxes.

that you take advantage of this extra protection.

NTUITY

To prevent unauthorized access to an ELA mailbox from an external source such as e-mail users or remote AMIS Analog users, you can place those users in a community with sending restrictions. See:

■ "Setting Up ELA and Shadow Mailbox Community IDs" on page 3-19 for

information about administering ELA community sending restrictions

■ “Setting Up Community Sending Restrictions” in Chapter 3 of your

Messaging Solutions Administration

guide for information about the

NTUITY

implications of administering Community IDs

Internal Security

INTUITY AUDIX R4 allows the transmission of 2 new message components, text (originating from Message Manager or e-mail) and binary file attachments (software files, such as a spreadsheet or word processing file). With these new components come new security considerations, namely, the inadvertent delivery of a virus that may be embedded in a file attachment. This can occur in any system that supports the delivery of software files. While the AUDIX machine

Issue 1 July 1997

Enhanced-List Application

cannot be infected with viruses embedded in these software files, client machines may become infected when a user launches the applic ation associated with the software file.

CAUTION:

ELA does not perform any virus detection. Your company should evaluate the security risks of file attachments carefully and make provisions for virus detection software on PCs running Message Manager or an e-mail application supported by I

At a minimum, you should advise your users that file attachments should be detached (not launched) and scanned for viruses before use.

IMAPI Session Requirements

An IMAPI session is invoked when an e-mail trusted server, Message Manager, or the ELA trusted server needs to communicate with the AUDIX server. The AUDIX server must have a sufficient number of IMAPI sessions administered to provide adequate access for all IMAPI requests. Additionally, the ELA server must be registered as an AUDIX trusted server.

NTUITY

AUDIX R4.

Shadow Mailbox

The shadow mailbox is a special mailbox that ELA uses to distribute messages. The use of a shadow mailbox prevents replies to ELA-delivered messages from being sent back to the entire Enhanced List. However, you can administer enhanced lists such that recipients can reply to the person who originally sent the message. The shadow mailbox must belong to a community that cannot receive messages.

8 Issue 1 July 1997

Installation

Overview

This chapter describes how to install ELA on a Lucent INTUITY R4.2 or higher system.

Insta lling th e So ftware

The ELA package is provided on a tape labeled To install ELA on a Lucent I

1. Log in to the Lucent I

2. Starting from the main menu, select:

> Customer/Services Administration

>System Management

>UNIX Management

>Software Install

The system displays the Software Install menu (Figure 2-1).

Enhanced-List Application

NTUITY R4.2 or higher system:

NTUITY system using craft or tsc.

Issue 1 July 1997 9

Installation

Figure 2-1. Software Install Menu

3. Insert the tape labeled

Enhanced-List Application

into the tape drive.

4. Select:

> Tape drive

The system displays the message:

Insert a tape into the Tape Drive. Type [go] when ready

or [q] to quit: (default: go)

5. Press to go ahead with the install.

ENTER

The system displays the message:

Installation in progress. Do not remove the tape.

The following packages are available:

1 ELA Enhanced List Application Package

Select package(s) you wish to process (or ‘all’ to process all packages). (default: all) [?, ??, q].

NOTE:

If you receive a device open failure messag e, the tape was

after

inserted

you selected Tape Drive or the system did not see

the tape. In that case, complete step a through step d below.

10 Issue 1 July 1997

a. Enter q

The system displays the Software Install menu (Figure 2-1). b. Remove the tape from the tape drive. c. Re-insert the tape into the tape drive. d. Repeat step 4 and step 5.

Rebooting the System

6. Press to select all.

ENTER

The system installs the software and displays several status messages.

When the software installation is complete, the system displays the

message:

Installation of Enhanced List Application Package was successful.

Insert a tape into the Tape Drive. Type [go] when ready

or [q] to quit: (default: go)

7. Remove the tape from the tape drive and re-insert the back-up tape.

8. Enter q

9. Press (F6) repeatedly to return to the main menu.

CANCEL

10. Continue with the next procedure, ‘‘Rebooting the System’’.

Rebootin g the System

Rebooting is a 2-step process. First the voice system must be stopped, and then the machine can be rebooted. To stop the voice system:

1. Starting from the main menu, select:

> Customer/Services Administration

> System Management

> System Control

>Stop Voice System

The system displays the Wait Time window (Figure 2-2).

Figure 2-2. W a it Time Window

2. Enter 60 in the Seconds: field to have the system wait one minute for

calls in progress to finish before stopping the voice system.

Issue 1 July 1997

Installation

3. Press (F3) .

SAVE

The system stops the voice system and displays the a series of status messages. When the voice system has stopped, the system displays the message:

The Voice System has stopped. Press Enter to Continue.

4. Press .

5. Press (F6) .

ENTER

CANCEL

The system displays the System Control window.

6. Select

>Shutdown System

The system displays the Wait Time window (Figure 2-2).

7. Enter 0 (zero) to indicate you would like an immediate shutdown.

8. Press (F3) .

SAVE

The system displays the following message:

Shutdown started.

When the system is completely shut down, the system displays the message.

The system is down. Press Ctrl-Alt-Del to reboot your computer.

9. Make sure that there is no diskette in the diskette drive.

10. Press .

CONTROL ALT DEL

The system performs a power-on self test (POST). The screen lists various hardware components and the status of the tests performed on those components.

When the reboot is complete, the system displays the following prompt:

Startup of the Voice System is complete. Console Login:

12 Issue 1 July 1997

Administering AUDIX for ELA

Overview

To define the ELA server and functionality to AUDIX:

■ Contact Professional Services (or your account representative, if you did

not contract with Professional Services) to have ELA installed.

■ Contact Professional Services (or your account representative, if you did

not contract with Professional Services) to have ELA activated.

■ Verify that ELA is enabled for your system.

■ Increase the number of mailing lists AUDIX allows on the system.

■ Define an ELA Class of Service.

■ Set up ELA and shadow mailbox Community IDs.

■ Administer TCP/IP on the AUDIX server.

■ Define two ELA trusted servers to the AUDIX server and administer

access (including the surrounding security requirements).

■ Set up IMAPI sessions for ELA server access to AUDIX.

Depending on what services your business purchased from Professional Services during the planning phase for ELA, some of the following procedures

NTUITY

may already be done. See your

Administration

book.

Messaging Solutions Release 4

Issue 1 July 1997 13

Administering AUDIX for ELA

Activatin g ELA

After the ELA installation is complete, contact your Professional Services (or your account representative, if you did not contract with Professional Services). The technician from the remote support center w ill acce ss your system remotely and activate the ELA feature.

When the remote support center has activated the ELA feature, continue with the next procedure.

NOTE:

You must log off the system and log back on to get enhanced lists to display as an option on the Lucent I

Verifying that ELA is Enabled

1. Log into the Lucent INTUITY system using sa.

NTUITY main menu.

The system should display the Lucent I Enhanced-List Manager as a menu option (Figure 3-1).

Figure 3-1. L uc ent INTUITY Main Menu for Release 4 (with ELA)

2. If Enhanced-List Manager does not display on the main menu, select:

> Customer/Services Administration

> Feature Options

NTUITY main menu with

The system displays the Feature Options window.

14 Issue 1 July 1997

Increas ing t h e N umber of Mailin g L ists A llo we d o n the System

3. Ensure the following fields are set to ON:

■ Enhanced List Application

■ TCP/IP Administration

4. If either of these fields is OFF, and you purchased/installed ELA, call the

support center to request that the features be enabled for your Lucent

NTUITY platform.

5. Press (F6) to exit this window.

CANCEL

Increasin g the Number of Ma il ing Lists Allowed on the System

The following task contains instructions for the fields that relate directly to ELA.

See “Field Definitions: System-Parameters Limits Screen” in Chapter 3 of your

NTUITY

Messaging Solutions Administration

and to understand their implications. To administer AUDIX system limits to support ELA:

1. Starting from the main menu (Figure 3-1 on page 3-14), select:

> AUDIX Administration

2. At the enter command: prompt, enter either:

Full Command Version Short Command Version

change system-parameters limits ch sys li

The system displays the System-Parameters Limits screen.

guide for complete field descriptions

3. Tab to the Lists, Total Entries: field and enter 200000.

4. The Lists/Subscriber field has a default value of 100. If this setting

has changed, enter a value of 15 or greater.

If the default value has not changed, skip this step.

5. The Recipients/Lists field has a default value of 250. If this setting

has changed to less than the default, enter a value of 250.

If the default value has not changed, skip this step.

NOTE:

If there was an administra tive reason f or reduc ing the value in this field, your system may not be able to support ELA. Review your system configuration and business needs to determine the implication of returning this setting to 250.

Issue 1 July 1997

Administering AUDIX for ELA

6. Press (F3) to save the information in the system database.

ENTER

The cursor returns to the command line, and the system displays the message Command Successfully Completed.

7. Continue with the next procedure or enter exit to leave AUDIX Administration.

Defining an ELA C la s s of Servic e

The following task contains instructions for the fields that directly relate to ELA. The other fields should be admi niste re d to supp ort all capab ilities tha t you anticipate using, that is, maximum call answer length, announcement set, etc.

NTUITY

See your explanations of the other fields on these screens, and their implications.

NOTE:

ELA can take up to 12 hours to show the changes you make to subscriber information in I

Before you begin the following p rocedure, ensure t hat you have an unused Class of Service that you can define for ELA. We recommend that you use a COS that is between 2 and 11. (Customers often use COS 1 as their default Class of Service).

Messaging Solutions Release 4 Administration

NTUITY AUDIX.

book for

To administer a COS for ELA:

1. Starting from the main menu (Figure 3-1 on page 3-14), select:

> AUDIX Administration

2. At the enter command: prompt, enter either:

Full Command Version Short Command Version

change cos

where

COS_number

ch cos

COS_number

is the unique Class of Service you would like to use

for ELA. For example, enter ch cos 10. The system displays the Class of Service screen (Figure 3-2).

16 Issue 1 July 1997

Defining an ELA Class of Service

Figure 3-2. Class of Service Screen, Page 1; Defining a Class of Service for ELA

3. Although not required, we recommend that you change the name of the COS to be more descriptive , fo r ex ampl e , e nte r ELA in th e Name: field.

NOTE:

You should write down the CO S num ber. You will need it later when you administer the ELA server.

4. If you would like ELA to be able to distribute call answer messages, enter

call-answer in the Type: field (under PERMISSIONS:). Otherwise, enter none.

NOTE:

If you administer your system such that ELA mailboxes are to be accessible only by direct addressing and later decide you would like some ELA mailboxes with call answer capability, you do not need to create two Classes of Service. Administer the ELA COS to be call answer, but only administer the ELA mailbox extension as a number on the switch if/when you decide to allow call answer messages to be distributed to the members of that Enhanced List.

5. Enter y in following fields (under PERMISSIONS):

■ Priority Messages?

■ Fax? (If you have purchased fax)

■ Trusted Server Access?

6. Press (F7) . The system displays page 2 (Figure 3-3).

Issue 1 July 1997

Administering AUDIX for ELA

Figure 3-3. Subsc ri ber C l ass of Se rv ic e Para m et e rs Sc re en, Pa ge 2; Ena bl ing ELA on a

COS Basis

7. Enter the following information:

■ 14 in the Retention Times (days), New: field. (This setting

acts as a safety measure, should ELA encounter an operational problem, and cannot send messages for a couple of days.)

■ 14 in the Retention Times (days), Old: field. (Ordinarily,

there are no old or unopened messages. ELA will forward old/unopened messages in the event service is interrupted.)

■ 14 in the Retention Times (days), Unopened: field.

(The same explanation holds true for this field, as well.)

■ nudaf in the Outgoing Mailbox, Category Order: field

■ 0 in the Retention Times (days), File Cab: field

■ 1 in the Delivered/Nondeliverable: field

■ 6 in the Maximum Mailing Lists: field

■ 1500 in the Total Entries in all Lists: fiel d

■ 32767 in the Mailbox Size, Maximum Length: field

NOTE:

Administer the other fields to be consistent with the messaging needs of your business.

18 Issue 1 July 1997

Setting Up ELA and Shadow Mailbox Community IDs

8. Press (F3) to save the information in the system database.

ENTER

The cursor returns to the command line, and the system displays the message Command Successfully Completed.

9. Continue with the next procedure or enter exit to leave AUDIX Administration.

Setting Up ELA and Shad ow Mailbox Community IDs

The following task contains instructions that directly relate to ELA. “Setting Up Community Sending Restrictions” in Chapter 3 of your

Solutions Administration

Commun ity ID s in more detail.

Things to Con s id er

ELA mailing lists are a powe rful messagin g t oo l that all users in your AUDIX network can access. However, should your business needs indicate differently, you can control who can use the enhanced lists by administering community sending restrictions. Figure 3-4 illustrates a typical application of sending restrictions for ELA and this application of sending restrictions is used as a basis for the following discussion.

guide discusses the purpose and implementat ion of

NTUITY

Messaging

Community 9

Subscribers with enhanced

list privileges

BLOCKED

Community 11

ELA Shadow Mailbox

BLOCKEDBLOCKED

Community 10

Enhanced-List Mailboxes

BLOCKED

Community 1

General Subscribers

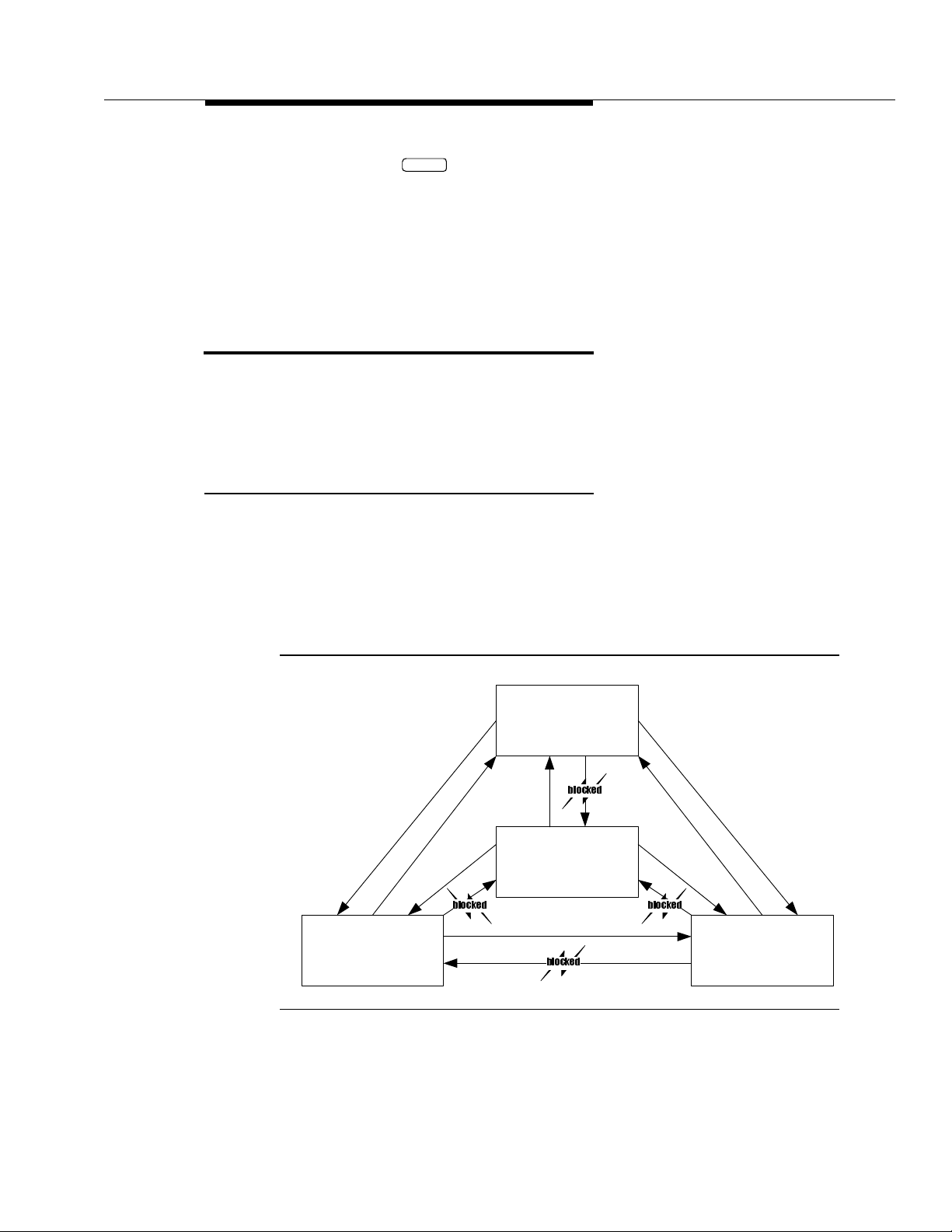

Figure 3-4. Example of Communities Administered for use with ELA

Issue 1 July 1997

Administering AUDIX for ELA

Let’s say you set up the enhanced-list mailbox community to be Community 10. Community 10 is given permission to send to all other communities (except the shadow mailbox community). Then, you set up a special user community, Community 9, and administer Community 9 to send to all communities (except the shadow mailbox community). Only users you would like to have access to the enhanced lists are placed into Community 9. All other users would not be able to send a message to the ELA mailbox.

Additionally, you must set up a shadow mailbox community ID, for example Community 11. The shadow mailbox community ID is administered such that messages can be sent to any community, but messages cannot be received from any other community. You do this so replies from pre-Release 4 Lucent

NTUITY machines or from DEFINITY AUDIX and AUDIX R1 machines do not go to

I the shadow mailbox.

Also, you w ill ha v e to administe r the re st o f yo ur user populatio n to be long to a community restricted from sending messages to the enhanced-list mailbox community, for example, the default Community 1.

NOTE:

If your AUDIX system is networked with other Lucent INTUITY systems, all enhanced-list mailbox community sending restrictions must be consistently applied throughout the system, that is, the same Community ID numbers administered with the same restrictions. In particular, the shadow mailbox community must not be accessible by any other commun ity on any machine in the network.

Before You Begin

Before you begin the following procedure, use the display system-parameters sending restrictions at least two Communities that you can use for ELA (4 communities are needed if you are going to implement a special community for selected users with access to ELA mailboxes.)

ELA Comm u n ity ID

To set up sending an ELA Community ID:

1. Starting from the main menu (Figure 3-1 on page 3-14), select:

> AUDIX Administration

command in AUDIX administration and ensure that you have

20 Issue 1 July 1997

Setting Up ELA and Shadow Mailbox Community IDs

2. At the enter command: prompt, enter either:

Full Command Version Short Command Version

change system-parameters sending-restrictions ch sy s

The system displays the Sending Restrictions screen (Figure 3-5).

Example administr ation for: Users w/ access to ELA in Comm ID = 9* Enhanced List Mailbox Comm ID = 10 Shadow Mailbox Comm ID = 11 Default User Comm ID = 1*

* Optional administration unless you are limiting user access to Enhanced Lists

This is required, but can use a different Comm ID # (see step 4).

This is required, but can use a different Com m ID # (see step 5).

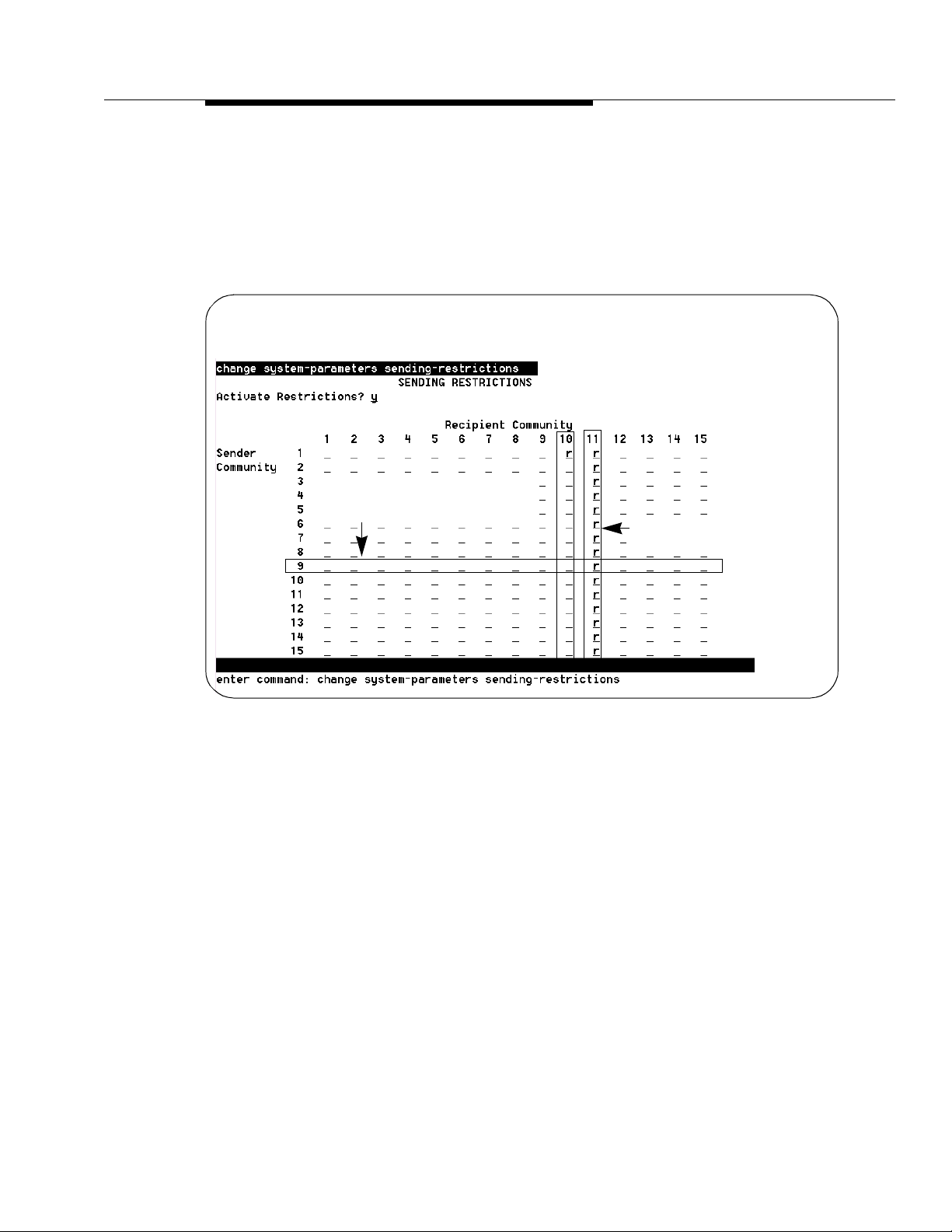

Figure 3-5. Sending Restrictions Screen

3. Enter y in the Activate Restrictions? field.

4. Leave all fields

blank (horizontally) that correspond to the (sender)

Community ID that you’ve assigned to ELA, and leave all fields (vertically) that correspond to the (recipient) Community ID you’ve assigned for users who will have access to the Enhanced Lists. (If all users are to have access to Enhanced Lists, the recipient communi ty will be the default user community — usually community 1.)

Following the example discussed under "Things to Consider" on page 3-19, Sender Community 9 would be blank (horizontally from left to right) and Recipient Community 10 would be blank (vertically from top to bottom).

5. If all users are to have access to Enhanced Lists, skip this step. Enter an r in the field that corresponds to the intersection between the

(recipient) ELA Community ID and the (sender) community to which the rest of the user population belongs. This prevents those who do not have

blank

Issue 1 July 1997

Administering AUDIX for ELA

access to enhanced lists from sending a message to an Enhanced List. Following the example discussed under "Things to Consider" on page

3-19, there would be an r in the field corresponding to the intersection between Sender Community 1 (the default user community) and Recipient Community 10 (the Enhanced List Mailbox Community).

Shadow Mailbox Community ID

6. Enter an r in all (recipient community) fields in the column that

corresponds to the Community ID that you’ve assigned to the shadow mailbox. This prevents messages from being sent into the shadow mailbox.

Following the example discussed under "Things to Consider" on page 3-19, Recipient Community 11 would contain r’s (vertically from top to bottom).

7. Press (F3) to save the information in the system database.

ENTER

The system displays the message Command Successfully Completed, and the cursor returns to the command line.

8. Continue with the next procedure or enter exit to leave AUDIX Administration.

NOTE:

You must now use the Change Subscriber or Change COS screen to assign your users to either the community that does not have access to Enhanced Lists, or to the special community that does have access. If you used your default user community (Community 1) as the community that does not have access, then you only have to administer those selected individuals who will belong to the new special community with access to Enhanced Lists.

22 Issue 1 July 1997

Administering TCP/IP

Administering TCP/ IP

If your system is already connected to the LAN, you can skip this procedure.

However, you need to know the IP Address to administer the trusted server, so — even if your system is already networked — perform step 1 of t his p rocedure and write down your system’s IP address.

TCP/IP is a set of protocols that links computers across a wide variety of networks. TCP/IP must be administered for the ELA trusted server to communicate with AUDIX.

Before You Begin

You will need to know the:

■ Network IP address

■ Host Identifier (AUDIX server name)

■ Subnet mask

■ Gateway Identifier (ID) to administer TCP/IP

Your PC/LAN system administrator should have this information.

CAUTION:

Administering TCP/IP requires that you stop and restart the voice messaging software. Plan to do this procedure at a time when your business can tolerate some down time on your AUDIX system.

To administer TCP/IP Networking:

1. Starting from the main menu (Figure 3-1 on page 3-14), select:

> Networking Administration

> TCP/IP Administration

The system displays the TCP/IP Administration window (Figure 3-6).

Issue 1 July 1997

Administering AUDIX for ELA

TAB

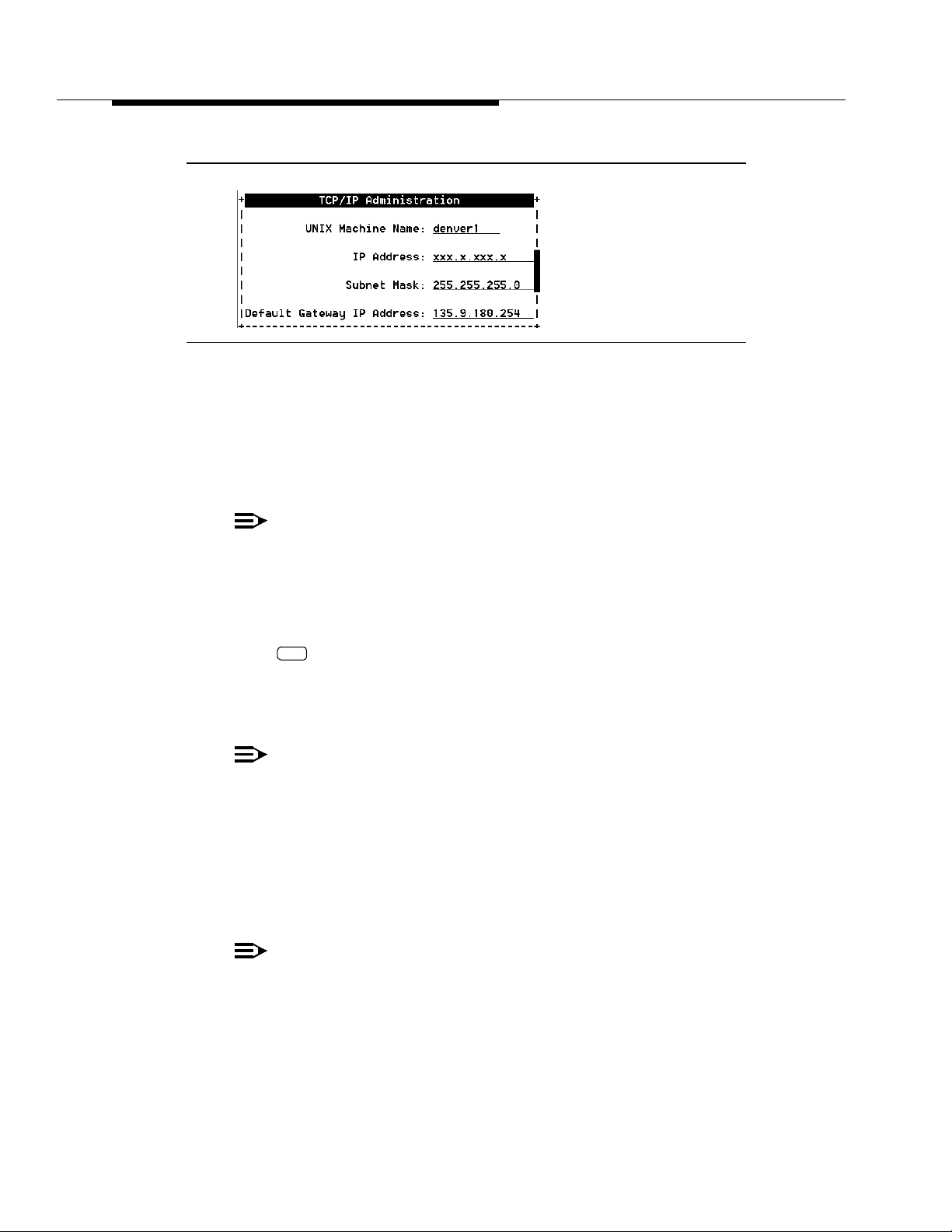

Figure 3-6. TCP/IP Administration Window; Administering TCP/IP for

Enhanced-List Application (ELA)

2. Enter the AUDIX server name in the UNIX Machine Name: field. This name should be listed on the can obtain this name from your PC/LAN administrator. This is a case-sensitive field, so capital letters must be typed as capitals, and lowercase letters as lowercase.

NOTE:

This name must be the same as the local machine name specified on the Local Machine Administration screen. It cannot start with a number and cannot contain any embedded spaces, for example, denver 1 is not allowed, but denver_1 is allowed.

Installation Information worksheet, or you

3. Enter the IP (Internet Protocol) address in the IP Address: field and press . This is the Lucent I

NTUITY system’s address. Your PC/LAN

system administrator should have this information. If your system is not connected to a LAN, enter any number in the format

w.x.y.z, where each letter is a number, 0 to 255.

NOTE:

Write this IP address down, as you will need it when you administer the ELA trusted server later in this section.

4. Enter the subnet mask in the Subnet Mask: field. The subnet mask is used to determine which bytes of the IP address

specify the network and host addresses. This is an optional field. If there is no entry for this field on your worksheet, leave the field blank. The system will automatically use a default.

NOTE:

The default value may conflict with your LAN configuration. Check with your PC/LAN system administrator to ensure compatibility.

24 Issue 1 July 1997

Administering TCP/IP

5. Enter the de fau l t gat ew a y IP a ddre s s in the Default Gateway IP Address: field.

The default gateway IP address is the address of the gateway router that serves to connect to addresses on other LANs. This field is left blank if the Lucent I the same LAN.

If your system is not connected to a LAN, enter the number you made up for step 3.

NTUITY system will only be communicating with other machines on

6. Press (F8) and then (F2) . The system displays the

CHG-KEYS BRD CNFG

Ethernet Board Configuration window (Figure 3-7).

denver1

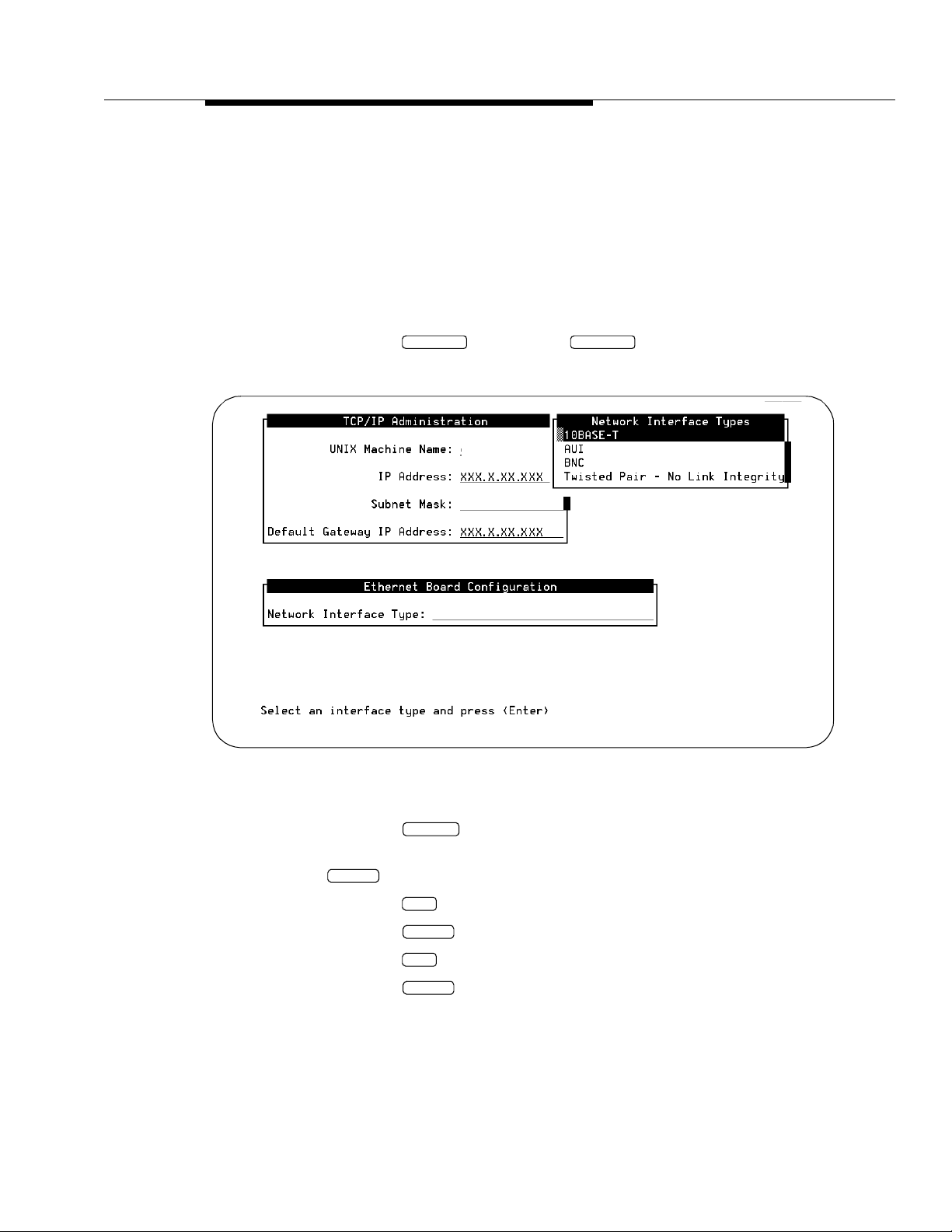

Figure 3-7. Ethern et Bo ar d C onfi gu r at io n Win do w ; Ad m in ist eri ng TCP/IP for

Enhanced-List Application (ELA)

7. Press (F2) to display a list of the network interface types.

CHOICES

8. Highlight the network interface type to be used on this system and press

RETURN

9. Press (F3) to save the Ethernet Board configuration.

10. Press (F6) twice.

11. Press (F3) to save the TCP/IP administration values.

12. Press (F6) repeatedly to return to the main menu.

. Your PC/LAN system administrator should have this information.

SAVE

CANCEL

SAVE

CANCEL

13. Continue with the next procedure.

Issue 1 July 1997

Administering AUDIX for ELA

NOTE:

The changes to your system will not take effect until you reboot your

NTUITY

system. See your book for instructions.

Messaging Solutions Release 4 Administra tion

Setting Up IMAPI Sessions for Trusted Server Access

Whenever a trusted server accesses an AUDIX mailbox, it uses an IMAPI session. IMAPI is the software that allows access to I Depending on what I sessions simultaneously, some of which you need to set for trusted server use.

NOTE:

IMAPI sessions cannot be reserved for use by ELA. The following procedure administers the maximum number of IMAPI sessions you will allow trusted servers to use simultaneously, but does not guarantee that an IMAPI session will be available. You should monitor ELA trusted server activity to see if trusted server requests for IMAPI sessions are frequently being denied because all sessions are in use (see your

Solutions Release 4 Administration

more IMAPI sessions.

NTUITY model you purchased, there can be up to 96 active

NTUITY AUDIX mailboxes.

NTUITY

Messaging

book). If so, you may need to purchase

To set IMAPI sessions for trusted server use:

1. Starting from the main menu, select:

> AUDIX Administration

2. At the enter command: prompt, enter either: Full Command Version Short Command Version

change system-parameters imapi-options ch sy i

The system displays the System-Parameters IMAPI-Options screen (Fi gur e 3-8).

26 Issue 1 July 1997

Setting Up IMAPI Sessions for Trusted Server Access

n n

Figure 3-8. System-Parameters IMAPI-Options Screen, Page 1; Setting IMAPI Sessions

for Truste d Serv er Ac ces s

NOTE:

The following contain instructions for the fields that directly relate to ELA. See your

Messaging Solutions Release 4 Administra tion

book. for

NTUITY

complete field descriptions and to understand their implications.

3. In the Maximum Simultaneous Sessions: field enter 2 more than the current value. (For example, if the field currently reads 30, enter 32.)

This number includes sessions for users who are logged into their mailboxes using Message Manager or an e-mail application supported by

NTUITY AUDIX R4, if applicable, and cannot exceed the value in the

I Total Sessions Purchased field.

4. In the Simultaneous Sessions Available for Trusted Server Access: field enter 2 more than the current value. (For example, if the field currently reads 2, enter 4.)

The maximum value for this field is 4 for MAP/40s and MAP/40 or 6 for MAP/100.

5. Enter 5 in the IMAPI Session Timeout: field.

6. Enter 5 in the Trusted Server Session Timeout: fiel d.

7. Enter y in the Message Transfer? field.

Issue 1 July 1997

Administering AUDIX for ELA

8. Press (F3) to save this information to the system database. The cursor returns to the command line, and the system displays the

message Command Successfully Completed.

9. Continue with the next procedure or enter exit to leave AUDIX Administration.

ENTER

Defining Two ELA T rusted Ser vers

The ELA software runs as two separate trusted servers. For the ELA servers to communicate with the I AUDIX system. The installation worksheets you received from your account represent a t iv e w ill ha v e the exact nam es for the ELA trusted ser v er s. H o we v er , for the purposes of this document, the first ELA trusted server will be referred to

administrative server

as the

server

A request from ELA to send a message to an AUDIX mailbox involves invoking an IMAPI session and locking the ELA mailbox. A server that uses IMAPI to access an AUDIX mailbox is known as a trusted server.

SECURITY ALERT:

The procedures in this section include setting a password the trusted server must use to access AUDIX. There is a secondary layer of security (in addition to a trusted server password) that you can administer. This additional layer of security involves setting a separate IMAPI password that the trusted serv er must use before the syst em will all ow an IMAPI sessi on to be invoked.

NTUITY AUDIX server, they must be defined to the INTUITY

and the second ELA trusted server as the

delivery

While administration of this additional password is optional, it is strongly recommended. Administration

Before You Begin

Before adding the ELA trusted server to the system, you will need the following information:

■ Two unique 1- to 10-printable character server names for the ELA trusted

servers. These server names must be unique, not only from each other, but from all other machines in the network (including fax call delivery machines). Use the li ma and li tr commands to view all machines currently in your network.

Additionally, the server names must comply with the guidelines for naming machines your book for complete information on naming conventions).

28 Issue 1 July 1997

See your

book.

NTUITY

Messaging Solutions Release 4

Messaging Solutions Release 4 Administration

Defining Two ELA Trusted Servers

■ The TCP/IP address for the AUDIX server (see page 3-23).

You will perform this procedure twice, first for the ELA administrative server, and then for the ELA delivery server. To add the ELA trusted servers to the I AUDIX server:

1. Starting from the main menu (Figure 3-1 on page 3-14), select:

> AUDIX Administration

2. At the enter command: prompt, enter either: Full Command Version Short Command Version

add trusted-server ad tr

The system displays the Trusted-Server Profile screen (Figure 3-9).

NTUITY

(To see a list of existing trusted servers enter

drmid10



li tr at the command line.)

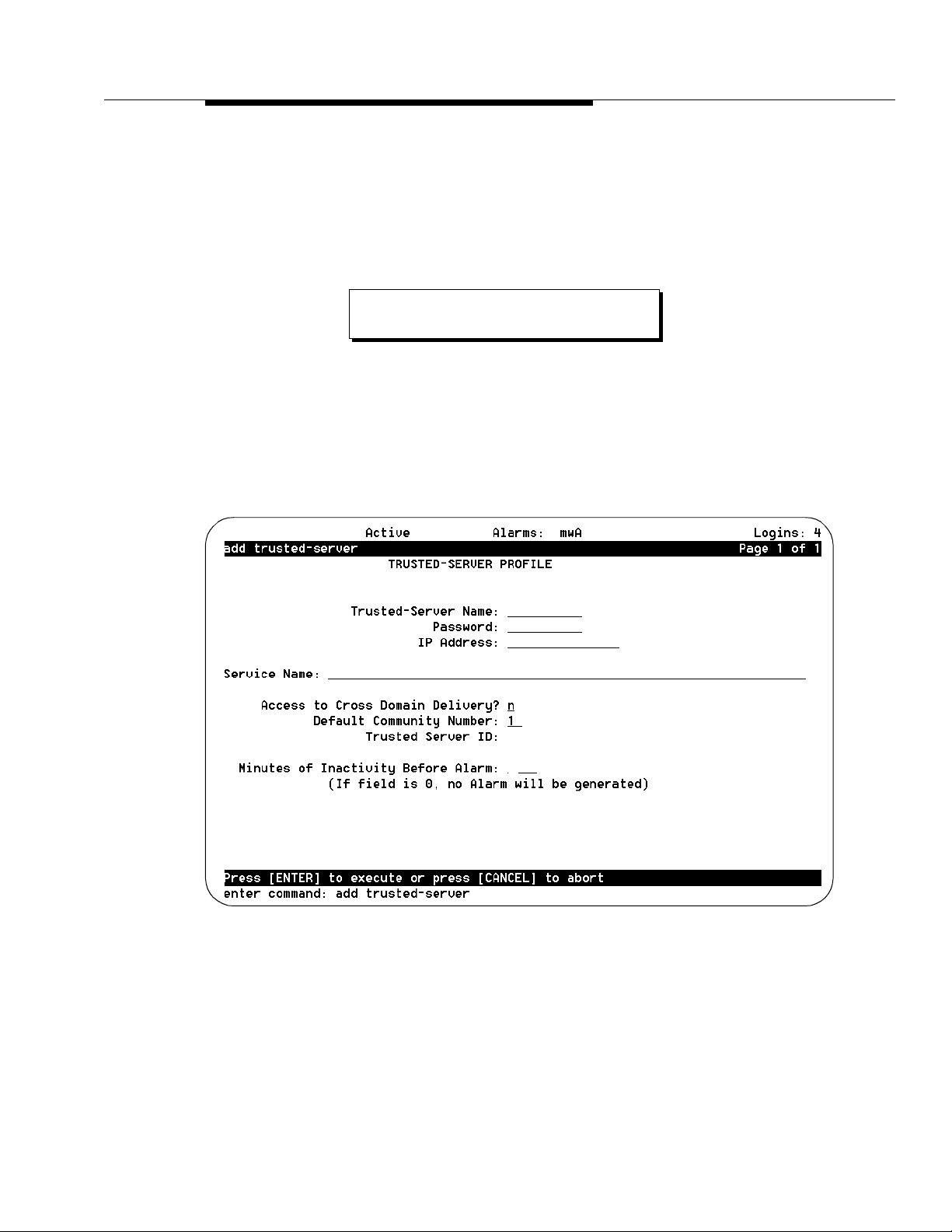

Figure 3-9. Trusted- Server Prof ile Screen; Defin ing a Trusted Serve r to the Lucent

NTUITY System

Issue 1 July 1997

Administering AUDIX for ELA

3. In the Trusted-Server Name: field, enter a name for the first ELA trusted server. (See the Note below for tips on trusted server names.)

This name must be a unique 1- to 10-printable character entry. Additionally, this name cannot start with a number and cannot contain any embedded spaces, for example, denver 1 is not allowed, but denver_1 is allowed. (Use the li tr and li ma commands to view existing names and ensure that you are not using a name that is already assigned.)

NOTE:

You must administer two ELA trusted servers. The installation worksheets should have the ELA trusted server names. If not, we recommend that you use names that are descriptive enough that you can tell them apart, for example, enter the first ELA trusted server name as ela_admin and, when you add the second ELA trusted server, use ela_deliv.

4. Enter a 5- to 10-alphanumeric password that the trusted server must use to log on to the AUDIX server. As you type, your keystrokes display, but will appear as a series of asterisks (

5. Enter the TCP/IP address of this Lucent I each letter is a number, 0 to 255. (See page 3-23 for information how to

determine your system’s IP address.)

) after you save.

NTUITY in the form w.x.y.z, where

6. Enter Enhanced-List Application in the Service Name: field. Type exactly as listed, including the hyphen and capitalization.

Every ELA serv er w ill ha v e the same servi ce na m e . (Fo r exa mple, if you have two ELA servers, they will have separate trusted server names, but the same serv i ce na me.)

7. Enter n in the Cross-Domain Delivery? field.

8. For the administrative ELA trusted server (ela_admin), enter 0 in the Minutes of Inactivity Before Alarm: field.

For the delivery ELA trusted server (ela_deliv), enter 255 in the Minutes of Inactivity Before Alarm: field

9. Press (F3) to save the information in the system database.

ENTER

The cursor returns to the command line, and the system displays the message Command Successfully Completed.

10. You must now add the delivery ELA server. Return to step 2, and repeat this procedure, ensuring that you use a unique name for the delivery trusted server, that is, do not use the name of the ELA trusted server you just added.

30 Issue 1 July 1997

Defining Two ELA Trusted Servers

11. Do you want to administer an IMAPI password?

■ If yes, follow the procedures for setting the IMAPI password in your

NTUITY

Messaging So lut ions Release 4 Administra tio n

proceeding to the next section.

■ If no, go to Chapter 4 to Administer ELA, or enter exit to leave

AUDIX Administration.

book before

Issue 1 July 1997

Administering AUDIX for ELA

32 Issue 1 July 1997

Administer ing ELA for AU DIX

Overview

Now that the AUDIX syst em knows abou t the ELA t rusted server s, you can do the initial administration of the ELA system. To make ELA fully functional, you must:

■ Define the AUDIX server to ELA and administer access

■ Create enhanced lists

■ Add members to enhanced lists

■ Record a name for the enhanced lists (optional)

Defining the AUDIX server and Administering Access

To allow communication between ELA and AUDIX, you must perform some initial ELA administration.

Before You Begin

To administer the ELA server, you will need to know the:

■ The sa or vm password

■ IMAPI password (Optional, see your

4 Administration

■ ELA administrative trusted server name and password (see page 3-28)

■ ELA delivery trusted server name and password (see page 3-28)

book)

NTUITY

Messaging Solutions Release

■ A currently unused extension to use as the shadow mailbox

Issue 1 July 1997 33

Administering ELA for AUDIX

■ Enhanced-list mailbox and shadow mailbox Community IDs (see page

3-20)

■ ELA Class of Service (see page 3-16)

To administer the ELA server:

1. Starting from the main menu (Figure 3-1 on page 3-14), select:

> Enhanced-List Manager

> Set Up Enhanced-List System Data

The Set Up Enhanced-List System Data window displays (Figure 4-1).

Figure 4-1. Set Up Enhanced-List System Data Window

2. Complete the fields in this window using the information in Table 4-1.

34 Issue 1 July 1997

Defining the AUDIX server and Administering Access

Table 4-1. Field Definitions: Set Up Enhanced-List System Data Window

Field Name Description/Pro cedure

System Login: Valid Input sa, vm

System Password: Valid Input 6- to 8-alphanumer ic

characters IMAPI Passwor d : Valid Input

0- to 8-alphanumer ic characters

Enter sa (system administrator login) or vm (voice mail administrator login).

NOTE:

Administrat ors using the vm login cannot administer enhanced lists or ELA tr usted servers. This field allows ELA to log into AUDIX

Enter your sa or vm administration password. The ELA server uses this passwor d to perf orm AUDIX

administration functions, such as adding or deleting an enhanced-list mailbox.

If you decided to require that trusted servers use an IMAPI password, enter the IMAPI password you administered in AUDIX.

Some AUDIX functions do not require passwords.

■ If a password is required, then the one you enter here must

match that password exactly.

■ If a password is not required, you can delete any existi ng

password as follows:

1. Open the Set Up Enhanced-List System Data window.

2. Enter some characters into the

3. Press until all the characters you entered have

4. Press (F3) to save your changes.

Backspace

been deleted.

SAVE

IMAPI Password: field.

Administrative Trusted-Serve r Name:

Valid Input 1- to 10-alphanu meric

characters

Enter the Administrative trusted ser ver name that you administered in AUDIX.

This name should be listed on the Installa ti on Information worksheet. This fi eld is case-sensitive, so capital let ters must be typed as capitals, and lowercase letters as lowercase.

This name cannot start wit h a numbe r and cannot contain any embedded spaces, for example, denver 1 is not allowed, but denver_1 is allowed.

NOTE:

The ELA trusted server must be added in AUDIX before you can complete this procedure

Continued on next page

Issue 1 July 1997

Administering ELA for AUDIX

Table 4-1. Field Definitions: Set Up Enhanced-List System Data Window —

Field Name Description/Procedure

Password: Valid Input 5- to 10-alphanu me ri c

characters Delivery Trusted-Server Name:

Valid Input 1- to 10-alphanu me ri c

characters

Enter the Administrative trusted ser ver password (see page 3-30).

Enter the name of the delivery trusted server that you administered in AUDIX. (This is the second ELA trusted server you added.)

This name should be listed on the worksheet. This fi eld is case-sensitive, so capital letters must be typed as capitals, and lowercase letters as lowercase.

This name cannot start wit h a numbe r and cannot contain any embedded spaces, for example, denver 1 is not allowed, but denver_1 is allowed.

Installa ti on Information

NOTE:

The delivery t rusted server must be added in AUDIX

Password: Valid Input 1- to 15-alphanu me ri c

characters SHADOW MAILBOX

ATTRIBUTES Mailbox Extension:

Valid Input 3- to 10-numeric characters

before you can complete this procedure

Enter the delivery tr usted server password.

Enter the

extension to be use d for the shadow mailbox.

WARNING:

This mailbox must NOT currently exist in AUDIX and must not be translated on the switch.

Continued

SHADOW MAILBOX ATTRIBUTES Community ID:

Valid Input a number from 2 to 15

36 Issue 1 July 1997

When the system validates this form, ELA automat ically creates a shadow mailbox.

Enter the number of the community assigned to the shadow mailbox. This canno t be the same number as the enhanced-l ist mailb o x Community ID .

The shadow mailbox communi ty must be administered to be able to send messages to all other communities, but to not be able to receive message s from any other community. See "Setting Up ELA and Shadow Mailbox Com mu nity IDs" on page 3-19.

Continued on next page

Guidelines for Naming Enhanced Lists

Table 4-1. Field Definitions: Set Up Enhanced-List System Data Window —

Field Name Description/Pro cedure

DEFAULT ENHANCED-LIST MAILBOX ATTRIBUTES Class of Service:

Valid Input a number from 2 to 11 DEFAULT ENHANCED-LIST

MAILBOX ATTRIBUTES Community ID:

Valid Input: a number from 1 to 15

Enter the number of the COS assigned to the enhanced-list mailbox and the shadow mailbox.

ELA uses this COS number when you create n ew enhanced lis ts.

Enter the number of the community assigned to the enhanced-list mailbox. This cannot be the same number as the shadow mailbox Community ID.

The enhanced-list mailbox community must be administered to be able to send messages to all other communities and re ceive messages from the comm unit y(ies ) cont aining use rs wit h access to enhanced lists. See "Setting Up ELA and Shadow Mailbox Community IDs" on page 3-19.

Continued on next page

3. Press (F3) to save the ELA server information to the system

SAVE

database.

The system displays the message “Successfully Updated!” an d asks you to press F1 acknowledge the message.

Continued

4. Press (F1) .

ACKNOWLG MESSAGE

The system redisplays the Enhanced List Manager menu.

5. Continue with the next procedure or press (F6) repeatedly to return to the main menu.

Guideline s fo r Na mi ng Enhanced Lists

We recommend that you use the following guidelines when you name an enhanced list. These guidelines can help prevent users from inadvertently sending their messages to the enhanced list, instead of to a person.

■ Do not use embedded spaces in the name. If you would like a list to be

called Marketing Department, type it

■ Avoid naming an enhanced list after a person. INTUITY Message Manage r

does not differentiate between an enhanced list and a person’s name. Examples of names to avoid:

— Jane_Doe — Doe_Jane

CANCEL

Marketing_Department_LIst.

Issue 1 July 1997

Administering ELA for AUDIX

■ Give enhanced lists names that reflect an organization or a function.

Include the word Examples:

— Marketing_Dept_List — Maxfield_List — Western_District_Salesforce_List

list

■ If you want all enhanced lists to be grouped together, put the word

Examples:

— List_Marketing_Dept — List_Maxfield — List_Western_District_Salesforce

■ Begin the name with the number 1.

Example: 1_McDonnell_List Users can reach the enhanced-list mailbox through Numbers Addressing

as well as Names Addressing. Since there are no letters associated with keypad , users will be less lik e l y to ina dv er t e nt ly select the wrong

address.

Creating Enhance d Lists

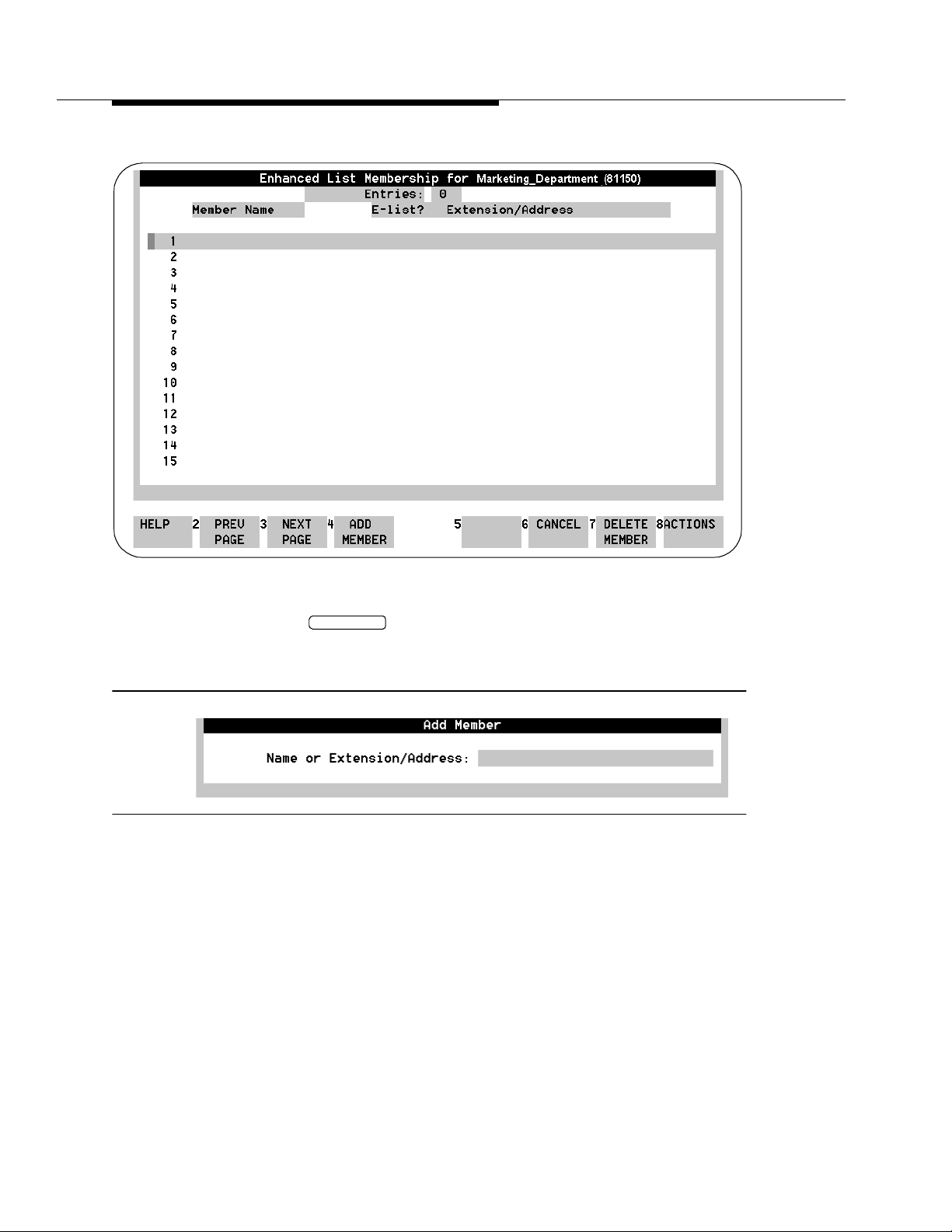

To create an enhanced list and add members:

1. Starting from the main menu (Figure 3-1 on page 3-14), select:

> Enhanced-List Manager

list

first.

> Administer Enhanced-Lists

The system displays the Administer Enhanced-Lists window (Figure 4-2).

38 Issue 1 July 1997

Creating Enhanced Lists

Figure 4-2. Administer Enha nced-Lists Window

2. Press (F4) .

NEW E-LIST

The system displays the New Enhanced-List window (Figure 4-3).

Figure 4-3. New Enhanced-List Window

3. Complete the fields in this window using the information in Table 4-2.

Issue 1 July 1997

Administering ELA for AUDIX

Table 4-2. Field Definitions: New Enhanced List Window

Field Name Description/Procedure

List Name: Valid Input 1- to 29-alphanu me ri c

characters Extension: Valid Input

a 3- to 10-numeric characters

Password: Valid Input 5- to 15-numeric characters

Permit Reply to Send er?: Valid Input y = yes (default)

n = no

Class of Service: Valid Input a number from 2 to 11

Enter a name for the list. Use the "Guideli nes for Naming Enhanced Lists" on page 4-37.

Enter the local extensi on for the list m ailbox. This ext ension must comply with your system dia l plan. ELA cre ates a mailbo x at this extension aut om atically, if one does not already exist.

Be sure that those users administered to have access to the list mailbox kno w this extension.

Enter th e pa ss w o rd fo r th is li s t ma ilb o x. This password is for administrati ve purposes only. Users who

send messages to the ELA mailbox for distri bution do not use a password.

No entry is requi red if you want t o allo w a recipient of a m essage that is sent to an enhanced list to reply to the originator of the message. To reply, both the recipient and the enhanced list must be on an

Enter n (o) if you would not like recipients to reply to an ELA-deliver ed m essage.

No entry is required. The default val ue in this field is the ELA COS number you

administered on the Set Up Enhanced-Lists System Data window (see page 4-35).

INTUITY AUDIX R4.1 or higher.

Community ID: Valid Input a number from 1 to 15

4. Press (F3) to save this information in the system database. The cursor displays in the Administer Enhanced Lists window on the line

that shows the list you just entered. (If you have more than one list, the new list is placed in line alphabetically with the other lists).

40 Issue 1 July 1997

No entry is required. The default val ue in this field is the ELA Community ID you

administered on the Set Up Enhanced-Lists System Data window (see page 4-35).

Continued on next page

SAVE

Creating Enhanced Lists

Guidelines for Selecting Enhanced-List Members

The following subscribers can be members of an enhanced list:

■ Local and remote subscribers. These memb ers can be other enhanced

lists.

■ Call delivery numbers, including fax machines

■ E-mail subscribers who are serviced by other trusted servers, including

Lotus Integrated Messaging

■ AMIS pre-administered subscribers

The following cannot be members of an enhanced list:

■ Public or private subscriber-owned lists

■ AMIS-casual addresses

■ Broadcast mailboxes

Adding Members to Enhanced Lists

To add member names, extensions, and network (e-mail) addresses to a new enhanced list, perform the following tasks. Start on the Administer Enhanced Lists window.

1. Press (F5) .

OPEN E-LIST

The system displays the Enhanced-List Membershi p for Listname (listextension) window (Figure 4-4).

Issue 1 July 1997

Administering ELA for AUDIX

Figu re 4-4. Enhanced List Membership for Listname Window

2. Press (F4) .

ADD MEMBER

The system displays the Add Member data entry window (Figure 4-5).

Figure 4-5. Add Member Window; Adding Members to an Enhanced List

3. Enter one of the following:

■ The user’s name as it appears in the AUDIX system. This name can

be another enhanced list.

■ The user’s extension.

This extension can be the extension for

another enhanced list.

■ The user’s network (e-mail) address in the format dictated by the

e-mail system, for example, username@trusted_servername

42 Issue 1 July 1997

Creating Enhanced Lists

4. Press (F3) to save this information in the system database.

SAVE

NOTE:

The Entries: field at the top of the Administer Enhanced-Lists window increments each time you add a new member to the list.

5. Repeat Step 3 and Step 4 to continue adding member names, extensions, and e-mail addresses.

NOTE:

We recommend that you print a copy of the completed list to your system printer, if available. You can use this printout to search multiple lists for duplicate names or potential loops with a synchronized e-mail system. Additionally, should you inadvertently delete an enhanced list, you would have a source from which to

recreate the enhanced list. (The system’s nightly data backup also saves ELA setup data, list s, a nd memberships.)

6. Review the Administer Enhanced-Lists window. If you want to change or delete any information you just entered:

a. Press .

CANCEL

The Enhanced List Membership window displays. b. Select the member name you want to change or delete. c. Press (F7).

DELETE MEMBER

d. Go to Step 2 to re-enter member information, or go to Step 7 to

continue.

7. When you have finished adding member names to this enhanced list, press (F6) repeatedly to return to the main menu.

CANCEL

Adding/Deleting Members to an Enhanced List

To change data for a member of an enhanced list, such as the name or telephone extension, make the change in AUDIX as described under your

Messaging Solutions Release 4 Administration

reflected in all enhanced lists that contain that member. To add or delete the members of an existing enhanced list:

1. Starting from the main menu (Figure 3-1 on page 3-14), select:

> Enhanced-List Manager

> Administer Enhanced-Lists

NTUITY

book. The change is automatically

Issue 1 July 1997

Administering ELA for AUDIX

OPEN E–LIST

The system displays the Administer Enhanced-Lists window (Figure 4-2). The names of your enhanced lists display in the window (along with other desc r iptive data).

2. Using the arrow keys, select the list you would like to add members to. If the list is not on the visible page, select the list by one of the following means:

■ Press until the desired list displays. Use the arrow keys to

highlight the list you would like to edit.

■ Press (F8) . An Actions menu displays. Select Find

List and press . Enter the name or extension of the list you

would like to add or change and press (F3) . The Administer

ACTIONS

ENTER

FIND

Enhanced-Lists window will re-display with the specified list highlighted.

3. Press (F5) . The system displays the Enhanced-List Membershi p for Listname

(listextension) window (Figure 4-6). The member names of the selected list display in the window. Accompanying each name is an extension number or network (e-mail) address and other descriptive data.

Figure 4-6. Enhanced-List Membership for Listname (listextension) Window

At this point you can:

■ Add new members to the list (Step 4)

■ Find a member of a list (Step 5)

44 Issue 1 July 1997

Creating Enhanced Lists

■ Delete a member from the list (Step 6)

■ Print the list to your system printer (Step 7)

Adding a Member

4. Press (F4) . The system displays the Add Member data entry window (Figure 4-5 on

page 4-42).

Finding a Member

5. To find a member name in a list:

ADD MEMBER

a. Enter one of the following:

■ The user’s name as it appears in the AUDIX system

■ The user’s extension

■ The user’s network (e-mail) address in the format dictated by

the e-mail system, for example , username@trusted-servername

b. Press (F3) to save this information in the system database.

SAVE

c. Continue entering names/extensions/e-mail addresses until all new

members have been added.

d. Press (F6) to return to the Administer Enhanced List

CANCEL

window or proceed to Step 7 to print a copy of the list.

a. Press (F8) .

ACTIONS

An Actions menu displays.

b. Select Find Member and pr es s .

ENTER

c. Enter the name or extension of the person or list you would like to

find and press (F3) .

FIND

The Enhanced-Lists Membership window re-displays with the specified person or list highlighted.

Issue 1 July 1997

Administering ELA for AUDIX

Deleting a Member

6. To delete a member: a. Locate the member name to be deleted. See ‘‘Finding a Member’’

above.

b. Press (F7) .

The system displays the confirmation message:

DELETE MEMBER

CONFIRM: Deleting

c. Enter y

The Enhanced-List Membership window redisplays.

d. Continue with Step 7 to print a copy of the list.

Printing an Enhanced List

7. Press (F8) . An Actions menu displays. a. Select Print List Membership and press .

The system displays the message “Printing List Membership

for

system printer.

b. Press (F1) .

The system redisplays the Actions menu.

c. Proceed to Step 8.

8. When you have finished, press (F6) repeatedly to return to the

main men u .

Name= List Extension/Address=

Listname

Listextension

Enter y to continue, n to abort.

ACTIO NS

Listname (listextension

ACKNOWLG MESSAGE

)” and sends the list to the

CANCEL

ENTER

Deleti ng an Enhanc e d List

To delete an existing enhanced list:

1. From the main menu, select:

> Enhanced-List Manager

> Administer Enhanced-Lists

The system displays the Administer Enhanced-Lists window (Figure 4-2 on pa g e 4-39).

46 Issue 1 July 1997

Deleting an Enhanced List

2. Use the arrow keys to highlight the line that represents the list you want to delete. If the list to be deleted does not appear on the visible page, select the list by one of the following means.

■ Press until the desired list displays. Use the arrow keys to

highlight the list you would like to delete.

■ Select (F8) . An Actions menu displays. Select Find

List and press . Then enter the name or telephone

extension of the list you would like to delete and press (F3) . The Administer Enhanced-Lists window will re-display with the specified list highlighted.

3. Press (F7) . The system displays the Confirm Deletion of Enhanced-List window

(Fi gur e 4-7).

ACTIONS

ENTER

FIND

DELETE E-LIST

Figure 4-7. Confirm Deletion of Enhanced-List Window

4. Do you want to delete the associated AUDIX mailbox?

■ If yes, go to Step 5.

■ If no, enter n. To create a new enhanced list, see page 4-37.

5. Press (F3) to delete the enhanced list.

DELETE

AUDIX deletes the mailbox and all information in it, including any enhanced-list members or messages.

The system displays the message “Deleted

listextension

(

) Enhanced List” and asks you to press F1

Listname

acknowledge the message.

6. Press (F1) .

ACKNOWLG MESSAGE

The system redisplays the Administer Enhanced-Lists window.

7. Press (F6) repeatedly to return to the main menu.

CANCEL

Issue 1 July 1997

Administering ELA for AUDIX

Recording Names for Enhanced Lists

Once you have established an enhanced list, is a good idea to record a name for the list. That way, users will hear a meaningful name for the list when they send a message to an enhance- list mailbox for distribution. However, you need to record the name using an administrative recording session.

To record a name for an enhanced list:

1. From a touch-tone telephone, log in as an administrator.

2. Press .

The system prompts with “To record names, press 4.”

NOTE:

If you get an error message, open the Class of Service screen for the administrator’s extension and change the Announcement Control? field to y. Then start again.

3. Press .

The system prompts with “Please enter the extension and pound sign.”

4. Enter the extension for the enhanced-list mailbox. The system prompts with “When finished recording, press pound to

approve or 1 to edit your message. Record at the tone.”

5. After the tone, speak the name of the list.

6. Press .

7. Repeat Steps 4 through 6 to record additional names.

8. Press *r to return to the main menu.

CAUTION:

You should also record a name for the Shadow mailbox, using the same procedure. Use a name such as, “Mailing list - Do not reply.”

That way, anyone who inadvertently enters the Shadow mailbox extension, will not to try to send a message to it or to reply to a message from it.

Testing INTUITY Enhanced Lists

1. Perform the administration outlined below, including:

■ "Installing the Software " on pa ge 2-9

■ "Activating ELA" on page 3-14

■ "Increasing the Number of Mailing Lists Allowed on the System" on

page 3-15

48 Issue 1 July 1997

Testing INTUITY Enhanced Lists

■ "Defining an ELA Class of Service" on page 3-16

■ "Setting Up ELA and Shadow Mailbox Community IDs" on

page 3-19

■ "Administering TCP/IP" on page 3-23

■ "Setting Up IMAPI Sessions for Trusted Server Access" on

page 3-26

■ "Defining Two ELA Trusted Servers" on page 3-28 (You must have

two available, unused extensions, one for the shadow mailbox and one for the enhanced-list mailbox)

2. Using the procedures in the Installation manual specific to your platform, set up two test users and test telephones.

3. Using the procedures in the Installation manual specific to your platform, use the test-1 telephone to create and send a voice mail message to the ELA mailbox. Record the following or a similar test message and then enter the address for the enhanced-list mailbox:

“This is a test ELA message for I

NTUITY AUDIX.”

4. Hang up the test-1 telephone to disconnect.

5. Verify that the MWIs for the test users’ telephones activate and that the test users received the message. (See the Installation manual specific to your platform.)

6. Delete the test messages. (See the Installation manual specific to your platform.)

7. Delete the test users. (See the Installation manual specific to your platform.)

Issue 1 July 1997

Administering ELA for AUDIX

50 Issue 1 July 1997

Preventative Maintenance and Troubleshooting

Overview

This section describes how to check for system alarms relating to ELA and how to diagnose common application and end-user problems.

Checkin g the Administ ra tor’s Log

The system warns you of potential administrative problems with ELA by displaying a minor and warning message (Alarms: w or Alarms: m) on the AUDIX Administration status line when it logs an administration event. Check the status line (at the top of the AUDIX Administration screen) at least once a day.

Other events besides those generated by ELA create administrative log entries, but you can view ELA-specific events. You should do this on a regular basis to monitor ELA performance. To view ELA-specific log entries:

1. Starting from the main menu, select:

> AUDIX Administration

2. At the enter command: prompt, enter either:

Full Command Version Short Command Version

display administrators-log di ad

The system displays the Administrator’s Log screen.

3. Enter the starting date and time.

4. Enter EL in the Application: field.

Issue 1 July 1997 51

Preventative Maintenance and Troubleshooting

5. Press (F3) to display the alarm entries.

6. Examine the displayed entries. See the

SAVE

Solutions Release 4 Alarm and Log Messages,

events and alarms, and associated repair procedures.

7. Take whatever corrective action is necessary.

8. Enter exit at the enter command: prompt to exit AUDIX administration.

Checking the Del ivery Failure Log

The delivery failure log contains entries for all failed deliveries, along with descriptive data regarding cause for the failure and other information. Check this log to monitor ELA and system performance and if a user complains that messages are not being delivered.

To view the delivery failure log:

1. Starting from the main menu, select:

> Enhanced List Manager

>View E-List Delivery Failure Log

Lucent I

NTUITY

™ Messaging

585-310-566 for a list of

The system displays the Delivery Failure Log window (Figure 5-1).

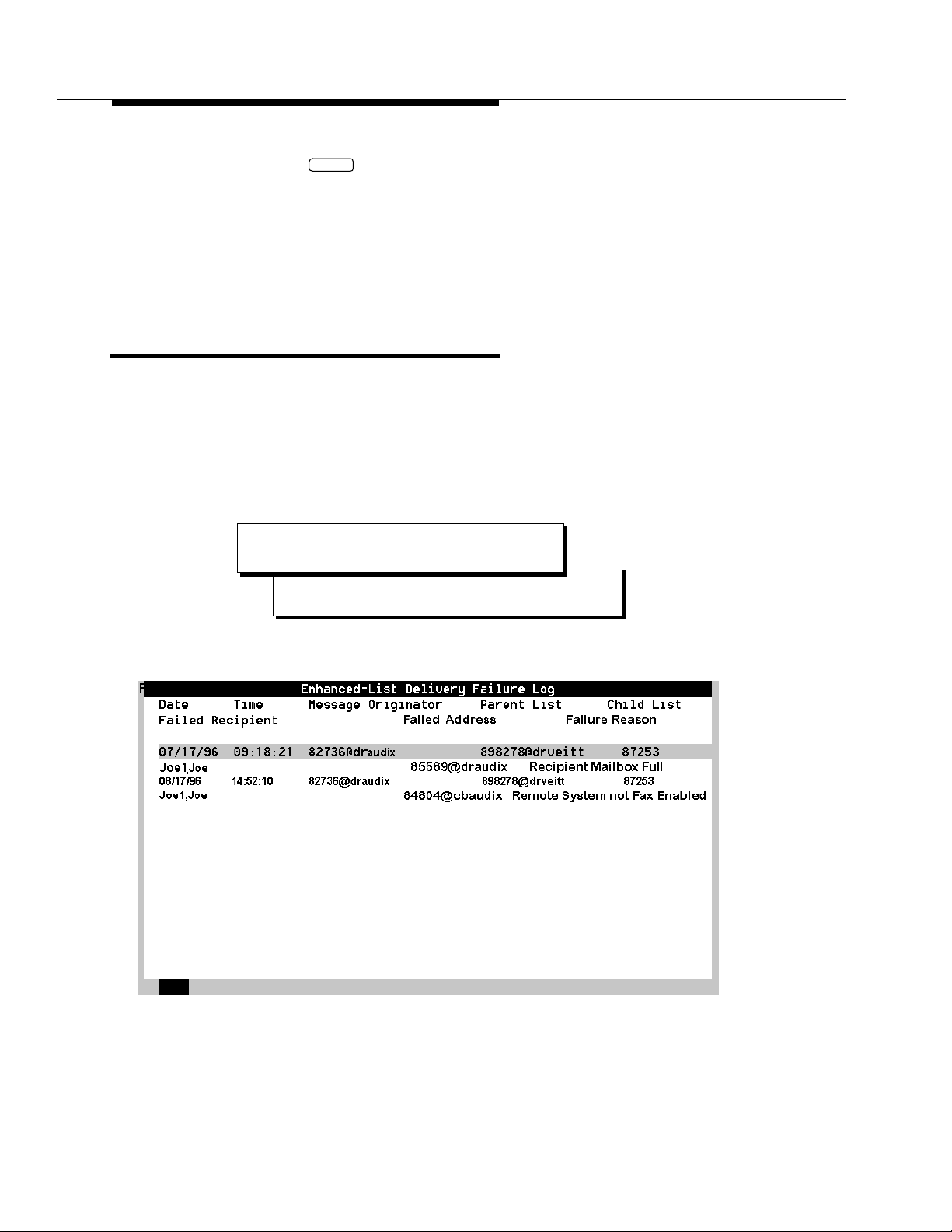

Figure 5-1. Delivery Failure Log Window

Table 5-1 explains the log entries in the report.

52 Issue 1 July 1997

Checking the Delivery Failure Log

Table 5-1. Field Definitions: Enhanced-List Delivery Failure Log

Window

Field Name Description/Procedure

Date The calendar date t he delivery failure occurred Time The time that delive ry f ailure occurred Message Originator The address of the user who sent the message to the enhanced

list for dis tr ib u tio n The address is in the format address@machine where

can be the telephone extension or the network (e -mail) address. The system truncates addresses th at are longer than 21 characters.

Parent List The list (mailbox) to which a user originally addressed the

message

Child List The last list mailbox a message reached prior to message

deliv ery failure

Failed Recipient The name of the recipi ent to whi ch AUDIX att em pted to s end the

ELA message. If no name is administered, this field is blank.

address

Failed Address The address to which AUDIX attempted to send the ELA

message The address is in the format address@machine where

can be the telephone extension or the network (e -mail) address. The system truncates addresses th at are longer than 21 characters.

Failure Reason This is descriptive text indicating the reason the delivery failure

occurred, such as

Transmi ss io n Pr oblems.

Full Mailbox, Un su pp or te d Media, or

address

Continued on next page

2. Press (F8) to send a copy of this report to the system printer, if

you have a printer available.

3. Press (F6) repeatedly to return to the main menu.

Issue 1 July 1997

Preventative Maintenance and Troubleshooting

Delivery Fail u re Cod es

Delivery failure logs contain the following codes:

Table 5-2. Delivery Failure Codes

Reason of Failure Description

Full mailbox The recipient has a full mailbox. Could not locate ELA could not locate the reci pient. Transmission probs Transmission difficulties occurr ed. Permission deni ed The message contains feat ures ELA can not recogniz e.

Permission is denied. Sending restriction Delivery denied because of sending restrictions Login annc exist s The login announcement already exists. AMIS wrong number This is the wrong number for this AMIS analog recipient. Too many AMIS xmits Too many transmission attempts fo r AMIS analog

resulted in a transmit-attempt exception. AMIS unknown return AMIS returned the message with out i dentifying a reason. misc internal fail Miscellaneous i nternal delivery failure AMIS longer > 8 minutes The AMIS message is longer than eight minutes. Unsupported media The message contains media that ELA does not support

for this particular system or subscriber. Pvt to unsup remote Private messages were not delivered to unsupported

remote systems. Message too large The voice component of the message is too large for the

remote system.

Continued on next page

54 Issue 1 July 1997

Troubleshooting ELA

Troubl eshooting ELA

Table 5-3 lists questions users ask the system administrator and suggested remedies to commonly encountered system problem s.

Table 5-3. User Questions or System Functionality Symptoms

Question/Symptom Possibl e Ca u se Answer/Suggested Rem ed y

During an upgrade fail ure, installer/administrator cannot differentiate between AUDIX mailboxes and ELA mailboxes.

“I try to reply to a message I got, but I get a system message that I can’t.”

“I am gettin g m u ltiple copi es of the sa m e message.”

You inadvertently delete the shadow mailbox.

Message was sent to an enhanced list that did not permit “Reply to Sender.”

Community IDs for t he user or recipient incorrectly administered

Recipient is not on a Lucent I

NTUITY system

or is on a pre-R4 system.

Recipient is on more than one list.

Use the li cos command from AUDIX Administration to determine the ELA Class(es) of Service. Use the li su command and note the extension(s) of all mailboxes with the applicable COS.

■ Administer the enhanced list to allow

Reply to Sender, if appropriate.

■ Educate your users about ELA

functional it y.

Administer Communit y IDs for user or recipient, if appropriate.

Upgrade system to Lucent I

NTUITY R4.2_4

or higher.

■ ELA does not check nested l ists to see

if the same name appea rs in more t han one place. Print out a copy of your enhanced lists and remove duplicates , if possible.

■ Educate your users about ELA

functional it y.

ELA raises a warning alarm. Any messages waiting in the delivery “queue” is lost.

Re-enter the shadow extension on the Set Up Enhanced-List System Data window and then press (F3)

SAVE

Continued on next page

Issue 1 July 1997

Preventative Maintenance and Troubleshooting

Table 5-3. User Questions or System Functionality Symptoms —

Continued

Question/Symptom Possibl e Cause Answer/Suggeste d Re m ed y

Recipient claims s/he did not get an ELA message.

■ Mailing list not

current

■ Subscriber’s

mailbox not administered correctly

■ System delivery

failure

Check the mailing list for the recipient’s name. Administer, if necessary.

■ Check the Subscriber screen for the

affected user. Look at the Mai lbox siz e. Put user i n a COS with a l arger mailbo x, if necessary.

■ Check the List Measurements

Subscriber Day scr een for the affected user. Look at the available mailbox space. Advise the user to del ete unneeded messages and gre etings, if appropriate.

■ Check that Community ID is correct.

System delivery failures can arise from many sources.

■ Check the Delivery Failure Log (see

"Checking the Delivery Failure Log" on page 5-52).

■ Check the Administrator’s Log for

related alarms . If an alarm warrants further action, see

Lucent I Messaging Solutions Release 4 Alarm and Log Messages,

■ Verify network capabilities with your

585-310-566.

PC/LAN administrator.

NTUITY

An enhanced-lis t mem ber keeps disappeari ng from Enhanced Lists.

“I can’t send a message t o an enhanced-list mailbox.”

56 Issue 1 July 1997

■ Sending

Restrictions not consistent ac ross machines

System feature to delete nonadministered re mo te users is active.

User belongs to a community with sending restrictions administered.

Administer Community IDs for all Lucent I

NTUITY machines, if approp riate.

■ From AUDIX Administration, enter

ch sys fe. Access page 4 and change the

Even if on Mailing List?

field to n.

■ Re-administer the remote user.

Consider whether to change this user’s community ID to allow her/him to use Enhanced Lists.

Continued on next page

Troubleshooting ELA

Table 5-3. User Questions or System Functionality Symptoms —

Continued

Question/Symptom Possibl e Ca u se A nswer/Sugg e ste d R em ed y

“Everyone else seemed to have received their enhanced-list message. I got mine much later.”

You inadvertently delete an Enhanced List.

User mailbox full Check the List Measurements Subscriber

Day screen for the affected user. Look at the available mailbox space. Advise the user to delete unneeded messages and greetings, if a ppropri ate or c onsider putt ing the user in a COS with a larger mailbox.

Enhanced list was very large.

Networking problem s between originator system and recipient system.

Remember that ELA ‘thr ottles’ traffic during periods of heavy user traffic. Inform user that it message d elivery to a large recipient population does ta ke ti m e.

Perform networking troubleshooting. See

Lucent I Networking,

information. There are 2 ways to restore an Enhanced

List:

NTUITY

Messaging Solutions Digital

585-310-567 for more

■ Re-enter the names on the list.

■ Restore the data from the previous

night’s tape backup.

WARNING:

There is no way to selectively restore only enhanced list s fr om the backup tape. Your syst em will lose all incremental administration data fr om the point of backup. Use thi s me thod only if you are sure the busi ness can tolerate the lo ss of recent administrat ion.

Continued on next page

Issue 1 July 1997

Preventative Maintenance and Troubleshooting

58 Issue 1 July 1997

Alarms

Overview

The following alarms are associated with the Enhanced-List Application.

DELIVTS Resourc e Ty pe

Alarm Code: 1

Event ID: ELA-delivts01

Alarm Level: Warning Description: Trusted-server data lost, re-enter or restore.

Repair Action:

There are two recovery methods:

■ Access the Set Up Enhanced-List System Data window and re-enter all

field information.

■ Restore data from the most recent backup of system data. See Chapter 3,

“Common System Procedures,” in your maintenance book for instructions about restoring data. If you would prefer to have assistance with this restore, contact your remote maintenance center.

Issue 1 July 1997 59

Alarms

Alarm Code: 2

Event ID: ELA-delivts02

Alarm Level: Warning Description: Trusted-server data partially lost, re-enter or restore.

Repair Action:

There are two recovery methods:

■ Access the Set Up Enhanced-List System Data window and re-enter all

■ Restore data from the most recent backup of system data. See Chapter 3,

Alarm Code: 3

field information.

“Common System Procedures,” in your maintenance book for instructions about restoring data. If you would prefer to have assistance with this restore, contact your remote maintenance center.

Event ID: ELA-delivts03

Alarm Level: Warning Description: Trusted-server data corrupt, re-enter or restore.

Repair Action:

There are two recovery methods:

■ Access the Set Up Enhanced-List System Data window and re-enter all

■ Restore data from the most recent backup of system data. See Chapter 3,

Alarm Code: 4

Event ID: ELA-delivts04

Alarm Level: Warning Description: Trusted-server data no longer valid.

field information.

“Common System Procedures,” in your maintenance book for instructions about restoring data. If you would prefer to have assistance with this restore, contact your remote maintenance center.

Repair Action:

1. In AUDIX, enter ch tr

60 Issue 1 July 1997

administrative_trusted_server_name

REGISTRY Resource Type

2. Verify/administer the screen information, as required.

3. Repeat for the delivery trusted server.

4. Enter ch imapi and verify/administer as required.

5. When complete, enter the correct information in the Set Up Enhanced-List System Data window.

REGISTRY Resource Type

Alarm Code: 1

Event ID: ELA-registry01

Alarm Level: Warning Description: E-list registry lost, re-enter or restore. The ELA software has

detected that registry database has disappeared.

Repair Action:

1. Re-administer the registry:

2. If the alarm persists, restore system data from the nightly backup. See

Alarm Code: 2

Event ID: ELA-registry02

Alarm Level: Minor Description: Unable to write updated E-list registry.

Repair Action:

a. Go to the Administer Enhanced-Lists window. b. Use (F4) NEW E-LIST to re-enter the name of each Enhanced List,

one at a time. (The individual members do not need to be re-entered.)

Lucent I

See

Administration,

Chapter 3, “Common System Procedures,” in your maintenanc e book for instructions about restoring data. If you would prefer to have assistance with this restore, contact your remote maintenance center.

NTUITY

™ Messaging So lutions R ele ase 4

585-310-564 for more detailed procedures.

This alarm requires intervention from the remote maintenance center.

Issue 1 July 1997

Alarms

SHADOW Resource Type

Alarm Code: 1

Event ID: ELA-shadow01

Alarm Level: Warning Description: Shadow mailbox data lost, re-enter or restore.

Repair Action:

There are two recovery methods:

■ Access the Set Up Enhanced-List System Data window and re-enter the

shadow mailbox extension and community ID. If a shadow mailbox exists at the extension ent e red, the system displays a system prompt to that effect. If a shadow mailbox does not exist at the extension entered, a new mailbox will be created.

■ Restore data from the most recent backup of system data. See Chapter 3,

Alarm Code: 2

Event ID: ELA-shadow02

Alarm Level: Warning Description: Shadow mailbox corrupt, re-enter or restore.

Repair Action:

There are two recovery methods:

■ Access the Set Up Enhanced-List System Data window and re-enter the

■ Restore data from the most recent backup of system data. See Chapter 3,

“Common System Procedures,” in your maintenance book for instructions about restoring data. If you would prefer to have assistance with this restore, contact your remote maintenance center.

62 Issue 1 July 1997

SHADOW Resource Type

Alarm Code: 3

Event ID: ELA-shadow03

Alarm Level: Warning Description: Shadow mailbox data corrupt, re-enter or restore.

Repair Action:

There are two recovery methods:

■ Access the Set Up Enhanced-List System Data window and re-enter the

shadow mailbox extension and community ID. If a shadow mailbox exists at the extension entered, the system displays a system prompt to that effect. If a shadow mailbox does not exist at the extension entered, a new mailbox will be created.

■ Restore data from the most recent backup of system data. See Chapter 3,

“Common System Procedures,” in your maintenance book for instructions about restoring data. If you would prefer to have assistance with this restore, contact your remote maintenance center.

Alarm Code: 4

Event ID: ELA-shadow04

Alarm Level: Warning Description: Shadow mailbox does not allow trusted-server access.

Repair Action:

1. In AUDIX, enter ch cos

2. Verify that the Trusted Server Access? field is set to y

3. Enter di sub

4. Verify the Class of Service field is the appropriate cos. If it is, call

Alarm Code: 5

Event ID: ELA-shadow05

Alarm Level: Warning Description: Shadow mailbox does not exist at expected extension.

ELA_Class_of_Service_Name/Number

shadow_mailbox_extension

1-800-56 AUDIX for help.

Issue 1 July 1997

Alarms

Repair Action:

Access the Set Up Enhanced-List System Data window and re-enter the shadow mailbox extension and community ID. If a shadow mailbox exists at the extension entered, t h e s ystem displays a system prompt to th a t effect. If a shadow mailbox does not exist at the extension entered, a new mailbox will be created.

Alarm Code: 6

Event ID: ELA-shadow06

Alarm Level: Warning Description: The shadow mailbox is full of messages for recipients who

NOTE:

If you wish to move the shadow mailbox to a new extension, only use the Set Up Enhanced-List System Data window.

have full mailboxes. ELA cannot deliver these messages until the recipients make space in their mailboxes. Also, AUDIX can take up to two weeks to determine that a message is undeliverable and to generate a log entry for a delivery failure.

Repair Action:

You can correct single instances of this problem by deleting messages from the shadow mailbox. To access the shadow mailbox:

1. In AUDIX Administration enter ch su mailbox.

2. At the Subscriber screen, enter a new password in the Password: field. Remember this password for step 5 below.

3. Press (F3) to save the password.

4. At the enter command: enter exit

5. Use Message Manager to log into the shadow mailbox.

6. Open the Outgoing folder and delete messages that have been rescheduled for delivery to full mailboxes. Keep deleting messages until the shadow mailbox is less than 50 percent full.

We recommend that you make a list of the recipients whose mailboxes are full, so you can ask them to delete at least half of their messages. (You cannot use AUDIX to make this request, because it cannot deliver messages until the mailboxes have more room.)

7. Log out of the shadow mailbox.

ENTER

extension

for the enhanced-list

64 Issue 1 July 1997

EL — Enhanced-List Application

If you regularly get this alarm, the following questions can help you evaluate how your business uses ELA:

■ Do your subscribers use large enhanced lists too frequently? Are they

being used for trivial or non-business purposes?

■ Are subscriber mailboxes too small? Should you increase mailbox space

or purchase more hours for storage?

■ Is the ELA class-of-service correct? (Check the value in the Mailbox

Size (seconds), Maximum: field on the Class of Service screen, Page

2. Is the ELA class-of-service assigned to the shadow mailbox?

■ Are the intervals for rescheduling delivery on the System Parameters

Features screen appropriate?

EL — Enhanced-List Application

The following administrator’s log messages and repair actions apply to the Enhanced-List Application.

Event ID: ELA-badreca01 through ELA-badreca12

Description: Bad record deleted from E-List registry. Check for missing

lists. (exte ns ion)

ELA detected a corrupt record and took the following action:

■ If the message displays an extension, ELA deleted its

record.

■ If the message does not display an extension, ELA could not

determine the extension of the corrupt record and deletes the record.

Repair Procedure:

There are two recovery methods:

■ Go to the Administer Enhanced-Lists window and note any lists that may

be missing. Use (F4) NEW E-LIST to re-enter each missing Enhanced List, one at a

time. If ELA reports that an AUDIX mailbox already exists for a given extension, and the reported data match those of the missing list, answer ‘y’ to confirm the change of the existing mailbox into an enhanced-list mailbox.

■ Restore data from the most recent backup of system data. See Chapter 3,

“Common System Procedures,” in your maintenance book for instructions about restoring data. If you would prefer to have assistance with this restore, contact your remote maintenance center.

Issue 1 July 1997

Alarms

Event ID: ELA-lostlock01 through ELA-lostlock10

Description: Messages to an enhanced list could not be delivered

because someone was logged into the shadow mailbox.

Repair Procedure:

No one should ever be logged into the shadow mailbox. However. if someone is, change the password for the shadow mailbox as follows:

1. In AUDIX Administration enter ch su mailbox.

2. At the Subscriber screen, enter a new password in the Password: field.

3. Press (F3) to save the password.

ENTER

Event ID: ELA-no_members

Description: ELA received a message for delivery to an Enhanced List,

Repair Procedure:

Perhaps you forgot to add the members to the Enhanced List, or perhaps the enhanced list is no longer necessary. Go to the Administer Enhanced-Lists window and do one of the following:

■ Highlight the list and use (F5) OPEN E-LIST to enter members into

the Enhanced List.

■ Use (F7) DELETE E-LIST to delete the Enhanced Lists.

See

Lucent I

585-310-564 for more detailed procedures.

extension

for the enhanced-list

but the enhanced list did not contain any members. In such a case, ELA will delete the message.

NTUITY

Messaging Solutions Release 4 Administrati on,

Event ID: ELA-nestvioltn

Description: An enhanced list contains more than 20 nested lists.

66 Issue 1 July 1997

For example, enhanced list 1 contains enhanced list 2 as one of its members. Inside enhanced list 2 is Enhanced List 3. Enhanced list 3 contains yet another enhanced list as one of its members, and so on.

EL — Enhanced-List Application

Repair Procedure:

Evaluate list membership hierarchy and delete unnecessary nes ting so that ELA can handle delivery of the message. See

Release 4 Administration,

Event ID: ELA -l oop v ioltn

Description: There are two enhanced lists that refer to each other. For

Repair Procedure:

Go to the Administer Enhanced-Lists window.

1. Use (F5) OPEN E-LIST to open one of the indicated Enhanced Lists.

2. Search for the extension of the other Enhanced List.

Lucent I

585-310-564 for procedures.

example, enhanced list 1 contains enhanced list 2 as a member, and enhanced list 2 contains enhanced list 1 as a member.

NTUITY

Messaging Solutions

3. Use (F7) DELETE E-LIST to delete the Enhanced List.

Lucent I

See 585-310-564 for more detailed procedures.

Event ID: ELA-mboxlock01

Description: An enhanced-list mailbox does not have trusted server

Repair Procedure:

1. In AUDIX, enter ch cos

2. Verify that the Trusted Server Access? field is set to y

3. Enter ch su

4. Verify the Class of Service field is the appropriate cos. See

Lucent I

585-310-564 for more detailed procedures.

Event ID: ELA-chkrestrct

Description: A message was found in the shadow mailbox.

NTUITY

Messaging Solutions Release 4 Administrati on,

access.

ELA_Class_of_Service_Nam e/N umb er

Enhanced_List_mail box_extension

NTUITY

Messaging Solutions Release 4 Administrati on,

Repair Procedure:

1. In AUDIX, enter ch sys se

Issue 1 July 1997

Alarms

2. Verify that the shadow mailbox belongs to a community that cannot receive messages.

NOTE:

The sending restrictions must be identical on all machines in the

NTUITY AUDIX network. Check the sending restrictions on all

I machines.

Lucent I

See 585-310-564 for more detailed procedures.

Event ID: ELA-shadow07

Description: Shadow mailbox space gridlock caused no ELA service for

Repair Procedure:

See the procedure for SHADOW Resource Type, "Alarm Code: 6" on page 6-64.

Event ID: ELA-delivts05

Description:

The trusted server that delivers ELA messages cannot access AUDIX. The message shows the amount of elapsed time (in 30 minute increments) since ELA has stopped providing service.

When the time elapsed exceeds the value in the Minutes of Inactivity Before Alarm: field on the Trusted-Server Profile screen, AUDIX generates a minor alarm (event ID: SERVER0900, resource type SERVER, alarm code 900.)

NTUITY

Messaging Solutions Release 4 Administrati on,

longer than number hours.

Number

minutes with session resources unavailable for

delivery trusted server.

Repair Procedure:

1. Open the System Parameters IMAPI-Options s creen.

2. Is the value in the Simultaneous Sessions Available for Trusted Server Access: field at least 2?

■ If yes, go to step 3.

■ If no, change the value.

3. Determine if the AUDIX server is so overloaded that it has no resources available for ELA. Some questions to ask are:

■ How many trusted servers are on the network?

■ What are their activity cycles?

68 Issue 1 July 1997

Index

administering, 34

AUDIX

, 3

COS

, 16

LAN

, 23

TCP/IP

, 23

administrator’s log alarms

, 51

ELA-badreca01 through ELA-badreca12 ELA-chkrestrct ELA-delivts01 ELA-delivts02 ELA-delivts03 ELA-delivts04 ELA-delivts05 ELA-loopvioltn ELA-lostlock01 through ELA-lostlock10 ELA-mboxlock01 ELA-nestvioltn ELA-no_members ELA-registry01 ELA-registry02 ELA-shadow01 ELA-shadow02 ELA-shadow03 ELA-shadow04 ELA-shadow06

ELA-shadow07 AMIS users AUDIX

administering

administering system limits

mailboxes

mailing lists

server name

, 51

, 67 , 59 , 60 , 60 , 60 , 68

, 67

, 66

, 66 , 61 , 61

, 62 , 62 , 63 , 63 , 64 , 68

, 2

, 3

, 15

, 3, 28

, 2

, 24

, 65

, 66

ELA

activating administering COS alarms characteris tics community IDs delivery failure codes domains enhanced lists hardware requirements installation LAN administration logs mailboxes mailing lists passwords planning for ports sending restrictions shadow mailbox software requi rements traffic troubleshoot ing trusted servers virus detection

ELA server

administering e-mail enhanced lists

deleting

members

naming

testing

, 14

, 16

, 51, 59

, 2

, 19, 21, 36, 37, 40

, 3

, 38

, 9

, 5, 23

, 51

, 6, 7, 17

, 19

, 36

, 3

, 6

, 19

, 8, 19, 22, 36

, 5

, 55

, 3, 8, 23, 26, 28, 35

, 8

, 34

, 6

, 38

, 46

, 41

, 38

, 48

hardware requir em ents, 5

, 54

, 5

community IDs, 19, 21, 36, 37, 40 COS, administering

, 16, 37, 40

deliv e ry failure,52

codes

, 54

domains

, 3

IMAPI

passwords

sessions installation

rebooting the system IP addresses

, 7, 28, 35

, 3, 8, 26

, 9

, 23

, 11

Issue 1 July 1997 69

Index

LAN administration, 5, 23 logs

, 51

delive ry fa ilu r e

, 52

mailboxes, 6, 7, 17, 28 mailing lis t s

AUDIX

messaging traf fic

, 19

, 2

, 5

passwords, 6, 28, 36

IMAPI

, 35

list mailbox system

ports

, 6

, 40

, 35

trusted servers

defini tio n IMAPI sessions IP addresses names security

, 28

, 3

, 35

, 6, 8

virus detect ion, 8 virus prevent ion

, 26

, 23

, 6

rebooting the system, 11

security

e-mail

, 6

external access passwords trusted servers

virus prevention service degradation, ports and shadow mailbox software requirements system limits, AUDIX system parameters system passwords

, 6

, 8, 19, 22, 36

, 5

, 15

, 1

, 35

TCP/IP, admini stering, 23 testing enhanced lists troubleshooting

, 48

, 55

, 6

70 Issue 1 July 1997

Lucent Technologies INTUITY Messaging Solutions User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

About This Book

Purpose

Intended Audiences

Trademarks and Service Marks

Related Resources

How to Comment on This Book

Enhanced-List Application

Overview

Audience

What You Should Know

Enhanced-List Application

What ELA Can Do for You

ELA Adminis t r ation

Basic Concepts

Planning with Professional Services

Things to Con s id er

ELA Message Delivery

Hardware/Software Requirements

LAN Impact

Remote Message Impact

Port Usage Impact

Security

External Security

Internal Security

IMAPI Session Requirements

Shadow Mailbox

Installation

Overview

Insta lling th e So ftware

Rebooting the System

Administering AUDIX for ELA

Overview

Activatin g ELA

Verifying that ELA is Enabled

Defining an ELA C la s s of Servic e

Setting Up ELA and Shadow Mailbox Community IDs

Things to Con s id er

Before You Begin

ELA Comm u n ity ID

Shadow Mailbox Community ID

Administering TCP/IP

Before You Begin

Defining Two ELA T rusted Ser vers

Before You Begin

Administer ing ELA for AU DIX

Overview

Before You Begin

Guidelines for Naming Enhanced Lists

Creating Enhance d Lists

Guidelines for Selecting Enhanced-List Members

Adding Members to Enhanced Lists

Adding/Deleting Members to an Enhanced List

Adding a Member

Finding a Member

Deleting a Member

Printing an Enhanced List

Deleti ng an Enhanc e d List

Recording Names for Enhanced Lists

Testing INTUITY Enhanced Lists

Preventative Maintenance and Troubleshooting

Overview

Checkin g the Administ ra tor’s Log

Checking the Del ivery Failure Log

Delivery Fail u re Cod es

Troubleshooting ELA

Alarms

Overview

DELIVTS Resourc e Ty pe

Alarm Code: 1

Event ID: ELA-delivts01

Alarm Code: 2

Event ID: ELA-delivts02

Alarm Code: 3

Event ID: ELA-delivts03

Alarm Code: 4

Event ID: ELA-delivts04
