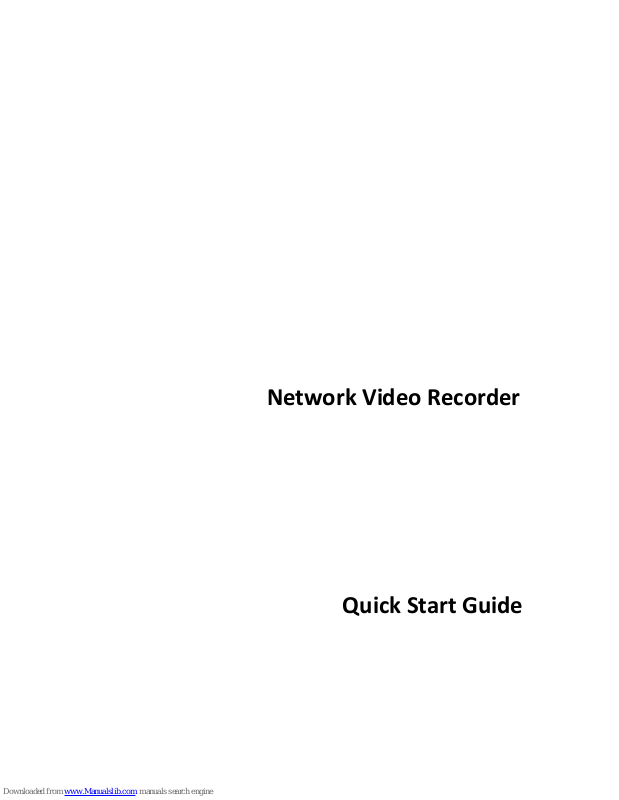

Page 1
Network Video Recorder
Quick Start Guide
Page 2
1
TABLE OF CONTENTS
Chapter1 Panels Description ....................................................................................................................... 7
1.1 Front Panel ...................................................................................................................................... 7

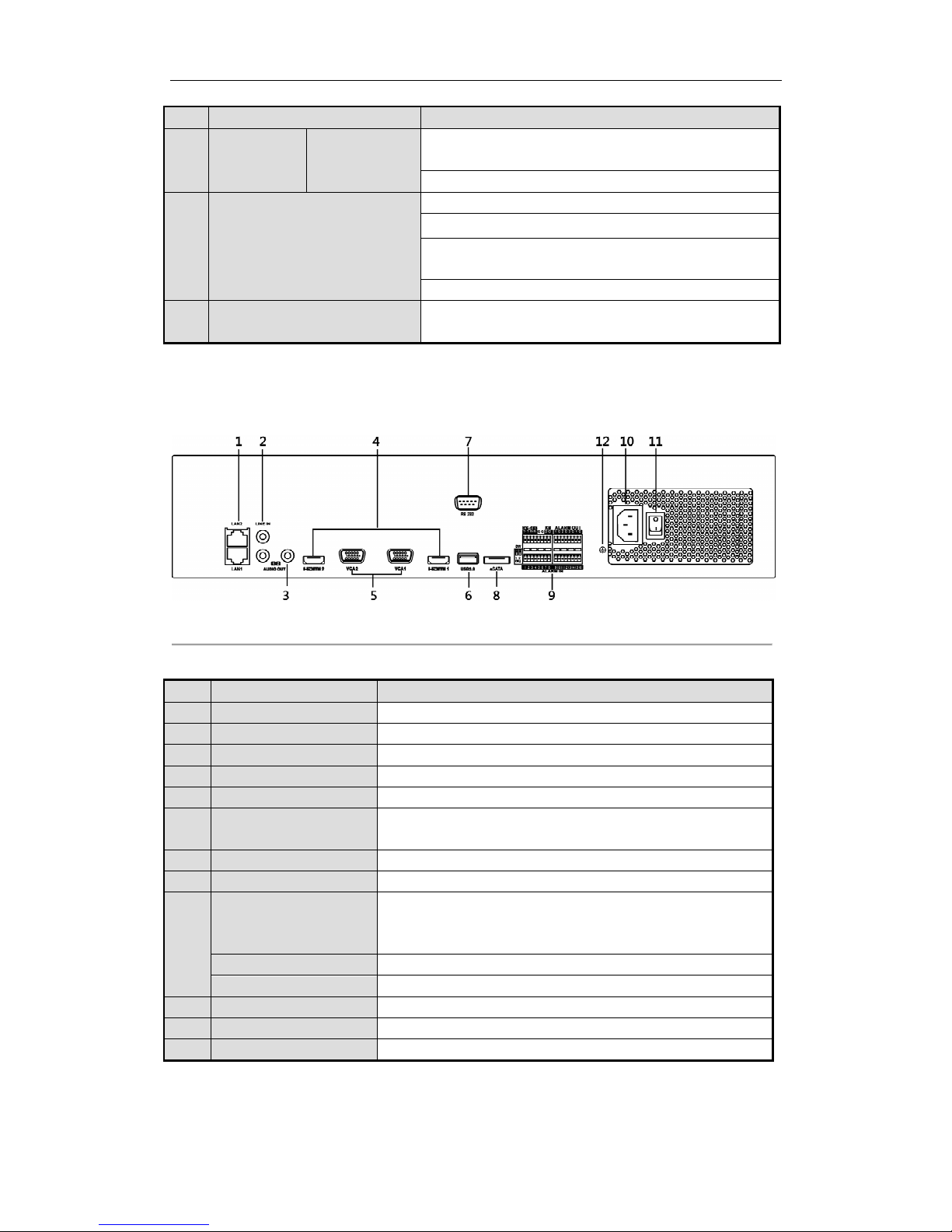

1.2 Rear Panel........................................................................................................................................ 9
Chapter 2Installation and Connections ..................................................................................................... 10
2.1 NVR Installation ............................................................................................................................. 10

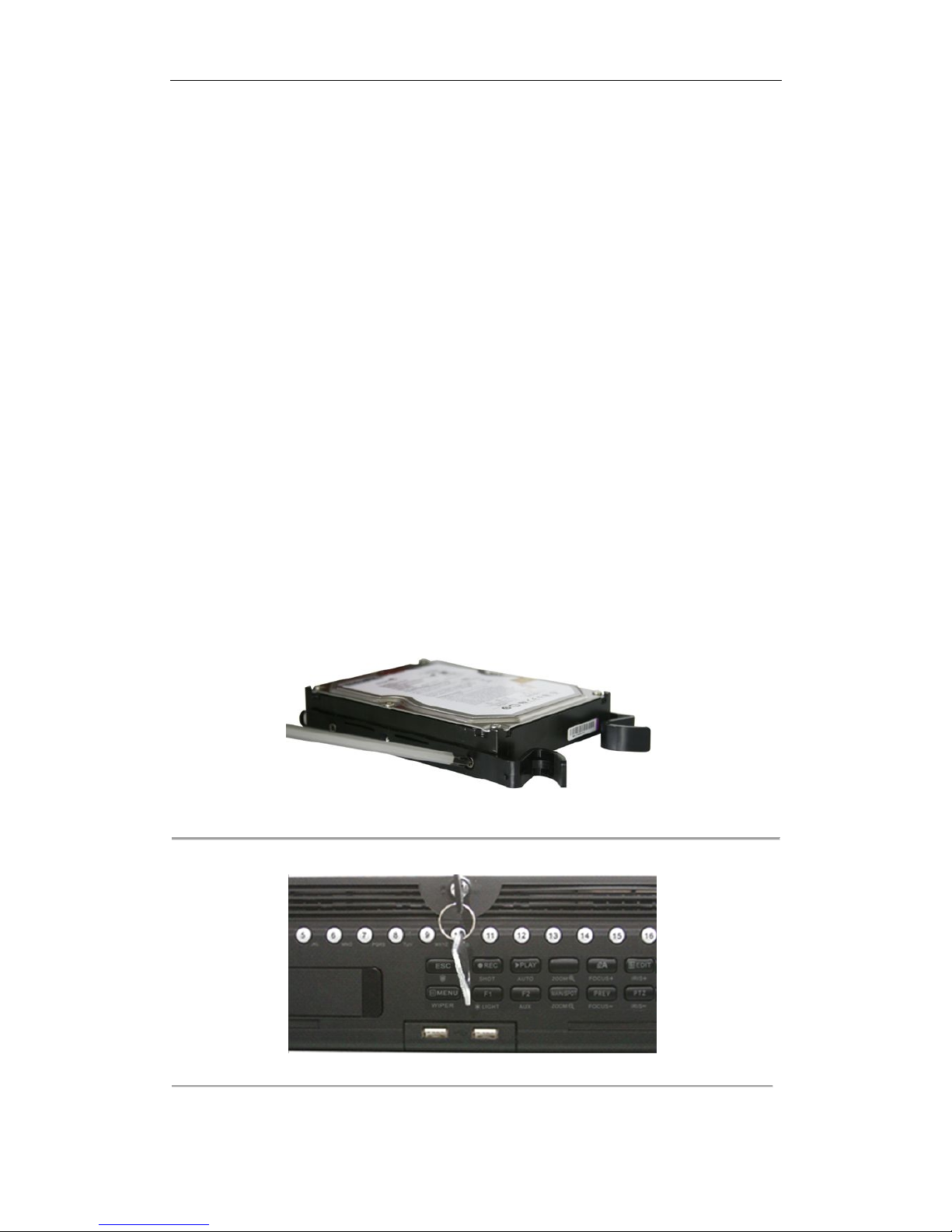

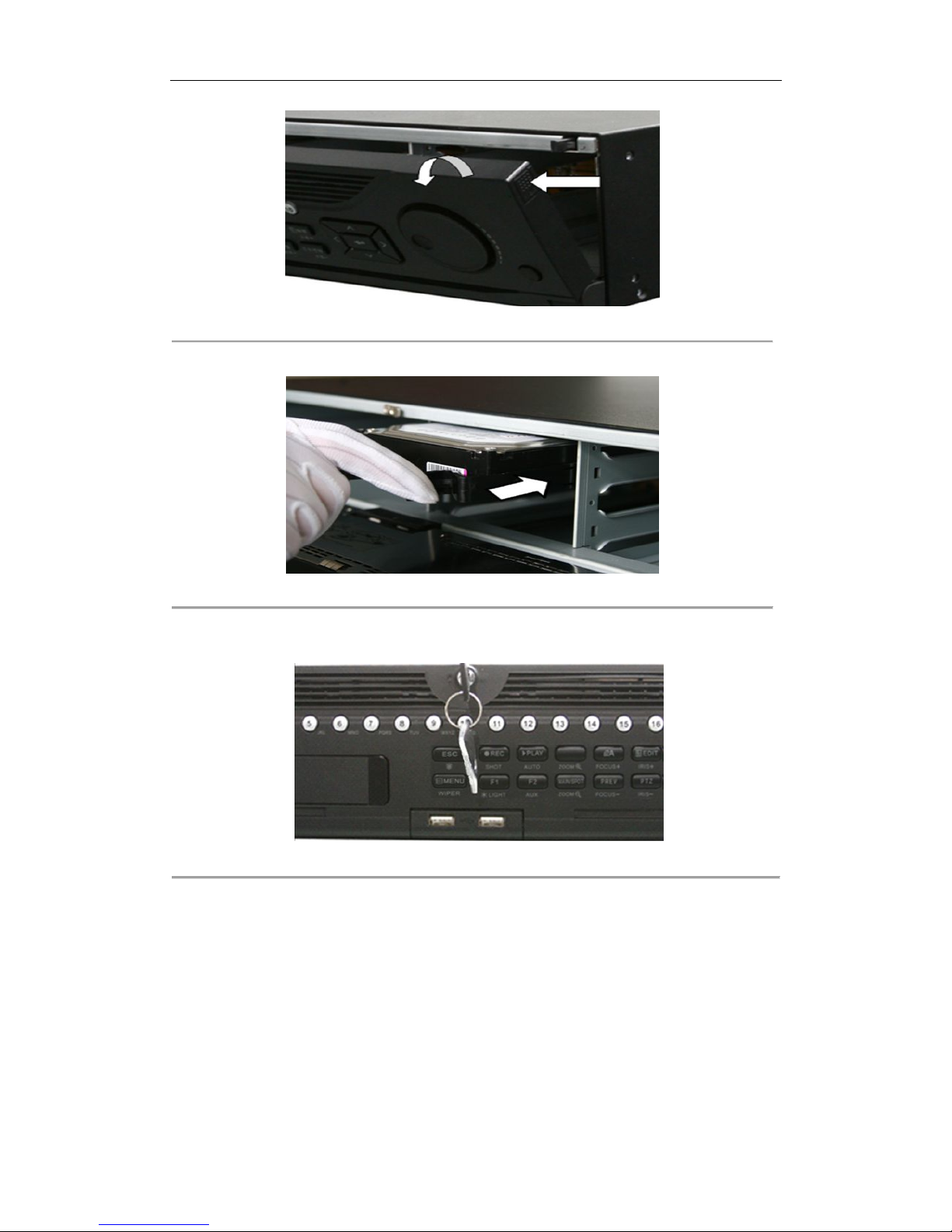

2.2 Hard Disk Installation .................................................................................................................... 10
2.3 Connections ................................................................................................................................... 12

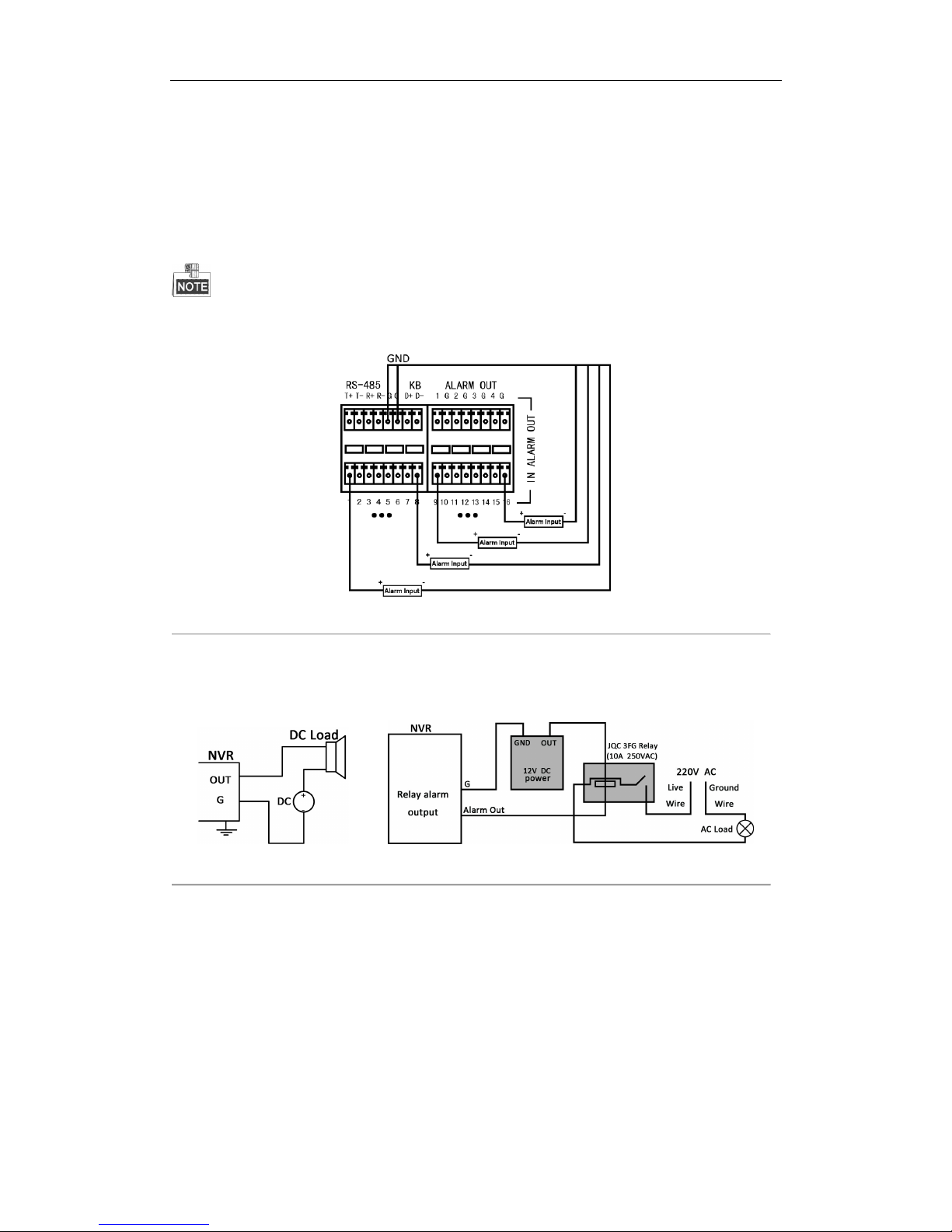

2.3.1 Alarm Input Wiring ........................................................................................................... 12
2.3.2 Alarm Output Wiring ........................................................................................................ 12
2.3.3 Using Alarm Connectors ................................................................................................... 12

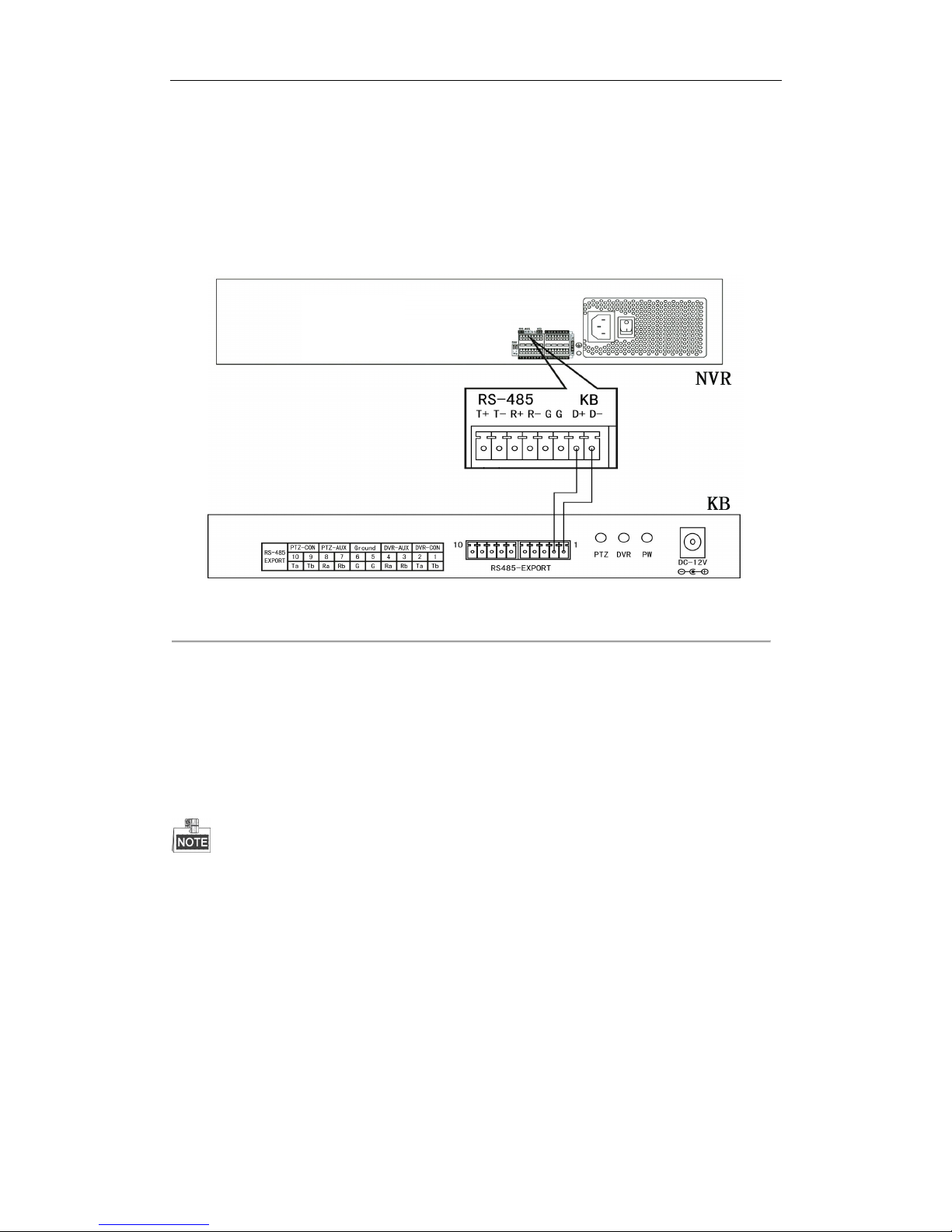

2.3.4 Controller Connection ...................................................................................................... 13
2.4 HDD Storage Calculation Chart ...................................................................................................... 14
Chapter 3Menu Operation ........................................................................................................................ 15

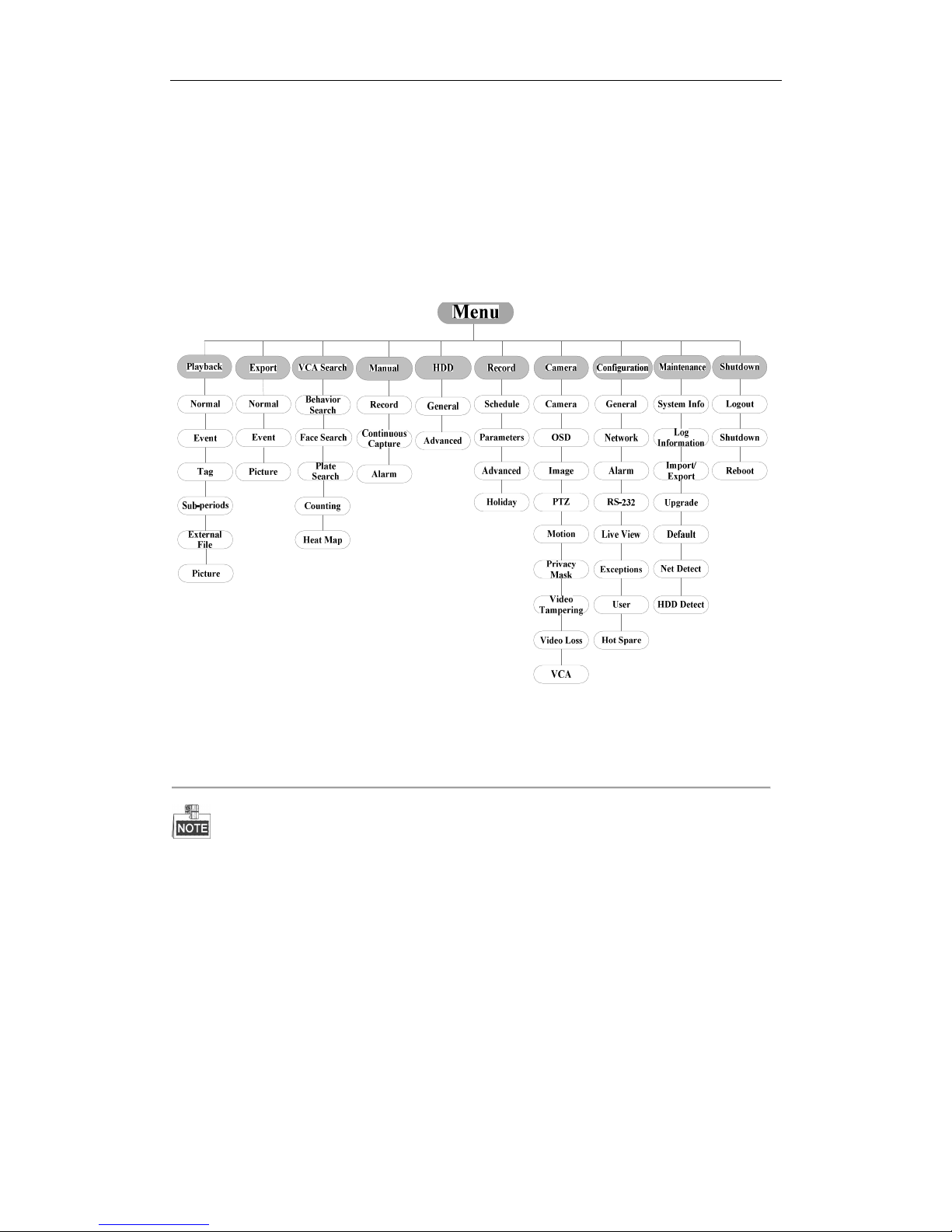

3.1 Menu Structure ............................................................................................................................. 15

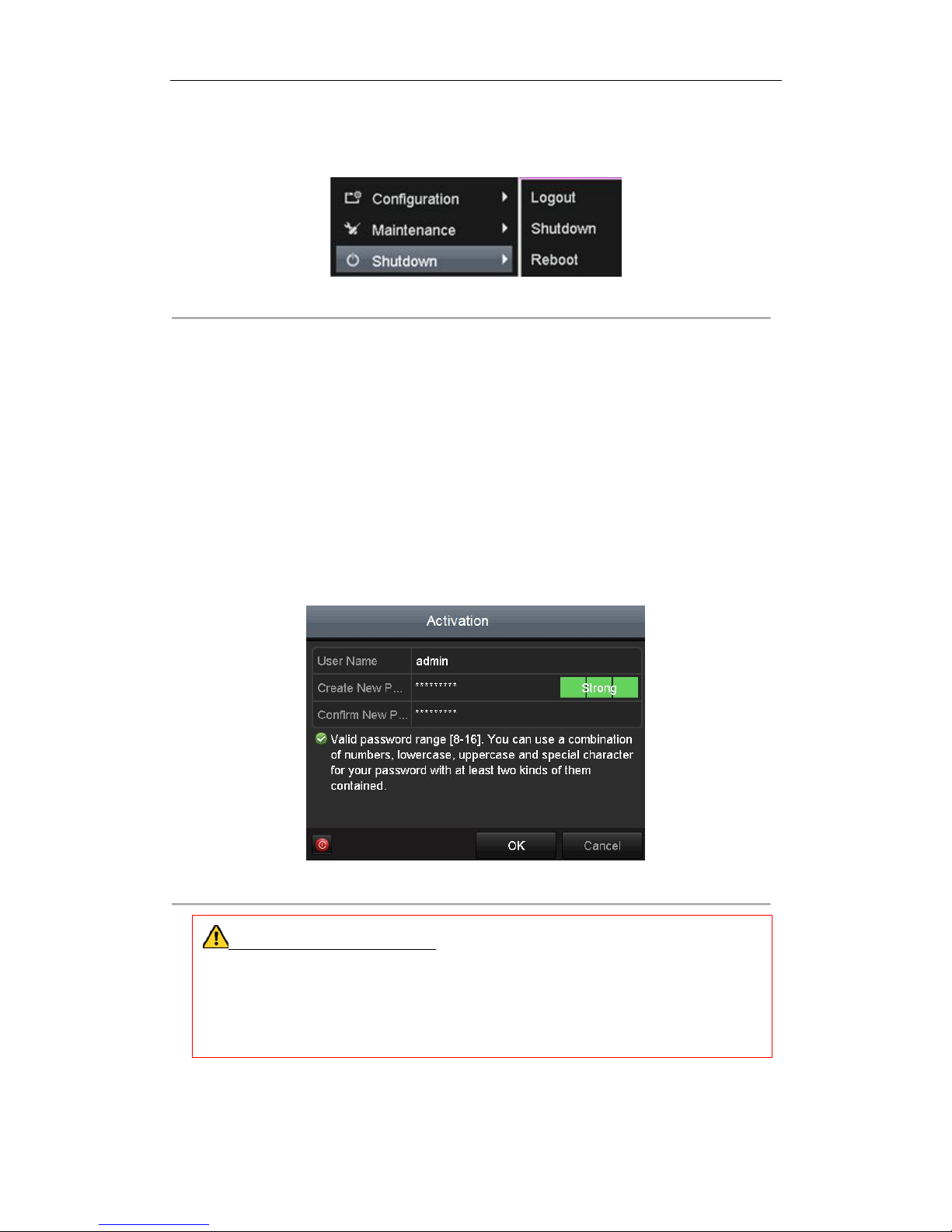

3.2 Startup and Shutdown................................................................................................................... 15

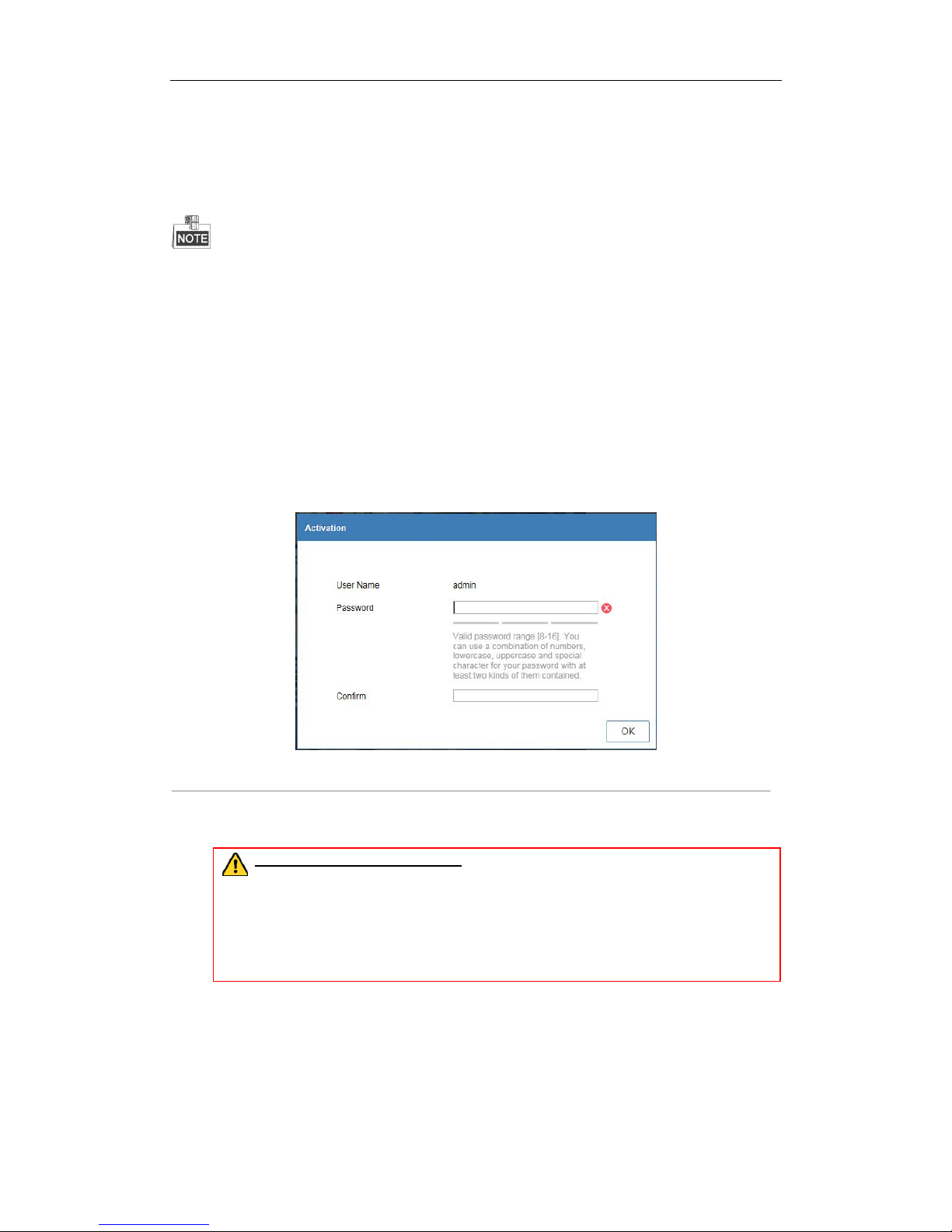

3.3 Activating Your Device ................................................................................................................... 16

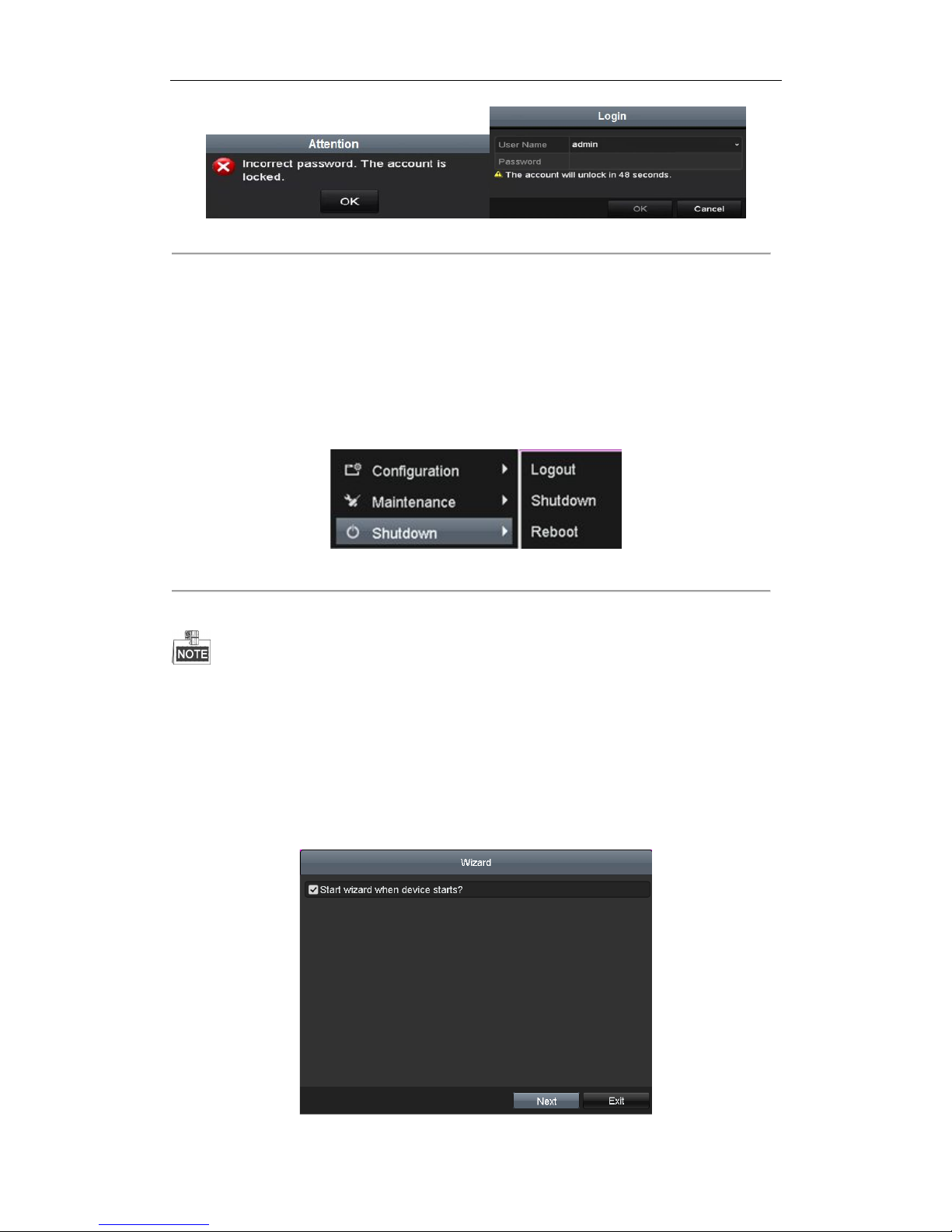

3.4 Login and Logout ........................................................................................................................... 17

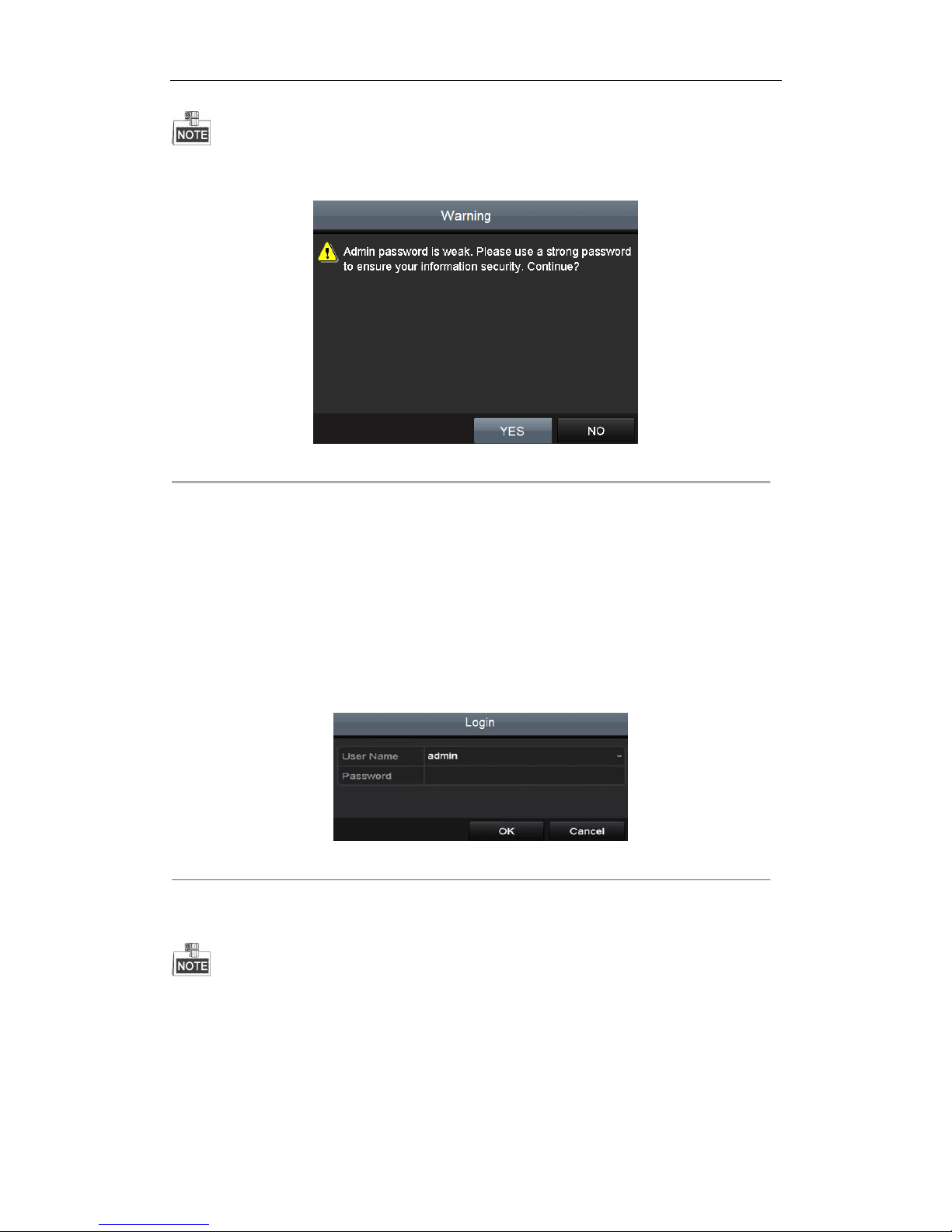

3.4.1 User Login ......................................................................................................................... 17
3.4.2 User Logout ....................................................................................................................... 18

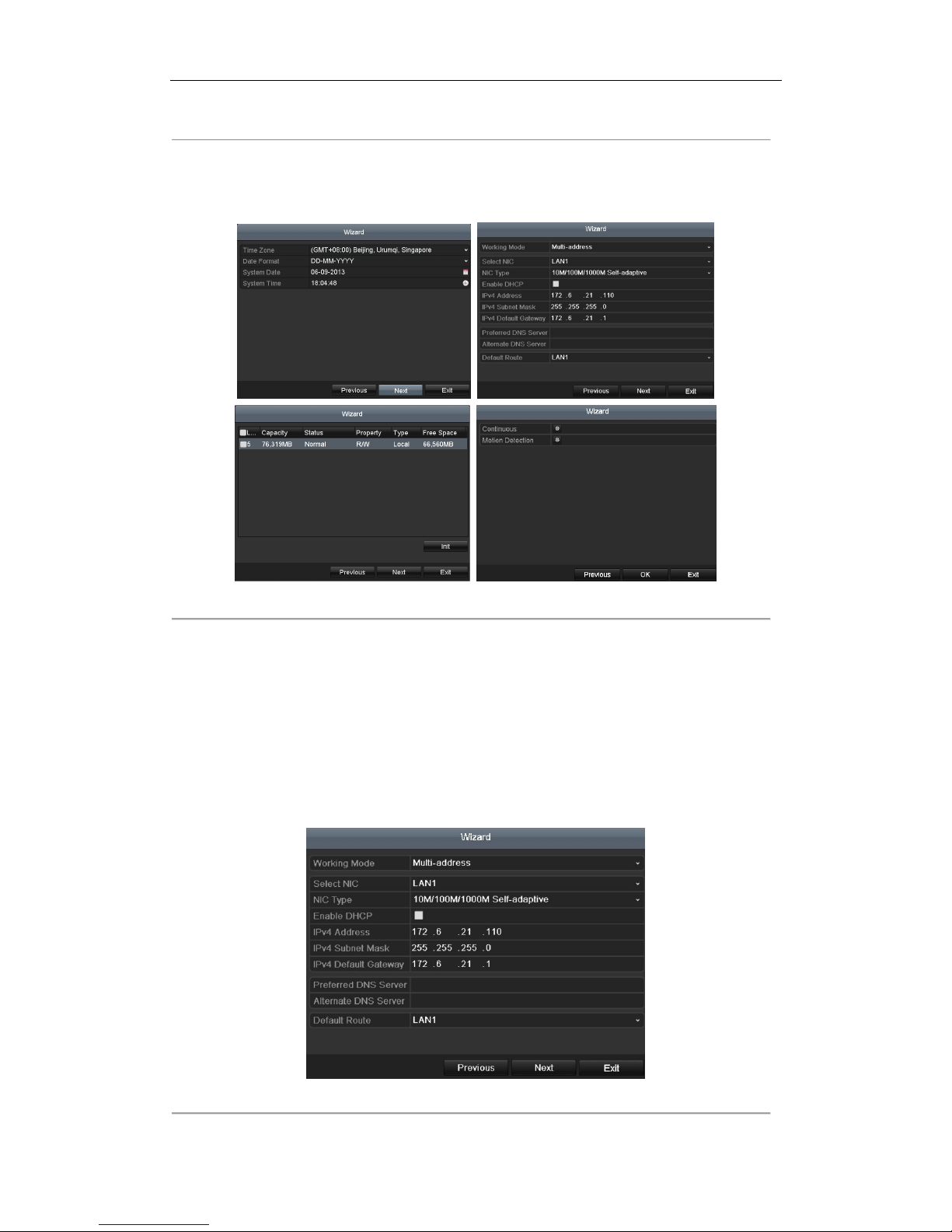

3.5 Using the Setup Wizard ................................................................................................................. 18
3.6 Network Settings ........................................................................................................................... 19

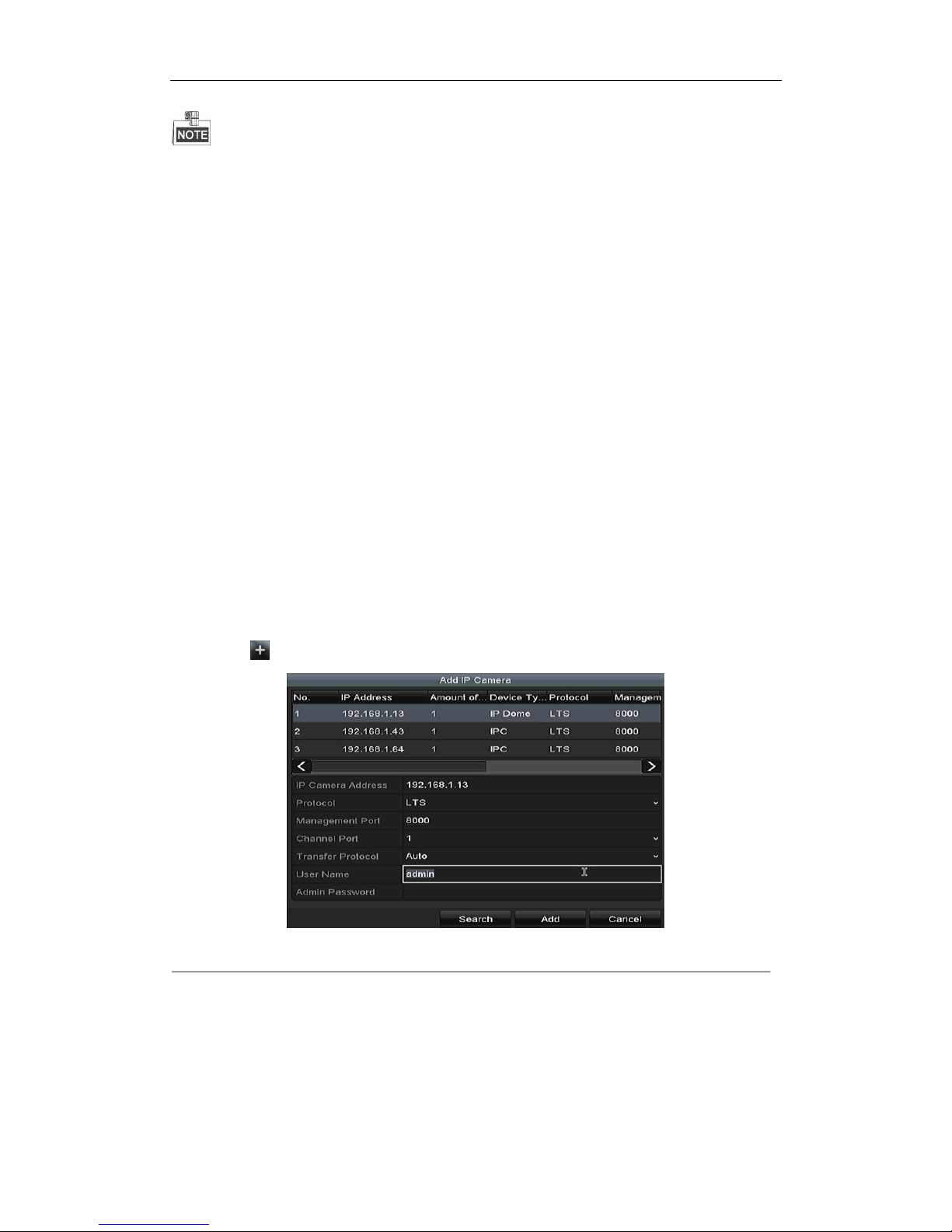

3.7 Adding IP Cameras ......................................................................................................................... 20
3.8 Live View ....................................................................................................................................... 21

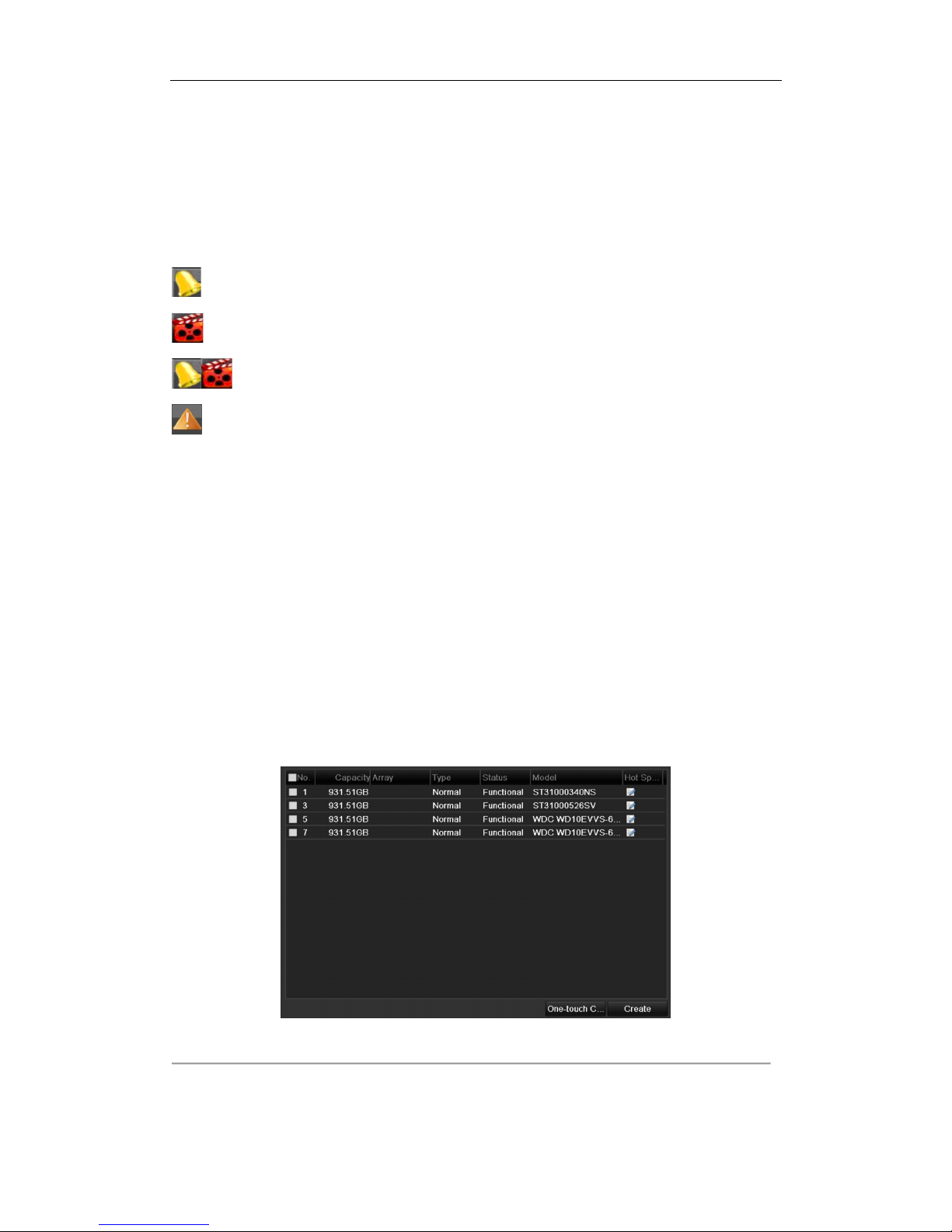

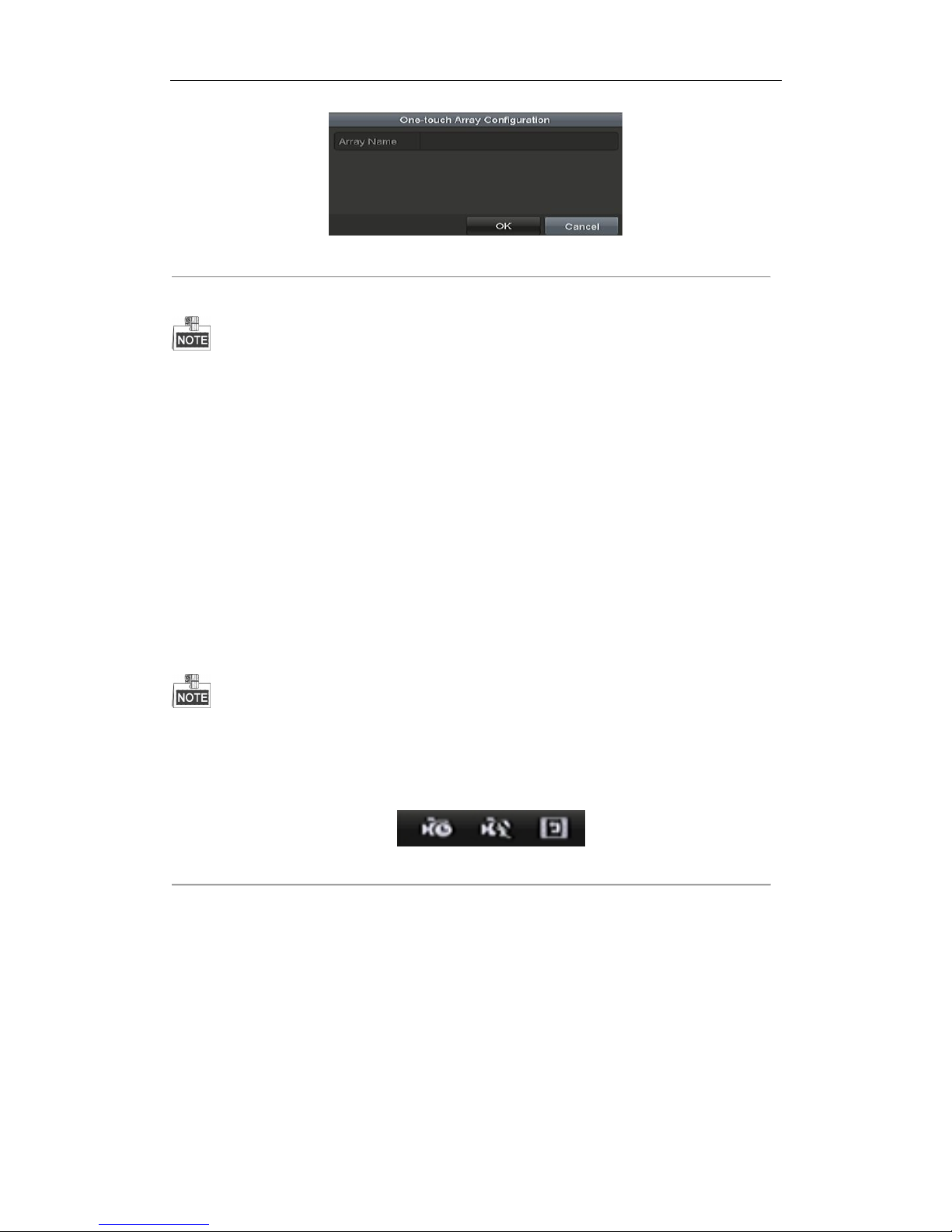

3.9 One-Touch RAID Configuration ...................................................................................................... 21
3.10 Recording Settings ......................................................................................................................... 22

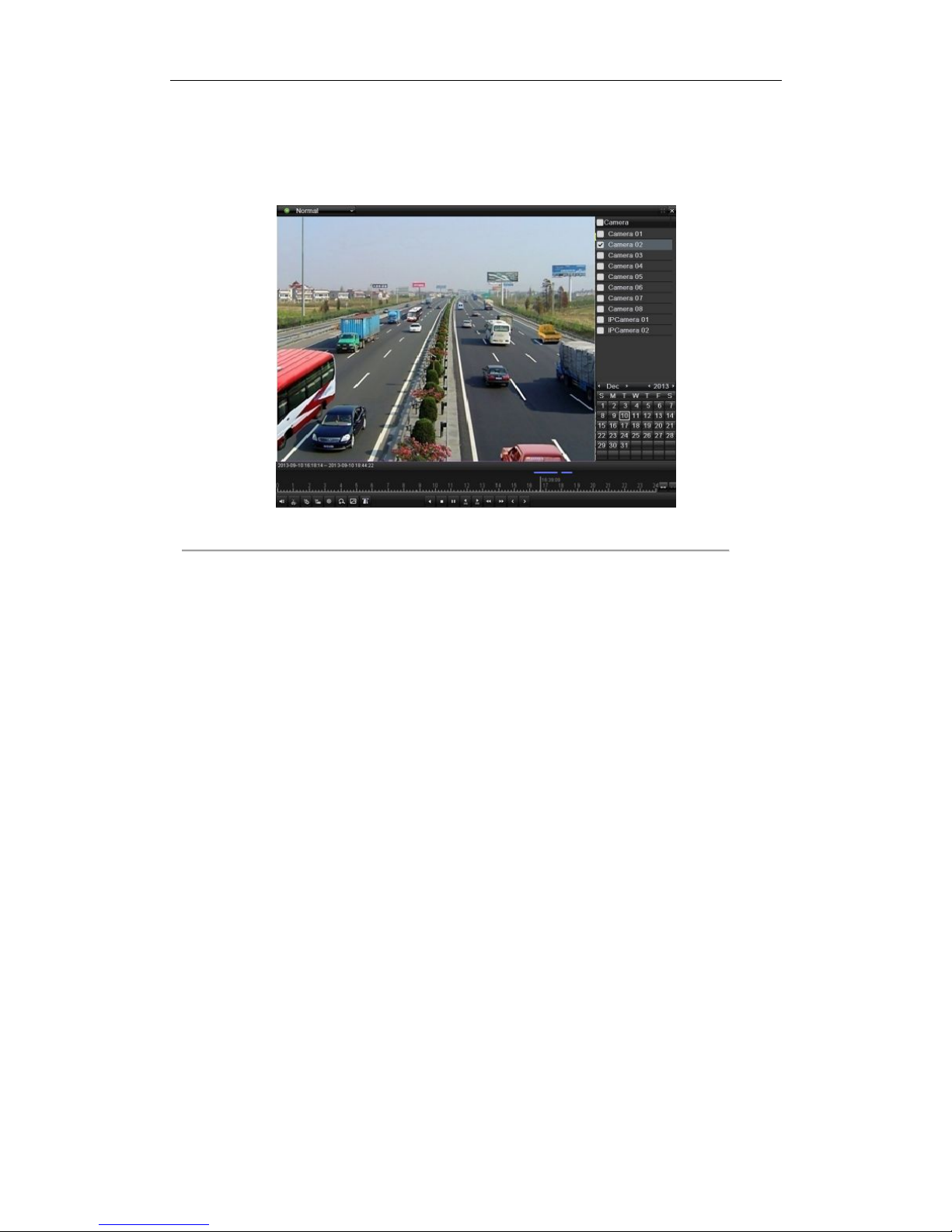

3.11 Playback ........................................................................................................................................ 22

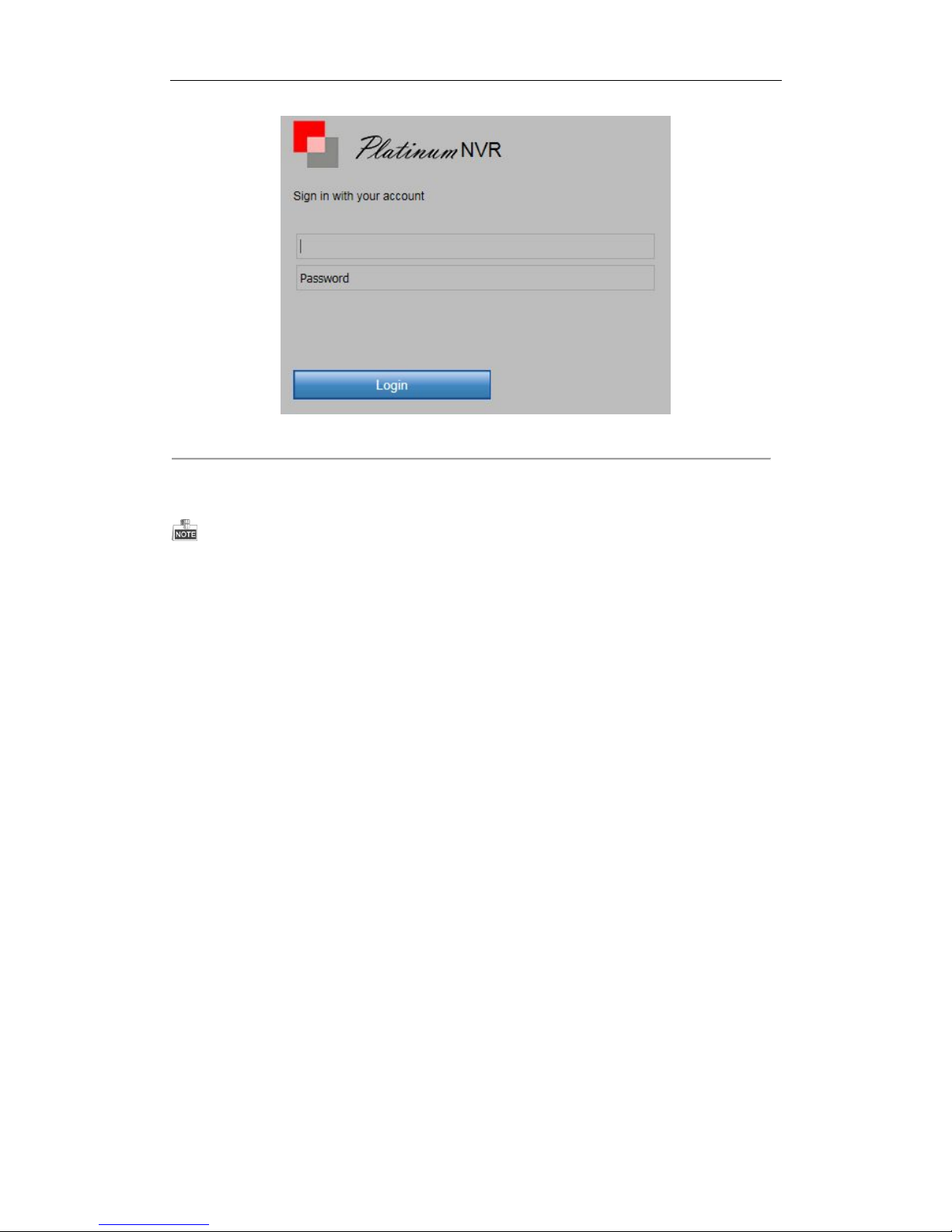

Chapter 4Accessing by Web Browser ........................................................................................................ 24
Page 3
2
Quick Start Guide
About this Manual
This Manual is applicable to Network Video Recorder (NVR).
The Manual includes instructions for using and managing the product. Pictures, charts, images and all other
information hereinafter are for description and explanation only. The information contained in the Manual is
subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the
company website.
Please use this user manual under the guidance of professionals.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE,
SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND OUR COMPANY MAKES
NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY
QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL
OUR COMPANY, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF
BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH
THE USE OF THIS PRODUCT, EVEN IF OUR COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN
RISKS. OUR COMPANY SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE
OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER
INTERNET SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE
USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. OUR COMPANY
SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS
Page 4
3
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply
therefore with the applicable harmonized European standards listed under the EMC Directive
2004/108/EC, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper recycling, return this product to your local
supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union. See the product documentation for specific
battery information. The battery is marked with this symbol, which may include lettering to indicate
cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a
designated collection point. For more information see: www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
Page 5
4
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings are neglected. Cautions: Injury or equipment damage may occur if any of the cautions are neglected.
Warnings
● Proper configuration of all passwords and other security settings is the responsibility of the installer and/or
end-user.
● In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation
and region. Please refer to technical specifications for detailed information.
● Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with
100~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to technical specifications for
detailed information.
● Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire
hazard.
● Please make sure that the plug is firmly connected to the power socket.
● If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cable, and then
please contact the service center.
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
· Ensure unit is installed in a well-ventilated, dust-free environment.
· Unit is designed for indoor use only.
· Keep all liquids away from the device.
· Ensure environmental conditions meet factory specifications.
· Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it
may cause damage to the sensitive electronics within the unit.
· Use the device in conjunction with an UPS if possible.
· Power down the unit before connecting and disconnecting accessories and peripherals.
· A factory recommended HDD should be used for this device.
· Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or
equivalent type only. Dispose of used batteries according to the instructions provided by the battery
manufacturer.
Warnings Follow these
safeguards to prevent serious
injury or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.
Page 6
5
Applicable Models
This manual is applicable to the following models:
Series Model Type
LTN89XX-R LTN8964-R Network Video Recorder
Page 7
6
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol Description
Indicates a potentially hazardous situation, which if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Provides additional information to emphasize or supplement
important points of the main text.
Page 8
7
Chapter1 Panels Description
1.1 Front Panel
Figure 1. 1 89XX-R Series
Table 1. 1 Panel Description
No. Name Function Description
1
Status
Indicators
ALARM Turns red when a sensor alarm is detected.
READY Turns blue when the device is functioning properly.
STATUS
Turns blue when device is controlled by an IR remote.
Turns red when controlled by a keyboard and purple when IR
remote and keyboard is used at the same time.
HDD Flickers red when data is being read from or written to HDD.
MODEM Reserved for future usage.
Tx/Rx Flickers blue when network connection is functioning properly.
GUARD
Turns blue when the device is in armed status; at this time, an
alarm is enabled when an event is detected.
Turns off when the device is unarmed. The arm/disarm status
can be changed by pressing and holding on the ESC button for
more than 3 seconds in live view mode.
2 IR Receiver Receiver for IR remote control.
3 Front Panel Lock Locks or unlocks the panel by the key.
4 DVD-R/W Slot for DVD-R/W disk.
5 Alphanumeric Buttons
Switches to the corresponding channel in live view or PTZ
control mode.
Inputs numbers and characters in edit mode.
Switches between different channels in playback mode.
Turns blue when the corresponding channel is recording; turns
red when the channel is in network transmission status; turns
pink when the channel is recording and transmitting.
6 USB Interfaces
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
7 Composite ESC Returns to the previous menu.
Page 9
8
No. Name Function Description
Keys Presses for arming/disarming the device in live view mode.
REC/SHOT
Enters the Manual Record settings menu.
Presses this button followed by a numeric button to call a PTZ
preset in PTZ control settings.
Turns audio on/off in the playback mode.
PLAY/AUTO
Enters the playback mode.
Automatically scans in the PTZ control menu.
ZOOM+ Zooms in the PTZ camera in the PTZ control setting.
A/FOCUS+
Adjusts focus in the PTZ Control menu.
Switches between input methods (upper and lower case
alphabet, symbols and numeric input).
EDIT/IRIS+
Edits text fields. When editing text fields, it also deletes the
character in front of the cursor.
Checks the checkbox in the checkbox fields.
Adjusts the iris of the camera in PTZ control mode.
Generates video clips for backup in playback mode.
Enters/exits the folder of USB device and eSATA HDD.
MAIN/SPOT/ZOOM-
Switches between main and spot output.
Zooms out the image in PTZ control mode.
F1/ LIGHT
Selects all items on the list when used in a list field.
Turns on/off PTZ light (if applicable) in PTZ control mode.
Switches between play and reverse play in playback mode.
F2/ AUX
Cycles through tab pages.
Switches between channels in synchronous playback mode.
MENU/WIPER
Returns to the Main menu (after successful login).
Presses and holds the button for five seconds to turn off audible
key beep.
Starts wiper (if applicable) in PTZ control mode.
Shows/hides the control interface in playback mode.
PREV/FOCUS-
Switches between single screen and multi-screen mode.
Adjusts the focus in conjunction with the A/FOCUS+ button in
PTZ control mode.
PTZ/IRIS-
Enters the PTZ Control mode.
Adjusts the iris of the PTZ camera in PTZ control mode.
8
Control
Buttons
DIRECTION
Navigates between different fields and items in menus.
In the playback mode, use the Up and Down buttons to speed
up and slow down recorded video. Use the Left and Right
buttons to select the next and previous video files.
Cycles through channels in live view mode.
Controls the movement of the PTZ camera in PTZ control mode.
ENTER
Confirms selection in any of the menu modes.
Checks the checkbox fields.
Plays or pauses the video playing in playback mode.
Page 10
9
No. Name Function Description
Advances the video by a single frame in single-frame playback
mode.
Stops/starts auto switch in auto-switch mode.
9 JOG SHUTTLE Control
Moves the active selection up and down in a menu.
Cycles through different channels in live view mode.
Jumps 30s forward/backward in video files in the playback
mode.
Controls the movement of the PTZ camera in PTZ control mode.
10 POWER ON/OFF
Long press the button for more than 3 seconds to turn on/off
the NVR.
1.2 Rear Panel
Figure 1. 2 89XX-R Series
Table 1. 2 Panel Description
No. Name Description
1 LAN1/LAN2 Interface 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces provided.
2 LINE IN RCA connector for audio input.
3 AUDIO OUT 2 RCA connectors for audio output.
4 HDMI1/HDMI2 HDMI video output connector.
5 VGA1/VGA2 DB9 connector for VGA output. Display local video output and menu.
6 USB 3.0 interface Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
7 RS-232 Interface Connector for RS-232 devices.
8 eSATA Connects external SATA HDD, CD/DVD-RM.
9
Controller Port
D+, D- pin connects to Ta, Tb pin of controller. For cascading devices,
the first NVR’s D+, D- pin should be connected with the D+, D- pin of
the next NVR.
ALARM IN Connector for alarm input.
ALARM OUT Connector for alarm output.
10 100 to 240 VAC 100 to 240 VAC power supply.
11 Power Switch Switch for turning on/off the device.
12 GROUND Ground (needs to be connected when NVR starts up).
Page 11
10
Chapter 2 Installation and Connections
2.1 NVR Installation
During installation of the NVR:
1. Use brackets for rack mounting.
2. Ensure ample room for audio and video cables.
3. When routing cables, ensure that the bend radius of the cables are no less than five times than its diameter.
4. Connect the alarm cable.
5. Allow at least 2cm (≈0.75-inch) of space between racks mounted devices.
6. Ensure the NVR is grounded.
7. Environmental temperature should be within the range of -10 to +55º C, +14 to +131º F.
8. Environmental humidity should be within the range of 10% to 90%.
2.2 Hard Disk Installation
Before you start:
Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory recommended HDD
should be used for this installation.
Tools Required: Screwdriver.
Steps:
1. Fasten the hard disk mounting handle to the hard disk with screws.
Figure 2. 1 Fasten Hard Disk
2. Insert the key and turn in clockwise direction to open the panel lock.
Figure 2. 2 Insert Panel Key
3. Press the buttons on the panel of two sides and open the front panel.
Page 12
11
Figure 2. 3 Open Panel Lock
4. Insert the hard disk along the slot until it is placed into position.
Figure 2. 4 Insert Hard Disk
5. Repeat the above steps to install other hard disks onto the NVR. After having finished the installation of all
hard disks, close the front panel and lock it with the key again.
Figure 2. 5 Lock Panel
Page 13
12
2.3 Connections
2.3.1 Alarm Input Wiring
The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram.
If the alarm input is not an open/close relay, please connect an external relay between the alarm input and the
device.
Figure 2. 6 Alarm Input Wiring
2.3.2 Alarm Output Wiring
To connect to an alarm output (AC or DC load), use the following diagram:
Figure 2. 7 Alarm Output Wiring
For DC load, the jumpers can be used within the limit of 12V/1A safely.
To connect an AC load, jumpers should be left open (you must remove the jumper on the motherboard in the
NVR). Use an external relay for safety (as shown in the figure above).
There are 4 jumpers (JP6, JP9, JP10, and JP11) on the motherboard, each corresponding with one alarm output.
By default, jumpers are connected. To connect an AC load, jumpers should be removed.
Example:
If you connect an AC load to the alarm output 3 of the NVR, then you must remove the JP 3 jumper.
2.3.3 Using Alarm Connectors
To connect alarm devices to the NVR:
Page 14
13
1. Disconnect pluggable block from the ALARM IN /ALARM OUT terminal block.
2. Unfasten stop screws from the pluggable block, insert signal cables into slots and fasten stop screws. Ensure
signal cables are tight.
3. Connect pluggable block back into terminal block.
2.3.4 Controller Connection
Figure 2. 8 Controller Connection
To connect a controller to the NVR:
1. Disconnect pluggable block from the KB terminal block.
2. Unfasten stop screws from the KB D+, D- pluggable block, insert signal cables into slots and fasten stop
screws. Ensure signal cables are in tight.
3. Connect Ta on controller to D+ on terminal block and Tb on controller to D- on terminal block. Fasten stop
screws.
4. Connect pluggable block back into terminal block.
Make sure both the controller and NVR are grounded.
Page 15
14
2.4 HDD Storage Calculation Chart
The following chart shows an estimation of storage space used based on recording at one channel for an hour at
a fixed bit rate.
Bit Rate Storage Used
96K 42M
128K 56M
160K 70M
192K 84M
224K 98M
256K 112M
320K 140M
384K 168M
448K 196M
512K 225M
640K 281M
768K 337M
896K 393M
1024K 450M
1280K 562M
1536K 675M
1792K 787M
2048K 900M
4096K 1.8G
8192K 3.6G
16384K 7.2G
Please note that supplied values for storage space used is just for reference. The storage values in the chart are
estimated by formulas and may have some deviation from actual value.
Page 16
15
Chapter 3 Menu Operation
3.1 Menu Structure
Refer to the following figure for the menu structure:
Figure 3. 1 Menu Structure
The menu structure may vary according to different models.
3.2 Startup and Shutdown
Proper startup and shutdown procedures are crucial to expanding the life of the NVR.
To start your NVR:
1. Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an
Uninterruptible Power Supply (UPS) be used in conjunction with the device. The Power button) on the front
panel should be red, indicating the device is receiving the power.
2. Press the POWER button on the front panel. The Power LED should turn blue. The unit will begin to start.
After the device starts up, the wizard will guide you through the initial settings, including modifying
password, date and time settings, network settings, HDD initializing, and recording.
Page 17
16
To shut down the NVR:
1. Enter the Shutdown menu.
Menu > Shutdown
Figure 3. 2 Shutdown
2. Select the Shutdown button.
3. Click the Yes button.
4. Shut the power switch down when the shutdown attention pops up
3.3 Activating Your Device
Purpose:
For the first-time access, you need to activate the device by setting an admin password. No operation is allowed
before activation. You can also activate the device via Web Browser, SADP or client software.
Steps:
1. Input the same password in the text field of Create New Password and Confirm New Password.
Figure 3. 3 Set Admin Password
STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your
own choosing (Using a minimum of 8 characters, including at least three of the following categories:
upper case letters, lower case letters, numbers, and special characters.) in order to increase the security
of your product. And we recommend you reset your password regularly, especially in the high security
system, resetting the password monthly or weekly can better protect your product.
2. Click OK to save the password and activate the device.
Page 18
17
For the old version device, if you upgrade it to the new version, the following dialog box will pop up once the
device starts up. You can click YES and follow the wizard to set a strong password.
Figure 3. 4 Warning of Weak Password
3.4 Login and Logout
3.4.1 User Login
Purpose:
If NVR has logged out, you must login the device before operating the menu and other functions.
Steps:
1. Select the User Name in the dropdown list.
Figure 3. 5 Login
2. Input Password.
3. Click OK to log in.
In the Login dialog box, if you enter the wrong password 7 times, the current user account will be locked for 60
seconds.
Page 19
18
Figure 3. 6 Account Lock
3.4.2 User Logout
Purpose:
After logging out, the monitor turns to the live view mode and if you want to perform any operations, you need
to enter user name and password log in again.
Steps:
1. Enter the Shutdown menu.
Menu > Shutdown
Figure 3. 7 Logout
2. Click Logout.
After you have logged out the system, menu operation on the screen is invalid. It is required to input a user name
and password to unlock the system.
3.5 Using the Setup Wizard
The Setup Wizard can walk you through some important settings of the device. By default, the Setup Wizard
starts once the device has loaded.
Page 20
19
Start Wizard Interface
Check the checkbox to enable Setup Wizard when device starts. Click Next to continue the setup wizard. Follow
the guide of the Setup Wizard to configure the system resolution, system date/time, network settings, HDD
management, record settings, etc.
Figure 3. 8 Wizard
3.6 Network Settings
Purpose:
Network settings must be properly configured before you operate NVR over network.
Steps:
1. Enter the Network Settings interface.
Menu > Configuration > Network
Figure 3. 9 Network Settings
Page 21
20
l Two self-adaptive 10M/100M/1000M network interfaces for 89XX-R, and the multi-address and network
fault tolerance working modes are configurable
2. Select the General tab.
3. In the General Settings interface, you can configure the following settings: NIC Type, IPv4 Address, IPv4
Gateway, MTU and DNS Server.
If the DHCP server is available, you can check the checkbox of DHCP to automatically obtain an IP address
and other network settings from that server.
4. After having configured the general settings, click the Apply button to save the settings.
3.7 Adding IP Cameras
Purpose:
Before you can get live video or record the video files, you should add the network cameras to the connection list
of the device.
Before you start:
Ensure the network connection is valid and correct, and the IP camera to add has already been activated. Please
refer to the User Manual for activating the inactive IP camera.
You can select one of the following three options to add the IP camera.
l OPTION 1:
Steps:
1. Click to select an idle window in the live view mode.
2. Click the icon in the center of the window to pop up the Add IP Camera interface.
Figure 3. 10 Add IP Camera
3. Select the detected IP camera and click the Add button to add it directly, and you can click the Search
button to refresh the online IP camera manually.
Or you can choose to custom add the IP camera by editing the parameters in the corresponding text field
and then click the Add button to add it.
Page 22
21
3.8 Live View
Icons are provided on screen in Live View mode to indicate camera status. These icons include:
Live View Icons
In the live view mode, there are icons at the upper-right corner of the screen for each channel, showing the
status of the record and alarm in the channel for quick reference.
Alarm (video loss, tampering, motion detection, VCA or sensor alarm)
Record (manual record, continuous record, motion detection, VCA or alarm triggered record)
Alarm and Record
Event/Exception (event and exception information, appears at the lower-left corner of the screen.)
3.9 One-Touch RAID Configuration
Purpose:
The device supports the RAID storage function. Through one-touch configuration, you can quickly create the disk
array. By default, the array type to be created is RAID 5.
Before you start:
As the default array type is RAID 5, at least 3 HDDs must be installed in you device. And if more than 10 HDDs are
installed, 2 arrays can be configured.
Steps:
1. Enter the Physical Disk Settings interface.
Menu > HDD > RAID
Figure 3. 11 RAID Settings Interface
2. Click One-touch Configuration to enter the One-touch Array Configuration interface.
Page 23
22
Figure 3. 12 One-touch Array Configuration
3. Edit the array name in the Array Name text field and click OK button to start configuring array.
If you install 4 HDDs or more for one-touch configuration, a hot spare disk will be set by default. It is
recommended to set a hot spare disk for automatically rebuilding the array when the array is abnormal.
4. When the array configuration is completed, click OK button in the pop-up message box to finish the
settings
3.10 Recording Settings
Before you start:
Make sure that the disk has already been installed. If not, please install a disk and initialize it. You may refer to
the user manual for detailed information.
Purpose:
Two kinds of record types are introduced in the following section, including Instant Record and All-day Record.
And for other record types, you may refer to the user manual for detailed information.
After rebooting all the manual records enabled are canceled.
Steps:
1. On the live view window, right lick the window and move the cursor to the Start Recording option, and
select Continuous Record or Motion Detection Record on your demand.
Figure 3. 13 Start Recording from Right-click Menu
2. Click the Yes button in the pop-up Attention message box to confirm the settings. All the channels will start
to record in the selected mode.
3.11 Playback
The recorded video files on the hard disk can be played back in the following modes: instant playback, all-day
playback for the specified channel, and playback by normal/event/smart/tag/sub-periods/external file search.
Steps:
Page 24
23
1. Enter playback interface.
Click menu>playback or from the right-click menu.
2. Check the checkbox of channel(s) in the channel list and then double-click to select a date on the calendar.
3. You can use the toolbar in the bottom part of Playback interface to control playing progress.
Figure 3. 14 Playback Interface
Select the channel(s) to or execute simultaneous playback of multiple channels.
Page 25
24
Chapter 4 Accessing by Web Browser
You shall acknowledge that the use of the product with Internet access might be under network security risks.
For avoidance of any network attacks and information leakage, please strengthen your own protection. If the
product does not work properly, please contact with your dealer or the nearest service center.
Purpose:
You can get access to the device via web browser. You may use one of the following listed web browsers:
Internet Explorer 6.0, Internet Explorer 7.0, Internet Explorer 8.0, Internet Explorer 9.0, Internet Explorer 10.0,
Apple Safari, Mozilla Firefox, and Google Chrome. The supported resolutions include 1024*768 and above.
Steps:
1. Open web browser, input the IP address of the device and then press Enter.
2. Login to the device. l If the device has not been activated, you need to activate the device first before login.
Figure 4. 1 Set Admin Password
1) Set the password for the admin user account.
2) Click OK to login to the device.
STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of
your own choosing (using a minimum of 8 characters, including upper case letters, lower case
letters, numbers, and special characters) in order to increase the security of your product. And
we recommend you reset your password regularly, especially in the high security system,
resetting the password monthly or weekly can better protect your product.
l If the device is already activated, enter the user name and password in the login interface, and click
the Login button.
Page 26
25
Figure 4. 2 Login
3. Install the plug-in before viewing the live video and managing the camera. Please follow the installation
prompts to install the plug-in.
You may have to close the web browser to finish the installation of the plug-in.
After login, you can perform the operation and configuration of the device, including the live view, playback, log search, configuration, etc.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
