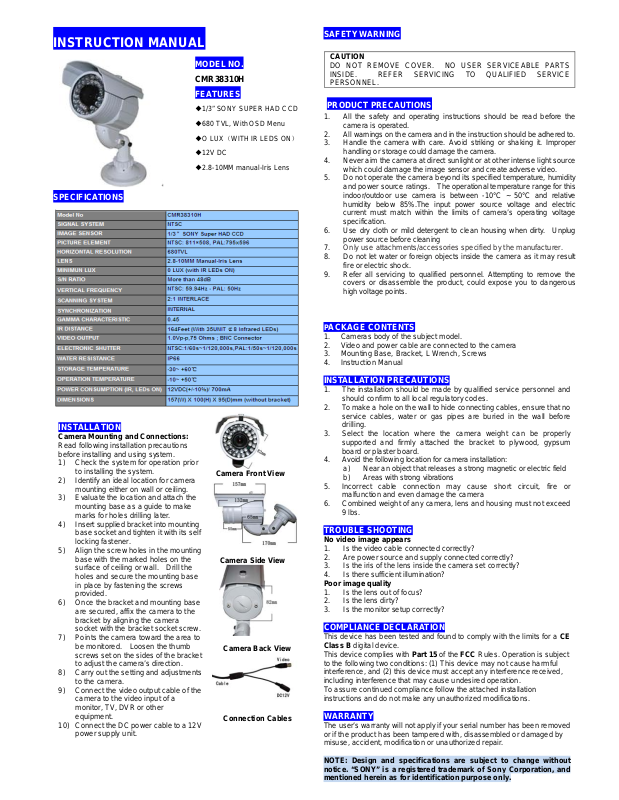

INSTRUCTION MANUAL

r

MODEL NO.

CMR38310H

FEATURES

◆1/3” SONY SUPER HAD CCD

◆680 TVL, With OSD Menu

◆O LUX（WITH IR LEDS ON）

◆12V DC

◆2.8-10MM manual-Iris Lens

SPECIFICATIONS

CAUTION

DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

PRODUCT PRECAUTIONS

1. All the safety and operating instructions should be read before the
camera is operated.

2. All warnings on the camera and in the instruction should be adhered to.

3. Handle the camera with care. Avoid striking or s haking it. Imprope
handling or storage could damage the camera.

4. Never aim the camera at direct sunlight or at other intense light source
which could dama ge th e i mag e s en so r a nd c rea t e adv e rs e v id eo.

5. Do not operate the camera beyond its specified temperature, humidity
and power source ratings. The operational temperature range for this
indoor/outdoor use camera is between -10°C ~ 50°C and relative
humidity below 85%.The input power source voltage and electric
current must match within the limits of camera’s operating voltage
specification.

6. Use dry clot h or mild dete rgent to cle an housing when dirty. Unplug
power source before cleaning

7. Only use attachments/accessories specified by the manufacturer.

8. Do not let water or foreign objects inside t he camera as it may result
fire or electric shock.

9. Refer all servicing to qualified personnel. Attempting to remove the
covers or disassemble the product, could expose you to dangerous
high voltage points.

PACKAGE CONTENTS

1. Cameras body of the subject model.

2. Video and power cable are connected to the camera

3. Mounting Base, Bracket, L Wrench, Screws

4. Instruction Manual

INSTALLATION PRECAUTIONS

1. The installation should be made by qualified service personnel and

SAFETY WARNING

INSTALLATION

Camera Mounting and Connections:

Read following installation precautions
before installing and using system.

1) Check the system for operation prior
to installing the system.

2) Identify an ideal location for camera
mounting either on wall or ceiling.

3) Evaluate the location and attach th e
mounting base as a guide to make
marks for holes drilling later.

4) Insert supplied bracket into mounting
base socket and tighten it with its self
locking fastener.

5) Align the screw holes in the mounting
base with the marked holes on the
surface of ceiling or wall. Drill the
holes and secure the mounting base
in place by fastening the screws
provided.

6) Once the bracket and mounting base
are secured, affix the camera to the
bracket by aligning the camera
socket with the bracket socket screw.

7) Points the camera toward the area to
be monitored. Loosen the thumb
screws set on the sides of the bracket
to adjust the camera’s direction.

8) Carry out the setting and adjustments
to the camera.

9) Connect the video output cable of the
camera to the video input of a
monitor, TV, DVR or other
equipment.

10) Connect the DC power cable to a 12V
power supply unit.

Camera Front View

Camera Side View

Camera Back View

Connection Cables

should confirm to all local regulatory codes.

2. T o m ake a hole on the w all to hide conn ecting cables, ensu re that no
service cables, water or gas pipes are buried in the wall before
drilling.

3. Select the location where the camera weight can be properly
supported and firmly attached the bracket to plywood, gypsum
board or plaster board.

4. Avoid the following location for camera installation:

a) Near an object that releases a strong magnetic or electric field
b) Areas with strong vibrations

5. Incorrect cable connection may cause short circuit, fire or
malfunction and even damage the camera

6. Combined weight of any camera, lens and housing must not exceed
9 lbs.

TROUBLE SHOOTING

No video image appears

1. Is the video cable connected correctly?

2. Are power source and supply connected correctly?

3. Is the iris of the lens inside the camera set correctly?

4. Is there sufficient illumination?

Poor image quality

1. Is the lens out of focus?

2. Is the lens dirty?

3. Is the monitor setup correctly?

COMPLIANCE DECLARATION

This device has been tested and found to comply with the limits for a CE
Class B digital device.

This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
To assure continued compliance follow the attached installation
instructions and do not make any unauthorized modifications.

WARRANTY

The user’s warranty will not apply if your serial nu mbe r has been remov ed
or if the product has been tampered with, disassembled or damaged by
misuse, accident, modification or unauthorized repair.

NOTE: Design and specifications are subject to change without
notice. “SONY” is a registered trademark of Sony Corporation, and
mentioned herein as for identification purpose only.
