LT Security CMD728H User Manual

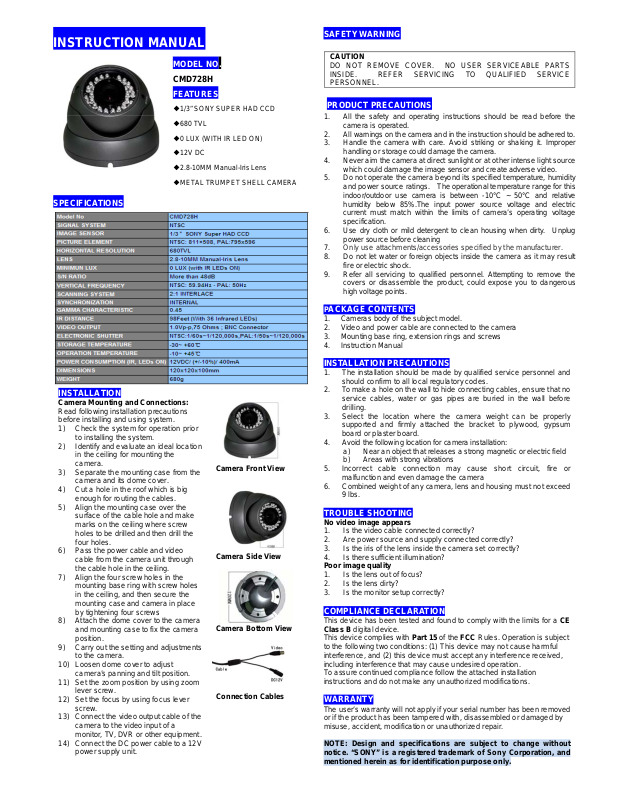

INSTRUCTION MANUAL

r

MODEL NO.

CMD728H

FEATURES

◆1/3” SONY SUPER HAD CCD

◆680 TVL

◆0 LUX (WITH IR LED ON)

◆12V DC

◆2.8-10MM Manual-Iris Lens

◆METAL TRUMPET SHELL CAMERA

SPECIFICATIONS

INSTALLATION

Camera Mounting and Connections:

Read following installation precautions
before installing and using system.

1) Check the system for operation prior
to installing the system.

2) Identify and evaluate an ideal location
in the ceiling for mounting the
camera.

3) Separate the mounting case from the
camera and its dome cover.

4) Cut a hole in the roof which is big
enough for routing the cables.

5) Align the mounting case over the
surface of the cabl e hole and make
marks on the ceiling where screw
holes to be drilled and then drill the
four holes.

6) Pass the power cable and video
cable from the camera unit through
the cable hole in the ceiling.

7) Align the four screw holes in the
mounting base ring with screw holes
in the ceiling, and then secure the
mounting case and camera in place
by tightening four screws

8) Attach the dome cover to the camera
and mounting case to fix the camera
position.

9) Carry out the setting and adjustments
to the camera.

10) Loosen dome cover to adjust
camera’s panning and tilt position.

11) Set the zoom position by using zoom
lever screw.

12) Set the focus by using focus lever
screw.

13) Connect the vid eo output cable of the
camera to the video input of a
monitor, TV, DVR or other equipment.

14) Connect the DC power cable to a 12V
power supply unit.

Camera Front View

Camera Side View

Camera Bottom View

Connection Cables

SAFETY WARNING

CAUTION

DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

PRODUCT PRECAUTIONS

1. All the safety and operating instructions should be read before the
camera is operated.

2. All warnings on the camera and in the instruction should be adhered to.

3. Handle the camera with care. Avoid striking or s haking it. Imprope
handling or storage could damage the camera.

4. Never aim the camera at direct sunlight or at other intense light source
which could dama ge th e i mag e s en so r a nd c rea t e adv e rs e v id eo.

5. Do not operate the camera beyond its specified temperature, humidity
and power source ratings. The operational temperature range for this
indoor/outdoor use camera is between -10°C ~ 50°C and relative
humidity below 85%.The input power source voltage and electric
current must match within the limits of camera’s operating voltage
specification.

6. Use dry clot h or mild dete rgent to cle an housing when dirty. Unplug
power source before cleaning

7. Only use attachments/accessories specified by the manufacturer.

8. Do not let water or foreign objects inside t he camera as it may result
fire or electric shock.

9. Refer all servicing to qualified personnel. Attempting to remove the
covers or disassemble the product, could expose you to dangerous
high voltage points.

PACKAGE CONTENTS

1. Cameras body of the subject model.

2. Video and power cable are connected to the camera

3. Mounting base ring, extension rings and screws

4. Instruction Manual

INSTALLATION PRECAUTIONS

1. The installation should be made by qualified service personnel and

should confirm to all local regulatory codes.

2. T o m ake a hole on the w all to hide conn ecting cables, ensu re that no

service cables, water or gas pipes are buried in the wall before
drilling.

3. Select the location where the camera weight can be properly

supported and firmly attached the bracket to plywood, gypsum
board or plaster board.

4. Avoid the following location for camera installation:
a) Near an object that releases a strong magnetic or electric field
b) Areas with strong vibrations

5. Incorrect cable connection may cause short circuit, fire or

malfunction and even damage the camera

6. Combined weight of any camera, lens and housing must not exceed

9 lbs.

TROUBLE SHOOTING

No video image appears

1. Is the video cable connected correctly?

2. Are power source and supply connected correctly?

3. Is the iris of the lens inside the camera set correctly?

4. Is there sufficient illumination?

Poor image quality

1. Is the lens out of focus?

2. Is the lens dirty?

3. Is the monitor setup correctly?

COMPLIANCE DECLARATION

This device has been tested and found to comply with the limits for a CE
Class B digital device.

This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
To assure continued compliance follow the attached installation
instructions and do not make any unauthorized modifications.

WARRANTY

The user’s warranty will not apply if your serial nu mbe r has been remov ed
or if the product has been tampered with, disassembled or damaged by
misuse, accident, modification or unauthorized repair.

NOTE: Design and specifications are subject to change without
notice. “SONY” is a registered trademark of Sony Corporation, and
mentioned herein as for identification purpose only.
