1 Quick Reference

The control source for each TEKO dimmer
channel can be individually configured to be
controlled by either:

1. DMX from a DMX lighting controller. If DMX is
lost, a “Backup Memory” can be automatically
recalled.

2. Memories stored in the TEKO and recalled by
ePlates (wall plate controllers).

3. DMX/MEM Switch. All channels that are
configured to “switch” can be switched between
DMX or Memory control from either a suitably
programmed ePlate button or from the TEKO
touch screen. If “Auto Switch” is ON, channels
set to “switch” will be automatically switched to
DMX whenever a valid DMX signal is connected.

4. Touch Screen. Dimmer channels can also be
manually controlled from the TEKO front panel
touch screen for testing purposes.

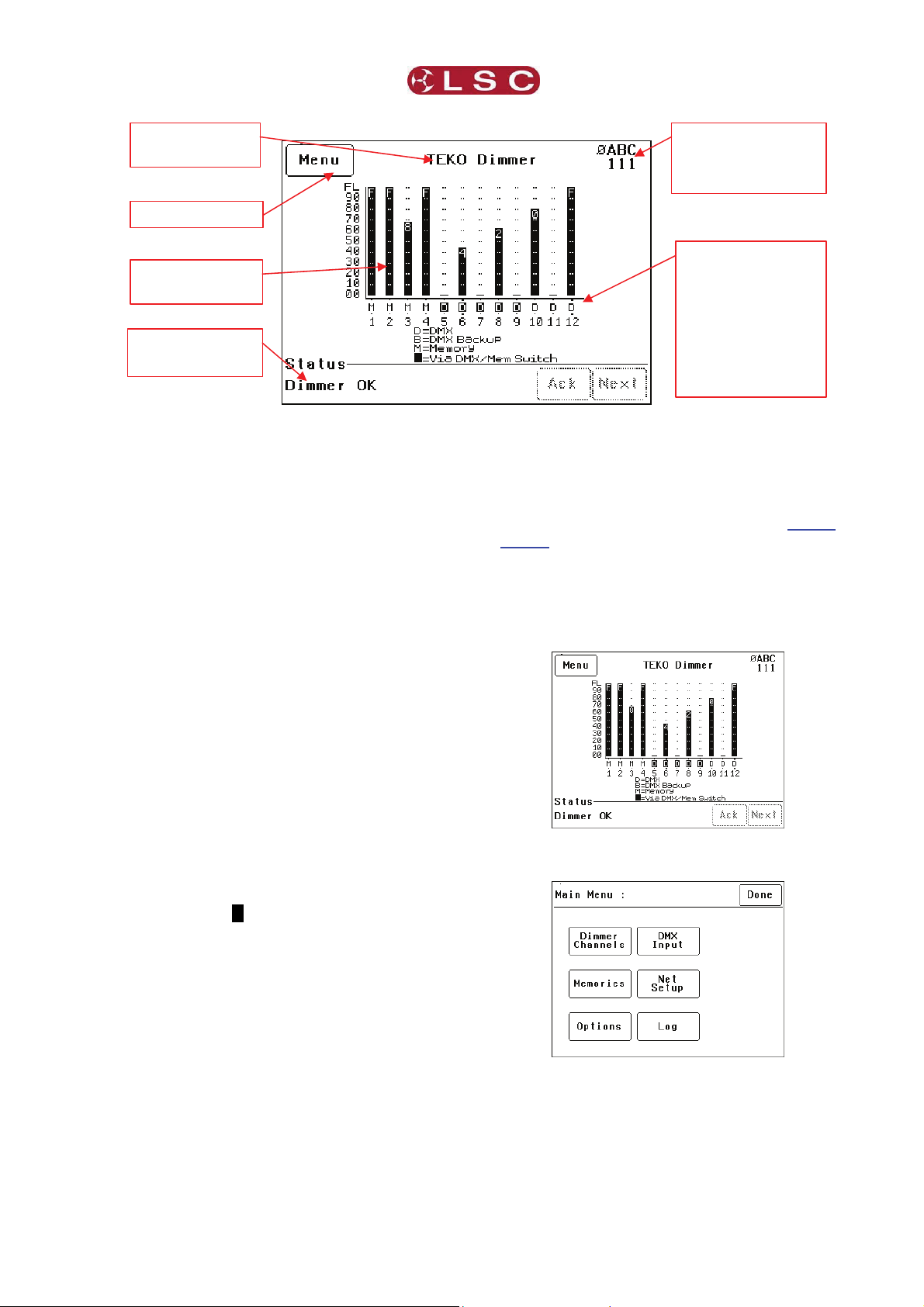

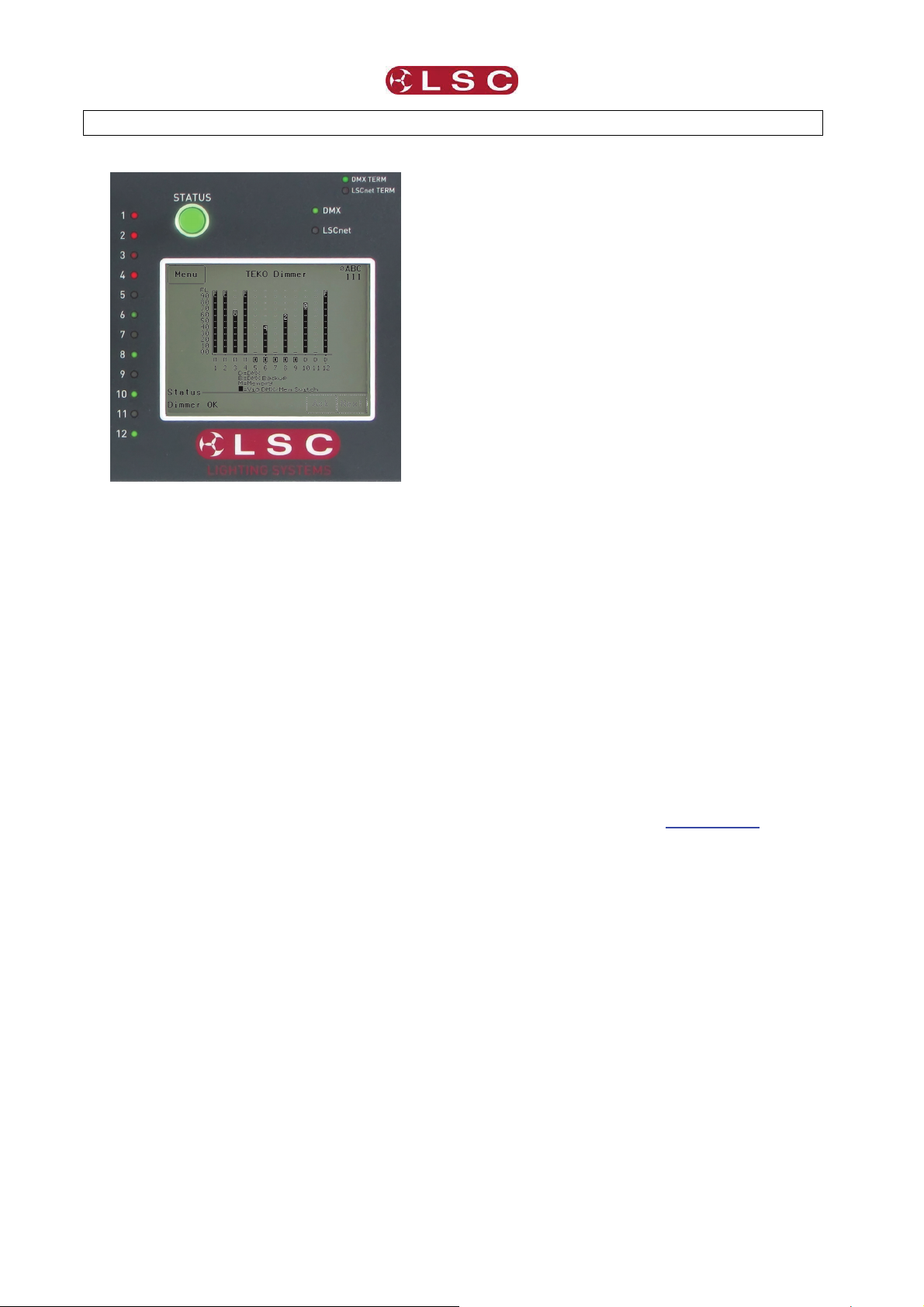

The row of characters below the level bar graph
on the main TEKO screen shows the current
control source for each dimmer channel as
described by the legend on the screen.

In this example, channels 1 to 4 are all controlled
by Memories, channels 5 to 12 are all controlled
by DMX but 5 to 9 are via the DMX/Mem Switch
and can therefore be switched to Memory.

1.1.1 DMX Patching

To Patch a TEK

O dimmer channel to a DMX slot

press;
[Menu] [DMX Input] [Patch]

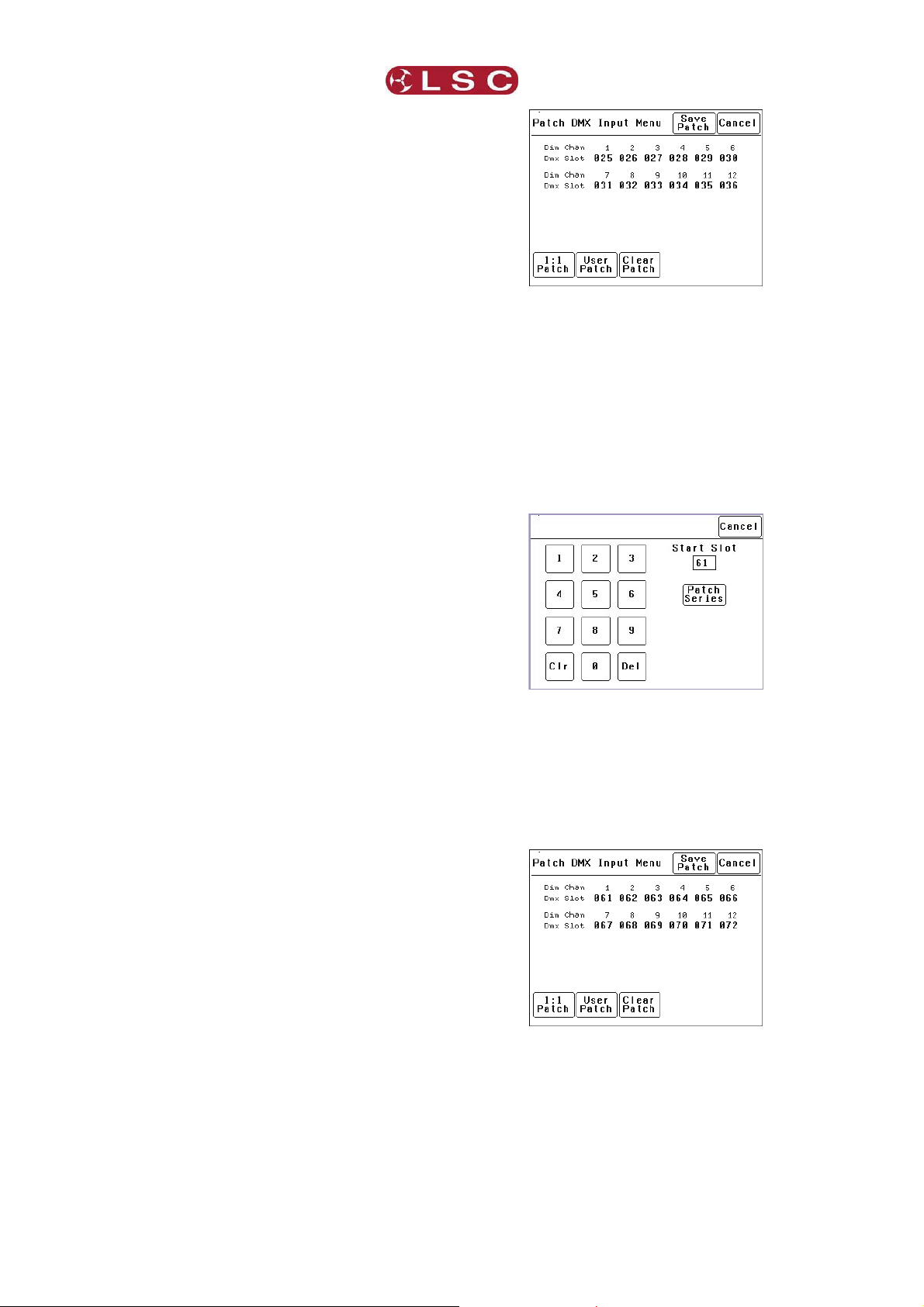

The “1 to 1 patch” provides a rapid method of
patching all of the dimmers in one TEKO frame to
sequential DMX slots, starting from a DMX slot
that you select.

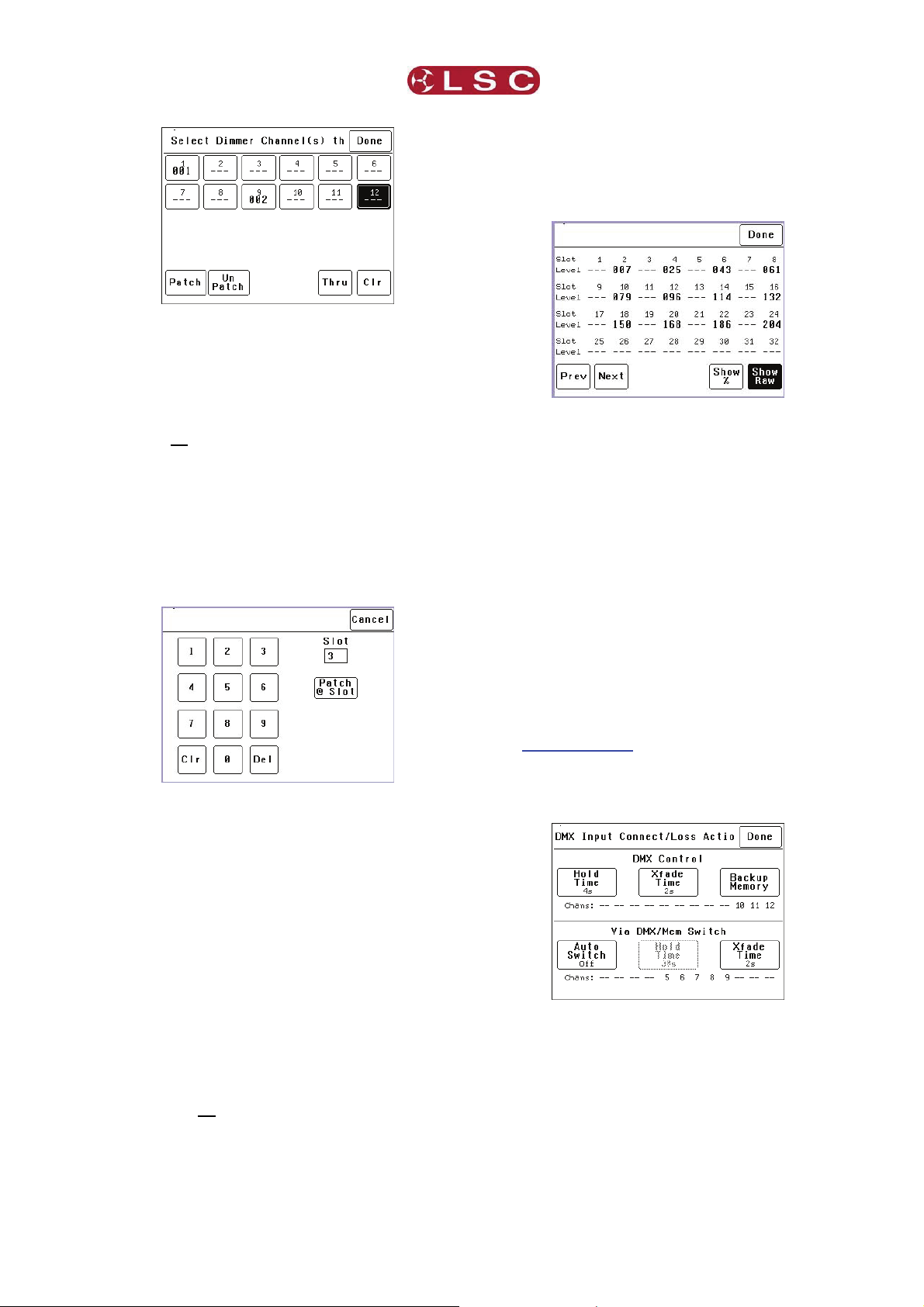

Press [1:1 Patch] then type in the DMX start slot
number (0 to 512) for dimmer channel 1 in this
TEKO frame, then press;
[Patch Series] [Save Patch] [Done] [Done].

The “User Patch” allows you to individually patch
each TEKO dimmer channel to a DMX slot of your
choice. Press [User Patch]. To select a channel,
press that channel number then press [Patch].
Type in the DMX slot number (0 to 512) for the
selected channel then press [Patch @ Slot].
When all patches have been made, press;
[Done] [Save Patch] [Done] [Done].

1.1.2 DMX Backup Memory

To create o

r edit the DMX “Backup Memory”,

press; [Menu] [DMX Input] [Connect Loss
Action].
Set the [Hold Time] to any time other than
“Infinite” then press [Set].
To replace the current TEKO output with the
Backup Memory press; [Backup Memory].

1.1 DMX CONTROL

n a dimmer channel is set to “DMX Control”

Whe
it is always controlled by the DMX signal from a
lighting console or other DMX device and it
responds to the DMX slot number to which it has
been patched in the TEKO patch menu.

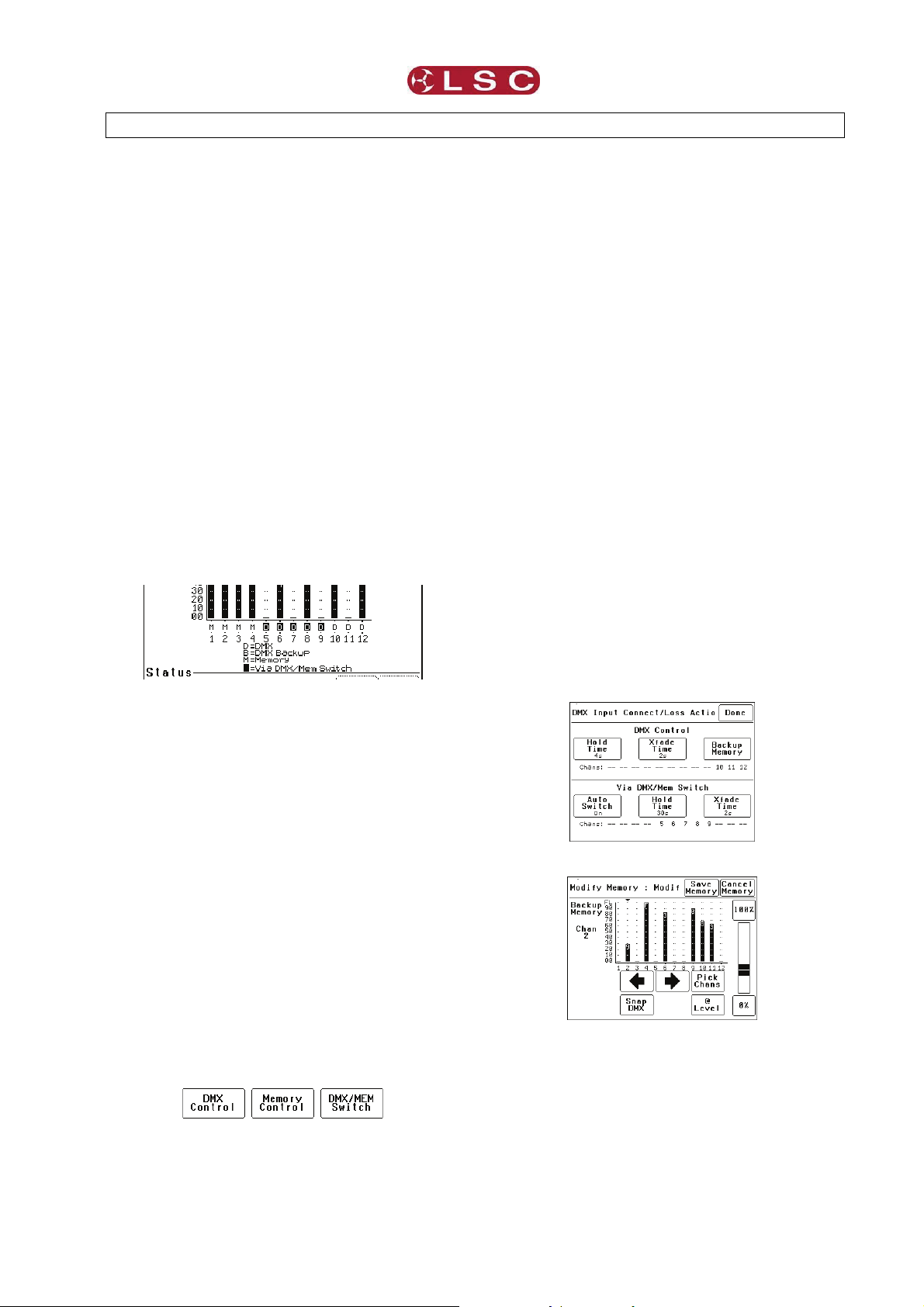

The Backup memory screen appears;

To set a dimmer channel to “DMX control”, on the
LCD touch screen press;
[Menu] [Dimmer Channels] [Setup].

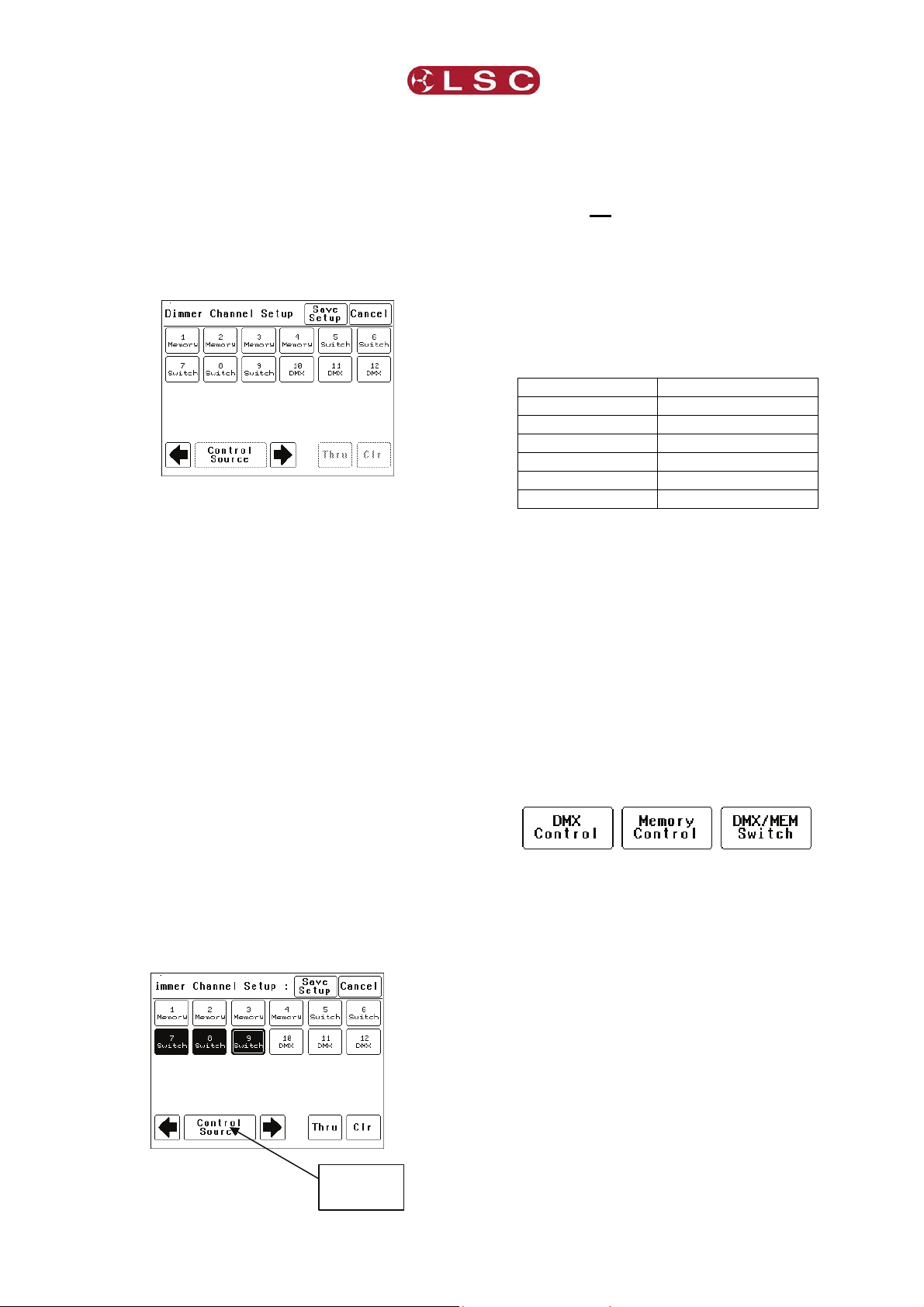

The screen shows the “Control Source” for each
dimmer channel.
To change the “Control Source” of a dimmer
channel(s), highlight the required dimmer
channel(s) by touching them, then press;
[Control Source].
The three choices for dimmer channel control
source are;

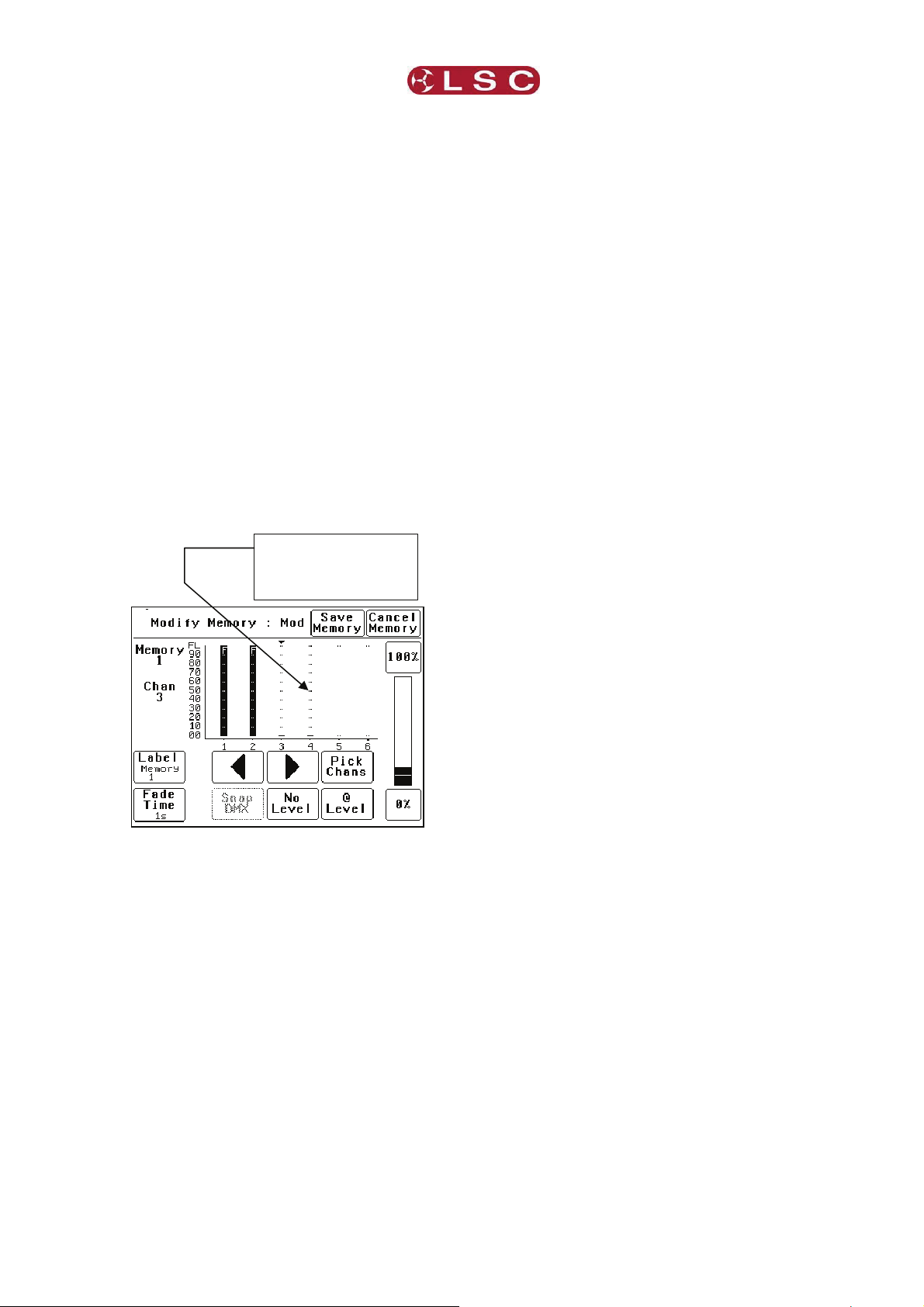

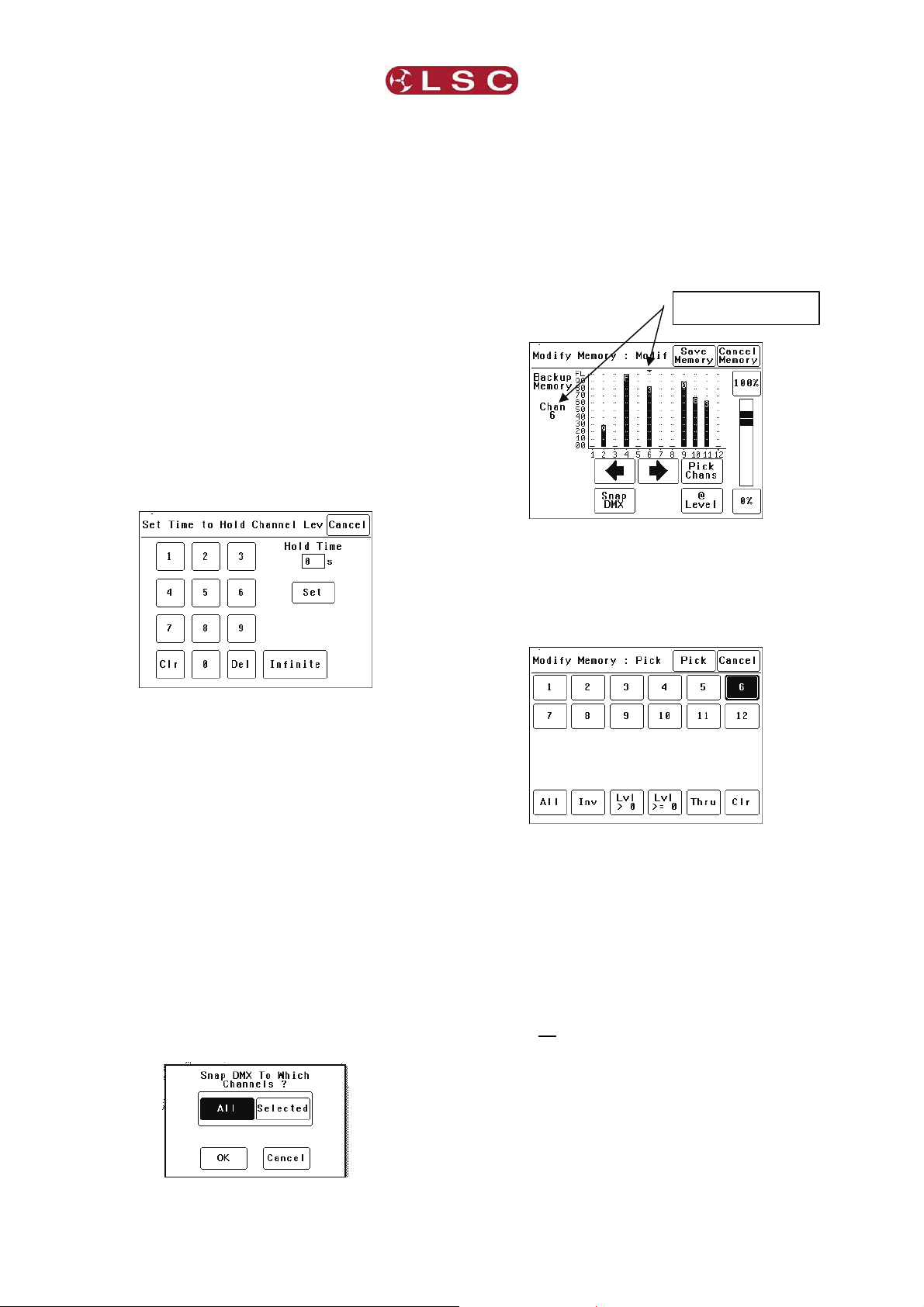

You can either create your own memory using the
controls on the screen or press [Snap DMX] to
take a copy of the current DMX input signal.
When a channel(s) is selected (indicated by a
small triangle () above the channel) it can be

Press [DMX Control].
Press; [Save Setup] [Done] [Done].

faded up or down by sliding your finger over the
virtual fader or instantly set to off or full using the
[0%] or [100%] buttons.
When the channel levels are correct, press;
[Save Memory].
Normal output is restored.

LSC Lighting Systems (Aust) Pty. Ltd Page 1

TEKO Dimmer
Operator Manual V3.0

1.2 MEMORY CONTROL

Whe

n a dimmer channel is set to “Memory”, it is

always controlled by the TEKO memories created
via the LCD touch screen or by taking “snapshots”
of a DMX input signal or a combination of both.
The memories are saved in the TEKO and are
recalled using the buttons or faders on ePlates.

The screen shows the “Control Source” for each
dimmer channel.
To change the “Control Source” of a dimmer
channel(s), highlight the required dimmer
channel(s) by touching them, then press;
[Control Source].
The three choices for dimmer channel control
source are;

To set a dimmer channel to “Memory”, press;
[Menu] [Dimmer Channels] [Setup].
The screen shows the “Control Source” for each
dimmer channel.
To change the “Control Source” of a dimmer
channel(s), highlight the required dimmer
channel(s) by touching them, then press;
[Control Source]. The three choices for dimmer
channel control source are;

Press [DMX/MEM Switch].
Press; [Save Setup] [Done] [Done].

To operate the switch use either a suitably
programmed ePlate button or from the LCD touch

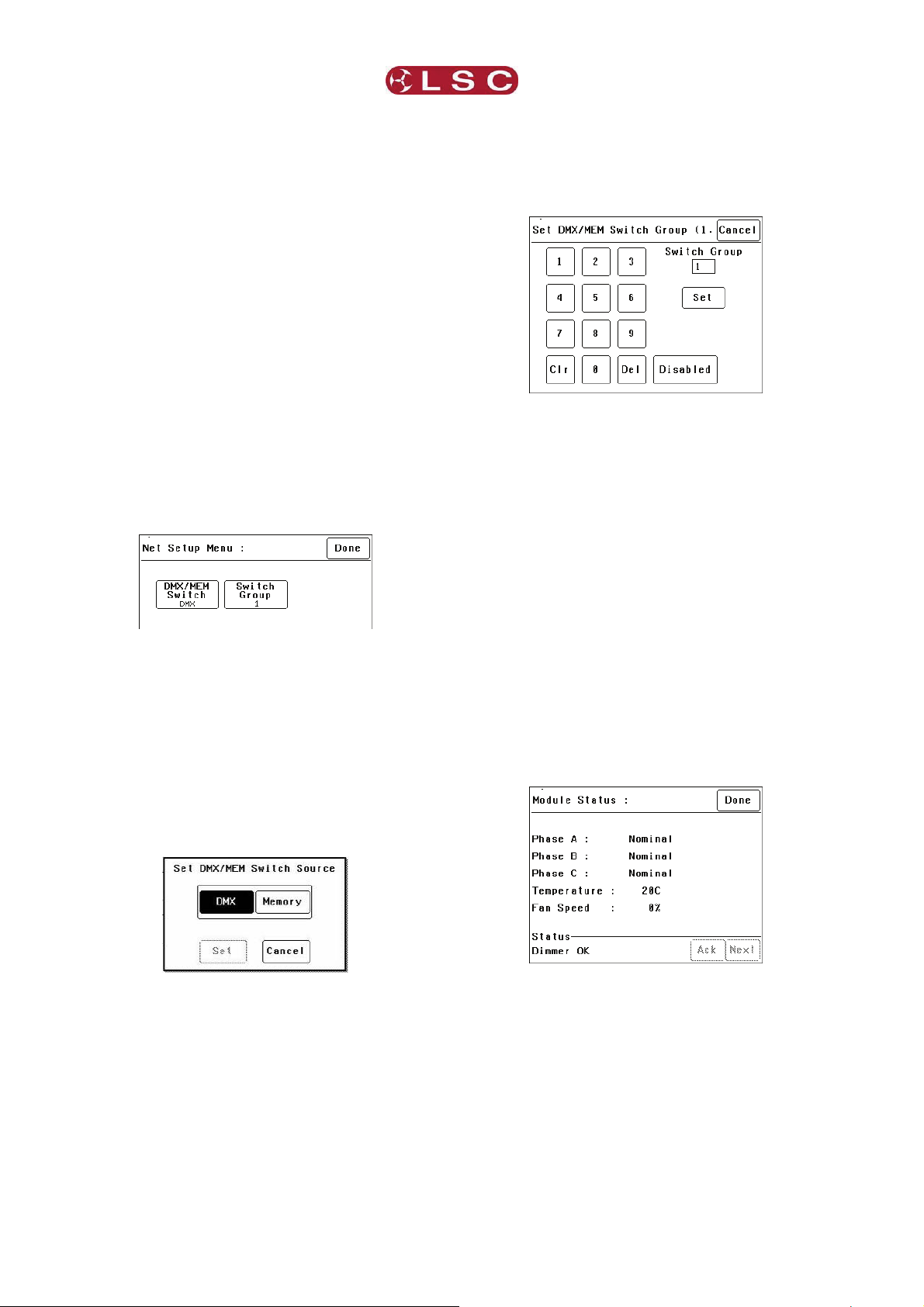

screen press: [Menu], [Net Setup] [DMX/MEM
Switch]. Select either; [DMX] or [Memory] then
press [Set].

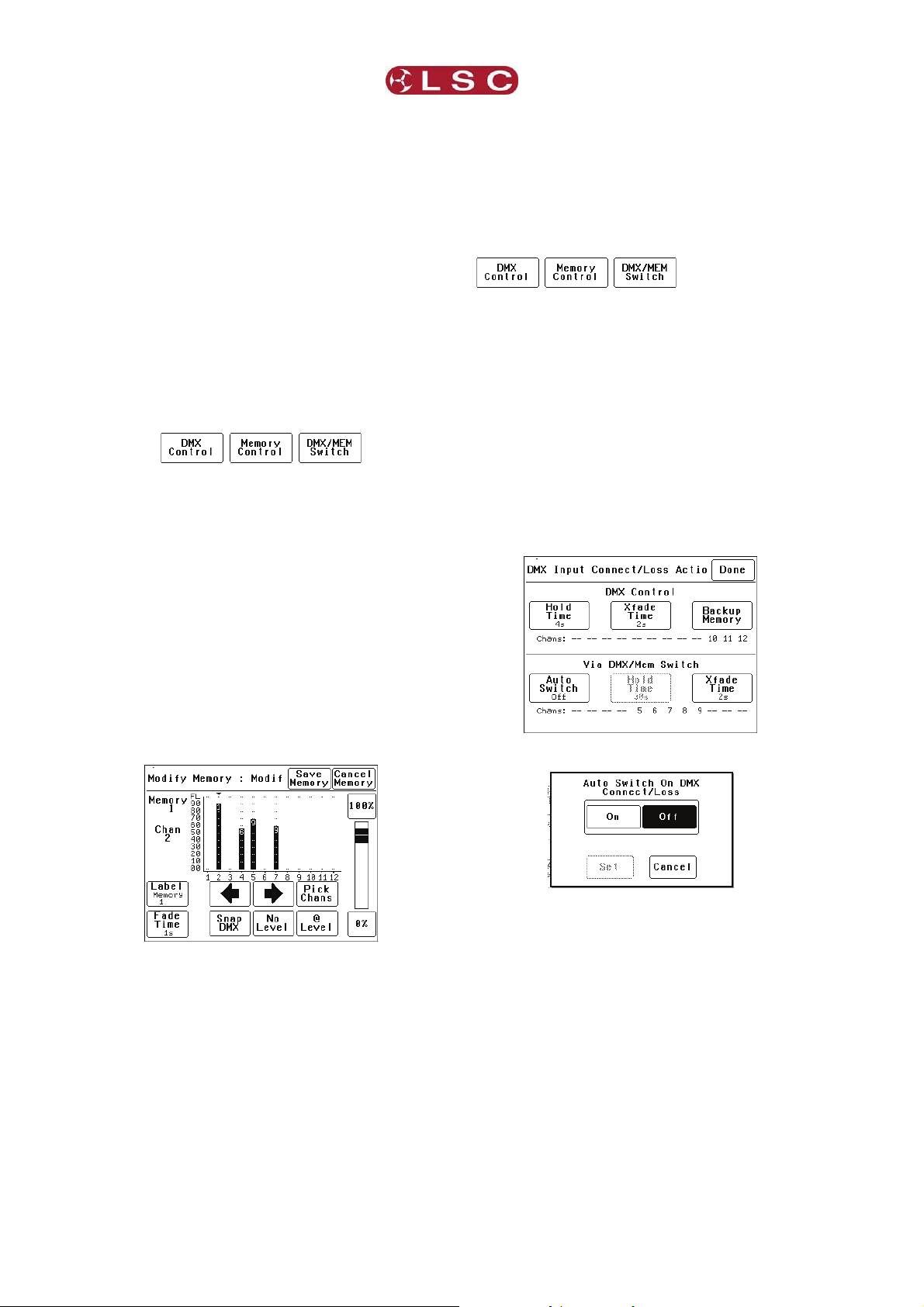

Press [Memory Control] [Save Setup] [Done]
[Done].

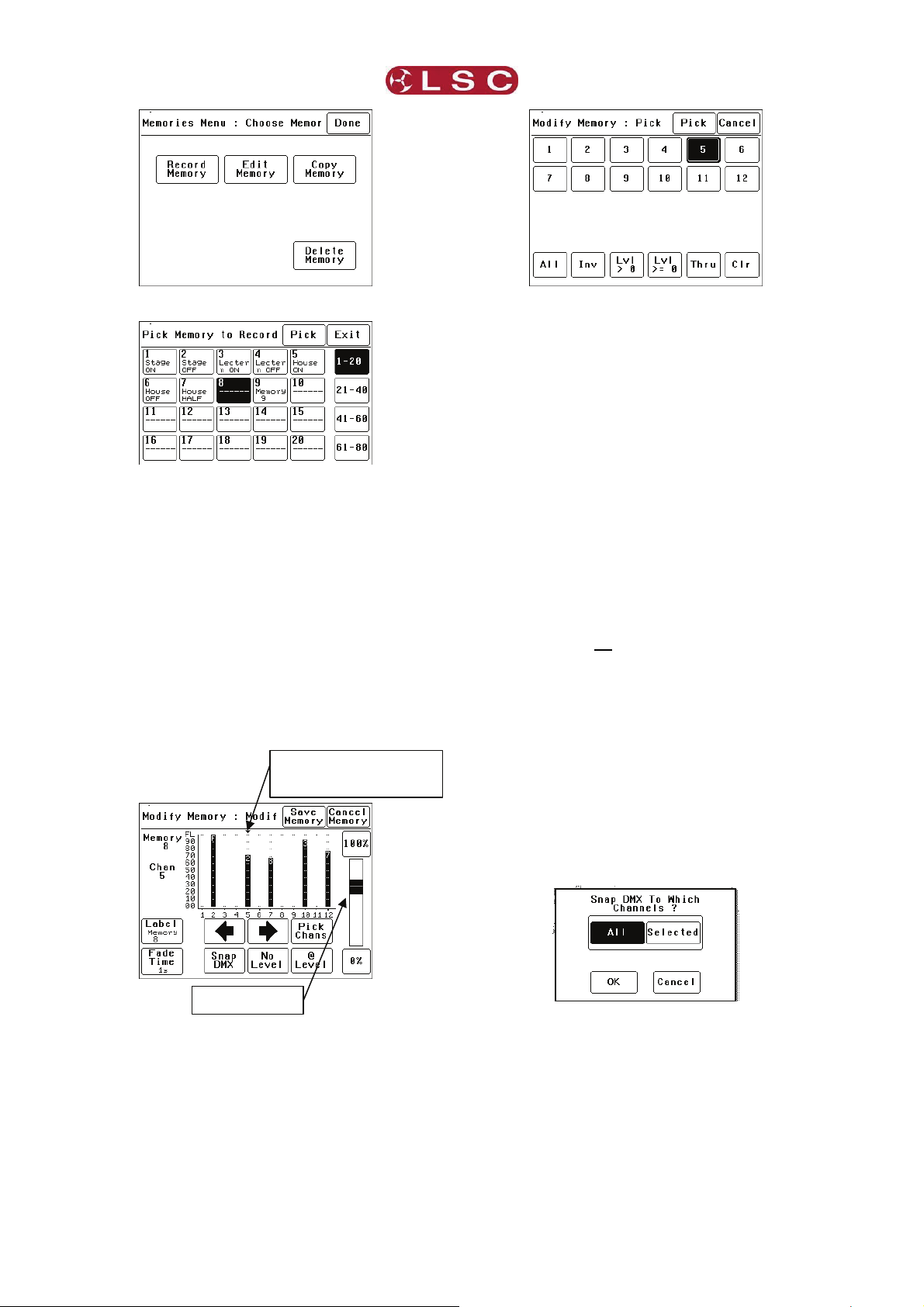

1.2.1 Create or Edit memories

To Create or

edit a memory press;

[Menu] [Memories] [Record Memory] or [Edit
Memory]. Select a memory number then press
[Pick].
You can either create your own memory using the
controls on the screen or press [Snap DMX] to
take a copy of the current DMX input signal.
When a channel(s) is selected (indicated by a
small triangle () above the channel) it can be
faded up or down by sliding your finger over the
virtual fader or instantly set to off or full using the
[0%] or [100%] buttons.

n the channel levels of the memory are

Whe
correct, press;
[Save Memory] [Done].
To recall a memory, use an ePlate button or fader
that has been programmed to control that
memory.

1.3 SWITCH CONTROL

All chan

nels set to “DMX/MEM SWITCH” can be

switched between Memory or DMX control.
The “switch” can be operated from either the LCD

touch screen or from a suitably programmed
ePlate.

To set a dimmer channel to “SWITCH” control,
press; [Menu] [Dimmer Channels] [Setup].

1.3.1 AUTO Switch

To co

nfigure the “Switch” (above) to

automatically switch to DMX whenever a valid
DMX signal is connected to the TEKO press;

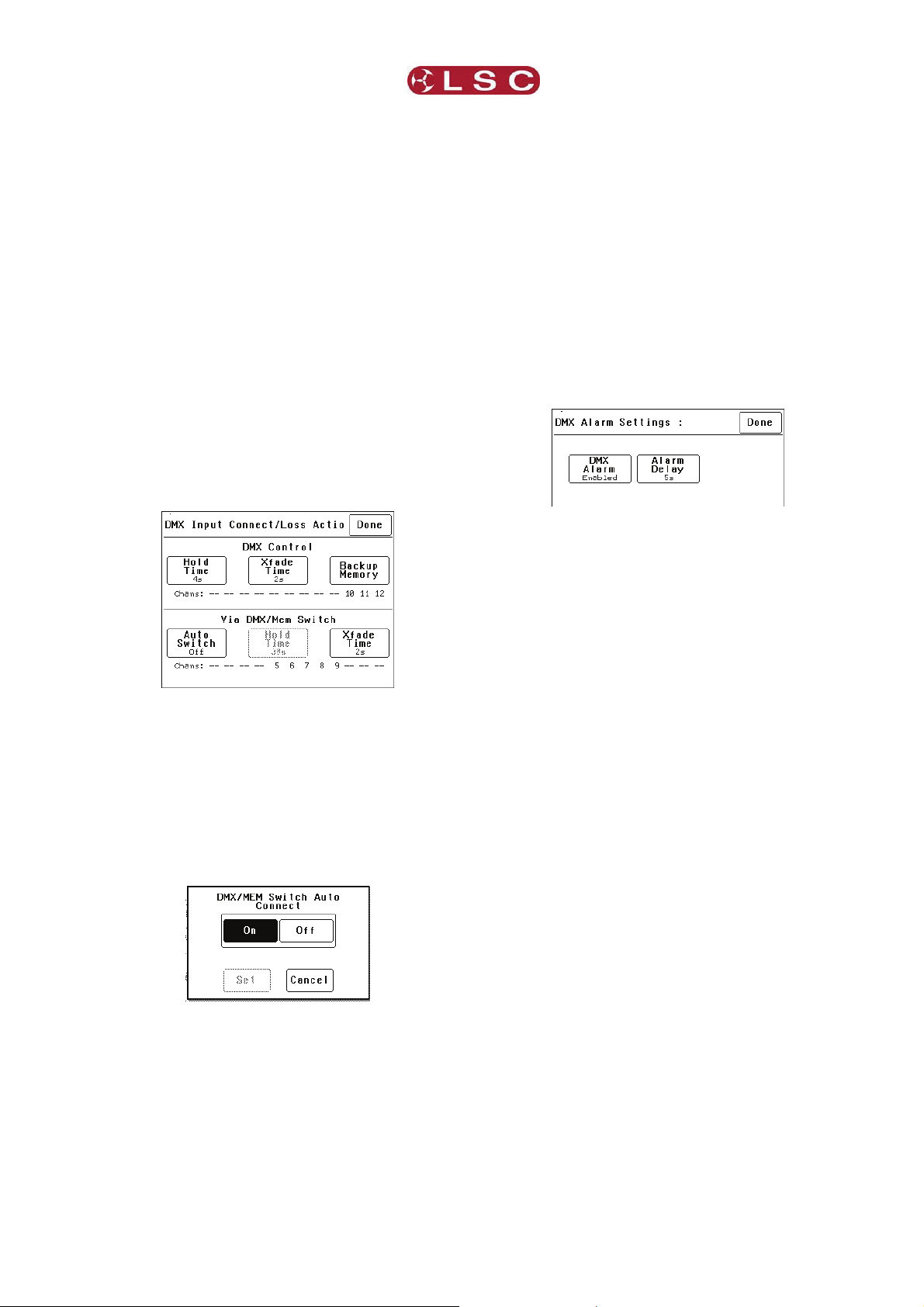

[Menu] [DMX Input] [Connect Loss Action].

Press; [Auto Switch]

Press; [On] [Set] [Done] [Done] [Done].

1.4 TOUCH SCREEN CONTROL

TEKO dimm

er channels can also be controlled

from the LCD touch screen control panel. This
method of control is primarily used for testing
dimmer circuits.
To test a dimmer channel(s) press;
[Menu] [Dimmer Channels] [Chan Test]. Select a
channel(s) then fade the channel(s) up or down
with the virtual fader on the LCD screen or
instantly set them to off or full using the [0%] or
[100%] buttons
Channel test only allows one level to be set for all
selected channels. To set individual channels
levels use the “DMX Backup Memory” above.

LSC Lighting Systems (Aust) Pty. Ltd Page 2

TEKO Dimmer
Operator Manual V3.0

2 Product Description

2.1 ABOUT THIS MANUAL

This manual describes the configuration,
operation and specifications of the TEKO range
of digital dimmers and associated “ePlate” wall
controllers manufactured by LSC Lighting
Systems.

2.2 TEKO FEATURES

TEKO introd

uces a new level of power and
sophistication for portable dimmers. With
features including 3KW per channel @230V, a
full 512 channel softpatch, 80 internal memories,
8 dimmer curves and remote status monitoring.

All this dimmer functionality is controlled using
an LCD touch screen interface, with clear text
labelling of all functions and a context sensitive
help display.

The TEKO dimmer uses LSC’s Pulse
Transformer Fired Dimmer (PTFD™) output
circuitry which means that virtually any load can
be controlled perfectly. Pinspots, ELV lamps,
transformers, strobes and even a 5w pilot lamp
can all be connected without the need for
dummy loads. PTFD™ ensures perfect flicker
free dimming even when running on bad power,
including generators.

High quality toroidal inductors limit the rise time
to 250 micro seconds to minimise electrical
interference.

The inclusion of LSCnet (LSC’s proprietary
networking protocol using TCP/IP) allows AV
companies to use the TEKO as a stand alone
dimmer for small shows. Simply connect any
DMX console, set up a look and use the DMX
snapshot function to record up to 80 memories.
Then remove the lighting console and replace it

with elegant push button and/or fader remote
panels for simple operation.

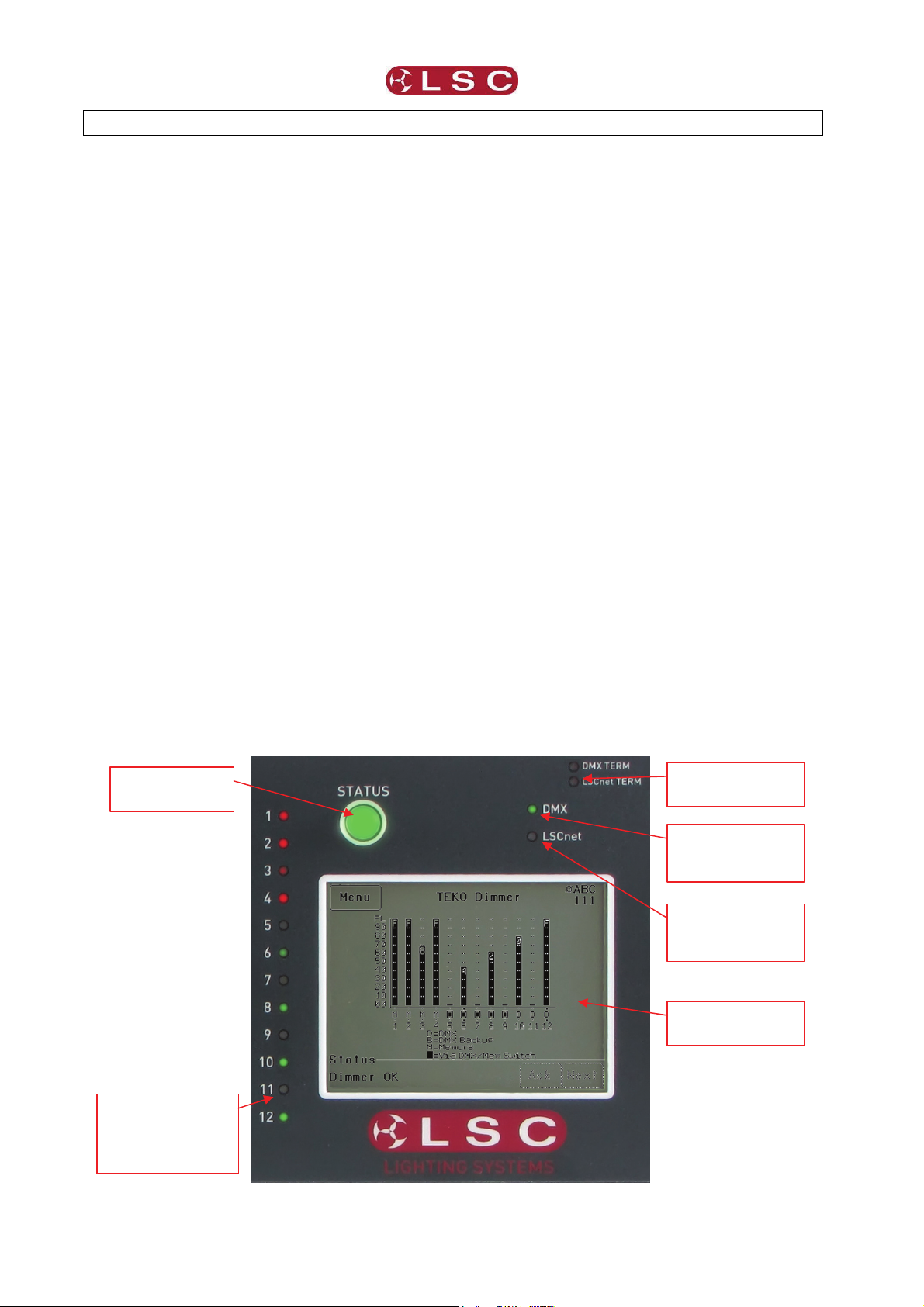

When something goes wrong at a show you
want to know where to look. The TEKO has a
large 10mm Bi-Colour LED on the front panel for
status indication. Solid GREEN means all is
well. Flashing RED gets your attention to tell you
that something is wrong, and is easily seen from
the other side of the stage if required.

2.2.1 LCD Touch Screen.

Dimme

r configuration, patching and local control
is achieved using a backlit graphical LCD with a
touch screen control panel. A lock code can be
used to prevent unauthorised tampering. When
using the touch screen interface, do not use
sharp pointed objects that might damage the
touch screen surface.

2.2.2 Continuous Operation.

The TE

KO dimmer is designed for 100% duty

cycle operation across all channels
simultaneously.

Under these conditions the dimmer’s ventilation
is critical and good clearance around the dimmer
is essential to prevent obstruction to the airflow
in and out of the dimmer chassis. To allow the
TEKO dimmer to operate at peak performance it
requires maximum air flow around the dimmer.
LSC recommends a general clearance of
100mm on either side of the dimmer.

The TEKO features variable speed fan cooling
to minimise noise where the fan only operates
as required.

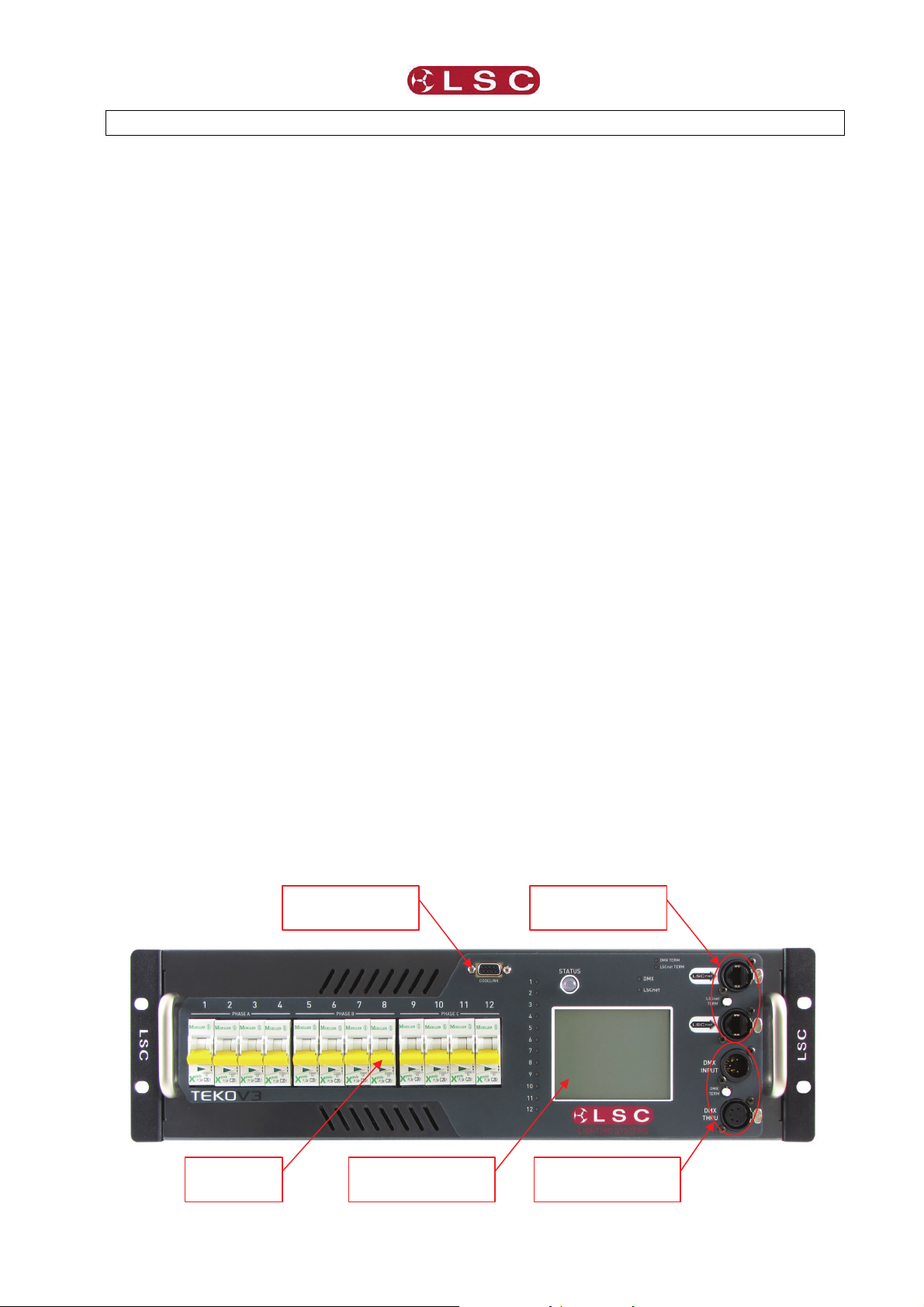

Codelink software

grade connectorup

Load Cir

LSC Lighting Systems (Aust) Pty. Ltd Page 3

cuit LCD Touch

Breakers

Screen

Control Pane

l

LSCnet connection

and termination

DMX connection and

termination

TEKO Dimmer
Operator Manual V3.0

2.3 TEKO MODELS

The TE

KO dimmer is available in the following

models offering a choice of dimmer channel
quantities and power output ratings.

 TEKO

12 channels @ 13 Amps per channel.

 TEKO/20

12 channels @ 20 Amps per channel.

 TEKO/6

6 channels @ 25 Amps per channel.

 TEKO/363

3 channels @ 63 Amps per channel.

 TEKO/B

12 channels @ 10Amps with RCBO.

 TEKO/B20

12 channels @ 20A with RCBO.

TEKO/B/6



6 channels @ 25 A with RCBO.

All models can be controlled via DMX 512 from
a lighting console locally, an ePlate wall
controllers connected via LSCnet or from the
touch screen control panel.

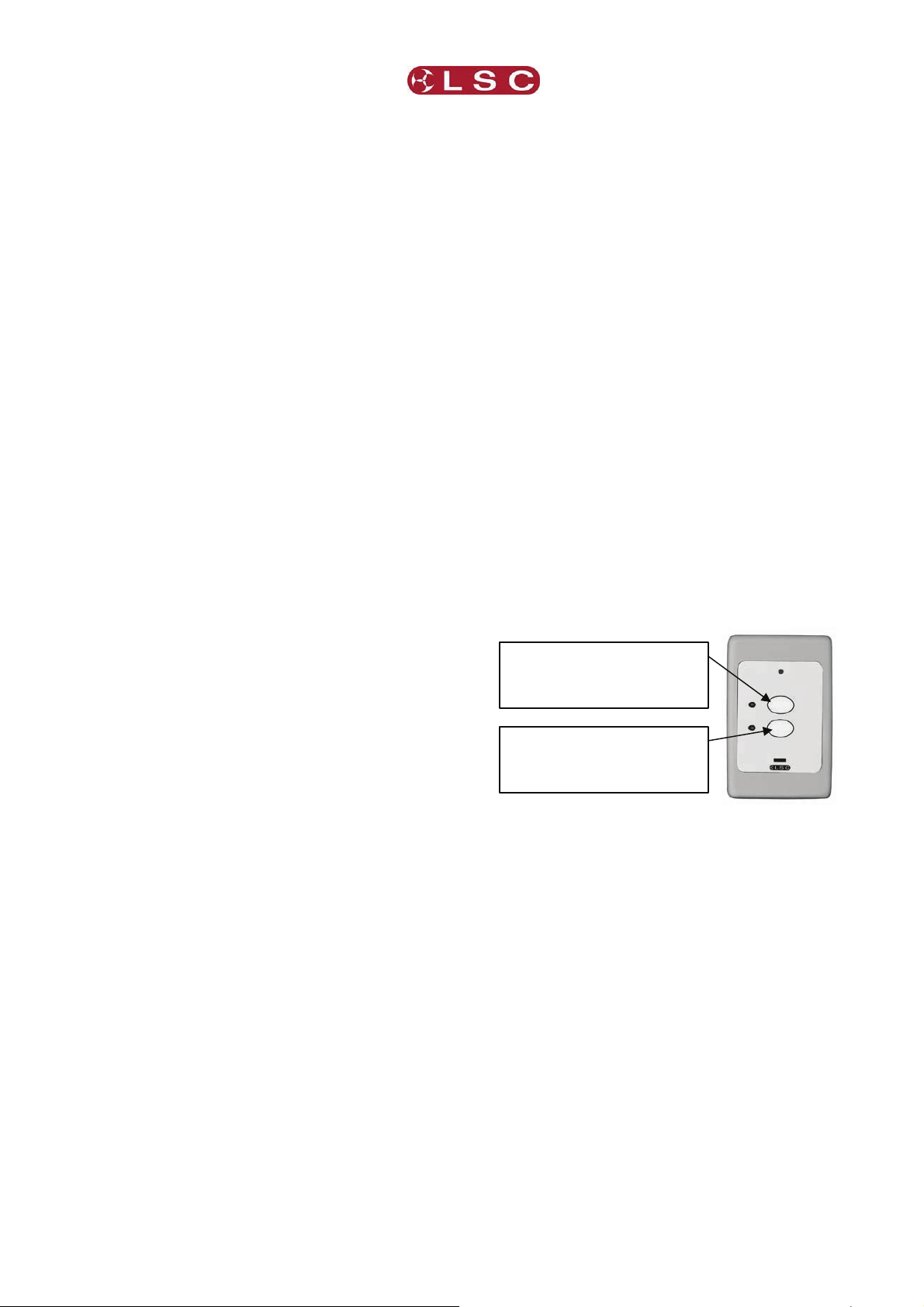

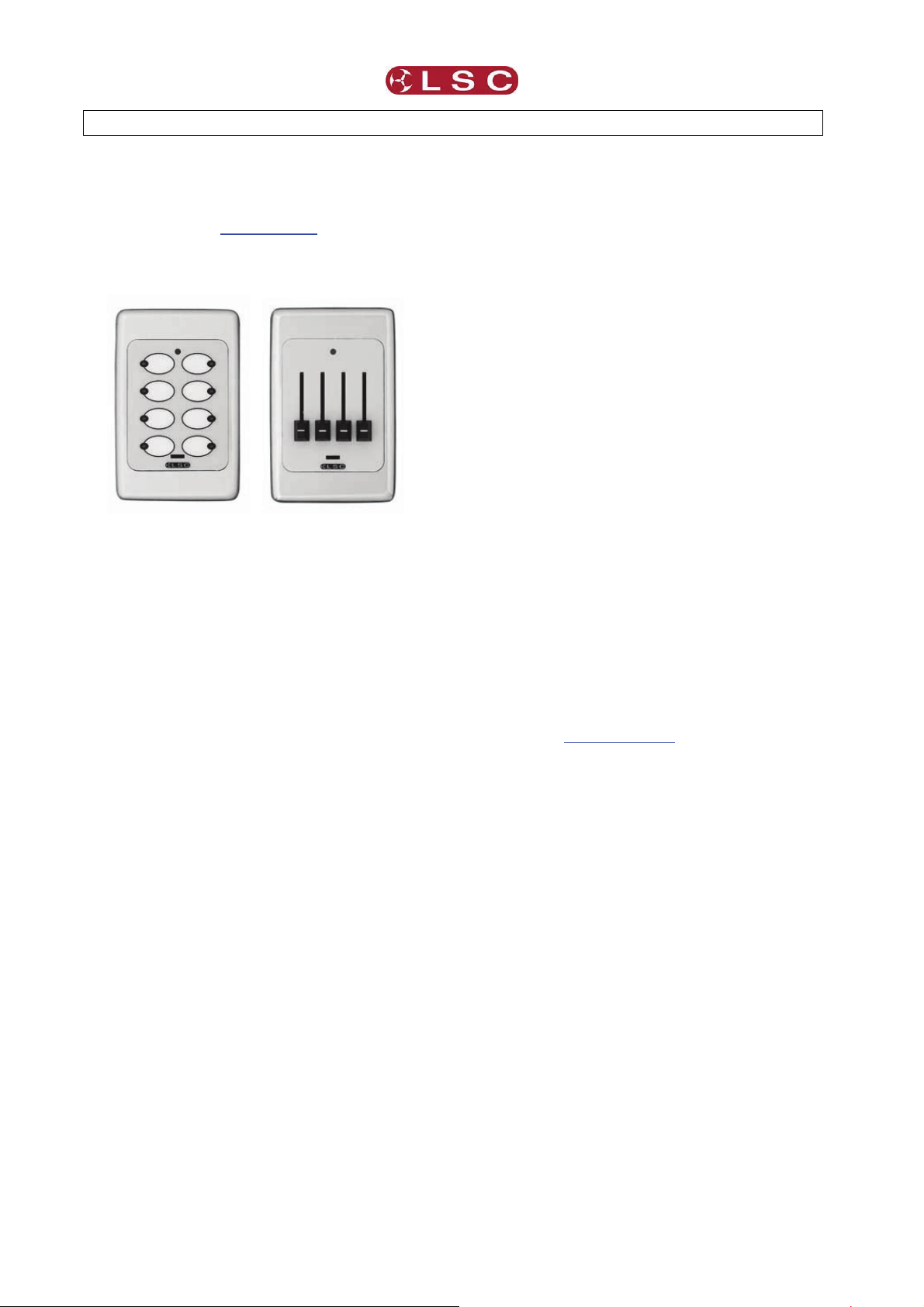

2.4 EPLATES

ePlates ™

are remote wall station controllers for

the TEKO that allow users to recall internal
memories from the TEKO for replay at a pre-
programmed level and with a selected fade time.

ePlates are available in the following
configurations;

2.5 TEKO CONTROL PHILOSOPHY

The con

trol source attribute for each TEKO

dimmer channel can be individually configured
to control the channel from either:

1. DMX. When configured for “DMX” a dimmer
channel is controlled from a DMX lighting
controller. If DMX fails, the DMX levels can be
held indefinitely or the channels can fade to a
“Backup Memory” previously stored in the
TEKO.

2. Memory. When configured for “memory” a
dimmer channel is controlled from ePlates (wall
plates) that are used to recall memories stored
in the TEKO dimmer.

3. DMX/MEM Switch. When configured to
“Switch”, a dimmer channel can be switched
between Memory or DMX.

Operation of the Switch is controlled from either
a suitably programmed ePlate button or from the

TEKO touch screen or if Auto Switch is set to
ON it will be automatically switched to DMX

whenever a valid DMX signal is connected to the

TEKO.

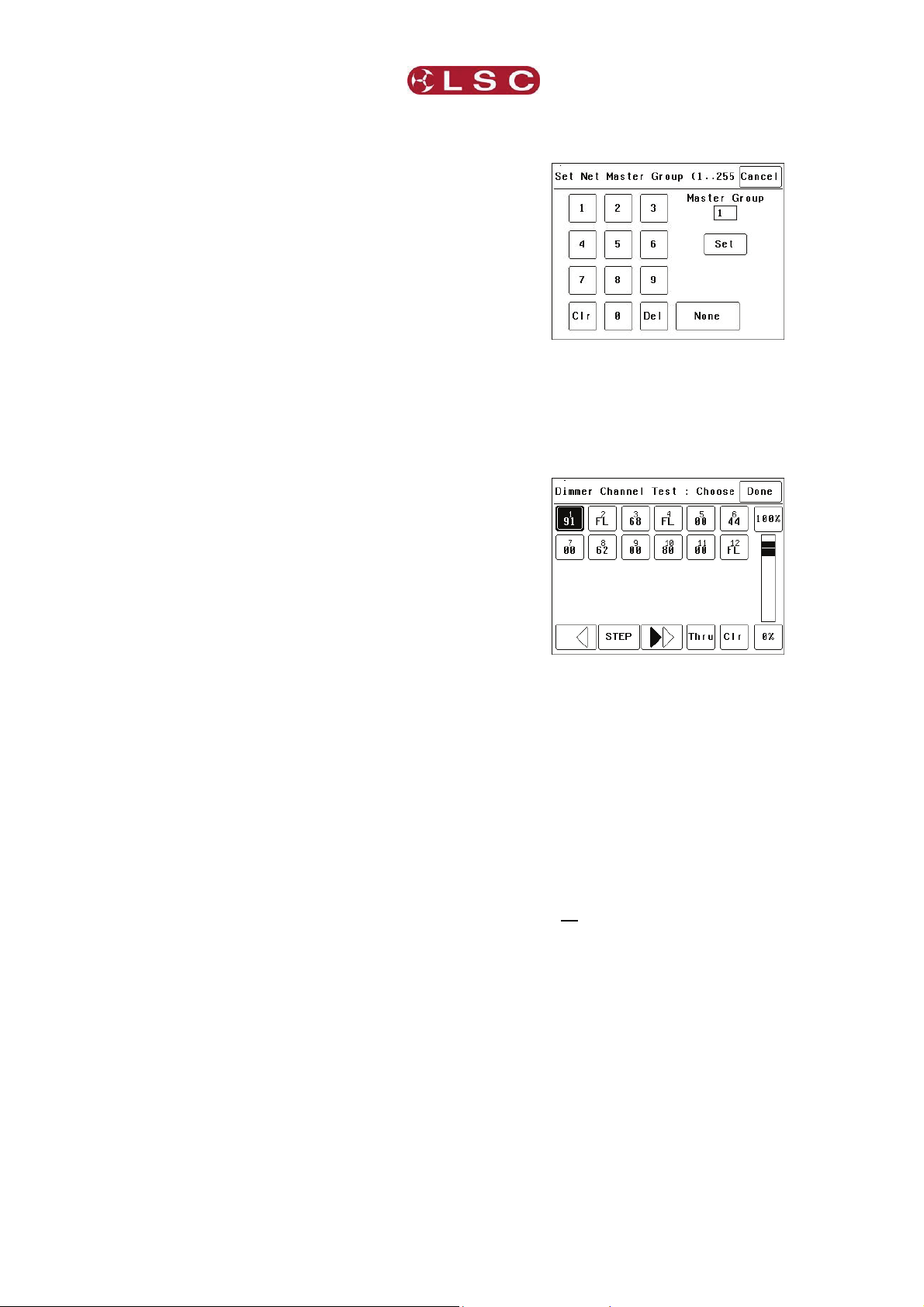

Channel Testing. Dimmer channels can be

manually controlled from the TEKO front panel
touch screen for testing purposes.

“Back -up Memory ”. Can
be automatic ally recalled if
DMX is lost.

[Channel Test] via
LCD Touch Screen Test

Individual
selection fo r
every dimmer
Channel.

4 Faders 8 Buttons
2 Faders 4 Buttons

1 Fader 2 Buttons

ePlates are connected to the TEKO Dimmers
via LSCnet which uses industry standard Cat5
cables and connectors. The ePlate buttons and
faders can be programmed to recall lighting
memories stored in the dimmers or to operate
various TEKO functions.

For example, one button might recall a TEKO
memory. Another button might switch certain
dimmer channels between DMX control and
Memory (ePlate) control.

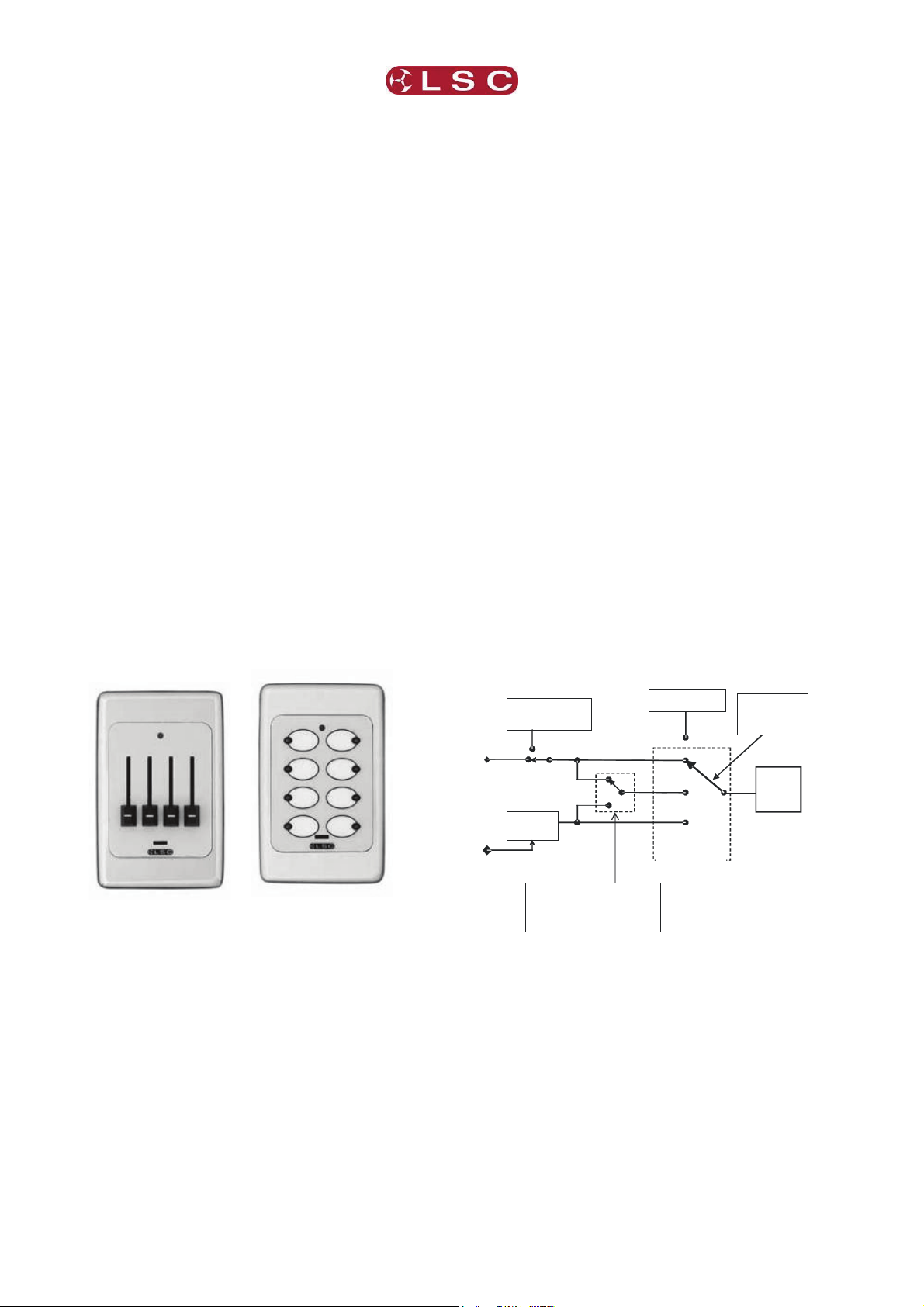

DMX DMX Input

MEM/DMX

Memories

1 to 80

LSCnet input
from ePlates recalls
memories

MEM/DMX Sw itch operated by either;

Switch

1. LCD Touch Screen

2. ePlate button

3. D MX input detected
(if Auto Switch is ON)

Switch

Memory

Dimmer Control
Source attributes

TEKO dimmer channel control options.

Dimmer
Channel

LSC Lighting Systems (Aust) Pty. Ltd Page 4

TEKO Dimmer
Operator Manual V3.0

2.6 “HOUSTON” MONITORING SOFTWARE

ston is an optional Windows PC application

Hou
that allows the remote monitoring of all LSCnet
enabled products. This includes the TEKO
dimmers and ePlate wall controllers.
Any operational faults such as input phase
failure, loss of DMX, over temperature are all
sent over the LSCnet from all of the devices to
one or more PCs running the Houston software.
The user is immediately notified of a fault when
the normally GREEN status indicator starts
flashing RED. A quick glance at the screen then
gives all the detailed information about the
device affected and the nature of the fault.
This information is invaluable for the fast
diagnosis of any problems in all situations. Large
stadium concerts or set-ups with dimmers in
different locations such as distant plant rooms
can now see what is happening from a central
location.
Installers can see the status of a remote venue
such as a school, church or theme park from
their office via a Wi-Fi link or an internet
connection.
Houston also keeps a permanent log of all
system events for later viewing. These are
stored with the time and date of the fault,
allowing further diagnosis of a problem, even if it
is not reported until weeks later.

LSC Lighting Systems (Aust) Pty. Ltd Page 5

TEKO Dimmer
Operator Manual V3.0

3 Getting Connected

3.1 INPUT SUPPLY

TEKO dimmers are designed to be connected to
a 3 phase supply and are supplied with either a

1.2m/5 wire/6mm² or 1.2m/5 wire/10mm² black
rubber insulated power cable terminated inside
the dimmer.

Most Australian models are fitted with a 5 pin
three phase plug. The TEKO power plug is
rated at 40 Amps per phase.

Export models have the end of the cable
unterminated, numbered and fitted with ferrules,
ready for termination into a suitable three phase

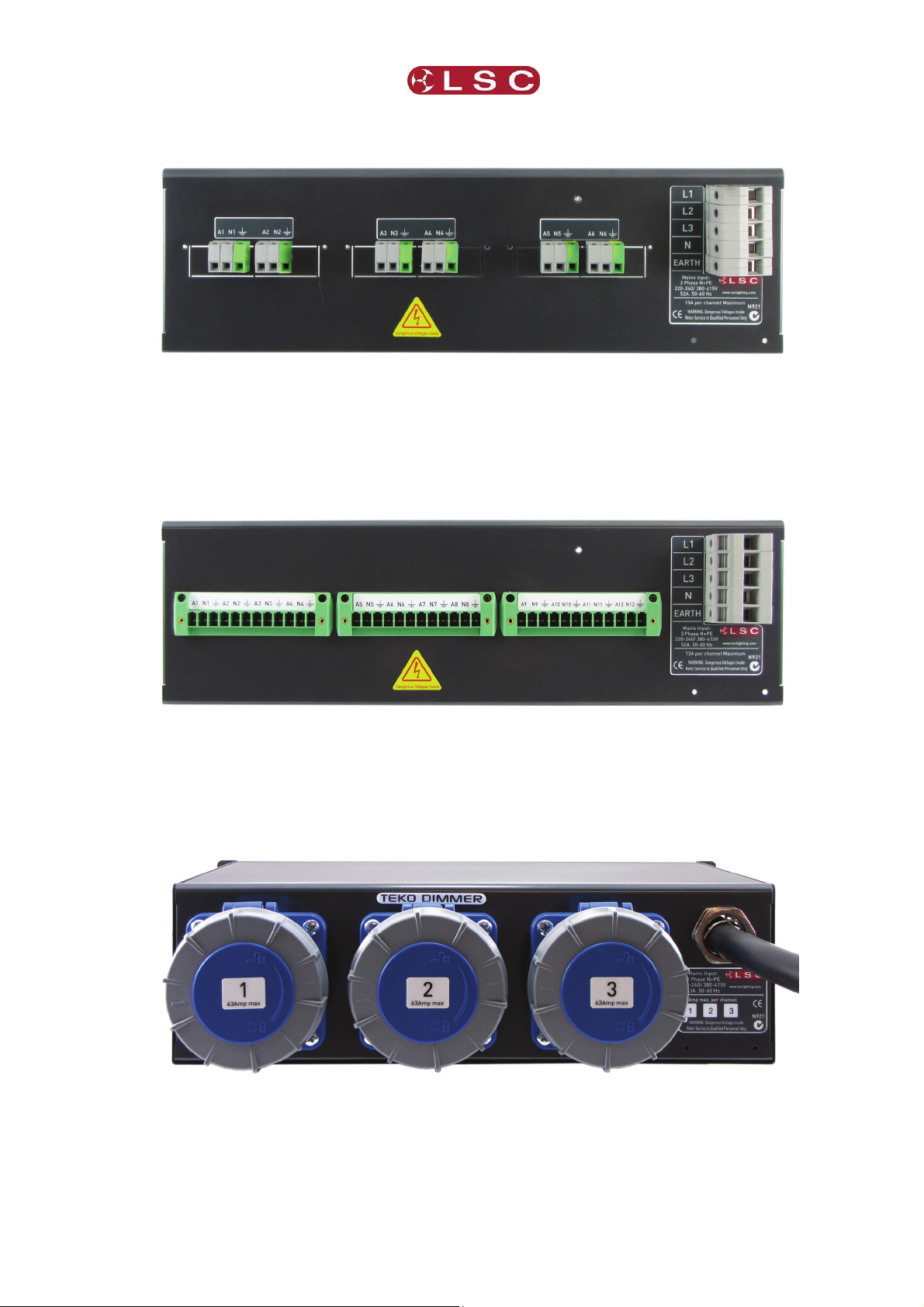

plug. Permanent installation models have a
special screw termination rear panel that
provides five 16mm² pressure pad screw
terminals to connect incoming three phase
supply.

Connection is Three Phase Star; however other
versions such as single phase(s), two phase and
Three Phase Delta wiring are available upon
request from the factory. Contact LSC Lighting
Systems or your nearest Distributor for further
information.

LSC recommends an overrated Neutral (1.5
times phase current) on the incoming supply for
optimal performance and minimal interruption.
The incoming supply should also be fused or
fitted with a suitably rated circuit breaker.

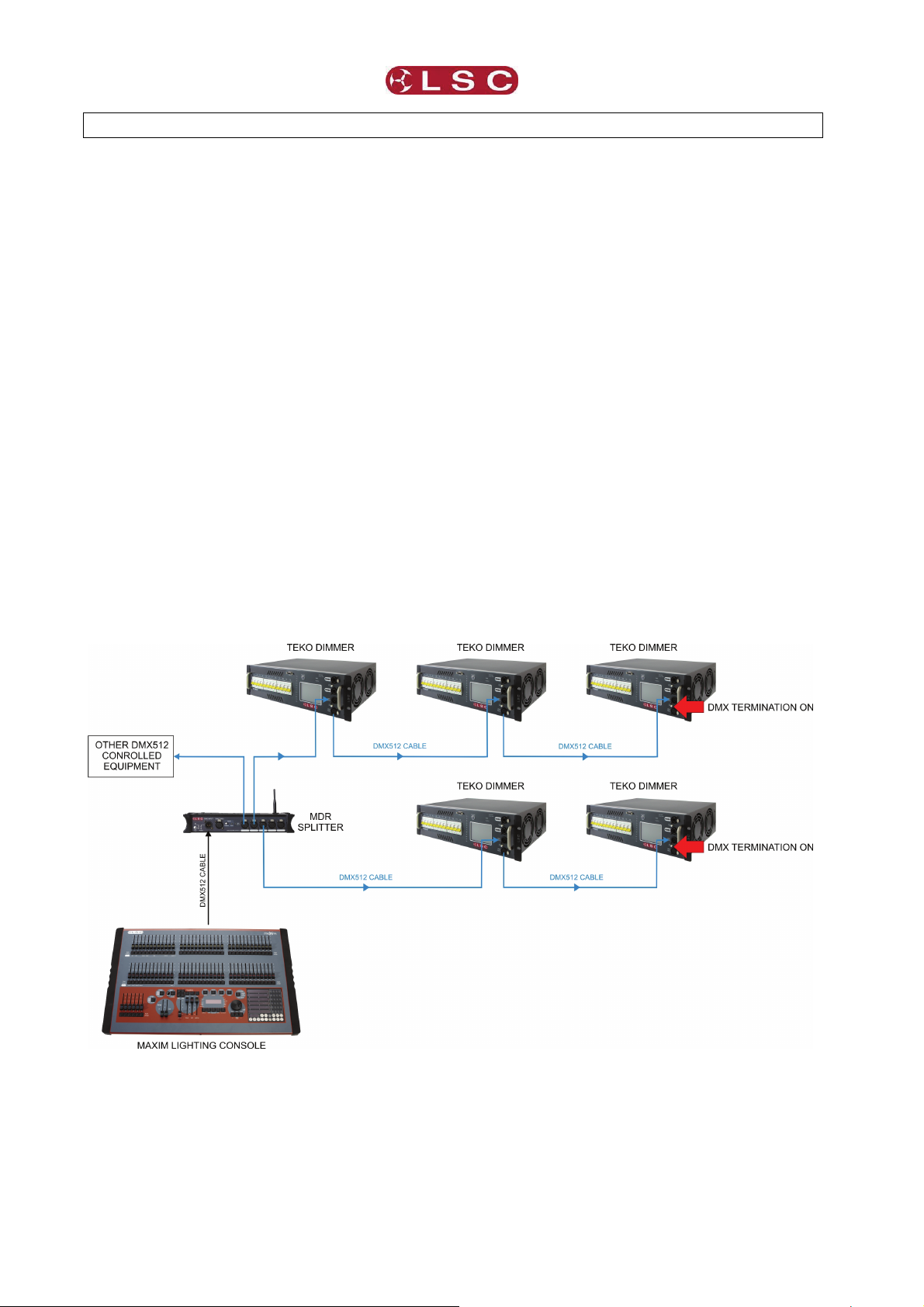

3.2 DMX CONTROL INPUT

TEKO di

mmers are designed primarily to accept
control signals conforming to the DMX512A
protocol. The DMX input connector is located on
the front control panel. A Thru connector located
next to the Input allows the connection of the
dimmer to other DMX512 devices downstream.
The Thru connection is passive and allows for
the pass through of the DMX512 signal, even if
there is no power to the dimmer. The last
dimmer on the DMX cable must have the DMX
termination on.

3.3 LSCNET INPUT

TEKO dimm

ers have an LSCnet interface that is
used to connect optional remote ePlate wall
panels and monitor the dimmer status using
Houston monitoring software. The LSCnet
interface has an input and thru connector similar
to the DMX connections. The last dimmer on
the LSCnet cable must have the LSCnet
termination on.

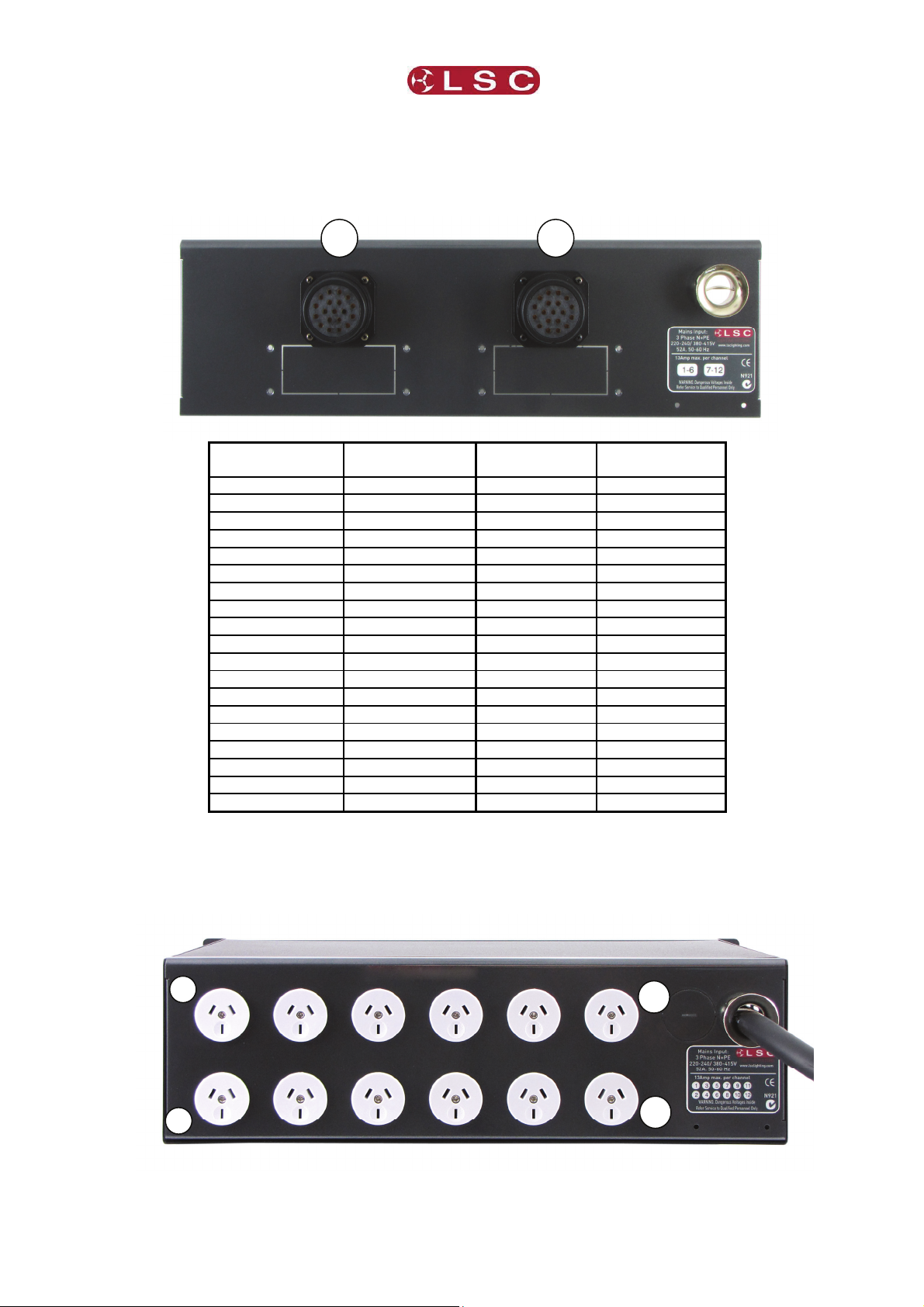

3.4 LOAD CONNECTION

The TEKO d

immers are available with a wide

selection of output load connectors to suit the

many applications and countries of installation.
Wiring details for the Multipole connector options
are detailed in load socket wiring section

.

For Australian versions, the 12 channel TEKO is
supplied with twelve Australian Sockets and the
6 channel is supplied with 6 sets of 25 Amp and
15 Amp Australian Sockets connected in
parallel.

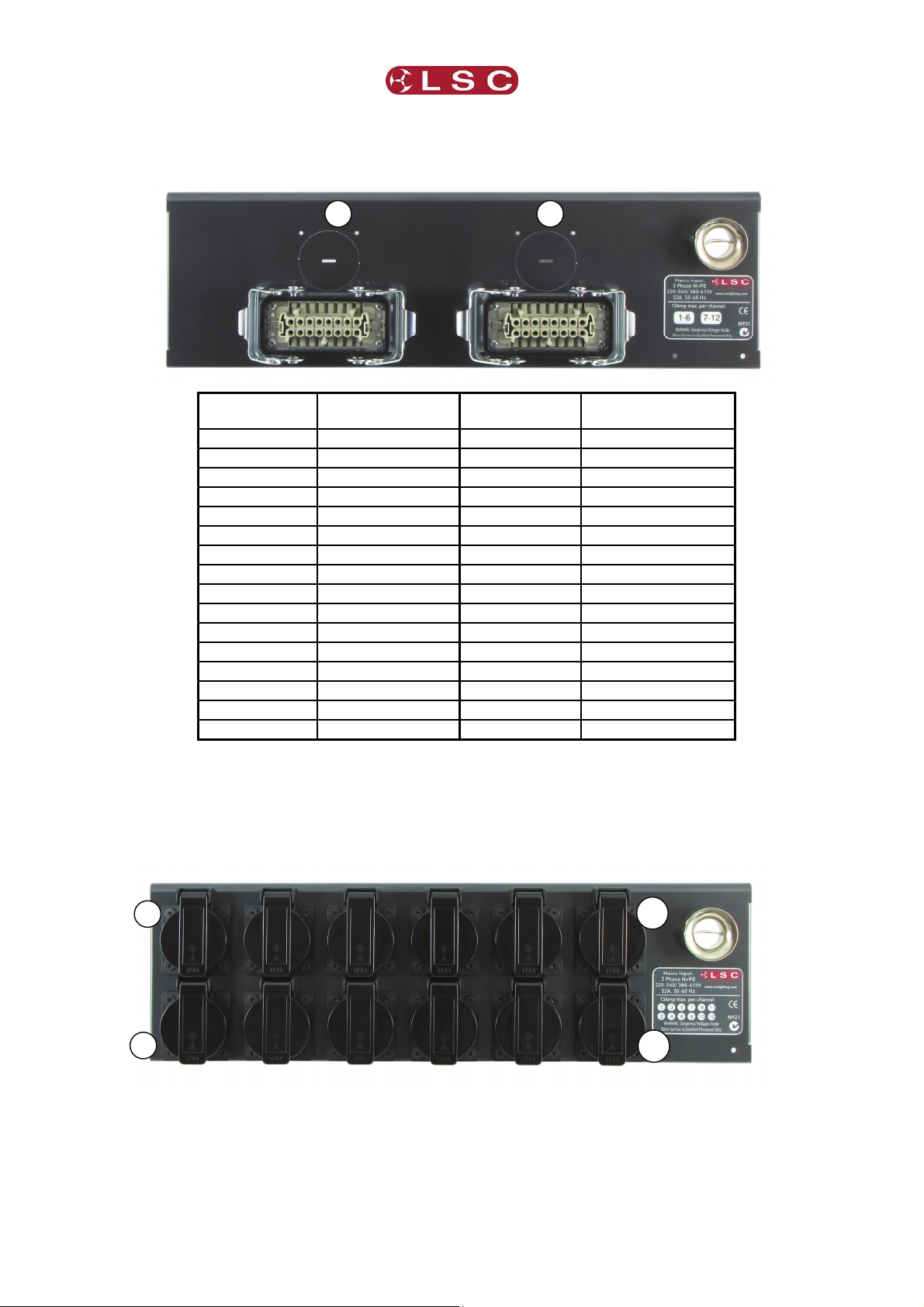

European versions of TEKO are available with
the following socket types: Shuko, 16 pole
Harting, 19 pole Socapex, 63A CEEform (3
channel model) and a screw terminal version for
permanent installations.

Care should be taken when driving inductive
loads as not all of these types of loads can be
dimmed. If you are in doubt to the dimmers
suitability for the intended application, please
consult LSC Lighting Systems or your nearest
Distributor for further information.

Under all circumstances during the operation of
the dimmer, it is highly advisable not to connect
or disconnect the load while live, to prevent
potential damage to the dimmer, the load
connectors or to the load itself.

3.5 OVERLOAD PROTECTION

dimmer is fitted with fast acting thermal

Each
magnetic Miniature Circuit Breakers (MCB’s),
one for every output channel. Some TEKO
models are optionally available with RCBO
protection. Under normal operating conditions
the MCB’s pass the rated current and will only
trip when there is an overload through the
dimmer circuit. Likewise, if there is a short circuit
on the load or faulty wiring on the load side, the
MCB will trip to protect the internal components
of the dimmer.

Dimmer channels can be manually disabled by
switching off the MCB for that particular channel.
This is particularly useful for those occasions
where a genuine fault has occurred.

3.6 DIMMER INSTALLATION

The TE

KO dimmers have been designed to be

either free standing or 19” Rack mountable.
In free standing applications, all dimmers have
four rubber feet attached to the bottom of the
chassis.
If the dimmer is used for touring applications in a
Roobar frame, LSC can provide optional Roobar
mounting brackets to secure the back of the
dimmer.

LSC Lighting Systems (Aust) Pty. Ltd Page 6

TEKO Dimmer
Operator Manual V3.0

4 Dimmer Configuration

The TEKO dimmer needs to be configured to
suit its particular application. This involves the
following operations which are achieved via the
touch screen menus. The menu system is fully
described in menu system

section.

4.1 DIMMER CONTROL SOURCE

Each dimm

er channel needs to be configured for

the “Control Source” that will drive it. This could
be either DMX, Memory or SWITCH (switch-
able between Memory or DMX).
See section Control Source

.

The SWITCH (above) can be manually operated
either locally from the LCD touch screen or
remotely from an ePlate.
See section DMX/MEM Switch Operation
section Switch Group

.

and

The SWITCH can be automatically operated by
the presence or absence of DMX.
See section DMX/MEM Switch Connect Loss

Action.

Note: If “Control Source” is not available on
the menu then either “Net Playback” has
been disabled from the “Options” menu.
When “Net Playback” is disabled, it forces all
dimmer channels to DMX control.

4.2 PATCHING

Dimme

r channels set to DMX or Switch Mode,

may need to be patched to the DMX slot number
that is to control them.

Refer to the Patching section

.

Recording Memories
Dimmer channels set to Memory Mode, are
controlled by the memories (up to 80 memories)
saved in each TEKO. These memories are
created and saved in the TEKO using the LCD
touch screen or by taking a snapshot of the
DMX input. The ePlates (wall plates) must also
be programmed to recall the required memories.

See section Memory Control

.

 Selecting minimum and maximum levels for

each dimmer.
See section Min and Max Levels

 Selecting a fade curve for each dimmer.

See section Fade Curves

 Setting each dimmer to either Dim (dimmer)

or Switch (between OFF or fully ON).
See section Fade Curves

 Setting a “lock code” to prevent

unauthorised access to the TEKO menu.
See section TEKO Lock

/ Unlock

 Naming the Dimmer. Useful in large

installations to identify each TEKO.
See section Name

 Setting the date and time (for the TEKO

status log).
See section Time and Date

 If the TEKO is ONLY to be controlled by

DMX then the Memory control by ePlates via

LSC net can be disabled. This simplifies the
menu system and forces all dimmer
channels to DMX control. See section Net

Playback

 The DMX alarm delay time can be set or the

alarm can be disabled. Disabling the alarm
is useful when the TEKO is never to be
controlled by DMX. See section DMX Alarm

.

4.4 TESTING

The ope

ration of each dimmer circuit can be

tested from the LCD touch screen.

Refer to the Channel Test section.

4.3 OPTIONAL SETTINGS

In addition to these

settings you can also set the

following optional parameters;

 Selecting the dimmer action of DMX

controlled channels when the DMX signal is
connected or lost including the saving of a
Backup Memory.
See section Connect Loss Action

LSC Lighting Systems (Aust) Pty. Ltd Page 7

TEKO Dimmer

cator

cator

Operator Manual V3.0

5 Menu System

5.1 CONTROL PANEL OVERVIEW

The Control Panel of the TEKO dimmer contains
indicators for status and channel levels together
with the LCD touch screen user interface.

Operation of the touch screen and status of the
indicators are discussed in detail in this section.

5.1.1 Indicators

dicators located around the touch screen

The in
are multi coloured and light or flash to indicate
their current condition as described below;

TEKO STATUS

 Green = Normal operation.
 Red (flashing) = Alarm. See status

message on LCD screen.

 Red (steady) = Alarm is acknowledged but

the problem still exists.

DMX

 Green = Valid DMX control signal

connected.

 Green (flashing) = Loss of DMX control

signal.

 Red (flashing) = Error on DMX control

signal.

LSCnet

 Green = Valid LSCnet control signal

connected (from ePlates).

 Green (flashing) = Data traffic detected on

LSCnet.

CHANNEL LEVEL Indicators
 Green = The channel is ON via DMX

control.

 Red = The channel is ON via memory

(ePlate) or channel test control.

The brightness of the channel indicator is
proportional to the channel level.
See the, Alarms section

for further details on

alarms.

5.1.2 Touch Screen

The tou

ch screen may be operated by touching
the virtual buttons with your finger. The home
page of the touch screen shows the current level
of each dimmer channel in a bar graph display.

If the TEKO has been “locked”, the [Menu]
button is replaced by the [Unlock] button.
Touching the [Unlock] button and entering your
code number unlocks the TEKO and reveals the
[Menu] button.

Pressing [Menu] allows you to access a range of
functions, setups and tests via sub-menus. Each
sub-menu screen has help information in the top
left corner. The menus are fully described in
Section 3 “Testing and Setting up the TEKO
Dimmer”.

TEKO status

ator

indic

Channel level

indicators 1 to 12

Green=DMX control

Red=Mem control

Termination status

indicators

DMX Remote

l status

Contro

indi

LSCnet Remote

Control status

indi

LCD Touch screen

TEKO Contro

LSC Lighting Systems (Aust) Pty. Ltd Page 8

l Panel

TEKO Dimmer

g

Operator Manual V3.0

Programmable

Dimmer name

Menu button

Channel level

bar

raphs

Scrolling Status

Messages

TEKO Main

At the top of the screen is the name of this
TEKO dimmer. The default name is “TEKO

Dimmer” but you can enter a name of your
choice from the options menu. Names are useful
in identifying each TEKO dimmer in installations
containing more than one TEKO and can also
be used by the “Houston” monitoring software.
The middle of the screen is a bar-graph display
of the channel levels with channels numbers 1 to
12 shown across the bottom.
The levels from 00 to FL (Full) are shown on the
left scale in increments of ten, whilst the units of
each channel are shown on the individual
channel bars. In the example above, channel 3
has a level of 68.
Channels can be individually configured to be
controlled from either “DMX”, “Memory”
(ePlates)”, or the “MEM/DMX Switch”. The
letters below the bargraphs show the control
source for each channel. The legend below the
channel numbers explains the meaning of the
letters. In the example above;
Channels 1 to 4 are controlled by M, (Memories
recalled by ePlates). Channels 10 to 12 are
controlled by D, (DMX).
Channels 5 to 9 D are also controlled by DMX
but control is via the MEM/DMX switch.
Therefore the switch is obviously in the DMX
position. If the switch was changed over to
Memory, then channels 5 to 9 would come
under Memory control.
If the switch has been set to “Auto Switch” to
DMX (if a DMX signal is present), then if the
DMX signal is lost, channels 5 to 9 would
automatically switch to Memory control.
See section 2.5 “Control Philosophy” for more
details.

The rig

ht hand side of the screen indicates the

presence of the 3 phases (Ø A B C) of input
power to the TEKO.

Phase status ABC
1=p

resent

0= missing

Letter indicates
current control
source for each
channel as per
legend on screen.
W

hite text on black
shows control
source is via the
DMX/MEM Switch.

Screen

“1” indicates the presence of that phase.
“Ø” indicates a loss of that phase.

The bottom of the screen displays scrolling
messages about the status of the TEKO
dimmer. These are described in the Alarms

section.

5.2 TOUCH SCREEN MENUS

Whe

n the TEKO is switched ON, after briefly

showing the opening screen, the main screen
appears;

Pressing [Menu] reveals the “Main Menu”.

The six buttons on the “Main Menu” provide
access to the Sub-Menus and functions which
are described in detail on the following pages.
Each sub menu has a description of its function
at the top of its screen.

LSC Lighting Systems (Aust) Pty. Ltd Page 9

TEKO Dimmer
Operator Manual V3.0

5.2.1 TEKO Menu Structure

Each mai

n menu button accesses the following sub menu functions;

Main menu > Dimmer Channels

Set-up Chan Test Breaker Status

Control Source.

(DMX, Memory or

Switch)

Min Level

Max Level

Cut-off Level

Fade Curve

Net Group Master.

Manual

channel(s) level

test

Channel test

sequencer

Circuit breaker

status

Patch View Levels

1:1 Patch

User Patch

Clear Patch

Connect Loss Action DMX Alarm

DMX Control
Hold Time
Xfade Time
Backup Memory

Via DMX/MEM Switch
Auto Switch On/Off
Hold Time
Xfade Time

Main menu > DMX Input

Raw levels

Percentage

Alarm Enable/Disable

Alarm Delay Time

Record
Memory

Main menu > Memories

Edit
Memory

Copy
Memory

Delete
Memory

MEM/DMX
Switch

Manually operate the
“MEM/DMX Switch”.

Main menu > Net Setup

Switch Group

Set Switch Group
Number or None for
ePlate control of
MEM/DMX Switch.

Main menu > Options

Module Status Beeper About

Input Phases
A B C

Temperature

Fan Speed

Lock Dimmer

4 digit code to
lock

Date and
Time

Set Time

Set Date

On
or
Off

Change Lock
Code

Default = 0000

Net Playback

Enable or Disable
Memory playback
from ePlates

Software
Version

Model type

Voltage

Dimmer Name
Enter a name

Reset

System Reset

Total Reset

Select a menu by touching the appropriate
button on the touch screen. To step back
through the menus, press the button in the top
right of the screen.

The choices will be either;
[Done] (Exits to previous menu)
or, if changes have been made;
[Save] (Exits to previous menu and saves
changes)
or
[Cancel] (Exits to previous menu and restores
previous settings).

Main menu > Log

Displays Log

Clear Log

LSC Lighting Systems (Aust) Pty. Ltd Page 10

TEKO Dimmer
Operator Manual V3.0

5.3 DIMMER CHANNELS MENU

Selecting [Me

nu] [Dimmer Channels] provides

menus for;

 Setup (of channel attributes)
 Channel Testing

5.3.1 Set-Up

Selecting [Menu] [Dimmer Channels] [Setup]
reveals the following screen;

The  and  buttons at the bottom left of the
screen step through the attributes that can be
set for each individual dimmer channel.
The available attributes are;

 Control Source
 Min Level
 Max Level
 Fade Curve
 Net Master Group

As each attribute is selected, the screen shows
the setting of that attribute for every channel.
In the example above of a 12 channel TEKO,
the “Control Source” attribute for every channel
is shown.

 Channels 10 to 12 are controlled by DMX.
 Channels 1 to 4 are controlled by TEKO

In this example, channels 7, 8 and 9 are
selected.
To de-select a channel, touch that channel
again.
To de-select all

channels press [Clr].

To select a range of channels, press a channel,
then [Thru] then another channel.

When any channels are selected, the attribute
button becomes active. Pressing the attribute
button allows you to change the attribute of the
selected channel(s) as described below.

The default settings for

channel attributes are;

ATTRIBUTE DEFAULT SETTING

Control Source Switch
Min Level 0%
Max Level 100%
Cut-off Level 0%
Fade Curve S Law
Net Master Group None

Descriptions of each attribute and how to set
them are described below.
When the all attributes are correct for all
channels press [Save Setup], or to cancel the
changes that you have made and return to the
previous settings press [Cancel].

5.3.1.1 CONTROL SOURCE

The “Control Source” attrib

ute selects the signal

that will control the level of a dimmer channel.
Press; [Menu] [Dimmer Channels] [Setup]. The
screen shows the control source for every
channel. To change the control source, select a
channel(s) (by touching them) then press
[Control Source]. You can select the following
sources;

memories (recalled from ePlates).

 Channels 5 to 9 can have their control

“switched” between either DMX or Memory.

To change the selected attribute of a channel(s),
select the channel(s) by touching them.
Selected channels have white text on a black
background.

1. DMX Control. When configured for “DMX
Control” a dimmer channel is only controlled
from the DMX signal from a lighting controller.

Note: If a dimmer channel is controlled by
DMX, it might need to be patched. See Error!
Reference source not found. “Patching” for
details.

LSC Lighting Systems (Aust) Pty. Ltd Page 11

Attribute
Button

2. Memor

“Memory Control” a dimmer channel is
controlled from ePlates (wall plates) that are
used to recall memories stored in the TEKO
dimmer. These memories can be created and
edited via the LCD touch screen.

3. DMX/MEM Switch. When configured to
“Switch”, a dimmer channel can be manually or
automatically switched between DMX or
Memory control.

y Control. When configured for

TEKO Dimmer
Operator Manual V3.0

Manual ope

ration of the “DMX/MEM
Switch” is controlled either “remotely” from a
suitably programmed button on an ePlate or
“locally” from the TEKO touch screen.
Refer to DMX/MEM Switch Operation

for details
on how to manually operate the “DMX/MEM
Switch” from the touch screen.

Automatic operation of the “Switch” is

controlled by the presence or absence of a valid
DMX signal from a DMX lighting controller.
When DMX is present it will be automatically
connected to any channels that are set to
“Switch”.
See 5.4.6.2 “DMX/MEM Switch Connect Loss
Action” for

details on how to set the “DMX/MEM

Switch” to “Auto Switch” to DMX.
When finished press [Save Setup] [Done]

channels with fluoro curves applied are
selectable. Use the keypad to program the cut­off level, then press [Set].

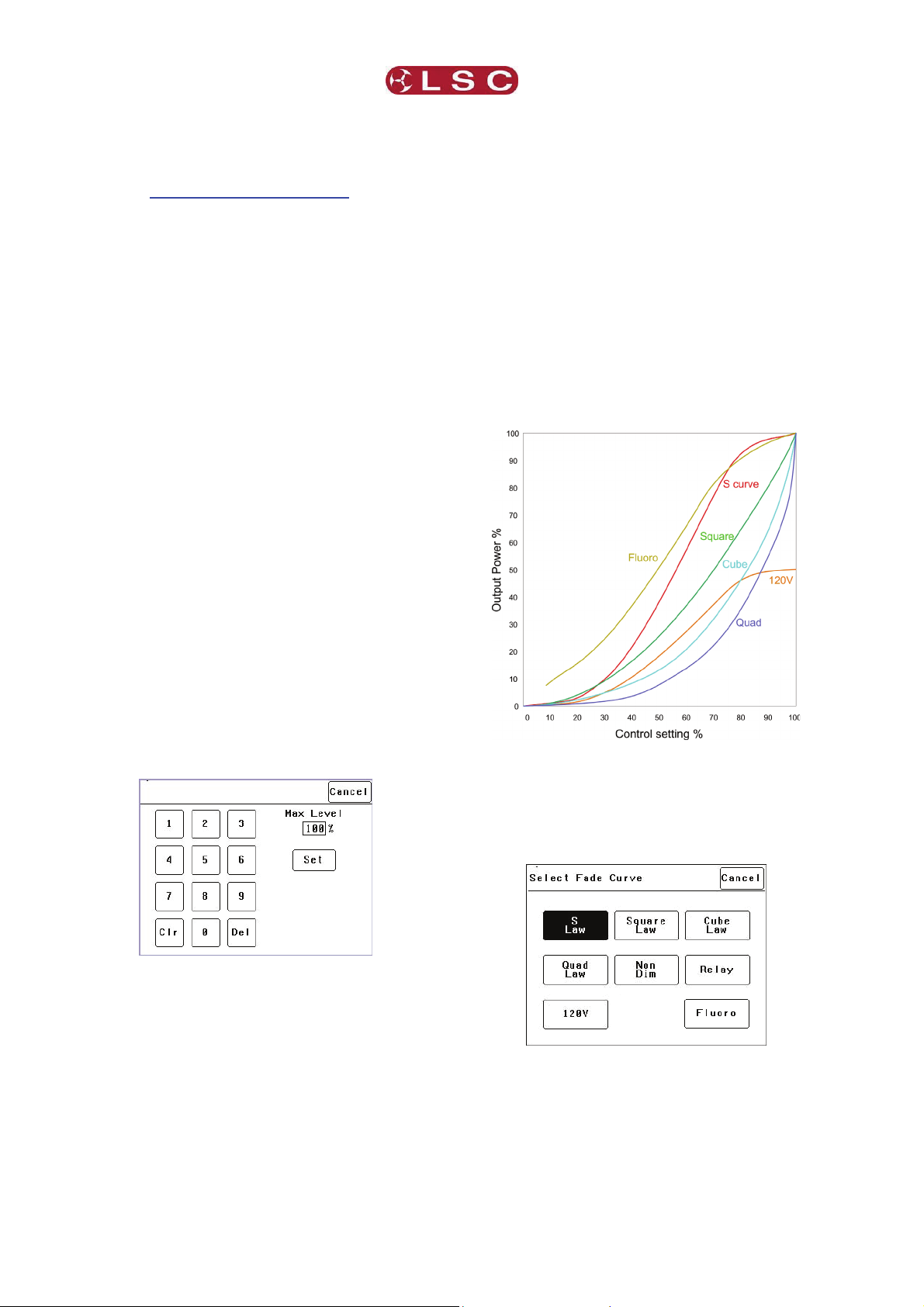

5.3.1.4 FADE CURVES

Fade Curv

e is the curve or “transfer
characteristic” between input control signal and
dimmer output. The following curves are
available;

 S Law
 Square Law
 Cube Law
 Quad Law
 Non Dim
 Relay
 120V
 Fluoro

[Done].

5.3.1.2 MIN AND MAX LEVEL

“Min Level” attribute sets the level of the

The
dimmer output when the control signal is set to
zero. Setting this value slightly above zero is
useful to “Pre-Heat” lamp filaments.

“Max Level” sets the level of the dimmer output
when its control signal is set to full.

Press; [Menu] [Dimmer Channels] [Setup] then
use the  and  buttons to select “Min Level” or
“Max Level”.
When you select a channel(s) (by touching it)
then press [Min Level] or [Max Level], you can
use the keypad that appears to enter the
required percentage level for the selected
channels, then press [Set].

Press; [Menu] [Dimmer Channels] [Setup] then
use the  and  buttons to select “Fade Curve”.
When you select a channel(s) (by touching it)
then press [Fade Curve], you can select the
required curve for the selected channel(s).

When finished press [Save Setup] [Done]
[Done].

5.3.1.3 CUTOFF LEVEL

The “Cutoff level” attribut
Fluoro curve selected channels and sets the
lower cutoff level of the dimmer output. This
value can be scaled to suit the turn on/off point
of the connected fluorescent load/s.

Press; [Menu] [Dimmer Channels] [Setup] then
use the  and  buttons to select “Cut-off
Level”. Select the required Fluoro channels and

e is used only with

“S Law” is the default law and provides a normal
dimmer response.

“Square”, “Cube” and “Quad” laws can be
selected to better match the transfer
characteristic of existing dimmer installations or
to provide the response that you require. Try the

then press the “Cut-off Level” button. Note only

LSC Lighting Systems (Aust) Pty. Ltd Page 12

TEKO Dimmer
Operator Manual V3.0

different

curves to find the best curve for your

needs.

When you have made your selection press;
[Set].

“Non Dim” is used for devices that do not fade,
but need to be switched OFF or ON such as
motors or discharge lamps.
When set to “Non Dim”, when the control signal
is raised above 60%, the dimmer will switch from
OFF to full ON and when the level drops below
40%, the dimmer will switch OFF.

“Relay” ” is used for devices that need to be
switched OFF or ON. It is similar to “Non Dim”
but uses different thresholds for switching.
When set to “Relay”, if the level is raised above
4%, the dimmer will switch to full ON and when
the level drops below 2%, the dimmer will switch
OFF.
Relay mode is particularly useful when long fade
times are used as the “Relay” channel will switch
on at the start of the up fade and switch off at

When finished press [Save Setup] [Done]
[Done].

5.3.2 Channel Test

Press

ing [Menu] [Dimmer Channels] [Chan
Test] provides local control of dimmer levels
from the touch screen for testing purposes.

the end of the down fade.

“120V” limits the maximum output voltage of the
selected channels to 120 Volts. Use this setting
for 120Volts lamps.

“Fluoro” is used for exclusively for fluorescent
lighting where the lower turn on/off point of the
curve can be adjusted using the cutoff level
attribute.

When finished press [Save Setup] [Done]
[Done].

5.3.1.5 NET MASTER GROUP

ePlate fade

r panels can be programmed so that
a fader acts as level “Group Master” over
specified dimmer channels that are under
memory control. Any dimmer channels that are
assigned to a “Group Master” will still be
controlled by the playback of memories, but the
ePlate Group Master will have master level
control.
For example, if a channel is played back from a
memory with a level of 50% and its Group
Master is set to 50% then the channels level will
be 25%.

[Net Master Group] allows you to assign each
dimmer channel to a group number so that the
channels overall level is controlled by an ePlate
“Group Master fader” with the same group
number.

Press; [Menu] [Dimmer Channels] [Setup] then
use the  and  buttons to select “Net master
Group”. When you select a channel(s) (by
touching it) then press [Net Group Master], you

The screen shows the current level of each
dimmer channel. This level might be coming
from the DMX control input or a memory recalled
from an ePlate.

To test a dimmer channel(s), press the dimmers
channel number(s). Selected channels have
white text on a black background. In the
example above, channel 1 is selected. You can
add further channels to your selection by
pressing their channel numbers.
To deselect a channel, press it again.
To select a range of channels, press a channel,
then [Thru] then another channel.
To clear all

selections, press [Clr].

When a channel(s) is selected it is disconnected
from either the DMX or Memory control signal
and connected to the virtual fader on the right of
the touch screen. It can be faded up or down by
sliding your finger on the virtual fader.
To instantly set the fader to 0% press the button
at the bottom of the fader.
To instantly set the fader to 100% press the
button at the top of the fader.
When a channel is deselected, it is disconnected
from the virtual fader and returns to its previous

DMX or memory control.
can select the group number of the ePlate group
fader that is to be a group master over that
channel(s) or for no group master press [None].

LSC Lighting Systems (Aust) Pty. Ltd Page 13

TEKO Dimmer
Operator Manual V3.0

5.3.3 Test Sequencer

The Chan

nel Test screen provides a simple
sequencer that will automatically step through
the channels. As each channel(s) is selected it is
disconnected from either the DMX or Memory
control signal and connected to the virtual fader
on the right of the touch screen

 Select a channel (or several channels).
 Set a level on the virtual fader.
 To start the sequencer, press []

(forward).

 To stop the sequencer press [] (stop).

In this example, “Dim Chans” 1 to 12 are
patched to “DMX Slots” 025 to 036 respectively.

 To manually step the stopped sequence

to the next channel press []

 To play the sequence in the opposite

direction press [] (reverse).

When finished testing channels press; [Done]
[Done] [Done].
All dimmers return to normal control.

Hint: When testing lamps locally from the
TEKO control panel, the test sequencer is
especially useful if the lamps are in a

5.4.2 1 to 1 Patch

Pa

tches are often performed in contiguous
blocks of addresses. The 1 to 1 patch provides a
rapid method of patching all of the dimmers in
one TEKO rack to sequential DMX slots, starting
from a DMX slot that you can select.

Press [Menu] [DMX Input] [Patch] [1:1 Patch].

different location to the TEKO dimmer. You
can start the sequencer then go and check
that each lamp is working as the TEKO
automatically sequences through the dimmer
channels.

5.4 DMX INPUT MENU

Selecting [Me

nu] [DMX Input] provides menus

for;

 Patching.
 Viewing DMX Levels.
 Dimmer reaction to connection and loss of

DMX signal.

 DMX alarm settings.

Type in the DMX start slot number (0 to 512) for
dimmer channel 1 in this TEKO rack then press
[Patch Series].

In this example, the starting DMX slot number is

5.4.1 Patching

patch allows you to patch (connect) DMX

The
slots (addresses) from your DMX lighting

61. Each TEKO dimmer is automatically patched
to the next higher DMX slot number.

controller to TEKO dimmer channel numbers.
Each TEKO dimmer numbers its dimmer
channels from channel 1 through to channel 6 or
12, depending upon the quantity of dimmer
channels in the model of TEKO.

Patches are required when;
 A particular DMX slot number from the

lighting controller is to control a TEKO
dimmer with a different dimmer channel
number.

 A single DMX slot number is to control

multiple TEKO dimmer channel numbers.

To patch TEKO dimmers to DMX slots or to
examine the current patches, press;
[Menu] [DMX Input] [Patch].

To save the patch, press [Save Patch] or, to
cancel the changes that you have made and
return to the previous patch, press [Cancel].

5.4.3 User Patch

The Use

r Patch allows you to individually patch

each TEKO dimmer channel to a DMX slot of
your choice.
Press [Menu] [DMX Input] [Patch] [User
Patch].

LSC Lighting Systems (Aust) Pty. Ltd Page 14

TEKO Dimmer
Operator Manual V3.0

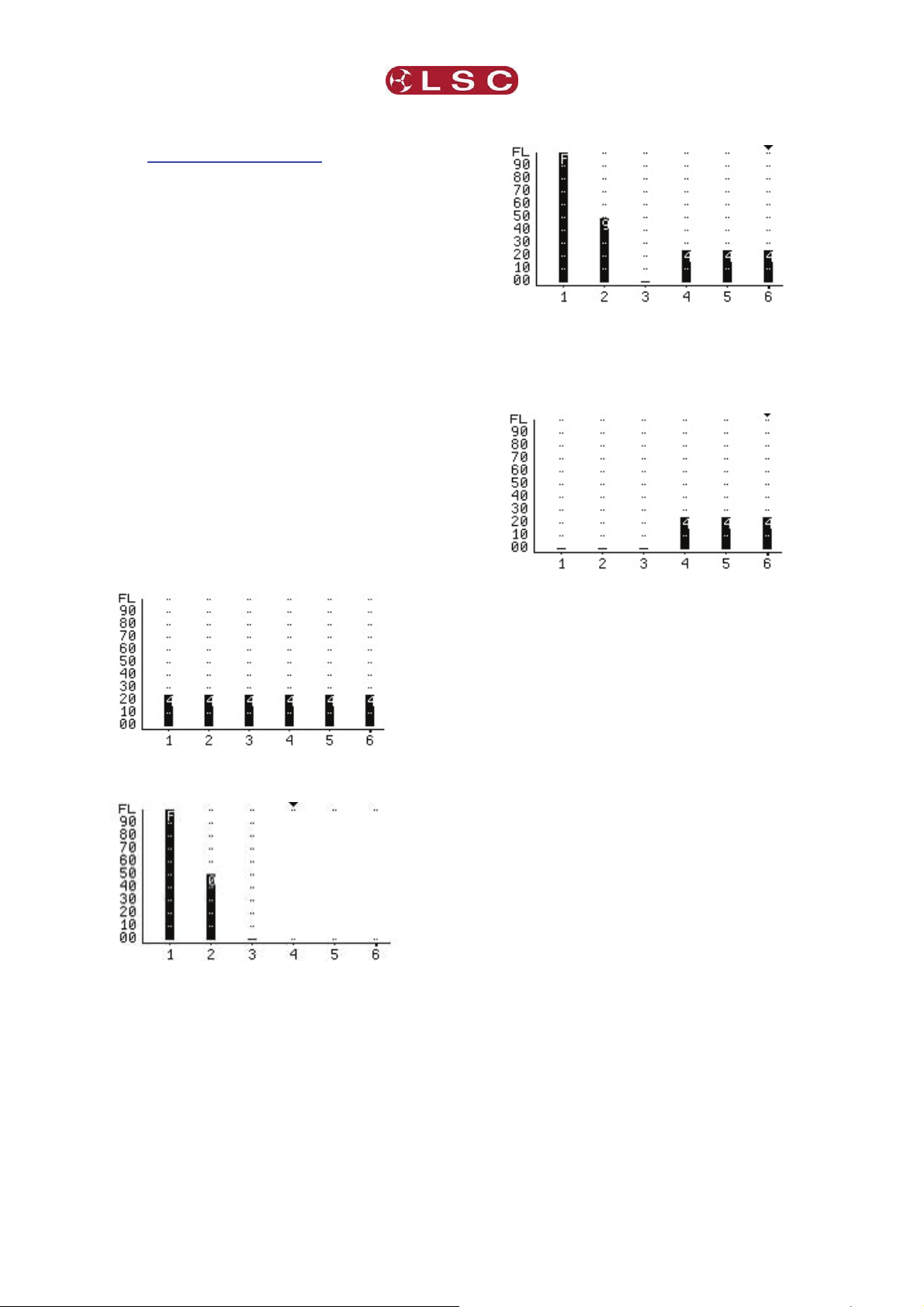

5.4.5 View Levels

“View Levels” menu allows you to see the

The
levels of the DMX control signals that are
connected to the TEKO dimmer.
Press [Menu] [DMX Input] [View Levels].

To select a channel, press that channel number.
You can add further channels to your selection
by pressing their channel numbers.
To deselect a channel, press it again.
To select a range of channels, press a channel,
then [Thru] then another channel.
To clear all

selections, press [Clr].

In the example above, dimmer 1 is patched to
DMX slot 1 and dimmer 9 is patched to DMX slot

2. Dimmer 12 is currently selected (white text on
black background) ready to be patched.

The screen shows 32 (of the 512) DMX slots
and the level for each slot. Press [Next] or
[Prev] to change to the next or previous page of
32 DMX slots. The DMX values can be
displayed as a “%” (percentage), (0-100%) or as
“raw data” levels (0-255) by selecting the
relevant button at the bottom of the screen.
When finished, press [Done].

To make a patch, select the dimmer channel(s)
as described above then press [Patch].

5.4.6 Connect Loss Action

This men

u allows you to set the actions that the

TEKO will take when a DMX signal is connected
(or restored after a loss). There are separate
settings for
 Dimmer channels whose “Control Source” is

DMX.

 Dimmer channels whose “Control Source” is

the output of the DMX/MEM Switch. See

Control Source

earlier in this section for

details.

Type in the DMX slot number then press;

Press;
[Menu] [DMX Input] [Connect Loss Action].

[Patch @ Slot].
All of the selected dimmer channels are patched
to the selected DMX slot number.
Select other dimmers and patch them as
required.
To Un-patch a dimmer(s) select the dimmer(s)
then press [UnPatch].

When all patches have been made, press
[Done].

To save the patch, press [Save Patch] or to
cancel the changes that you have made and
return to the previous patch, press [Cancel].

5.4.4 Clear Patch

To remove all

patches in a single operation,

press [Menu] [DMX Input] [Patch] [Clear Patch]
[Yes].

The screen is divided into two sections;
 The top section sets the action for dimmer

channels under “DMX Control”. These
settings are described below. The screen
also shows the channels that are under
“DMX Control”. In the example above it is
channels 10 to 12.

 The bottom section sets the action for

dimmer channels controlled “via DMX/MEM
Switch”. These settings are described on the
next page. The screen also shows which

LSC Lighting Systems (Aust) Pty. Ltd Page 15

TEKO Dimmer
Operator Manual V3.0

nnels are under “DMXMEM Switch”

cha
control. In the example above it is channels 5
to 9.

5.4.6.1 “DMX CONTROL” CONNECT

LOSS ACTIO

N AND BACKUP MEMORY

In the event that the DMX input signal is lost, the
DMX controlled channels in the TEKO can be
configured to respond in different ways.
The TEKO can either HOLD the last valid DMX
levels indefinitely or, after a programmable
(hold) time, it can crossfade (Xfade) to a
“Backup Memory” previously stored in the
TEKO. When DMX is restored, the TEKO will
immediately crossfade (in the Xfade time) back
to the DMX signal.

Pressing [Hold Time] brings up a keypad screen
where you can enter a DMX hold time from 0 to
300 seconds (5 minutes) or you can select an
[Infinite] DMX hold time. After making your
selection press [Set].

After taking a snap you can still use the controls
on the screen to edit the “snapped” channel
levels as described below.
To set the level of a channel(s) it must be
selected. The selected channel(s) are indicated
by a small triangle () at the top of the screen
above the channel bargraph and are also listed
on the left of the screen. In the example below,
channel 6 is selected.

Selected Channel

There are two ways to sel

ect channels:

 Press [] or [] to step the small

triangle () through the channels.

 Press [Pick Chans] to reveal the

channel pick screen.

If a “Hold Time” other than “Infinite” has been
set, pressing [Xfade Time] allows you to enter a
time from 0 to 300 seconds (5 minutes) in which
the DMX channels will crossfade to the “Backup
Memory” (and back to DMX when it is restored).

Pressing; [Backup Memory] instantly replaces
the current output of all dimmer channels with
the contents of the Backup Memory. This is
irrespective of the “Control Source” settings for
the dimmer channels. The “Backup Memory”
screen allows you to either create your own
memory using the controls on the screen or take
a “snap” (copy) of the current DMX input signal
by pressing [Snap DMX].
If you press [Snap DMX] you must then choose
to take a snapshot of either “All” DMX channels
or only “Selected” channels. See below for
details on how to select channels.

To select a channel, press that channel number.
Selected channels have white text on a black
background.
You can add further channels to your selection
by pressing their channel numbers.
To deselect a channel, press it again.
To select a range of channels, press a channel,
then [Thru] then another channel.
To invert your selection(s) press [Inv]
To select all channels whose level is greater
than zero press [Lvl>0].
To clear all

selections, press [Clr].

When the required selections have been made
press [Pick] and the screen returns to the
“Modify Memory” screen.

When a channel(s) is selected it can be faded
up or down by sliding your finger on the virtual
fader.
To instantly set the fader to 0% press the [0%]
button below the fader.

LSC Lighting Systems (Aust) Pty. Ltd Page 16

TEKO Dimmer
Operator Manual V3.0

stantly set the fader to 100% press the

To in
[100%] button above the fader.
To quickly set the selected channel(s) to a
specific level press [@ Level]. Enter the level on
the keypad that appears then press [Set].

When the channel levels of the “Backup
Memory” are correct, press [Save Memory], or
to cancel the changes that you have made and
return to the previous Backup memory, press
[Cancel Memory].
When finished press; [Done] [Done]
[Done].

5.4.6.2 DMX/MEM SWITCH CONNECT

LOSS ACTION

touch screen by pressing [Menu] [Net Setup]
[DMX/MEM Switch].

Pressing [Hold Time] allows you to set the time
that the DMX/MEM Switch will remain in the
DMX position if the DMX signal is lost (if it has
been automatically operated by the presence of
a DMX signal). The Hold Time can be set from 0
to 999 seconds (over 15 minutes) or to Infinite. If
a “Hold Time” other than “Infinite” has been set,
the channels will crossfade to their current
“Memory” settings after the Hold Time expires.

5.4.7 DMX Alarm

Selecting [Me

nu] [DMX Input] [DMX Alarm]

reveals the following screen.

In the event that the DMX input signal is lost, the
“DMX/MEM Switch” can be configured to
respond in different ways.
Press;
[Menu] [DMX Input] [Connect Loss Action].

Pressing [DMX Alarm] allows you to “Disable” or
“Enable” the DMX alarm that occurs whenever
there is no valid DMX signal present.
The “DMX Alarm” is usually disabled when the
TEKO is only to be controlled by ePlates.

Pressing [Alarm Delay] brings up a keypad
screen where you can enter the delay time
between when the TEKO is turned ON and
when the “No DMX alarm” occurs. The time can
be set from 0 to 300 seconds or “infinite”.

Note: If [Auto Switch] is greyed out (not
available), then playback via LSCnet has
been disabled from the options menu. This
option can be selected when the TEKO is
ONLY to be controlled by DMX. See “Options

Setting the “Alarm Delay” time to be slightly
longer than the “boot up” time of your DMX
lighting controller will prevent unwanted alarms
when both the TEKO and Lighting Controller are
switched on at the same time.

Menu” for details.

Pressing [Auto Switch] allows you to turn “Auto
Switch” On or Off.

5.5 MEMORIES MENU

Selecting [Me

nu] [Memories] provides menus

for;

 Recording Memories
 Editing Memories
 Copying Memories
 Deleting memories

A TEKO dimmer can hold up to 80 memories.

Make your choice then press [Set].
If Auto switch is On, then if a valid DMX signal is
connected to the TEKO, the DMX/MEM Switch
will operate and all dimmer channels whose
control source is set to “switch” will cross fade to
DMX control in the time set by the [Xfade Time]
button. This crossfade can be from 0 to 300
seconds (5 minutes).

Note: The DMX/MEM Switch can also be

Each memory only contains the intensity levels
for the dimmer channels that you select when
you record (or edit) that memory. If a channel is
not selected in a memory then recalling that
memory will never affect that channel. Selected
channels in a memory can have any level from
0% to 100%.
Memories are recalled from ePlate wall stations.

5.5.1 Recording Memories

: [Menu], [Memories].

Press

manually operated from either a suitably
programmed ePlate button or from the LCD

LSC Lighting Systems (Aust) Pty. Ltd Page 17

TEKO Dimmer

(s)

Operator Manual V3.0

To record a memory press:
[Record Memory].

The current output of the TEKO (if any) is
blacked out.
The memories are organised in 4 banks of 20
memories. The buttons on the right select the
banks. Select the bank and memory number to
be recorded. When a memory is selected its
contents are shown on the output of the TEKO
and also on the channel indicators. This allows
you to preview the contents of memories on the
output and either pick an empty or existing
memory.

To confirm your selection press [Pick].
If the memory exists, it will be deleted. To
confirm press [Yes].

▼ indicates selected
channel

 To select a channel, press that channel

number. Selected channels have white
text on a black background.

 You can add further channels to your

selection by pressing their channel
numbers.

 To deselect a channel, press it again.
 To select a range of channels, press a

channel, then [Thru] then another
channel.

 To invert your selection(s) press [Inv]
 To select all channels with a level

greater than zero press [Lvl > 0].

 To select all included channels

(including those with level of zero) press
[Lvl > = 0]. See “How Memories Work”
for details on included channels with a
level of zero.

 To clear all

selections, press [Clr].

When the required selections have been made
press [Pick] and the screen returns to the
“Modify Memory” screen.

To set the level of the selected channel(s) either:



Slide the virtual fader

 Press the [0%] or [100%] buttons.
 Press [@ Level] and enter a value.

Channel levels can also be set using the DMX
input from a lighting controller. Press [Snap
DMX] to take a snapshot of the DMX input
signal.

To vary the level of a channel it must be
selected. The selected channel is shown below
the memory number and also indicated by small

Virtual fader

If you do

not want to capture the level of all
channels you can use the “selected” option to
only include the levels of the channels that you
have selected. See “Included Channels” below.

triangle () above the selected channel(s). In
this example channel 5 is selected.

There are two methods to select channels:

 Press [] or [] to step () through the

channels.

 Press [Pick Chans] to reveal the

5.5.2 Included Channels

If a channel i

s not included in a memory then

the channel is not affected when that memory
is faded up or down.

channel pick screen.

LSC Lighting Systems (Aust) Pty. Ltd Page 18

TEKO Dimmer
Operator Manual V3.0

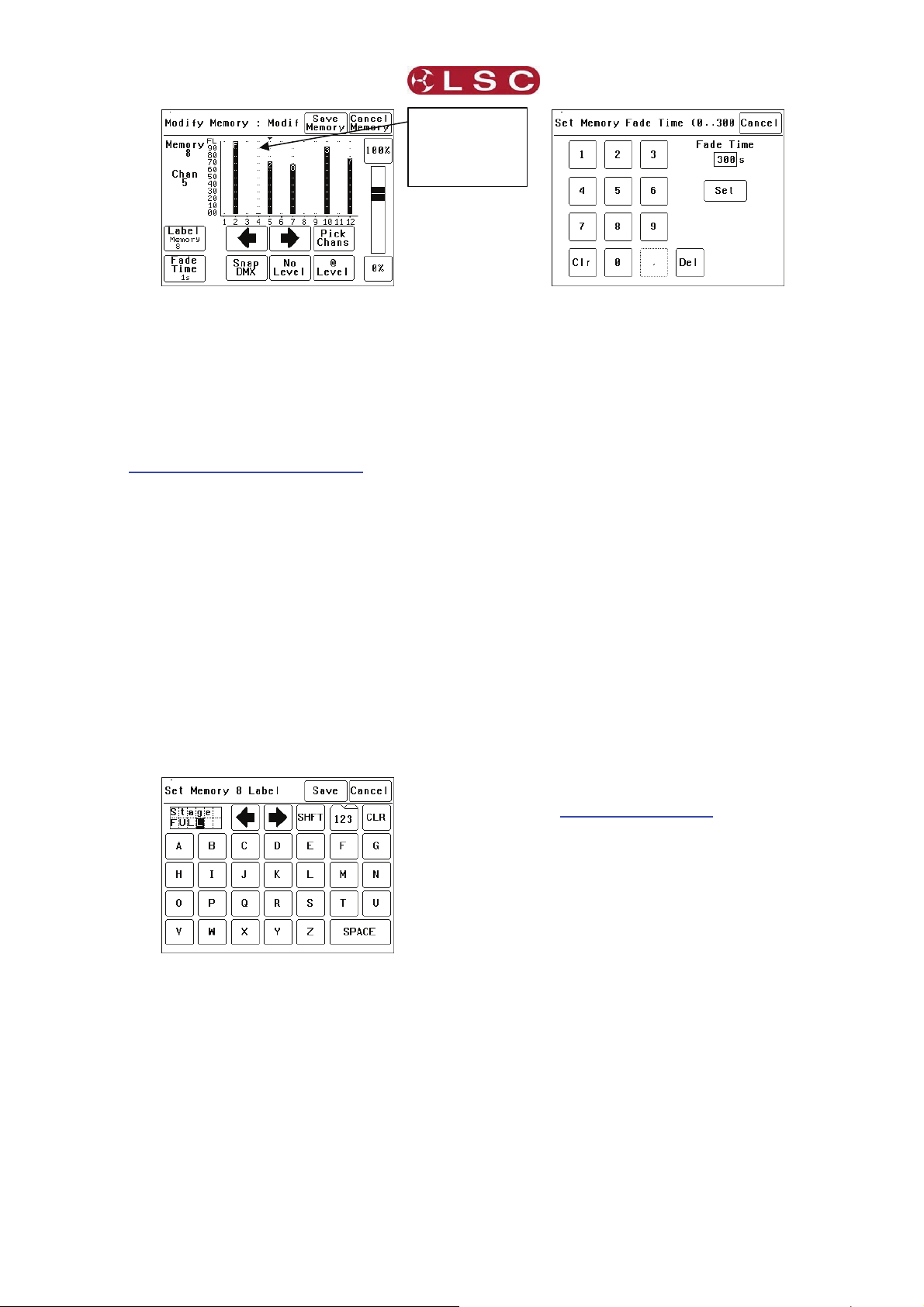

Grid Marks
show included
channels

A memory o

nly contains the channels that you
select. Selected channels can have any level
including zero.
When a memory is recalled, only channels that
are in the memory are affected. If a channel is
not in a memory, its current level (if any) will not
be affected when that memory is recalled.

Note: This is a very important concept. Refer
to How Memories and Zones Work

.

You can see which channels are included in a
memory by the grid marks above the channels.
In the example above, channels 2, 4, 5, 7, 10
and 12 are included. Note that channel 4 is
included but has a level of 0%.
Channels 1, 3, 6, 8, 9 and 11 are not included in
this memory.
If you have included a channel (by giving it a
level) and then decide to remove it from the
memory then you must select the channel and
press [No Level].

5.5.2.1 MEMORY LABELS

efault label for each memory is its number.

The d
For example, “Memory 8”.
You can enter your own label by pressing
[Label].

A memory m

ay have a fade time in the range 0
to 300 seconds (5 minutes). A time of less than
10 seconds may in the range 0.0 to 9.9 seconds.
From 10s the time is in increments of 1second.
When the fade time is correct press [Set].

Note: An ePlate button can be programmed
to replay a memory using the time saved in
the memory or the button can have its own
specific fade time. In this case the memories
fade time will be ignored.

To save the memory press;
[Save Memory] [Exit].
The original dimmer output is restored.

5.5.3 Edit Memory

To edit a me

mory press:

Press: [Menu], [Memories] [Edit Memory].
The current output of the TEKO (if any) is
blacked out.
Select the memory to be edited. As each
memory is selected its contents are shown on
the output of the TEKO and also on the channel
indicators. This allows you to preview the
contents of each memory on the output.
To confirm you selection press [Pick].
Editing a memory is the same as recording a
memory.
Refer to Recording Memories

for details.

5.5.4 Copy Memory

To copy a me

mory press:

Press: [Menu], [Memories] [Copy Memory].
The current output of the TEKO dimmer (if any)
is blacked out.
Select a “source” memory to be copied. As each

Pressing [CLR] clears the current label. Press
[] or [] to move the flashing cursor then
select the letters or press [123] to select
numbers. Press [Shift] for uppercase letters or
symbols instead of numbers.
When finished press [Save].

5.5.2.2 FADE TIME

efault Fade time for each memory is 1

The d
second.
You can set your own fade time by pressing
[Fade Time].

memory is selected its contents are shown on
the output of the TEKO and also on the channel
indicators. This allows you to preview the
contents of each memory on the output and
make the correct choice.
When the correct source memory is selected
press [Pick].
Select a “destination” memory number then
press [Pick].
You can copy more memories or if finished
press [Exit], [Done] [Done].

5.5.5 Delete Memory

To delete a m

emory press:

Press: [Menu], [Memories] [Delete Memory].

LSC Lighting Systems (Aust) Pty. Ltd Page 19

TEKO Dimmer
Operator Manual V3.0

The current o

utput of the TEKO dimmer (if any)

is blacked out.
Select a memory to be deleted. As each
memory is selected its contents are shown on
the output of the TEKO and also on the channel
indicators. This allows you to preview the

only operate the DMX/MEM Switch in TEKO
dimmers with the matching “Switch Group
Number”.
To set the “Switch Group Number”, from the
“Net Setup” menu (above) press;
[Switch Group Number].

contents of each memory on the output and
make the correct choice.
When the correct memory to be deleted is
selected, press [Pick]. To confirm, press [Yes].
You can delete more memories or if finished
press [Exit], [Done] [Done].

5.6 NET SETUP MENU

The “Net Setup” menu i
manual operation of the DMX/MEM Switch.
Press; [Menu], [Net Setup].

Note: If [Net Setup] is greyed out (not
available), then playback via LSCnet has
been disabled from the options menu. This
option can be selected when the TEKO is
only to be controlled by DMX. See “Options
menu” for details.

s used to control the

Enter the required Switch Group Number in the
range from 001 to 255 (to match the required
ePlate button) or for no Switch Group press
[Disabled], then press [Set] [Done] [Done].

5.7 OPTIONS MENU

Selecting [Menu] [Options]

provides menus for;

 Module Status
 Beeper
 About
 Lock Dimmer
 Change Lock Code
 Dimmer Name
 Date and Time
 Net Playback: Enable/Disable
 Reset

5.6.1 DMX/MEM Switch Operation

All cha

nnels that have their “Control Source”
attribute set to “Switch”, can be switched
between either “DMX” control or “Memory”
(ePlate) control.
The DMX/MEM Switch can be operated from a
suitably programmed button on an ePlate or
directly from the LCD touch screen on the

5.7.1 Module Status

ing [Menu] [Options] [Module Status]

Press
reveals information about the input power
phases, temperature and fan speed of the

TEKO.

TEKO.

To manually operate the “DMX/MEM Switch”
from the touch screen, press;
[Menu], [Net Setup] [DMX/MEM Switch].

Select either [DMX] or [Memory] then press
[Set].

5.6.2 Switch Group

An ePlate bu

tton that has been programmed to
operate the DMX/MEM Switch can also be
programmed with a “Switch Group Number”.
You can set the DMX/MEM Switch in each
TEKO to only be operated by a particular
“Switch Group Number”.
Therefore, in setups with more that one TEKO,
individual ePlate buttons can be programmed to

LSC Lighting Systems (Aust) Pty. Ltd Page 20

5.7.2 Beeper

The TE

KO can be set to “Beep” in

acknowledgment to every key press on the
touch screen.
To switch off the beeper, press; [Menu]
[Options] [Beeper is On].
To switch on the beeper, press; [Menu] [TEKO]
[Beeper is Off].

5.7.3 About

ing [Menu] [Options] [About] reveals

Press
information about the software version, model
and voltage of the TEKO.

TEKO Dimmer
Operator Manual V3.0

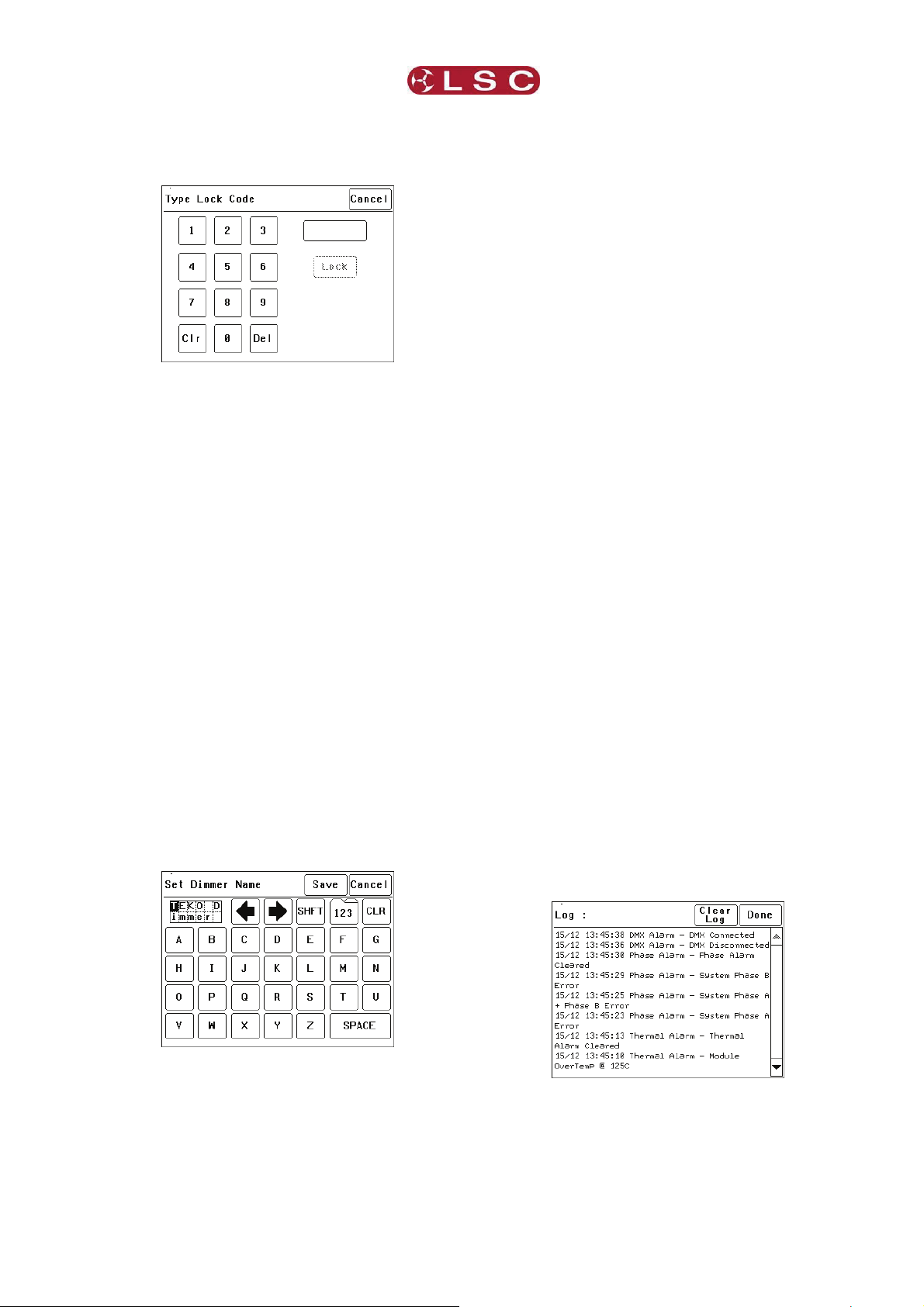

5.7.4 Lock / Unlock

To lock th

e touch screen of the TEKO and
prevent unauthorised access press [Menu]
[Options] [Lock Dimmer].

[Menu] [Options] [Dat

e & Time].

The screen shows the current time and date
settings. To change the Time, press [Time].
Use the keypad that appears to enter the time in
24 hour format then press [Set].

change the Date, press [Date]. Use the

To
keypad that appears to enter the date then press
[Set]. When finished press [Done].

5.7.8 Net Playback

If the TEKO is only to be

controlled by DMX then
it is possible to disable (dim out) all memory
menus and other network functions and hence

ng the keypad, type in the current 4 digit lock

Usi
code then press [Lock]. The TEKO is shipped
from the factory with the lock code set to 0000.
The menu returns to the home screen and the
[Unlock] button appears instead of the [Menu]
button. To unlock the touch screen of the
TEKO press [Unlock] then type in the current 4
digit code then press [Unlock].

5.7.5 Change Lock Code

To ch

ange the lock code, press [Menu]

[Options] [Change Lock Code].
Type in

the current 4 digit lock code then press

[Enter]. (The TEKO is shipped from the factory
with the lock code set to 0000).
Type in your new lock code then press [Enter].
To confirm, re type the new lock code then press
[Set Code].

5.7.6 Name

The na

me of each TEKO dimmer is shown on

the home screen of the LCD touch screen. The
default name is “TEKO Dimmer” but you can
give the dimmer a name of your choice. Naming
each dimmer is useful in installations of more
than one TEKO. To change the name of a
dimmer press;
[Menu] [Options] [D

immer Name].

simplify the menu operations. In addition, when
“Net Playback” is disabled, all dimmer channels
are controlled by DMX, irrespective of their
previous “Control Source” settings. Press
[Menu] [Options] [Net Playback]. Choose
either [Enable] or [Disable] then press [Set].

5.7.9 Reset

The TE

KO provides two different types of reset

function. SYSTEM reset and TOTAL reset.

5.7.9.1 SYSTEM RESET

In the

unlikely event that the TEKO fails to
respond, the operating system may be reset so
that the software may initialise and recommence
normal operation. Performing a system reset will
not affect any of the settings or memory. To
perform a SYSTEM RESET press;
[Menu] [Op

tions] [Reset] [System Reset]

[Yes].

5.7.9.2 TOTAL RESET

Total Reset

will ERASE all the settings and

memory from the TEKO and reset the operating
system. To perform a TOTAL RESET press;
[Menu] [Opti

ons] [Reset] [Total Reset] [Yes].
The TEKO asks you to confirm by pressing
[Yes] again.

5.8 LOG MENU

Selecting [Me

nu] [Log] shows the status log

showing time and date stamped operations and
alarms.

To start a ne

w name press [CLR]. Use the  or

buttons to move the flashing cursor Type in
your name. For numbers press [123]. When
finished press [Save] [Done] [Done].

The log

can be used to analyse any problems

you may have encountered such as loss of

5.7.7 Time and Date

The TE

KO keeps a log of its status that is time

control signals, over temperature alarms or loss
of input power phases etc.

and date stamped. To set the time and date
used by the log press;

LSC Lighting Systems (Aust) Pty. Ltd Page 21

TEKO Dimmer
Operator Manual V3.0

6 Memory (ePlate) Control

Note: If Net Playback functions are disabled,
the Memories and Net Setup buttons in the
TEKO Menu are dimmed, and ePlates will not
function. Refer to Net Playback

for details.

6.1 EPLATE FUNCTIONS

There are two types of controls on an ePlate:

Buttons Faders

ePlates are available with 2, 4 or 8 buttons or 1,
2 or 4 faders.

6.1.1 Buttons

Each

button has an associated indicator. The
button and indicator can be independently
configured.
A button can perform any of the following
actions:
 Activate a memory with a specific fade time

and level.

For example;

Button 1 might set memory 5, to 100%
level with a fade time of 10 seconds.
Button 2 might set memory 5, to 50%
level with a fade time of 5 seconds.
Button 3 might set memory 5, to 0%
level with a fade time of 15 seconds.

 Control multiple memories from a single

button.

 Switch dimmer channels between DMX and

Memory (ePlate) control (if the channel’s
“control source” has been set to “switch”).

 Lock / unlock the operation of other ePlates.
 A single button might perform multiple

commands.

For example;

A button could be configured for “Emergency
Evacuation”. When pressed, it would change
the TEKO to Memory Mode, then turn all the
lights on at 100% and then lock all other
ePlate wall stations so that the lights cannot

be turned off.
The indicators beside each button are
independently programmed and can indicate
any of the following:
 Memory # activated. Brightness of indicator

shows level of memory.

 ePlate active or locked.
 DMX or Memory control selected.

6.1.2 Faders

A fader ca

n be configured to:

 Control the level of a memory (or channel).
 Act as a Grand Master over all channels.
 Act as Group Sub Master over the memory

levels of channels in that group number.

 Set the Fade Time for a memory.

6.2 MEMORIES:

Memori

es are recorded (or edited) from the

TEKO’s LCD touch screen.
Memories are recalled from ePlate wall stations.

A TEKO dimmer can hold up to 80 memories.
Each memory only contains the intensity levels
for the dimmer channels that you select when
you record (or edit) that memory. If a channel is
not selected in a memory then recalling that
memory will never affect that channel. Selected
channels in a memory can have any level from
0% to 100%.

Memories are recorded (or edited) by either;
 Selecting channels and giving them a level

via the touch screen controls.
or
 Taking a ‘snapshot’ of the current DMX input

levels. These levels can then be edited if

required.
Refer to the Memories Menu

for details on how

to record memories.

Each memory controls the dimmer channels
contained in that TEKO (either 6 or 12 channels,
depending upon the TEKO model). This allows
each TEKO dimmer to store different channel
memory information whilst using the same
memory numbers as other TEKO dimmers in the
same LSCnet system. Controlling a memory
number via an ePlate will make each TEKO
dimmer on the LSCnet set its channels
according to its own memory settings.

ePlate buttons send commands in the form of
“Set Memory # to level # in # seconds”.

For example, memory 2 contains channels 1
and 2 at 100% and channel 5 at 60%. It could be
recalled in different ways by programming 3
ePlate buttons.
 A button programmed to Set Memory 2 to

100% level in 2 seconds will fade channels 1

and 2 to 100% and channel 5 to 60%
 A button programmed to Set Memory 2 to

0% level in 0 seconds will instantly turn off

channels 1, 2 and 5.

LSC Lighting Systems (Aust) Pty. Ltd Page 22

TEKO Dimmer
Operator Manual V3.0

A button programmed to Set Memory 2 to



50% level in 10 seconds will slowly fade
channels 1 and 2 to 50% and channel 5 to

30%
Memories can also be manually controlled by
suitably programmed ePlate faders.

6.3 HOW MEMORIES & ZONES WORK

n a memory is recalled (faded up or down),

Whe
When a memory is recalled (faded up or down),
it only affects the channels that are included in
that memory.

memory will not necessarily replace the current
output of the dimmer with the memory you have
just faded up. Only the channels in the memory
will change. Any channels that are not in the
new memory will remain as they were.

Note: This is different to some lighting
controllers that “crossfade” from one
memory to another. In a “crossfade”, the
incoming memory totally replaces the
outgoing memory.

This method of memory operation makes the
TEKO very powerful as described below.

A new (empty) memory does not contain any
channels.
To include a channel in a memory, select the
channel then give it a level (0% to 100%). Note
that the level of an included channel can be 0%.

To remove a channel from a memory, select the
channel then press [No Level].

Setting a channel to 0% does NOT remove it
from the Memory.

Vertical grid marks
sho

w channel is

included.

6.3.1 Zones

The TEKO’s method of

memory operation
allows for complete flexibility of zone control
when recalling memories.
Each memory can contain any number of
channels from 1 to 6 or 12 (depending upon
your model). A zone is created by recording a
memory that only contains the channels
located in that zone.

For exampl
Zone 1 ha

e;

s channels 1 to 4 located in it.
We might use memories 1 to 5 for zone 1.
Memories 1 to 5 are recorded with only channels
1 to 4 in them.

Zone 2 has channels 5 to 12 located in it.
We might use memories 6 to 10 for zone 2.
Memories 6 to 10 are recorded with only
channels 5 to 12 in them.

The memories for each zone are totally
separate. Recalling memories 1 to 5 will never
affect zone 2 because channels 5 to 12 are not
contained in these memories.

This menu of a 6 channel TEKO dimmer shows
a Memory containing four channels. Channels 1
and 2 are at full. Channels 3 and 4 are at 0%.
Channels 5 and 6 are not in the Memory. This is
shown by the absence of “grid marks” above
these channels.
If this memory was saved and faded up it would
set 1 and 2 to full, 3 and 4 to 0% and have no
effect on the current state of 5 and 6.

When this memory is faded down, channels 1, 2,
3 and 4 will all fade to 0% but channels 5 and 6
would not be affected.

If a channel is not included in a memory then
the channel is not affected when that memory
is faded up or down.

This is an important concept.

It means you have to decide whether or not you
want a channel to be in a memory. Fading up a

Likewise, recalling memories 6 to 10 will never
affect zone 1 because channels 1 to 4 are not
contained in these memories.

The TEKO memory system is far more flexible
than normal architectural zone systems,
because it is also possible to have memories
that control all the channels, thus creating a
master zone memory.
For example; memories 11 to 14 might contain
channel 1 to 12. These memories control all
zones.

There is no limit to the number of ‘zones’ and
‘master zones’ that can be controlled in this
manner.

6.3.2 Controlling Memories

Memori

es are recalled by ePlates buttons or
faders. ePlates are configured by a software
application so that each button or fader sends a
specific command. ePlates are shipped from the

LSC Lighting Systems (Aust) Pty. Ltd Page 23

TEKO Dimmer
Operator Manual V3.0

factory with t

he most common commands pre­programmed into them.
Refer to Pre Programmed ePlates

section.

The result is:

The typical command to control a memory is

“Fade Memory Number # to Level #% in Time #”

When this message is received by the TEKO, it
will fade the channels listed in the Memory
Number to the levels in that Memory, scaled by
the Level #%. The time taken can be either a
value in seconds or an instruction to use the
time saved in the Memory.

Therefore, the same memory can be recalled at
different levels from different buttons.
 One button might fade up the memory to full

level.

To fade DOWN memory 1, the message “Fade
Memory 1 to Level 0% in time 1s” is sent.
Channels 1, 2 and 3 will fade to 0%.
The result is:

 Another might fade the same memory to half

level.

 Yet another button might fade the same

memory off. This would be achieved by
sending a command to playback the
memory with its Level at 0%.

6.3.3 Simplified Memory Playback Example:

me that the current output looks like this. All

Assu
channels of a 6 channel dimmer are at 24%.

Lets playback Memory 1 which has the following
levels….

Channel 1 is at 100%. Channel 2 is at 50%.
Channel 3 is at 0%. Channels 4, 5 and 6 are not
in the Memory (no grid lines above them).

To fade UP memory 1, the message “Fade
Memory 1 to Level 100% in time 1s” is sent from
an ePlate. Channels 1, 2 and 3 will fade to their
recorded levels in 1 second. Channels 4 to 6 are
not affected.

6.3.4 LTP (Latest Takes Precedence)

n a memory is played back, each dimmer

Whe
channel contained in the memory is set to its
level in that memory. When another memory is
played back, if the same channel is in that
memory, then it goes to its level in this latest
memory, even if the previous memory is still
faded up. The “latest” memory takes
precedence.

6.3.5 Active Memories

hen a memory is played back, the memory is

W
marked as “Active” and a command is sent to
the ePlates to light the relevant indicator in the
button.
As other memories are recalled, they may turn
off channels that were part of this “active”
memory. There may come a point where none of
the dimmer channels in the original memory are
on, even though there has not been a command
to turn off this memory. When this happens, the
dimmer sends a message that the Memory has
been “Released”.
The result of this is that an indicator on an
ePlate for a particular Memory will remain lit so
long as at least one channel in that Memory is
still active on a TEKO.

6.4 FADE TIMES

n a button ePlate is configured, you can

Whe
choose to set a fade time for that button or use
the default time held in the memory.

Therefore different buttons can recall the same
memory but use different fade time.

LSC Lighting Systems (Aust) Pty. Ltd Page 24

TEKO Dimmer
Operator Manual V3.0

When an ePlate fader that is controlling a
memory is moved, the memory is told to fade to
the level associated with the new fader position.
The fader may be configured with a specific fade
time, or to use the fade time associated with the

6.6.2 Memory/DMX Switching ePlates

-programmed 2 button ePlate is available

A pre
to control the operation of the Memory/DMX
Switch.
Button 1 selects DMX. Button 2 selects Memory

memory it is controlling. Setting a fade time of

0.0s results in the memory directly tracking the
fader as it moves. LSC suggests that manual
faders be programmed with a fade time of

0.5seconds. This results in a much smoother
looking fade as the fader is moved.

6.5 MEMORY RECOVERY AFTER POWER LOSS

n the power is restored to a TEKO after a

Whe
power loss, channels controlled by DMX will
immediately respond to the current DMX levels.
However, channels controlled by Memories
respond differently depending upon the duration
of the power loss.

If the power returns within 2 hours, the



memory channels will return to their last
memory levels.
If the power returns after 2 hours, memory



channels will remain OFF. To restore output
you must recall the required memory.

6.6 PRE-PROGRAMMED EPLATES

ePlates are

shipped from the factory with pre­programmed standard configurations that suit
most requirements.

6.6.1 Memory Control ePlates

rogrammed ePlates to control memories

Pre-p

6.7 RECORDING MEMORIES FOR PRE­PROGRAMMED EPLATE

S

The factory pre-programming of the ePlate
buttons is designed for simple and predictable
memory programming.
The buttons on the “Pre-Programmed” ePlates
all recall a different memory number at full level.

tion: If every button recalls a memory at

Ques

full level, how do you turn a memory off?
Answer: You playback a different memory
containing the same channels but with their
levels set to 0% in that memory.

n a memory is recorded, it contains

Whe
selected channel(s) at any level (including zero
level). Therefore, if memory 1 contains channels
at a level of 80%, pressing button 1 on an ePlate
will fade up those channels to 80%.
If memory 2

contains the same channels at a

level of 0%, pressing button 2 on an ePlate will
fade those channels off.
For exampl

e;

Button 1 recalls Memory 1
with channels 1, 3 and 6 at
various levels.

are available in the following configurations…
 2 Button ePl
Button 1 recalls Memory 1 at 100%
Button 2 recalls Memory 2 at 100%
 4 Button ePlates
Button 1 recalls Memory 1 at 100%
Button 2 reca
Button 3 recalls Memory 3 at 100%
Button 4 recalls Memory 4 at 100%
 8 Button ePlates
Button 1 reca
Button 2 recalls Memory 2 at 100%
Button 3 recalls Memory 3 at 100%
Button 4 recalls Memory 4 at 100%
Button 5 reca
Button 6 reca
Button 7 recalls Memory 7 at 100%
Button 8 recalls Memory 8 at 100%
 1 Fader ePla
Fader 1 controls Memory 1
 2 Fader ePlates
Fader 1 controls Memory 1

r 2 controls Memory 2

Fade
 4 Fader ePlates
Fader 1 controls Memory 1
Fader 2 controls Memory 2

ates

lls Memory 2 at 100%

lls Memory 1 at 100%

lls Memory 5 at 100%
lls Memory 6 at 100%

tes

Button 2 recalls Memory 2
with channels 1, 3 and 6 at
0% level.

ng this method, each pair of buttons on an

Usi
ePlate are easily used as On (fade up) and OFF
(fade down) buttons.

You re

cord the odd numbered memories with
the levels you require. You record the even
numbered memories with the same channels but
at 0% level.
For exampl
After y

e;

ou record memory 1, record memory 2
with the same channels (as used in memory 1)
but with their levels set to 0%.
After y

ou record memory 3, record memory 4
with the same channels (as used in memory 3)
but with their levels set to 0%.

ct LSC or your LSC agent if you have

Conta
special ePlate requirements that cannot be
achieved with the pre-programmed ePlates. LSC
will then custom program your ePlates for your
specific requirements.

Fader 3 controls Memory 3
Fader 4 controls Memory 4

LSC Lighting Systems (Aust) Pty. Ltd Page 25

TEKO Dimmer
Operator Manual V3.0

7 Alarms and Troubleshooting

If the TEKO dimmer is not functioning correctly,
check the LED indicators on the front panel and
the status area at the bottom of the LCD screen
for any messages.

7.1 STATUS LED

 Gree

n = Normal operation.

 Red (flashing) = Alarm. See message on

LCD touch screen.

 Red (steady) = Alarm is acknowledged but

the problem still exists.

Possible causes of a flashing Status LED are;
 Over Temperature.
If the temperature of the TEKO is too
high, the circuitry automatically switches off the
dimmer outputs and all dimmer channels will
flash red. Either reduce the load or increase the
cooling to the TEKO. When the temperature
returns to normal, the TEKO automatically
returns to normal operation.

In the event of any alarm, read the message on
the status area of the LCD screen. Press [Ack]
on the touch screen to acknowledge the alarm.
This stops the status LED from flashing but it
remains red until the fault condition is rectified.

DMX distribution installation. If the LED turns
green, the DMX controller is faulty.

If the DMX LED is flashing Green, the TEKO
Dimmer is not receiving a DMX control signal.
Check that the lighting control desk is ON and
sending a DMX output. Also check that any
DMX splitters in the installation are working
correctly and that all DMX cables are intact.

7.3 LSCNET LED

 Green

= Valid LSCnet control signal

connected (from ePlates).

 Green (flashing) = Data traffic detected on

LSCnet.

7.4 CHANNEL LEDS

umbered LED’s around the perimeter of

The n
the control panel light when their respective
dimmer channel is on. The brightness of the
LEDs shows the channel level.

 They light green when under DMX control.
 They light red when under local control.

If a dimmer channel is not working check the
MCB (Miniature Circuit Breaker) for that dimmer
channel.

If the MCB has tripped (OFF), firstly try to
determine the cause of the breaker tripping. It
could be a blown lamp or a circuit overload.
Rectify to problem (replace the lamp or reduce
the load) then restore the MCB. If the MCB
continues to trip, refer the problem to a suitably
qualified person.
If the MCB has not tripped, you can test the
operation of the dimmer from the local LCD
touch screen. Refer to the Channel Test

section
for details. If the dimmer is working from the
touch screen but not via DMX, check that the
dimmer is patched to the correct DMX slot and
configured for the correct control source.

7.2 DMX LED

 Gree

n = Valid DMX control signal

connected.

 Red (flashing) = Error on DMX control

signal.

 Green (flashing) = Loss of DMX control

signal.

If the DMX LED is flashing RED, the TEKO
Dimmer has detected an error in the DMX
control signal. Try connecting the TEKO Dimmer
to a known good DMX controller via the existing

LSC Lighting Systems (Aust) Pty. Ltd Page 26

TEKO Dimmer
Operator Manual V3.0

8 Software Upgrades

LSC Lighting Systems has a corporate policy of
continuous improvement to its products. The
TEKO software is subject to this policy as new
features are added and existing features
improved

8.1 SOFTWARE UPGRADES

Software u

pgrades are performed using
CodeLINK software. CodeLINK is a Windows
based software program that allows the
uploading of software releases to the dimmer
from a Personal Computer or laptop. CodeLINK
software and the latest software releases are
available from the LSC Website

www.lsclighting.com

CodeLINK operates with a serial cable that
connects between a computer serial port and
the TEKO Codelink connector which is located
on the front panel of the TEKO dimmer.

CodeLINK Cable connections

Signal

Dimmer

DB9

PC Comms port

DB9 Female

Female

GND 5 5

Tx 3 3
Rx 2 2

The software version of your TEKO is
momentarily displayed on the LCD touch screen
when the TEKO is switched on or at any time by
pressing [Menu] [Options] [About].

8.2 INSTALLING AND RUNNING CODELINK

se any open applications on your computer

Clo
for the duration of the upgrade process.

Run the CodeLINK.exe programme. Follow the
prompts on the screen, accepting the suggested
default settings. Once installed, click on the
CodeLINK programme icon to begin. Detailed
operating instructions for CodeLINK software
are contained in the help menu.

Connect the CodeLINK cable between the Serial
Comms port on your computer and the
CodeLINK input connector on the dimmer.

Turn OFF power to the dimmer.

When CodeLINK asks you to turn on the
dimmer, switch ON power to the dimmer.

The upgrade process will now automatically
begin. When the upgrade process is complete
the dimmer will restart. The LCD will display the
latest software version installed. Do not turn off
the dimmer until the start up message has been
displayed.

Disconnect the CodeLINK cable from the
dimmer. The dimmer is now ready for normal
operation.

LSC Lighting Systems (Aust) Pty. Ltd Page 27

TEKO Dimmer
Operator Manual V3.0

9 DMX Explained

DMX512A is the industry standard for the
transmission of digital control signals between
lighting equipment. It utilises just a single pair of
wires on which is transmitted the level
information for the control of up to 512 DMX
slots (addresses or channels).

When good quality data cables are used,
DMX512 cable runs may be up to 1,000 metres
in length. When several DMX cables are
required to service different locations, DMX512
splitters can be used. Each splitter provides
multiple isolated DMX512 outputs.

The TEKO provides a “DMX Thru” output
allowing you to loop the DMX signal from one
TEKO to the next. The last TEKO in the chain
must have the “DMX Terminate switch” set to
TERM to terminate the line.

9.1 CABLE SELECTION

ot use unscreened microphone or low

Do n
speed data cables for DMX. This can cause
problems in the DMX network. Make sure the
cable conforms to the EIA485 cable
requirements by providing the following
specifications:

 Low capacitance.
 One or more twisted pairs.
 Foil and braid shielded.
 Impedance of 85 -150 Ohms, nominally 120

Ohms.

 22AWG gauge for continuous lengths over

300 metres.

9.2 TYPICAL DMX INSTALLATION

In the diagra

m below the DMX signal from the
controlling console is connected to a MDR
splitter which provides multiple isolated DMX
outputs. The output cables can then be run to
various locations where dimmers and other
equipment are installed. The end of each DMX
cable must be terminated to prevent the signal
reflecting back up the line and causing possible
errors. In the event of a fault on one of the
cables, the other outputs from the MDR splitter
will not be affected.

LSC Lighting Systems (Aust) Pty. Ltd Page 28

TEKO Dimmer
Operator Manual V3.0

10 Maintenance

The TEKO dimmer has been designed to provide
years of trouble free service when maintained
and operated within the specifications detailed in
this operator manual.

10.1 ROUTINE MAINTENANCE

The TEKO dimme
maintenance to operate at optimum performance.

Periodic inspection of the following items will
ensure that the dimmer is performing at its best.

 Inspect the chassis for signs of mechanical

damage from impact or abuse.

 Inspect the power connector and cable for

any sign of damage or wear.

 Internal cleaning of the dimmer as detailed

below.

r requires minimal

10.2 INTERNAL CLEANING

LSC recom

mends cleaning of the internal fan
every 12 months (more frequently for touring
applications) to ensure that maximum airflow is
maintained through the dimmer at all times.

Internal cleaning procedure is as follows:
Disconnect the dimmer from the input supply.
Remove the cover panel from the dimmer.
Use compressed air to blow out any accumulated
dust from the fan and heatsink.
Replace the dimmer cover and reconnect power.

10.3 EXTERNAL CLEANING

LSC re

commends cleaning of the front and
external panels of the dimmer with a damp cloth
that has been rinsed in warm soapy water.

Abrasive cleaners or solvents should be avoided
as they can potentially scratch the front panel
lexan material and affect painted surfaces.

LSC Lighting Systems (Aust) Pty. Ltd Page 29

TEKO Dimmer
Operator Manual V3.0

11 Specifications

11.1 DIMMER SPECIFICATIONS

Number of Dimmer Channels

Rating per Dimmer Channel

Circuit Breaker Type

Circuit Breaker breaking capacity

Current Control Technology©

Dimmer Curve selection per Channel

Memory Storage

Power Switching Component

Power-up in last known state

Channel Output Level mimic LEDs

DMX Data OK and Error LEDs

Inductor Rise Time (peak to peak)

Number of cooling Fans

Fan Cooling System Control

External software upgrading facility

DMX512 input and link-thru connectors

Operating Voltage

Operating Frequency

Operating Temperature

Meets CE and C Tick requirements

Construction

TEKO TEKO/20 TEKO/6 TEKO/3

12 12 6 3

13A 10A 20 Amps 25 Amps 63 Amps

MCB

RCBO

MCB/RCBO MCB/RCBO MCB

6000 Amps

Yes

Yes

Yes 80

Triac

Yes

Yes

Yes

250µs

1 2 1 2

Variable

Yes

Yes

Nominal 220V-240V (Optional 115V)

50/60 Hz Auto selection

0°C to 40°C Ambient (non condensing)

Yes

3RU 19 inch rack mount

Height

Width

133 mm 133 mm 133 mm 133 mm

480 mm 480 mm 480 mm 480 mm

Depth (excludes load sockets) 270 mm 330 mm 270 mm 330 mm

Weight unpacked / packed

19kg / 22kg 21kg / 24kg 19kg / 22kg 21kg / 24kg

LSC Lighting Systems (Aust) Pty. Ltd Page 30

TEKO Dimmer
Operator Manual V3.0

11.2 LOAD SOCKET WIRING

The followi

ng pages detail the load socket wiring options available on the TEKO dimmers.

Socapex 19 Pin Multipole Connectors

1 2

Connector #1 Function Connector #2 Function

Pin 1 Chan 1 Active Pin 1 Chan 7 Active
Pin 2 Chan 1 Neutral Pin 2 Chan 7 Neutral
Pin 3 Chan 2 Active Pin 3 Chan 8 Active
Pin 4 Chan 2 Neutral Pin 4 Chan 8 Neutral
Pin 5 Chan 3 Active Pin 5 Chan 9 Active
Pin 6 Chan 3 Neutral Pin 6 Chan 9 Neutral
Pin 7 Chan 4 Active Pin 7 Chan 10 Active
Pin 8 Chan 4 Neutral Pin 8 Chan 10 Neutral
Pin 9 Chan 5 Active Pin 9 Chan 11 Active
Pin 10 Chan 5 Neutral Pin 10 Chan 11 Neutral
Pin 11 Chan 6 Active Pin 11 Chan 12 Active
Pin 12 Chan 6 Neutral Pin 12 Chan 12 Neutral
Pin 13 Earth Pin 13 Earth
Pin 14 Earth Pin 14 Earth
Pin 15 Earth Pin 15 Earth
Pin 16 Earth Pin 16 Earth
Pin 17 Earth Pin 17 Earth
Pin 18 Earth Pin 18 Earth
Pin 19 Earth Pin 19 Earth

Note: For six channel variants only one Socapex connector is used.

Australian 3 pin Connectors

1

2

11

12

LSC Lighting Systems (Aust) Pty. Ltd Page 31

TEKO Dimmer
Operator Manual V3.0

Wieland an

d Harting 16 Pin Multipole Connectors

Connector #1 Function Connector #2 Function

Pin 1 Chan 1 Active Pin 1 Chan 7 Active
Pin 2 Chan 2 Active Pin 2 Chan 8 Active
Pin 3 Chan 3 Active Pin 3 Chan 9 Active
Pin 4 Chan 4 Active Pin 4 Chan 10 Active
Pin 5 Chan 5 Active Pin 5 Chan 11 Active
Pin 6 Chan 6 Active Pin 6 Chan 12 Active
Pin 7 Not used Pin 7 Not used
Pin 8 Not used Pin 8 Not used

Pin 9 Chan 1 Neutral Pin 9 Chan 7 Neutral
Pin 10 Chan 2 Neutral Pin 10 Chan 8 Neutral
Pin 11 Chan 3 Neutral Pin 11 Chan 9 Neutral
Pin 12 Chan 4 Neutral Pin 12 Chan 10 Neutral
Pin 13 Chan 5 Neutral Pin 13 Chan 11 Neutral
Pin 14 Chan 6 Neutral Pin 14 Chan 12 Neutral
Pin 15 Not used Pin 15 Not used
Pin 16 Not used Pin 16 Not used

1 2

Note: Earth connection is via the clips on the side of the socket insert.

Shuko 2 pin Connectors

1

2

11

12

LSC Lighting Systems (Aust) Pty. Ltd Page 32

TEKO Dimmer
Operator Manual V3.0

6 Channel with screw terminals

12 Channel with screw terminals

3 Channel x 63Amp CEEform

LSC Lighting Systems (Aust) Pty. Ltd Page 33

TEKO Dimmer
Operator Manual V3.0

12 Compliance Statements

12.1 C TICK COMPLIANCE

All LSC products with CE Compliance automatically comply with C-Tick requirements as per Section 182
of the Radiocommunications Act 1992. LSC Company Registration number is N921.

12.2 CE COMPLIANCE

The TE
following standards:

EN55015
IEC60439
IEC60950

12.3

LSC Lightin
such as product design and documentation. In light of this policy, some detail contained in this manual
may not match the exact operation of your product.

In any event, LSC Lighting Systems (Aust) Pty. Ltd. can not be held liable for any direct, indirect, special,
incidental, or consequential damages or loss whatsoever (including, without limitation, damages for loss
of profits, business interruption, or other pecuniary loss) arising out the use or the inability to use this
product for its intended purpose as expressed by the manufacturer and in conjunction with this operating
manual.

Servicing of this product is recommended to be carried out by LSC Lighting Systems (Aust) Pty. Ltd. or its
authorised service agents. No liability will be accepted whatsoever for any loss or damage caused by
service, maintenance or repair by unauthorised personnel. In addition servicing by unauthorised
personnel may void your warranty.

KO Dimmer from LSC Lighting Systems (Aust) Pty. Ltd. has been designed and conforms to the

(Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment).

(Low-voltage switchgear and control gear assemblies)

(Specification for safety of information technology equipment including electrical business equipment)

DISCLAIMER

g Systems (Aust) Pty. Ltd. has a corporate policy of continuous improvement, covering areas

12.4 PRODUCT OF AUSTRALIA

All LSC Light

ing Systems products are proudly designed, manufactured and distributed from Australia

and meet the highest certification of “Product of Australia” in the Australian Made Campaign.

LSC Lighting Systems (Aust) Pty. Ltd Page 34
