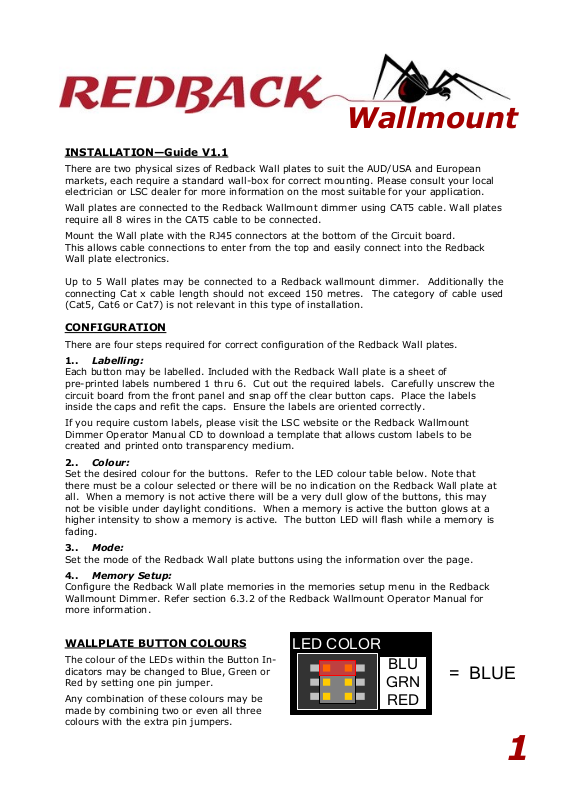

INSTALLATION—Guide V1.1
LED COLOR
BLU
GRN
RED
= BLUE
There are two physical sizes of Redback Wall plates to suit the AUD/USA and European
markets, each require a standard wall-box for correct mounting. Please consult your local
electrician or LSC dealer for more information on the most suitable for your application.
Wall plates are connected to the Redback Wallmount dimmer using CAT5 cable. Wall plates
require all 8 wires in the CAT5 cable to be connected.
Mount the Wall plate with the RJ45 connectors at the bottom of the Circuit board.
This allows cable connections to enter from the top and easily connect into the Redback
Wall plate electronics.
Up to 5 Wall plates may be connected to a Redback wallmount dimmer. Additionally the
connecting Cat x cable length should not exceed 150 metres. The category of cable used
(Cat5, Cat6 or Cat7) is not relevant in this type of installation.
CONFIGURATION
There are four steps required for correct configuration of the Redback Wall plates.
1.. Labelling:
Each button may be labelled. Included with the Redback Wall plate is a sheet of
pre-printed labels numbered 1 thru 6. Cut out the required labels. Carefully unscrew the
circuit board from the front panel and snap off the clear button caps. Place the labels
inside the caps and refit the caps. Ensure the labels are oriented correctly.
If you require custom labels, please visit the LSC website or the Redback Wallmount
Dimmer Operator Manual CD to download a template that allows custom labels to be
created and printed onto transparency medium.
2.. Colour:
Set the desired colour for the buttons. Refer to the LED colour table below. Note that
there must be a colour selected or there will be no indication on the Redback Wall plate at
all. When a memory is not active there will be a very dull glow of the buttons, this may
not be visible under daylight conditions. When a memory is active the button glows at a
higher intensity to show a memory is active. The button LED will flash while a memory is
fading.
3.. Mode:
Set the mode of the Redback Wall plate buttons using the information over the page.
4.. Memory Setup:
Configure the Redback Wall plate memories in the memories setup menu in the Redback
Wallmount Dimmer. Refer section 6.3.2 of the Redback Wallmount Operator Manual for
more information.
WALLPLATE BUTTON COLOURS
The colour of the LEDs within the Button Indicators may be changed to Blue, Green or
Red by setting one pin jumper.
Any combination of these colours may be
made by combining two or even all three
colours with the extra pin jumpers.
Wallmount
1
MODE MODE MODE MODEMODEMODE
1 2 6543
MODEMODE MODE MODE
2 31 2 3 4 5 6
MODEMODE
3 4
1 2
5 6
ONE BUTTON PLATES
TWO BUTTON PLATES SIX BUTTON PLATE
Wallmount
MODE SETTING:
Mode setting connects the Redback Wall plate buttons to the Redback Wallmount dimmer
memories. The diagrams below depict the Redback Wall plate options with the control memory
number shown inside the circle. From the diagrams below, locate the drawing which shows
the required memory / button configuration and set the Mode jumpers accordingly.
Note the settings below are the only valid configurations.
A mode must be set for the plate to operate correctly.
For more information please visit www.lsclighting.com.au
2
Redback Wallmount Plate User manual RDPL-T01U-A0. July 2011 © LSC lighting Systems
