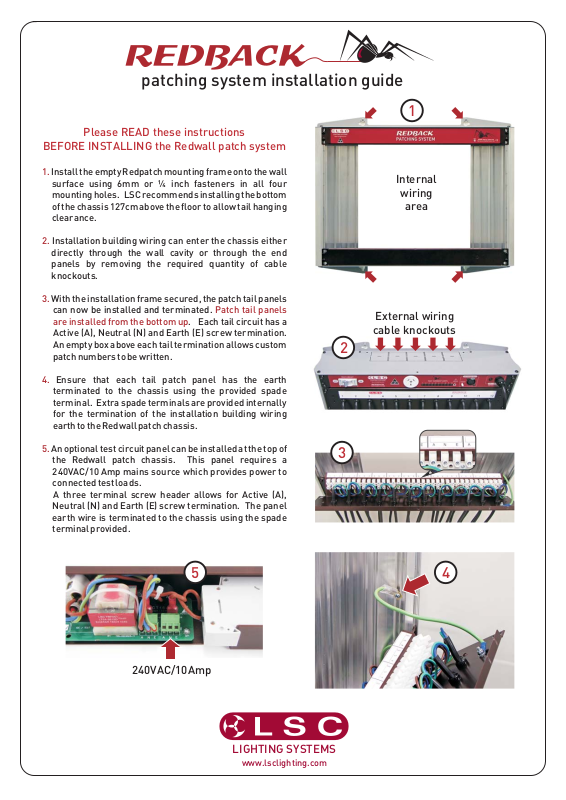

patching system installation guide
Please READ these instructions
BEFORE INSTALLING the Redwall patch system
1.
Install the emptyRedpatchmounting frame onto thewall
surface using 6mm or ΒΌ inch fasteners in all four
mounting holes. LSC recommends installingthe bottom
of the chassis127cmabove the floorto allow hanging
clearance.
2.
Installation building wiring can enter the chassis either
directly through the wall cavity or through the end
panels by removing the required quantity of cable
knockouts.
3.
With the installationframe secured, thepatch tail panels
can now be installed and terminated.
are installedfrom thebottom up
Active (A), Neutral (N) and Earth (E) screw termination.
An empty box above eachtail termination allows custom
patch numbers to bewritten.
. Each tailcircuit hasa
tail
Patch tail panels
1
Internal
wiring
area
External wiring
cable knockouts
2
Ensure that each tail patch panel has the earth
4.
terminated to the chassis using the provided spade
terminal. Extra spade terminalsare provided internally
for the termination of the installation building wiring
earth to the Redwallpatchchassis.
An optional testcircuit panel can beinstalled at the topof
5.
the Redwall patch chassis. This panel requires a
240VAC/10 Amp mains source which provides power to
connected test loads.
A three terminal screw header allows for Active (A),
Neutral (N) and Earth (E) screw termination. The panel
earth wire is terminated to the chassis using the spade
terminal provided.
3
45
240VAC/10Amp
